Type: Motor Yacht - Pilothouse

Builder: Dauntless Yachts 2013

Fuel Capacity: 4,000 Gallons

Water Capacity: 550 Gallons

Hull material: Fiberglass

LOA: 73’

Speed: Cruise/Max: 12 Knots / 13 Knots

Beam: 21’

Displacement: 82 Tons

Draft: 6’

Engines: 2 x John Deere 425 HP / Diesel / I/B

Location: Stuart, FL

Photos: Scroll down

Overview:

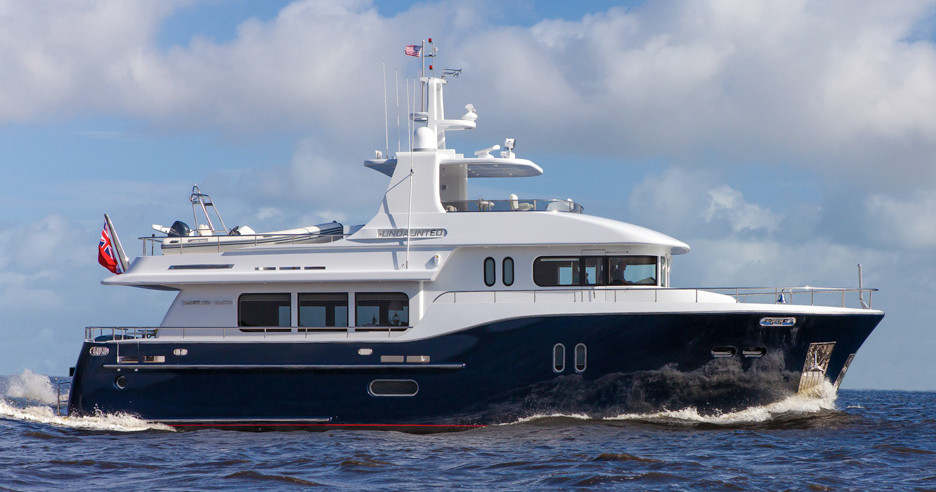

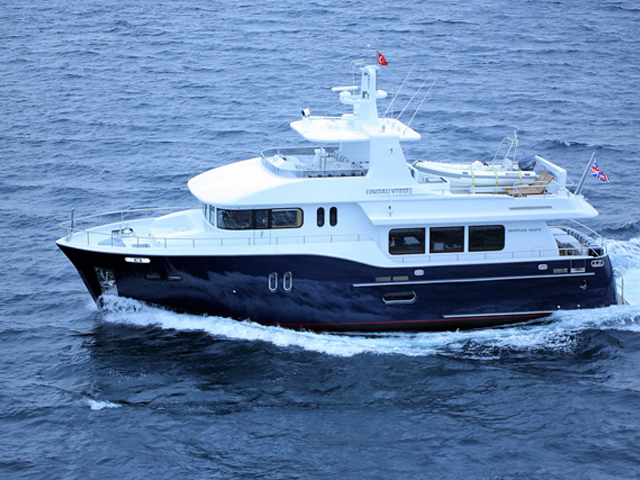

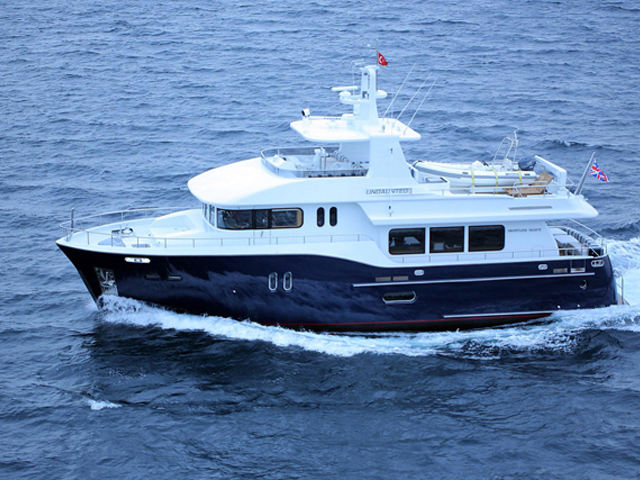

Undaunted is built on the proven fast-displacement hull form designed by acclaimed Naval Architect Jon Overing. She has excellent sea keeping ability and comfort designed with emphasis to on hull form to reduce pitching and dampen roll. She also has the ability to maintain higher cruising speeds in unfavorable conditions while still providing a very comfortable ride. Additionally there is large interior volume well exceeding that normally found in a vessel of comparable length.

Step onboard Undaunted and enter the Mega Yacht quality interior designed by the renowned JC Espinosa. Relax in the truly stunning salon and enjoy the elegant formal dining that seats eight. The traditional raised panel oak interior is complemented by large windows to create a light and airy atmosphere.

There is an exceptional four stateroom layout with ensuite baths and separate crew quarters, along with separate laundry facilities and provisions department. These features greatly enhance the practicality and comfort for long distance cruising, especially when accompanied by a number of guests.

The generous freeboard forward combined with the raised pilothouse configuration results in a tremendous eye-level of 15-feet above the waterline. This gives a commanding view with unobstructed visibility. The ergonomically designed helm station includes a vertical window style. Aft to port is a richly upholstered settee with table doubling as a pilot berth for long voyages. Aft to starboard is the well placed on-deck head. A comfortable stairway to the flybridge makes access easy and convenient for both crew and guests. Adjacent the flybridge dining is a fully equipped service bar and stainless gas grill. The bar is ideal for a staging area to serve a formal meal or can serve as a buffet for a la carte. The bar is equipped with a refrigerator, ice maker and stainless sink.

There is a full-beam master stateroom accompanied by a full-beam bathroom. Complementing the king-size bed are built-in dressers to port and couch to starboard. Forward to port is a large, double-door, cedar-lined closet. The his-and-hers bathroom is divided by a large glass and marble shower with separate toilets and marble topped vanities. The lower level laundry facility is located underneath the guest stateroom compartment with six-foot four-inch headroom. Equipped with two washers, two dryers and soaking sink, along with three 5-cubic foot freezers and dry provision storage.

Forward is an auxiliary machinery space housing the water makers, pressure sets and ample dry goods spare storage

The nicely appointed crew quarters have upper and lower berths, ensuite bath and cedar-lined closet. To port is the lazarette featuring a large stainless "country style" sink, built-in cabinetry and large stowage locker.

The galley is fully equipped with under mount stainless double sink, wall oven with microwave above, cooktop, dishwasher, trash-compactor and SubZero refrigerator/freezer. Within arm’s reach of the galley is a plush, elevated settee creating a comfortable, flowing space for casual entertaining while underway or at anchor. This is ideal for owner operators who do not want to be isolated in the galley.

Full walk-around side decks, an inviting foredeck, large covered aft deck with stairways to the platform and boat deck eliminate traffic through the salon There are lounging areas on the foredeck, aft deck and flybridge. Two dining alfresco areas are incorporated on the aft main deck and flybridge that will comfortably seat eight. The flybridge dining table also drops down to form a large lounging pad. The generous deck space to accommodate the 17' tender and the boat deck can also accommodate scooters and other water toys.

Specifications:

CONSTRUCTION

·    100%  Infused Vinylester Construction

·    Solid laminate infused (SCRIMP) vinylester hull

·    Airex Core Bulkheads and Stringers

·    Airex Core infused (SCRIMP) vinylester superstructure

·    Six Watertight Hull Compartments

·    International Epoxy Barrier Coat and Antifoulant

·    Watertight Stabilizer Compartments P/S

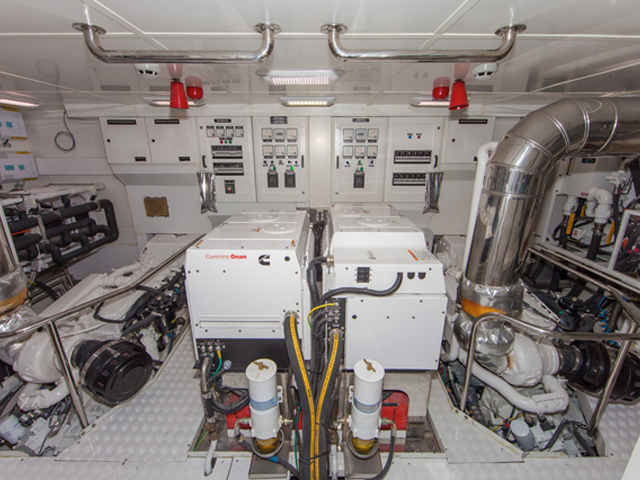

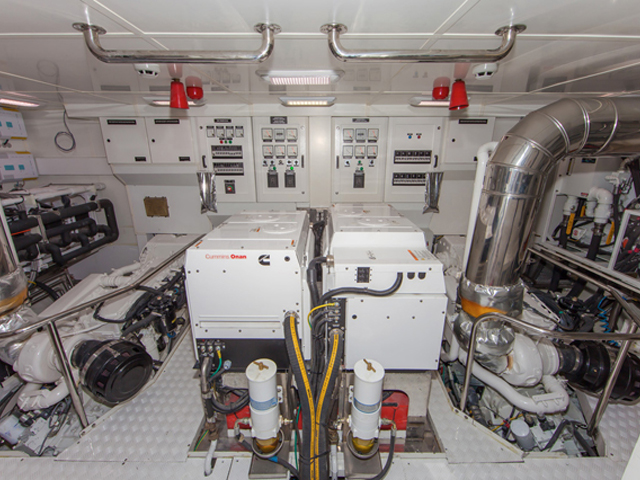

ENGINE ROOM & MAJOR EQUIPMENT

·    Walk-in Engine Room with Direct Access to Crew Compartment & Main Deck

·    (2) John Deere 6090SFM75 M3, 425 BHP @ 2,300 RPM

·    (2) ZF 305-1 Reduction Gears 2.917:1 Ratio

·    3” Aquatech 22HS Propeller Shafts

·    38” Dia X 28” Pitch, 5-Blade, Nibral, “S” Class, 0.85 DAR Propellers

·    Stainless 316L Foil Rudders w/3” Dia Aquatech 22HS Rudder Stocks

·    Stainless 316L “I” Shaft Struts

·    Kobelt single lever controls

·    Kobelt Walk-about Controller w/3 Stations

·    Water Drop Exhaust System

·    (2) 21.5kW Onan Generators

·    Racor Fuel/Water Filters

·    Fuel Transfer System

·    Proprietary Dual Stand-Pipe Seachest w/Main Feed Crossover and Monel Inverted Cone

·    Self-Cleaning Strainers

·    Fire Extinguishing System

·    Hydraulic Bow Thruster

·    TRAC Hydraulic Stabilizers

·    Kobelt Hydraulic Steering

·    Headhunter Tank Level Monitoring System

·    (2) Freshwater pressure sets

·    (3) Hot water heaters

·    Aqua Air 12 Ton Chilled Water AC/heat system

·    Battery Chargers

·    Engine Room Blower System with Variable Speed Controllers

·    Air Cond. Eng. Rm. & Mach. Space

·    (2) Maxwell VRC3500 Anchor Windlasses

·    Stainless 316L Anchor Pockets & (2)65KG SHHP SST 316L

·    Anchors W/300 ft. 12.5mm Galv Stud Link Chain P/S

·    Coast Guard approved Safety Equipment

INTERIOR

·    Smooth-faced contemporary interior furniture package

·    Soundown Carpet Underlayment Pad

·    Standard Builders selection of marble, granite, Corian and tile

·    Standard Builders selection of Amtico flooring

·    Standard Builders selection of wood veneer and faux leather wall coverings

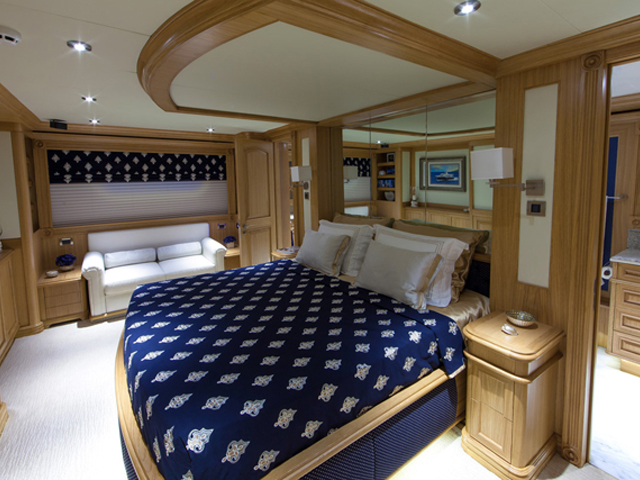

MASTER STATEROOM

·    Full King-size bed complete with high quality mattress

·    Rope lighting under bed

·    Built in nightstands and dresser

·    Large walk in closet

·    Storage space built in under bed

·    Cedar lined closets w/ lights

·    Built in Entertainment Center wired to receive components

·    Fixed Windows

·    Built in settee

·    High quality fitted carpet

·    Selected wood and faux leather wall coverings

·    AC/heat system w/ digital controls

·    Lighting recessed in ceiling

MASTER STATEROOM EN-SUITE BATH

·    Vanity w/ mirror

·    Marble top w/ two Wash Basins

·    Separate Water Closet w/ Headhunter Toilet

·    Oversized stall shower

·    Exhaust fan system

·    Lighting recessed in ceiling

·    Ceramic floor tiles

VIP STATEROOM

·    Queen-size bed complete with high quality mattress

·    Rope lighting under bed

·    Built in nightstands and dresser

·    Cedar lined closets w/ lights

·    Storage space built in under beds

·    Built in Entertainment Center wired to receive components

·    Fixed Port lights

·    High quality fitted carpet

·    Selected wood and faux leather wall coverings

·    AC/heat system w/ digital controls

·    Lighting recessed in ceiling

VIP STATEROOM ENSUITE BATH

·    Vanity w/ mirror

·    Marble top w/ Wash Basin

·    Headhunter Toilet

·    Large stall shower

·    Exhaust fan system

·    Lighting recessed in ceiling

·    Ceramic floor tiles

GUEST STATEROOMS

·    One Queen, and One Twin cabin complete with high quality mattresses

·    Rope lighting under bed

·    Built in nightstands and dresser

·    Cedar lined closets w/ lights

·    Drawer space built in under beds

·    Built in Entertainment Center wired to receive components

·    Fixed Port lights

·    High quality fitted carpet

·    Selected wood and faux leather wall coverings

·    AC/heat system w/ digital controls

·    Lighting recessed in ceiling

GUEST STATEROOMS ENSUITE BATH

·    Vanity w/ mirror

·    Marble top w/ Wash Basin

·    Headhunter Toilet

·    Large stall shower

·    Exhaust fan system

·    Lighting recessed in ceiling

·    Ceramic floor tiles

CREW CABIN

·    Single lower and upper berths complete with high quality mattresses

·    Built in nightstand and dresser

·    Cedar lined closet w/ light

·    Drawer space built in under bed

·    Built in Entertainment Center wired to receive components

·    Fixed Port lights

·    Amtico floor tiles

·    Selected wood wall coverings

·    AC/heat system w/ digital controls

·    Lighting recessed in ceiling

CREW HEAD

·    Vanity w/mirror

·    Corian top w/ Wash Basin

·    Headhunter Toilet

·    Large stall shower

·    Exhaust fan system

·    Lighting recessed in ceiling

·    Amtico floor tiles

LAZARETTE

·    Corian countertops

·    Stainless Sink

·    Overhead and under Cabinet Storage

·    Built in Storage Locker

·    Pirelli flooring

·    Selected wood wall coverings

·    AC/heat system w/ digital controls

·    Lighting recessed in ceiling

LOWER SERVICE DECK

·    Separate Laundry Facility with Washer and Dryer

·    Stainless Laundry Sink and Counter

·    Dry Provisions Storage

·    Cabinet Storage

·    Forward Equipment Compartment with Watertight Door

·    Oversize Access Hatches from Lower Service Deck to Foredeck

·    Amtico floor tiles

·    Selected wood wall coverings

·    AC/heat system w/ digital controls in laundry area

·    Lighting recessed in ceiling

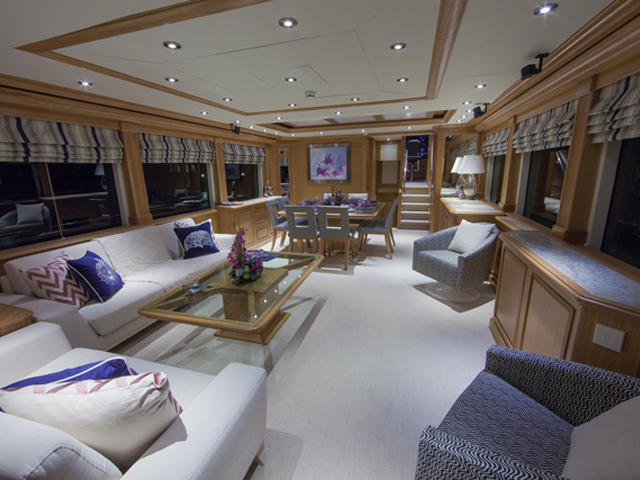

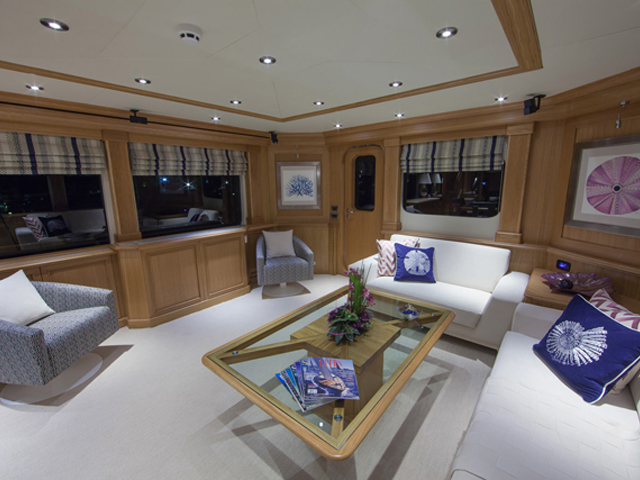

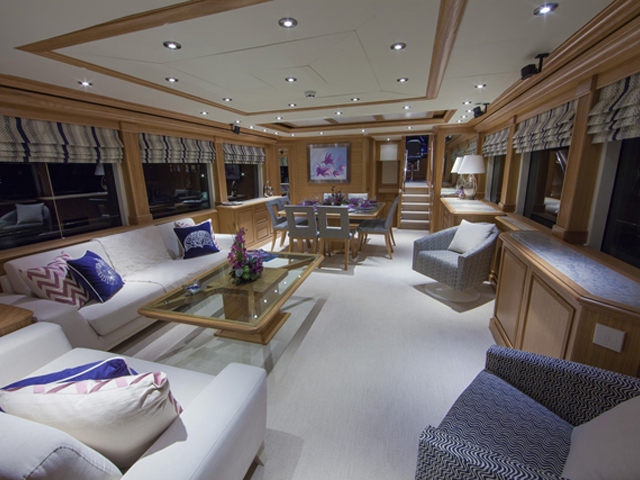

MAIN SALON

·         Built in Entertainment Center wired to receive components

·         High quality fitted carpet

·         Selected wood and faux leather wall coverings

·         AC/heat system w/ digital controls

·         Lighting recessed in ceiling

FORMAL DINING

·         Dining Table and Chairs to Seat Eight

·         Forward Floor to Ceiling China Cabinet

·         Portside Fore and Aft China Cabinet

·         Buffet cabinet

·         High quality fitted carpet

·         Selected wood and faux leather wall coverings

·         AC/heat system w/ digital controls

·         Lighting recessed in ceiling

DAY HEAD

·         Powder Room Vanity w/ mirror

·         Granite top wash basins

·         Head Hunter Toilet

·         Exhaust fan system

·         Lighting recessed in ceiling

·         Amtico floor tiles

GALLEY

·         Cabinets and Granite tops

·         Subzero Refrigerator/Freezer

·         Self cleaning oven

·         Microwave oven

·         Dishwasher

·         Trash Compactor

·         Surface range w/exhaust hood

·         Double Stainless sink w/disposal

·         Under counter and overhead lighting

·         Pantry Cabinets

·         Amtico tiled floors

·         Selected wood and faux leather wall coverings

·         AC/heat system w/digital controls

·         Lighting recessed in ceiling

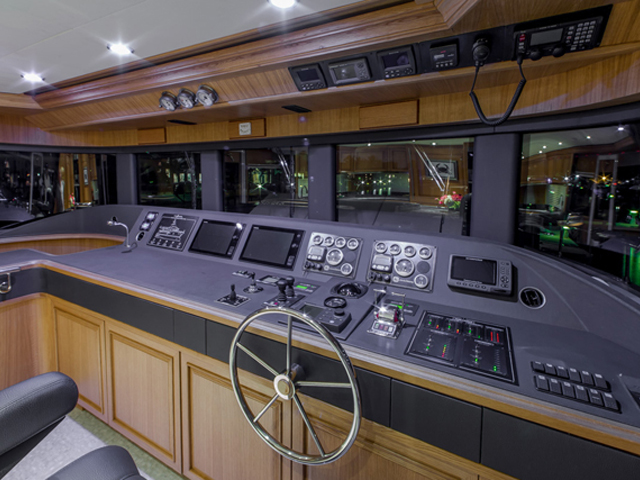

PILOTHOUSE

·         Padded control console

·         Full instrumentation

·         Stidd Helm chair

·         Elevated settee and table

·         Three windshield wipers/washers

·         Safety Panel and Monitoring System

·         Amtico tiled floors

·         Selected wood and faux leather wall coverings

·         AC/heat system w/digital controls

·         Recessed white and red lighting in ceiling

EXTERIOR

·         Stainless 316L Solid Bar Rub Rails

·         Stainless 316L Handrails

·         All Exterior Hardware Stainless 316L

·         Freshwater Washdowns

·         Port, Stbd and Aft deck Plug-ins for Walk-About-Controller

·         White non-skid Deck

FOREDECK

·         Built in Sunlounger w/ Powered Hatch to Storage Under

·         Oversize Deck Hatch to Access Lower Service Deck

·         Port and Stbd Roller Fairleads w/Stainless 316L Bollards

·         Stainless 316L Fog Bell Stand

·         Stainless 316L Burgee Staff

·         (2) Maxwell VRC3500 Anchor Windlasses w/Chain Compressors

·         White non-skid Deck

BOARDING PLATFORM

·         Stainless 316L Railings

·         Direct Access to Crew Compartment

·         Port and Stbd Stainless 316L Bollards

·         Stainless 316L Swim Ladder

·         Pull out hot and cold shower

·         White non-skid Deck

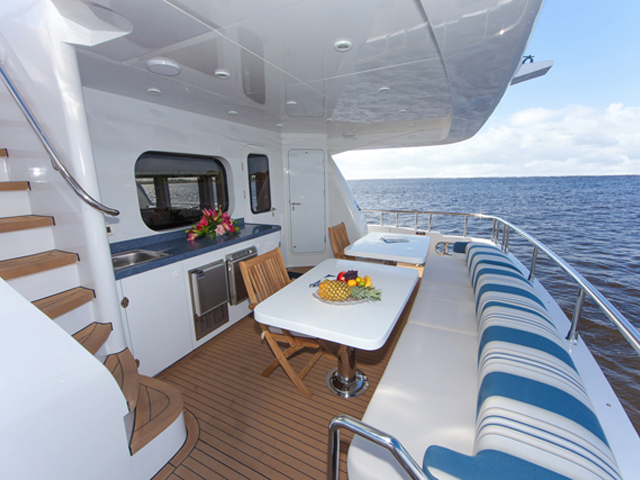

AFT MAIN DECK

·         Built in Seating w/ tables to seat 8

·         Built-in Bar w/ Stainless Sink, Refrig. and Ice Machine

·         Port and Stbd. Warping Capstans w/Stainless 316L Bollards

·         Sheltered Access to Engine Room and Crew Compartment

·         Stainless 316L Railings

·         White non-skid Deck

BOAT DECK

·         Chocks for Owner furnished Tender up to 17’

·         Flush Stainless 316L Tiedown Padeyes

·         (1) 1500 Lb. Hydraulic Crane

·         Stairwell to Main Deck

·         White non-skid Deck

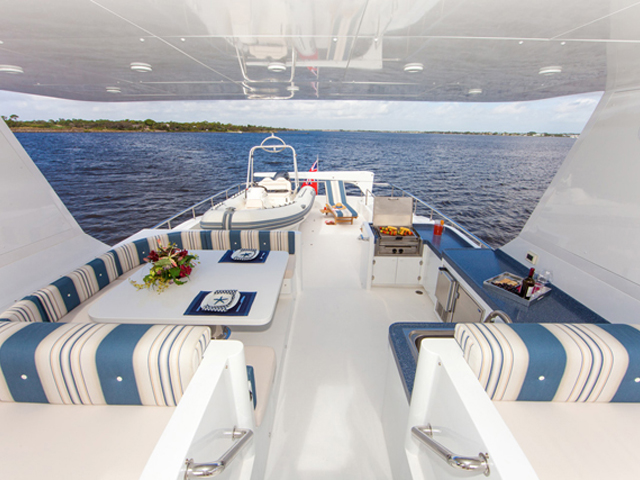

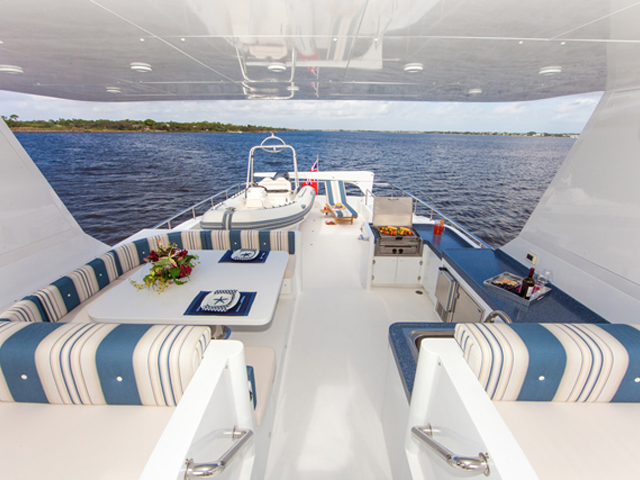

FLYBRIDGE

·         Canopy, Arch and Mast

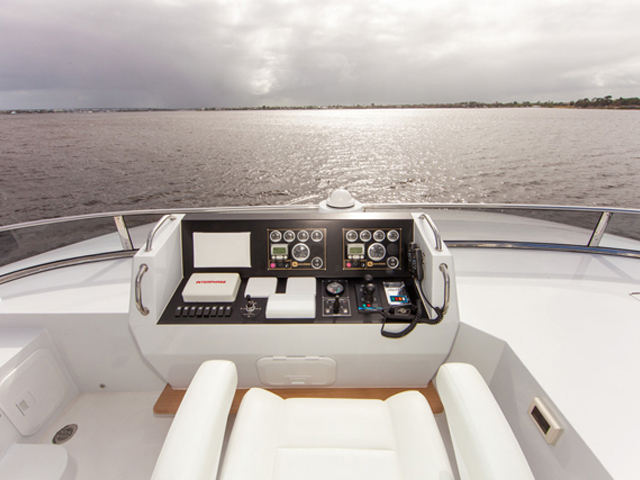

·         Helm Station w/Full Instrumentation and Stidd Helm Chair

·         Access Hatch and Direct Stairs to Pilothouse

·         Forward Seating w/Cushions and Table

·         Built-in “U” Shaped Hi-low table to seat 8 converts into Extensive Relaxation Area

·         Bar w/ Refrigerator/Freezer and Stainless Sink

·         Flybridge Lexan Windscreen w/Stainless 316L Handrail

·         White non-skid Deck
