SOLD - NEW BUILD 45m Landing Craft

Listing ID - 5370
Description	45m Landing Craft Tank
Date Launched	NEW
Length	45m (147ft 7.65in)
Beam	9m (29ft 6in)
Draft	2.75m (9ft)
Note	2 x Mitsubishi Engine
Location	Indonesia
Broker	Ivan Colaco ivan.colaco@seaboatsbrokers.com +61 401 695 814
View As PDF

Hull Number: ID-RMMW03F2525
Type of vessel: Landing Craft Tank
Classification: BKI
Build Year: New Building
Length Over All (LOA): 45.00 meters
Registered Breadth: 9.00 meters
Registered Depth: 3.00 meters

Draft: 2.75m
GT / NT: +/- 420 ton / +/- 240 ton
Fresh Water Capacity: +/- 30 Tons
Fuel Oil Tank Capacity: +/- 30 KL
Cargo Oil / Ballast Capacity: +/- 550 KL (10 tanks x 55 KL)

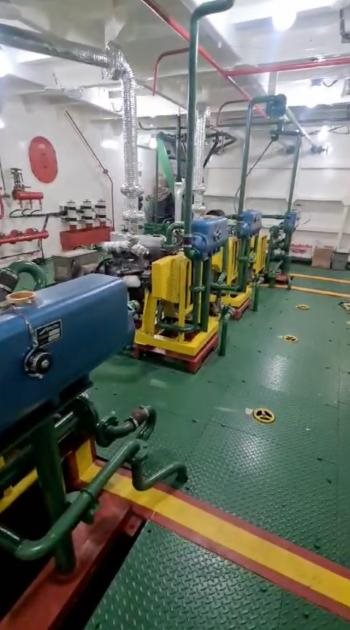

Machinery & Deck Equipment

Main Engine: 2 x 400 HP Mitsubishi S6 (new)

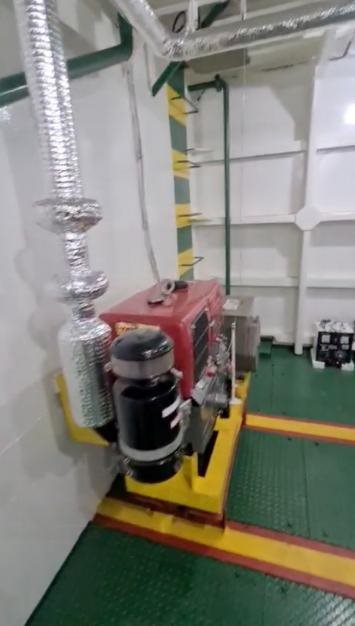

Auxiliary Engine: 2 x 27 kW Mitsubishi 4D34 (recondition), 1 x 18 kW Yanmar 230R (new)

Gear Box: 2 x Marine Gearbox

Generator Set: 2 x 60 KVA Yanmar, 50 Hz, 380V, 3 ph., 1500 rpm

Emergency Generator: 1 x 15 KVA Yanmar YTG15T, 50 Hz, 380V, 3 ph.

Speed (Loaded condition): Approx. 10 knots

OWS: 1-unit OWS 0.25 m³/hr.

Winch Anchor: Electric Motor

Anchor: 2 units @300 Kg

Steering: Powerpack & Hydraulic – Manual

Container Shoe: 15 sets x 20 ft container

Cargo Oil Pump: 15 m³/hr. at 30 meters head

Flow meter: 3 set

Safety Equipment

Landing Buoy: 8 units with light and lifeline

Life Raft: 2 units @ 15 persons

Life Jacket: 15 units

Life Boat: 1 set fiberglass boat with outboard engine

First Aid Kit: 1 set

Smoke/ Gas Detector: 6 units

Heat Detector: 3 units

Parachute Signal: 8 units

Red Hand Flare: 8 units

Bell: 4 units

Siren: 1 unit

SART: 1-unit SAMYUNG SAR-9

EPIRB: 1-unit SAMYUNG SEP-500

Fire Extinguishers: 12 units

Hydrant Valve: 2 units

Fire Blanket: 1 unit

Fireman Outfit: 1 set

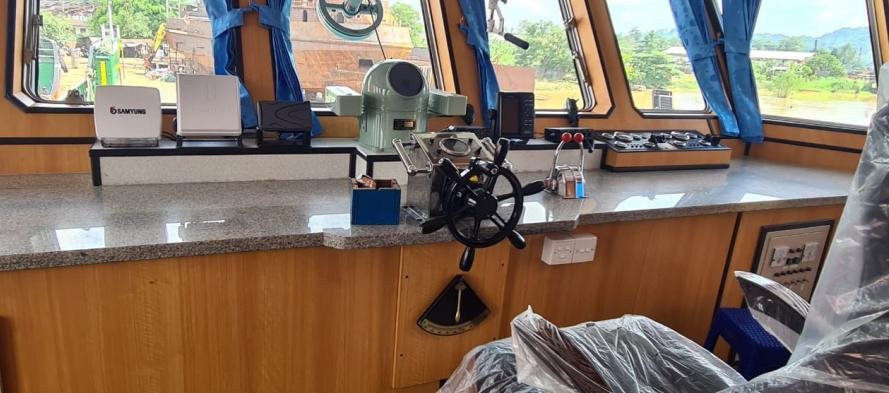

Navigational Equipment

Compass magnetic: 1 unit DAIKO T-150B

Radar: 1-unit FURUNO 1815

Sea Map: 1 set

Binoculars: 1 unit

Clear view screen: 1 unit

Searchlight: 1 x 1,000-Watt, 1 x 250-Watt, 2 x 400 Watt

Clinometers: 1 unit

GPS Satellite: 1-unit FURUNO GO-39

Echo sounder: 1-unit FURUNO FCV 688

Navtex: 1-unit FURUNO NX 300

AIS Class A: 1-unit SAMYUNG SI 30A

Autopilot + Repeater: 1 set Linhai Yida SY288

Navigation Light: 1 set

BCTRACK: 1 set (Software monitoring program)

Communication

Radio VHF: 1-unit ICOM M 324

Radio SSB: 1-unit ICOM M710

Handy Talkie: 4 units ICOM VC V68

Telephone (Intercom): 4 units COMMAX 6RC

Accommodation

Television: 2 units

Air Condition: 6-unit 1HP, 2-unit 2HP

Sleeping Equipment: 4 Bunk Bed 2 level (1 set/rooms for crew), 2 single bed (2 rooms for Capt. and Chief Eng.)

Refrigerator: 1 unit

Chest Freezer (100 L): 1 unit

Microwave: 1 unit

Electric Stove: 1 stove, 2 plate

Dispenser hot & cold: 1 unit

Kitchenette: 1 set

CCTV: 8 set

Plate of Ship

Keel: 12 mm

Frame: 8 mm

Bottom: 10 mm

Partition: 8 mm

Hull: 10 mm

Deck: 8 mm

Brisk: 6mm

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
