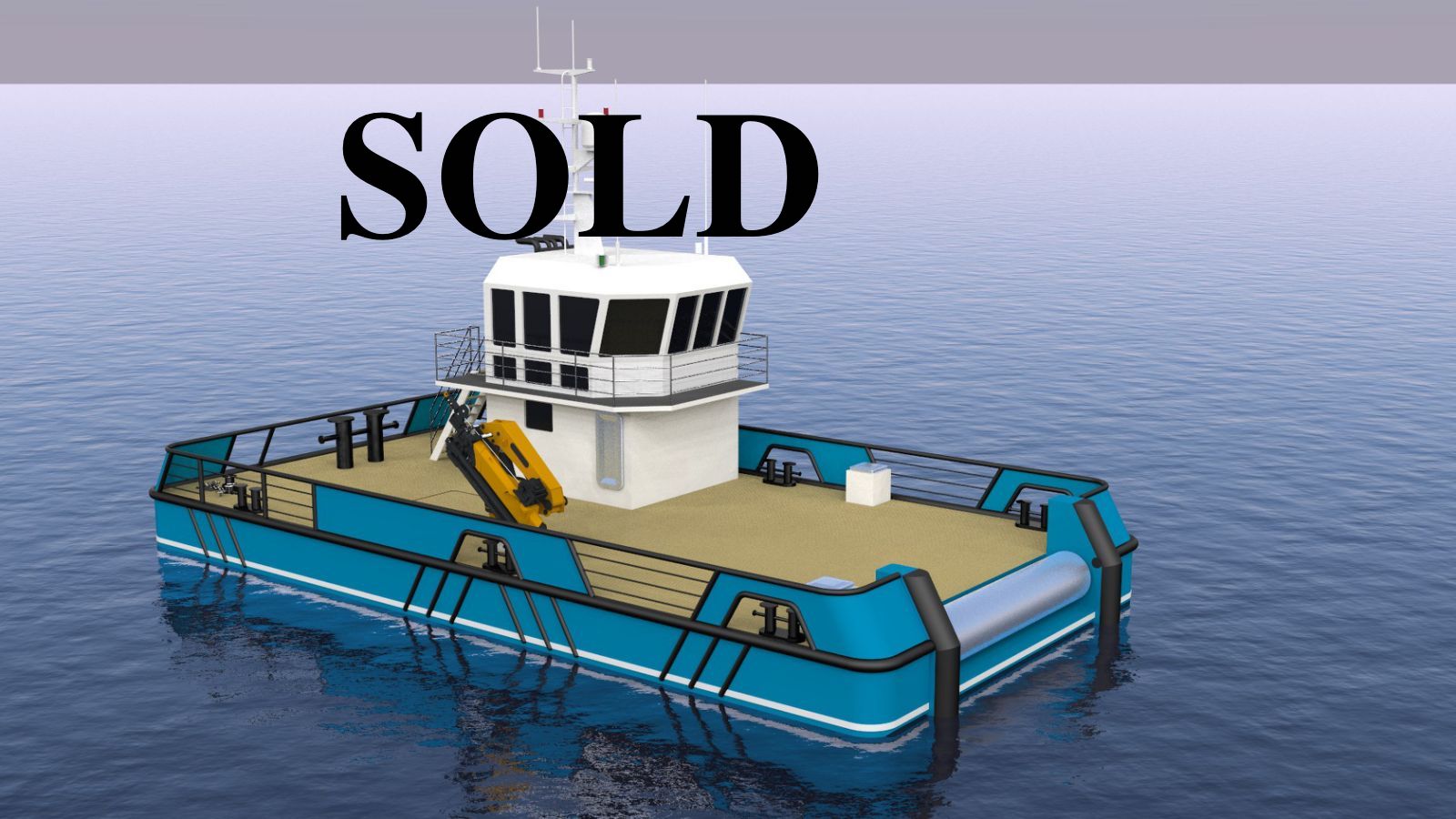

SOLD - NEW BUILD - 18m Multicat

Listing ID - 3813-1
Description	MPP Workboat
Date Launched	Built to Order
Length	18m (59ft)
Beam	9m (29ft 6in)
Draft	1.90m (6ft 3in)
Location	Ukraine
Broker	Giuseppe Filippone giuseppe.filippone@seaboatsbrokers.com +39 329 886 8343
View As PDF

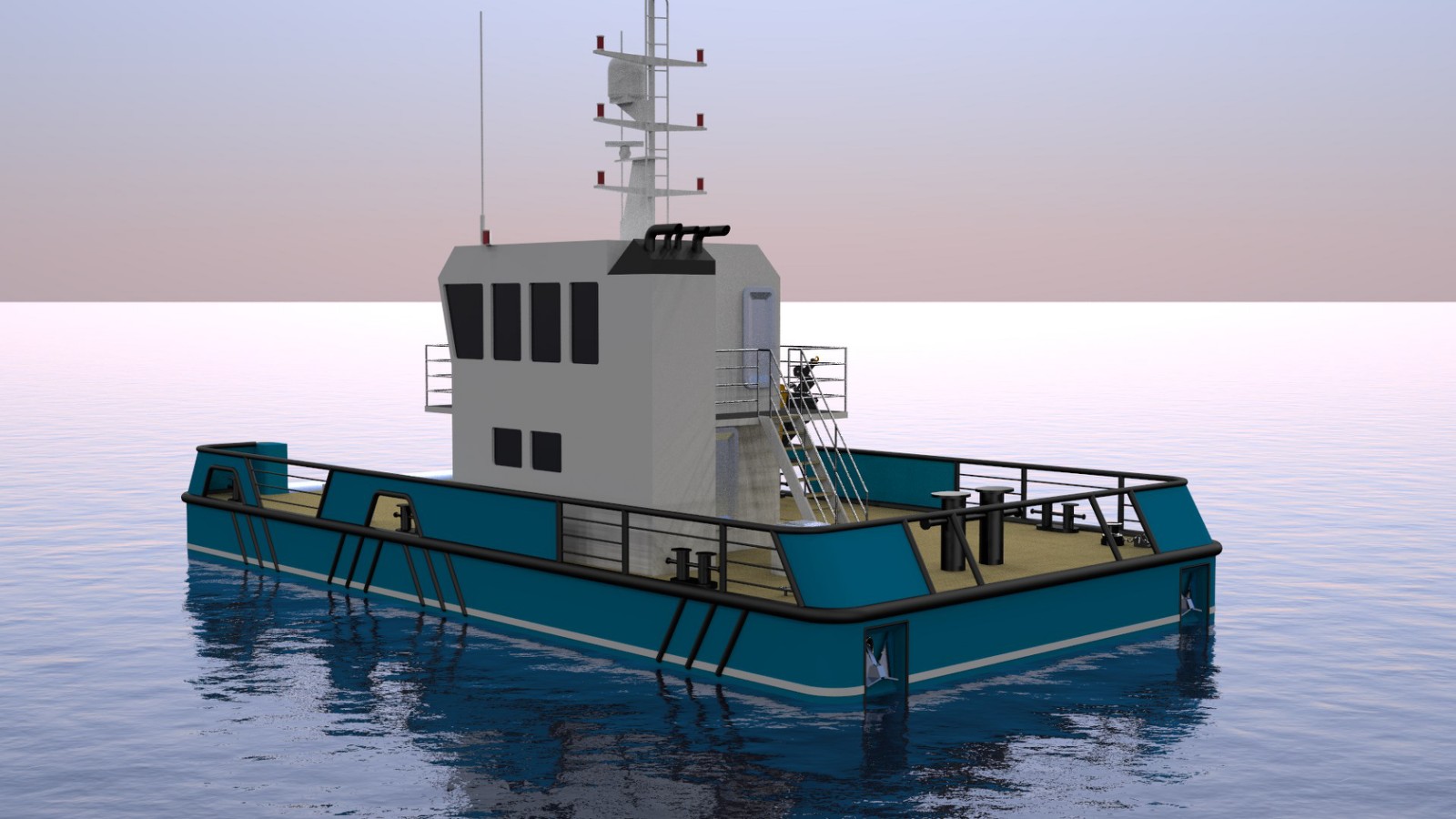

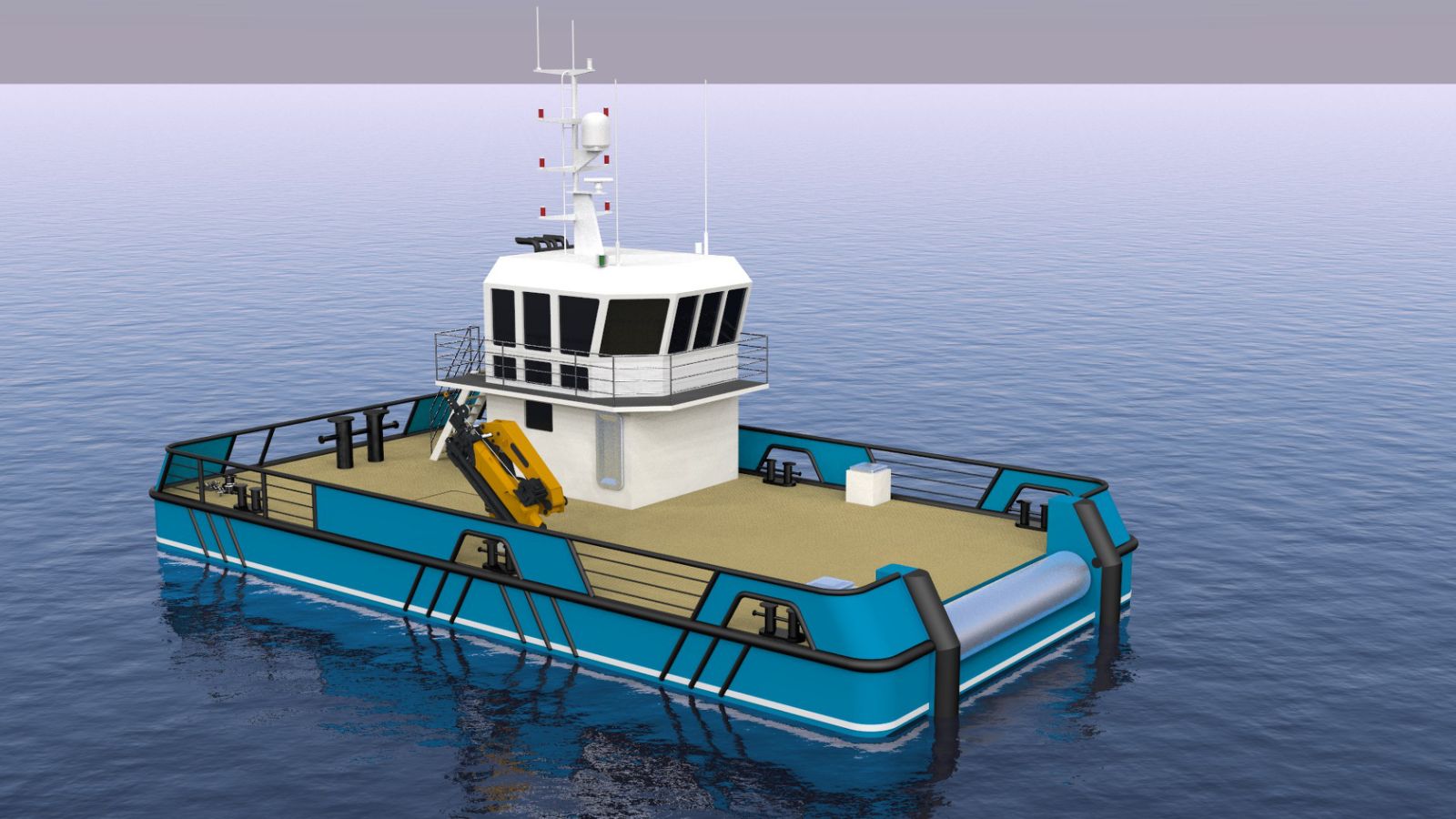

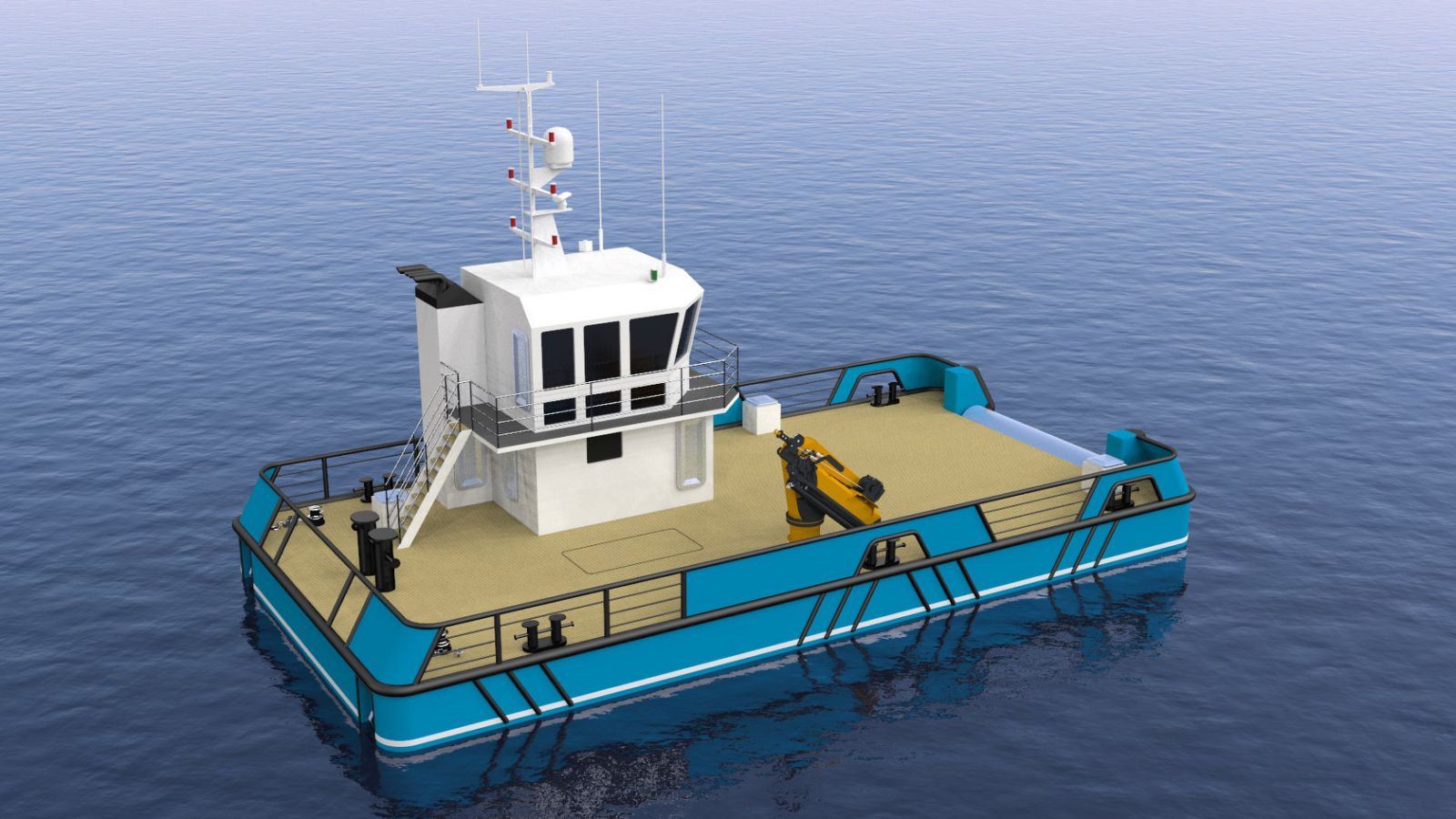

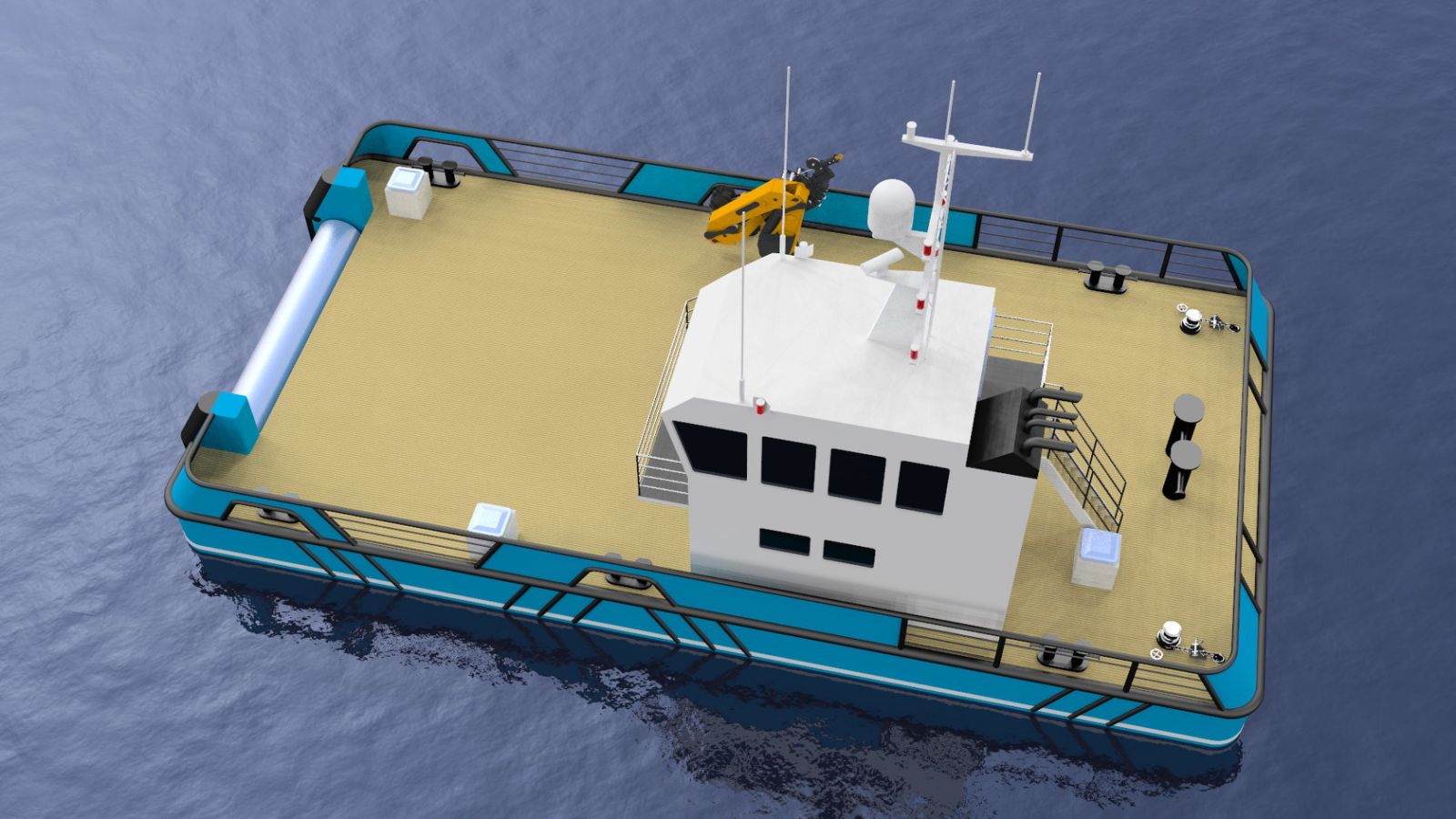

Sturdy multicat type workboat designed for a variety of duties: Rec-Oil, Towing, Pushing, Anchor Handling Works, Support Operation.

Unit #1 is already under construction at Grani Shipyard (Ukraine) with delivery scheduled for November 2022.

A new unit can be customized to Owner’s Specific Requirements.

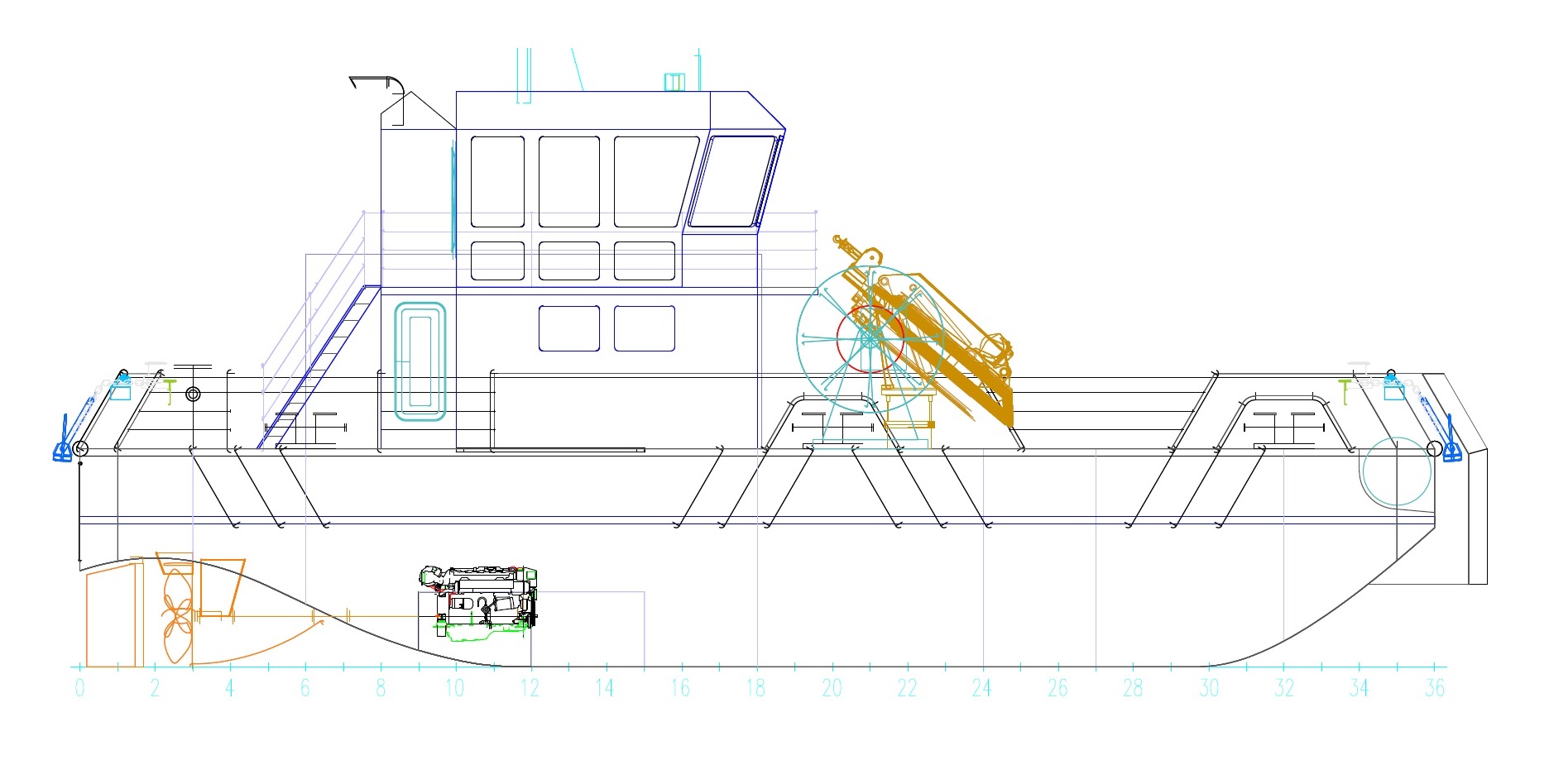

Dimensions

LOA: 18m

Beam O.A.: 9m

Depth At Sides: 2.6m

Draught Aft (Approx.): 1.9m

Classification:

UK MCA Workboat, Cat 2 - 60nm From Safe Haven Or To Owner’s Choice.

Construction

Steel RCA

Hull Plating: 10 mm

Deck Plating: 8 mm

Painting: Epoxy Paint System Sigma

Tank Capacities

Fuel Oil: 2 x 4.5 m3

Fresh Water: 2.5 m3

Lubrication Oil: 0.8 m3

Dirty Oil: 0.9 m3

Bilge Water: 0.8 m3

Sewage: 0.9 m3

Fresh Water Ballast Aft: 12.0 m3

Fresh Water Ballast Front: 9.0 m3

Oil Collector Tank: 44 m3

Performances

Bollard Pull Ahead: 15 Ton

Speed: 9 Knots

Propulsion System

Main Engines: 2 x Weichai Wd12c400-21 400 Hp

Total Power: 2 x 400 Hp @ 2100 Rpm

Gearboxes: 2 x ZF

Propellers: 2 x Fixed Pitch Propellers

Nozzles: 2 x 1350 mm

Steering Gear Powered Hydraulic/Mechanical

Complete 4 Point Mooring System (Windlasses + Anchors + Chains)

Each Point 2 Mt Force.

Auxiliary Equipment

Generator Sets :

1 X 100 Kva, 230/400 V, 50 Hz

1 X 30 Kva, 230/400 V, 50 Hz.

Hydraulic System

Main Engine Driven Hydraulic Pumps

Alarm System

Engines, Gearboxes + Bilge Alarm

Bilge Pump/Gs Pump

2x Sterling Vwsi 5013 , 24 M3/Hr At 10 M.W.G.,

Electrically Driven

Freshwater System

Electrical Pressure Set And Sewage Pump

F.W. Transfer Pump

20 M3/Hr At 14 M.W.G.

F.O. Transfer Pump

20 M3/Hr At 14 M.W.G.

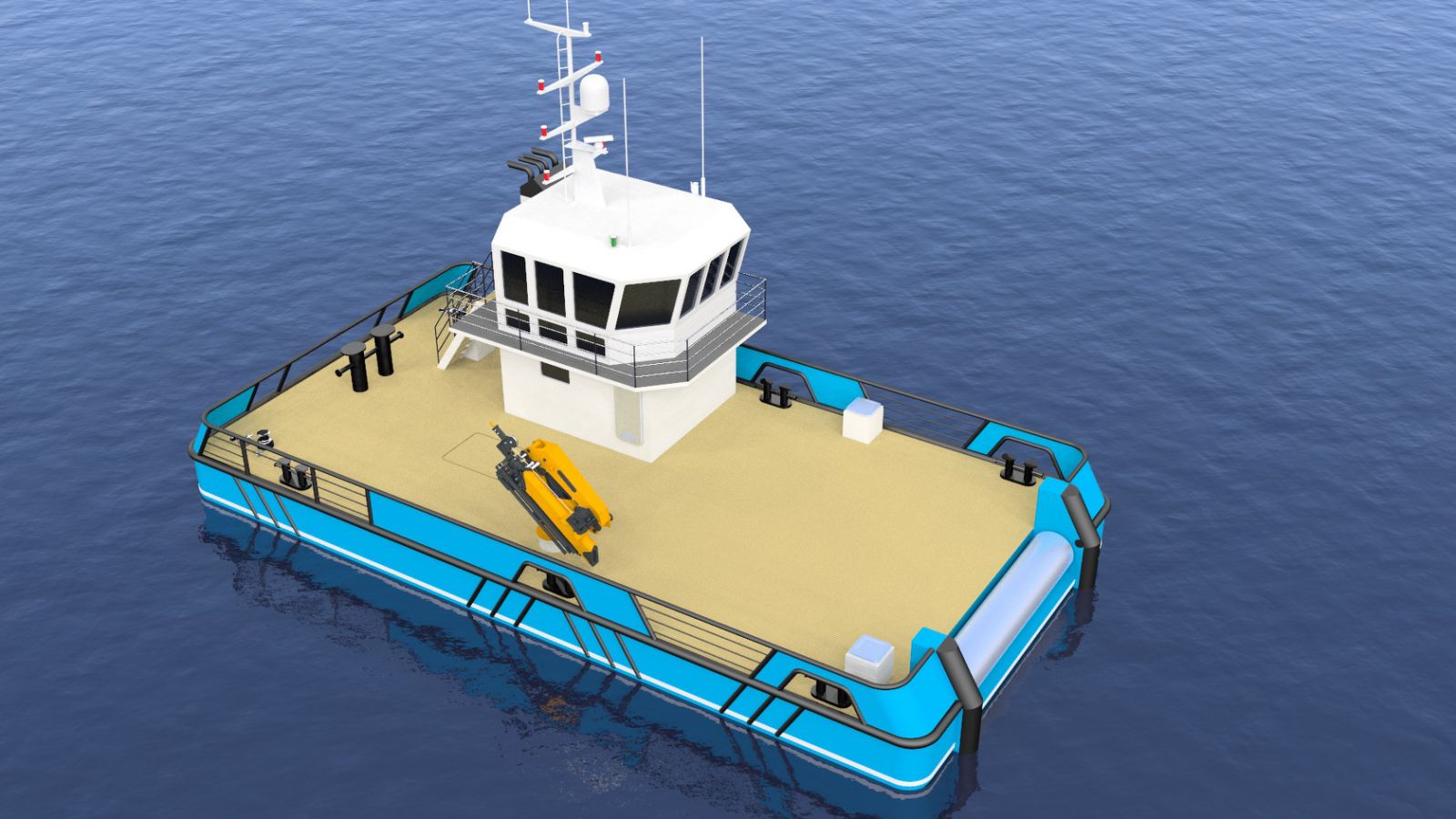

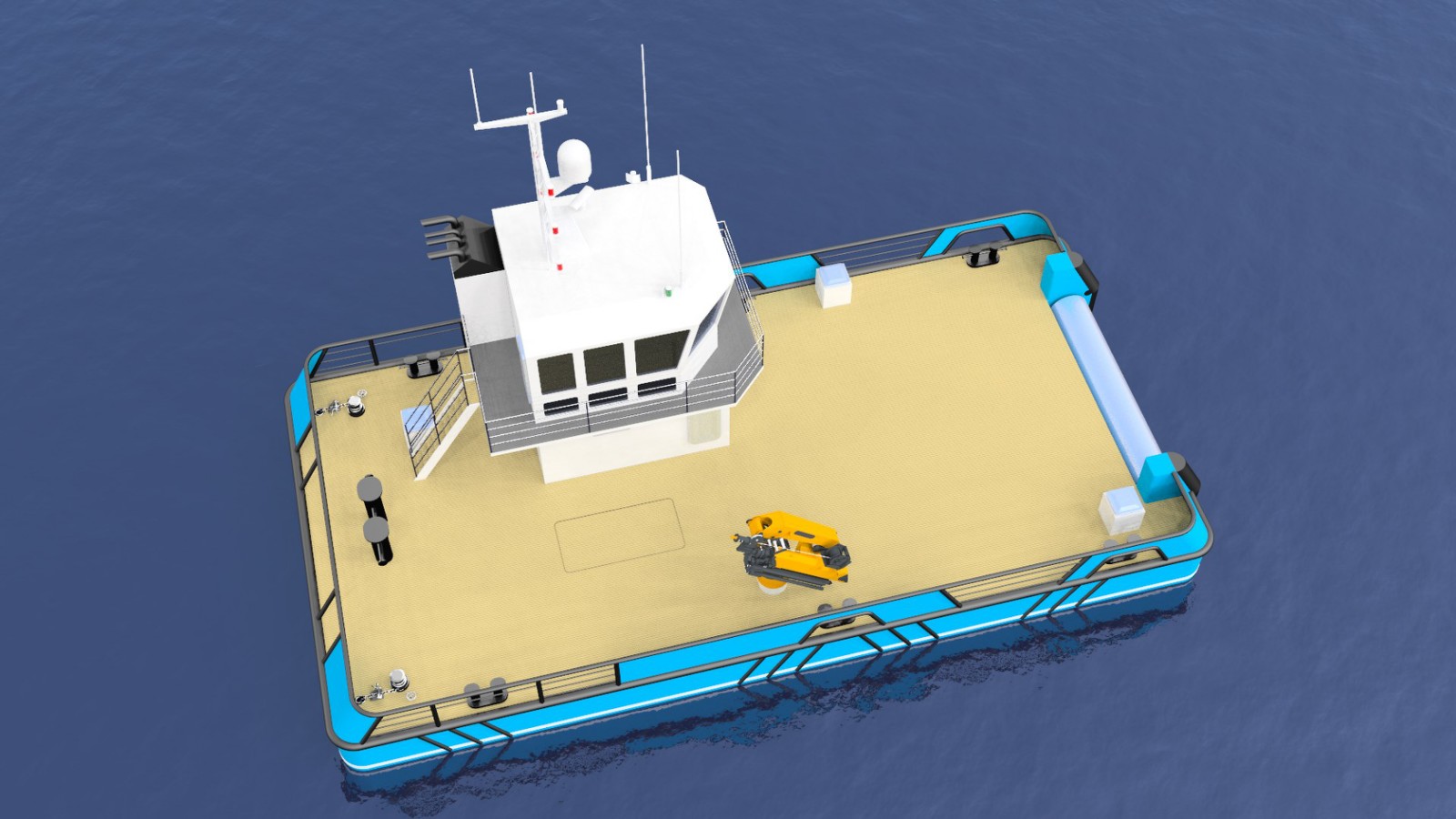

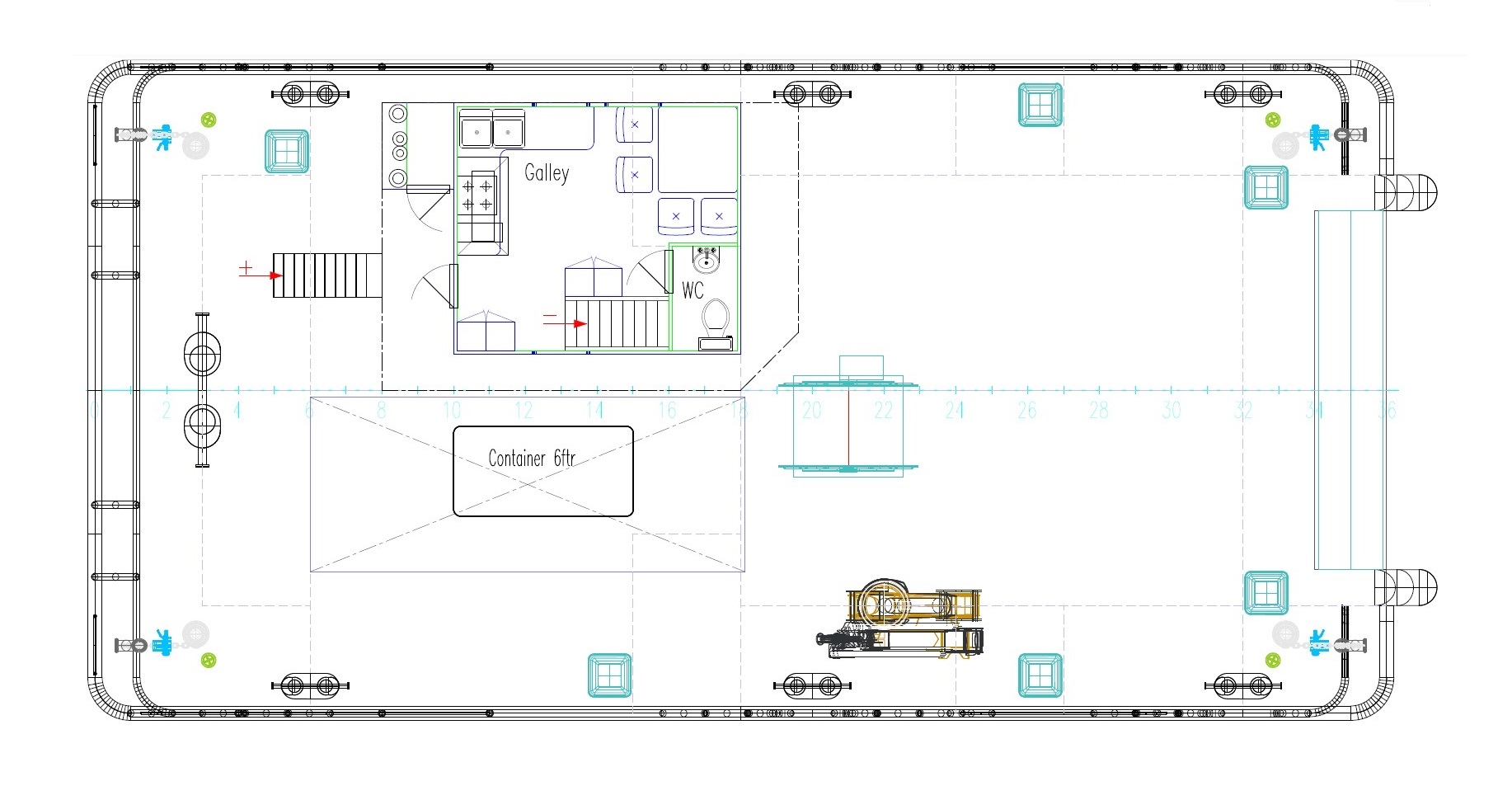

Deck Lay-Out

Anchor With Chain

Pool Hhp Type, 1x 105 Kg And 1x 48 Kg

Deck Crane

1 x Yufei Knuckle Boom Crane, Capacity 65tm

Hydraulic Winch, 5 Ton Hoisting Capacity

Towing Hook

SWL 150 Kn

Bow Roller

Diameter 900 Mm, Width 2500 Mm, Swl 30 Ton

Anchor Handling Winch

15 Ton At 5 M/Min

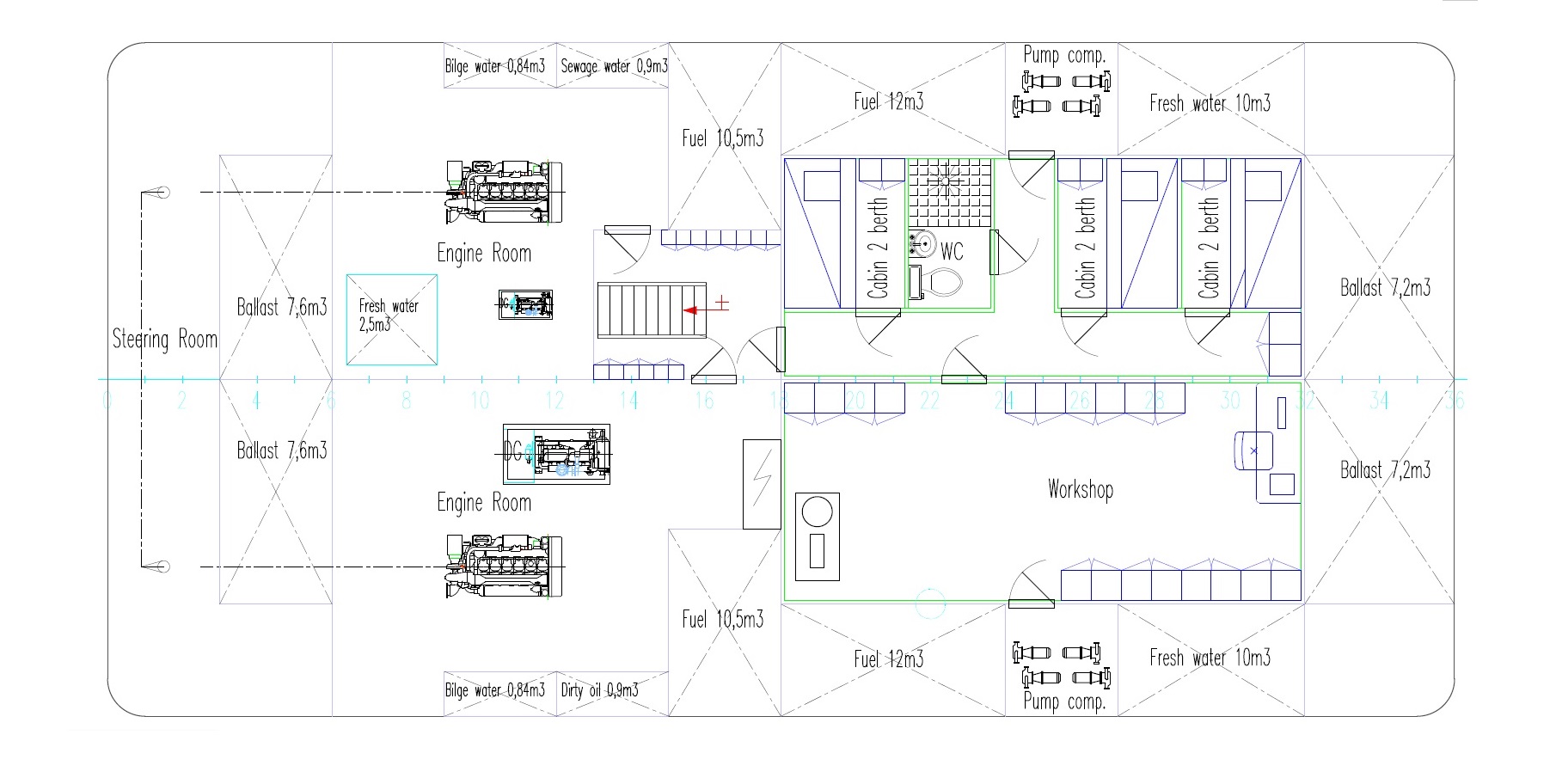

Accommodation

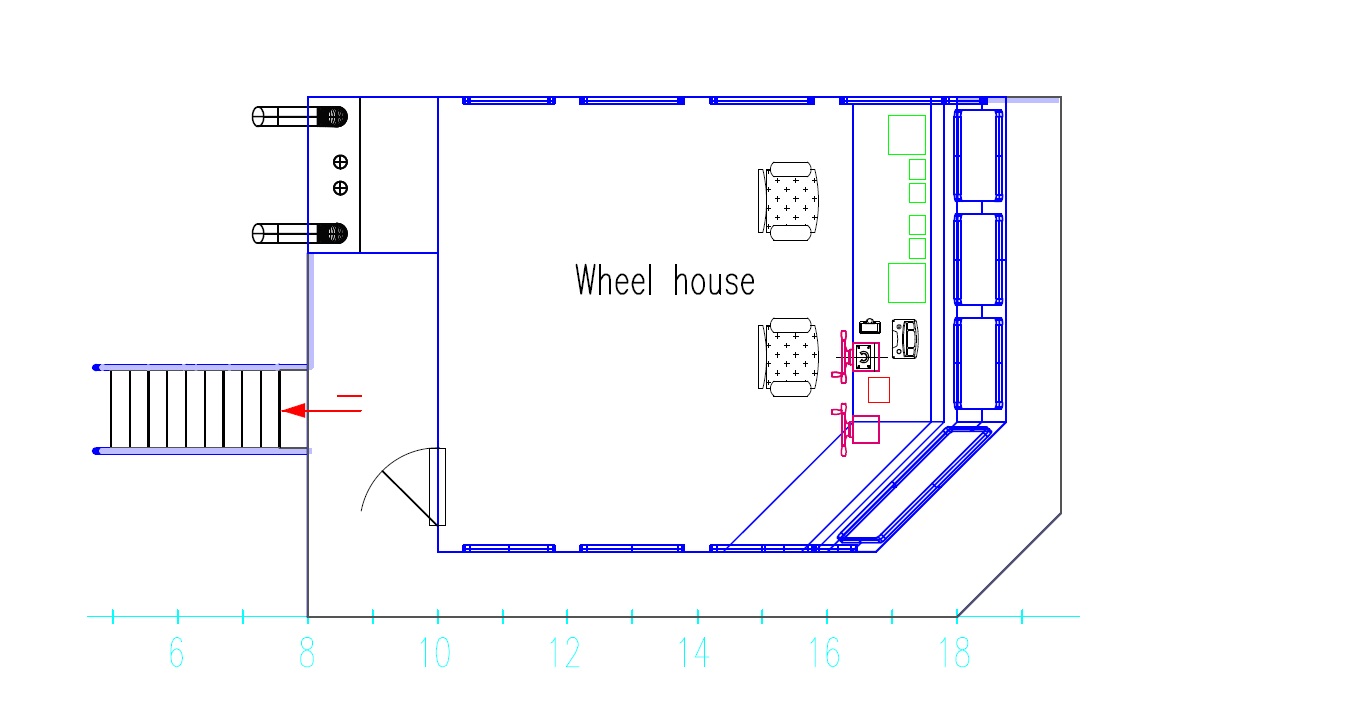

Wheelhouse, Day-Room / Pantry And Sanitary Space.

Below Main Deck:

Workshop/Store

3 Crew Cabin (Each 2-Berth) With Air-Conditioning.

Nautical And Communication Equipment

Searchlight 500 W 24v

Radar System

Furuno Fr 8062

Compass

Magnetic Mg Type

Gps Furuno Gp-32

Echo Sounder

Furuno Ls-6100

Vhf Sailor 6248 Or 2 X Sailor 6222

Hand Held Vhf 2x Furuno Tr 20

Intercom 4 Stations

Navtex: Furuno Nx-700

Epirb: Ssamyoung

Ais: Furuno Fa-150
