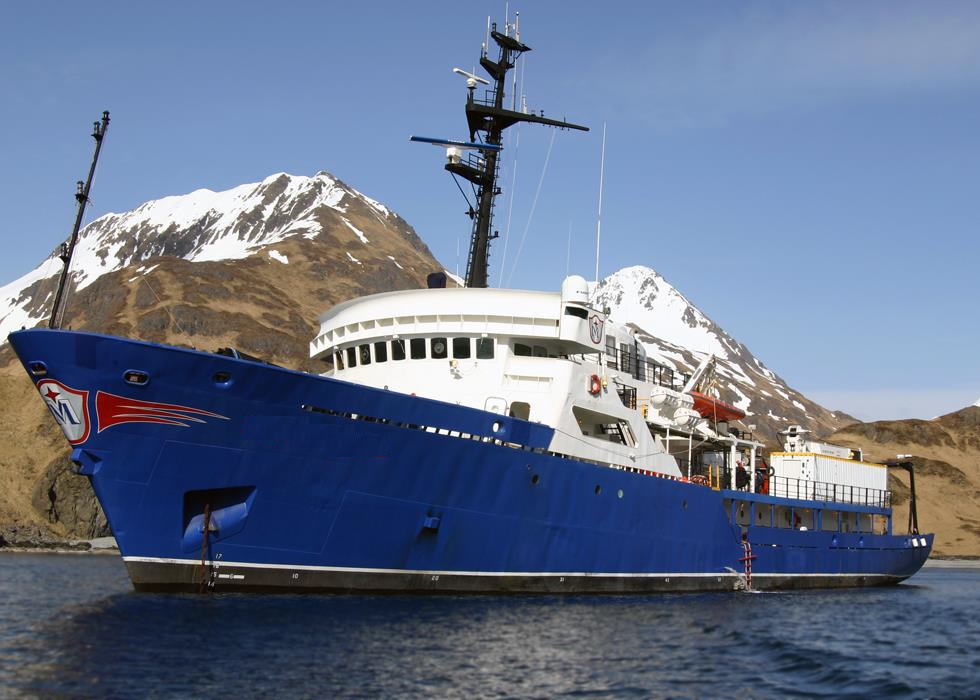

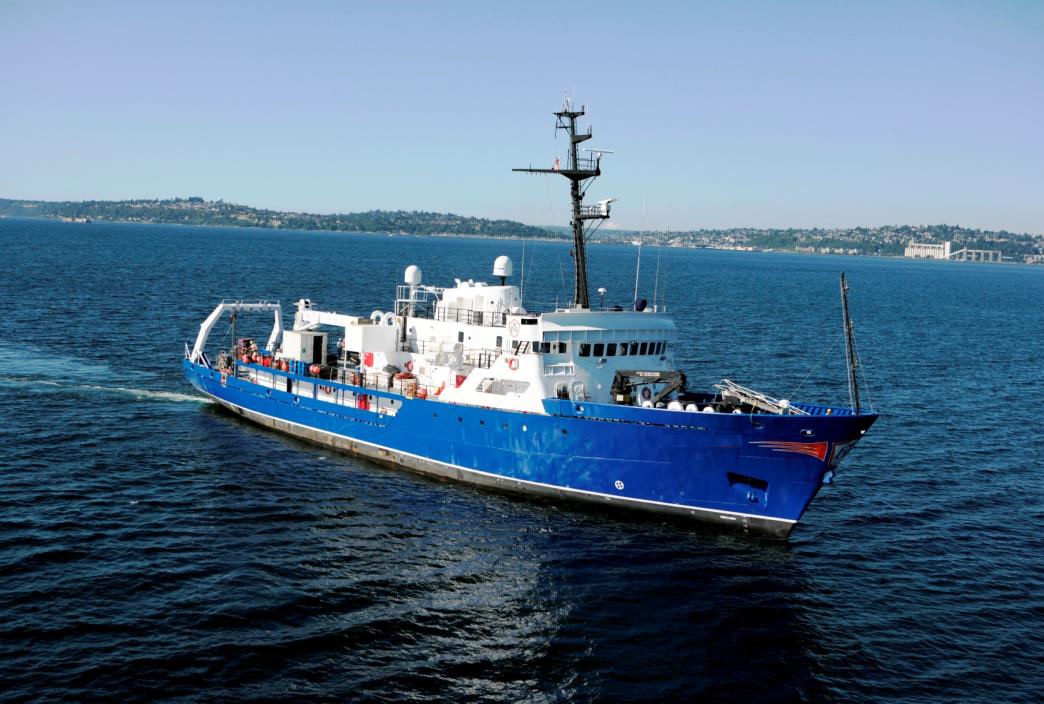

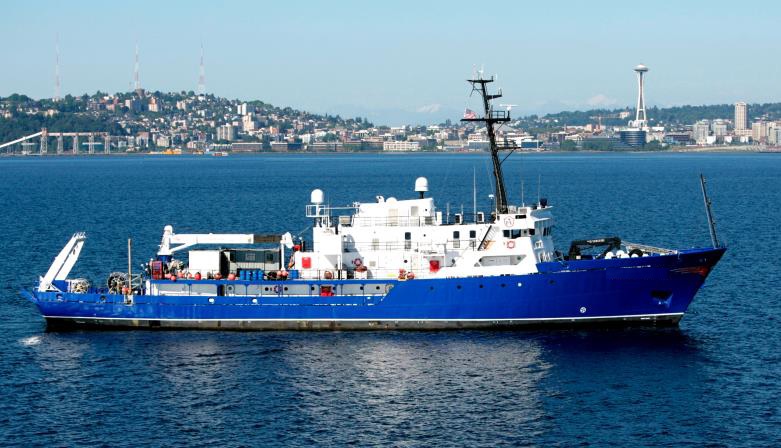

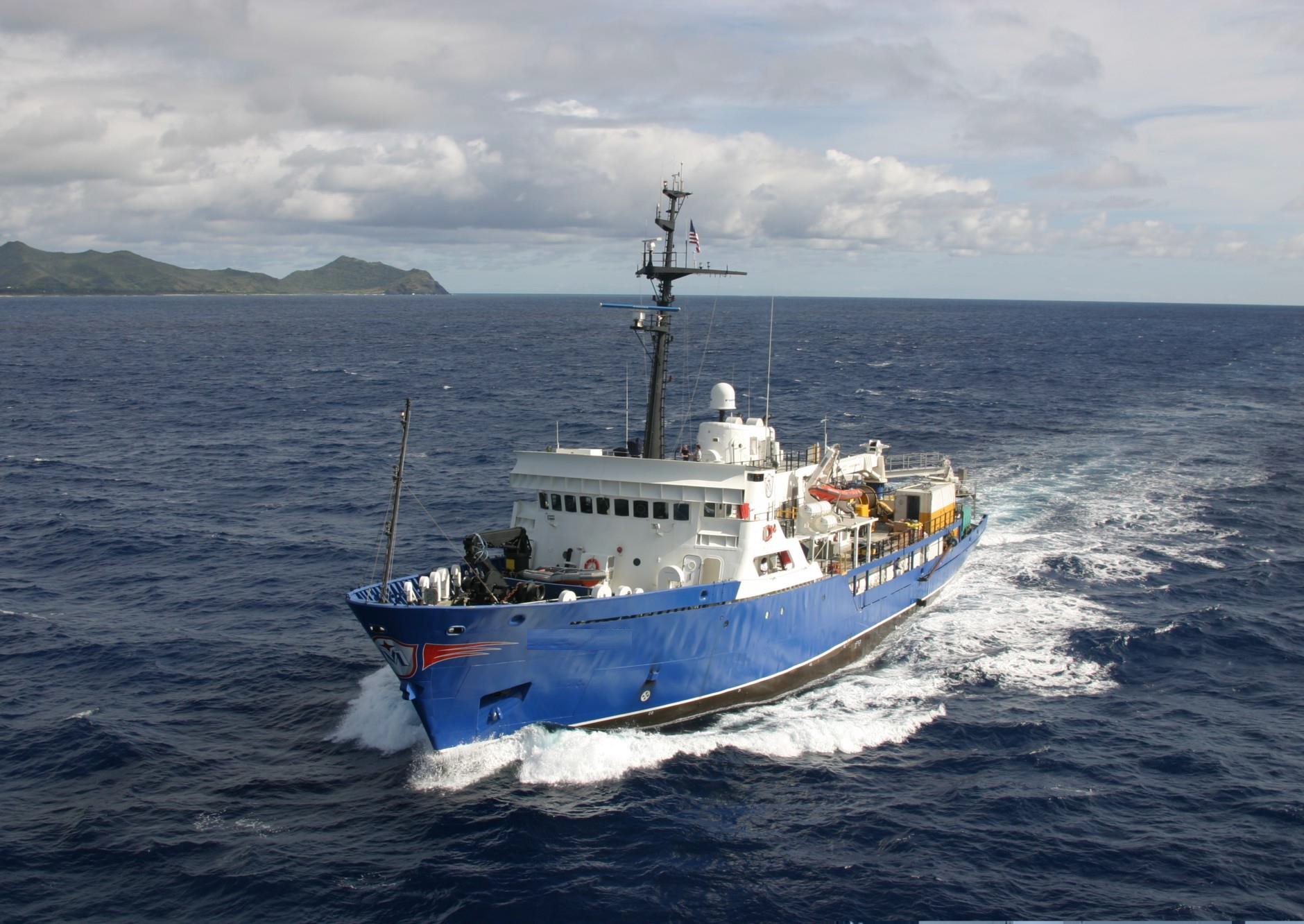

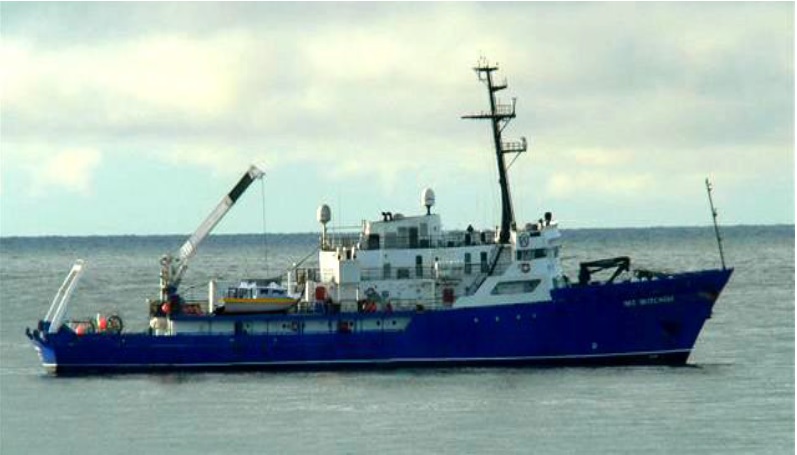

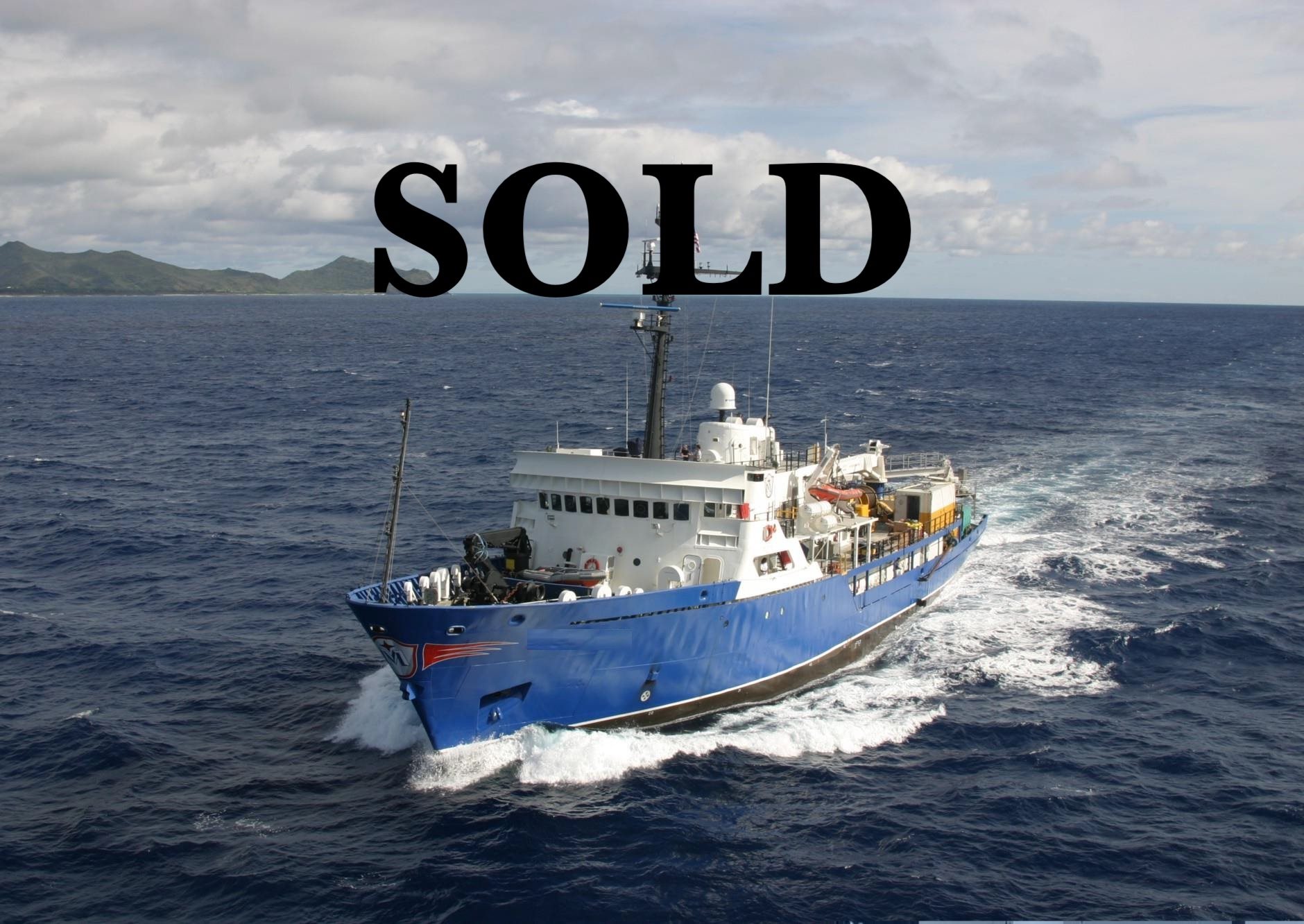

The 70.4m Hydrographic Research Ship is a USCG inspected hydrographic research vessel. First commissioned as a survey ship for NOAA in 1967, the vessel was purchased in 2001 by her current owners and completely refurbished with the latest in electronics, machinery, and safety equipment. The vessel is ideal for most types of oceanographic research operations including, but not limited to: oceanographic mapping, sub bottom surveys, geophysical research, cable route surveys, and pipeline surveys and is outfitted with today’s most advanced underwater mapping equipment with the ability to map the ocean down to 11,000 meters and maps at speed between 7 and 8 knots.  To ensure clean data and reliable performance, the transducers are installed in a gondola to keep them in clean water flow and free from turbulence in all workable sea state conditions. The vessel is equipped with stabilization tanks and anti-roll chocks to eliminate much of the vessel’s natural roll making it an ideal platform for surveying.



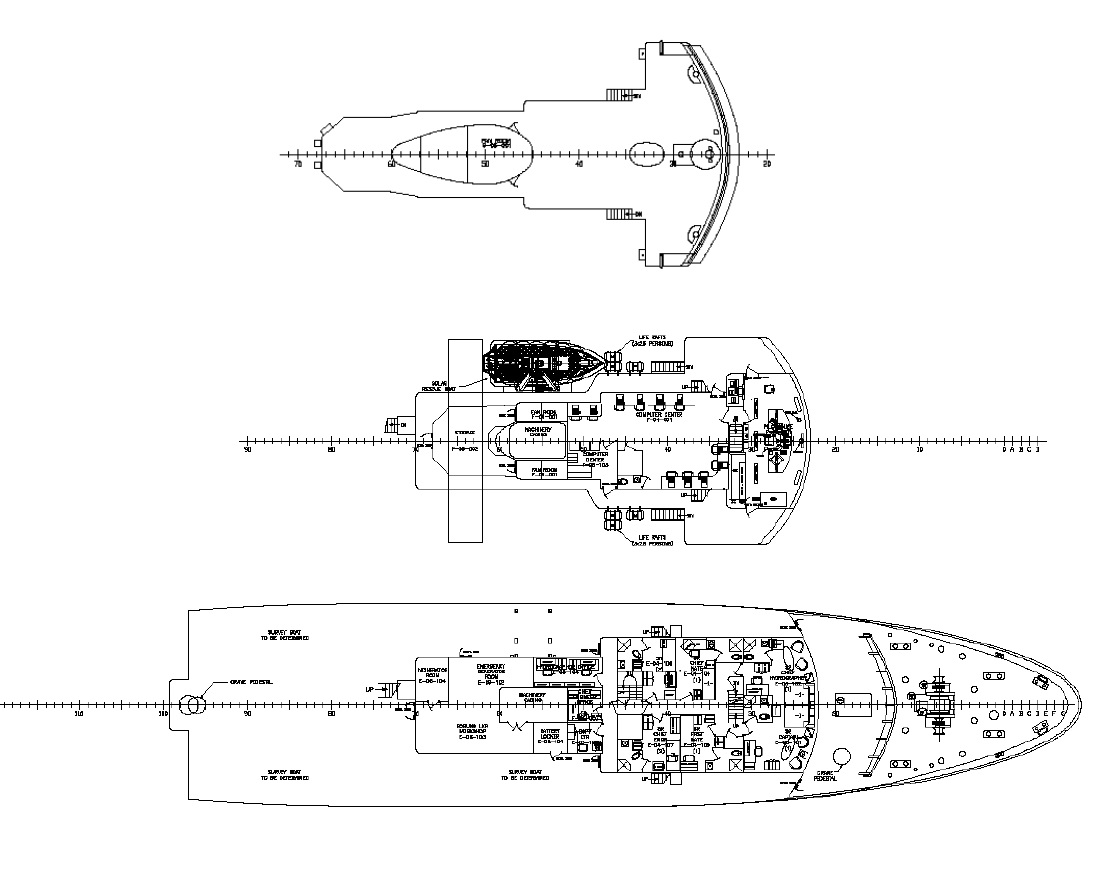

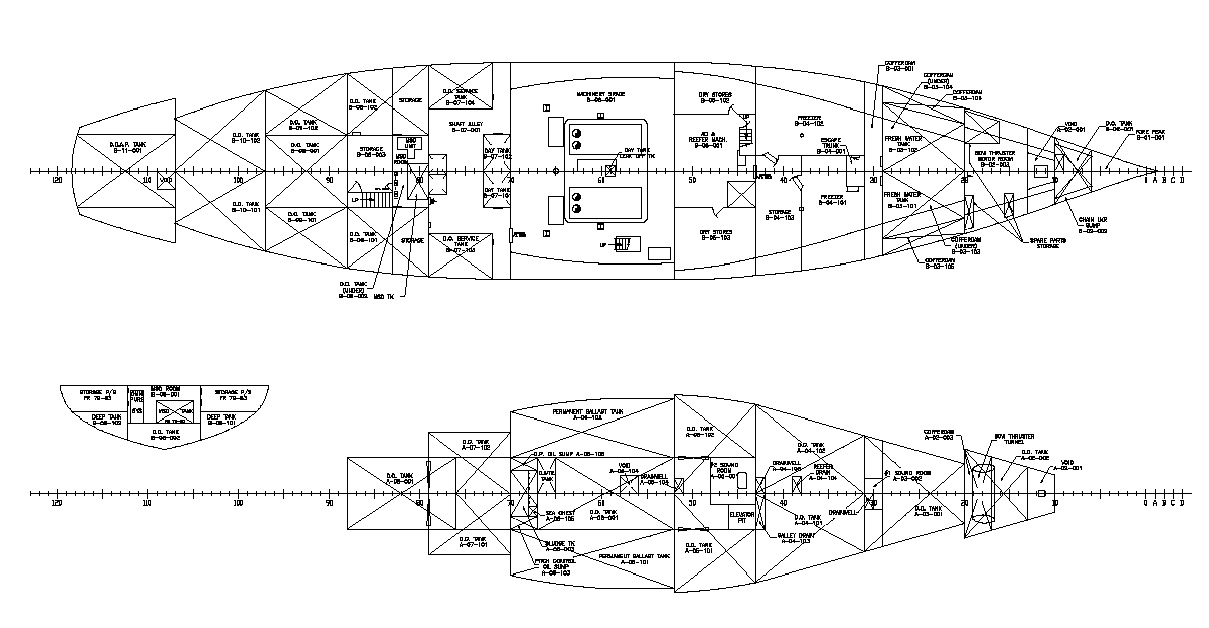

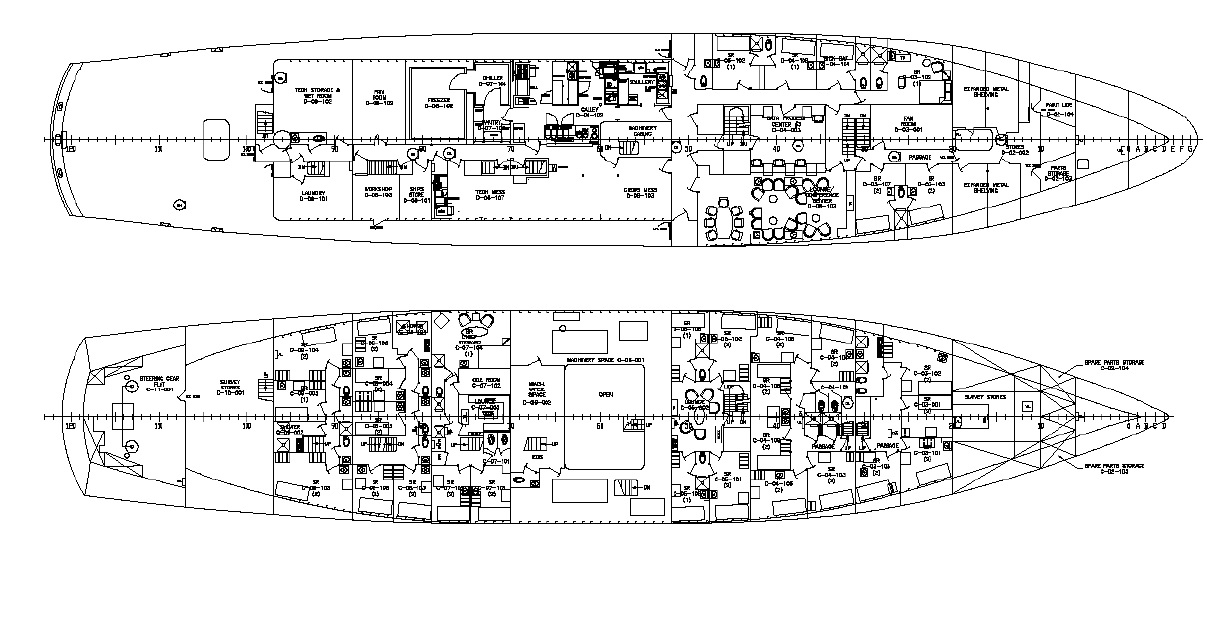

DIMENSIONS

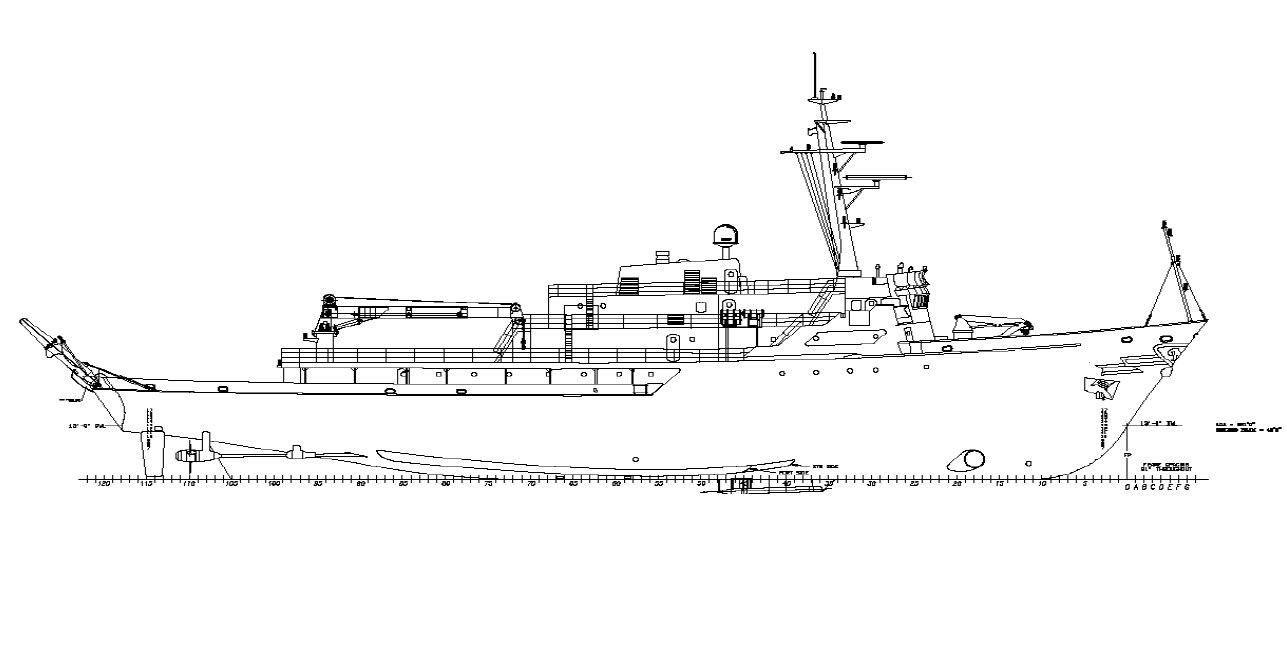

Length Over All: 231 ft. (70.4m)

Breadth: 42 ft. (12.7m)

Draft, Mean: 13 ft. (3.9m) 17.5 ft under transducer gondola

Draft, Max: 14.5 ft. (4.5m) 19 ft under transducer gondola



GENERAL

Classification: ABS + A1 AMS, ACC

Designer: MARAD

Builder: Aerojet General in Jacksonville, FL. Completed in 1967. Refit/Upgraded in 2002 in Port Arthur, TX



PERFORMANCE

Cruising Speed: 10.0 - 11.0 knots

Flanking Speed: 14.0 knots

Range: 10,925 nautical miles at cruising speeds

Fuel Consumption:  Approx. 2,000 USG/day @ 11.0 knots

Endurance: 45 days at cruising speed; 60 days at survey speed of 7 knots

Gross Tonnage:  1,453 ITC, 1591 Regulatory

Net Tonnage: 436 ITC, 578 Regulatory

Light Ship Displacement: 1,289 tons



SURVEY ELECTRONICS

Multibeam Sonar

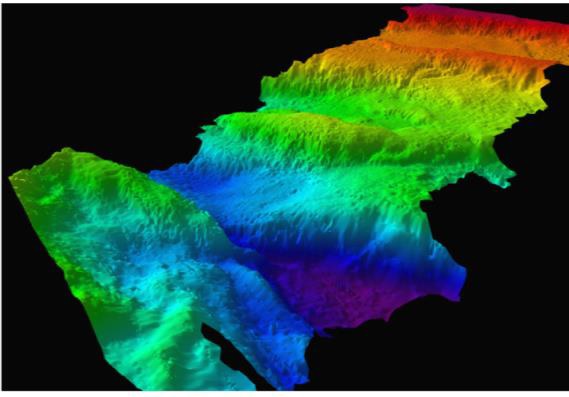

Kongsberg EM120 2 x 2 degree 12kHz depth range to 11,000 meters

Kongsberg EM710 2 x 2 degree full performance with FM chirp, depth range to 1000 meters

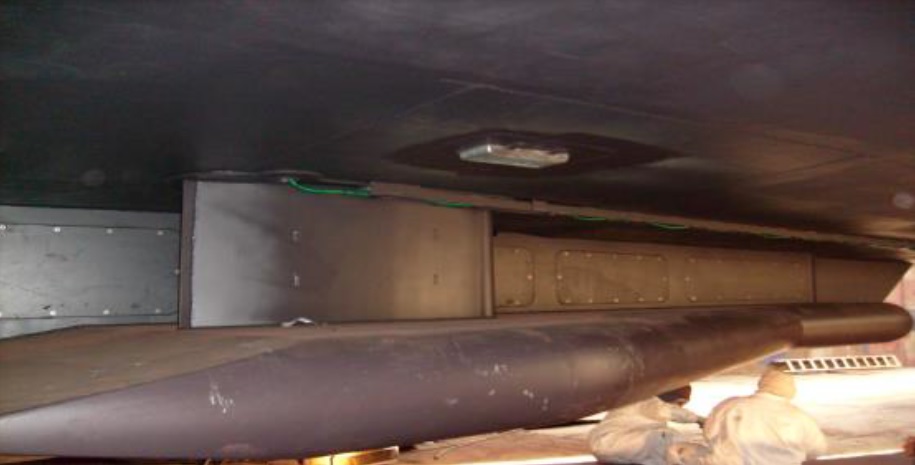

Seachest valve, 500mm hull mounted for installation of Kongsberg HiPAP

Positioning: Applanix POS MV 320



PROPULSION

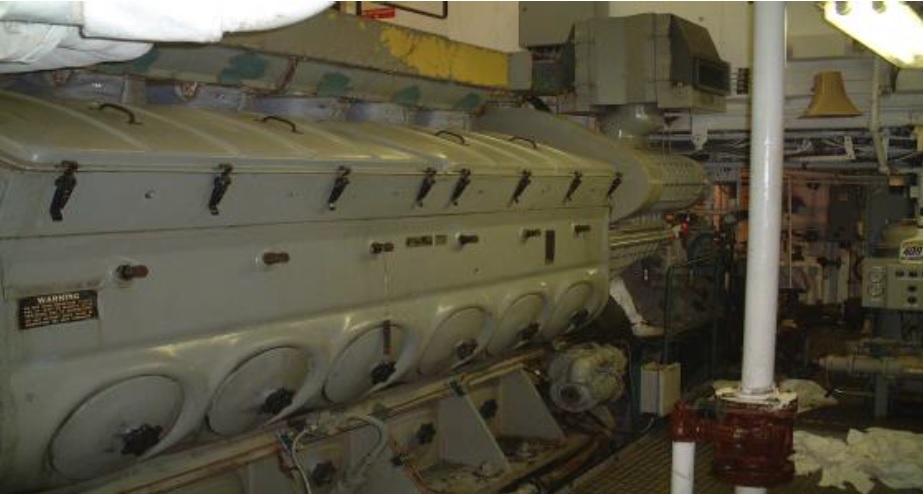

Main Engines: (2) EMD/567C 1200 H.P. Each General Motors Diesels.

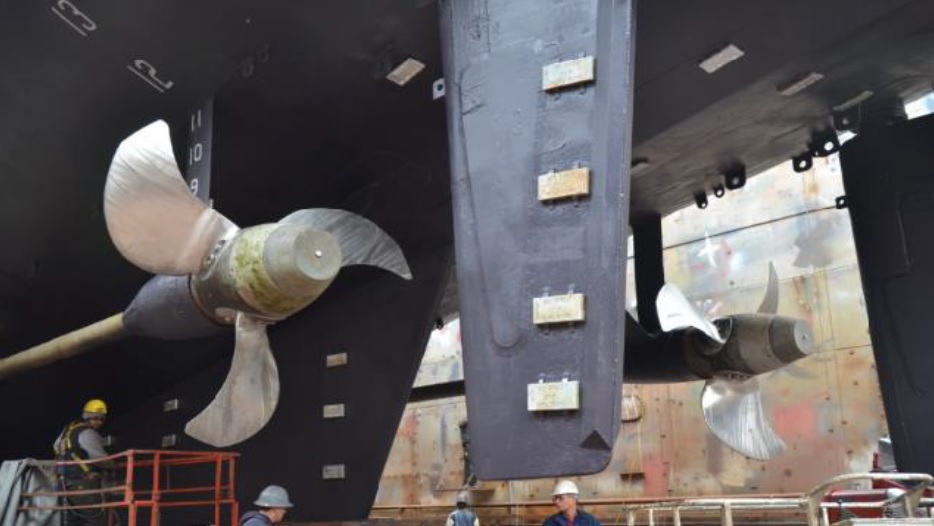

Propellers: (2) Bird-Johnson Controllable Pitch, (3) Blade, 8.5ft dia. Sound Propeller Quiet Design Stainless Steel

Bow Thruster: (1) Detroit Diesel 8V71, 350 H.P., 5,000 lb. Thrust, Controllable Pitch Propeller, Bird Johnson

Steering: Autonav 2000 Independent rudder system, Dynamic Positioning compatible

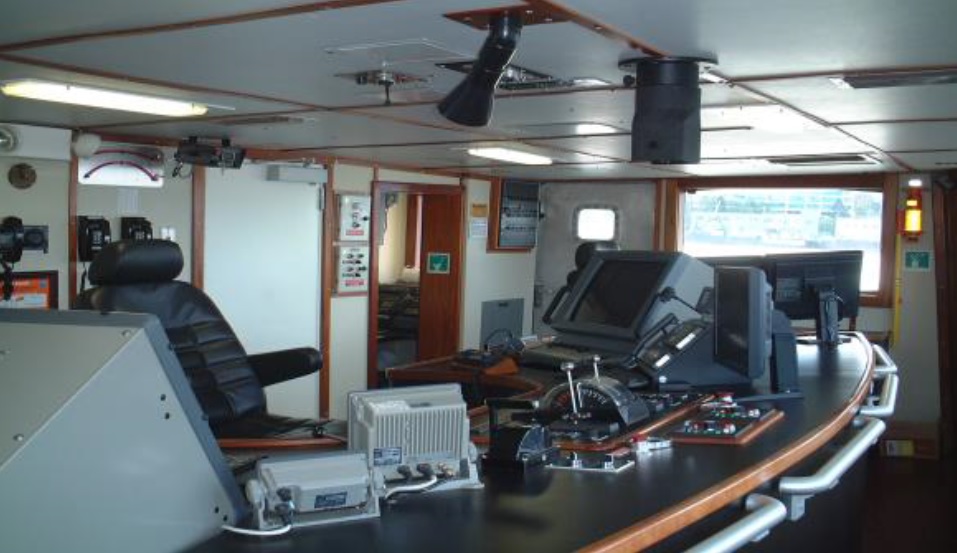

ACC Console: Allen Bradley / Rockwell Automation Systems w/ CRT Touch Screens Located:

(1) Wheelhouse

(2) Engine Control Room

*Classed for partially unmanned engine room



ELECTRICAL

Generators: (2) Detroit Diesel 16V71, Model 7163/GE, 300kw/450v

Emergency Generator: (1) Detroit Diesel 471, Model 4150E/Delco, 75kw/450v



ELECTRONICS

Radar & Navigation:

(1) Furuno FAR 2835 w/ 28” color CRT

(1) Furuno PM-50 IMO Compliant Performance Monitor

(1) Furuno FR2115 (3cm, X-Band 96nm, IMO Compliant ARPA w/ 21” color monitor

(1) Furuno FE 700 IMO Compliant, Color Depth Sounder, 50 khz

(1) JRC JLN-203 Doppler Speed Log

(1) Young Marine Wind Tracker, Model 06206

(1) Transis Navi-Sailor ECS-1 w/ AIS charting and plotting software

(1) Furuno GP-37 Differential GPS w/ WAAS Technologies

(1) Sperry SR 180 MKI Gyro Compass

(1) Furuno AD 100 Digital Gyro Repeater

(1) Liley &Gillie MK2000 10” Ocean Magnetic Compass

(1) Robertson AP 9 MK 3 Autopilot System

(1) Simrad A180 AIS



External Communications:

(1) Skanti Scanbridge 1250 A4 GMDSS System

a) (2) Skanti VHF 1000 DSC Radios

b) (1) Skanti TRP 1250 SSB Radio with DSC, Telex, MF/HF 250w

c) (1) Furuno FS1570 SSB with DSC, Telex, MF /HF 250w

d) (1) Scansat Inmarsat STD. “C”

e) (1) PCU 9000 NBDP Telex ICOM M700 DSC VHF Radio

(1) Nat Axis 30 GMDSS Handheld VHF

(1) Furuno Felcom 82B Inmarsat “B” w/ high speed data phone, fax & email.

(1) SeaTel 4006 Ku-band VSAT internet connection

(1) Skanti Scansat 7701 Iridium Satellite Telephone

(1) JRC-NRC 330A Navtec Receiver

(1) Furuno DFax 207 Weather Fax Receiver



Internal Communications:

(1)TOSHIBA Strata CTX 670, w/ 68 telephone lines, in all Cabins and Work Spaces

(1) Vingtor VSP Battery-less Phone System, Emergency Shipboard Communications w/ 8 Stations

(1) Raytheon Ray 430 Loudhailer System

(1) Extensive LAN (Local Area Network) System throughout the ship with 2 CAT5 lines per work station and stateroom for multiple networks or servers. Networked via Ethernet Active Hubs. High Speed Data via VSAT at 512 kb down 256 kb up



Visual Monitoring:

(1) Sony Color Camera System

Includes the Following:

a) 4 on–deck Sony SSCDC 134 Color Cameras in Weather Resistance Heated Enclosures

b) (2) Sony SSCDC 134 Color Cameras located in Engine Room

c) (1) Monitor & Sequential Switch in Wheelhouse



Fire Detection:

(1) Siemens MXL-CG Addressable Fire Alarm Control System

All other appropriate SOLAS approved safety equipment as required by USCG



Fire Stations:

(27) 1 ½” x 50’ Fire Hose, Fire Fighting Stations

(4) Scott Air Packs

(6) Fire Fighting Suits



Rescue:

USCG Approved Life vests and Immersion suits to accommodate full compliment of crew and personnel

(10) 30” Life rings w/ 50’ Line

(2) DATCI13452P 15 minute Smoke Buoys

(2) ACR3940 Man Overboard Strobe light

(6) 25-Man Inflatable Life Rafts Viking Solas A Pack

(1) 19’ RIB Rescue Boat

(1) Nat1510 406 EPIRB w/GPS Transceiver

(2) NAT 9420 SART 9ghz Transponder Search & Rescue



ACCOMODATIONS:

Berthing for clients:

Berthing available for up to 48 personnel other than crew all staterooms equipped with thermostats to control individual heat and air conditioning.

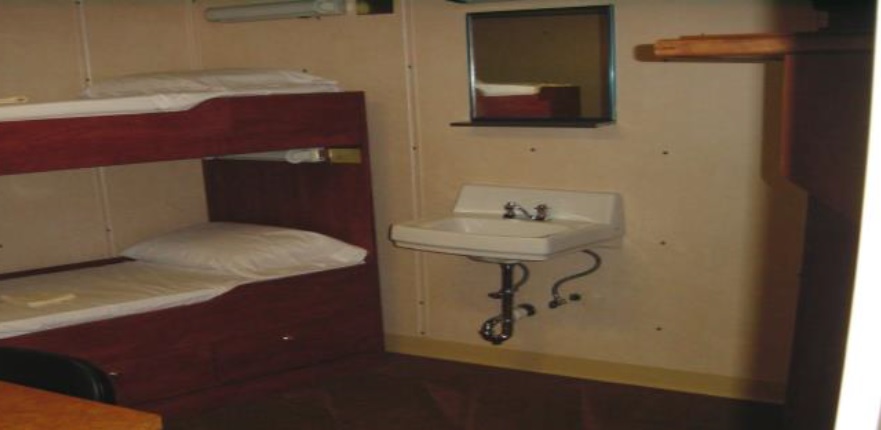

(1) VIP 1-Person Stateroom w/ private bath

(2) 1-Person Senior Personnel Staterooms w/ shared bath

(4) 1-Person Staterooms w/ shared bath

(20) 2-Person Client’s Personnel Staterooms

(1) Hospital room with sickbed and private bath

(1) Dispensary room with full suite of medical supplies and equipment



Mess & Lounges:

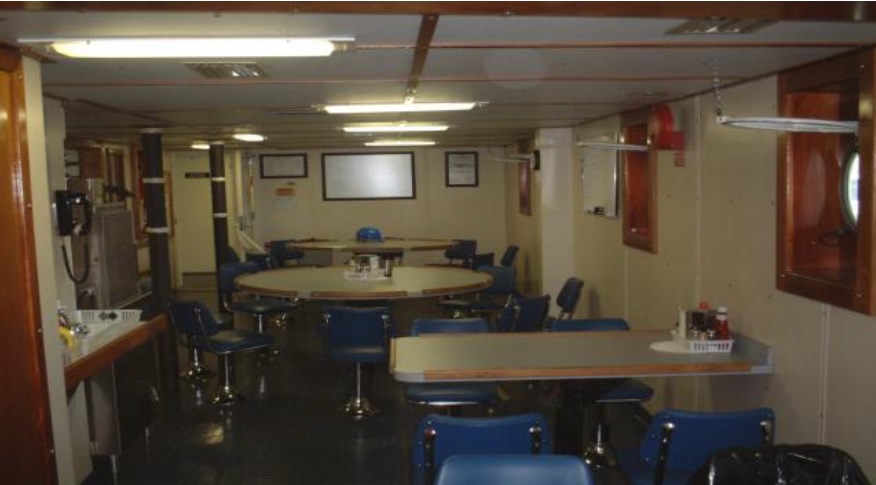

34-seat Main Mess with equipment for 24-hours drink and snack service

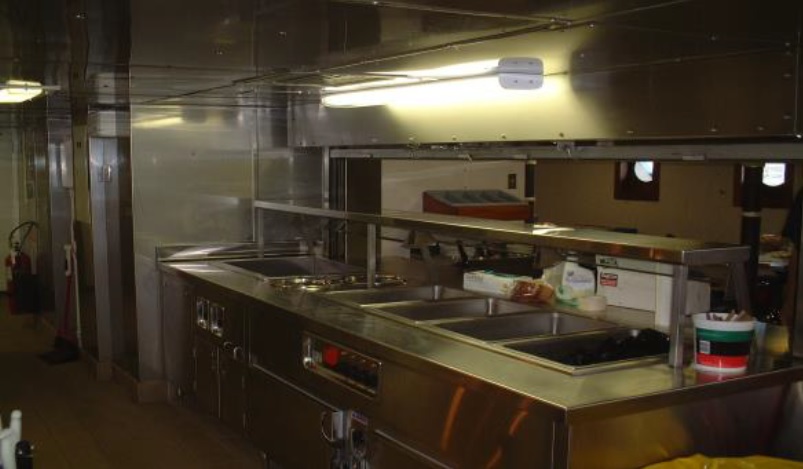

Fully equipped Galley and serving station for effortless service of gourmet meals

Off-galley freezer and chiller for convenient serving. Additional freezer and chiller capacity for extended voyages

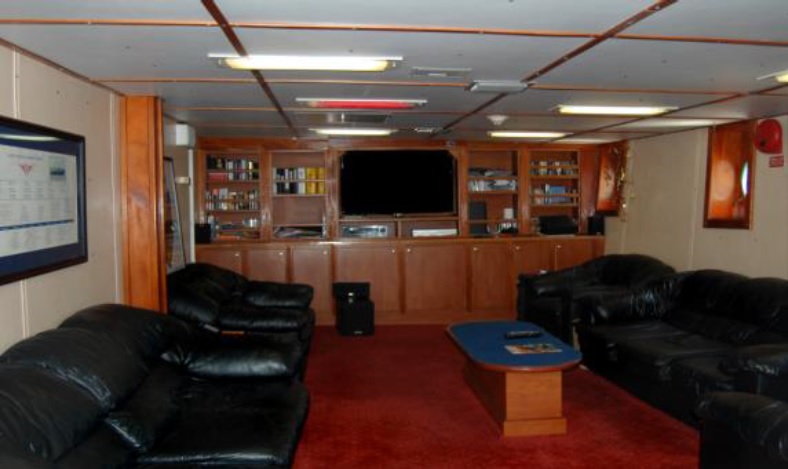

Large Lounge with sofa seating for meetings and leisure

Conference room within lounge for smaller meetings



Cleaning Facilities:

(1) Laundry Room w/ 2 commercial grade washers, 2 commercial grade dryers



WORK AREAS

Work Stations:

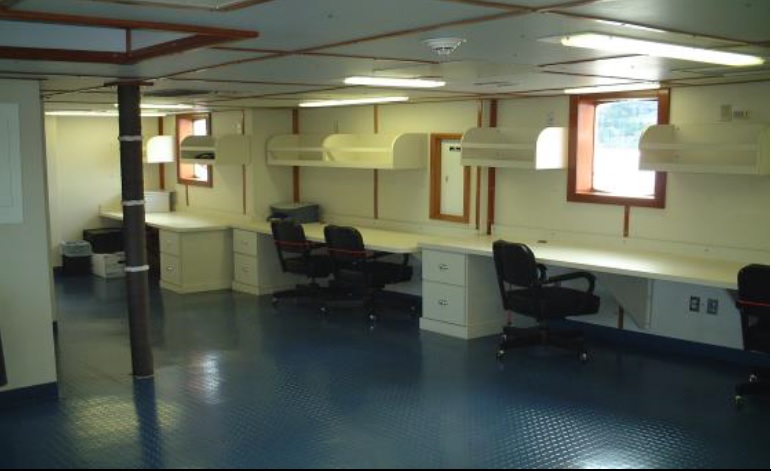

(1) 545 sq. ft. Data Processing Area w/ 11 Workstations

(1) 190 sq. ft Data Processing Area w/ 2 Workstation

(1) Charter chief office w/ 2 Workstations

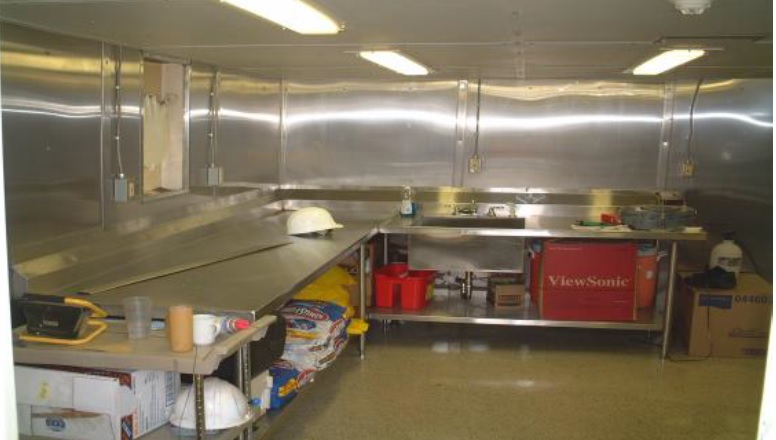

(1) Wet lab workroom 227 sq. ft.



Working Decks:

Aft Deck Area 1,387 sq. ft.

Boat Deck Area 1,950 sq. ft.



Power Supply Availability

(4) 100 amp, 450V dedicated power sources for on-deck equipment



DECK MACHINERY

Cranes:

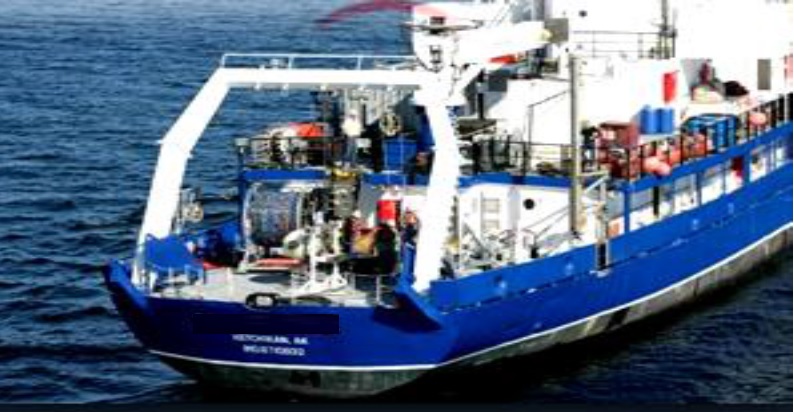

(1) 5 Ton 35 ft. Knuckle Crane on forward deck

(1) 43 ft. Telescoping Boom Crane on Aft deck

9 Metric Ton at Full Extension /15 Metric Tons at 33 ft.



Capstan:

(1) 21” dia. Capstan on after deck 13,500 Lbs pull @ 35 fpm Line Speed / 4,000 Lbs pull at 130 fpm

Davits:

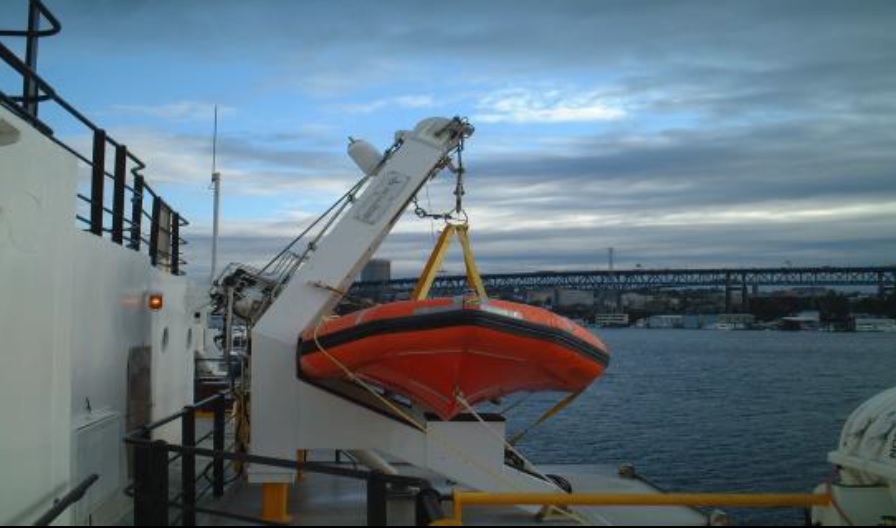

(1) Vestdavit, PLR-3600 3.6m Ton. Capacity for 24’ Fast Rescue Boat



A-Frame:

(1) 20,000 lbs. stern A-frame 20 feet deck clearance with five padeye points



CAPACITIES

Fuel Oil: 105,000 USG

Lube Oil: 1,626 USG

Hydraulic Oil: 534 USG

Potable Water: 16,000 USG

Black & Grey Water: 2,000 USG

MSD: (1) Omni-Pure 120 Person Black 12MC 60 Person B/G processing all black and grey water for near shore operations

Hot Water Heaters:

(2) A.O. Smith, DRE 120 USG 35Kw

Water Maker:

(1) 2,650 USG/day Aquamar, Model - 10/2 Evaporator

(1) 1,200 USG/day Reverse Osmosis

Boiler:

(1) 8 section Cast Iron Weil-McLain Low Pressure 1.6m/BTUH Output

Incinerator:

(1) Atlas-200SL Incinerator, 209kw/hr Burning Cap.

Heat:

(37) Wall Mounted 120v Electrical Heaters for Back-up to



Vessel highlights:

USA Flagged

USCG Sub Chapter U

COI

ABS Certified A1

SOLAS Compliant

Twin 1200 HP GM Diesels;

Variable Pitch Propellers

Bow Thruster

11Knots Cruise

10,925 Nautical Mile Range

Endurance 45 Day/Cruise Speed

Endurance 60 Day/Survey Speed

Multibeam Kongsberg EM120

Kongsberg EM710

Sea chest Valve for Hi-Pap

VSAT Communications

Berthing for 48 Scientists

23 A/C staterooms

735 Sq. Ft. Workstation(s)

Charter Chief Office

227 Sq. Ft. Wet Lab

3,330 Sq. Ft. Deck Space(s)

5 Ton Knuckle Crane

15 ton/9Ton Boom Crane

10 Ton “A” Frame
