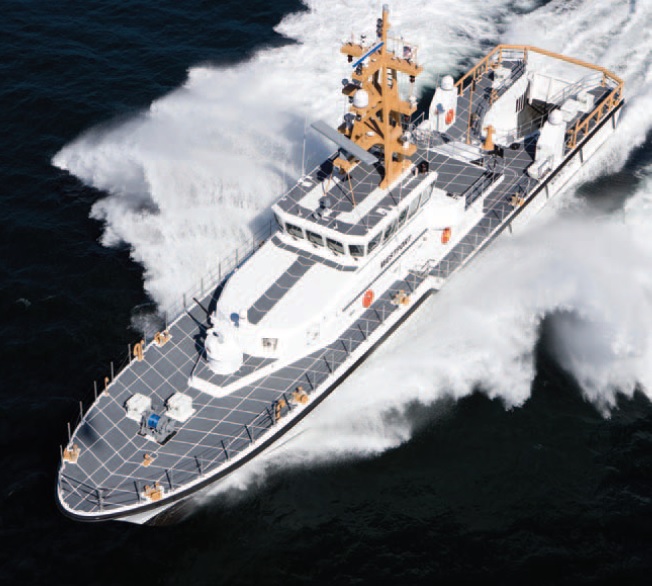

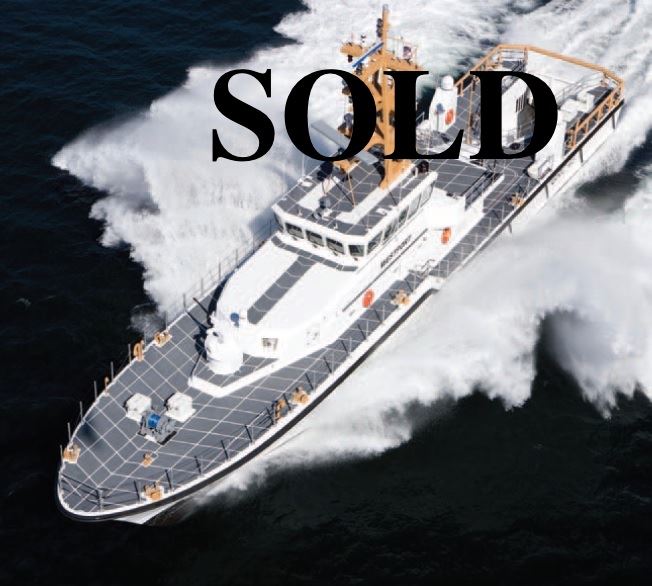

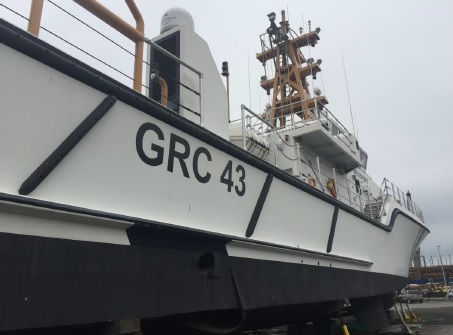

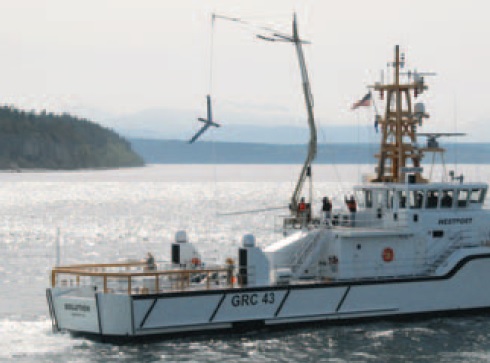

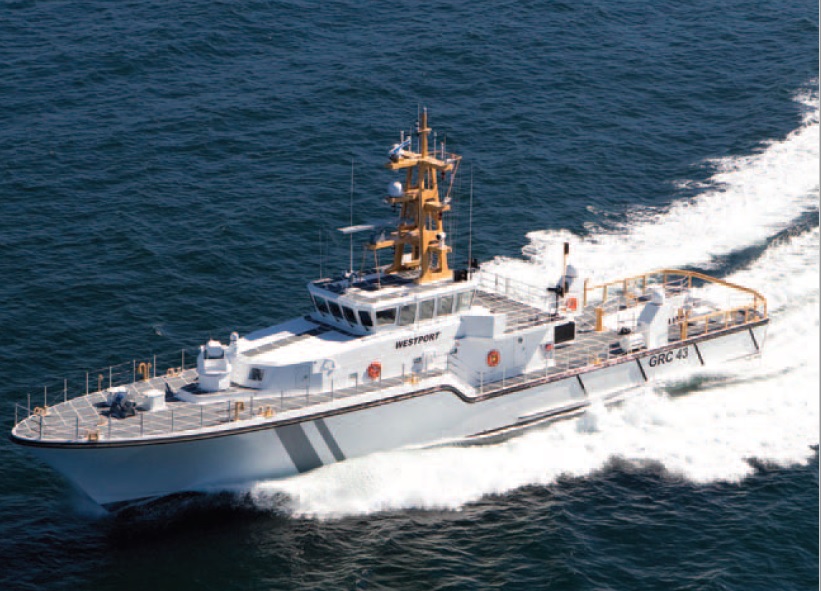

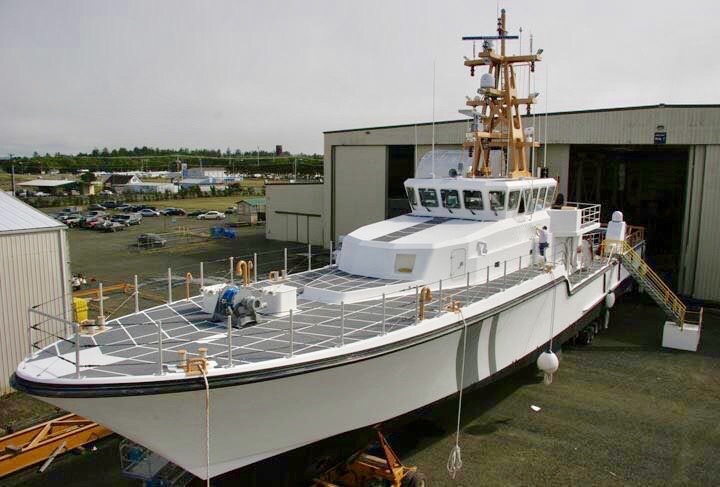

43m Multi-Mission Patrol Vessel built USA 2010 to ABS classification, HSC +A1 +AMS in composite construction.  Powered by twin MTU 16V 4000 Series M73L Marine Diesel engines developing 3860 HP each @ 2050rpm and providing a flank speed of 32.4 knots (loaded) and a range of 4000nm at 12 knots.
Stern ramp for 8m RHIB-deployment & retrieval.  Accommodation for 24 persons.

DIMENSIONS
Length Overall (Molded): 43.60m (143ft)
Length Waterline: 37.96m  (124ft 5in)
Beam (Molded): 7.93m  (26ft)
Draft (Full Load): 2.11m  (6ft 11in)

CLASSIFICATION: ABS HSC + AI +AMS

PROPULSION

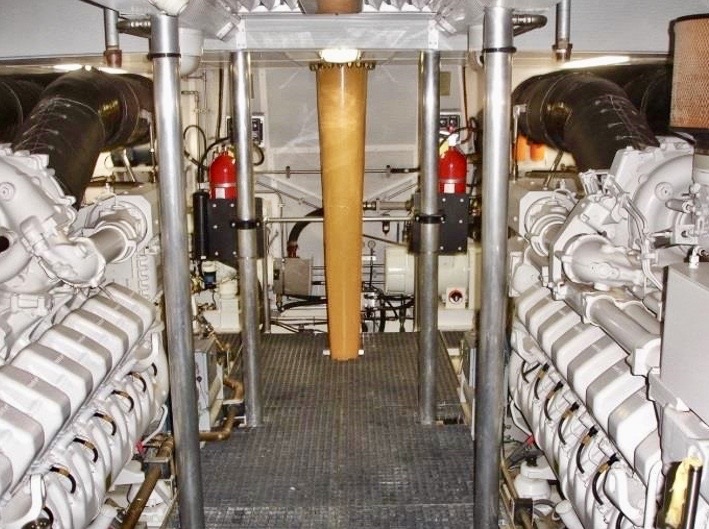

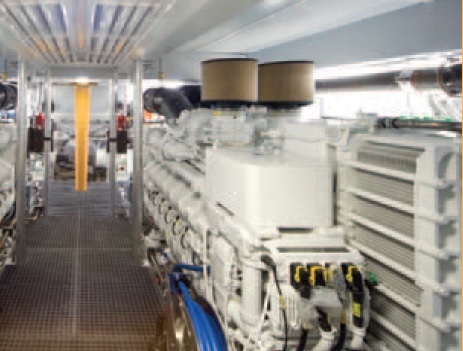

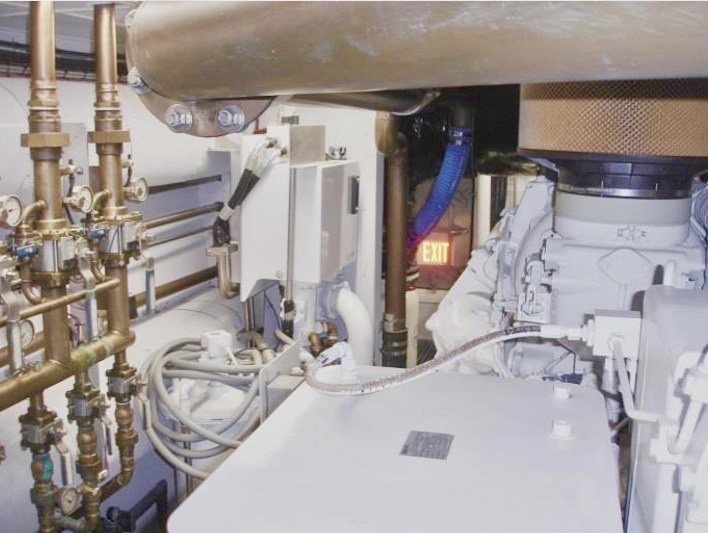

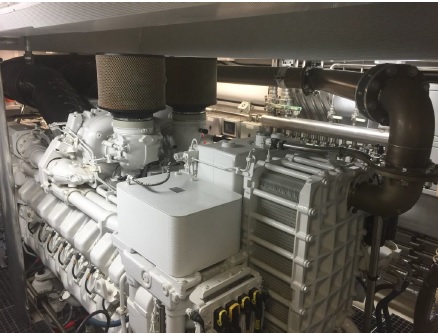

(2) MTU 16 4000 M73L (3,860 hp) proven for fast vessels with high load factors (Maximum mission availability)

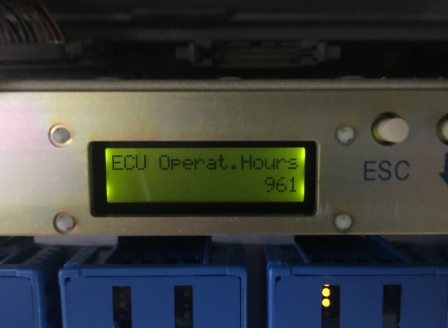

15,000 hours’ time between overhauls for extended operational use

MAXIMUM SPEED
Full Load: 32.4 knots
Half Load: 32.8 knots

RANGE
10 knots; 4,500 nm
14 knots; 3,000 nm
Flank: 1,025 nm
10% usable fuel remaining

TANK CAPACITIES
Fuel: 51.27 m³  (13,535 USG)
Fresh Water: 5.68 m³  (1,500 USG)
Gray Water: 4.17 m³  (1,100 USG)
Black Water: 2.05 m³  (540 USG)

DISPLACEMENT
Full Load: 215 MT  (475,000 lbs)
Half Load: 196 MT  (433,000 lbs)
Light Ship: 151 MT  (333,000 lbs)

OPERATION ENVIRONMENT:
Coastal and Offshore Missions

MISSION ELECTRONICS:
Stabilized FLIR camera

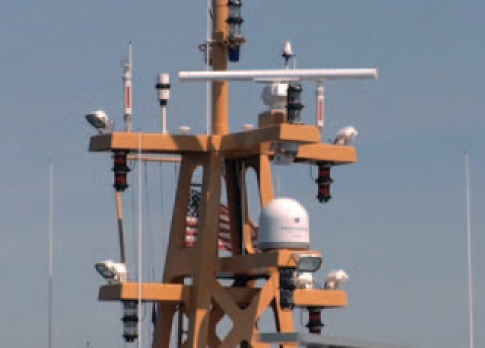

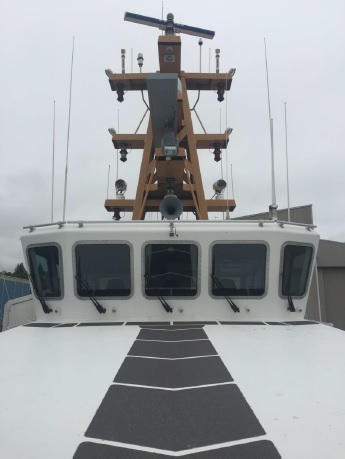

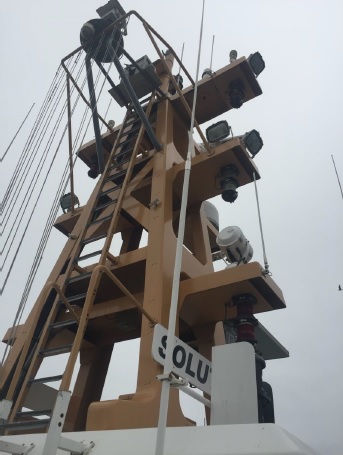

X and S Band Radars

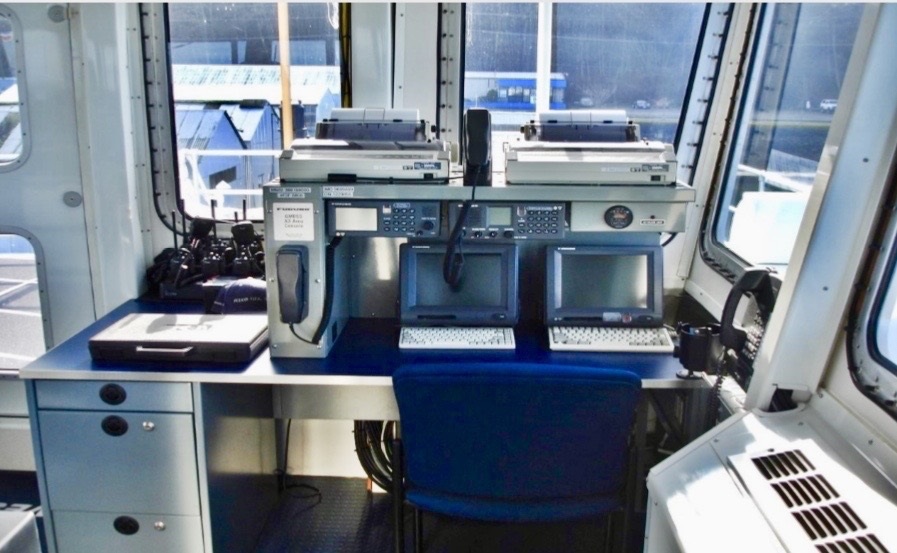

Communication Suite

ACCOMMODATIONS:

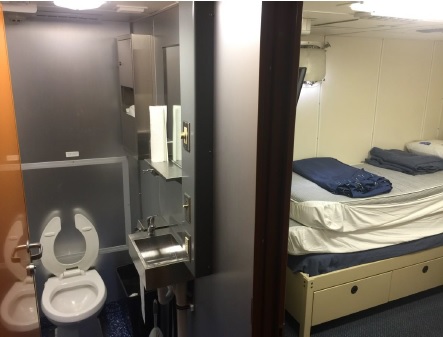

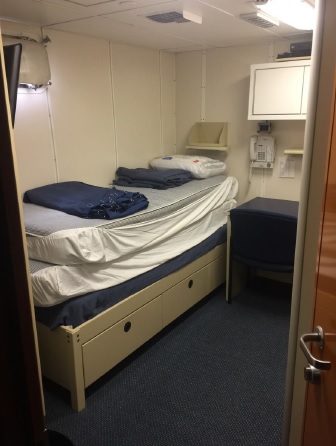

Berthing for 24 persons

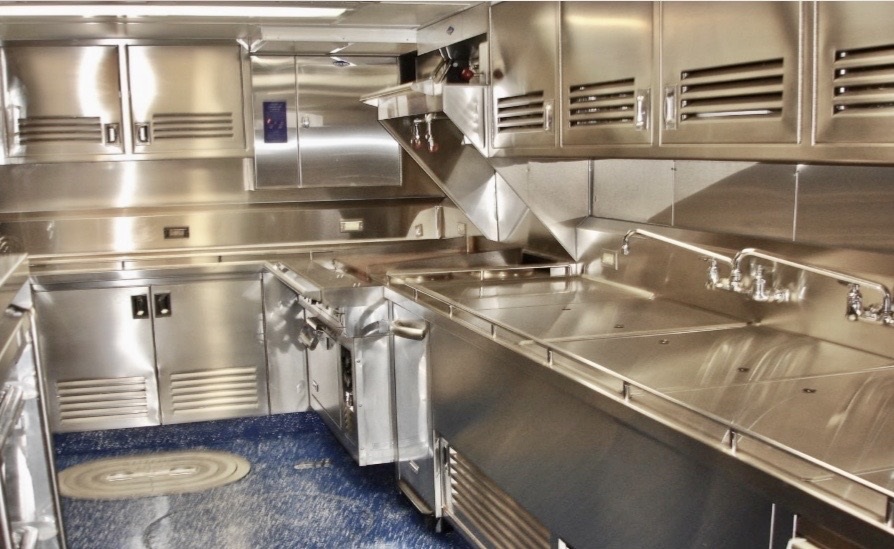

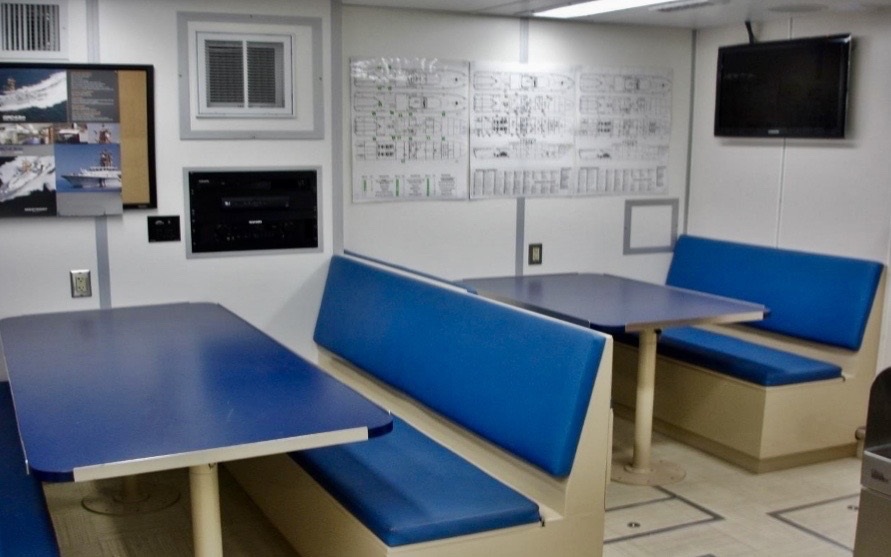

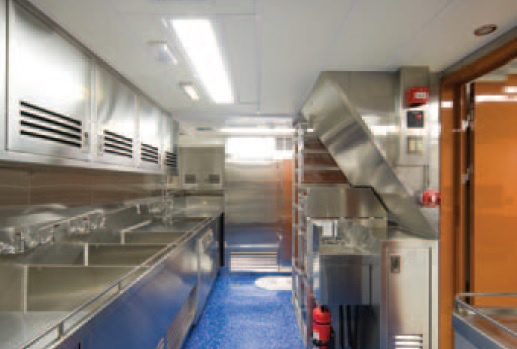

Mess and Galley

SUPERIOR PERFORMANCE
Fast–32.4 knots flank @ full load
Long Range 4,000 nm @ 12 knots

MISSION READY

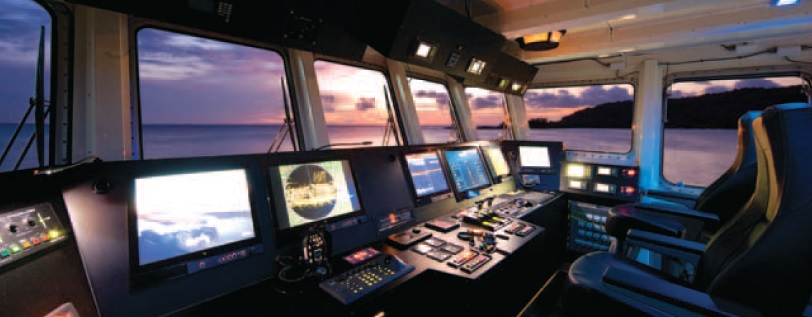

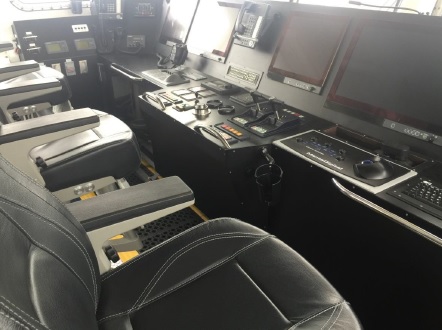

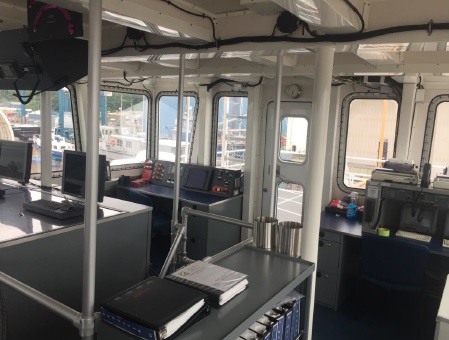

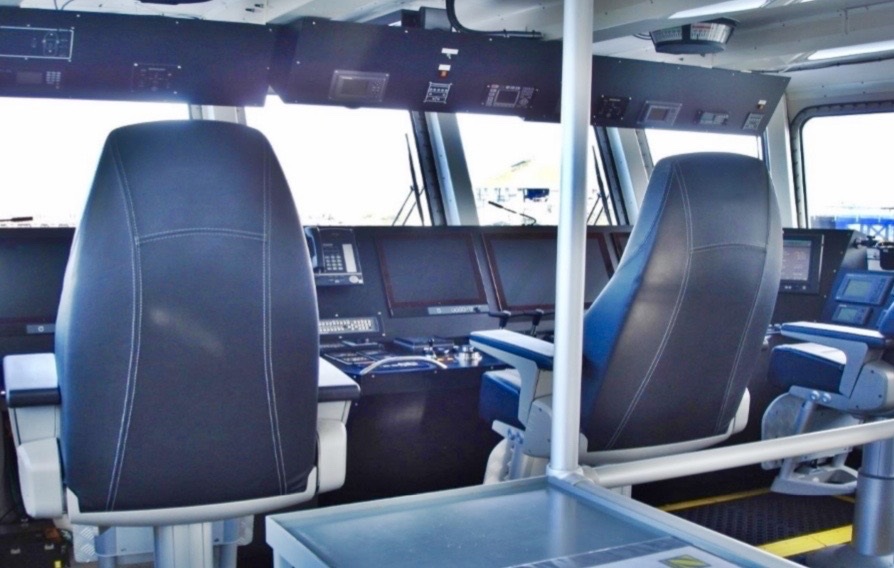

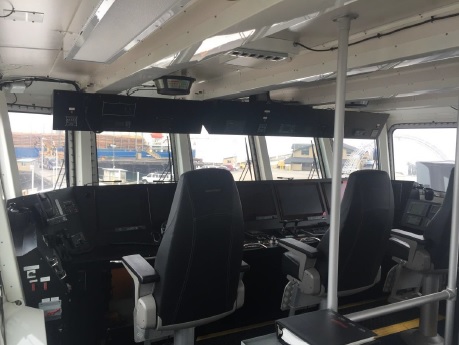

Integrated command control
360° search–detect–identify capability

VERSATILITY-MISSION MULTIPLIER

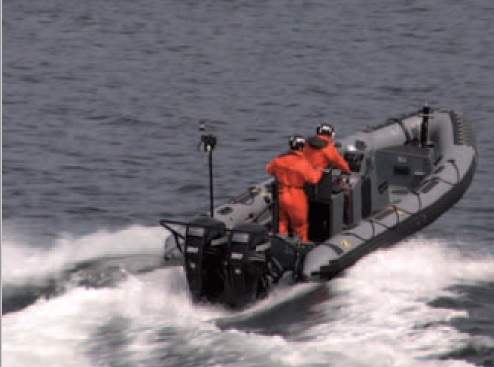

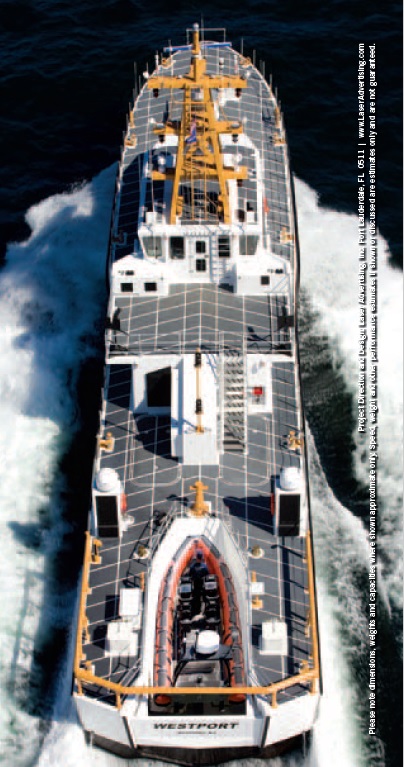

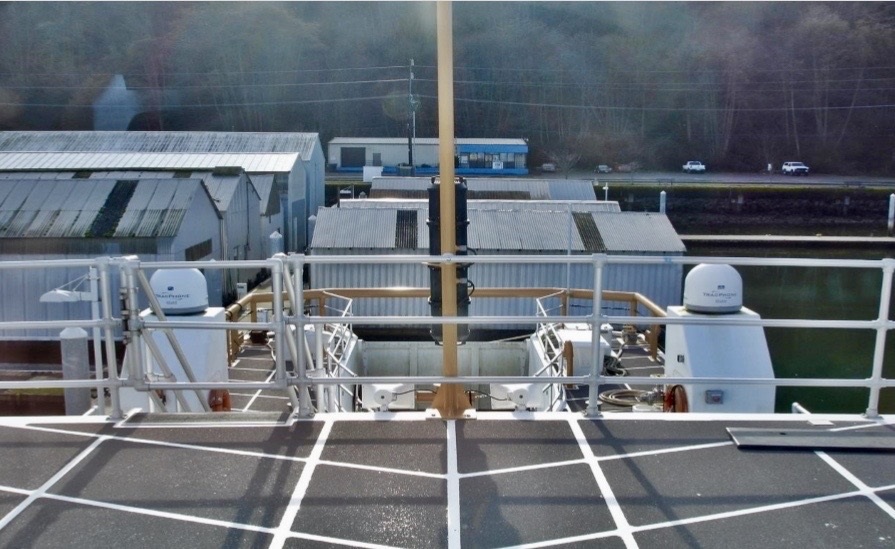

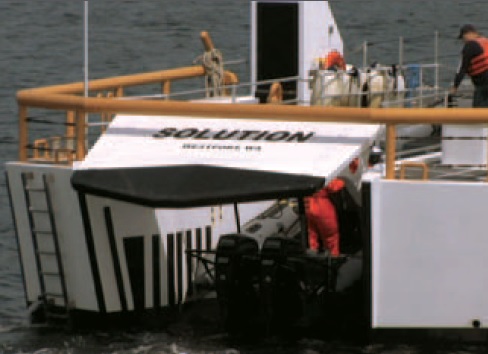

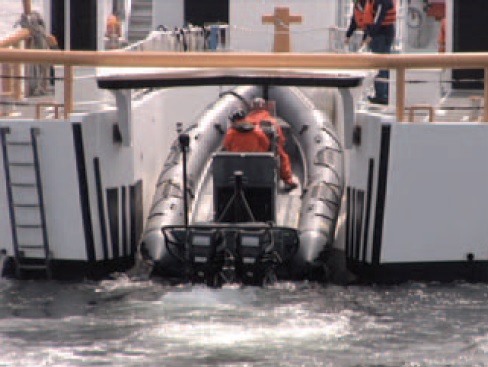

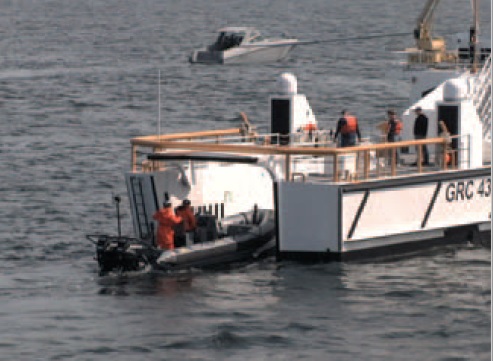

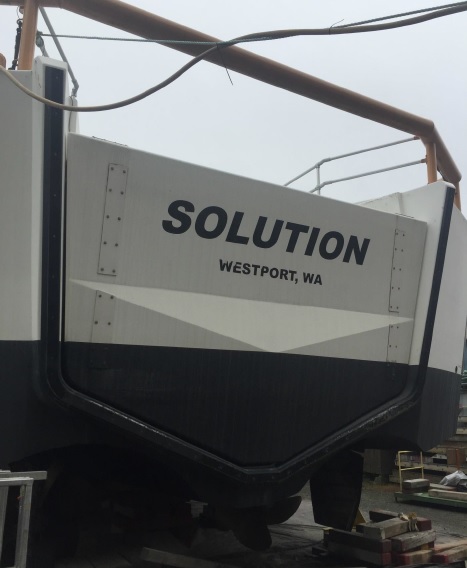

Stern ramp for 8m RHIB-deployment/retrieval
Multiple weapon and sensor options

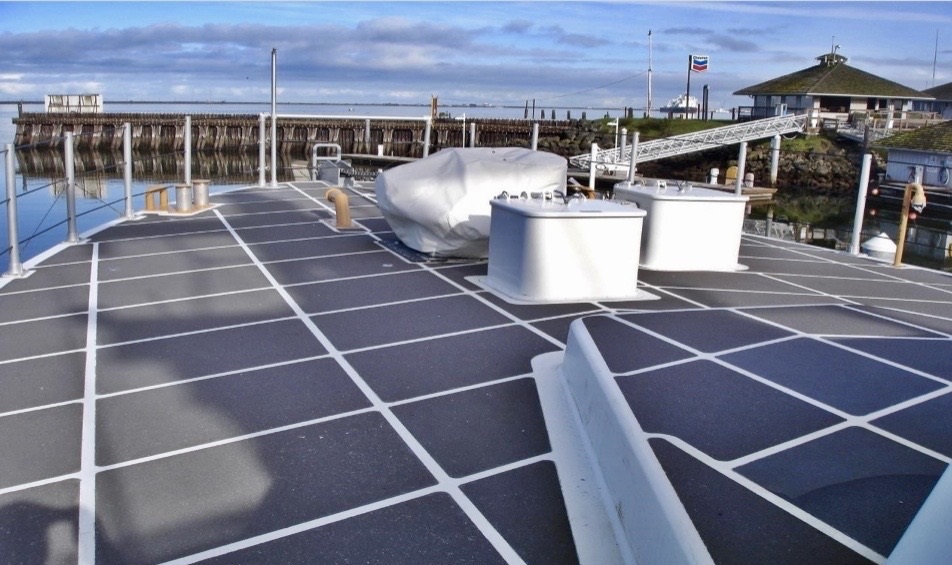

Flexible multi-use deck space provides increased capability
Multiple berthing configurations for crew and embarked personnel
• Fast-Long Range provides multi mission platform
• Series Built-Extraordinary tolerances/Durability/Quality
• Classified ABS HSC +AI +AMS
• Demonstrated performance characteristics
• Low acquisition cost
• Long service life
• Reduced life cycle costs
• Incorporation of commercially available proven technology
• Maximum mission availability

COMPOSITE ADVANTAGE
High strength to weight materials
High flank and transit speeds
High fuel efficiency
Superior structural integrity
Resistant to impact damage, lowers repair costs
High crew quality of life, improves morale and retention
Noise and vibration reduction reduces crew fatigue
Insulation for cooling/heating benefits improves crew comfort
Does not rust or corrode, reduces maintenance and ownership costs
