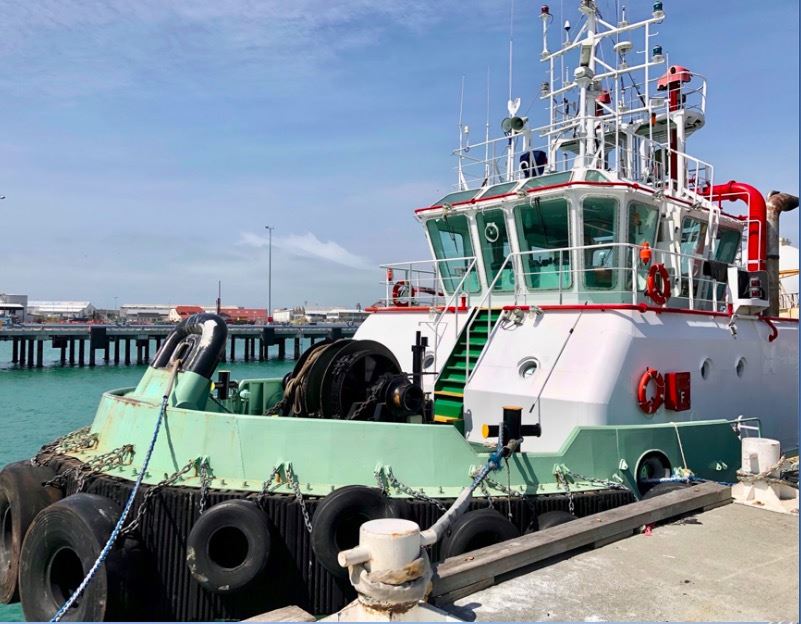

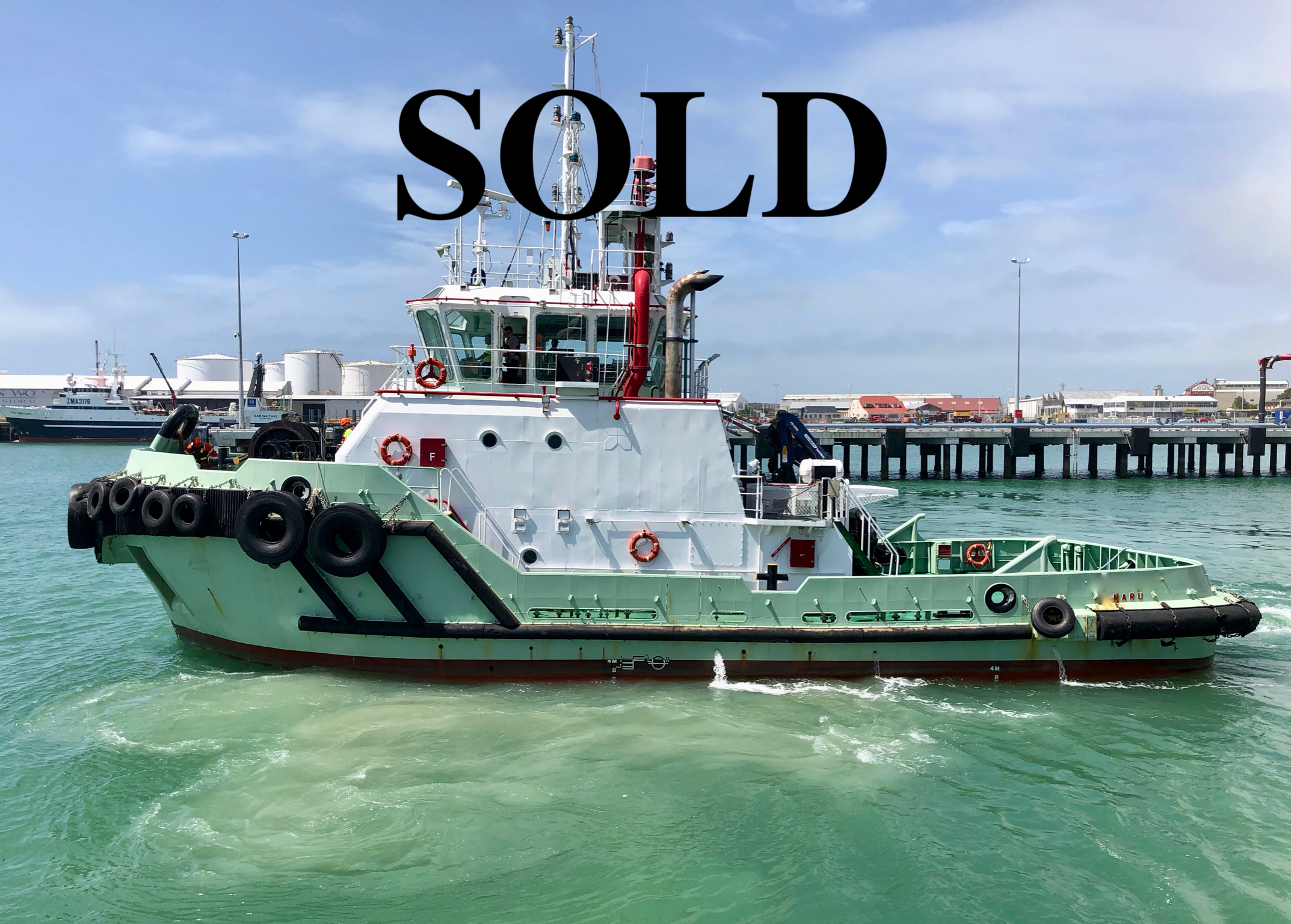

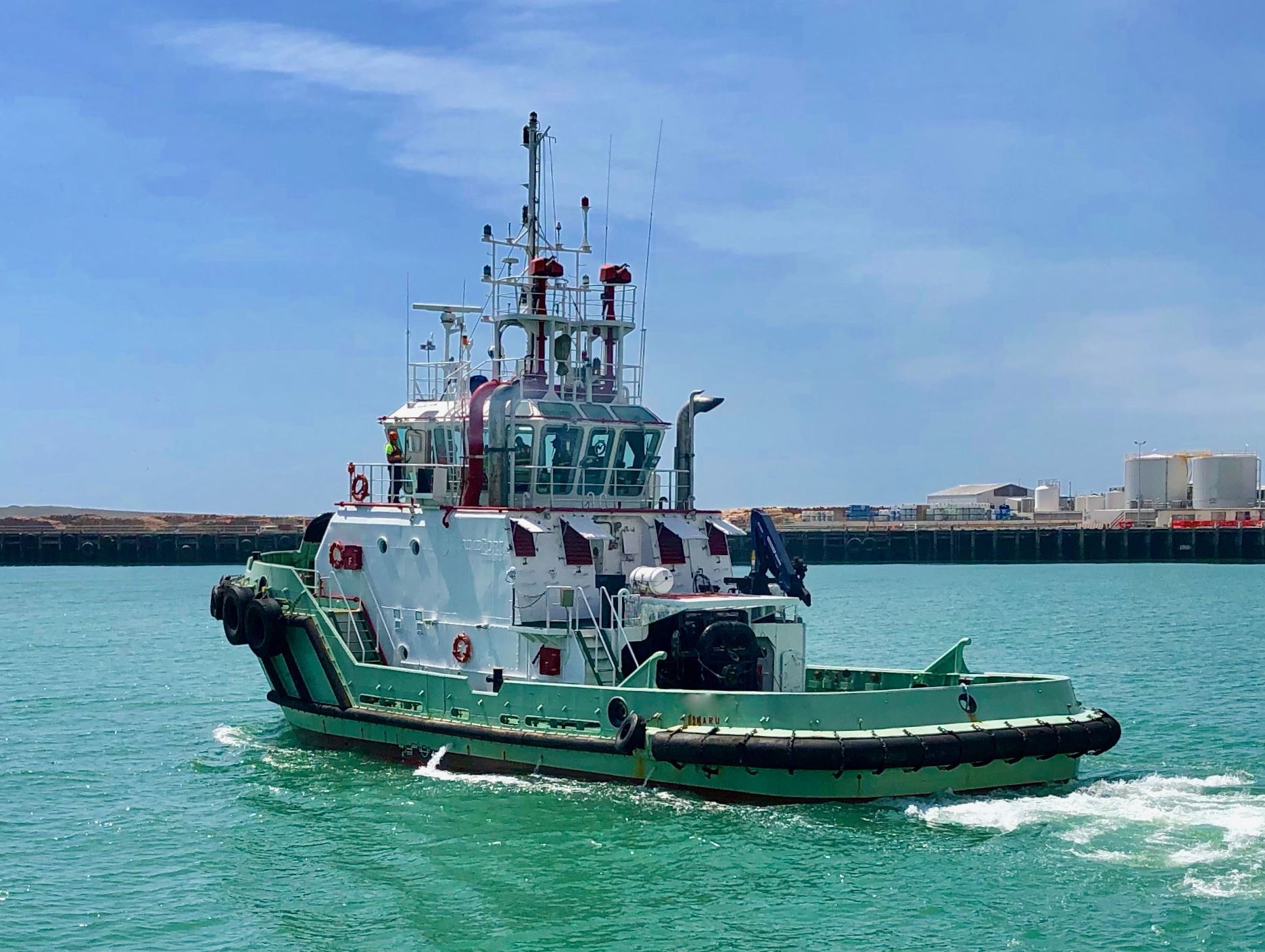

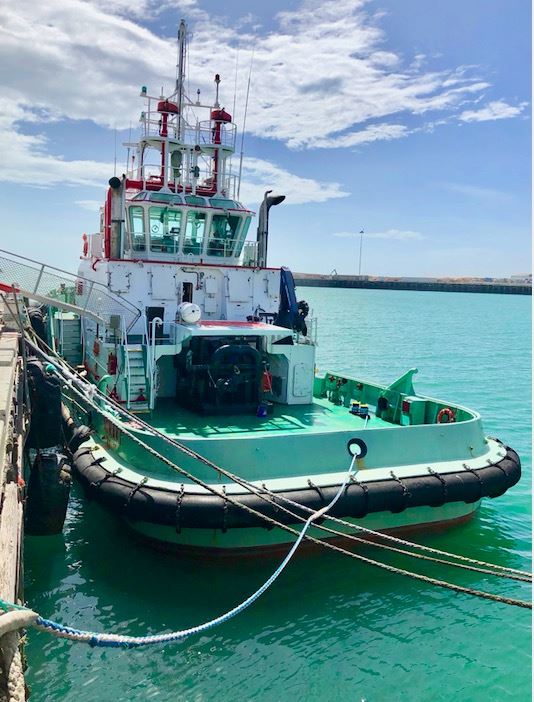

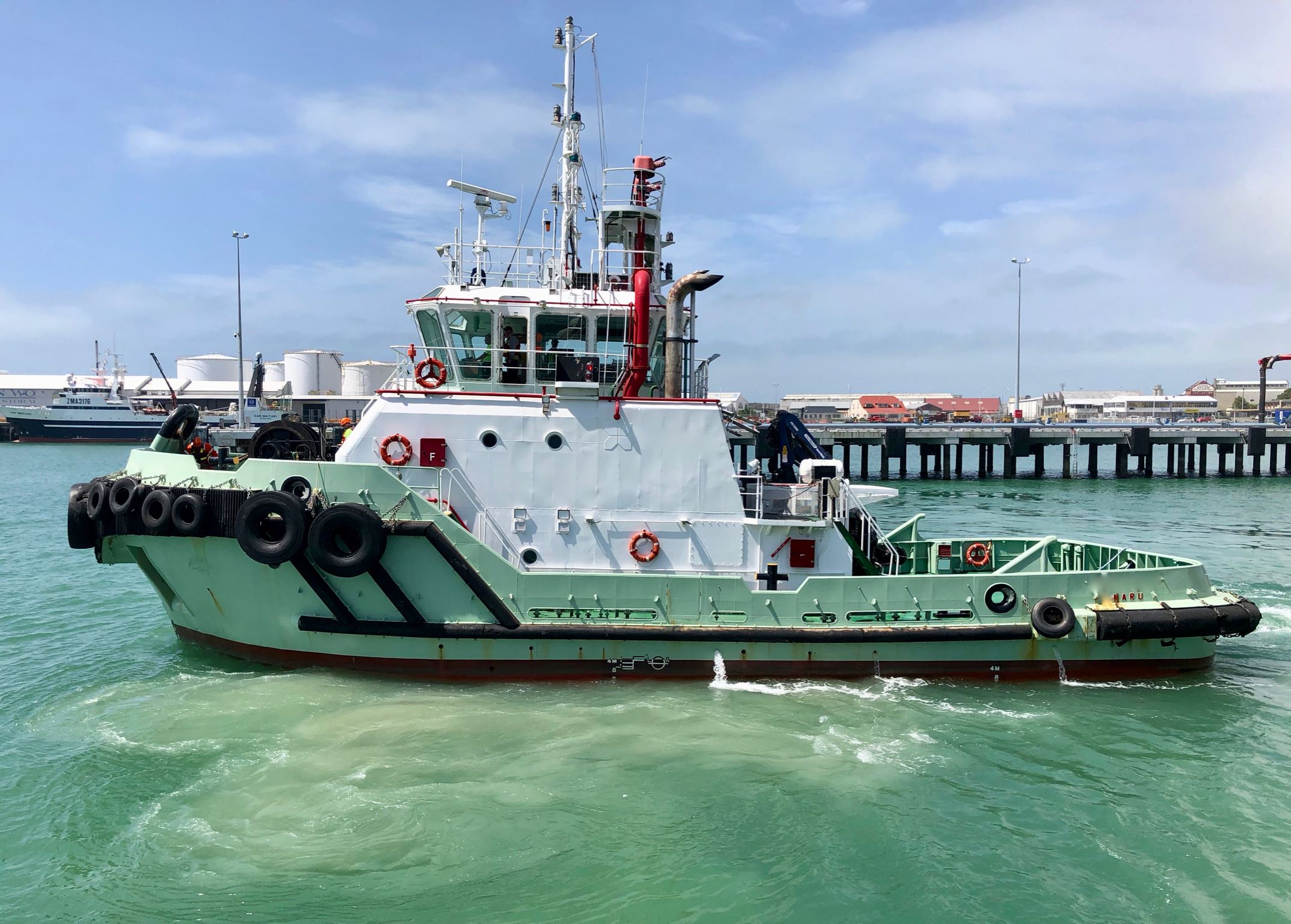

28m ASD Tug built 2008. Recently renewed Lloyds Register, 100 A1 Tug + IWS, LMC and valid until Aug 2023. Powered by twin Niigata 6L25HX marine diesel engines coupled to Niigata ZP21 Z-Peller Azimuth Thrusters providing 42.8 T BP and a maximum speed of 12 knots. Forward towing winch 10 tonne pull @ 10m/min, 3 tonne @ 40m/min on second layer and brake force of 80 tonne. Aft towing winch, 45 tonne pull @ 8m/min, 13 tonne @ 21m/min on second layer and brake force of 80 tonne. Palfinger foldable knuckle boom crane SWL 6000kgs at minimum extension and 1910kg @ 6.1m.



Accommodation for 10 persons



Builder: Bengbu Shenzhou Machinery Co. Ltd, China

Built: 2008

LOA: 27.9m

Beam: 9.82m

Draft: 4.2m

GRT: 333 t

NRT: 99 t

Classification: Lloyds Register, 100 A1 Tug + IWS, LMC (5 yr. LR class renewed Aug 2018)

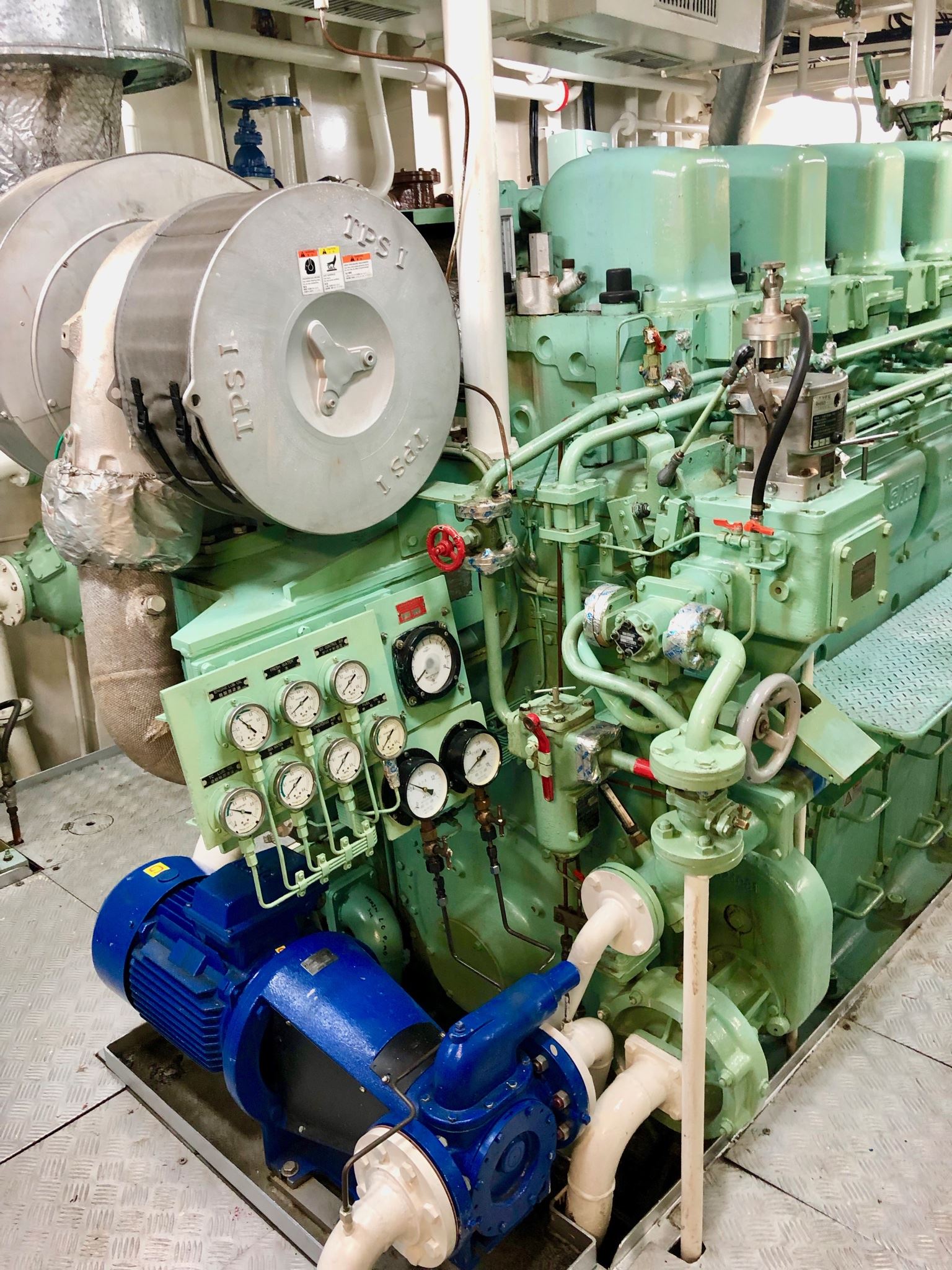

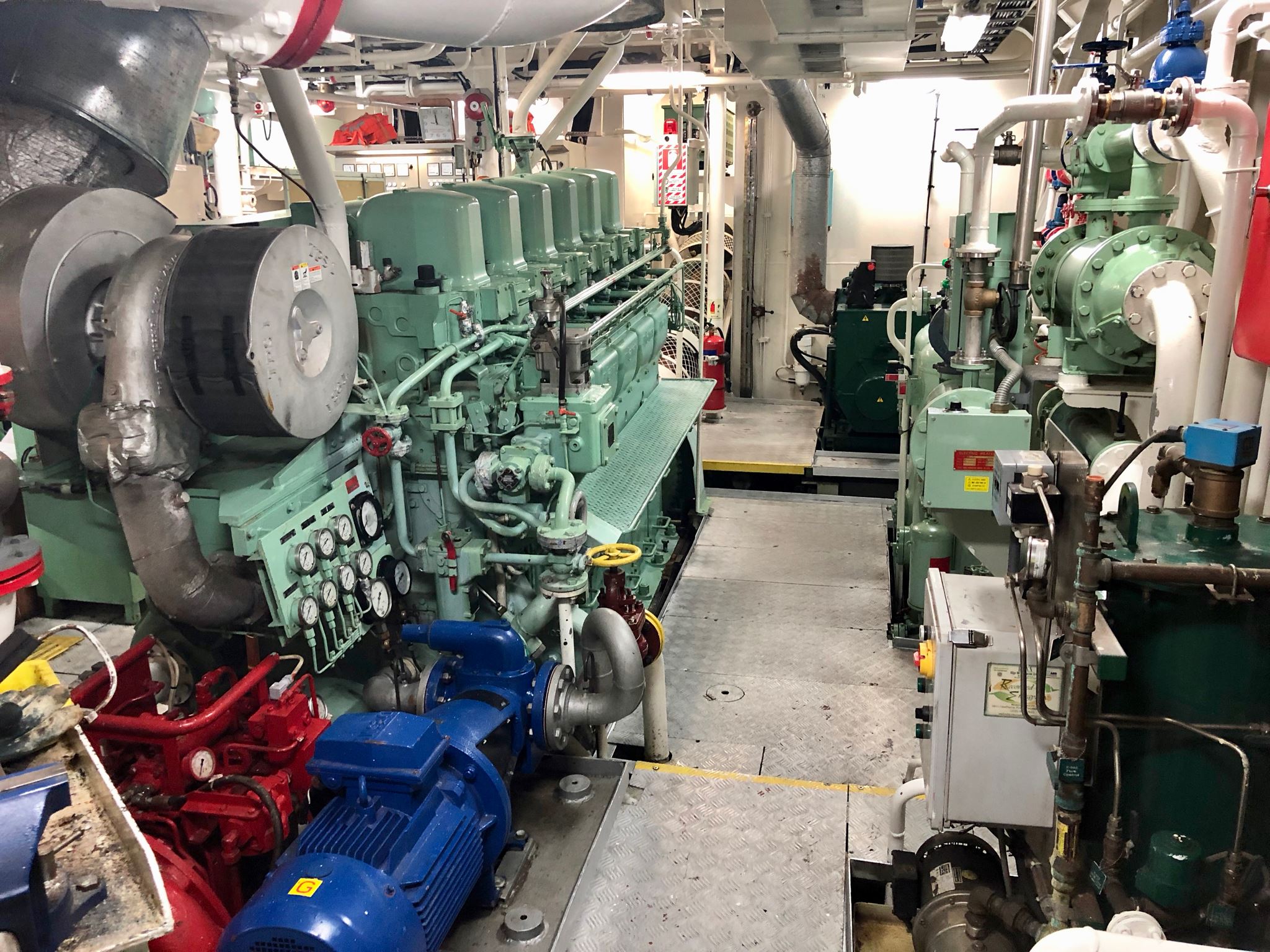

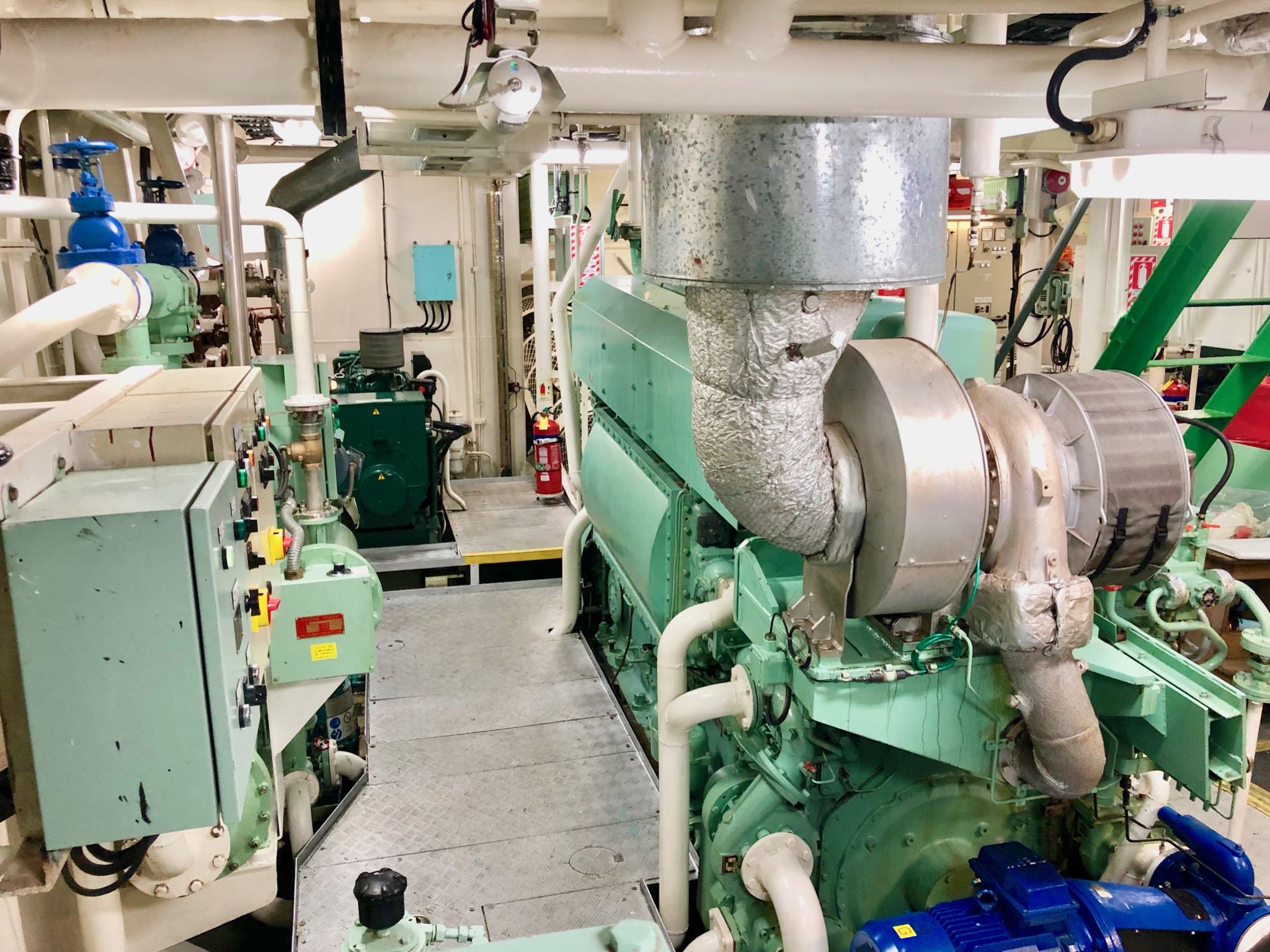

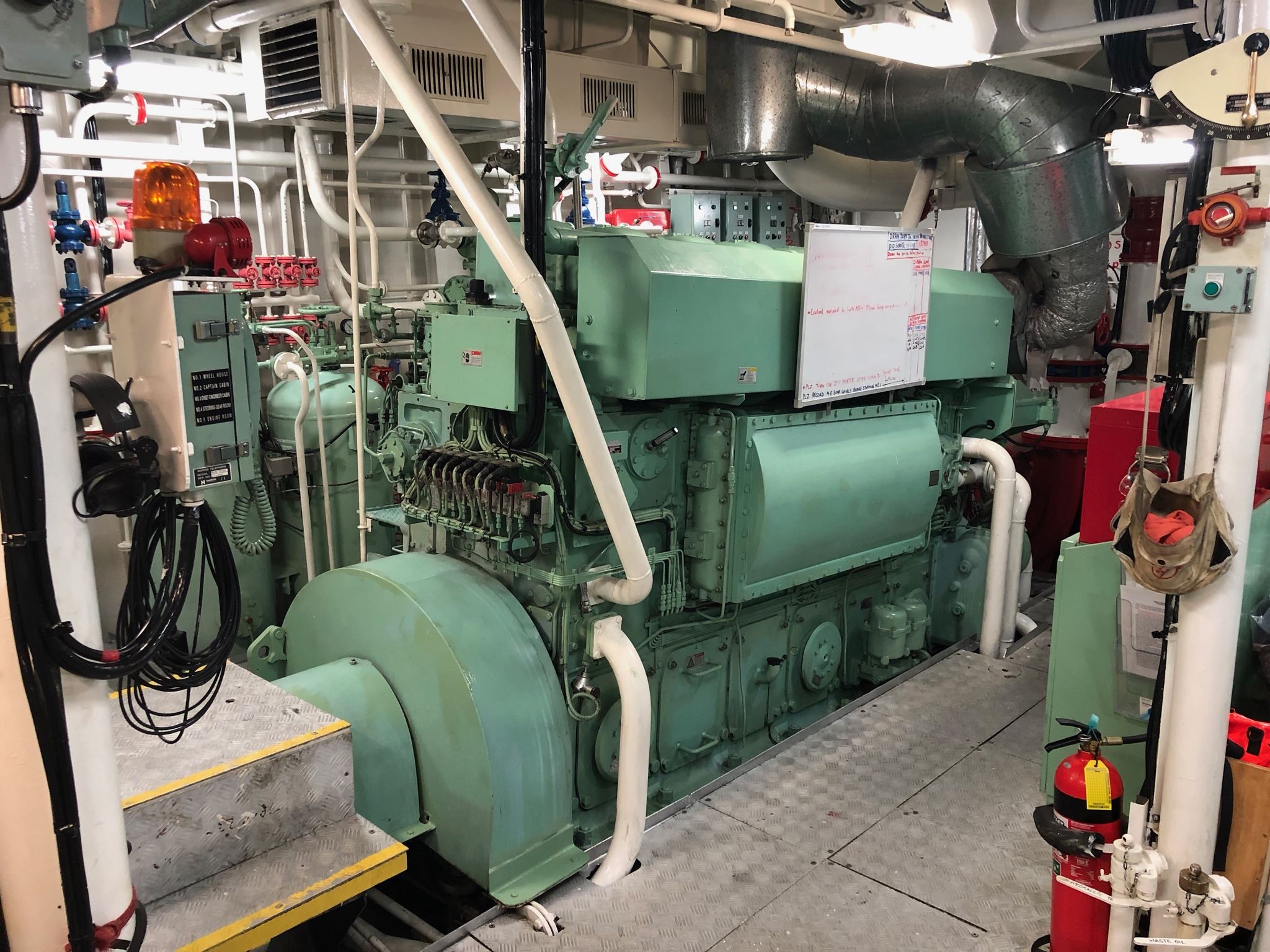

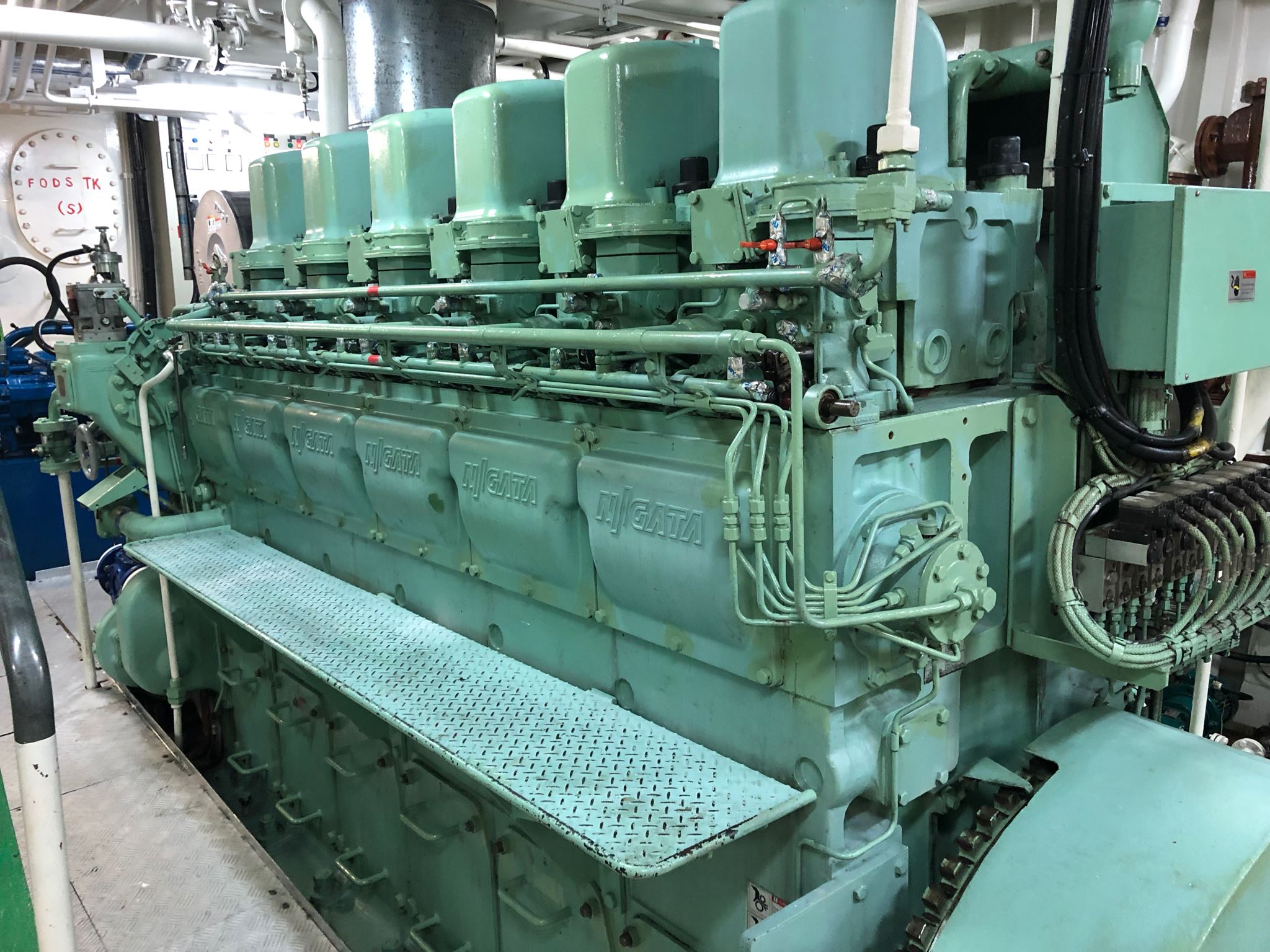

Main Engine: 2 x Niigata 6L25HX



Output: 1323 Kw @ 750 rpm

No of Cylinders: 6

Bore: 250 mm

Stroke: 350 mm

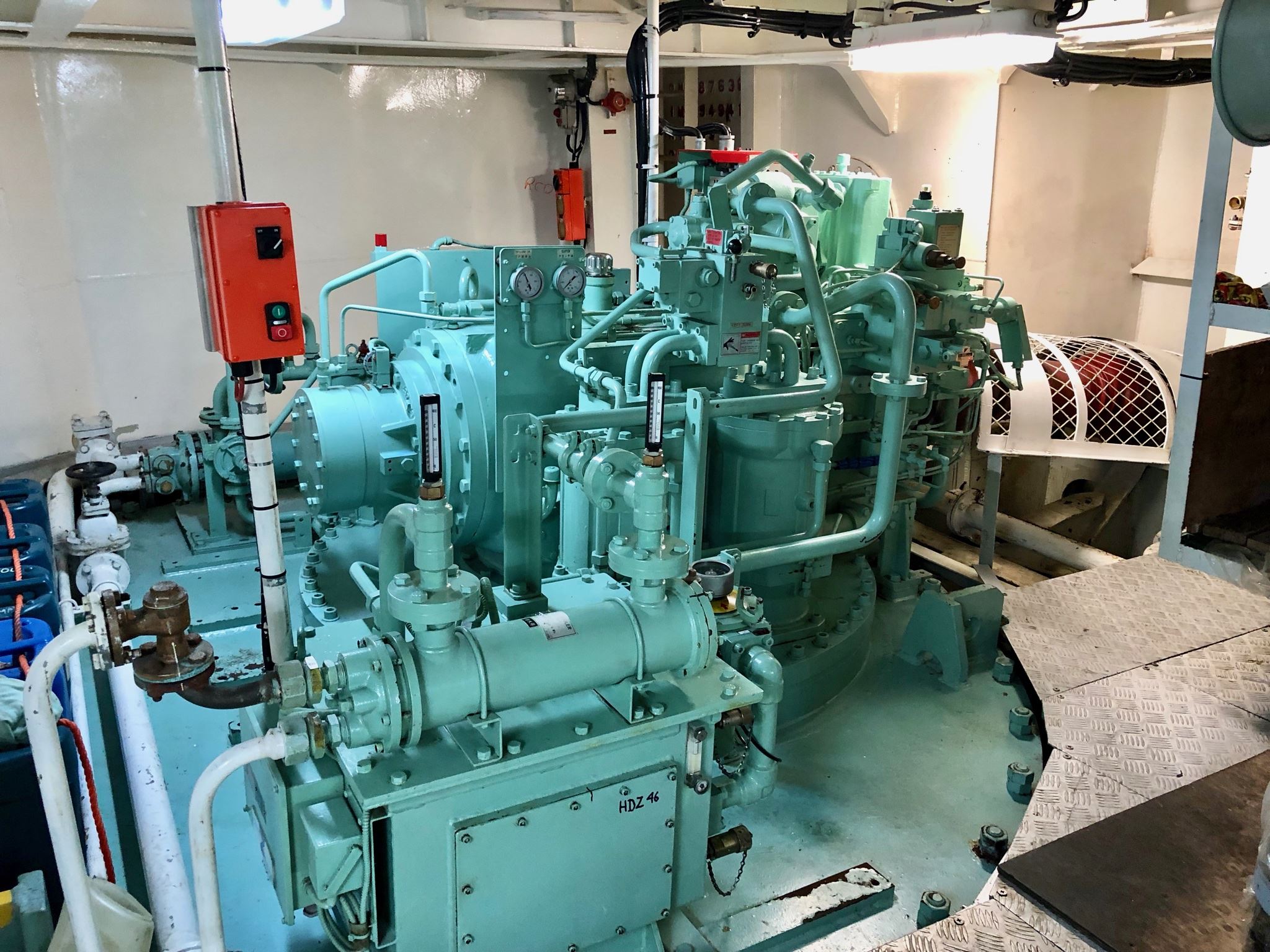

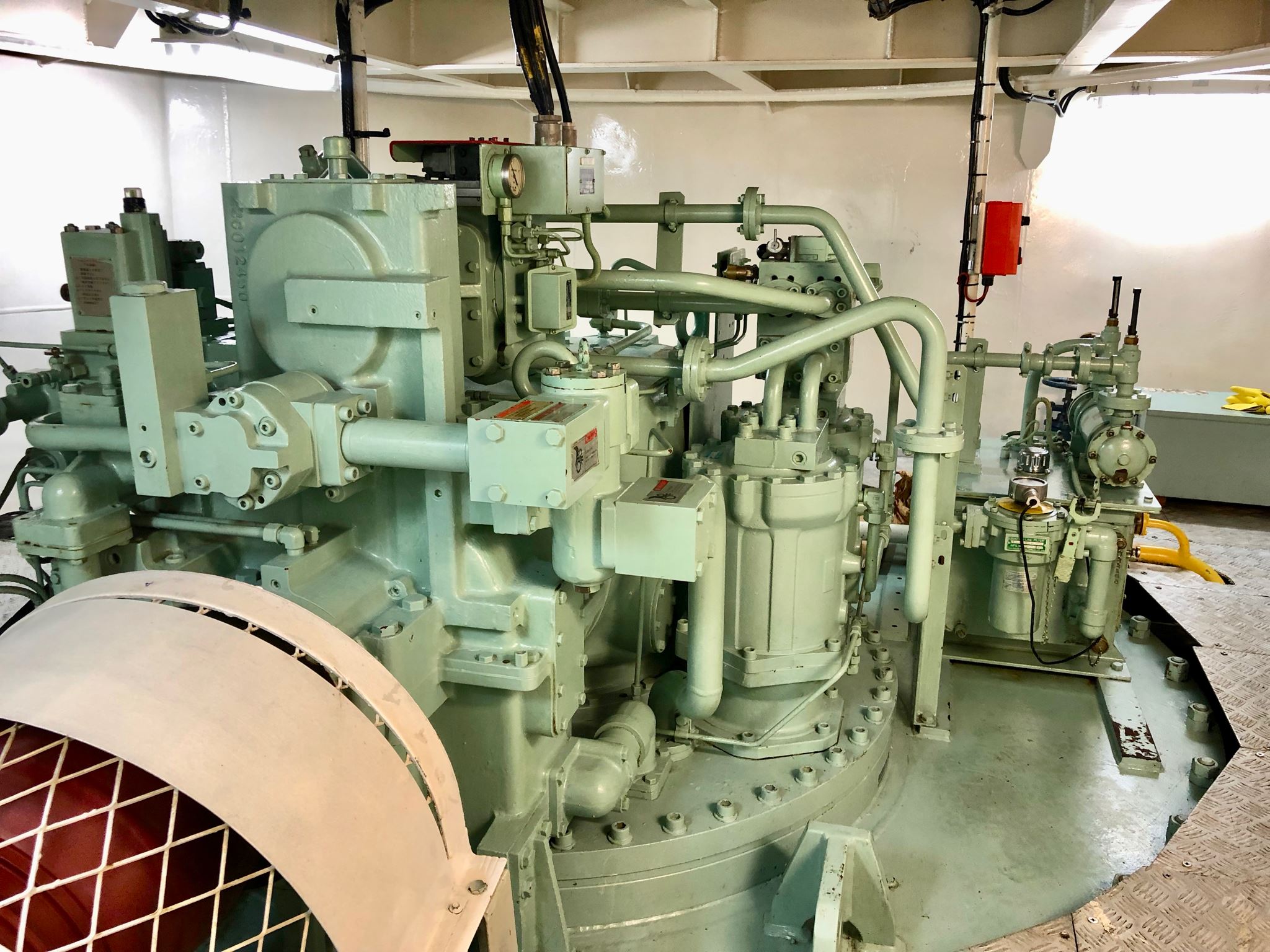

Make: 2 x Niigata ZP21 Z-Peller Azimuth Thrusters

Input shaft rpm: 750 rpm

Propeller rpm: 330 rpm

Reduction: 2.272: 1

Slipping Control Range: 50 – 330 rpm at engine idling speed (400 rpm)

Propeller: 4 Blade, Fixed Pitch

Diameter & Pitch: 2000 mm x 1840 mm



Bollard Pull: 42.8 tonne

Speed: 12 knots

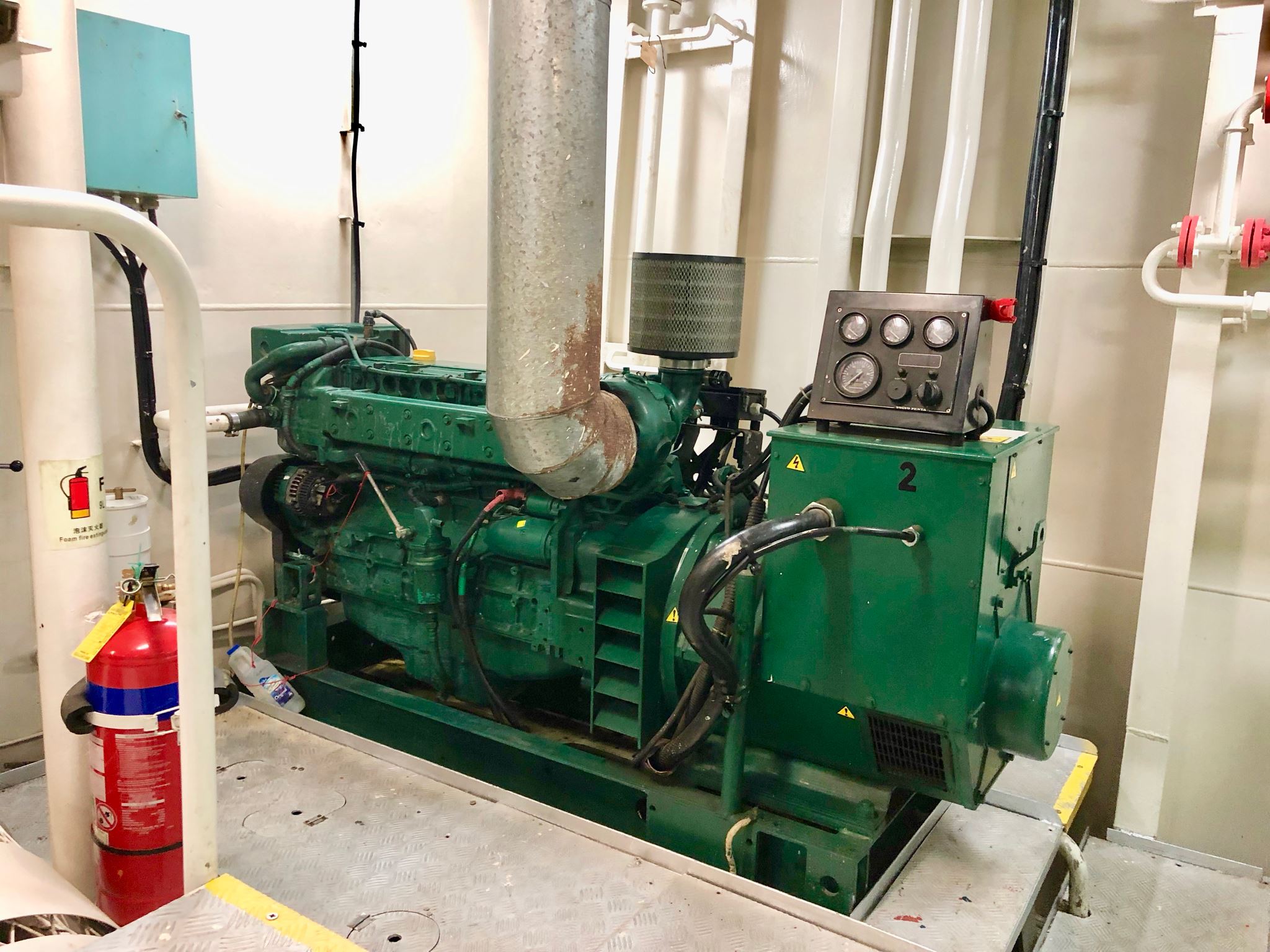

Engines: 2 X Volvo Penta, D7A T HE, Marine Diesels, 116 kW @ 1500 rpm

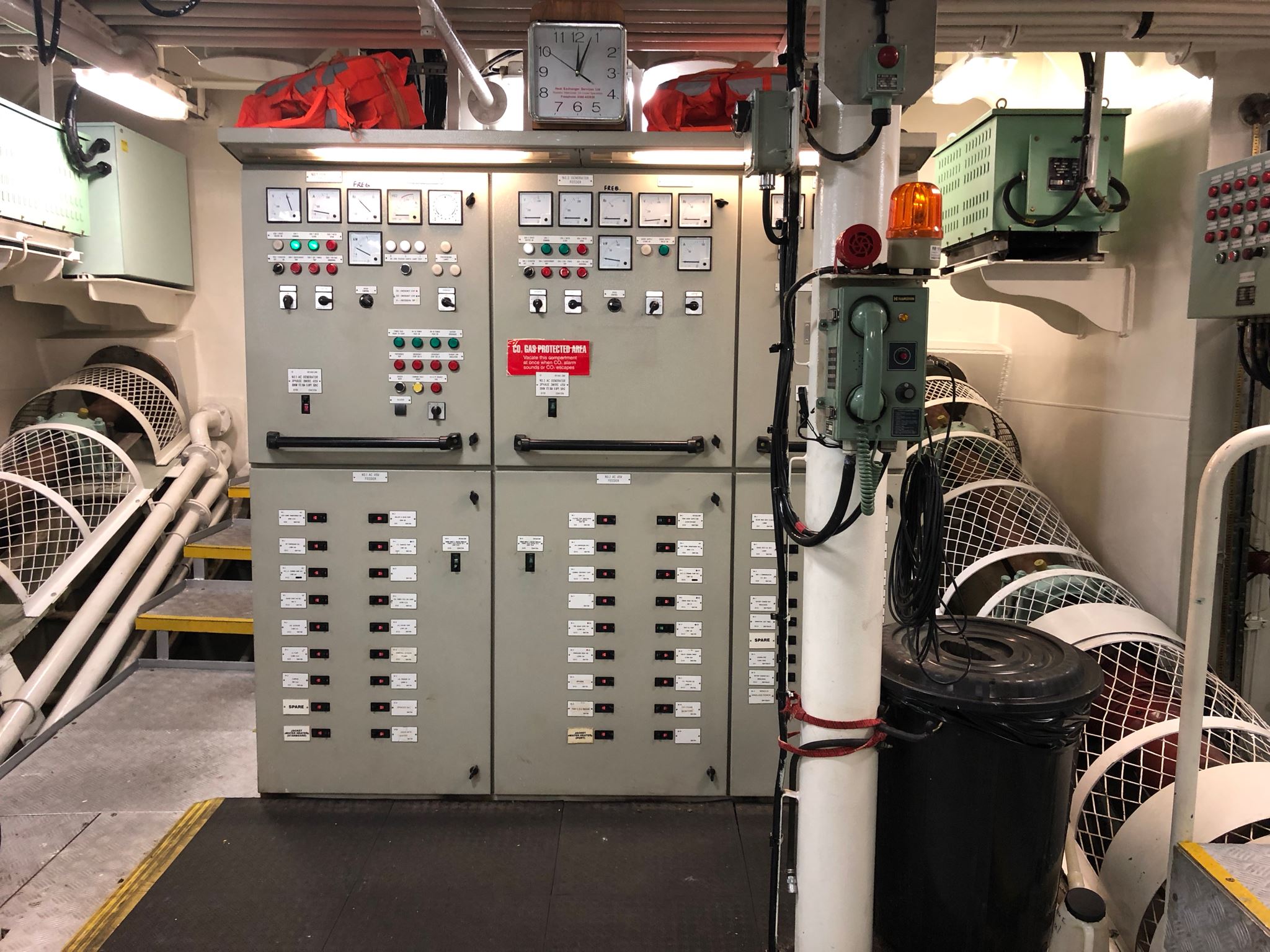

Generator: 2 X Leroy-Somer 135 KVA 415 V AC, 50HZ @ 1500 rpm

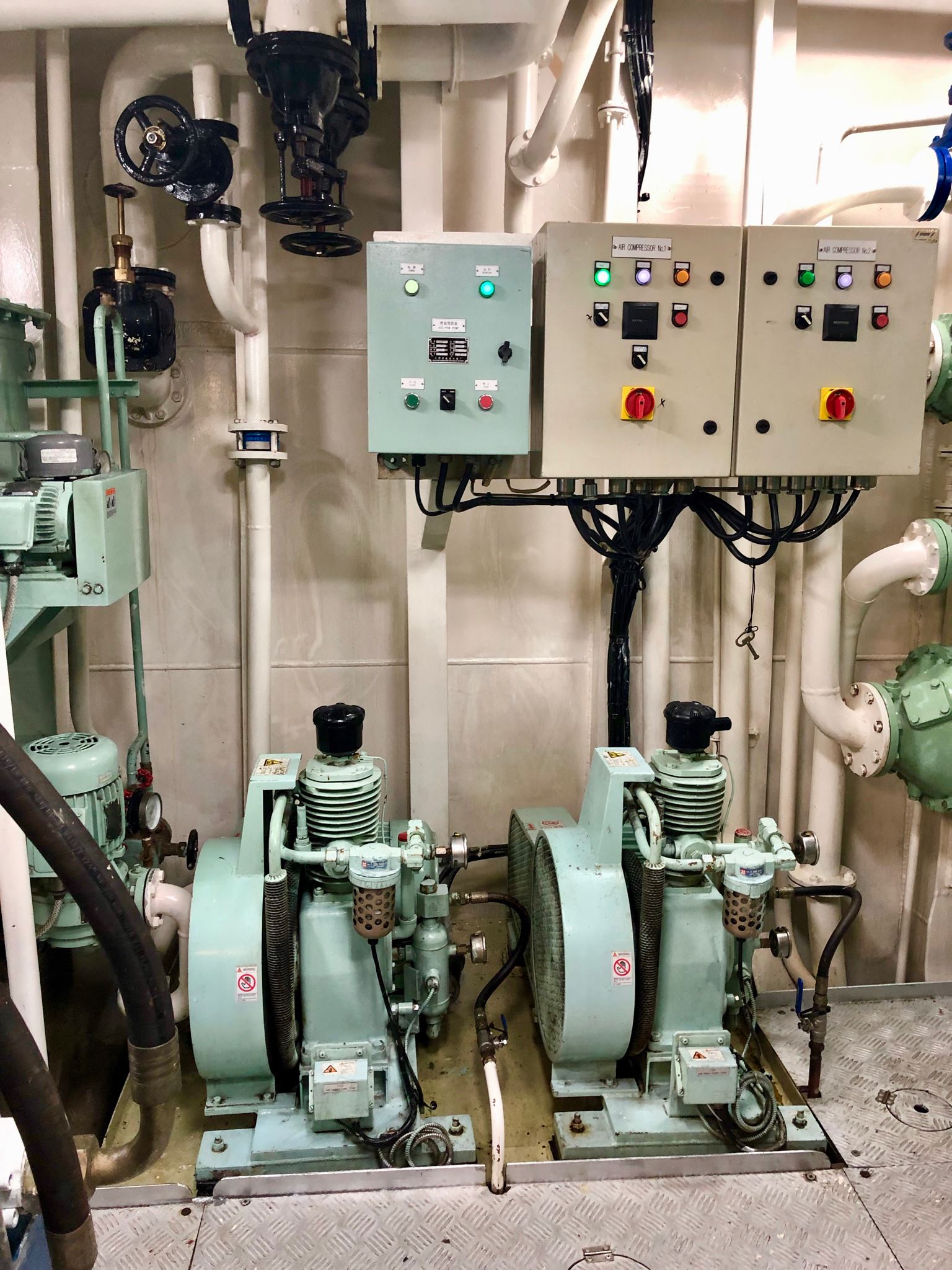

Main Air compressor: 2 X Tanabe compressors, LHC-33, 22 m3 /hr

Air Reservoirs: 2 X 200 L @ 30 kg / cm2

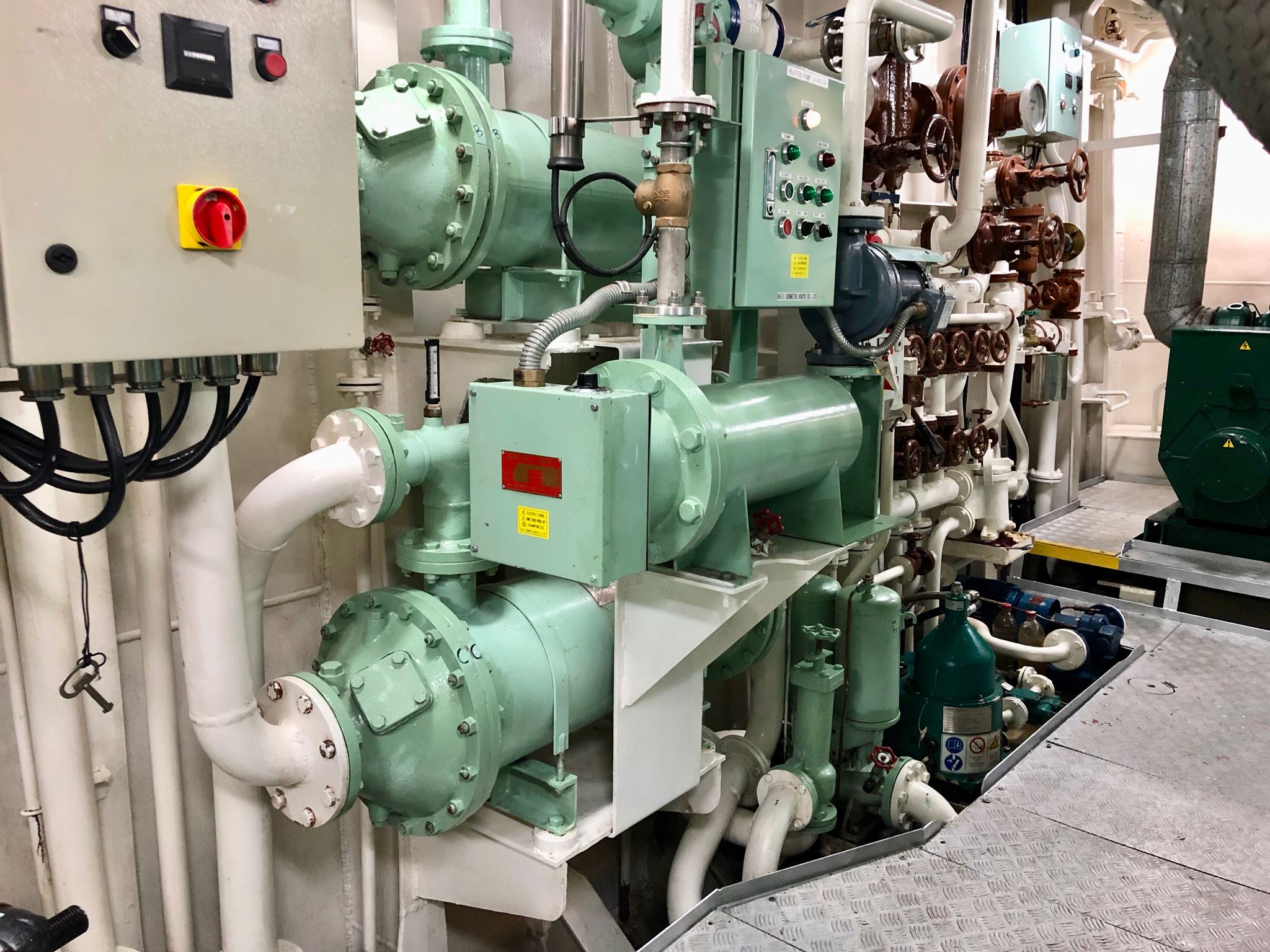

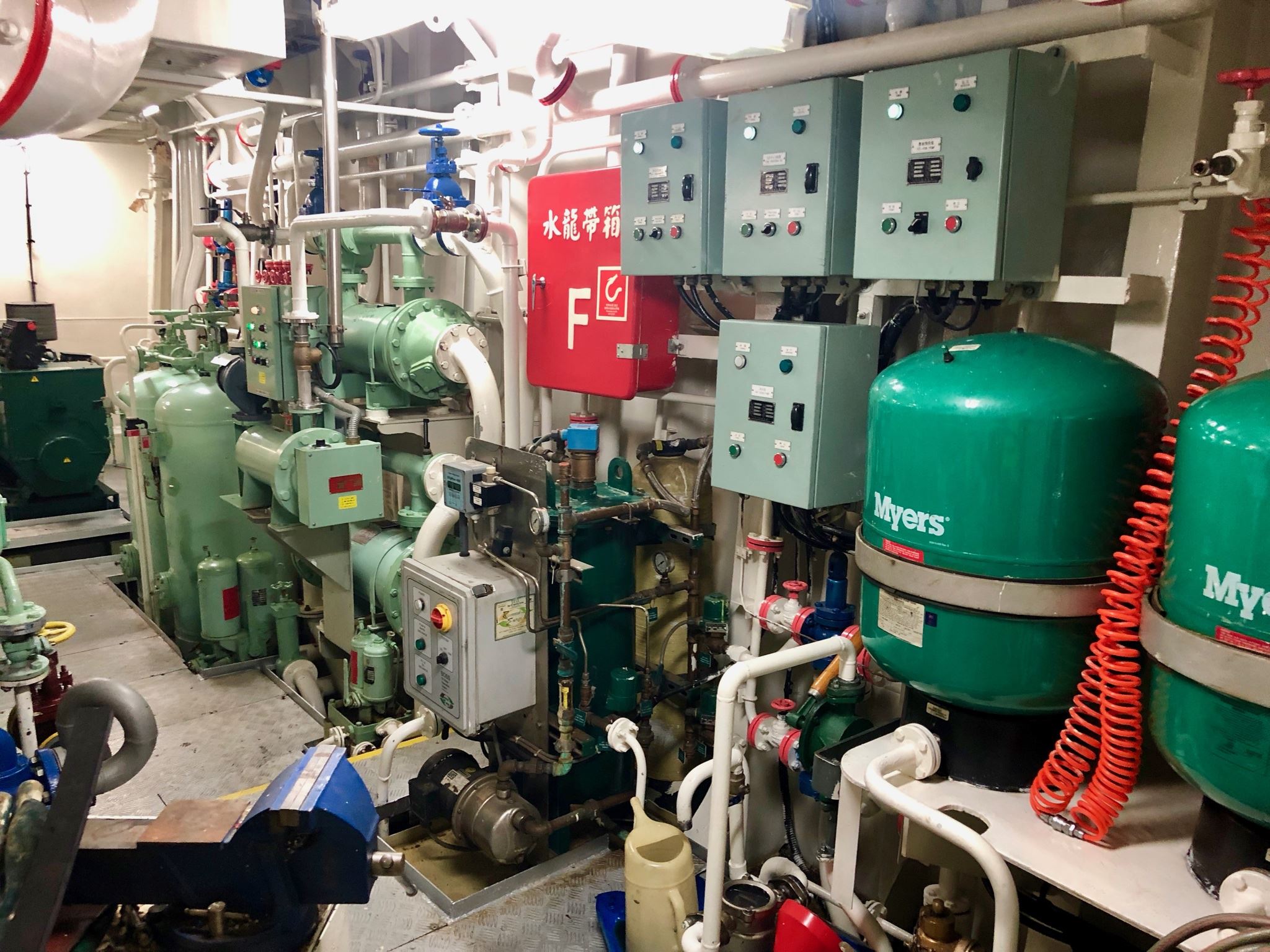

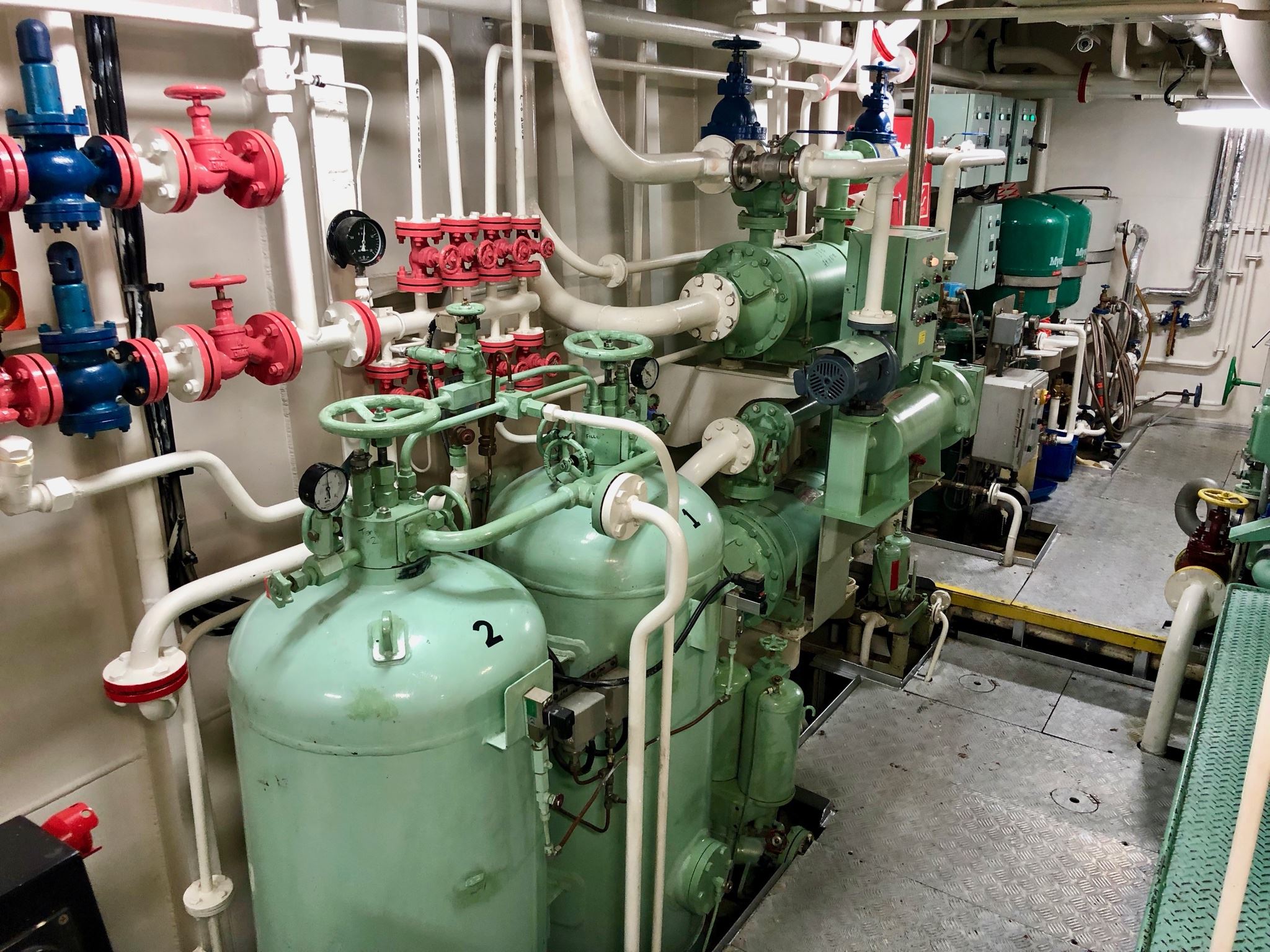

Heat exchangers are provided for:

Main Engine Cooling Water x 2

Main Engine Lube Oil x 2

Z-Peller Hydraulic Oil x 2

Z-Peller Lube Oil x 2

Hydraulic Power pack Oil x 1

Fresh Water Generator x 2



Pump: Kumera 1455 m3/hr @ 1800 rpm

Monitor: Fire Fighting Systems Ltd, FFS 600, Length / Height = 100 m / 45 m

Capacity: Water / Foam = 600/ 150 m3 /hr

Oily Water Separator: Recovered Energy Inc., BOSS 2T/107, IMO approved.

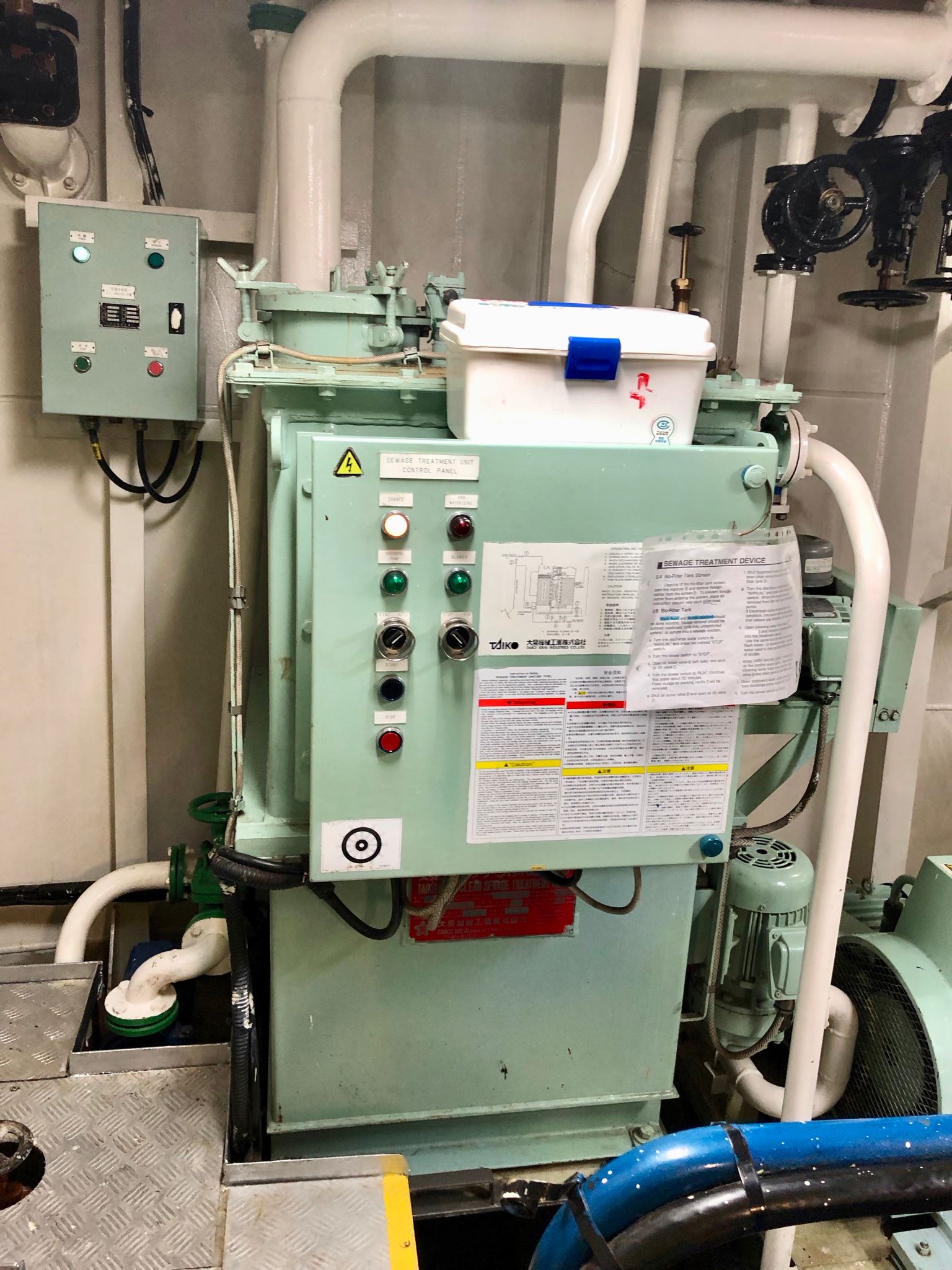

Sewage Treatment plant: Taiko Ship, SBT – 15. Rated for 15 persons



Fuel Oil capacity: 174.3 m3 (7 tanks)

Lube Oil storage Capacity: 4.3 m3

Hydraulic Oil storage Capacity: 2.1 m3

Foam Solution tank capacity: 10.6 m3

Dispersant tank capacity: 10.6 m3

Dirty oil tank capacity: 2.1 m3

Fresh Water: 25.8 m3

Water Ballast: 40.5 m3



Emergency Portable Generator for charging main generator start batteries

Emergency Portable Fire pump

Life Saving Appliances: To class

Rescue Boat

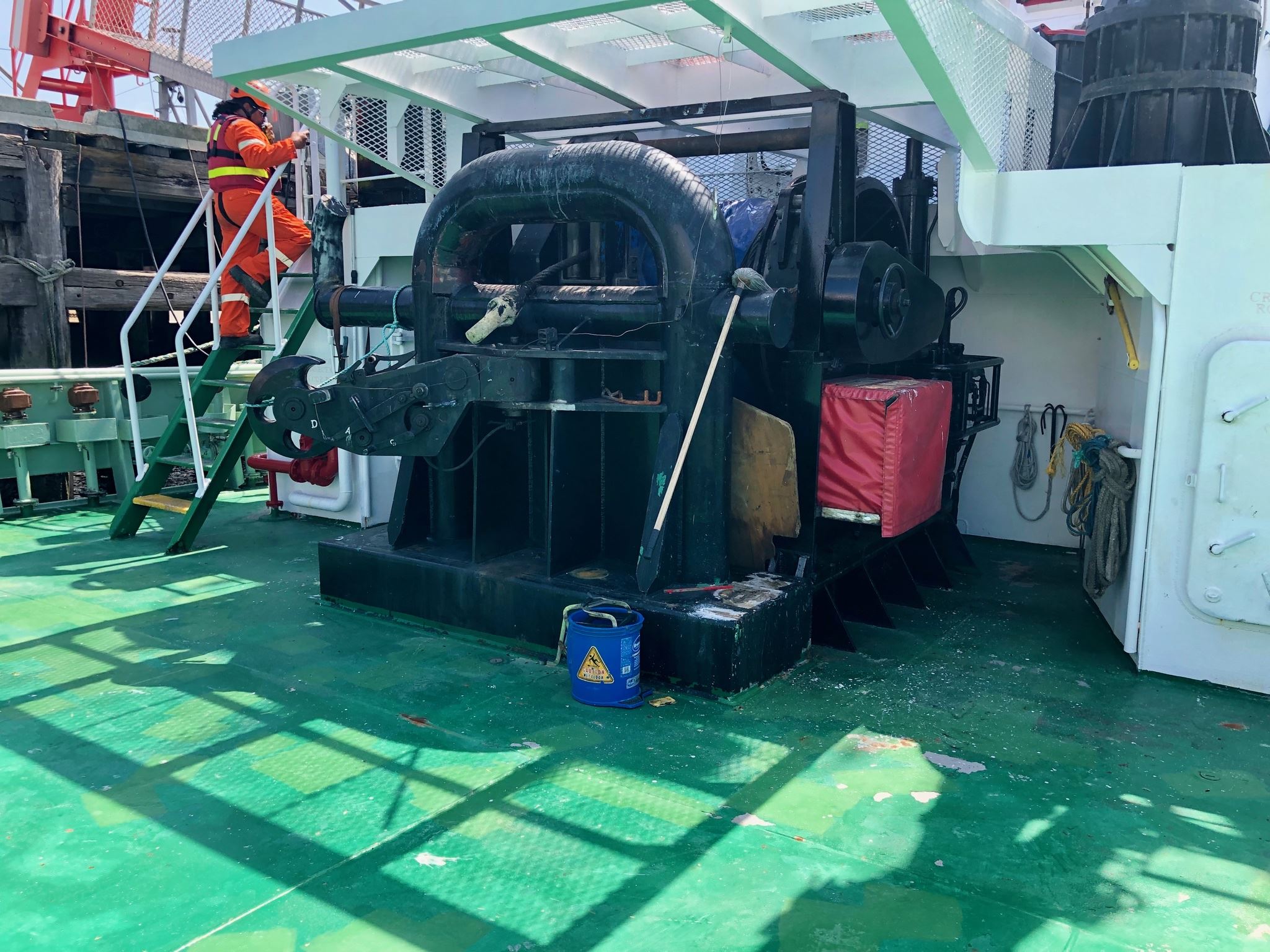

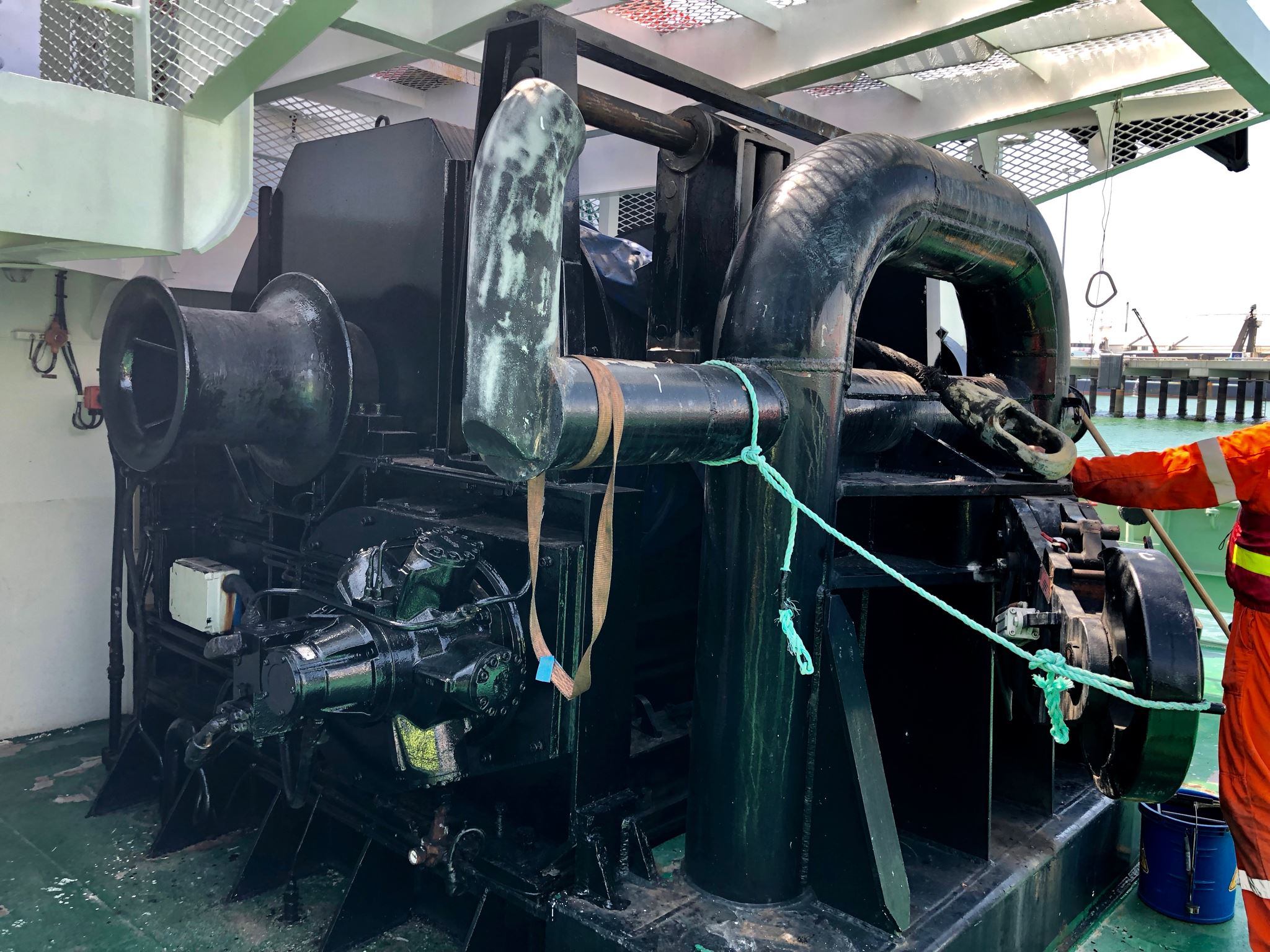

Anchor windlass: 2 tonne and 10 tonne split drum Towing winch with warping drums

Manufactured by Marine Equipment, Model Number:  ME 3TWL10T ME 0712 -38

Hydraulic Motor Staffa/, Model Number:  KPM HME080/S/90/45/S03 102325

Gypsy: 20.5mm anchor chain, 2 tonne @ 13m/min

Gypsy brake: manual operated, holding power 16 tonne

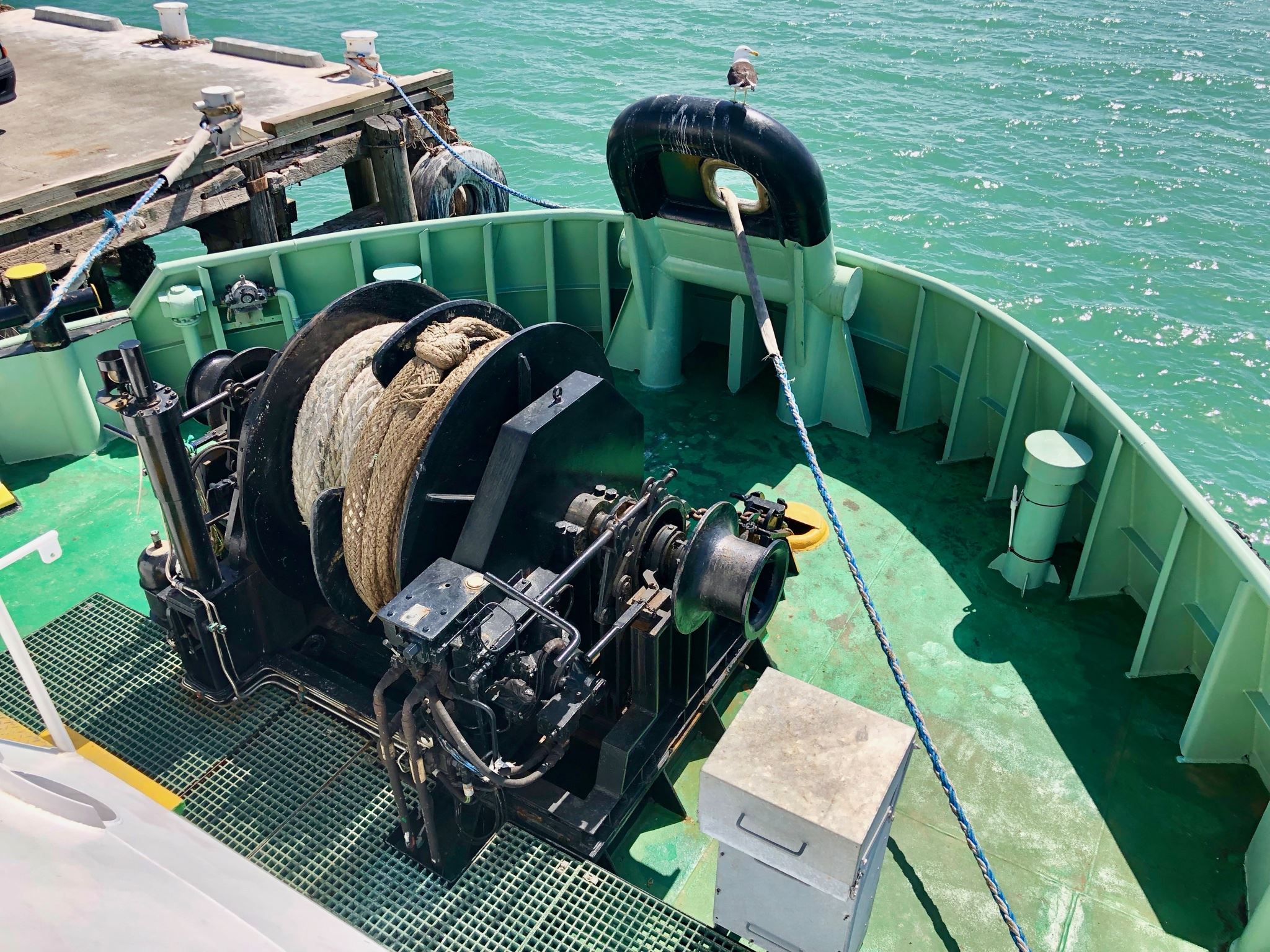

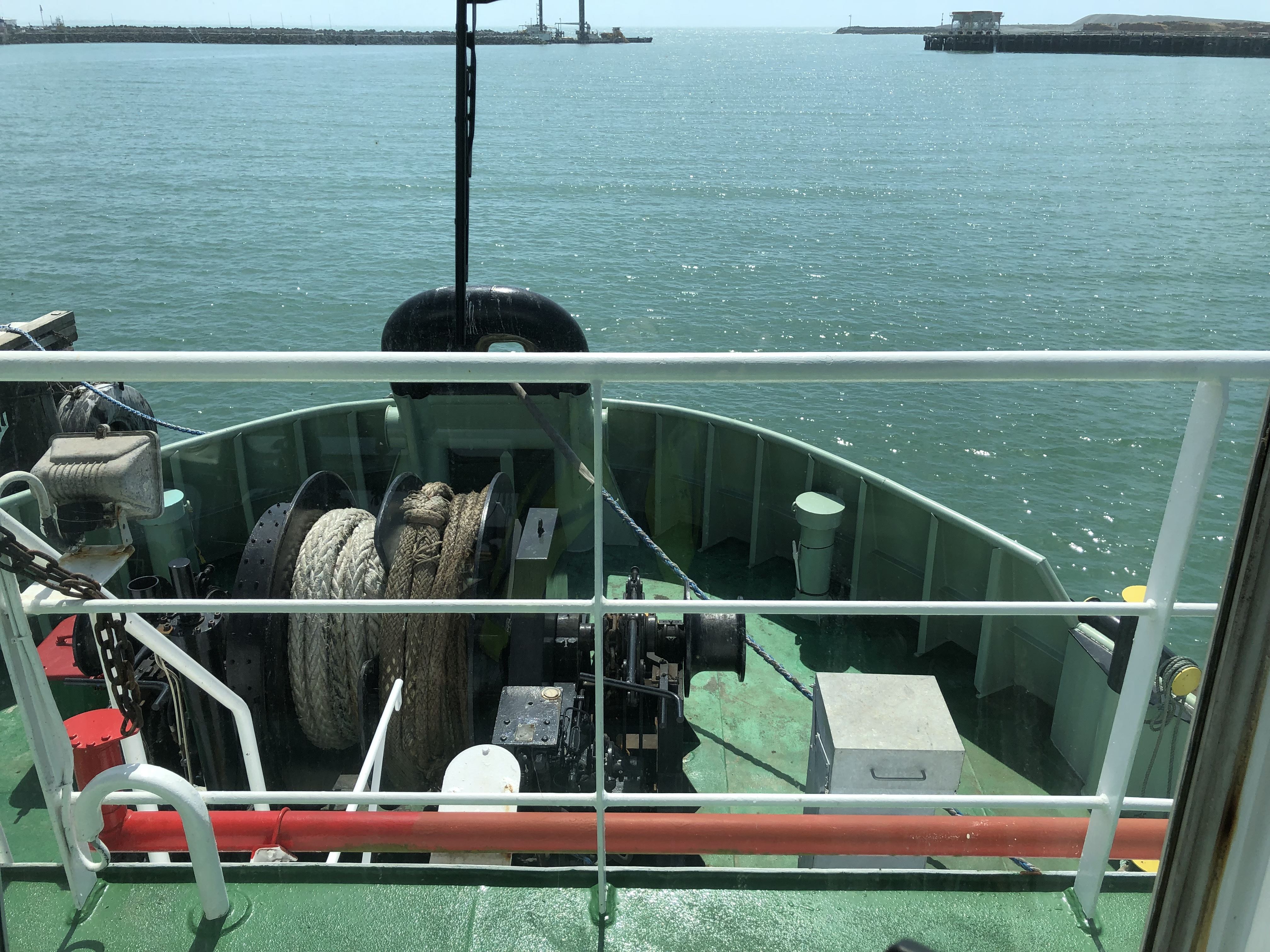

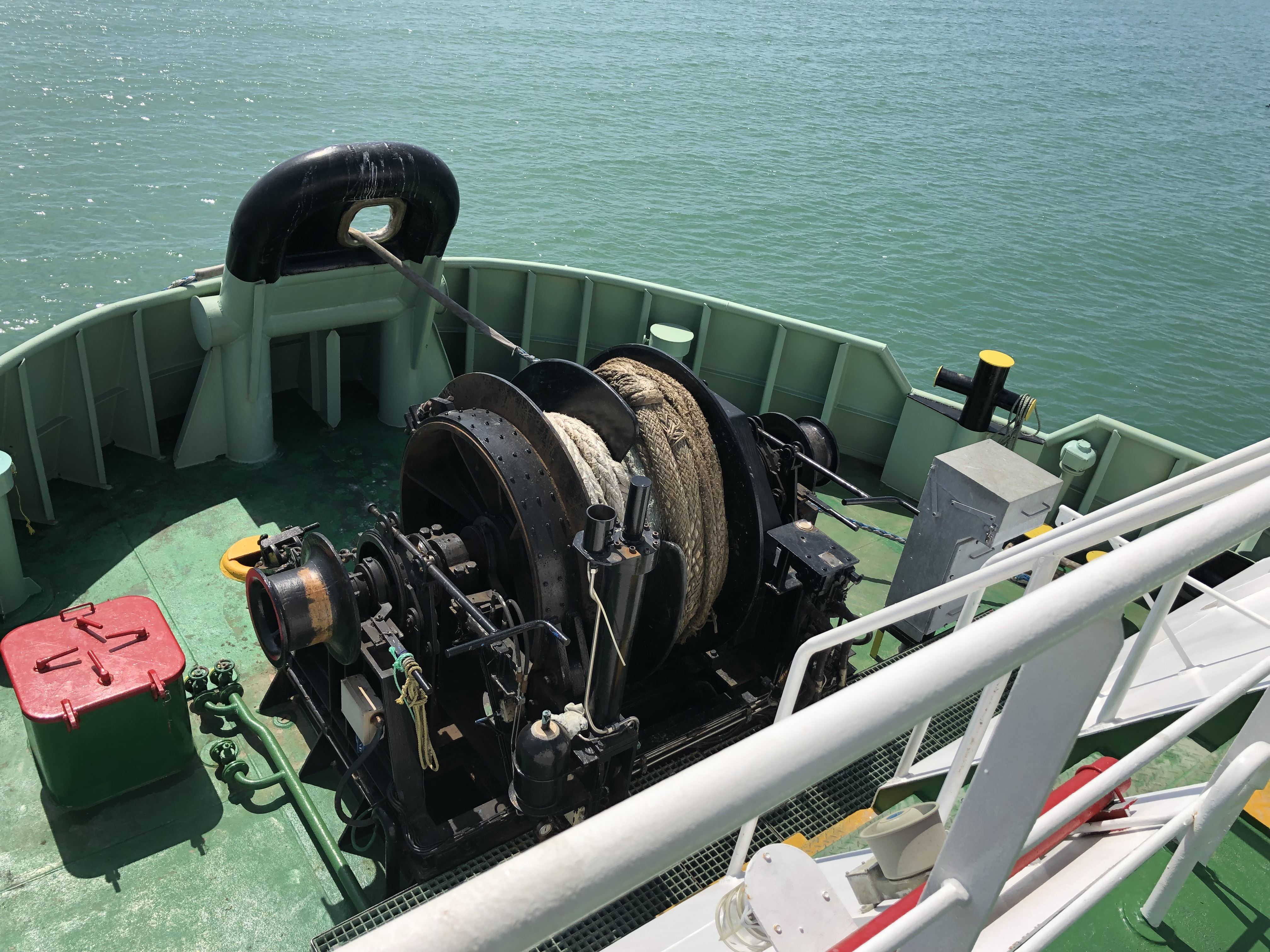

Forward Towing Winch:

Winch Capacity: 10 tonne @ 10m/min / 3 tonne @ 40m/min

Winch Speed: 20m/min (high speed) / 13m/min (low speed) at second layer of rope

Brake holding 80 tonne at first layer of rope

Rope capacity: 200m of 80mm rope.

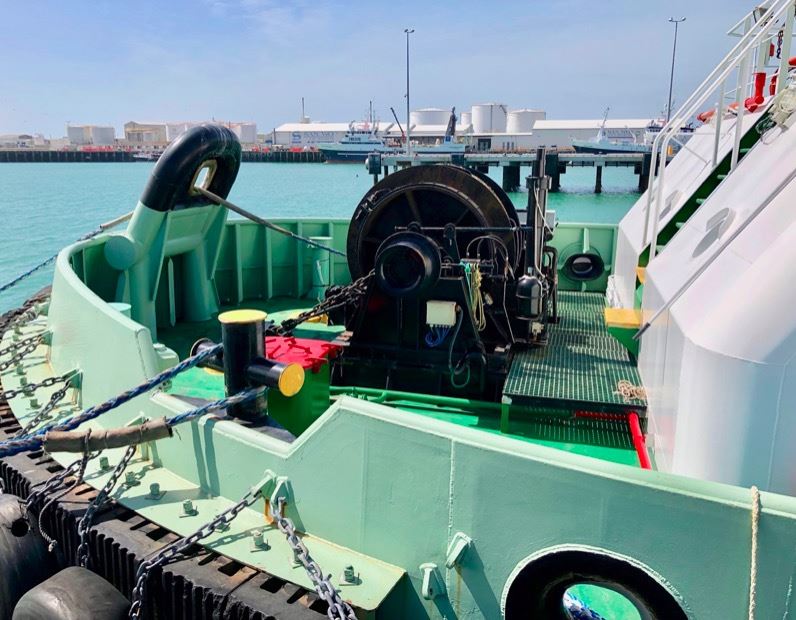

Aft Towing Winch: 45 tonne Single drum  Marine Equipment ME 45THTW ME070823

Hydraulic Motor: 90 Hp Staffa, Model Number: / KPM HMC200/S/188/60/S0495859

Winch capacity: 45 tonne /13 tonne ( Low/ High)

Winch Speed: 8 / 21 m/min at second layer of line

Speed: 3.5 RPM / 12.2 RPM ( low/ high)

Capacity: Currently 250m 40mm wire rope.

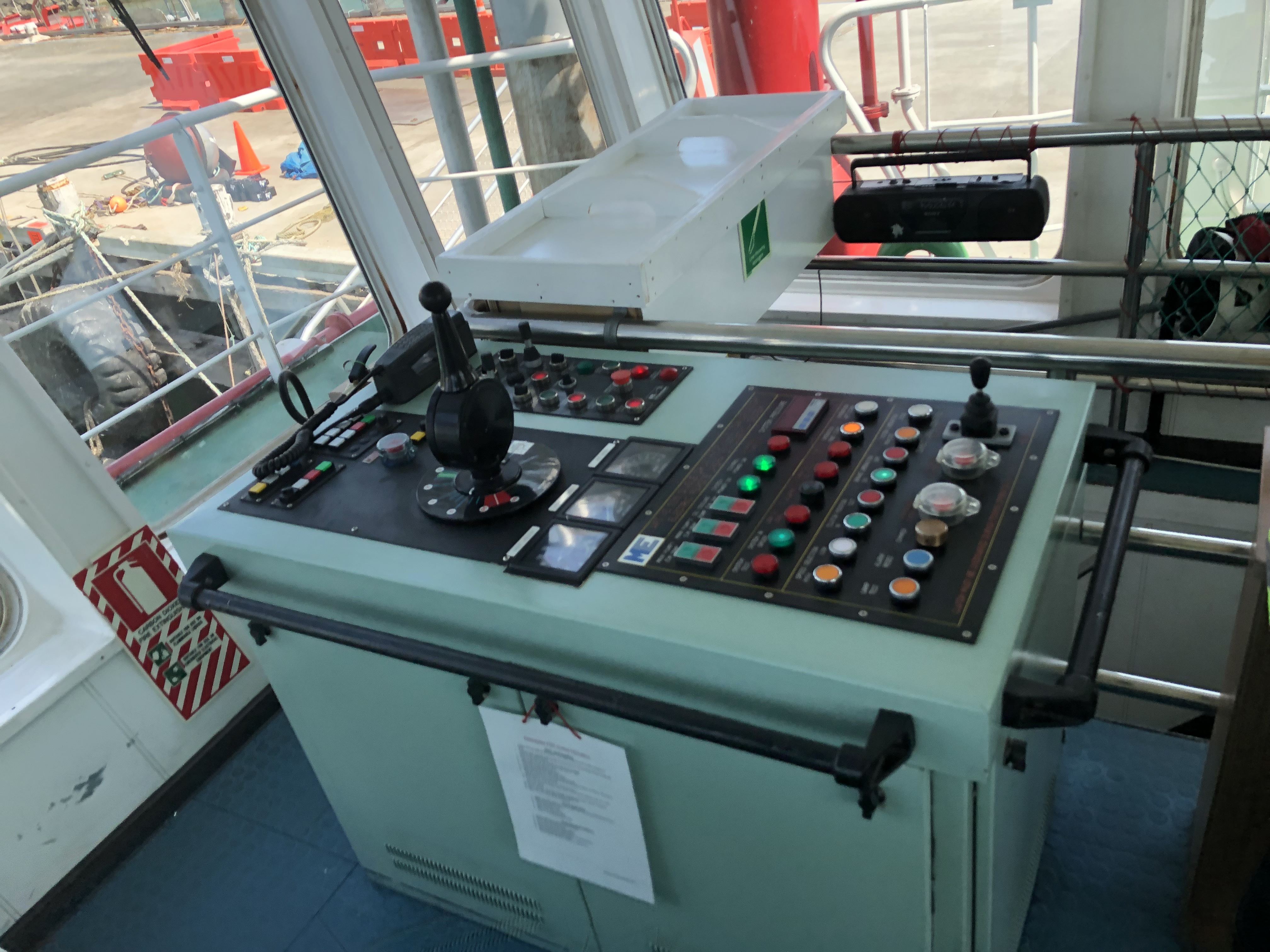

Towing Winch Control System: Fwd and Aft Marine Equipment EAW415/50-3B3

Aft Towing Hook: Mampaey 50 tonne SWL with manual and pneumatic release.

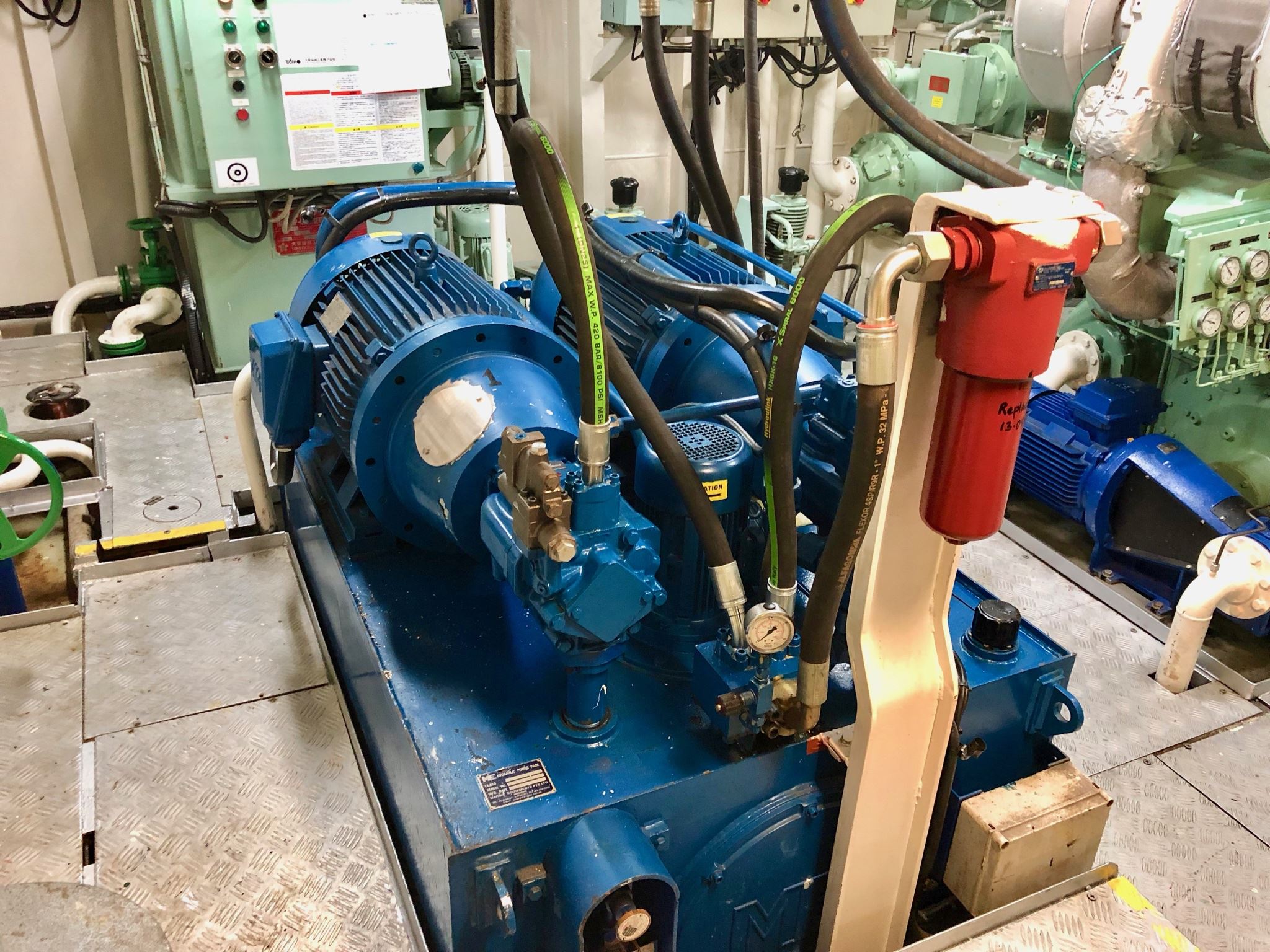

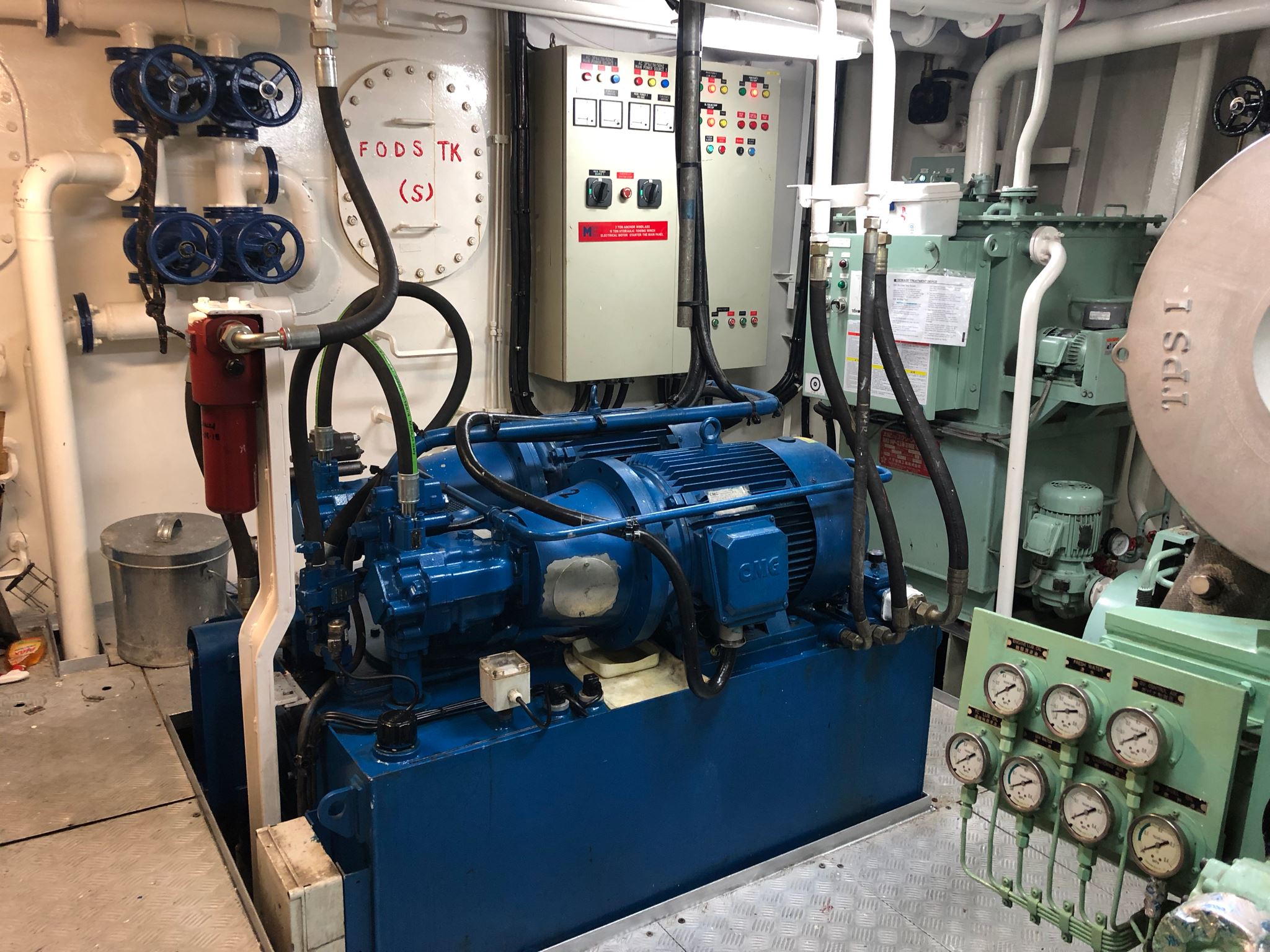

Hydraulic Power Unit : Marine Equipment ABS HPU 07-06-21

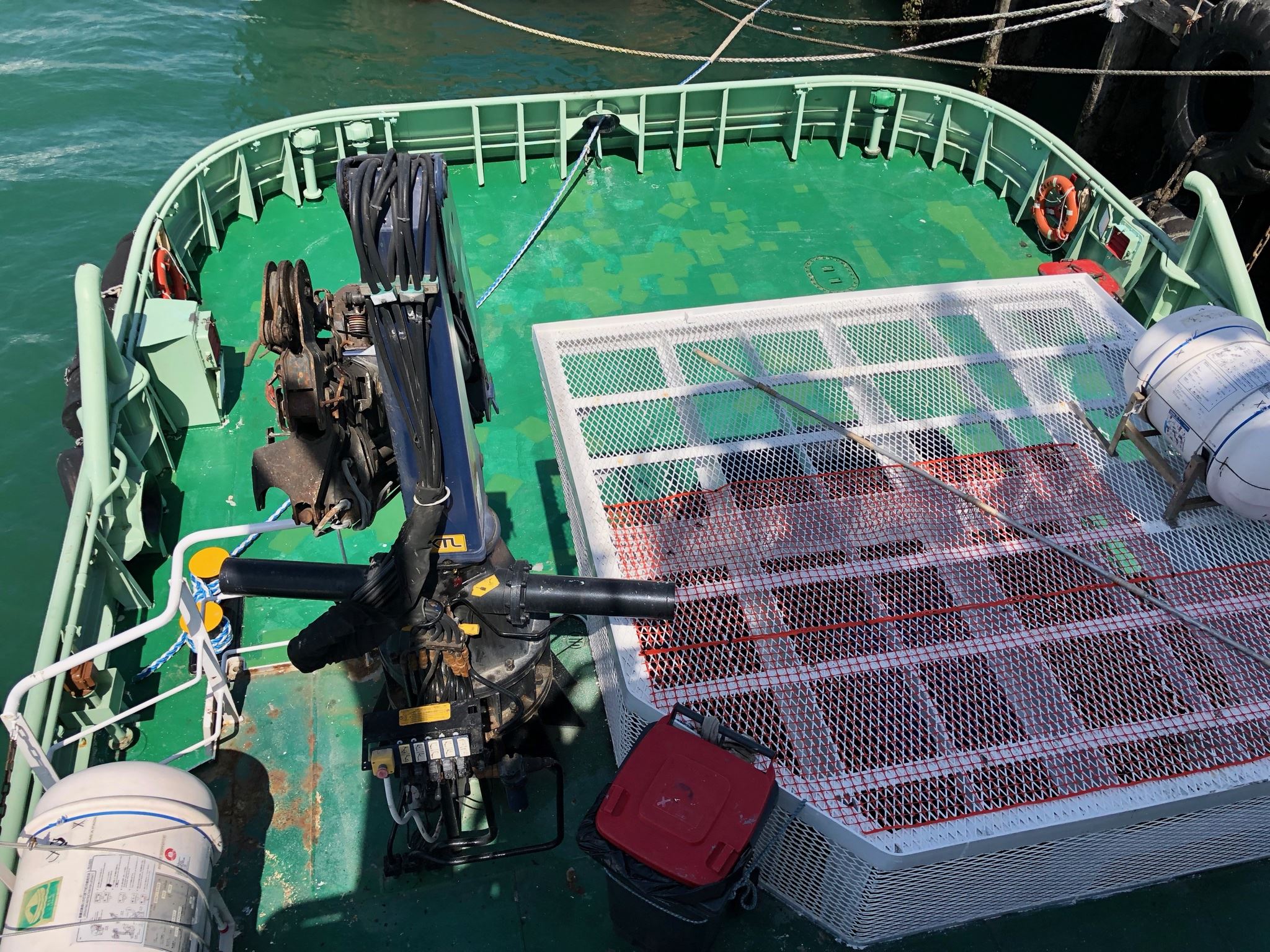

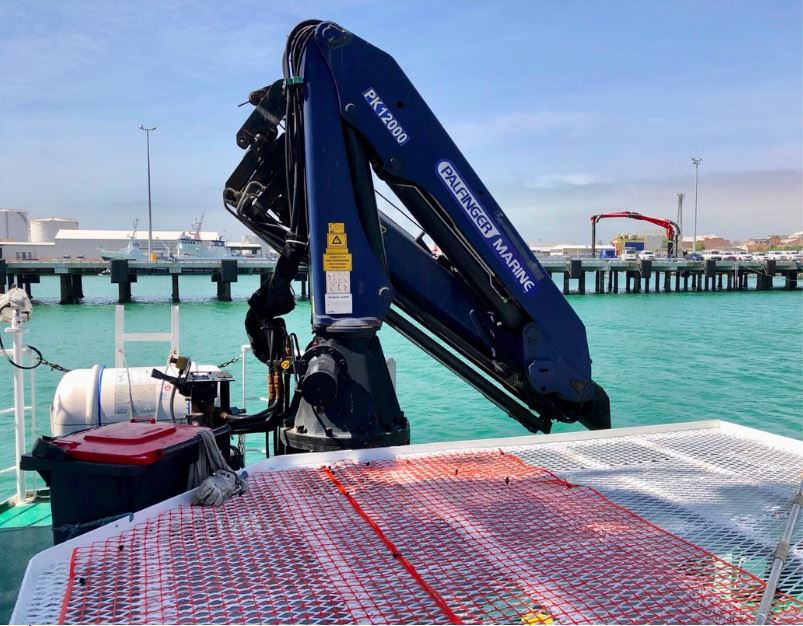

Palfinger Deck Crane: PK 12000 SWL 1910kg @6.1m SWL 6000kgs at min extension

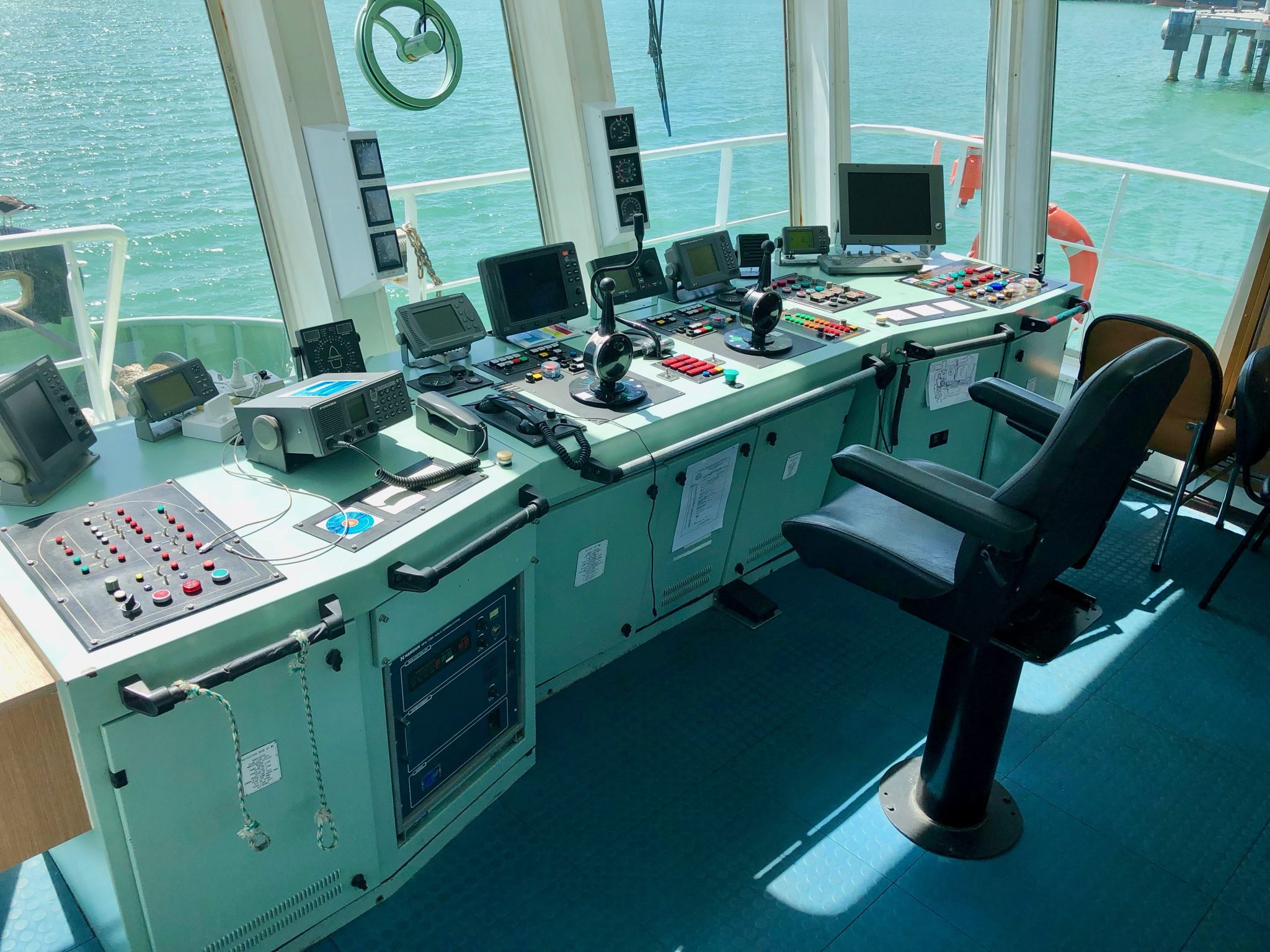

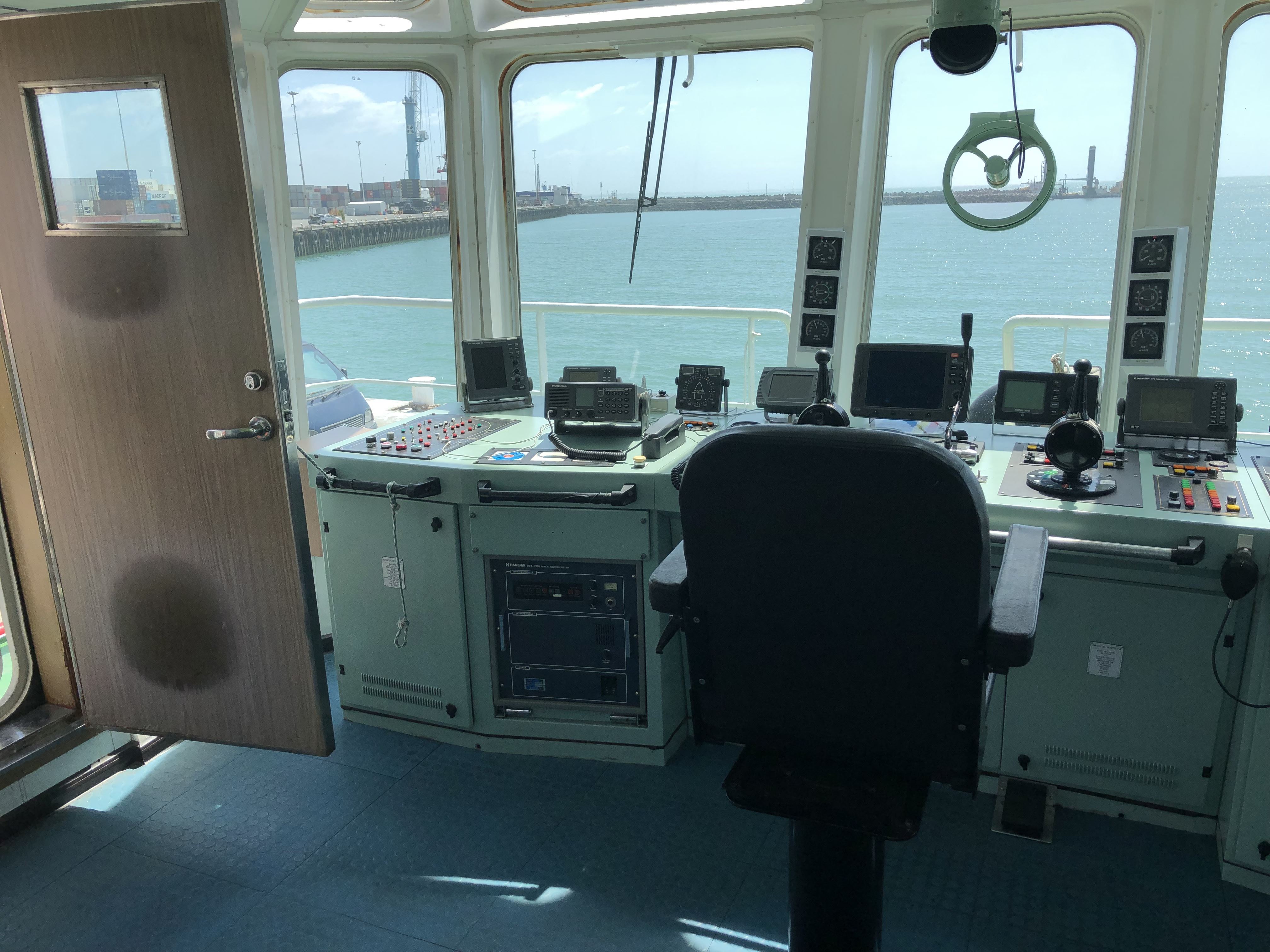

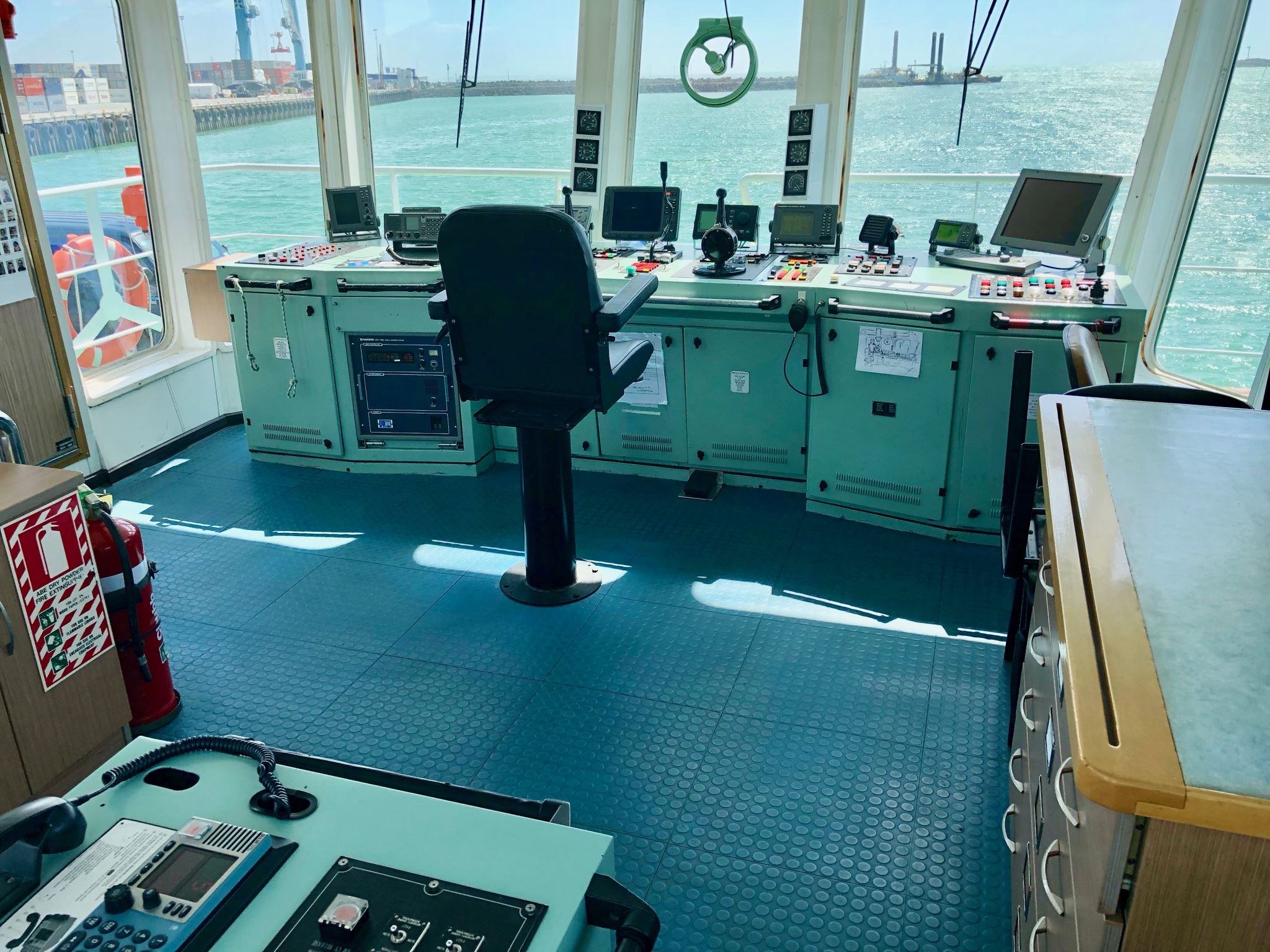

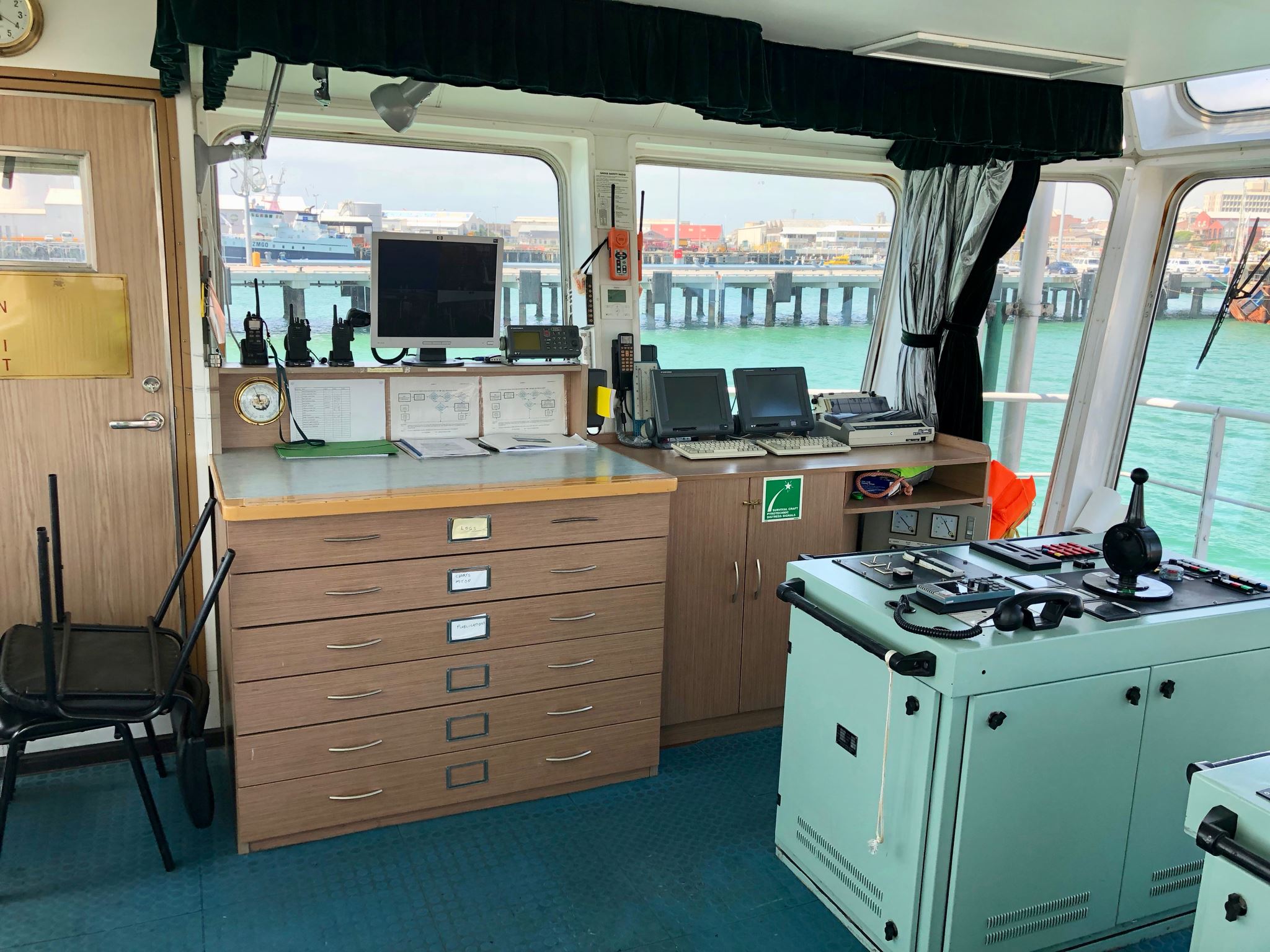

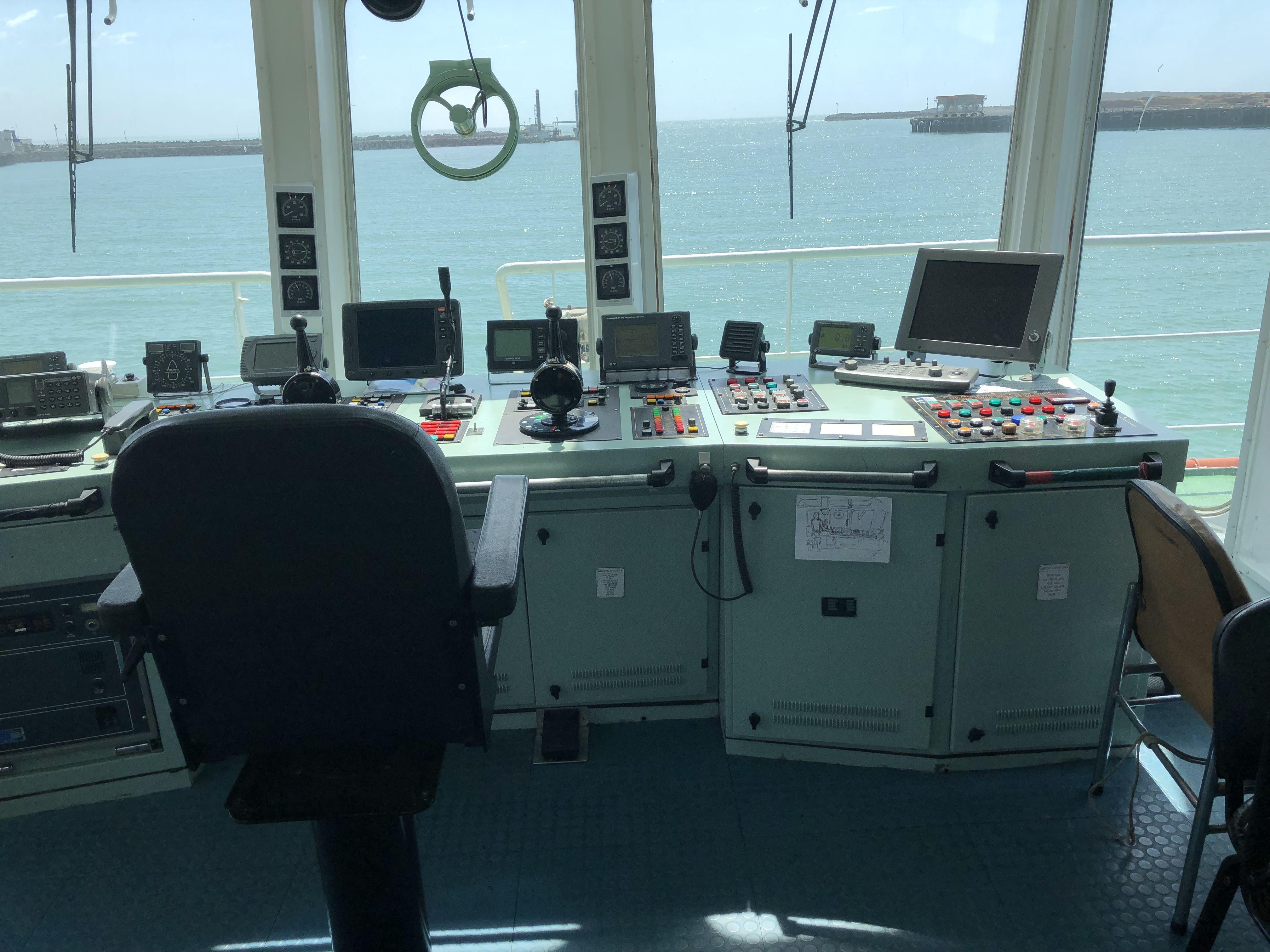

Radar: JRC JMA 5110 Colour Marine Radar

Marine Radar System: LCD Monitor JRC NWZ-164

GPS Navigator: GP 150 GPS Navigator

GPS Satellite Compass: Furuno FM-220A

Gyro Compass: Simrad RGC50 Gyro Compass

Chart Plotter: Seiwa Barramundi Plus Multi-function Chart Plotter

Autopilot: Simrad AP50 Autopilot

Echo Sounder: Furuno FE-700 Colour Sounder

SSB Radio: Furuno FS-2570C MF/HF Radiotelephone

VHF-DSC Radiotelephone: Sailor RT5022 DSC VHF

VHF GMDSS: Furuno FM-8800S VHF-FM GMDSS Marine Radio

VHF/FM Portable: x 2 Icom IC-M72 Handheld Radios

AIS: Furuno FA-150 AIS Display Unit

Inmarsat-C: Furuno Felcom 15 Terminal



Telex: Furuno IB-583 Message Terminal

Sat Phone: Sailor Iridium SC 4150 Fixed Control Handset

Navtex Receiver: McMurdo Nav-7 Navtex Receiver

Magnetic Reflector Compass: Saura MR-150

Wind/Weather Station: Young 6206 Marine Wind Tracker

EPIRB: McMurdo Smartfind 406 GPS

SART: McMurdo SH Rescue SART Transponder

Speed Log: Furuno DS-80 1 MHz Doppler Speed Log

Manual Control Searchlight: Sunlux 300C

Portable Light Signal Lamp

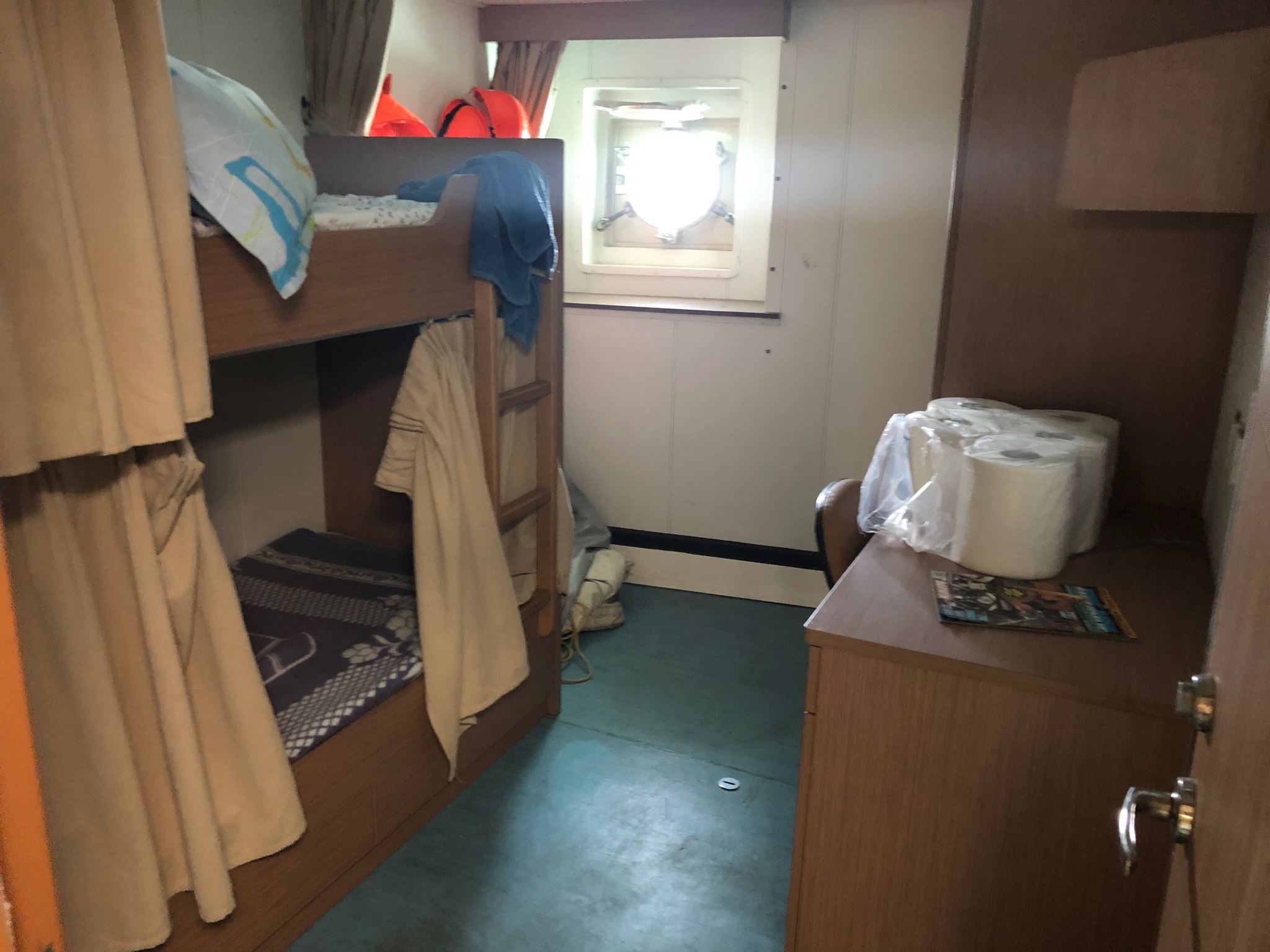

10 berths in single and shared cabins

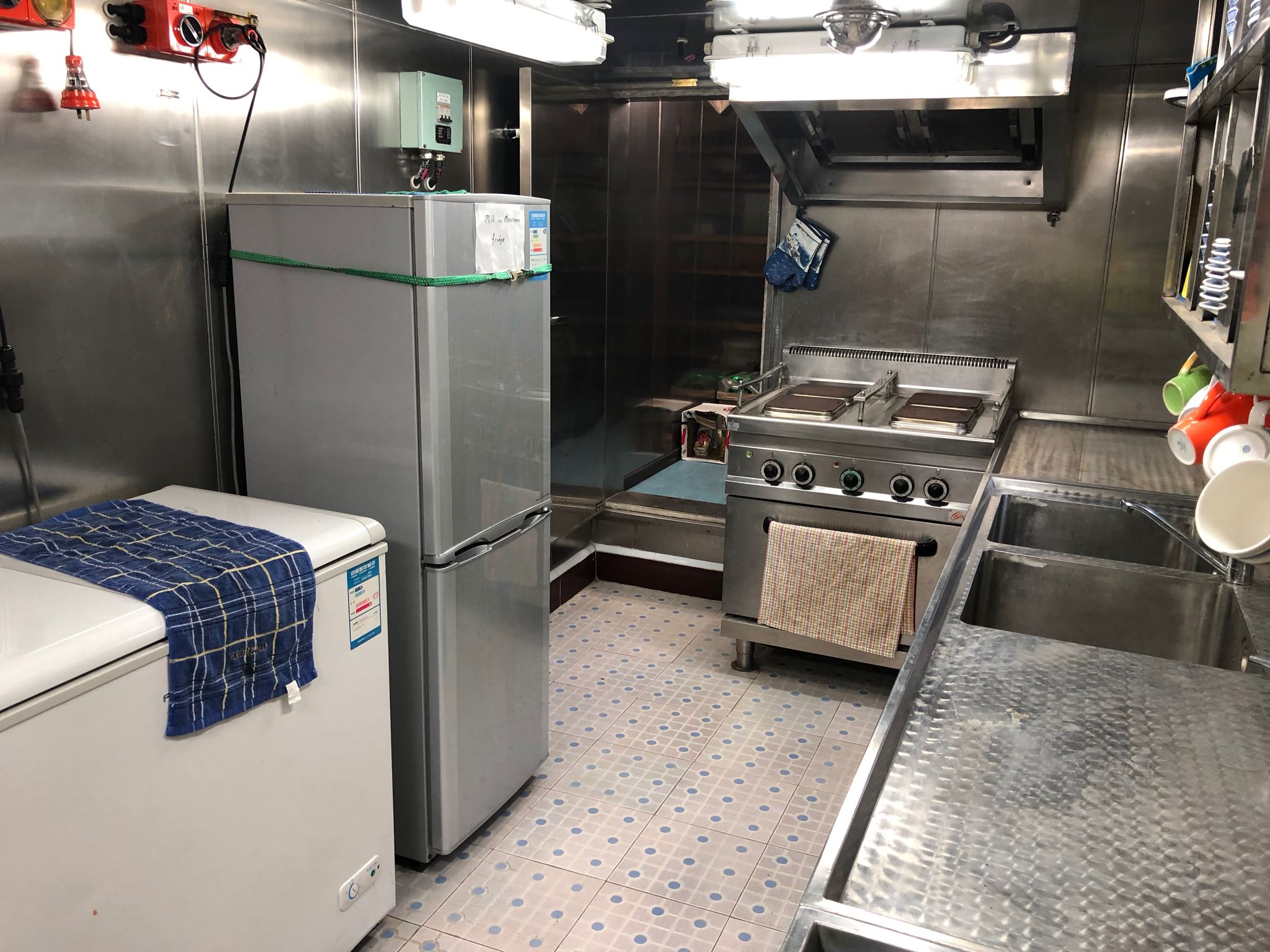

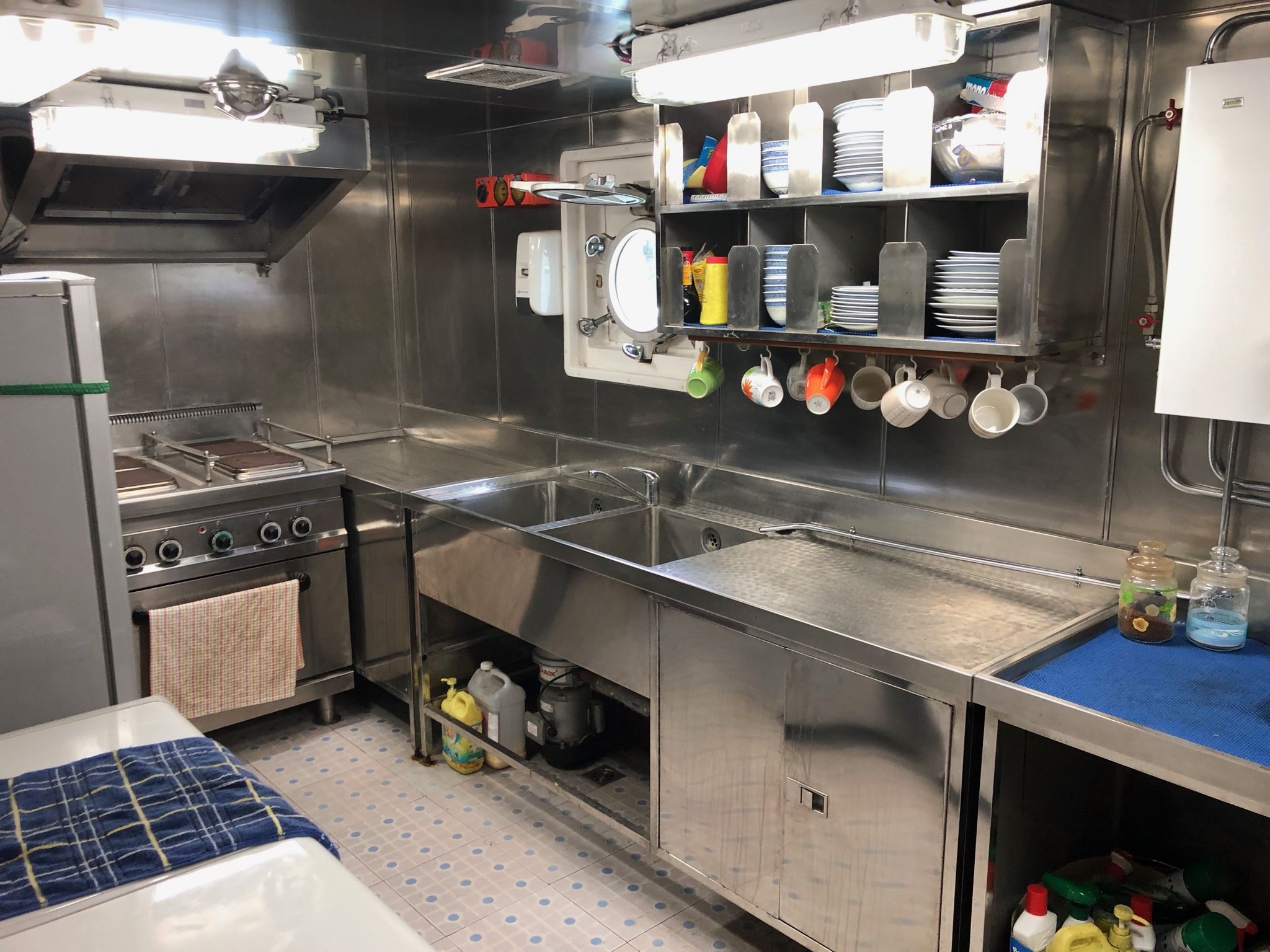

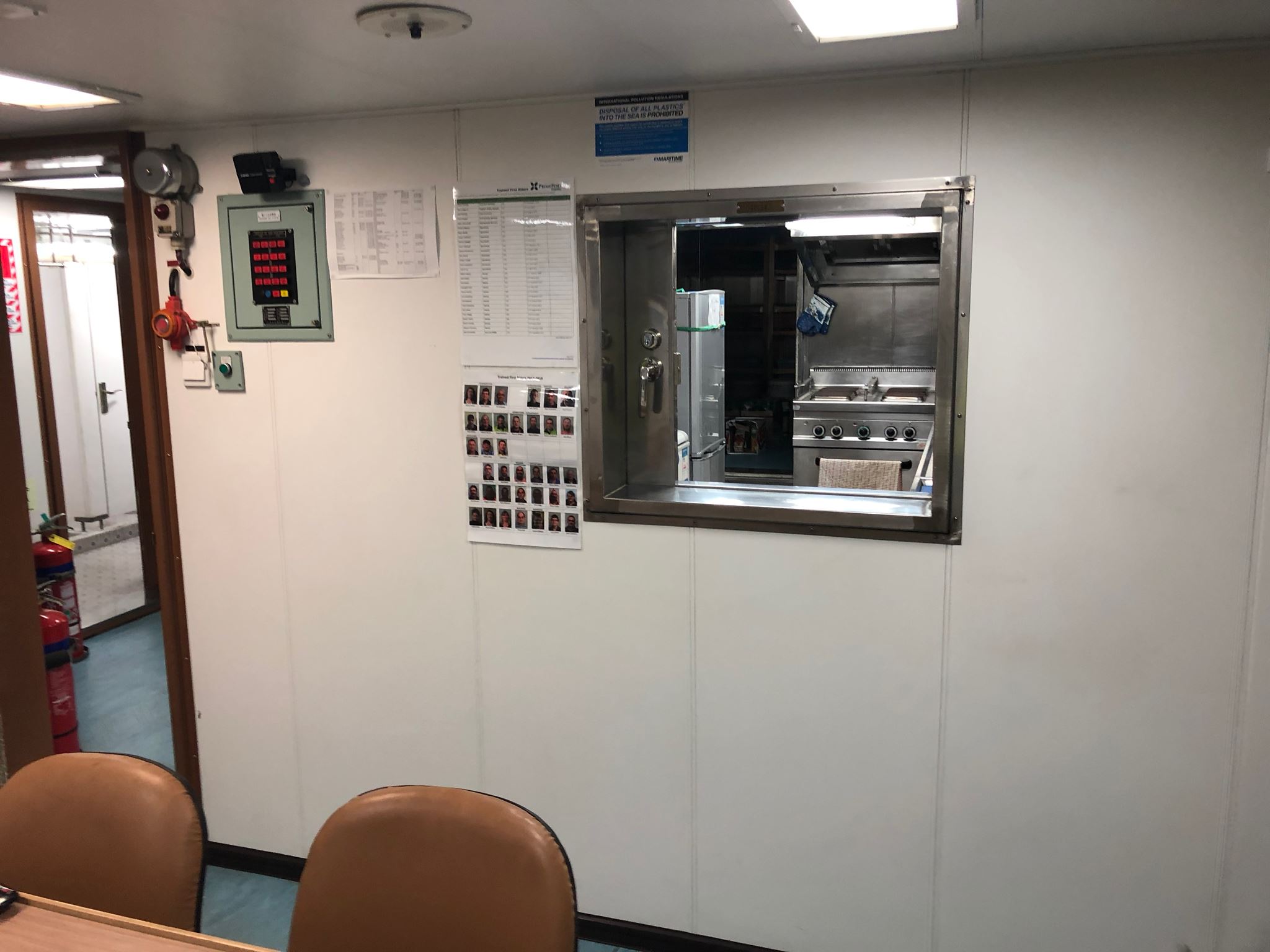

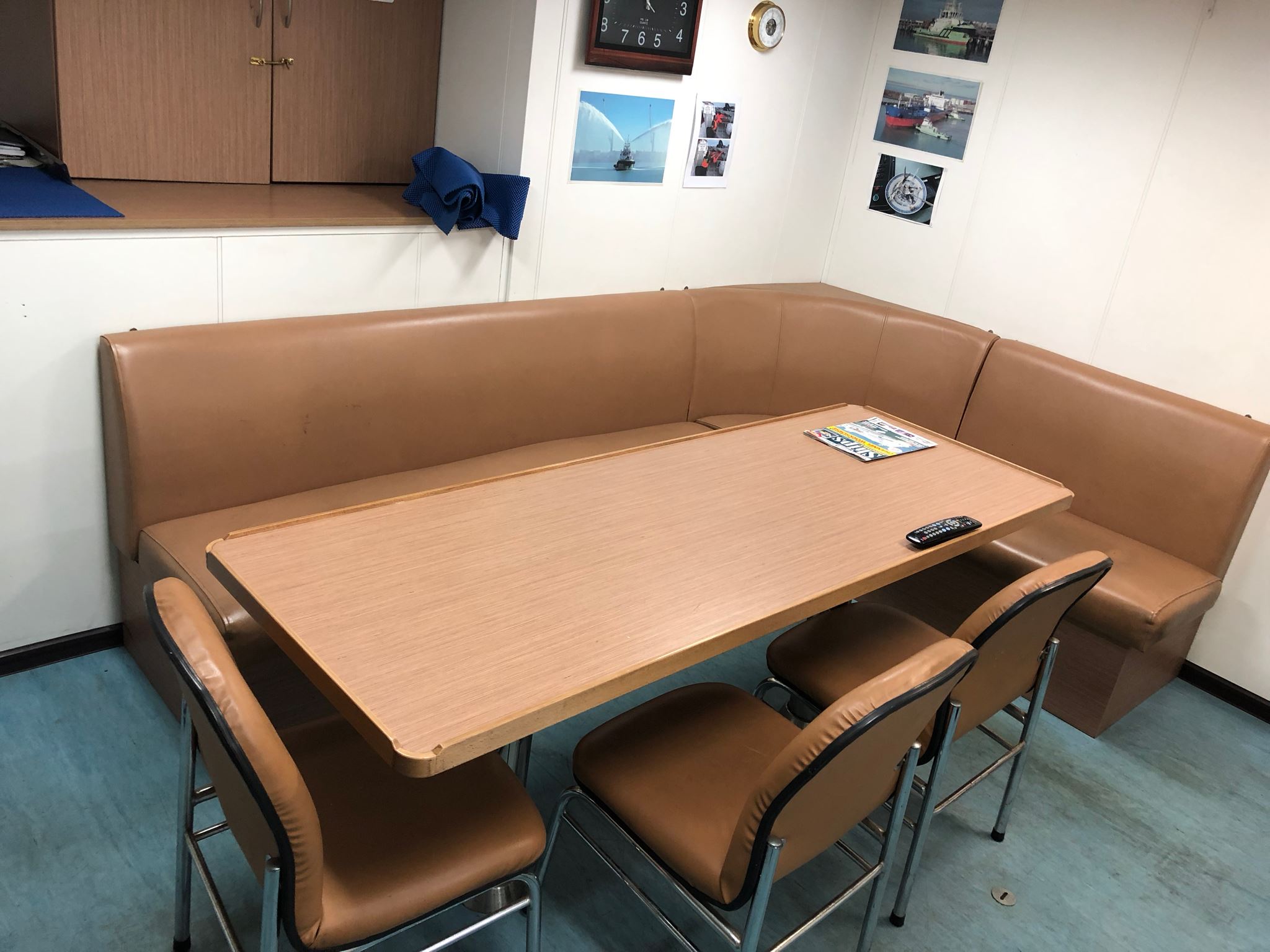

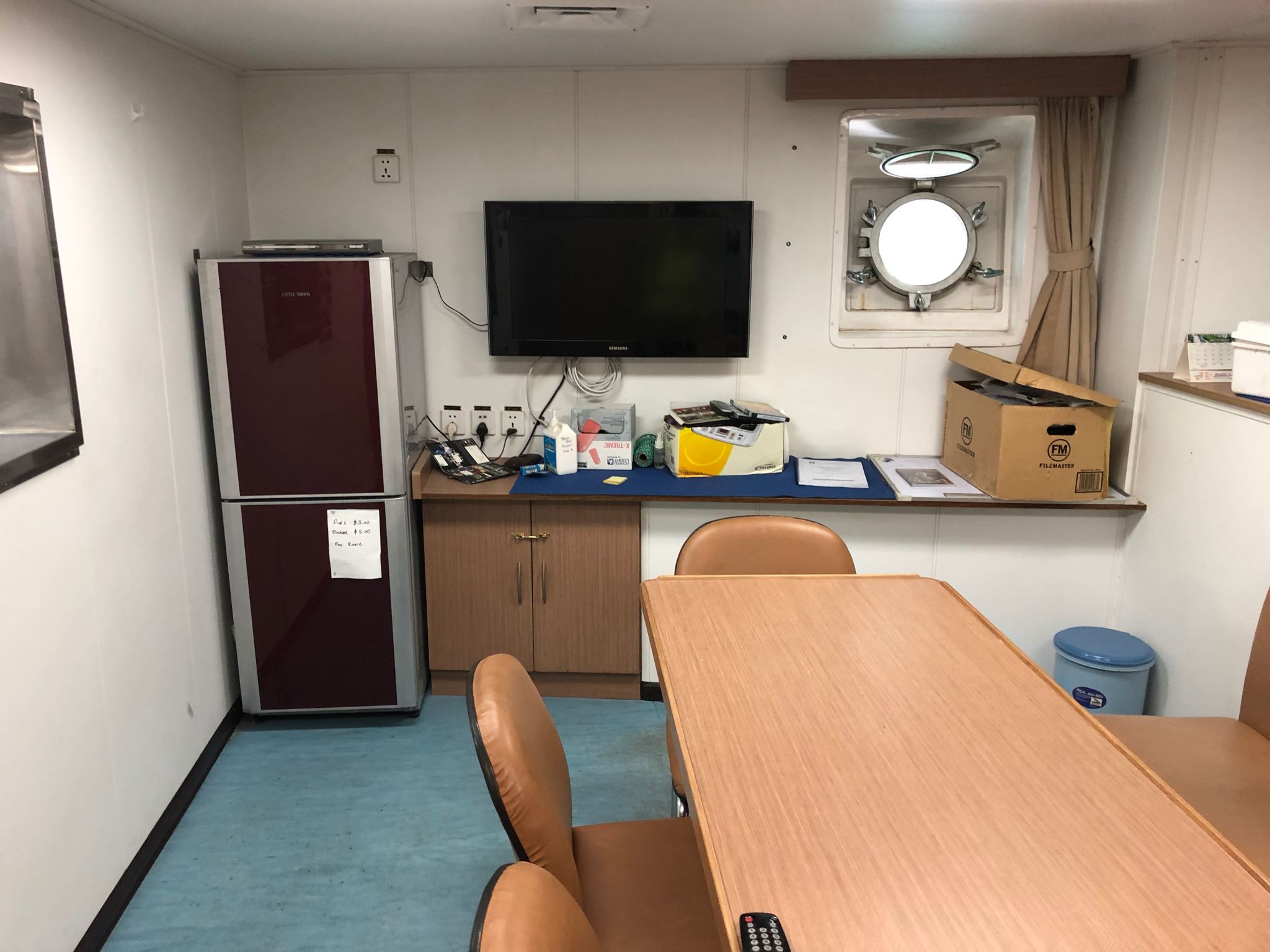

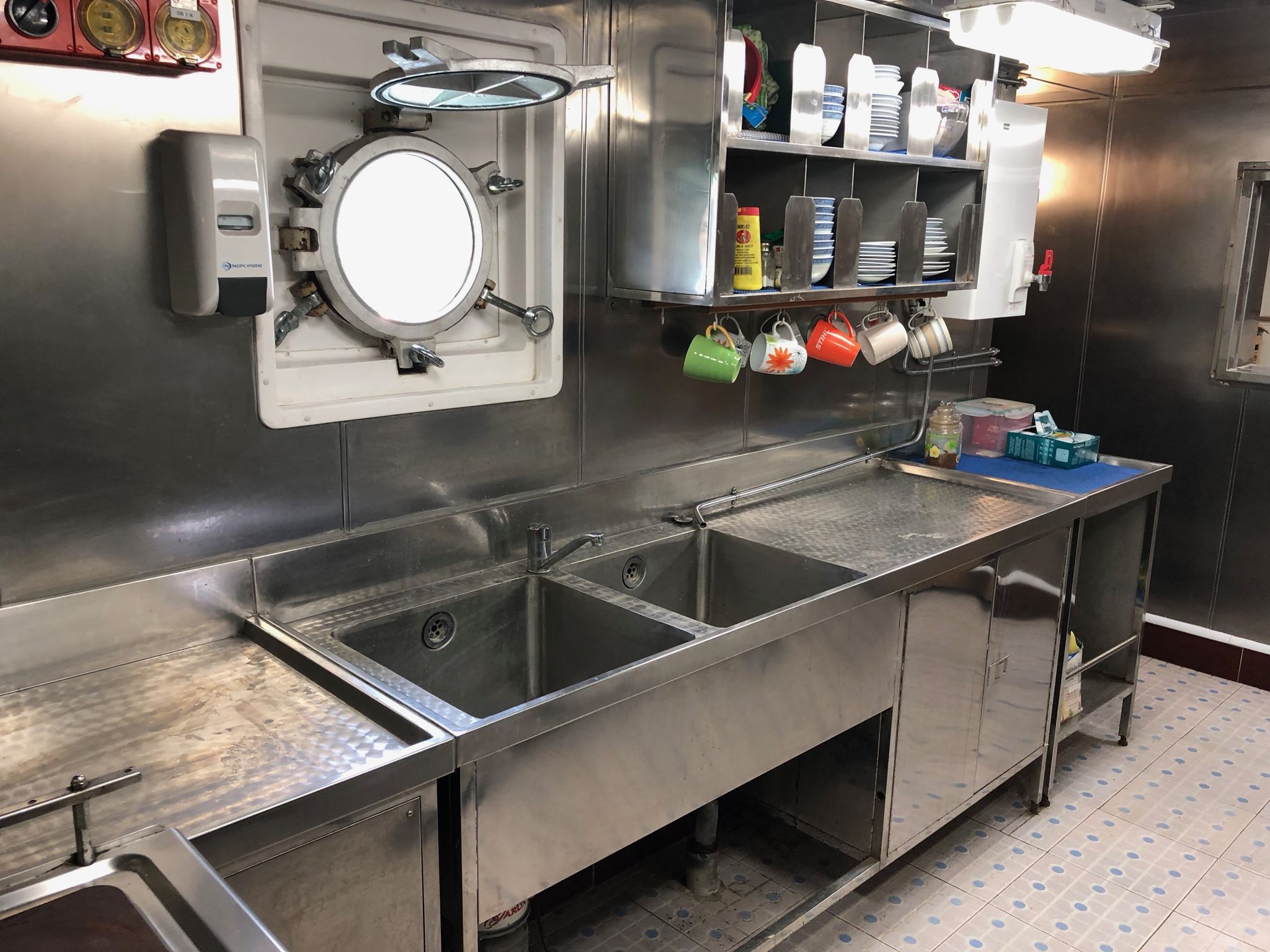

Well appointed galley and mess area.
