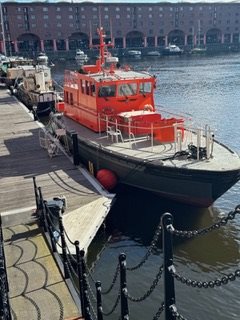

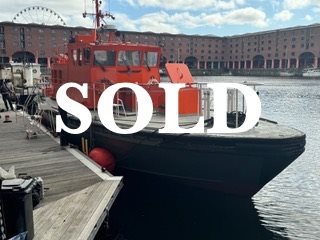

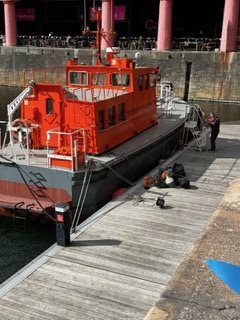

SOLD - 16m Pilot Boat

Listing ID - 5123
Description	16m Pilot Boat
Length	16m (52ft 5in)
Beam	5m (16ft 4in)
Draft	2.3m (7ft 6in)
Note	Engines: 2x Scania
Broker	Georgi Savchev georgi.savchev@seaboatsbrokers.com +359 88 7228674
View As PDF

The pilot boat is built to be used in mainly ice-free water. The boat is built in aluminium. The boat is built with good sea conditions in all bows and also following sea. The boat is built with good maneuvering conditions. Estimated yearly operating time 2000 hours.

The boat’s range of application

Piloting

Transport of pilot to/from vessel that is approaching/leaving.

Sea Rescue

Rescue of crew on damaged vessel

Rescue of people and items of water.

Towing of smaller boats.

Main Dimension

LOA: 16m

Breadth moulded excl fender: 5m

Moulded Draft: 2.3m

Draft to KVL: 1.5m

Displacement Light: 21.8 ton

Power and Speed

The boat is to be designed in twin engine / Twin screw configuration with the following speed in free water with 2x 600HP Scania

Trail speed 2x 600 HP 25knots

The speed is to be achieved with the boat fully filled as specified together with

4 crew

100% fuel

Capacity

Capacity of tanks

Fuel: 2x 1200 litres

Water: 1x 150 litres

Black Water: 1x 150 litres

Windshield Washer: 1x 25 litres

Construction / Survey

The boat to be commissioned as a pilot boat and will be designed and built according to the following regulations

Lloyd’s Register of Shipping – Special Craft standard ruled

200 A1 (LMC) Pilot Monohull HSC G3

Certificate from SMA as per Kittiwake

MCA – Code of practice for construction, survey and certification of pilot boats / safety of small workboats and pilot boat. Plan approval as per Petrel.

MCA and Stockholm Inspectorate “SMA” to handle all plan approval

Material Equipment

The main hull to be completely welded acc to Lloyds 200 A1 (LMC) Pilot Boat an all aluminium alloy plated for hull, deck, superstructure construction are to be non heat-treatable new AA5083 alloy in the as manufactured annealed condition for plates.

Main Engine

Two Scania V8 marine diesel engine DI14 75M, each developing for cont duty 600hp (441kW, 1800rpm (Warranty 24 months from yard delivery)

Gearbox ZF, type 155A, FS reduction 1,971:1 with electrical maneuvering. Oil cooler, hoses, propeller flange.

Communication Equipment

Internal communication telephone, brand Phontech, is to be installed for communication between wheelhouse and deck, wheelhouse and aft peak, wheelhouse and engine room. To be mounted at coxswain position

The units to be:

Master panel model 3100 with microphone

Deck hailer in mast 2 No transmit/receiving HP 15W type 0035

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
