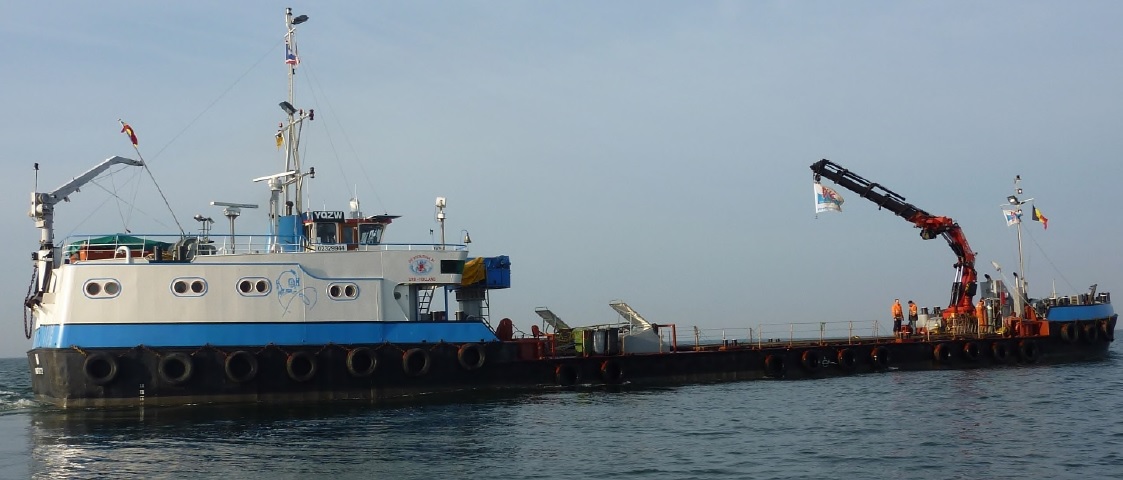

Description: Self-propelled dive-support crane and work barge

Flag: Dutch

Call sign: PBCJ

IMO Number: 8937259

Class: N.S.I., Rhine-certificate and RINA 30 miles offshore

Range: 3000 Nautical miles

Rebuilt: 2009

Speed: 9 Knots



DIMENSION

Length: 57m

Width: 9.50m

Draft: 1.30 / 1.80m

GT: 417 GT



TANK CAPACITIES

Fresh water: 217.000 Ltr.

Drinking water: 17.000 Ltr.

Fuel capacity: 39.000 Ltr. (with transfer capability)

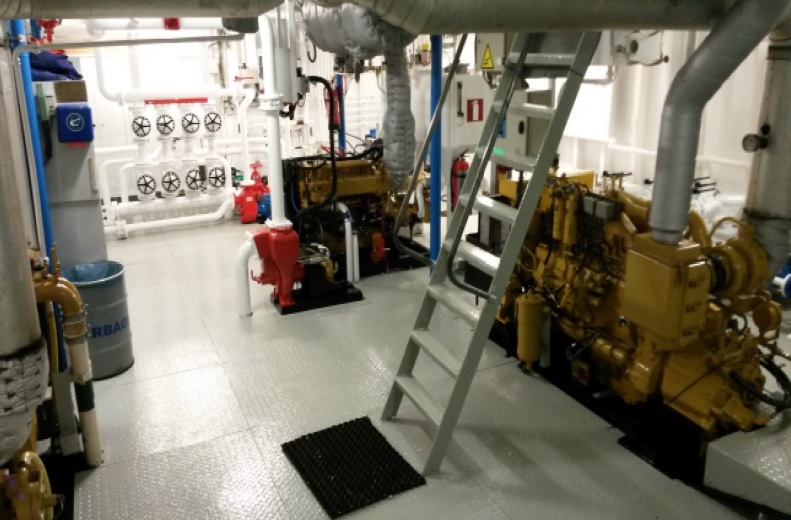

PROPULSION SYSTEM

Main engine: 2 x 300 HP CAT

Bow thruster: 150 HP

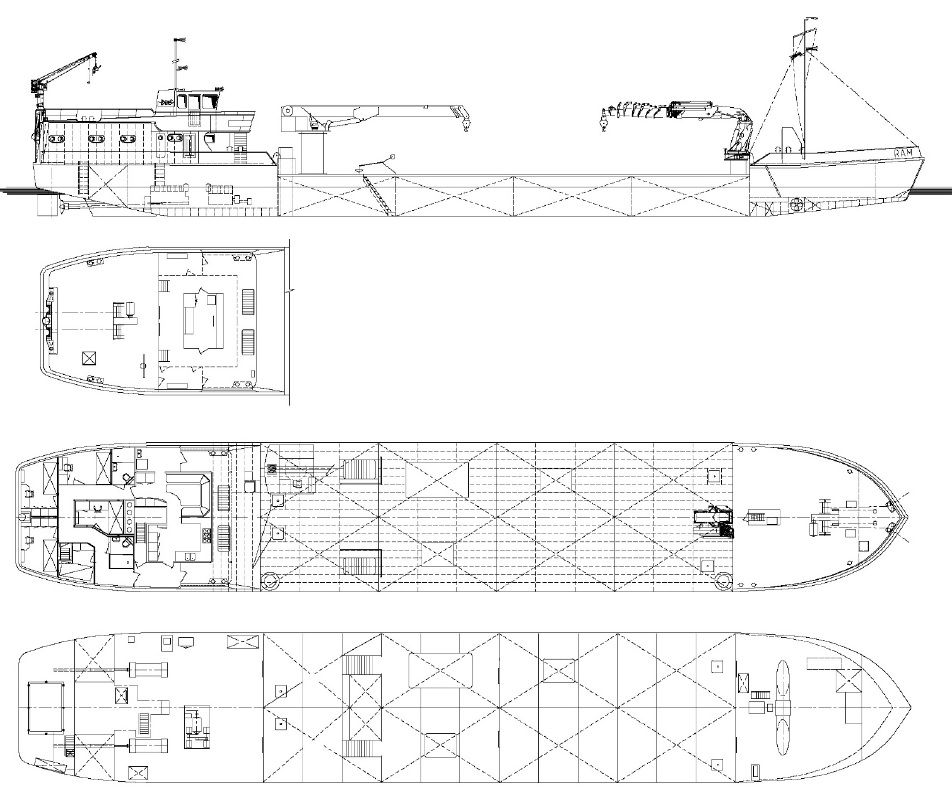

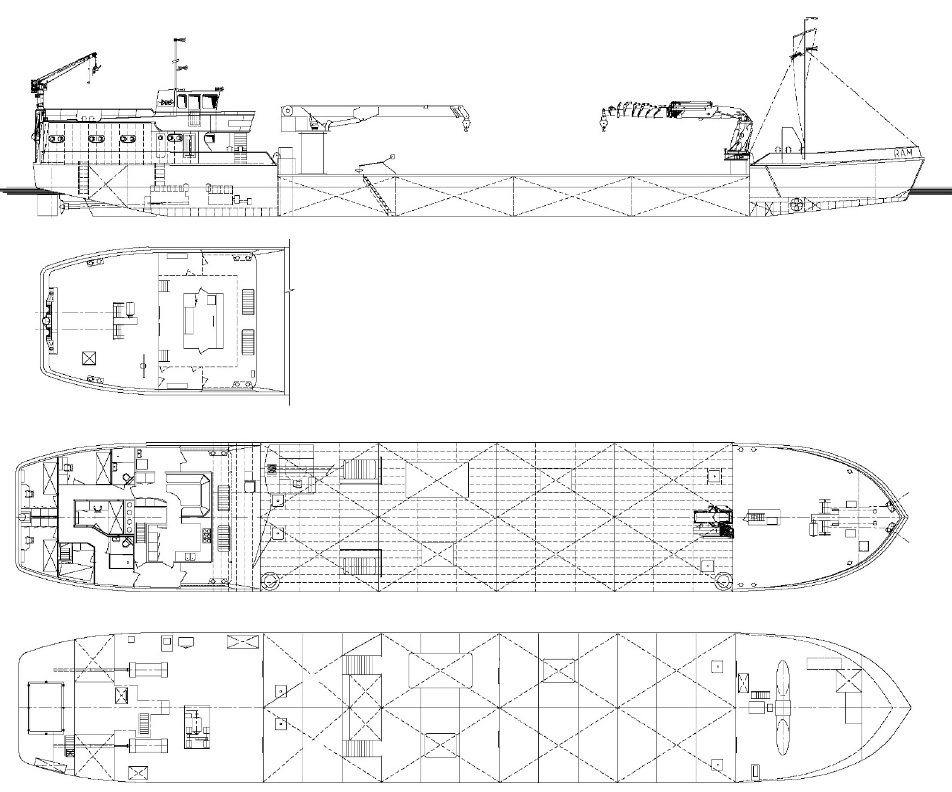

DECK LAYOUT

Telescopic crane: Luna 20T@3 M1

Knuckle boom crane: Fassi 150T/m¹ (radiographic controlled)

Mooring system: 4-point mooring system, fitted with 4x450 M

28 mm steel wire ropes and 4x 1.500 Kg

Delta flippers

Moon pool: Ø 800 mm

Free deck space: 250 M2

Deck load: 5 T/M2



ACCOMMODATION

Day accommodation: Max. 17 persons

Berths: 5 cabins, 4 x 2 + 1 x 1 bed.

TLQ for 4 persons optional



AUXILIARY EQUIPMENT

Generator(s) 1x 150 kVa - 1x 97 kVa

Spud pole (optional): 2x 27 M, hydraulic winches operated from bridge

Main anchors: 2x 500 Kg anchor, chain 100 M

Navigation Equipment: 3x VHF, magnetic compass, satellite compass, Navtex, Auto-Pilot, 2x Radar, 2x GPS, DGPS, navigation computer, survey computer, AIS, depth sounder, (satellite) telephone and internet

Diving support: Decompression chamber Ø 1500 mm, double lock, Lloyds certified (meets IMCA requirements)

HP compressor 240 ltr/min @ 330bar

HP airbank 12 x 50 ltr @ 330bar

LP compressors 900 ltr/min + 1200 ltr/min @ 15bar

LP airbank 500ltr @ 15bar
