Builder: Naval Yachts

Naval Architect: Michael Schutte

Interior Design: Karine Rousseau

Exterior Styling: Michael Schutte



Loa: 23.90 m

Lwl: 21.6 m

Beam: 10.3 m

Draft: 1.0 m

Max. Speed: 14 kts

Range @ 10 kts 1.200 nm

Year: 2022



Displacement: 65 t.

Fuel capacity: 7000 litres

Fresh Water Capacity: 1200 litres

Watermaker: 2400 liters/day

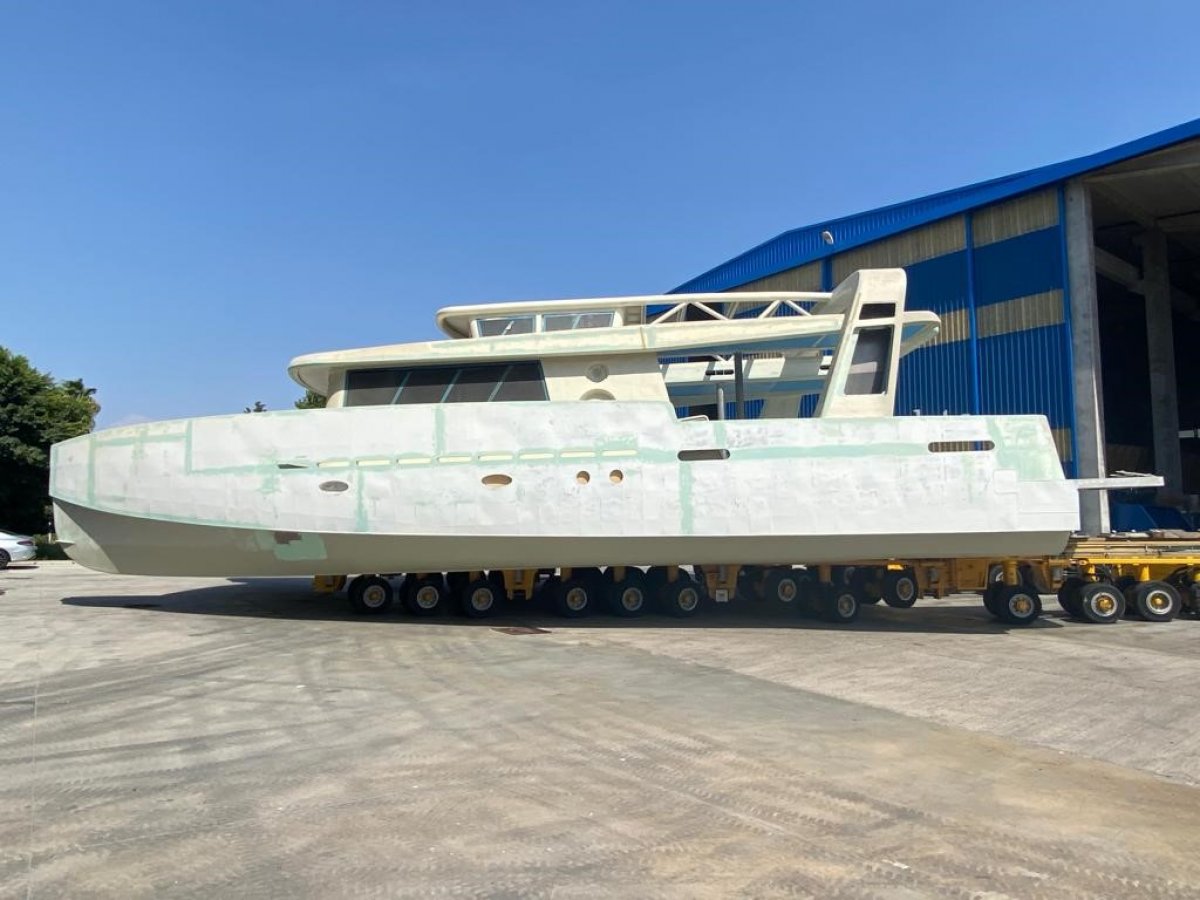

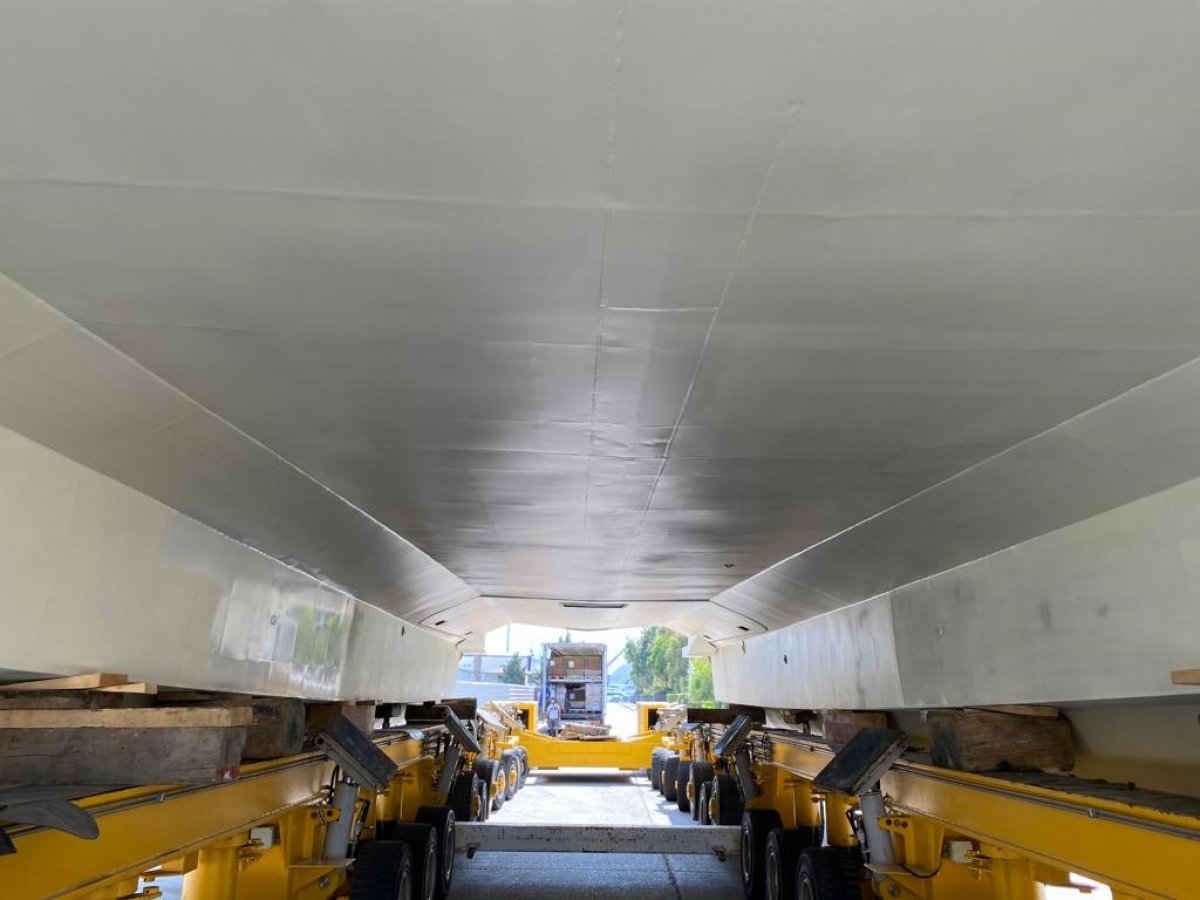

Construction Material: 5083 Marine Grade Aluminium

Classification: CE A Open Unrestricted



Machinery

Engines: 2x JD 500 hp

Gear Boxes: Twin Disc ½ .5 Reduction

Steering: Wills Ridley Hydraulic Steering with back-up

Bowthruster: Side Power

Main Generator: Cummins Onan 20 KVA (Optional)

Electrical System: 11/24V 60Hz 3 Phase

Shore Power: 20 Kw

Batteries: 50 kWh Firefly Carbon Foam Batteries, Victron Emergency Batteries, Firefly Carbon Foam Service Batteries

Air Conditioning: Marvair 70000 BTU w/2 stage chiller

Watermaker: Delfin Brand 50lt/h capacity

Other Machinery: Tender Davits 1t capacity



Accommodations

Main Deck:

Master Cabin 01: Queen Size Bed, 55’’ smart TV 3D sound, Couch and Wadrobe



Master Cabin 02: Queen Size Bed, 55’’ smart TV 3D sound, Couch and Wardrobe



Galley: Miele Microwave Convection Combo, Miele Cooktop, Miele Hood, Custom Fridge & Freezer, Fagor Washer/Dryer Combo, Fisher & Paykel Dishdrawer x2, Hettich Dropdown Cabinets x3, Bose Ipod SoundDock



Owner Office: Computer Work Station



Day Head: Planus Vacuum Toilet

Lower Deck:

Master Suite (2+1): 32’’ Smart TV, Blu-ray DVD player, Bose Ipod SoundDock, En süite toilet & shower, His and Hers sinks

Twin Suite (2+1):

26’’ TV, Blu-ray DVD Player, Bose Ipod SoundDock, En Suite Toilet & Shower



Communication: Furuno FM8800 VHF Radiophone, Furuno FA 50 AIS Transponder, Intellion Vsat-80, Jacop Jensen Telephones, Wireless and Wifi Access Points



Navigation: Furuno VHF NX700B with Active Antenna, Furuno SC30 Satellite Compass w/NMEA Interface, Humphree Interceptor System, Furuno DFF1 Echo Sounder Navget, Furuno DRS4A15 Radar, Simrad AC12 Autopilot Computer with AP28 Display, 3x17’’ Hatteland Display Monitors, Furuno 1kW 200 kHz Transducer on Port, Furuno 1 kW 50 kHz transducer on Starboard Foredeck Equipment: BBQ



Tender & Toys: Zodiac

Diesel Engines:

JOHN DEERE 500HP x 2 diesel engines and Twin Disc Gear box. This configuration gives better performance and extra safety. JD Engines have worldwide service network, easy to find spare parts and are known as low maintenance engines. The cruise speed is 9 knots and Maximum speed of the vessel is 14 Knots.



Parallel Hybrid Propulsion (Optional): 50kw x 2 e-motors + 200 kwh Lithium batteries controlled by an electro mechanical clutch. E-Motors work as a genset while diesel engines are running. 28 nautical miles range on electric motors at 7 knots. No smell, ne exhaust, no noise, fuel efficiency, fuel saving, free access to extra sensitive and protected environments and many other features.

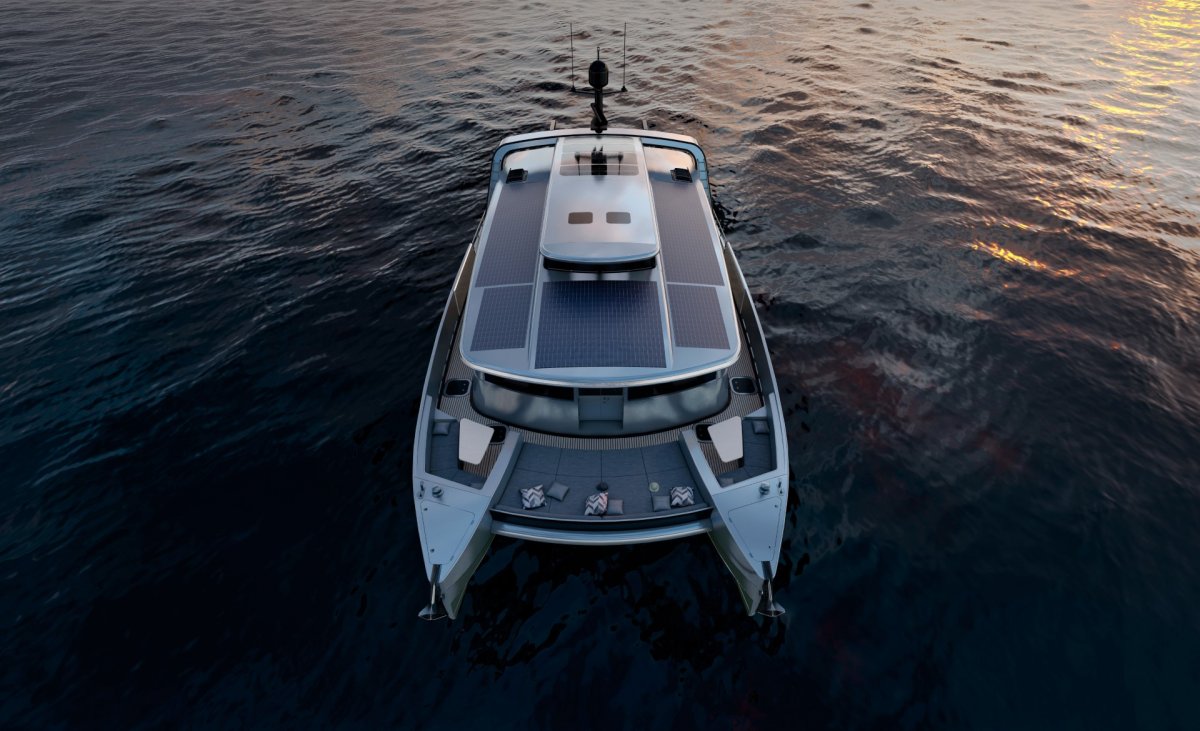

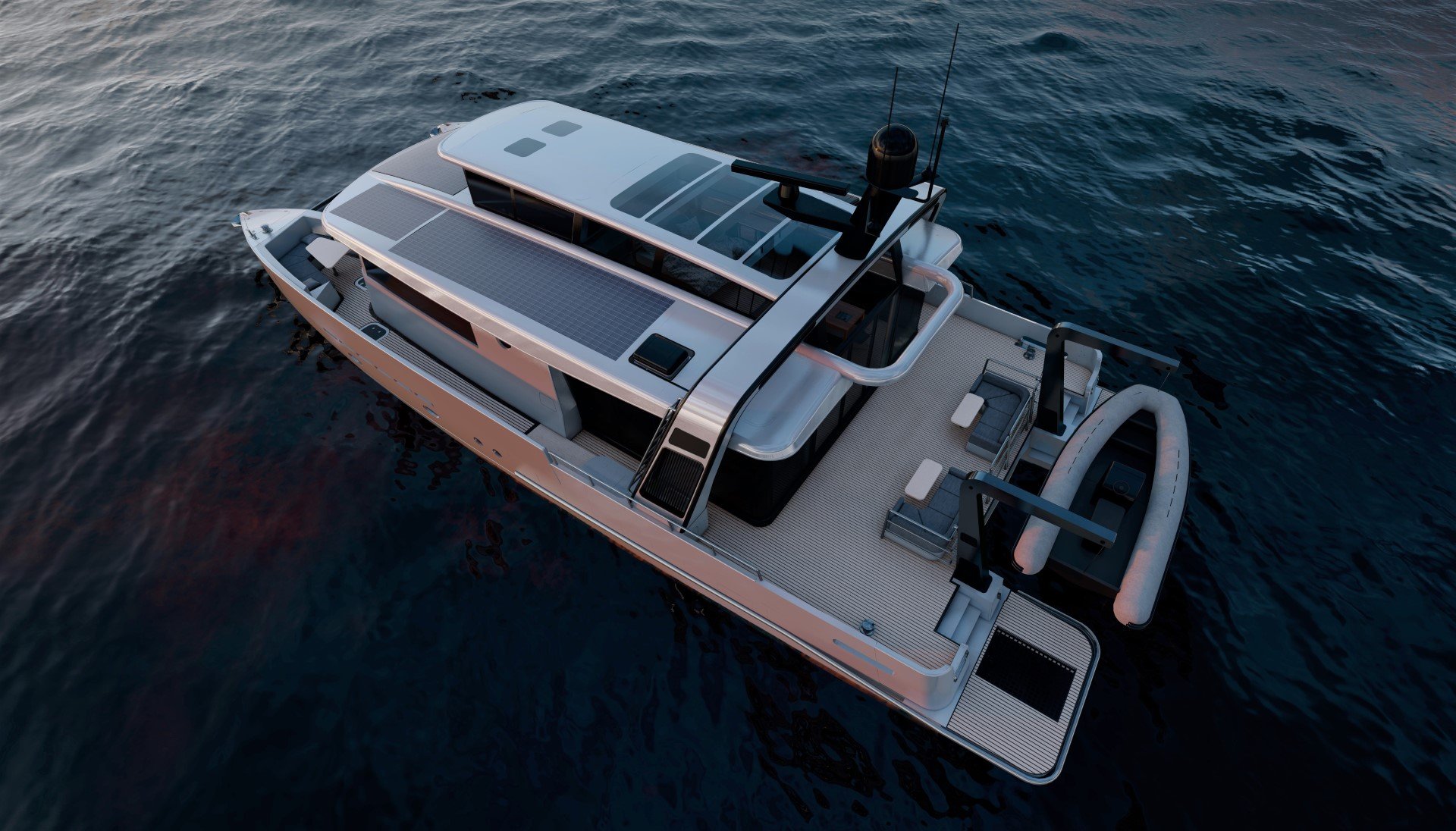

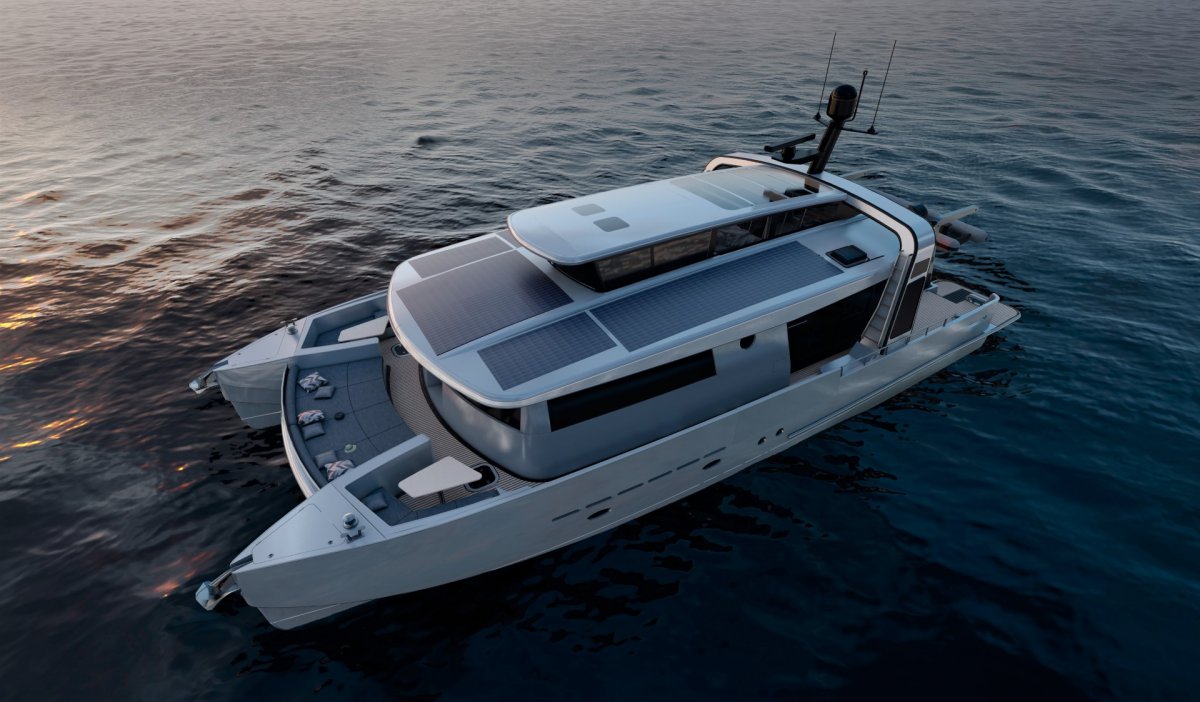

Solar Power: 50 sqm solar panel area which generates 12,5 kw/hour. If considered as 6 hours of efficient sunlight in a day; the solar panels generate 75 kw/day which is not only enough for house load but also enough to load the Lithium batteries.

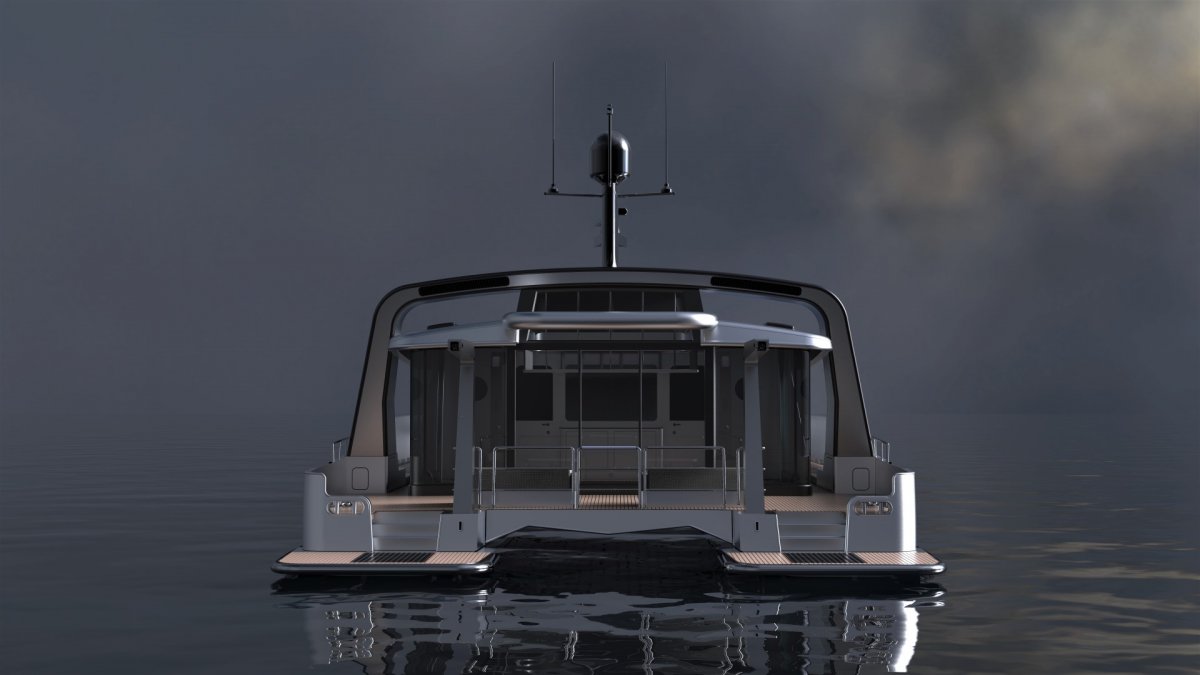

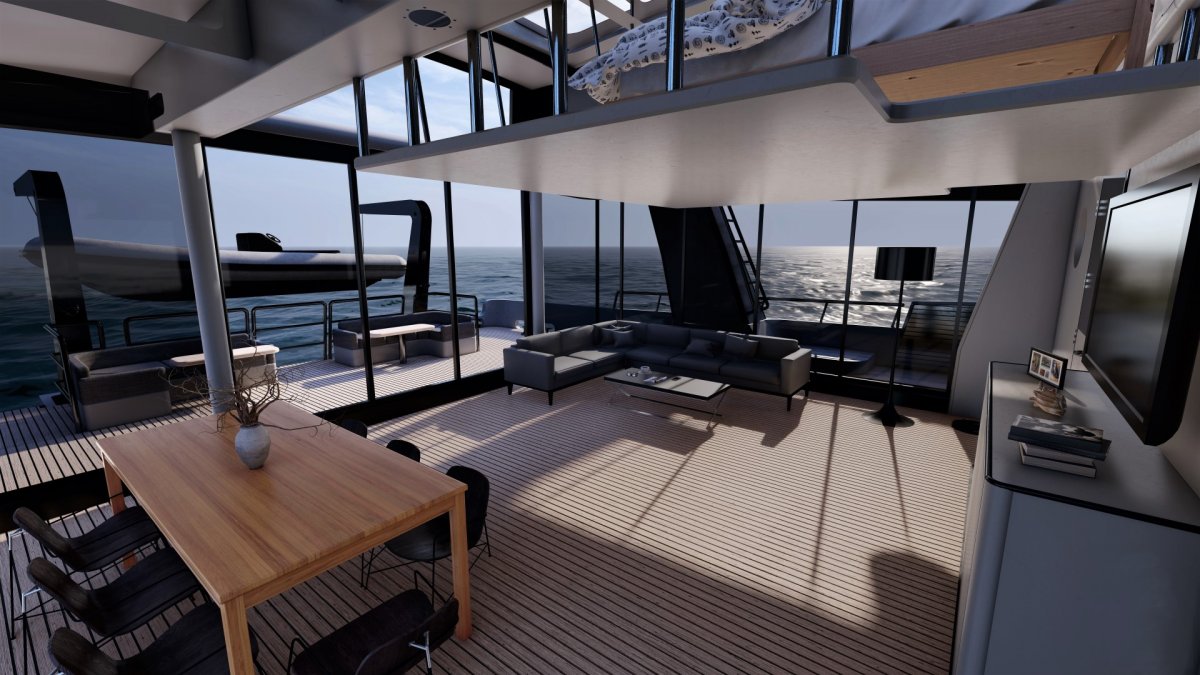

4 Cabins Layout: 2 Master Cabins + 2 VIP Cabins+ 1 Crew Cabin Enormous Areas in Saloon and the Aft Deck: Saloon has been specifically designed by keeping her outstanding stability performance and nice look. Saloon height and inner volumes height have been also raised. In the saloon, the ceiling is 5 mt. (16 ft.) high and it has an inside balcony with a panoramic view in the saloon. There is a huge aft deck area and two swim platforms where you can enjoy your time with your family and friends.



Steering System: Wills Ridley Brand from U.K. has been applied. Independent rudder control for dynamic positioning system accuracy and maneuverability. An easy valve operation for keeping rudders in sync while using manual helm pump. Both pumps and cylinders have back-up for safety.



Dynamic Positioning System (Optional):

Two independent rudder control systems, larger bow thruster and the control unit makes the boat positioned in the same position without anchor. Another innovative system on XPM boats.



Advanced Navigation, Automation and Alarm Systems: All controls and monitoring of systems are on one system with additional back up configurations. Integrated helm station and ship MIMIC diagrams covering navigation and all machinery plus ship alarms, CCTV, horn and navigation light arrays.



Advanced Safety Systems for MCA Compliance (Optional): MCA Certification requires many safety regulations and they are quite strict but makes the boat super safe. By getting MCA cert. The XPM78 will be proven about safety concerns. Also MCA enables commercial chartering license worldwide.



Certification: All XPM boats are certified with CE A Open Class and MCA (optional) through international approved institutions.



Equipment that have worldwide services: Our main goals is to go far and to go everywhere with any XPM boat. All XPM equipment are equipped by worldwide known and certified brands. They are all proven products and worldwide service network. In long passages, no matter where the boat is, any technical problem on equipment and systems can be fixed easily and any spare part can be found easily.



After Sales Warranty Package: We are behind our product. We keep our good relationship with our clients and we are aware that best marketing and selling point is to keep our clients happy even after delivery of the yacht. We have a wide range of warranty package.
