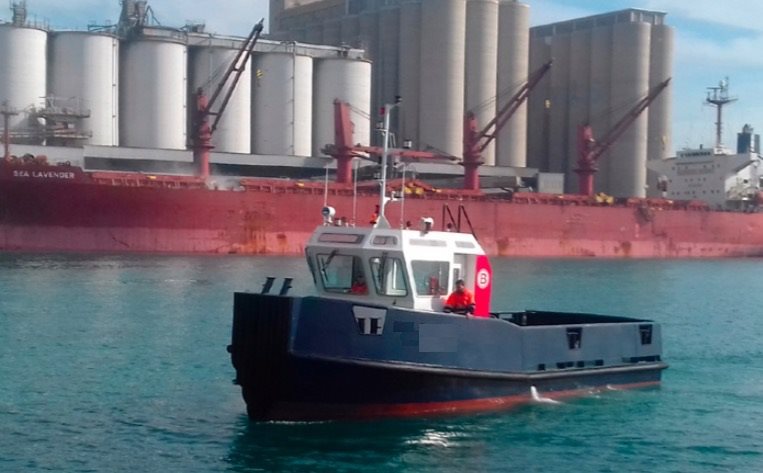

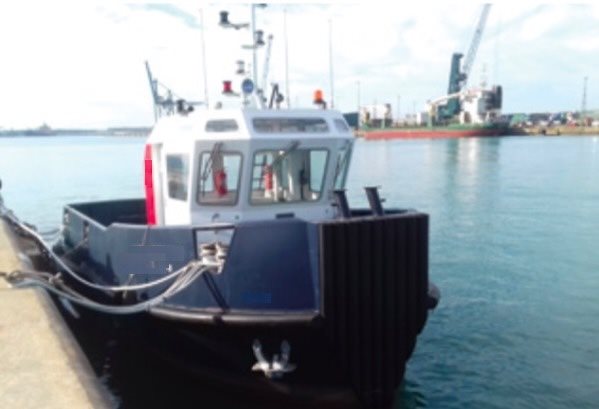

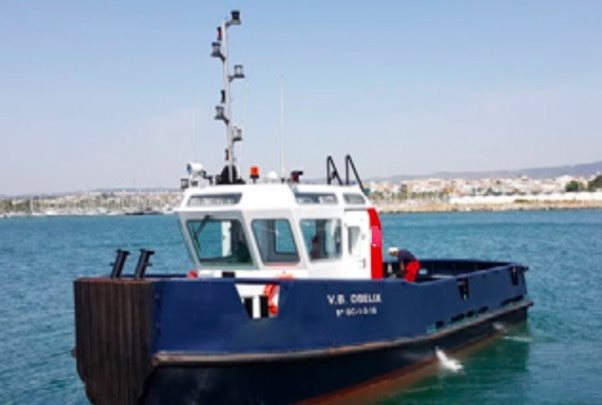

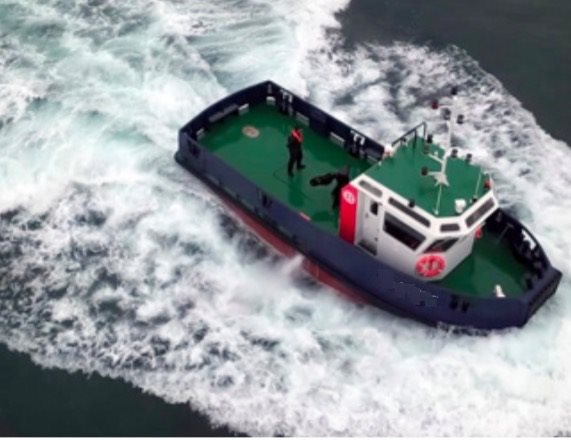

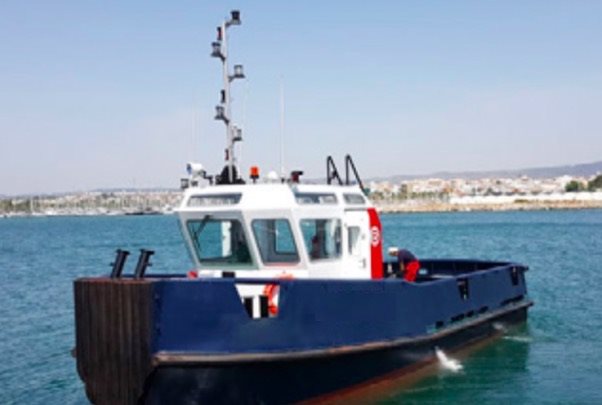

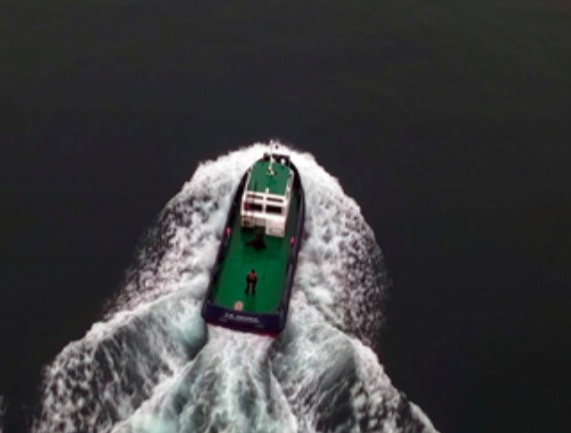

NEW BUILD - Twin Screw 12m Harbour Tug


Listing ID - 1373


DescriptionNEW BUILD - 12m Harbour Tug
Date Launched
Built to Order
Length12m (39ft 4in)
Beam4.5m (14ft 9in)
Draft1.3m (4ft 3in)
Note8.5T Bollard Pull
Locationex Shipyard, Spain or Dominican Republic
BrokerReynaldo Gil J.
View As PDF


L.O.A.: 12m
L.B.P.: 11,25m
Beam: 4.5m
Draught: 1.3m
Power: 2X360 hp at 2,000 rpm
Full Displacement: 40 Ton
Class: S

BASIC FUNCTIONS
Passenger capacity 12 pax deck loading capacity 2.5 Ton

CLASSIFICATION NOTES
Spanish Flag: Grupo III, Class S
Towing Hook: Automatic 15 SWL

PERFORMANCES

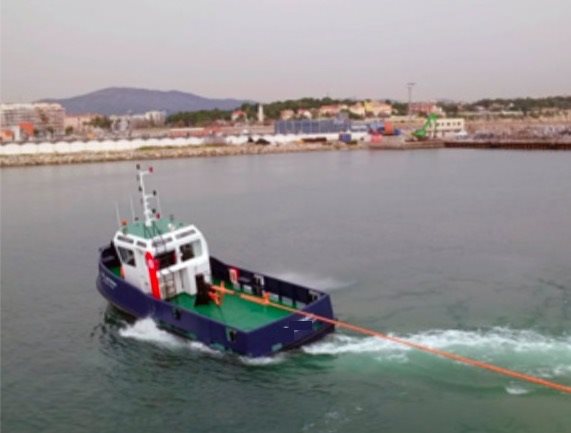

Bollard Pull: 8,5 Ton
Speed: 8 Knots

STEERING SYSTEM
RUDDER BLADE: 2 x high performance rudderBlade with flap
RUDDER SHAFT: Stainless Steel AISI 316 L
RUDDER BEARINGS: Thordon SXL

TANK CAPACITIES
Diesel Oil: 3,7 m3
Fresh Water: 2 m3
Blige Water: 0,6 m3

ACCOMMODATION
The wheelhouse are completely insulated and finished with durable modern linings and composite synthetic floor.

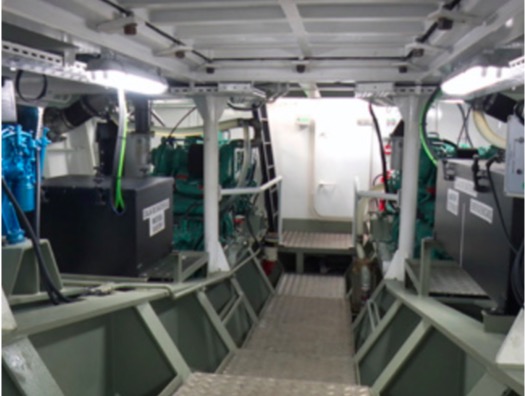

PROPULSION SYSTEM

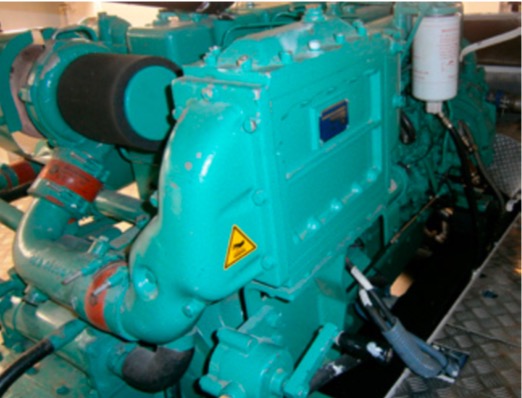

M.E. Maker: Doosan Intracore Co.
Model: L-126 TI
Total Power: 530 kW (720 hp) at 2000 rpm
Tail Shaft: Stainless Steel AISI 316 L
Tail Shaft Bearings: Thordon SXL
Gearboxes / Ratio: DMT-144 / 3,43:1
Propeller: 2 unit, 4 fixed Blades 1,050 mm diameter

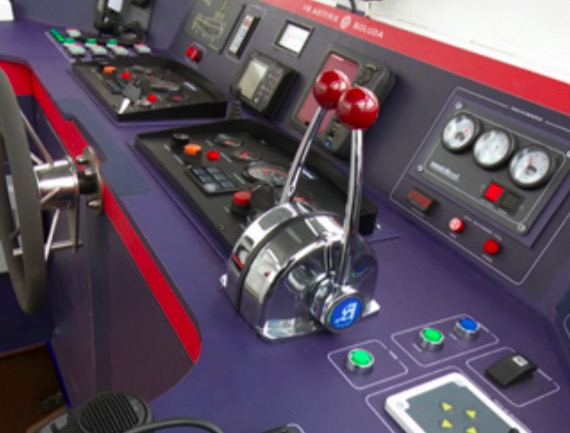

Engine Control: Doosan
Rudders: 2x double plate high performance

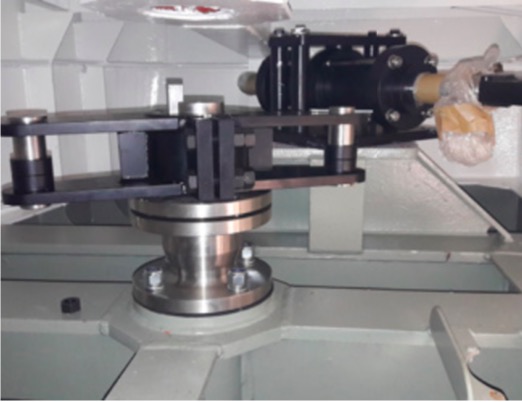

Steering Gear: Powered hidraulic 2x35o + rudder indicators

MOORING & TOWING SYSTEM
Anchor Winch: Electrically driven 24V

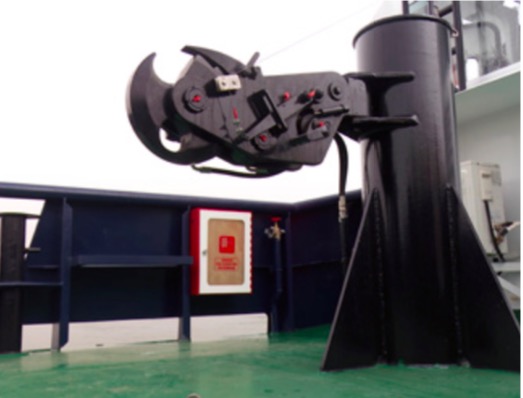

Towing Hook ;Authomatic 15 SWL

AUXILIARY EQUIPMENT
Battery Set: 2x 12V 180 Ah.

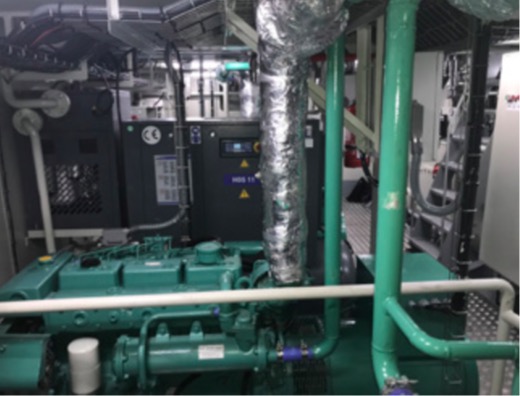

Generator: 1x Nanni 10 KVA with alternator Leroy Somer 175 alternator

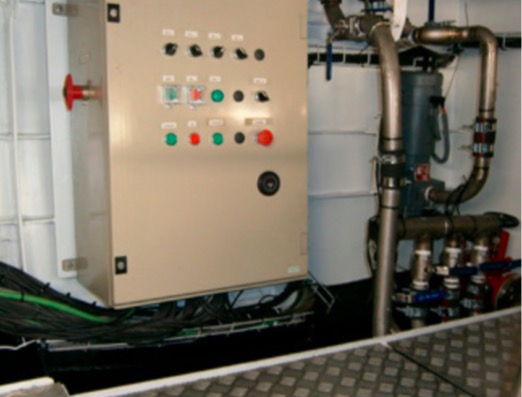

Bilge / Fire Fighting Pump: Feit 24-1 and Feit 23-2,14 m3/h
Engine Room Ventilation: Electro fan 2x8,000 m3/h
Fire Extinguishers: 5x6 kg dry powder

COMMUNICATION & NAVIGATION SYSTEM
Searchlight: 1X150W
Magnetic Compass: Ritchie B-81-WM
Ais: ICOM MA500TR
Echo Sounder; FURUNO FCV627
VHF Gmdss: Entel HT 649
VHF Radio Telephone: 2x ICOM ICM323
Floodlight: 1x 150W on aft deck and 1x150W on fore deck




1373: NEW BUILD - 12m Harbour Tug - 095.jpg



The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
