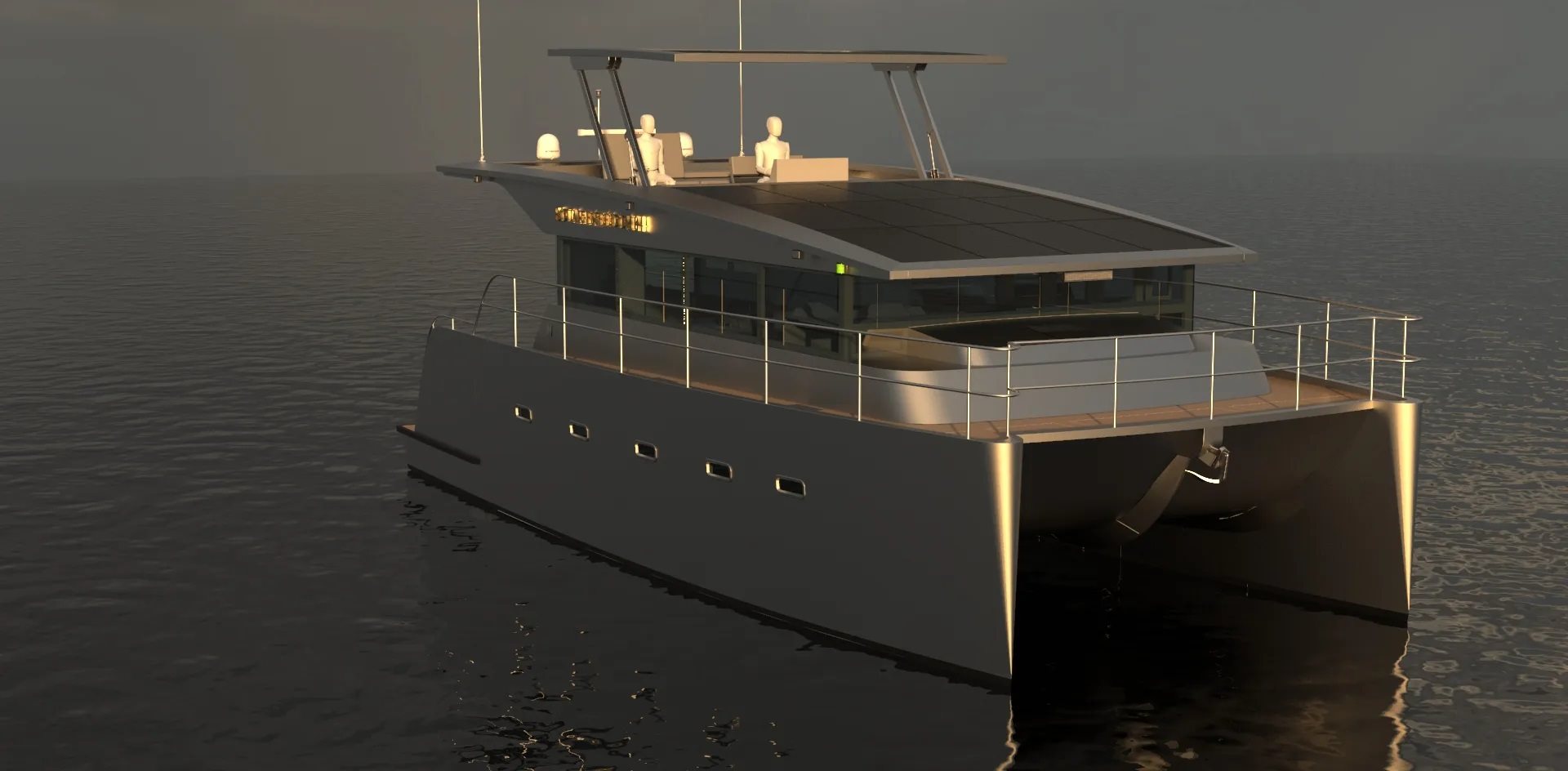

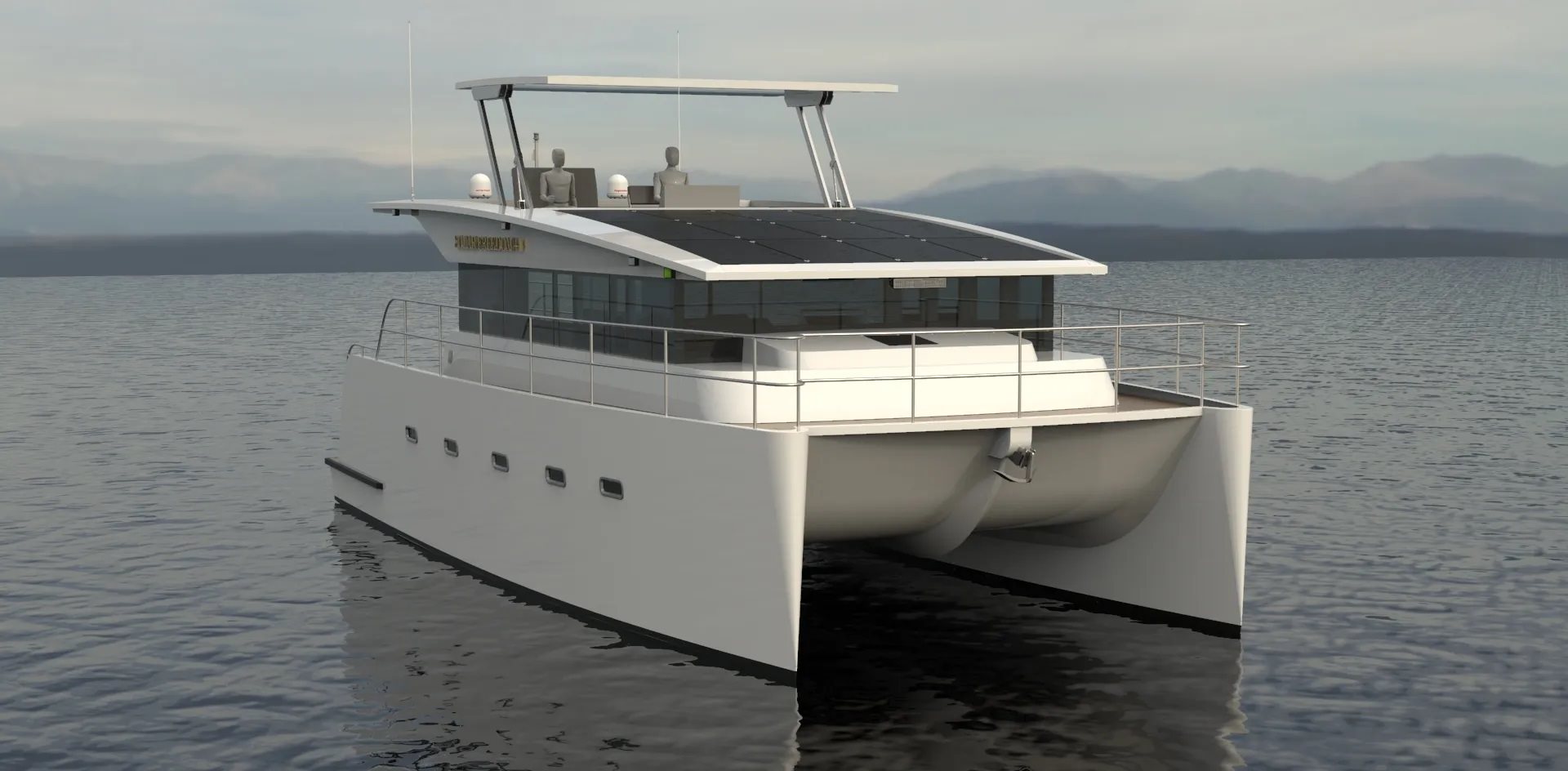

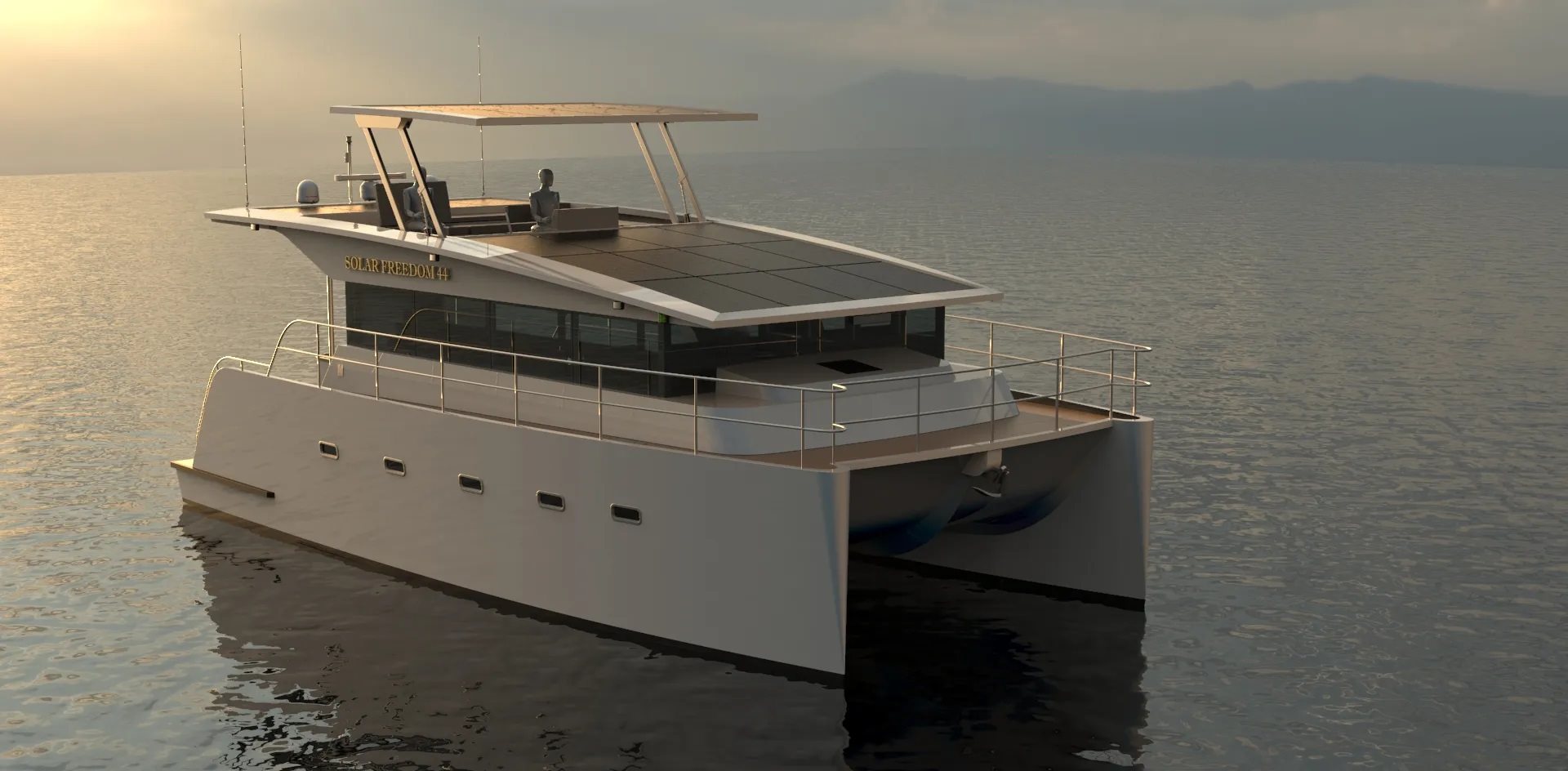

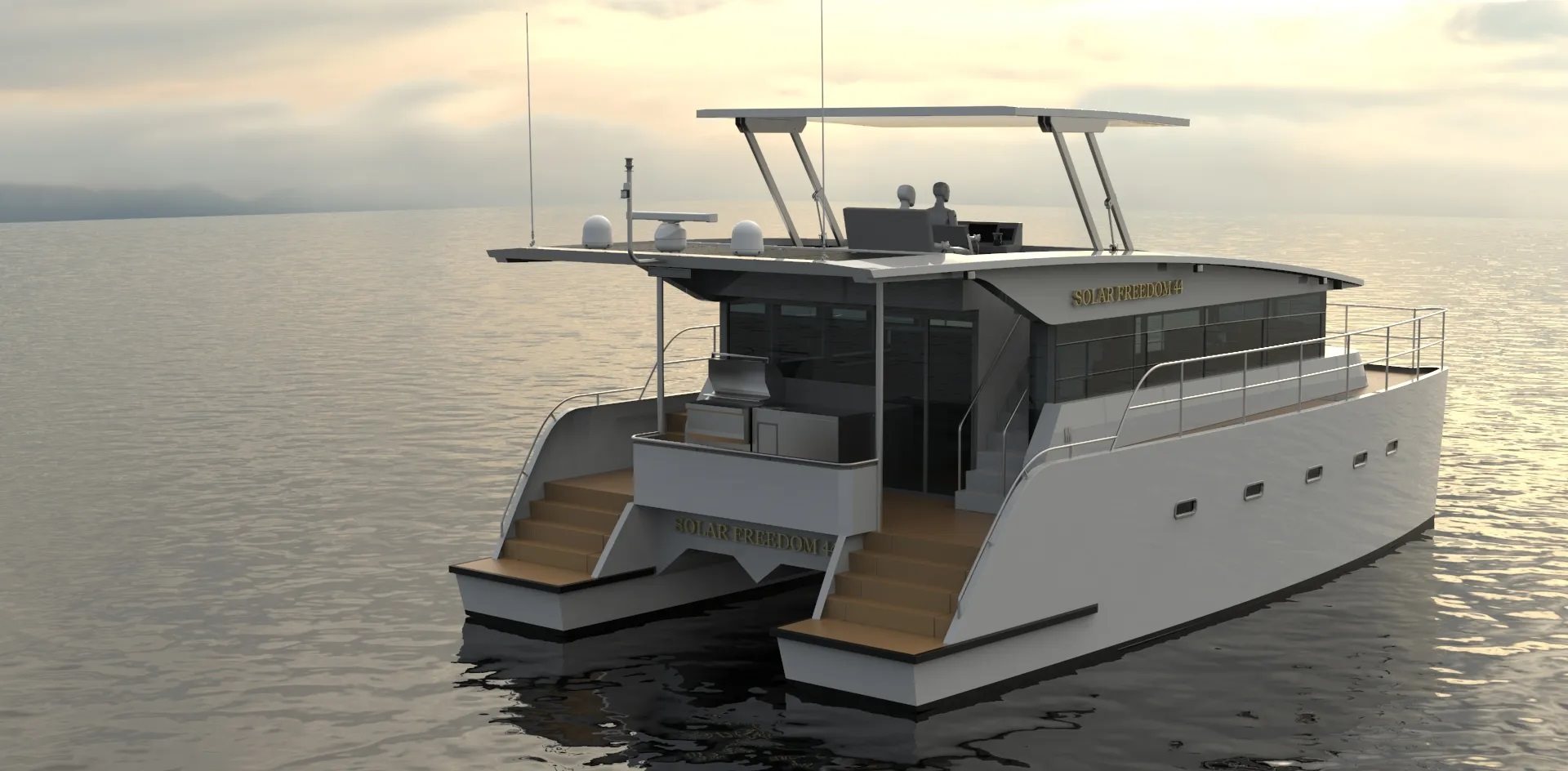

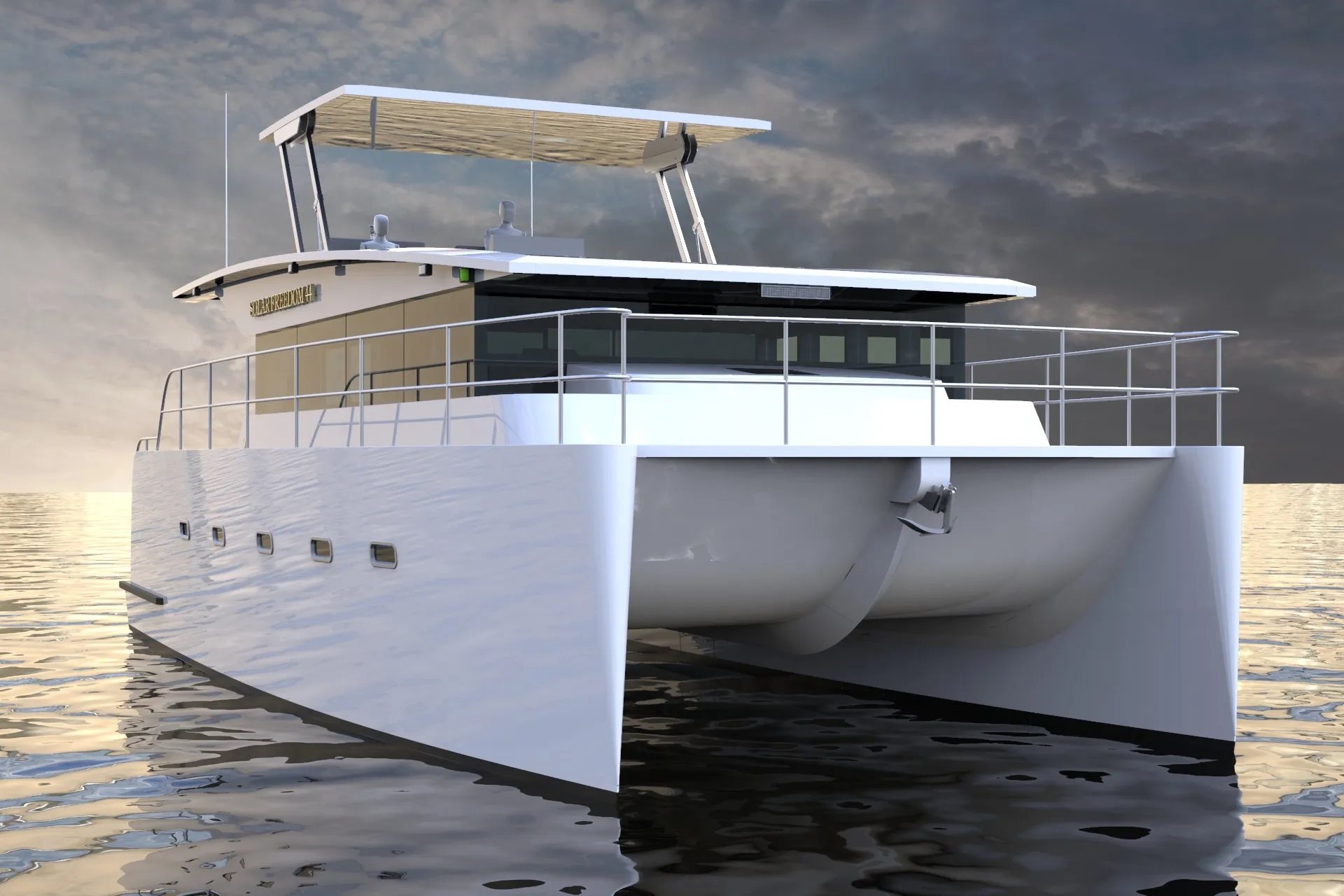

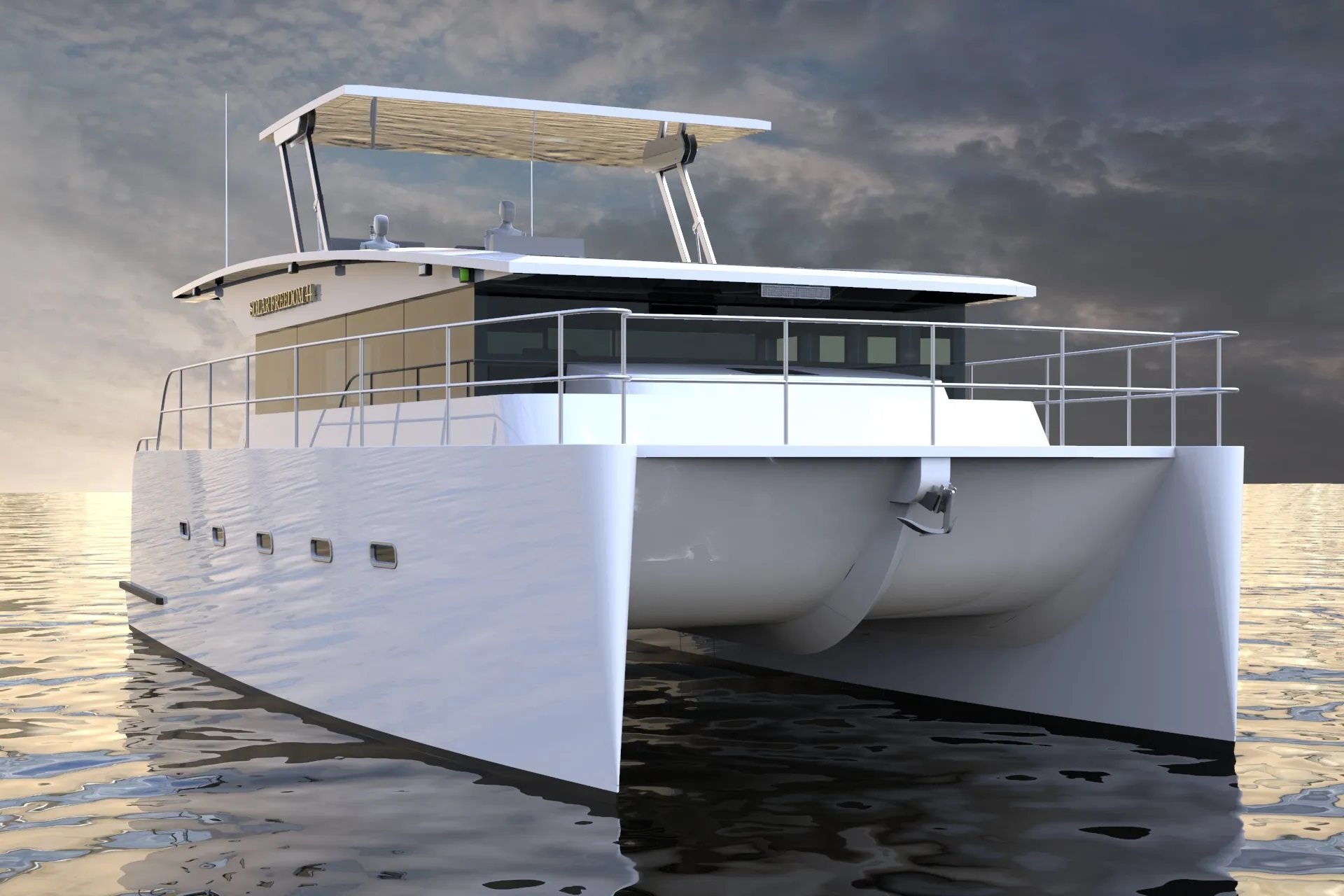

Designed by the renowned designer Rick Welin (Canada) this catamaran is perfect as a live-aboard or charter motor-yacht. With huge interior spaces and very low running costs she is possibly the world’s greenest boat design.



Length: 13m

Beam: 7.06m

Draft: 0.73m

Construction: Aluminum Alloy

Displ. Light Craft (No Fuel Water Dinghy): 28,164 lbs [12,775 kg]

Displ. Depart Port (Full load & tanks): 35,274 lbs [16,000 kg]

Air Draft – (Bimini Up): 18′-11″ [5.77m]

Air Draft – (Bimini Down): 14′-0″ [4.28m]

Air Gap: 2′-10″ [.87m]

Molded depth at Transom: 4′-6″ [1.38m]

Deadrise Midship: 11.7 deg.

Deadrise Transom: 5.7 deg.

Fuel: 475 gal [1800 Ltrs]

Water: 370 gal [1400 Ltrs]

Power: 2 x 50kW Electric Motors

Speed (Cruise): 6 Knots

CE Category: “B”



This catamaran motor-yacht has been designed from scratch specifically for electric power. Her long and slender hulls and a fine entry at the forefoot ensure minimal drag resistance and can be driven on a whisper. If you’re looking for a greener lifestyle with minimal emissions and radically reduced diesel bills look no further.

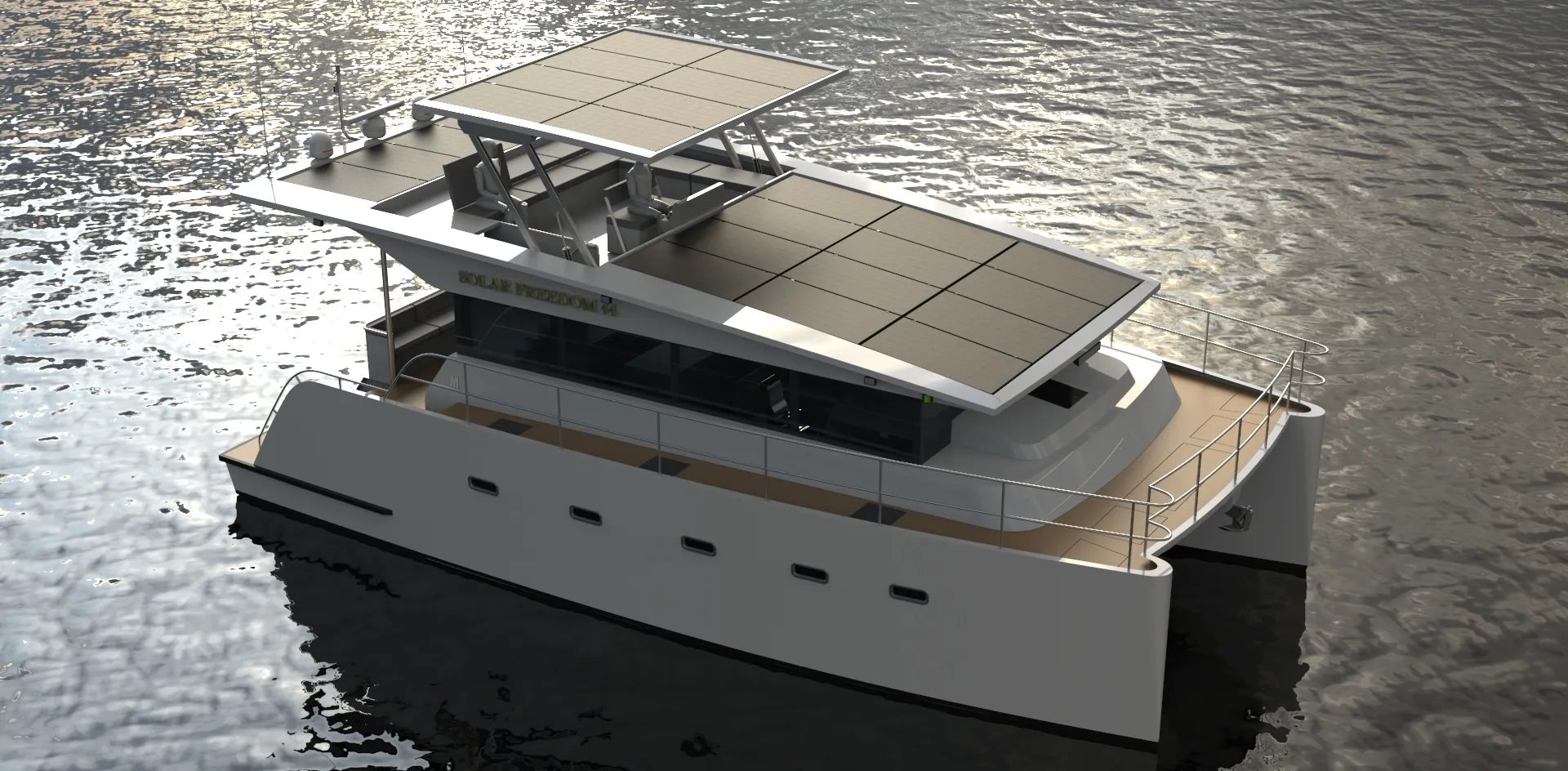

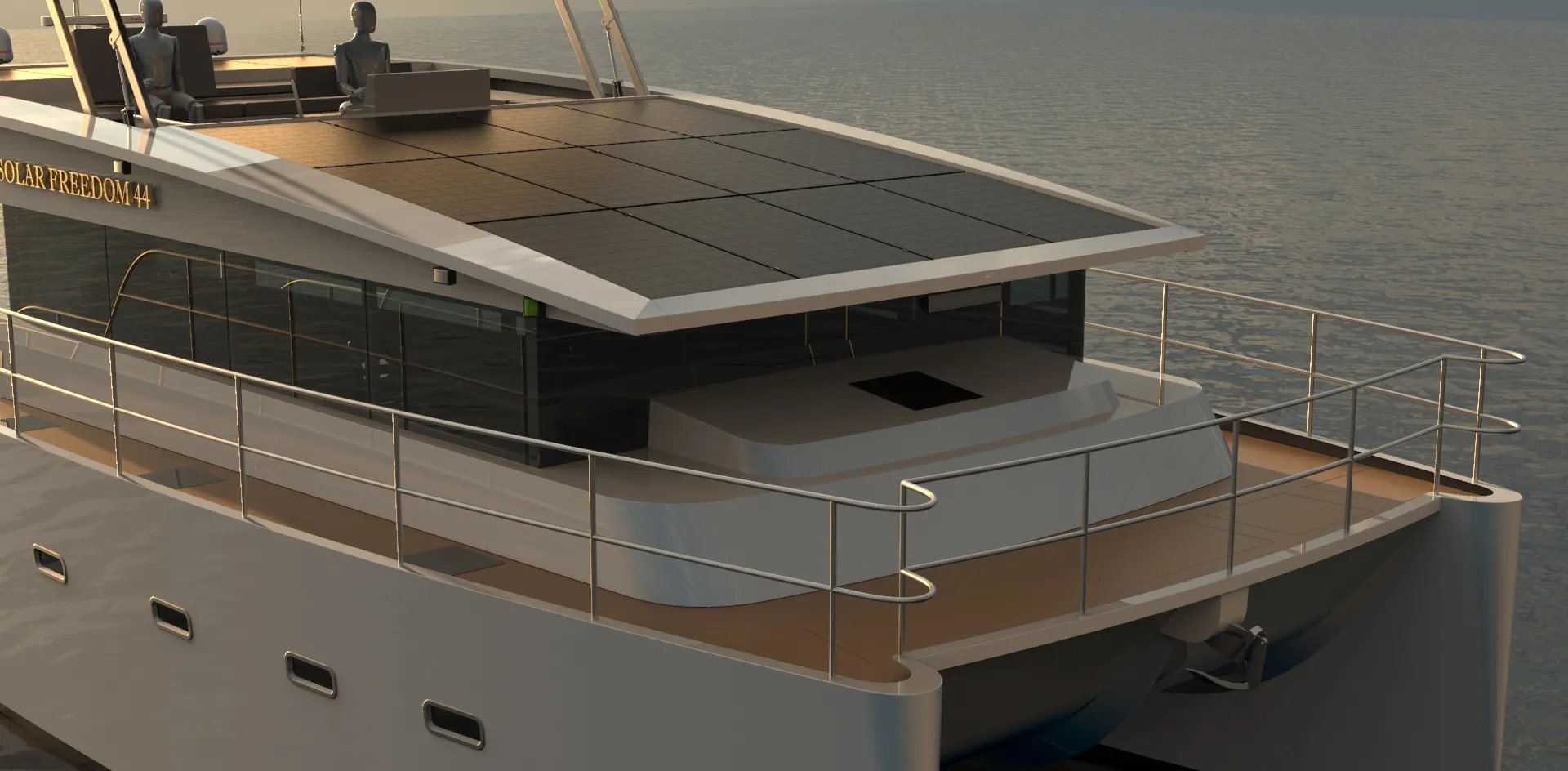

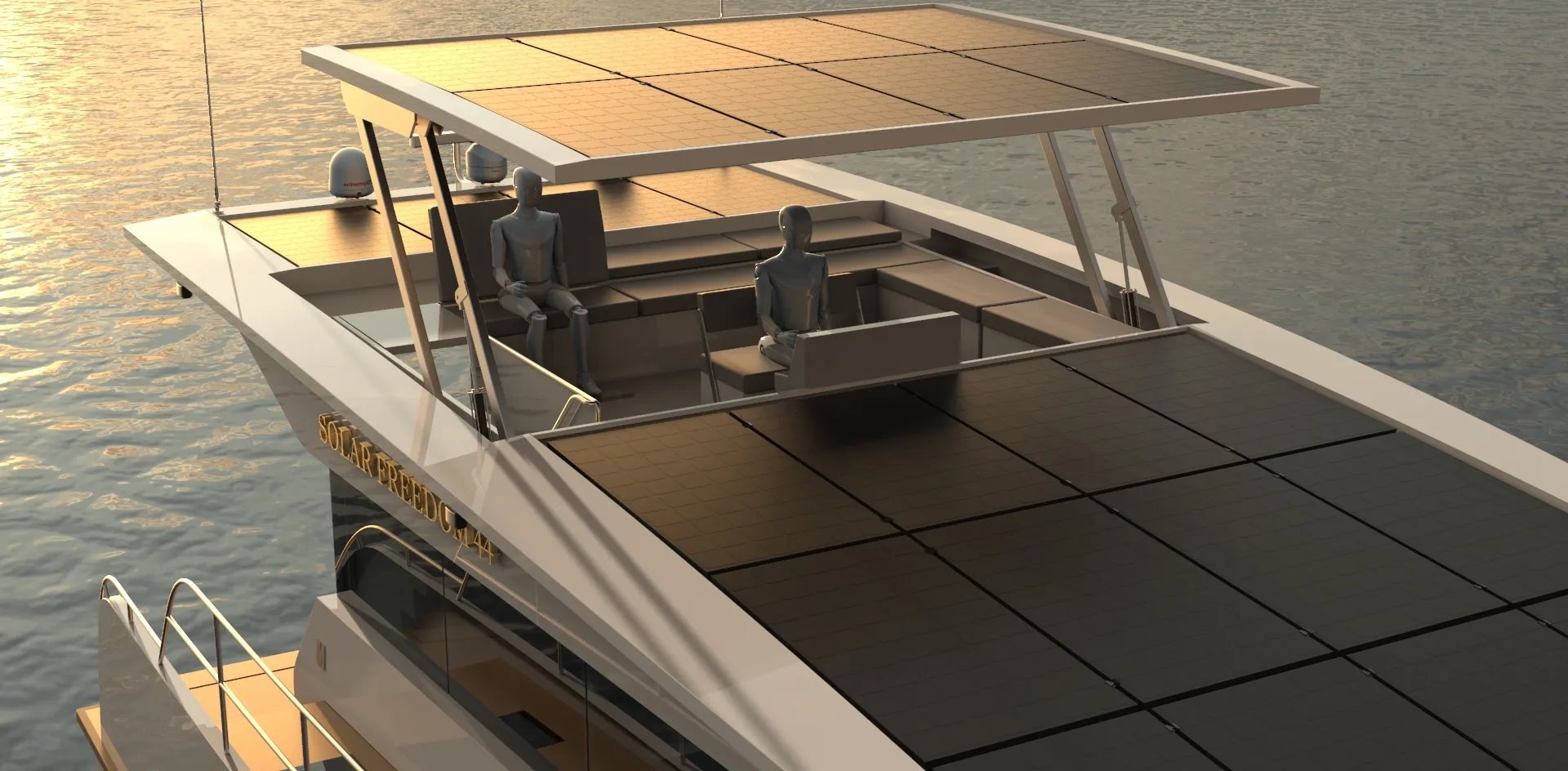

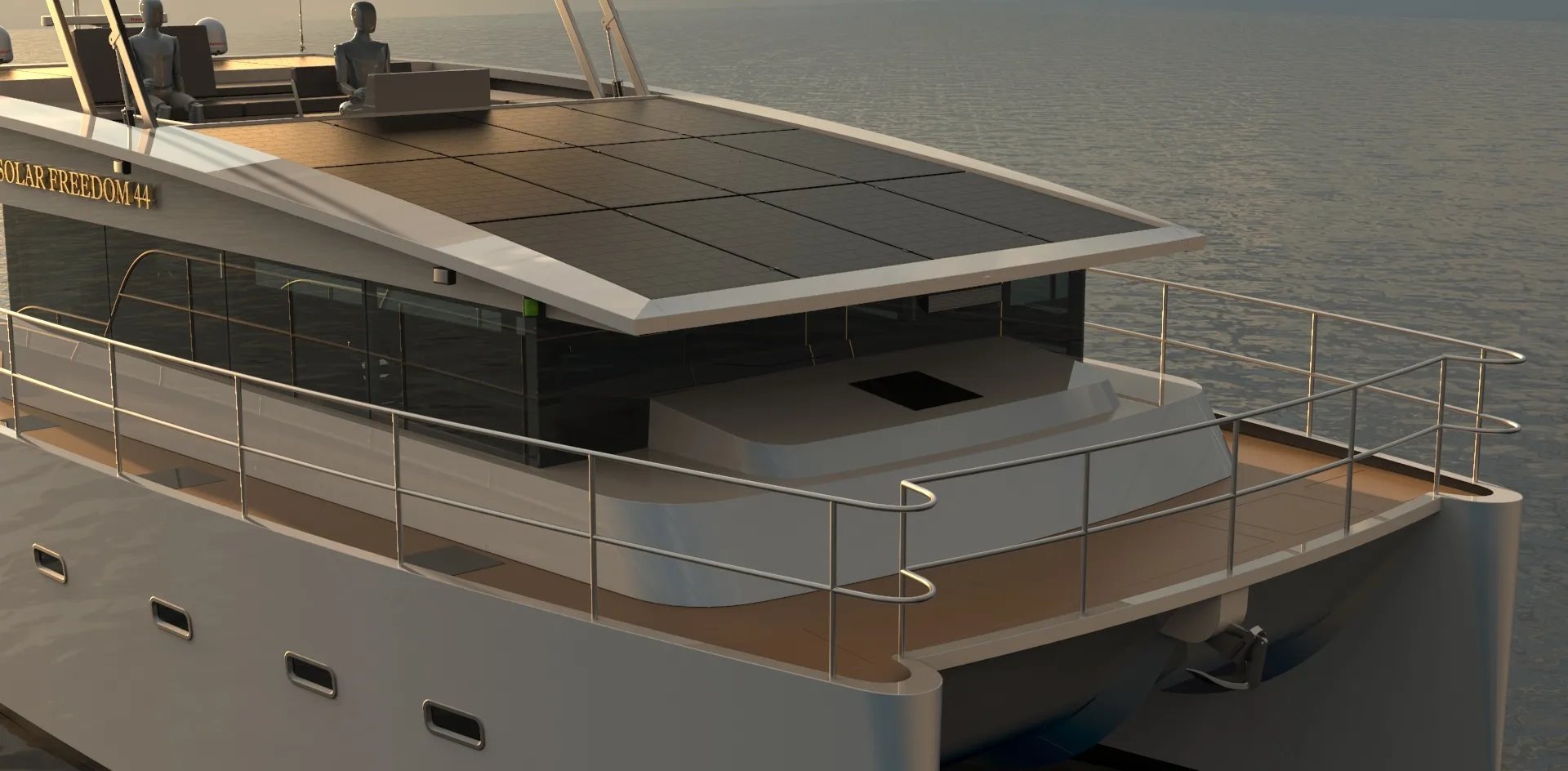

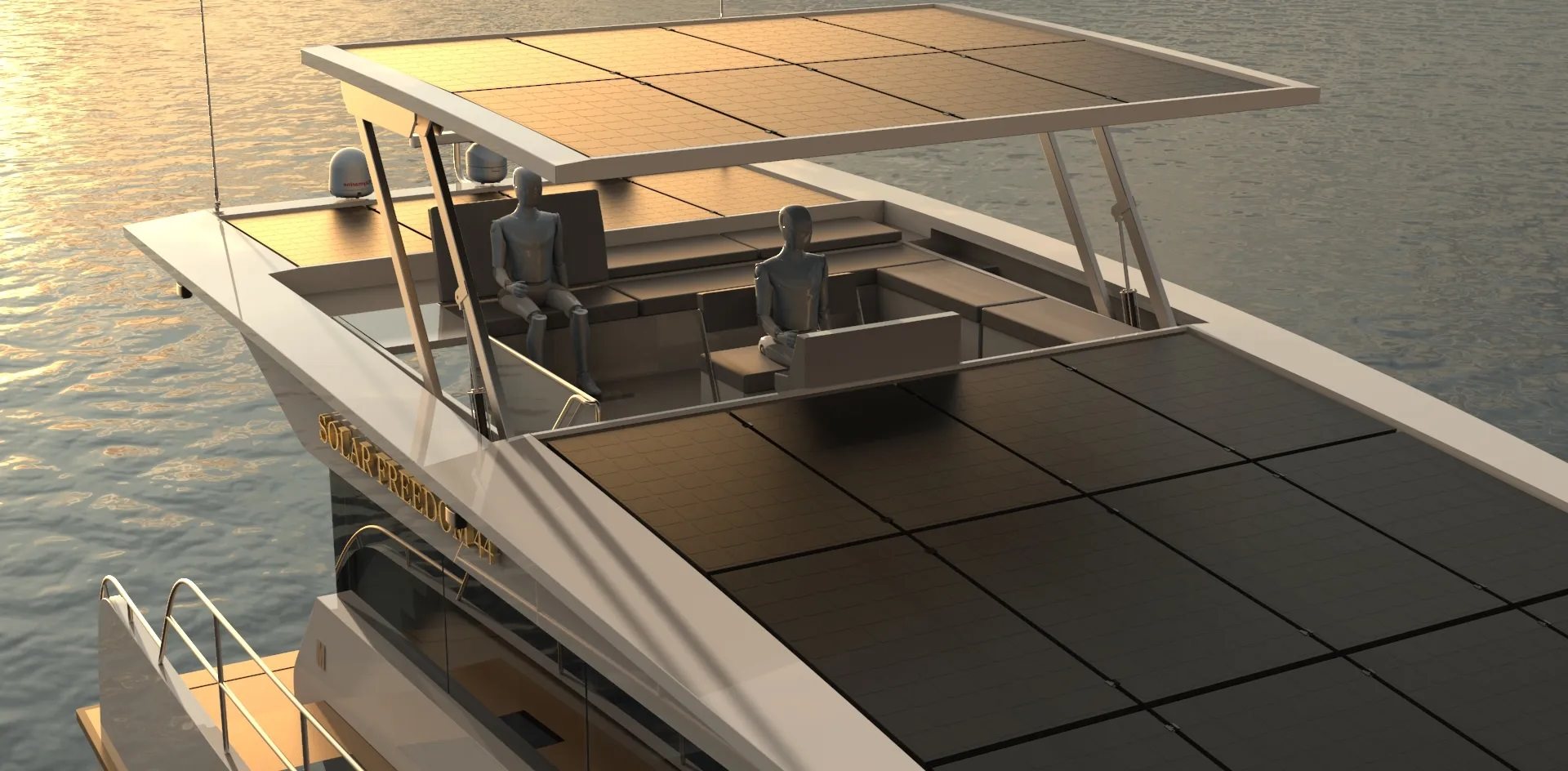

Powered by two 50 kW electric motors she will cruise at 6 knots on battery, and have an unlimited range at 4-5 knots directly off the solar panels. Battery power is provided by 100-150 kW LifePO4 battery bank(s) charged by the 8kW solar array which is backed up by a 50-100kW genset for cloudy days. With the auxiliary genset she can run continuously even on rainy days so there’s never any down-time. Quick charging can also be achieved at the dock over the shore power cable.



Electric power means virtually no maintenance compared to a diesel-powered boat. Electric drive-trains have essentially only one moving part in the motor and those bearings are usually rated for a lifetime of service. The lifetime of savings in maintenance and fuel compared to a diesel drive are very real. No oil changes, no mechanics to hire, no mid-life rebuilds.



The catamaran is characterized by comfortable cabins, inviting salon and huge open areas. Each unit can be customized to Owner’s requirements.
