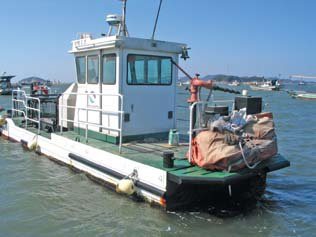

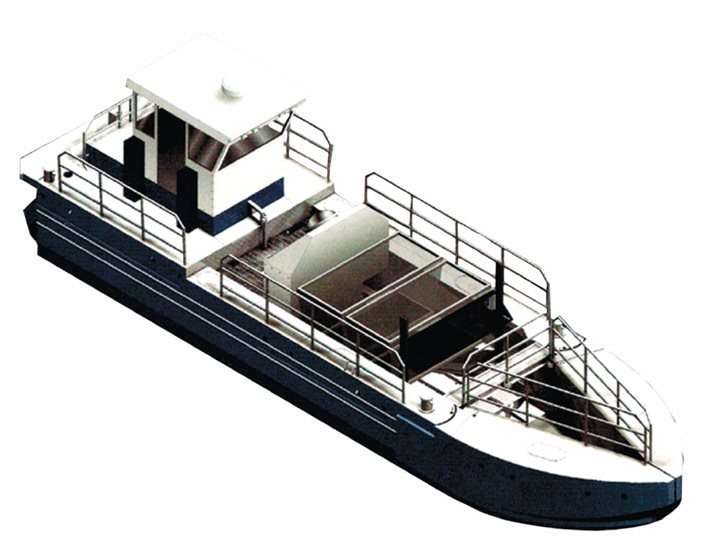

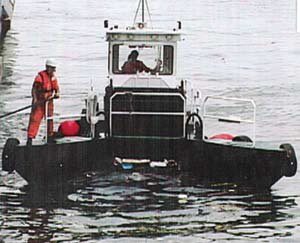

The SMAVE S48 is a complete multi-function pollution control system produced by ADVANCED  ENVIRONMENTAL MARITIME TECHNOLOGIES.  This system has been developed and improved upon continuously over the years and offers the most advanced pollution control technology available on the market today. The basic function being micro and  macro waste recovery, it is ideally suited for hydrocarbon recovery, chemical dispersing, and water  aeration, all of which can be performed simultaneously.

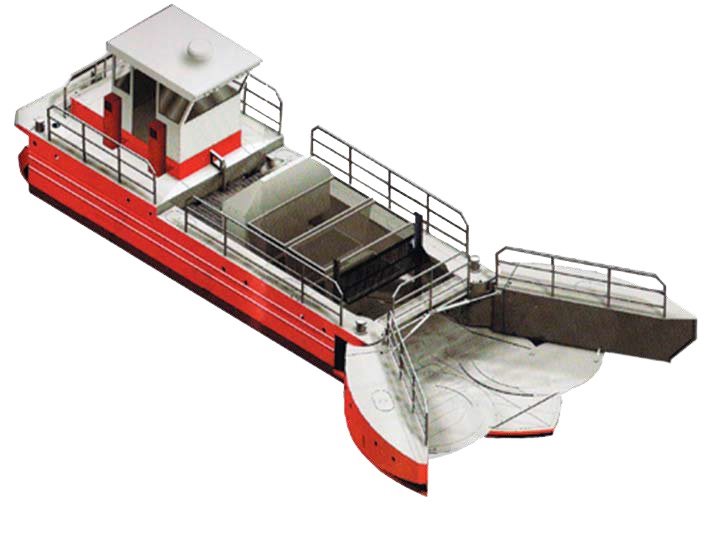

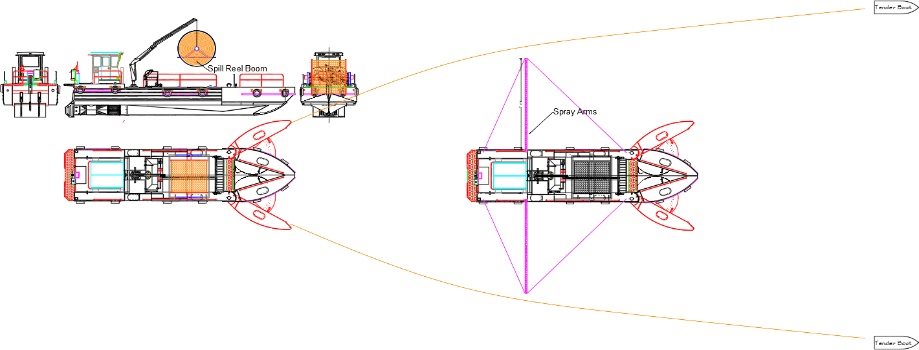

• Debris Collection System: This system is installed behind the stem and consists of a hydraulically  activated retractable bucket (capacity of 0.25 m3) a holding grate and a containment bin (capacity  of 3 m3).



• Hydrocarbon Recovery System: The unit with a recovery efficiency of over 90% is installed at  midship and comes complete with hydraulic pump (capacity of 24 m3/hour) a self-contained  storage canister (capacity of 115 liters) and quick connects for easy removal.



• Chemical Dispersal System: This unit is installed at the stern with a holding capacity of 60 liters  which can spread hydrocarbon dispersing agents, lime or alkaline agents.



• Water Aeration System: This unit with a capacity of 3400 m3/hour of air is installed at the stern and  consists of vertical venturi’s which can inject air to a depth of 10m (adjustable) and width of 30m  enhancing the recovery of submerged garbage.



• Water Cannon System: This optional accessory consists of an auxiliary diesel engine, water pump  and monitor. The water pump is driven by the auxiliary diesel engine with a capacity of 3400  liters/min at 8 bar.

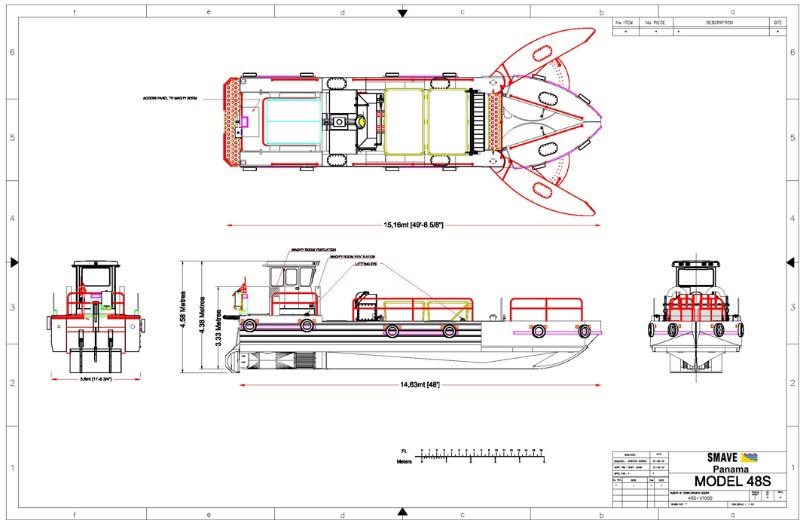

Length overall: 15.2m

Beam width: 3.65m

Draft (empty): 1.1m

Light weight 10 tons

Cruising speed 11 - 14 knots under Beaufort scale sea state (2)

Working speed Up to 3 knots

Rotates in radius 1.5 times of the vessel overall length

Propulsion engine Cummins 6BT 5.9m

Fuel tank capacity 2 tanks total of 1200 liters

Fuel consumption / Autonomy @ Full rated speed (2500rpm) 87.7l/h , 20hrs

Fuel consumption / Autonomy @ Cruising mode 70% (2000rpm) 61.4l/h , 25hrs

Fuel consumption / Autonomy @ Working mode 30% (1750 rpm) 61.4l/h , 30hrs



Hull, Vessel Structure Mild steel, Welded

Cabin Marine aluminum alloy, removable

Shock protection Rubber fenders

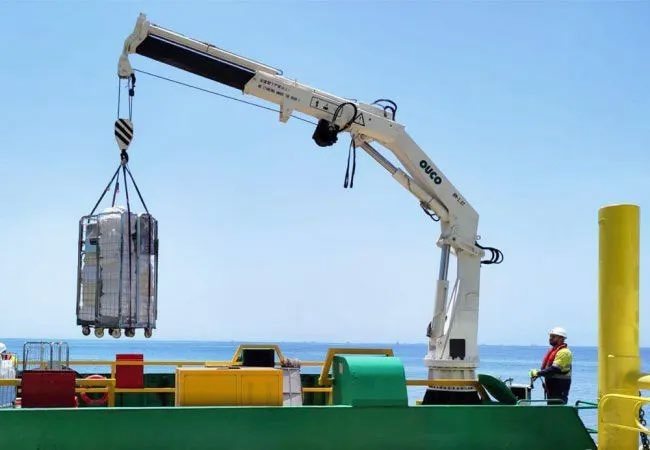

Deck assistance Marine foldable Crane, Hydraulic, 520kg



Various engine and pump displacements may be used, consult our technicians for proper selection.



At delivery, our staff of technicians will supply all necessary information and provide adequate training for  the proper usage of this equipment in order to maximize efficiency.
