Listing ID - 2094 | |
|---|---|
| Description | NEW BUILD - Scavenger HYD22 Weed Harvester |
| Date Launched | Built to Order |
| Length | 8.17m (26.8ft) |
| Beam | 2.1m (6ft 10in) |
| Draft | 0.3m (1ft) |
| Location | ex factory, Singapore |
| Broker | Craig McKay craig.mckay@seaboatsbrokers.com +61 412 295 595 |
| View As PDF | |

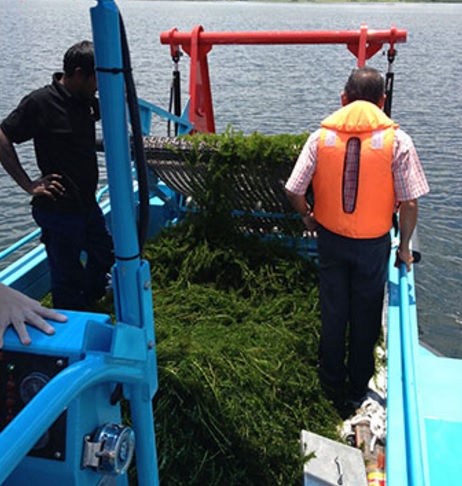

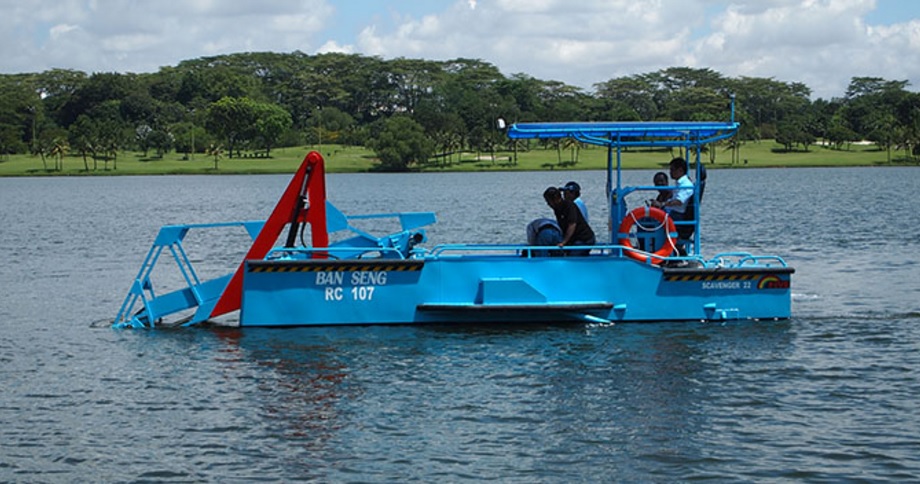

The Scavenger HYD22 Weed Harvester is the latest dual purpose river maintenance boats designed by FiveAB Group. This boat can be used for collecting floating rubbish via the conveyor belts directly into the boat. It can also be used to cut underwater weeds up to 1.2m depth and the weeds will be collected immediately via the conveyor and into the boat for disposal.
The unique twin propeller propulsion system will give you extremely good manoeuvrability in tight situation and can even rotate the vessel on the spot.
Overall Length: 8.17m (26.8ft)
Hull Length: 6.7m (22ft)
Beam: 2.1m (6ft 10in)
Draft: 0.3m (1ft)
Hull Weight: 1,700kg unladen weight
Power Range : Single BETA MARINE (50hp) inboard diesels engine
Fuel Tank Capacity : External 200litre Fuel Tank
Material : 8mm Marine Grade Aluminium Alloy (5083H321)
Top Speed : 8 - 10 Knots
General Design
1. Hull Structure: Flat bottom boat with multiple reinforced chambers foam filled
2. Hull Coating: Marine PU Painting to customer color
3. Cockpit Floor: Forward flat plate deck with Aluminium bow rails
4. Canopy: Overhead PVC Canopy with Aluminium frame
Configuration
Centre raised platform forward driving console with remote control and instrument panel: 1
Front Conveyor Aluminium Frame with Stainless SteelConveyor Belt (Max 1.2m): 1
Stainless Steel Scissor action knife at forward edge of Conveyor Belt (Max 1.2m
Large Forward collection bin for floatsam and rubbish: 1
Forward aluminium bow safety railings: 1
3” D rubber fender all round: 1
Plastic PVC Captain’s Chair: 1
Lifting Points: 4
Self-draining Holes: 4
Electrical and Electronics
Navigation Light (All round white, combination of Port and Starboard Light): 1
40W Deck Flood Light (Mounted at Front Rear Canopy and Frame): 1
12 VDC Lead Acid Maintenance Free Starting Battery with Plastic Box: 1
Engine Room
BETA Marine Diesel Engine 50hp with main hydraulic pump fitted: 1
Fuel Water Separator: 1
Seawater intake filter with Kingston shutoff valve: 1
Hydraulic motor on port and starboard side with propeller shaft, bronze propeller propulsion system
Hydraulic tank with hydraulic filter: 1
