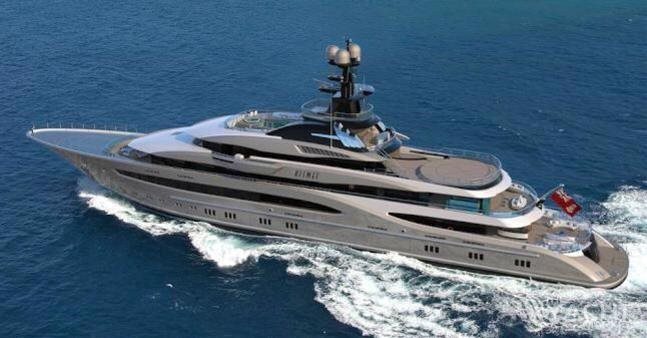

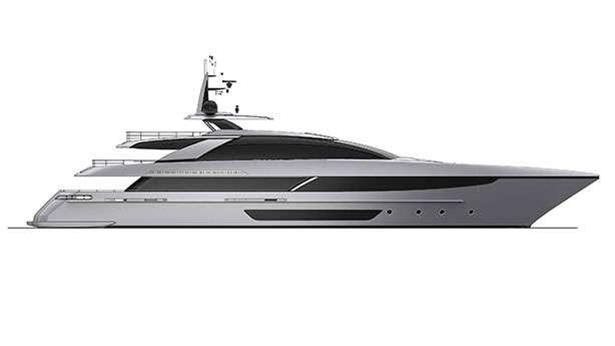

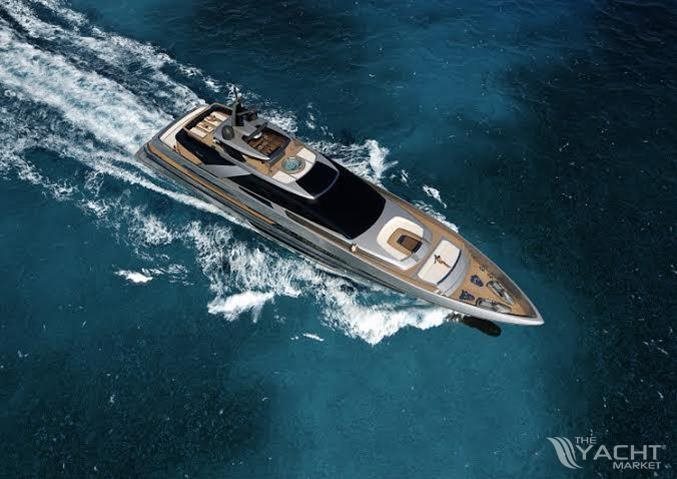

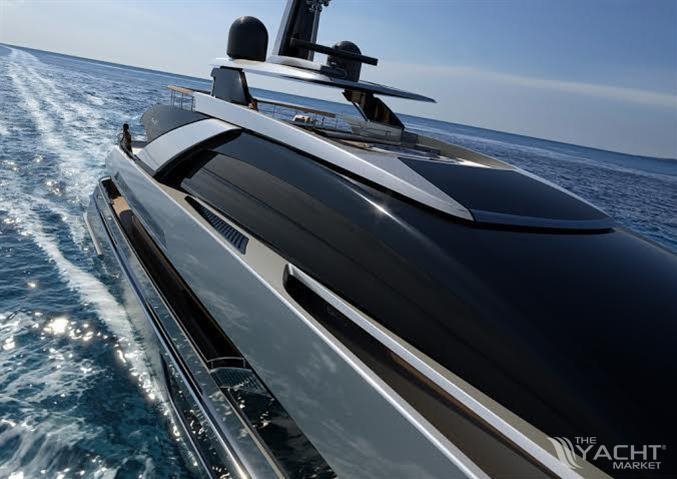

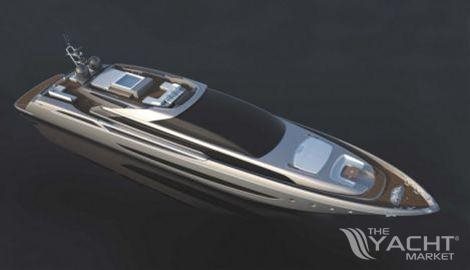

Built to order 50m vessel built from 5-7mm steel. With a total capacity of 40,000 Litres, it has two VOLVO D16 engines, each of 600 hp. The yacht also has amenities including a teak-laid transom platform, two cranes, a pool, an owner's suite, galley, main saloon, crew cabins, laundry, three guest cabins, and power systems. In addition, it boasts a Wheel House with electronic engine controls, power-assisted hydraulic steering, autopilot, and a variety of navigation and communication equipment.



Make / Model: Navigator 50

LOA: 50m

Beam: 8m

Draft half loaded: 2.5m

The yacht is of welded construction throughout of 5 – 7 mm steel



Furniture finished in a choice of Cherry or Light Oak with either a satin or high gloss

finish. Walnut is available as an option

All the wood used on board is to be of first class quality.

The wood is to be sound, dry and free from cracks, knots, insects and insects’ larva

and other defects.

Galley in choice of granite or marble

Bathroom unit worktops and floors in choice of marble or granite

Choice of upholstery fabrics, carpets and curtains from coordinated range

Laid-timber galley and helm floors

Side 5 av 7



Family Saloon

Large seating area with two 4 seater sofa, four armchairs with coffee table, one

table with 8 chairs

Curtains or blinds to all windows

Overhead downlighters and pelmet lights

 All cabins, 240v power points and air conditioning

All bathroom fresh water and Water flush toilets with holding tanks and 240v shaver points



Outside Area

Pool

Side 3 av 7

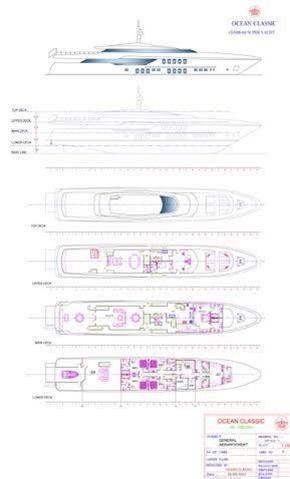

Main Deck

Owner’s Suite

Large double bed

Mirror

Walk-in wardrobe with additional storage

Toilet and bathtub

Sony or similar 50 inch LED TV/DVD/radio

Three seated sofa and a single armchairs with table

Overhead and individual berth lights



Galley

Granite/marble worktop

Ceramic 4-ring hob

Extractor fan

Combination microwave/conventional oven with grill

Twin-bowl stainless-steel sinks with mixer tap

Full height fridge/freezer

Icemaker

Dishwasher

Trash compactor

Overhead and concealed lighting

Drawers and storage cupboards

Laid timber floor

Toilet



Main Saloon

Dining area (12 chairs), dining table

Two 4 seated sofa and four single armchairs

Entertainment center incorporating LED TV SONY OR SIMILAR 50 INCH linked to

surround-sound system

Side 4 av 7

Laundry

Washing machine

Dryer machine

Washbasins with mixer tap



Diesel

Two (2) VOLVO D16 with 600 hp on each engine (used).

Range 5000nm at speed of 12 knots

Cruising Speed: 12 knots

Maximum Speed: 14 knots

Generator: 2 X CATERPILLAR C4.4 with 80KW each, Diesel



Engine room soundproofed

High-volume air intakes

Engine room extractor fan with electronic time delay

Engine exhaust silencers and water-cooled exhausts

Engine beds integrally molded with hull for strength and vibration absorption

Forward and aft engine-room bulkheads integrally bonded

Engines flexibly mounted

Automatic fire extinguisher with remote override control

Automatic and manual bilge pumps

Engine-room lighting

Propeller shafts in stainless steel (316)

5-bladed propellers in nickel aluminum bronze, diameter 80cm

Balanced rudders

Cathodic protection for stern gear

Stern gear, engines, fuel tank fillers, etc. all electrically bonded

Power assisted steering system

Single-lever electronic engine controls

Bow thruster

Freshwater supply point in engine room



Teak laid transom platform

Reversible electric anchor winch with foredeck

Stem head roller with automatic anchor launch and retrieve

Self-stowing 250kg Delta anchor with 100m of chain

Electric twin stern rope mooring winches port and starboard

Bow rope stowage locker

Freshwater deck/anchor wash (with both fore and aft deck outlets)

Twin coach roof lockers for storage of fenders, ropes and sunbed cushions

Stainless-steel guard rails

Full set IMCO navigation lights

Riding light

Remote control searchlight

Twin electric horns

Fuel and water fillers

Telephone connection point

Side 2 av 7

Two Cranes

Life raft locker

Stern docking lights



Upper Deck

Wheelhouse

rudder position indicator

Electronic engine controls

Power-assisted hydraulic steering with adjustable steering wheel

Bow thruster control

Remote control electric anchor winch

Trim tab controls with indicators

Autopilot

VHF with DSC R/T with intercom

Color radar (with scanner) & GPS/ Chart plotter

Engine room fire extinguisher warning system

Chart area

All electronic navigation equipment interfaced with radar and autopilot by Ray Marine

specified.

Speed and distance log

Echo sounder with alarm

Remote control searchlight

Horn button

Intercom

Automatic foghorn with loud hailer

Leather upholstered helm seats

Triple windscreen wipers

Windscreen wash

Bilge pump controls with visual ‘pump running’ indicators



Lower Deck

Crew Cabins

Three cabin including:

Large single bed

Mirror

Wardrobe with additional storage

Toilet and shower

LED TV/DVD/radio

Overhead and individual berth lights



Guest Cabin

Three guest cabin including:

Large double bed

Mirror

Wardrobe with additional storage

Sony or similar 40 inch LED TV/DVD/radio

Overhead and individual berth lights

Toilet and bathtub

Armchair and table



24 Volt:

4 x heavy-duty batteries for engine starting

6 x heavy-duty auxiliary batteries

Engine alternators charge both banks of batteries via automatic switch charging

system

2 x 80amp battery chargers charge both banks of batteries via an automatic switch

charging system

Battery paralleling system with remote control at helm position

Remote battery master switches with control switch at main switch panel

Circuit breakers on all circuits

24–12v dropper for certain navigation and radio circuits

220/240 Volt:

Two 80kW diesel generator in own soundproof shield with water-cooled and specially

silenced exhaust 2 x 63-amp shore support inlets

Generator/shore support change-over switches

Polarity check system

Earth leakage safety trip, circuit breakers on all circuits

Power points in saloon, galley, all cabins and passageway

System by ABB

Side 6 av 7



Tanks in double bottom interconnected via transfer system, giving 40 000 litre

capacity

Fuel fillers on both side decks

High-capacity duplex fuel filters/water traps with changeover cocks and visual

contamination warning at console

Fuel gauges consoles



Water tanks totaling 5 000 liters including hot water calorifier

Water heated 240v immersion heater

Automatic water pump with filter

Main circuit breaker at switch panel

Water level gauge

Deck filler

Electric quiet flush WC system with

5000 liters holding tank, contents gauge and electric overboard discharge with

macerator back-up system as well as dockside discharge system.

Holding tank level gauge on main switch panel



Automatic/manual override fire extinguishers in engine room with warning system at

helm positions and incorporating engine air vent closure system

Hand-operated fire extinguishers in every room

Separate automatic fire extinguisher fitted in electrical space



Automatic electric bilge pumps (with manual override) 8bilge/fire pump in engine room with valve

selection manifold for all watertight compartments

Electric bilge pumps have controls and warning lights with audible alarm

Side 7 av 7



Set of cutlery, crockery and crystal glasses (8)

Set of towels (8 large, 8 hand)

Fenders (8) and warps (4)

Ensign staff

First aid kit

Boathook Owner’s manual

Engine & equipment manuals

Tool kit

Quilted bedspreads for beds in all cabins (except crew cabin) Electric vacuum cleaner • Ship’s document case
