NEW BUILD - Holiday Boat Sun Deck 60

Listing ID - 3862
Description	Holiday Boat Sun Deck 60
Date Launched	Built to Order
Length	19.00m (62ft 4.03in)
Beam	5.21m (17ft 1.12in)
Note	Primary Power: Electric propulsion
Location	ex factory, Poland
Broker	Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323
Price	USD 1,850,000
View As PDF

Model: Holiday Boat Sun Deck 60 (HBSD 60)

Type: Passenger Catamaran (Inland)

Passenger Capacity: 100 persons

Classification: Inland Area 3

Compliance: NORMA ES-TRIN 2023/01 (Passenger Ship Construction Standards)

Build Technology: Year-round construction

DIMENSION

Length: 19.00 m

Beam: 5.21 m

Height: 3.80 m

Cabin Height: 213 cm (locally reduced to 203 cm)

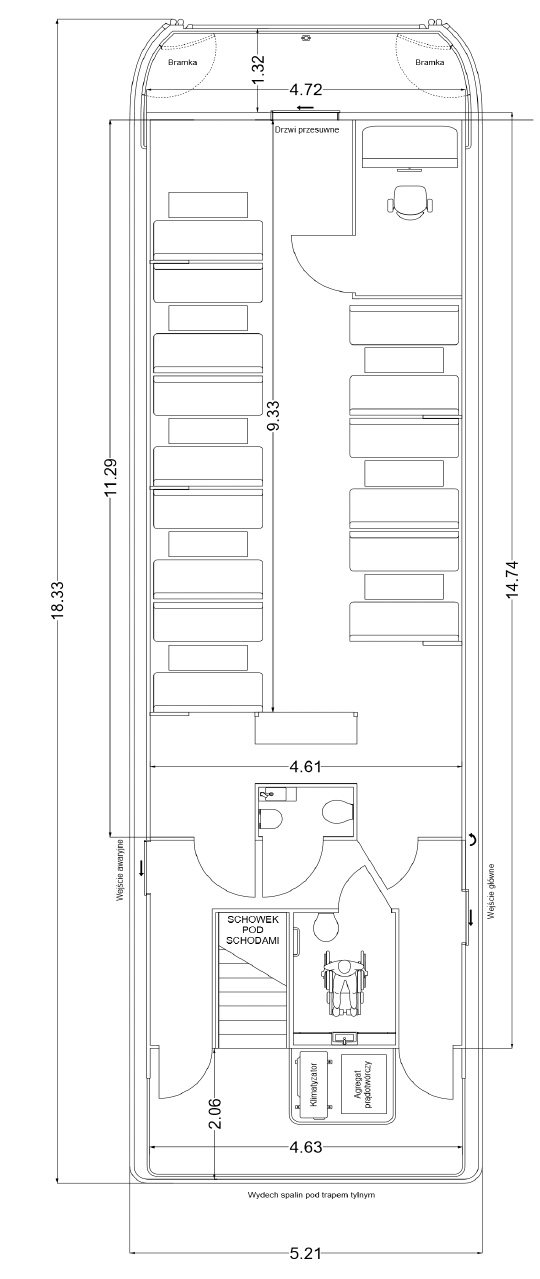

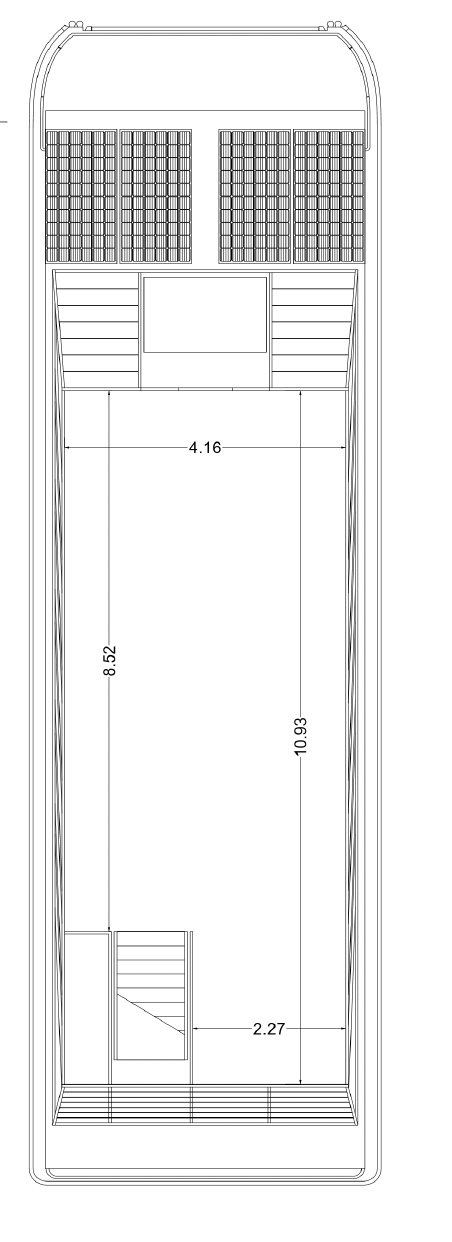

Cabin Dimensions: 4.61 m x 14.74 m

Weight: Approx. 22 tons

CAPACITY

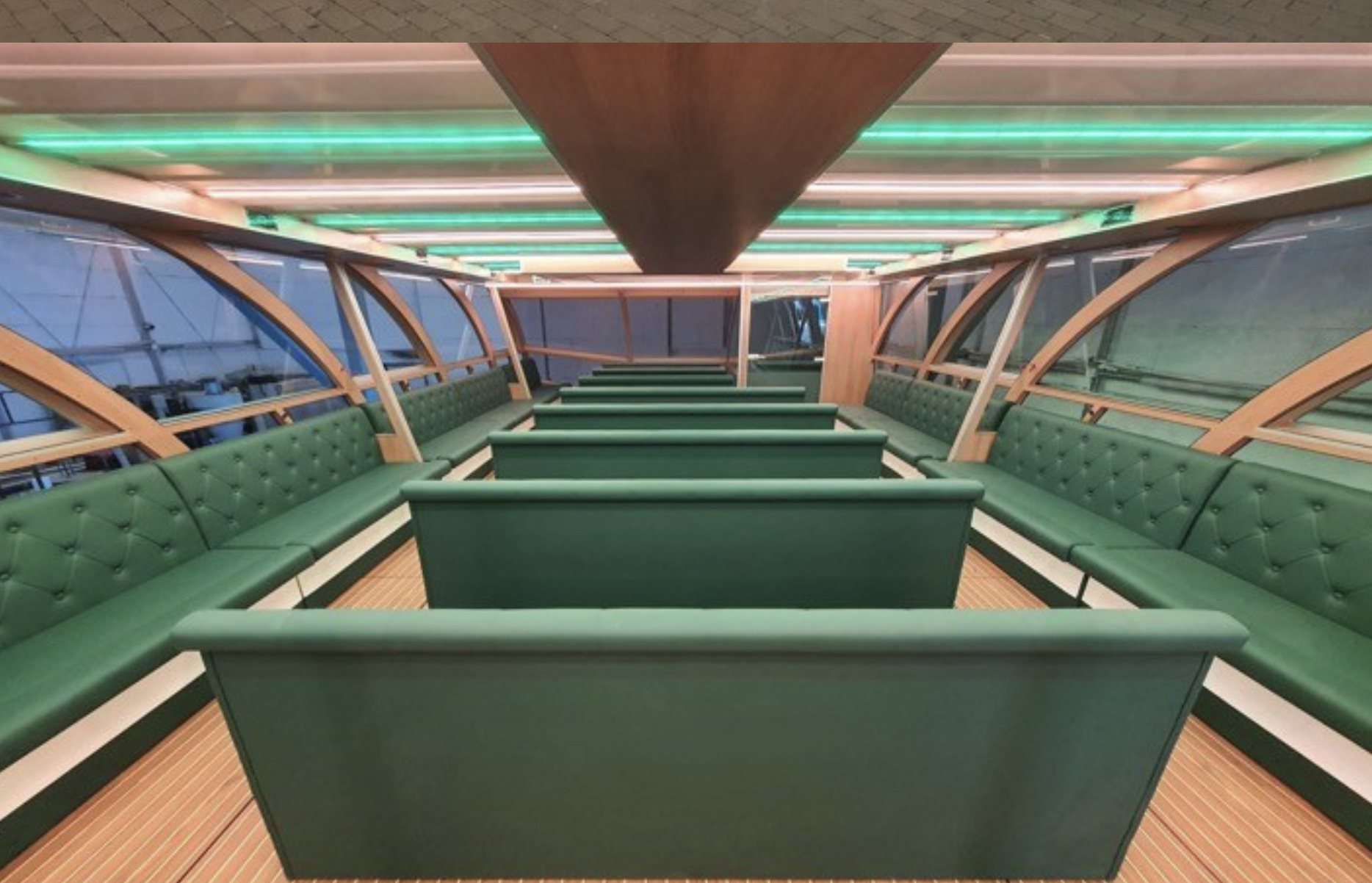

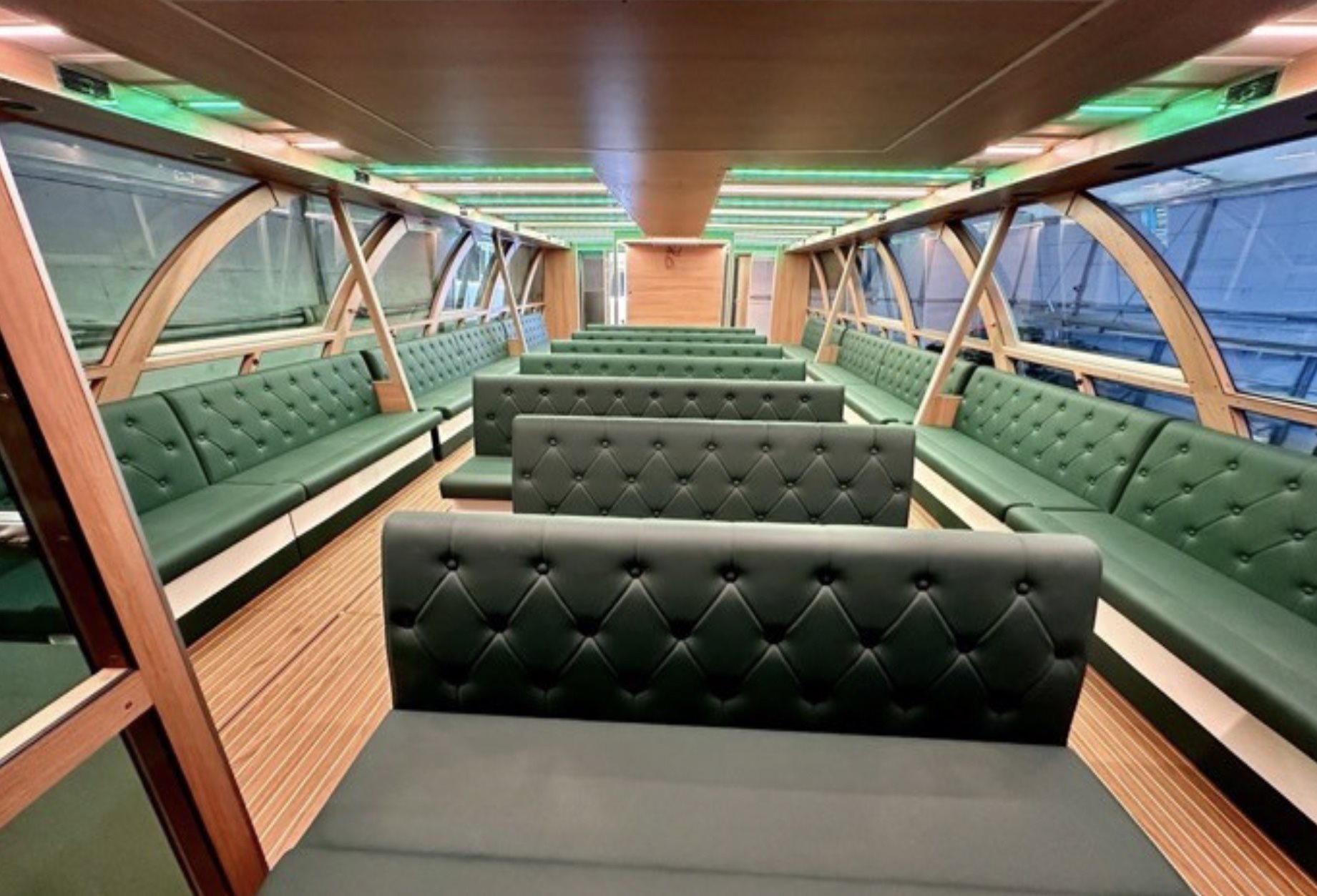

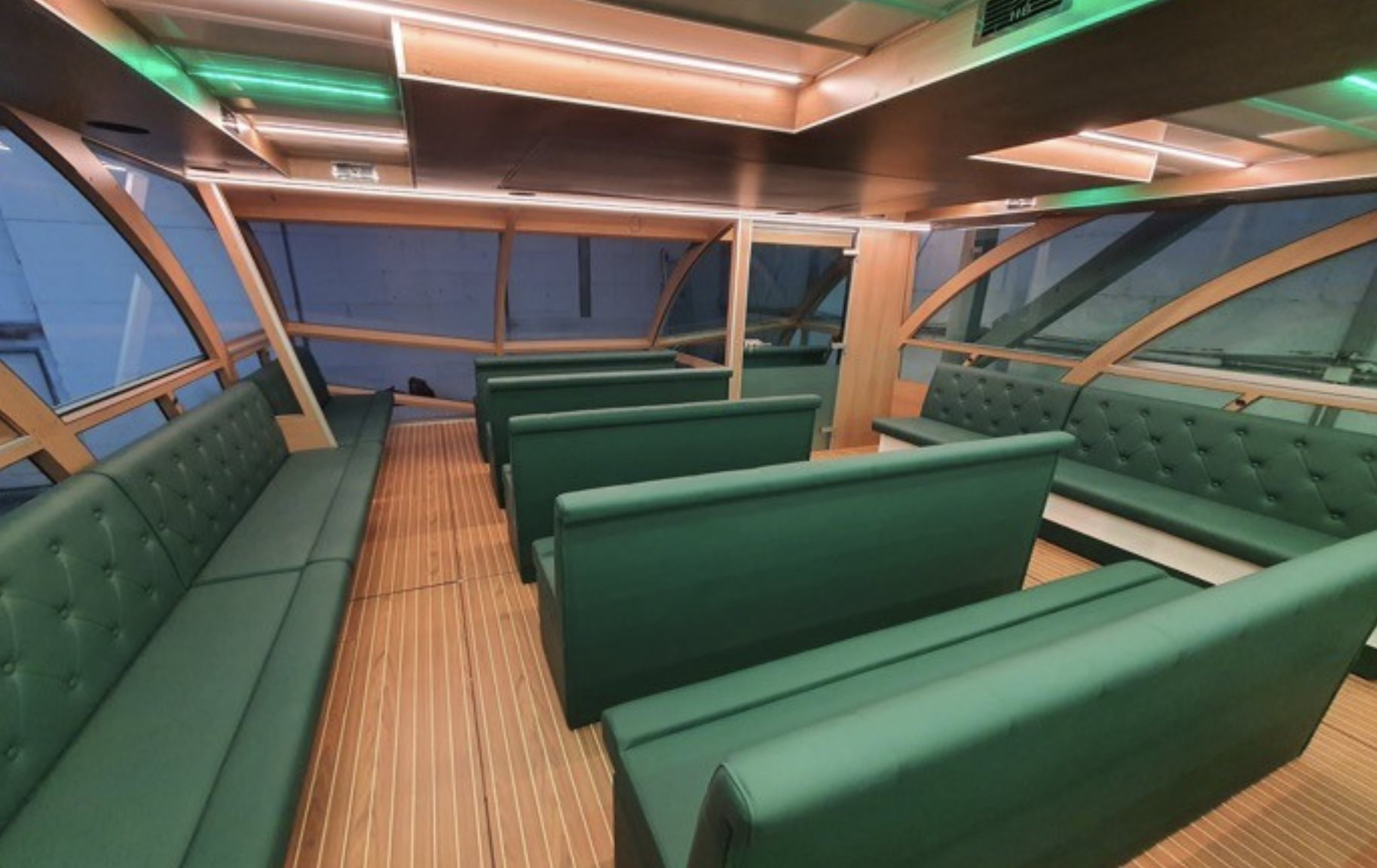

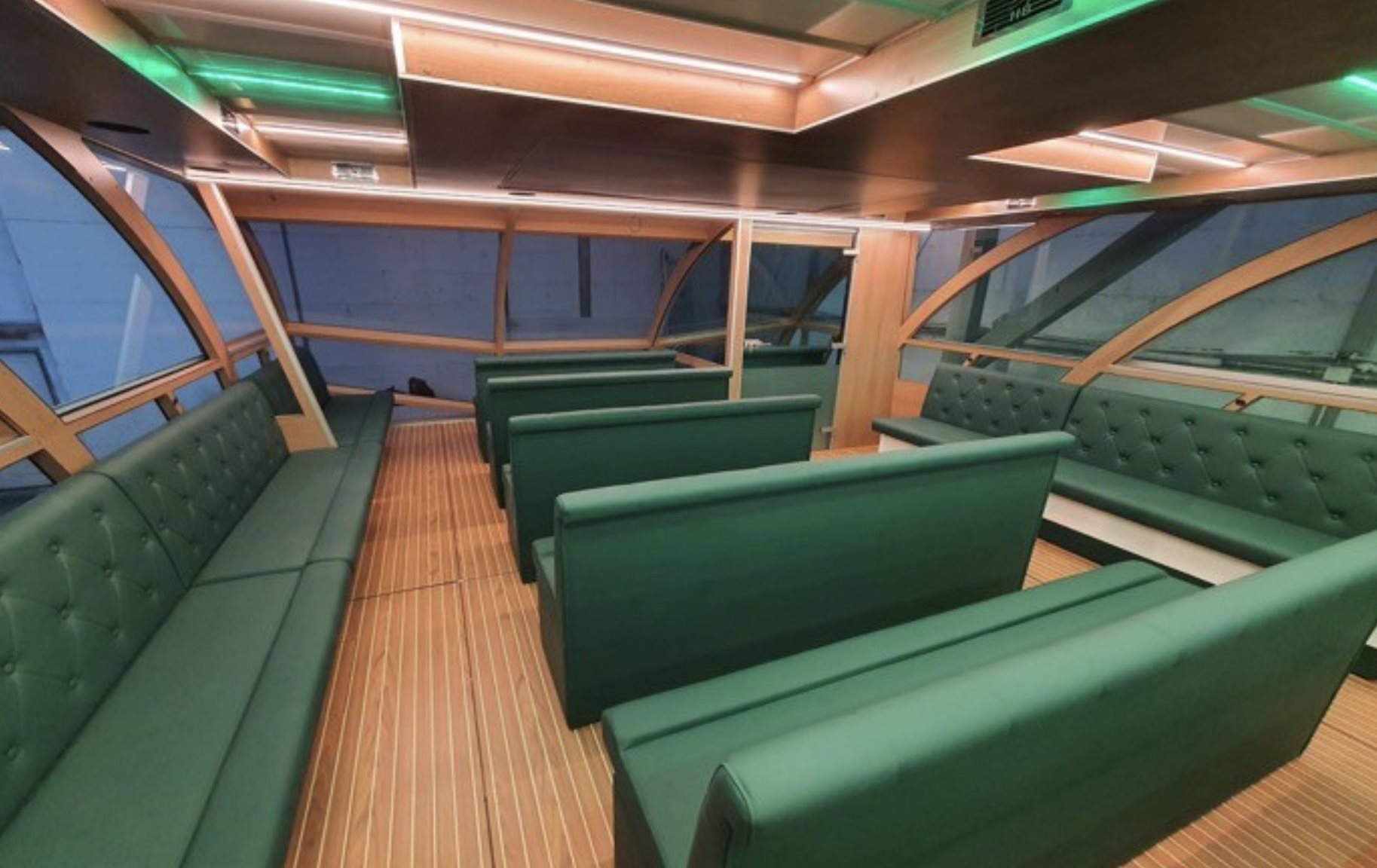

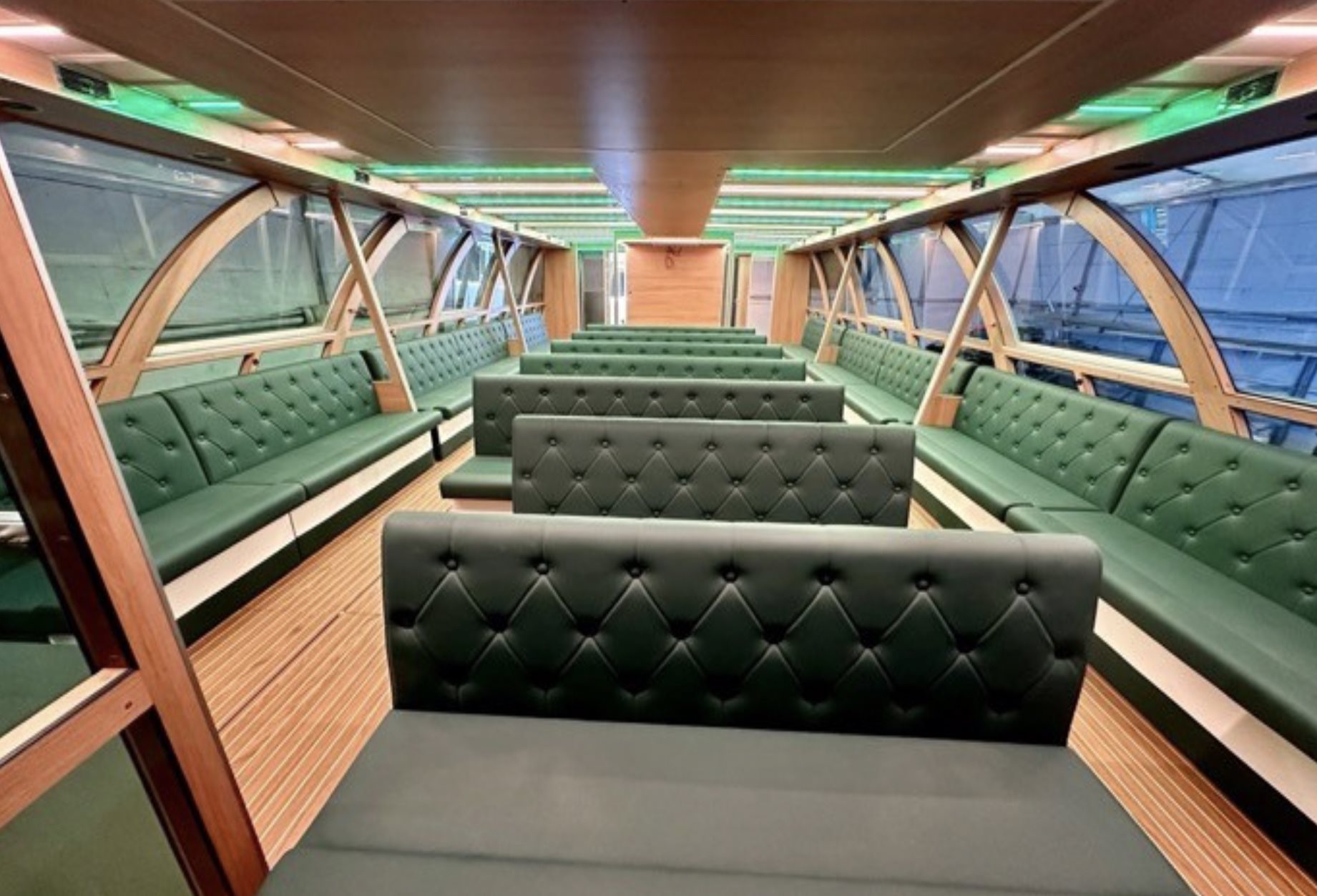

Cabin Seating: 100 seats

Cabin Standing: 50 persons

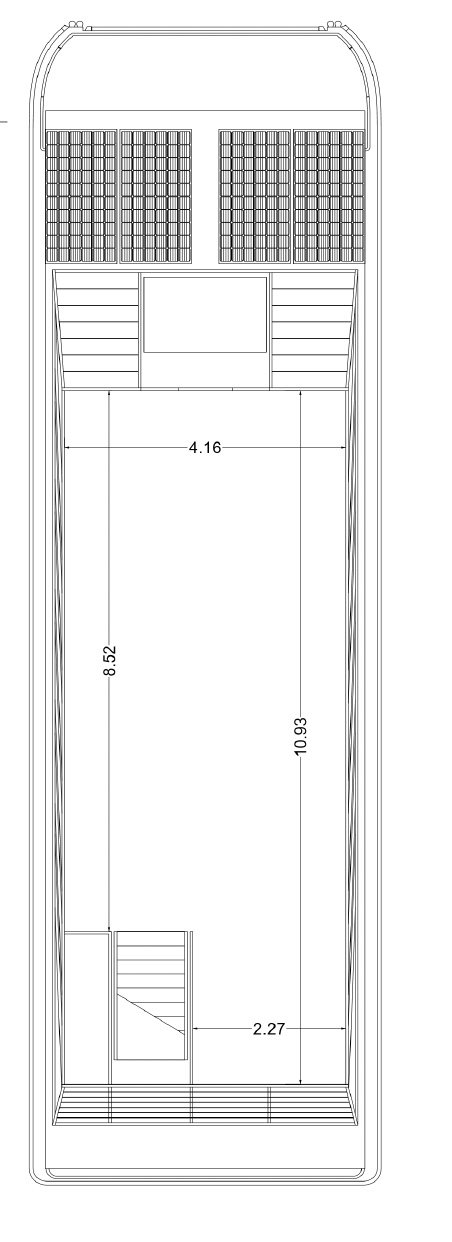

Sun Deck Seating: 50 seats

CONSTRUCTION

Hull Material: Aluminum, acid-resistant steel, and glass

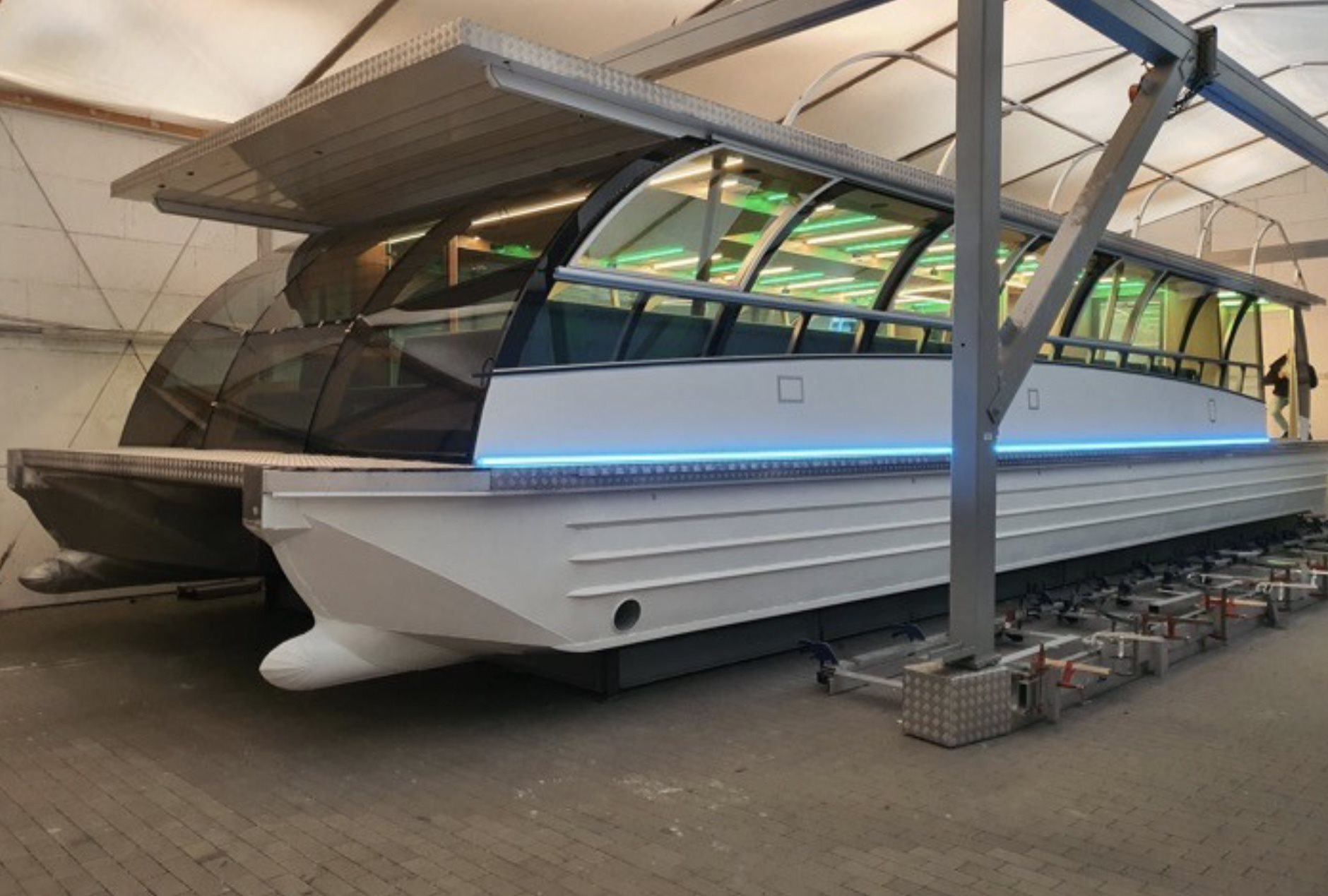

Structure: Self-supporting monolithic construction (floats, deck, walls, roof welded together)

Corrosion Protection: Not required

Structural Maintenance: Not required

Fendering: Rubber fender along entire technical gangway

PROPULSION AND POWER

Primary Power: Electric propulsion

ENERGY RESOURCES

Solar panels

Shore power (port socket)

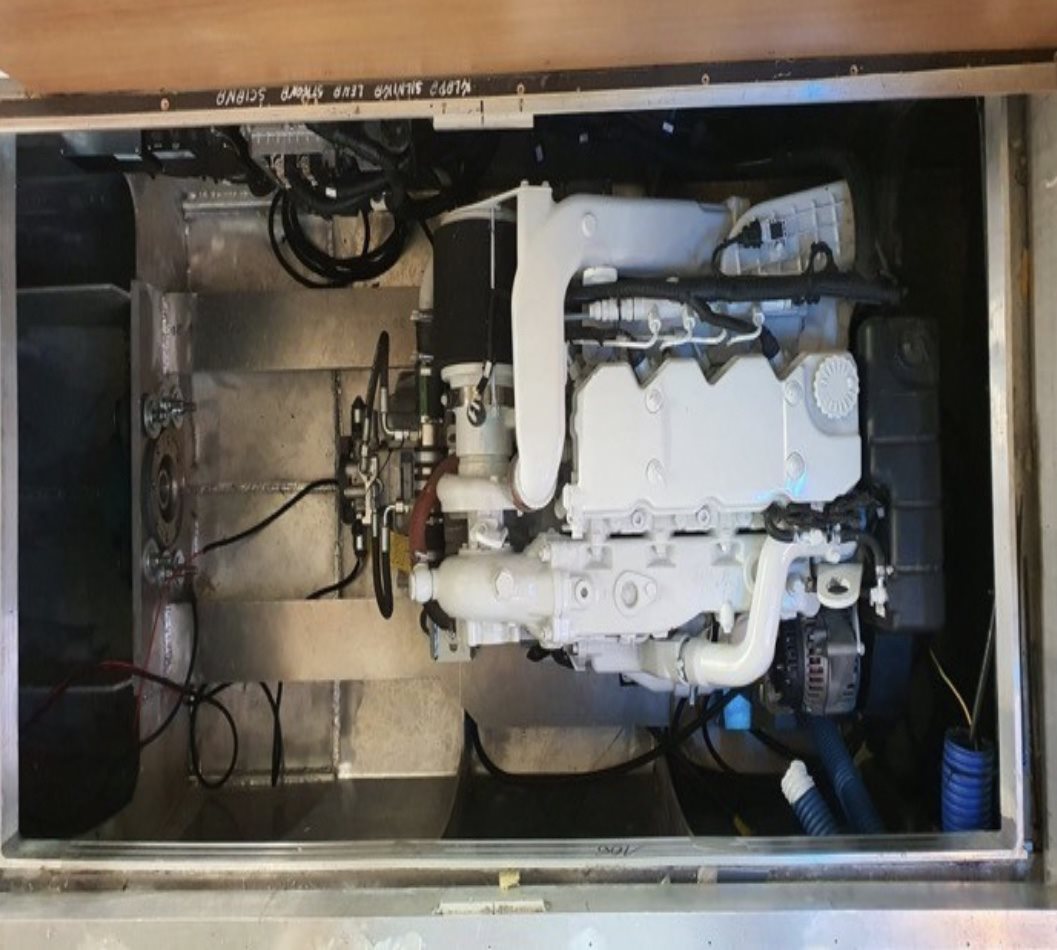

Onboard diesel generator

Engine Cooling: Surface cooling system (all-season)

COMFORT AND INSULATION

Year-Round Operation: Yes

Wall Insulation: Partial insulation technology (summer & winter performance)

Heating System: Electric & diesel heating

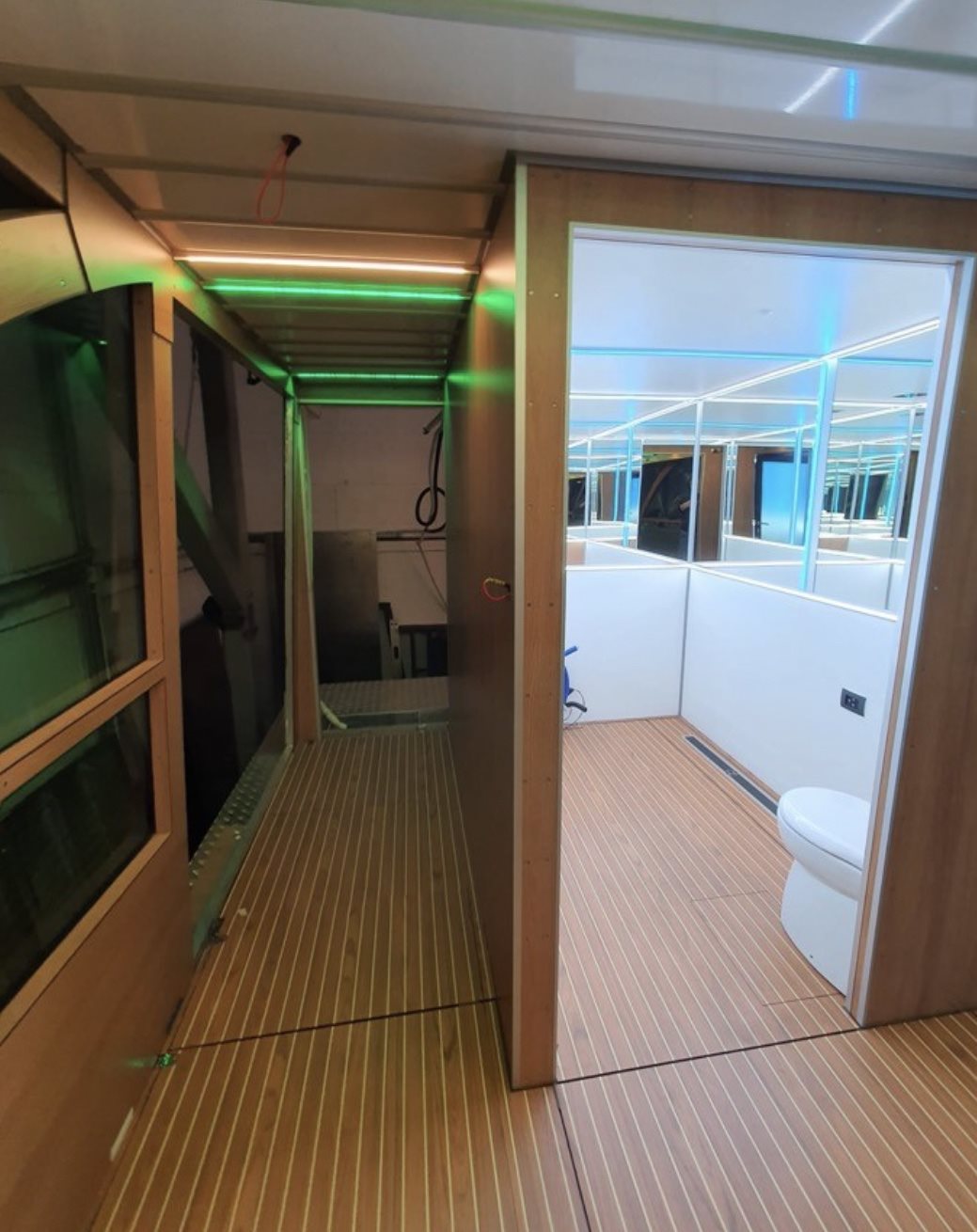

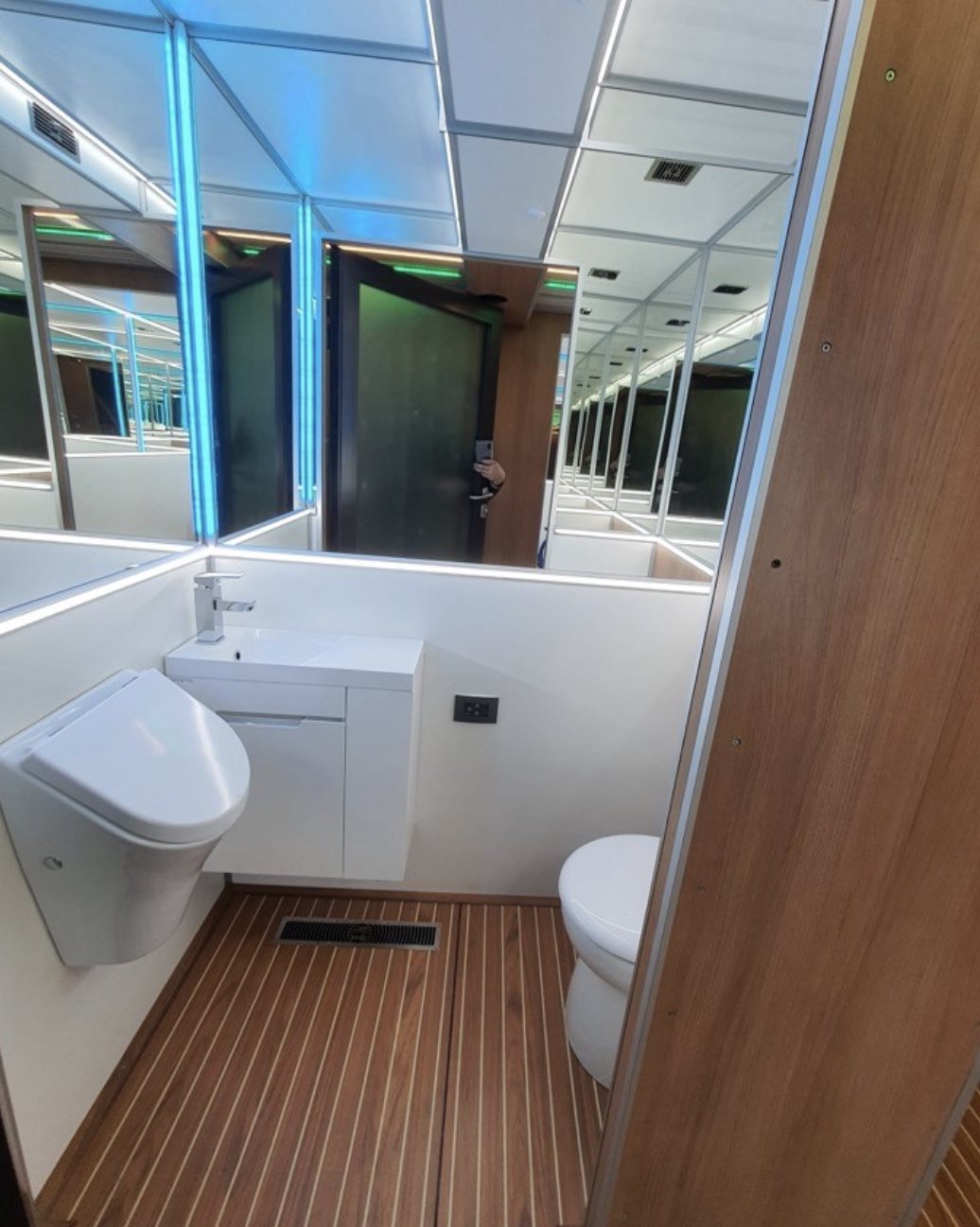

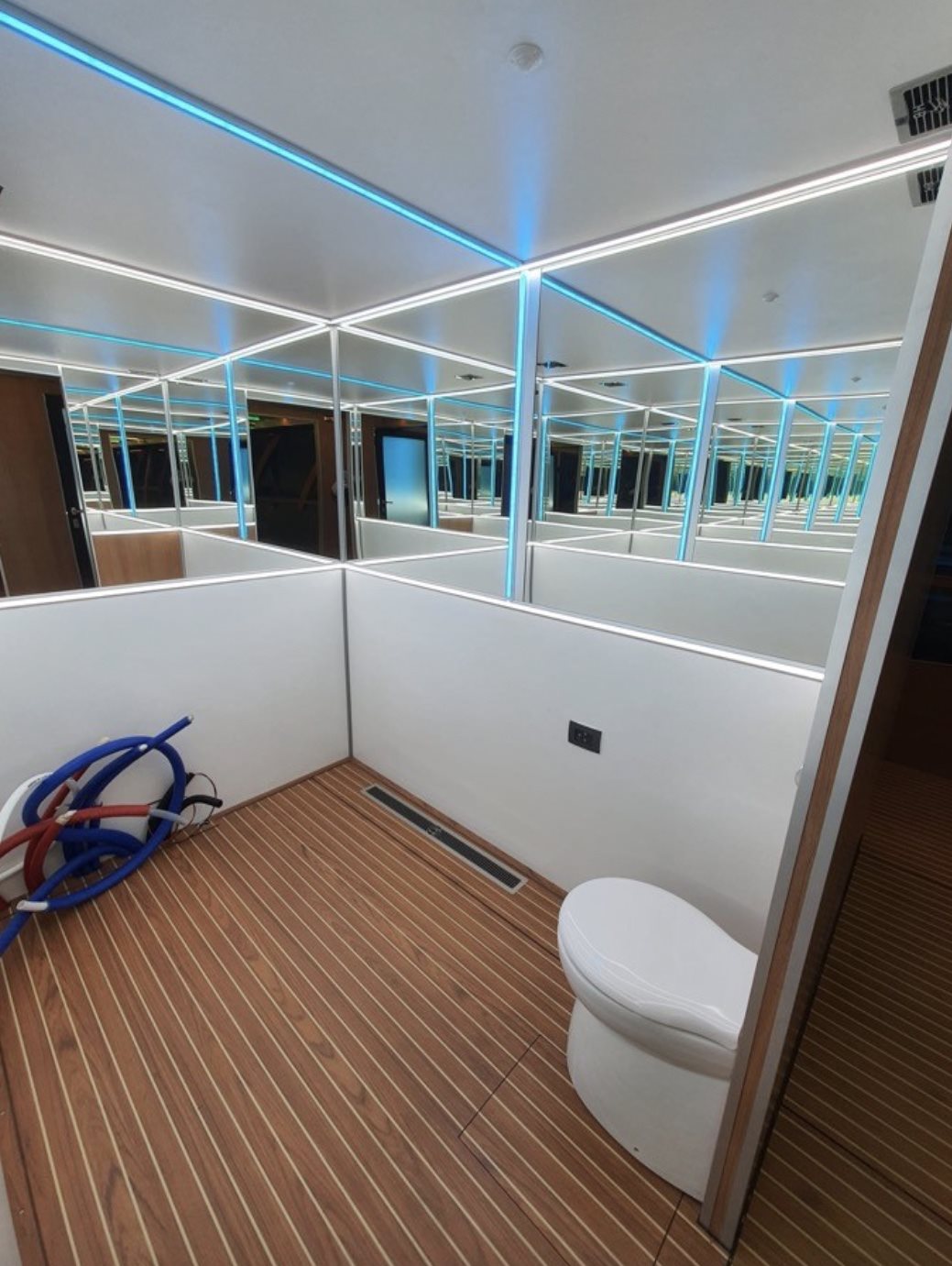

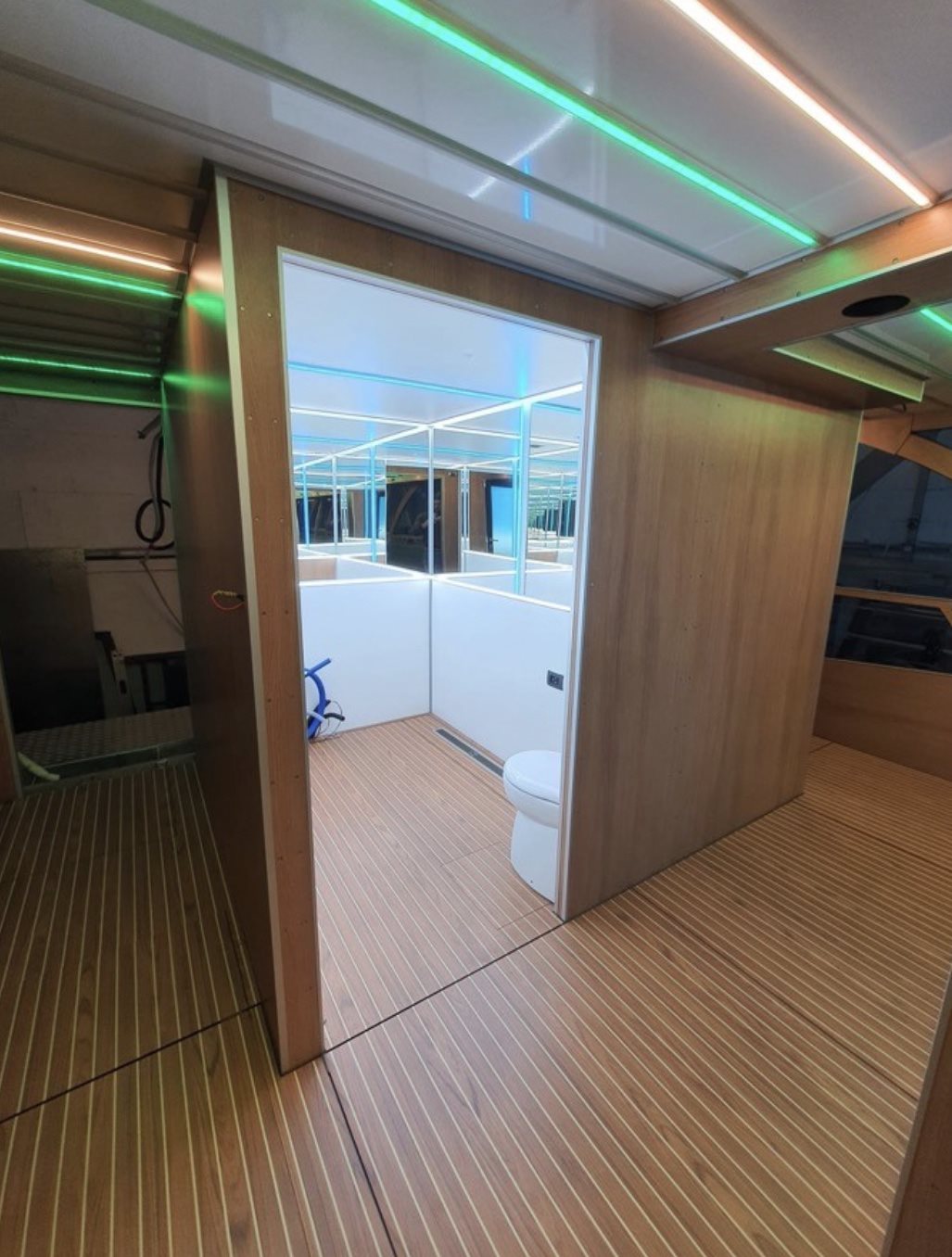

Heated Sanitary Facilities: Yes

Heated Water System Pipes: Yes

SYSTEMS AND EQUIPMENT

ISMA Monitoring System:

16 IP cameras

Remote access via phone, tablet, or computer

Motion detection notifications (custom zones)

UV-C Anti-COVID System: Installed

SOLAR AND ELECTRICAL SYSTEM

170 kgf thruster, 250 mm tunnel

Navigation with Garmin or Raymarine echo sounder 3. Solar

charging 4 x 450 W, 80 A charger

Battery charger:

- domestic

- emergency

- music

- jet propulsion

- starting motor

Two-tone horn

230 V socket on the sun deck

4 x 200 Ah domestic batteries

Emergency battery 1 x 200 Ah

Starting battery 1 x 120 Ah

Thruster battery 1 x 200 Ah

Music battery 200 Ah

Sinus plus 12/230 V 2000/4000W inverter

PLANAR diesel heating 8 kW with control

1000 W music amplifier with 8 speakers and subwoofer

600 W amplifier with 4 speakers

Illuminated bar

16 IP camera monitoring system with Internet access

Fuel, fresh water, and sewage level indicators

Bow gangway with railings compliant with safety requirements for boarding

and disembarking, dimensions: 1.3 x 5 m 19. Ducted air conditioning with

high pressure

ACCESS AND LAYOUT

Main Entrance: Starboard side

Water Inlet: Starboard side

Fuel Inlet: Starboard side

Shore Power Connection: Starboard side

Additional Notes

Tables shown between sofas in photos are not included in the offer.

Designed as an unsinkable passenger catamaran.
