NEW BUILD - Holiday Boat Sun Deck 57

Listing ID - 4475
Description	Holiday Boat Sun Deck 57
Date Launched	Built to Order
Length	15m (49ft 2in)
Beam	4.5m (14ft 9in)
Draft	3.4m (11ft)
Location	Poland
Broker	Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323
Price	1 700 000 EUR
View As PDF

Holiday Boat Sun Deck 57

payload capacity of 102 passengers

Class: Inland

District: 1

Inland waters and the Gulf of Gdansk

Number of seats in the cabin: 68

Number of standing places in the cabin: 50

Number of seats on the sundeck: 50

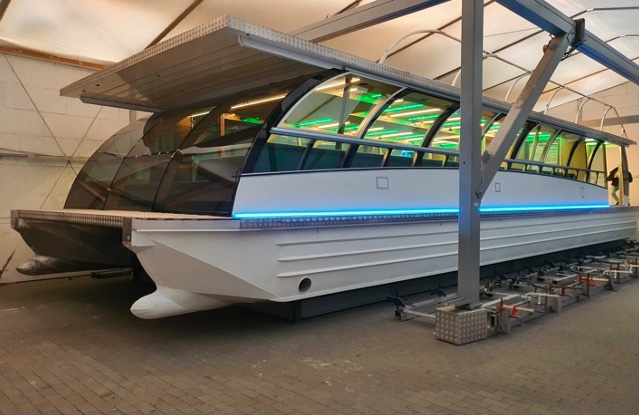

Introducing the world's pedestrian unsinkable HBSD 57 passenger catamarans with a capacity of 102 passengers.

It was made with year-round technology. The catamaran with electricity charging from solar panels, a port socket or a diesel generator installed in the ship. It is a fully autonomous energy catamaran, where a visit to the port is limited to refueling with fresh water and emptying fecal matter.

The catamaran was made using self-supporting construction technology, that is, the floats, deck, wall and roof structures are welded together to form a structural monolith.

The catamaran is made of aluminum acid-resistant steel and glass.

Due to the materials used, such a unit does not require any service. It does not require repainting or corrosion protection.

Walls made with full insulation technology guarantee full insulation in winter and summer.

Interior comfort is taken care of by electric heating and diesel heating.

It has heated sanitary facilities.

Our catamaran is equipped with a state-of-the-art ISMA intelligent management system, which can be operated via a multimedia tablet or phone from anywhere on Earth via a fully encrypted Internet connection. You can also view video and audio on your phone from the

8 IP cameras installed on the vessel, where you can set alerts when motion is detected in areas you specify. It is also possible to locate the vessel via GPS.

With ISMA, you also have access to all media information on board at any time:

fuel

grey water

clear water

and:

state of charge of the Batteries

temperature

humidity

air quality (amount of bacteria)

The unit is also equipped with a decontamination system ANTI - COVID UV

I. General Specification:

HBSD 57

Catamaran with external dimensions of 17.3m x 5m x 3.8m (LWH) v

- weight of about 16 tons

Cabin dimensions 4.63m x 14.2m

Premises:

Passenger space with bar with kitchenette, toilet, technical room

2 aluminum floats with dimensions: 1.2 m x1 ,4 m x 16.40 m

aluminum construction

sundeck

stainless steel railings for stairs and sun deck

Vetus Bov PRO thruster V50-BOWA0651

solar recharge 4 x 455 W (8 sq m)

100 A port charging

fuel tanks 400 +100 l

faecal tank 300 l

clean water tank 200 l

II. Spatial division and development:

Wheelhouse:

cockpit

captain's chair

steering wheel

indicators

switches

monitor

engine clocks

hydraulic control of engines

engine maneuvers

beep button

dual USB QC3.0 charging port

the entire control room is separated by fireproof glass windows with lockable doors

wipers with feathers for the captain on the windshield

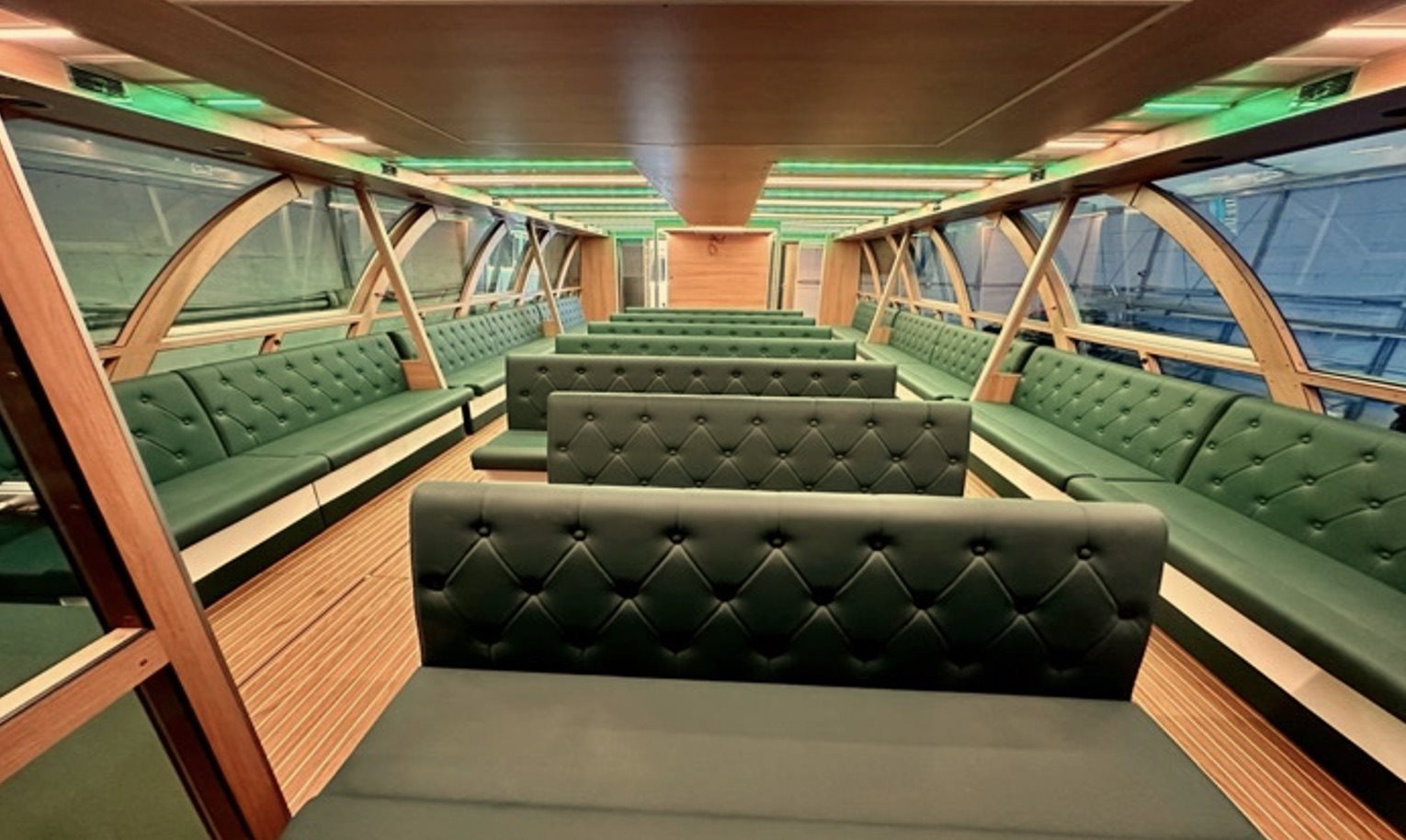

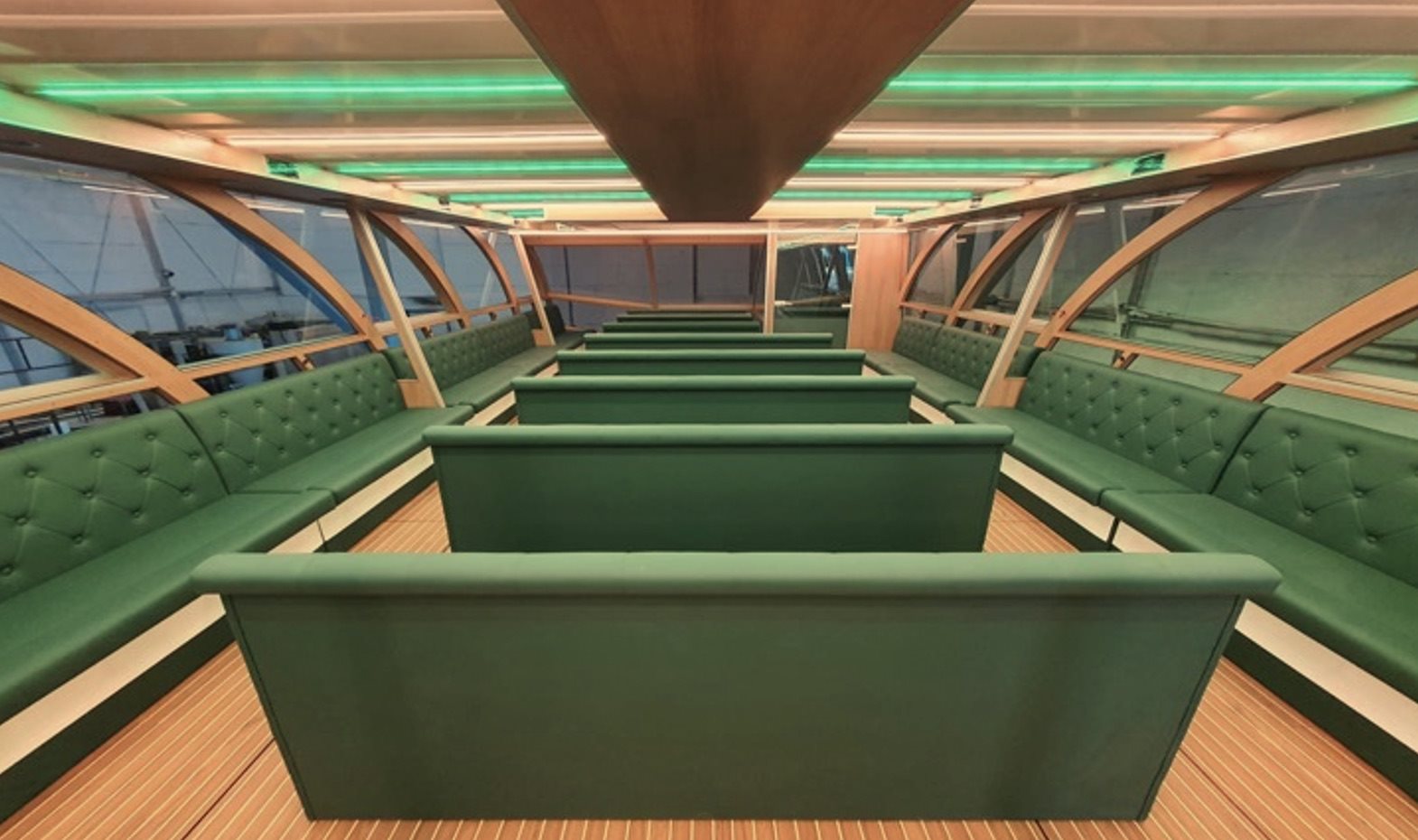

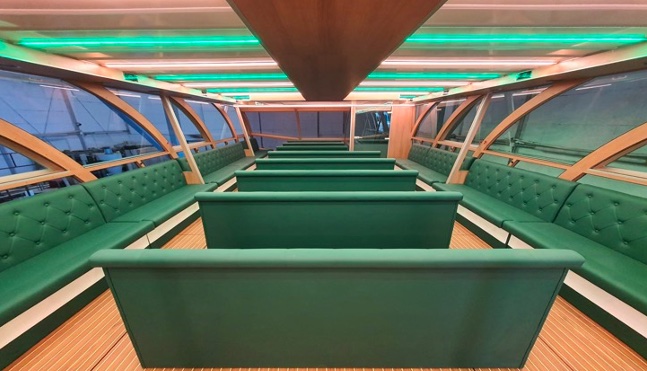

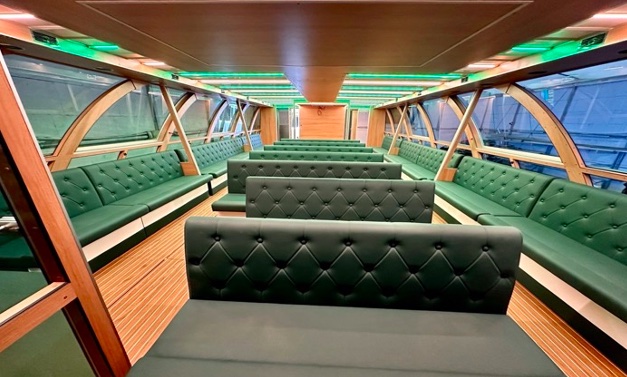

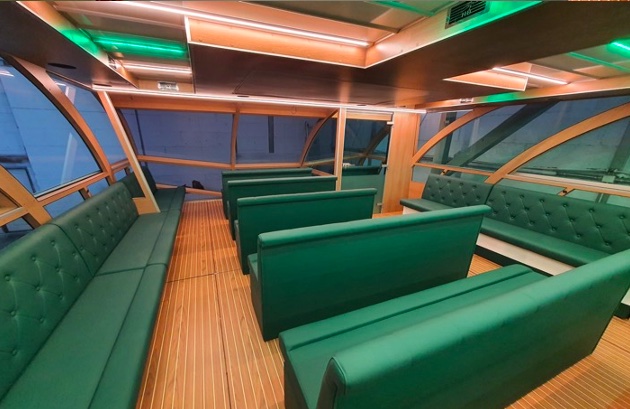

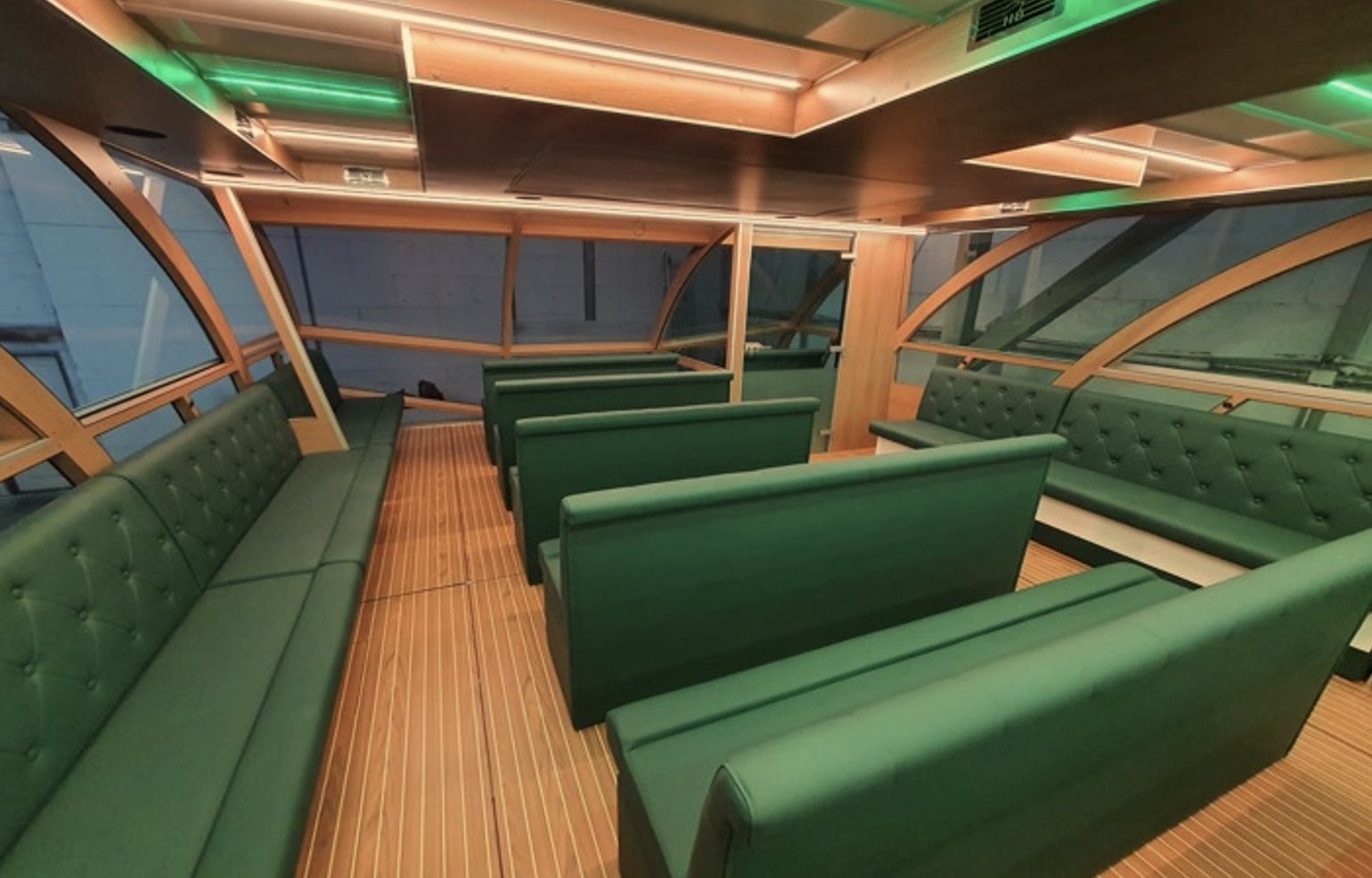

Passenger space:

couches for 50 passengers

LED lighting white (warm color)

RGB LED lighting

230 V outlet

dual USB QC3.0 charging ports

Kitchenette:

stand-up refrigerator large/site 190X40

sink

clean water tap

standing kitchen cabinets

illuminated bar amber color

LED lighting white (warm color)

RGB LED lighting

230 V sockets

dual USB QC3.0 charging port

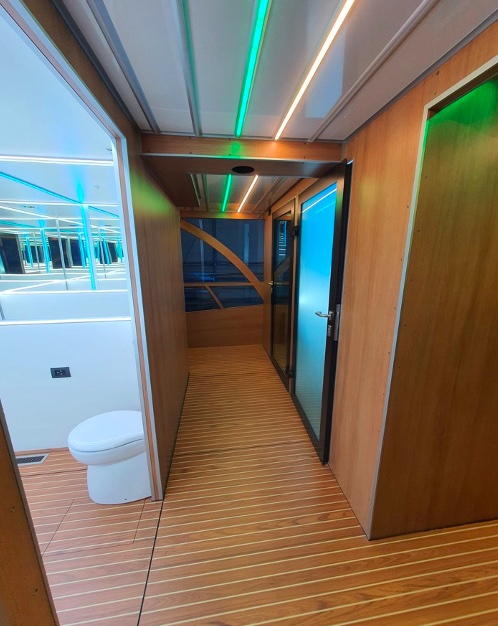

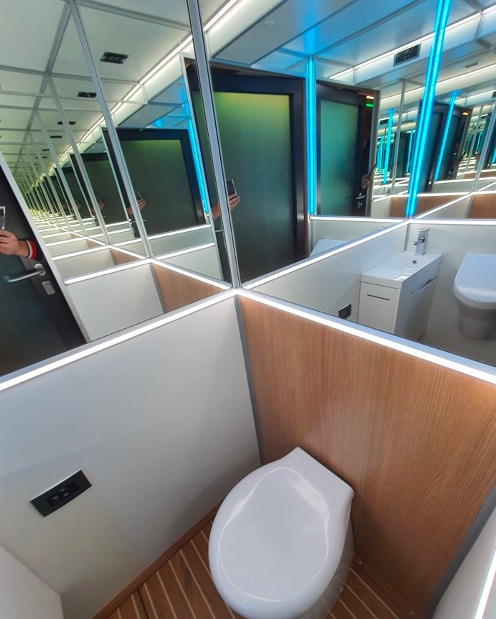

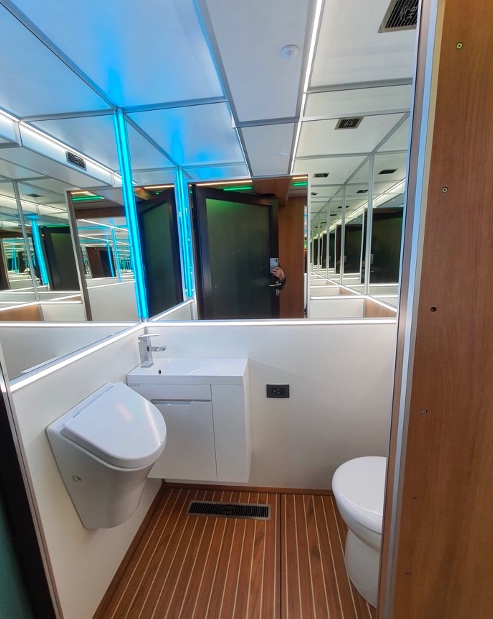

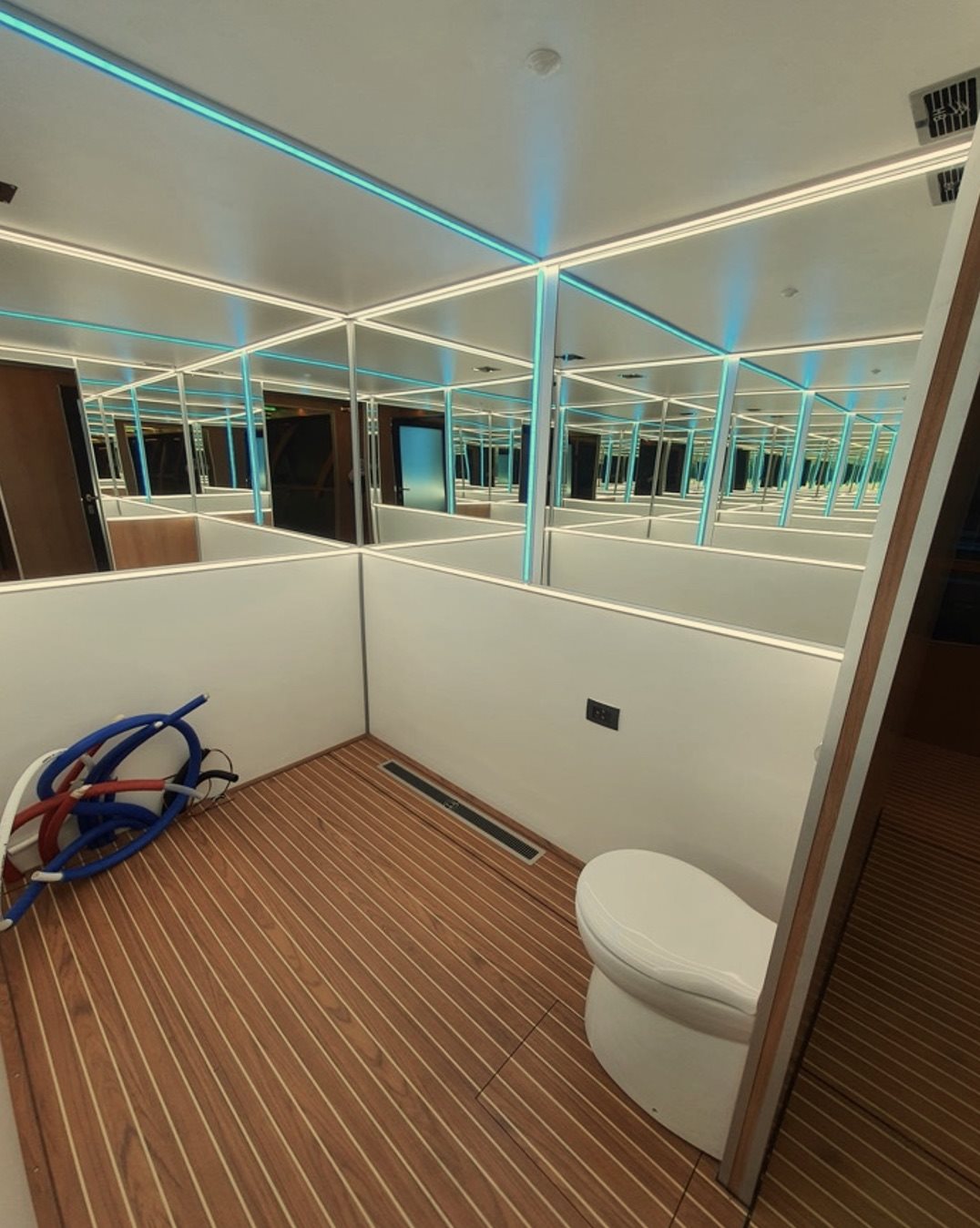

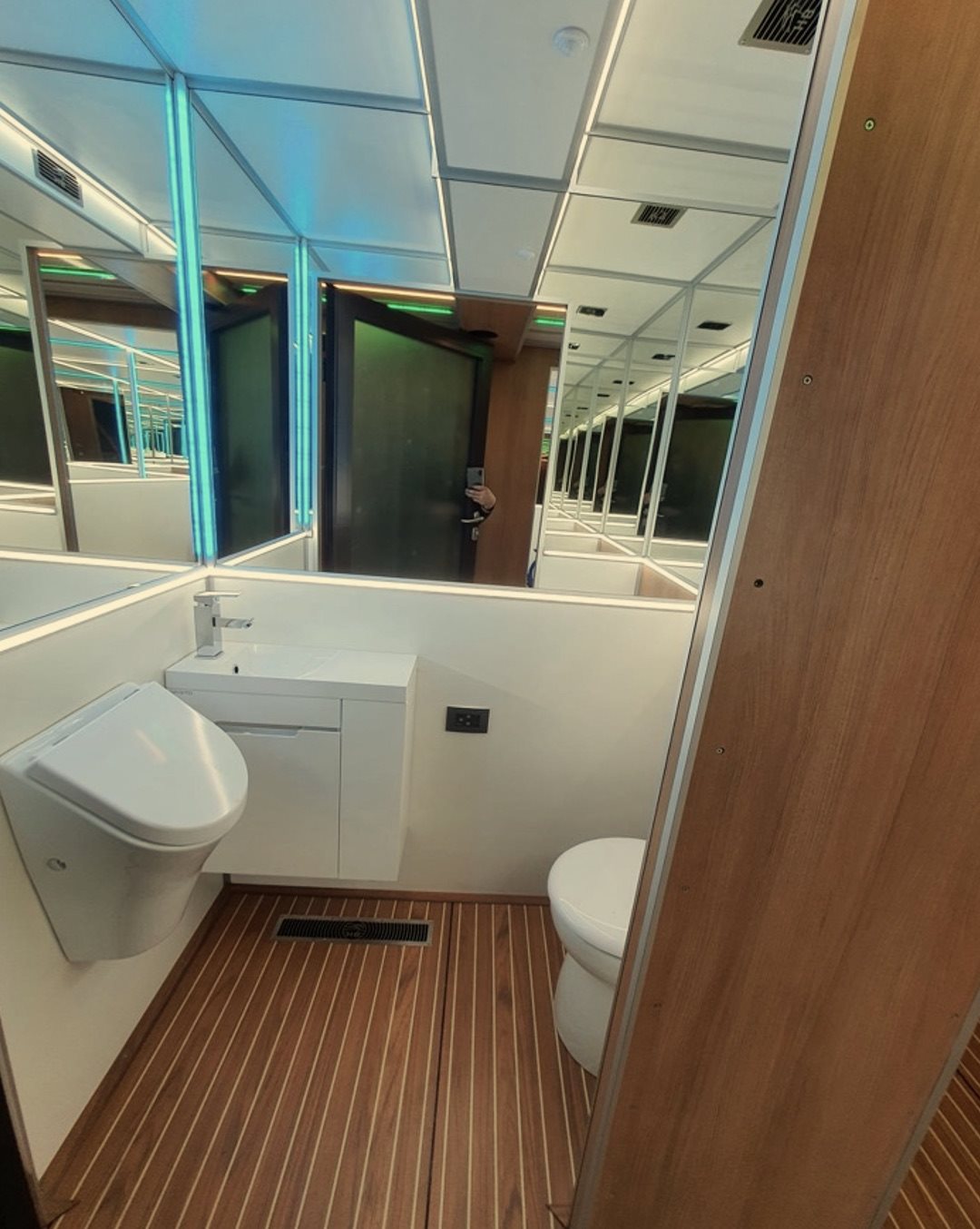

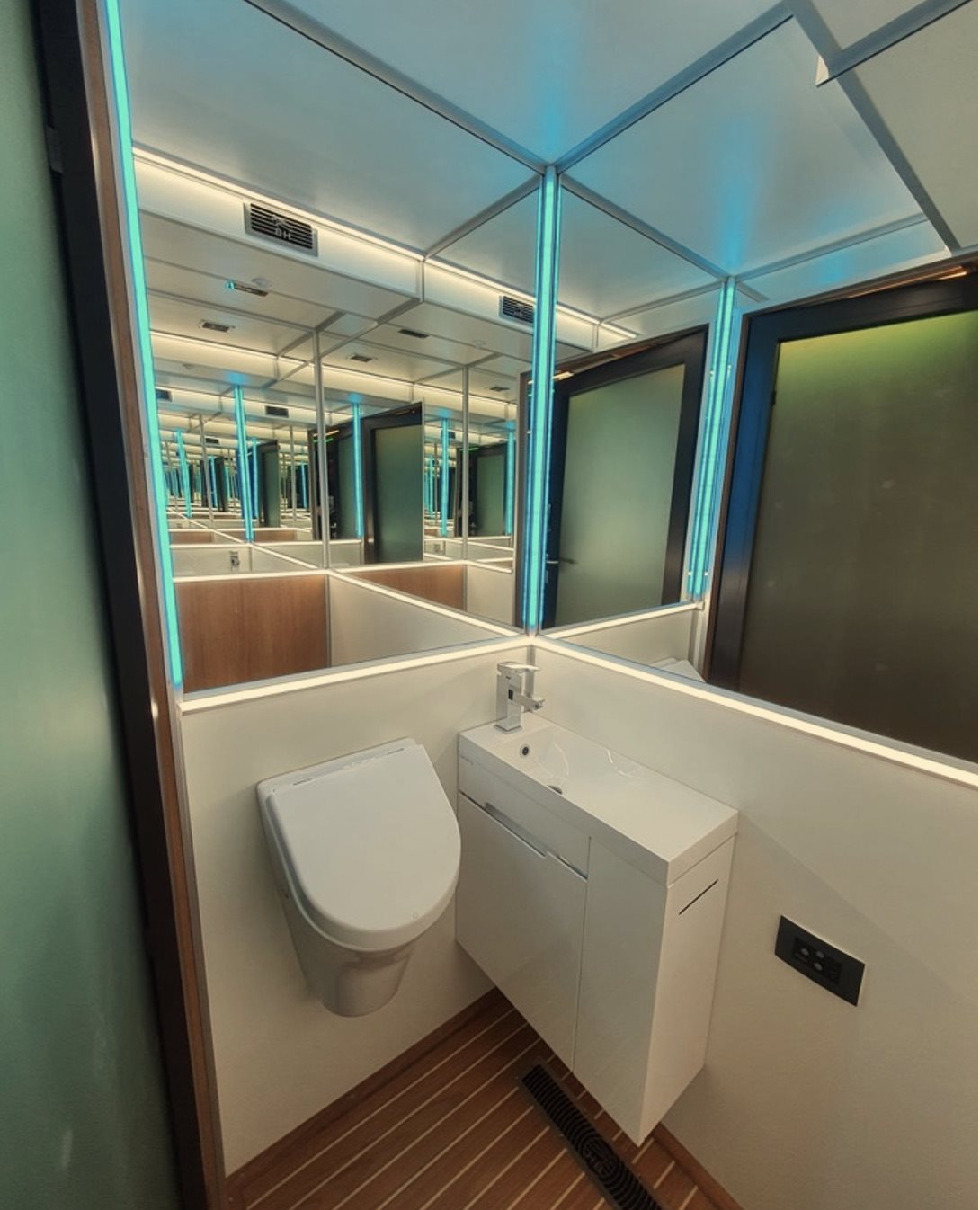

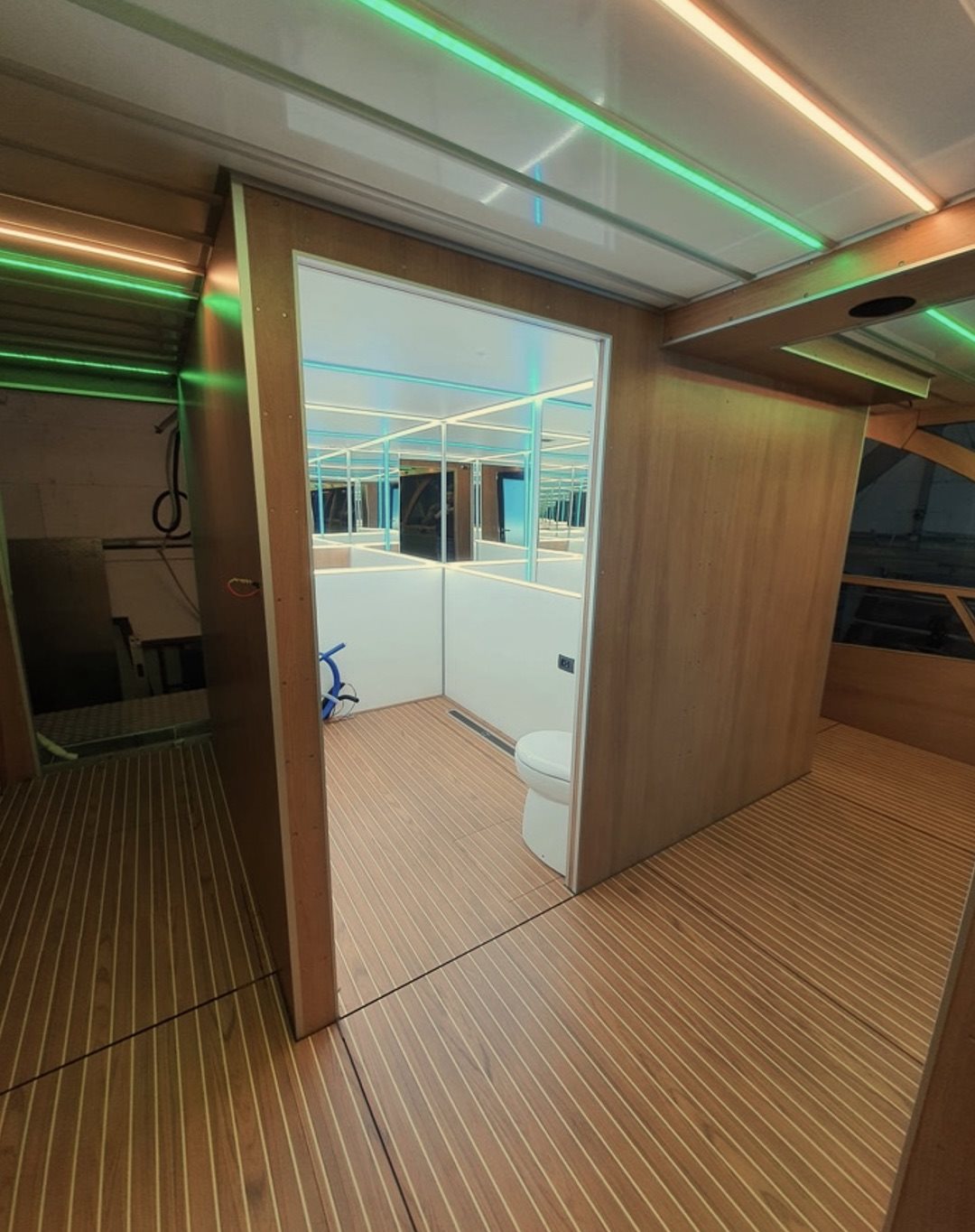

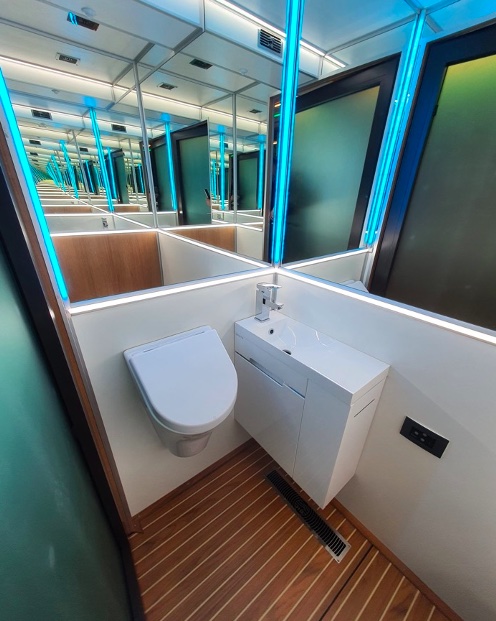

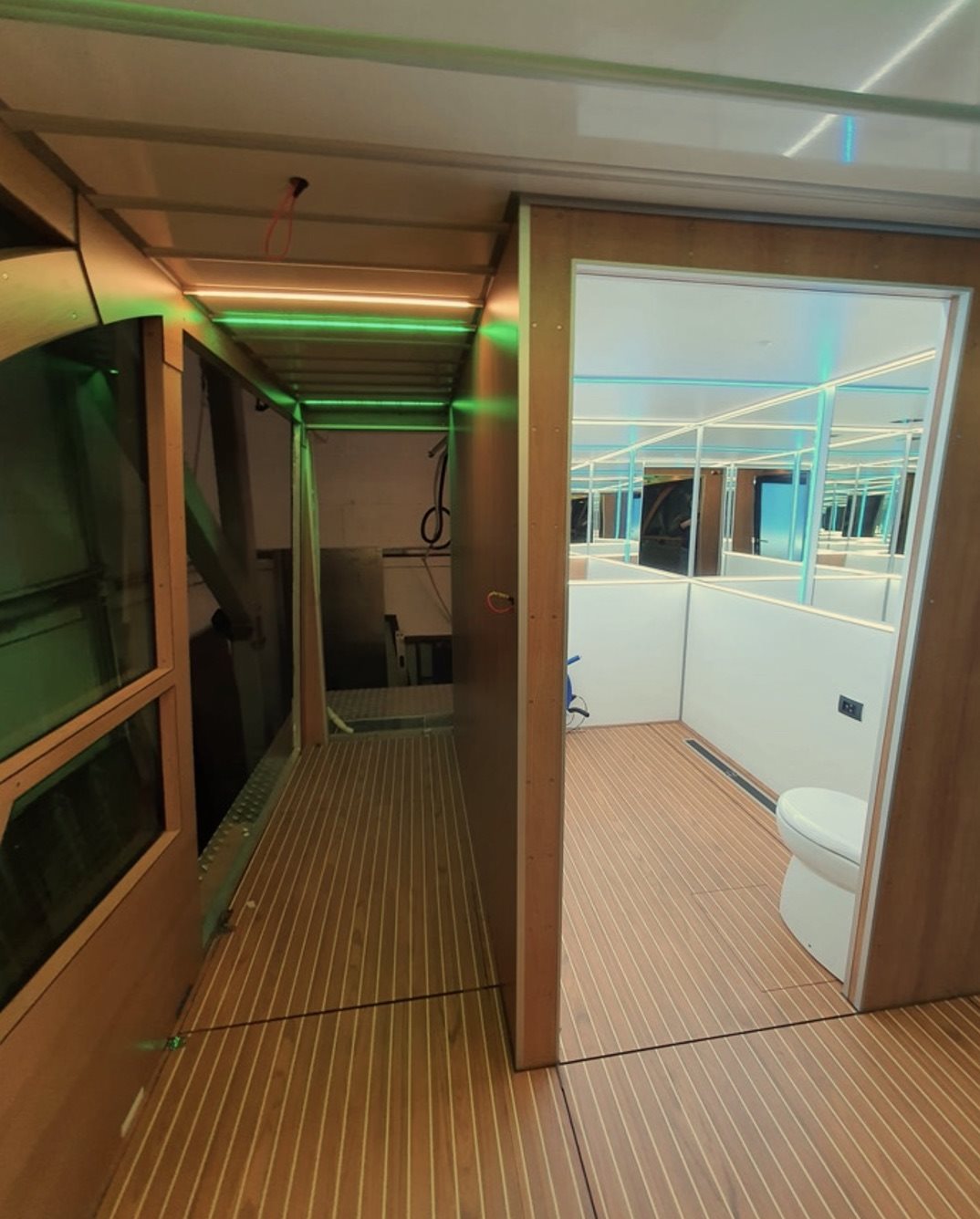

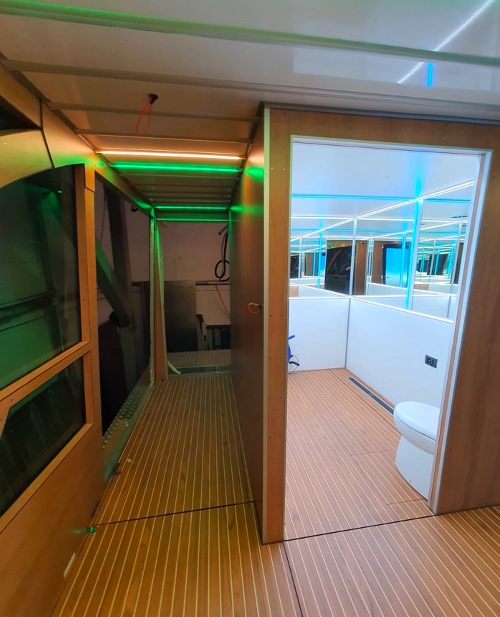

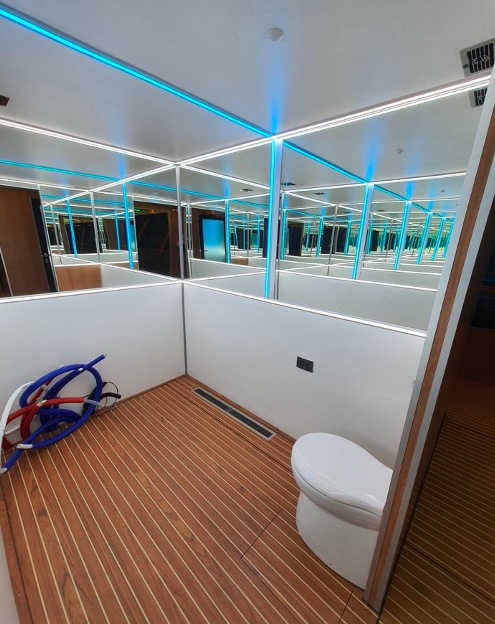

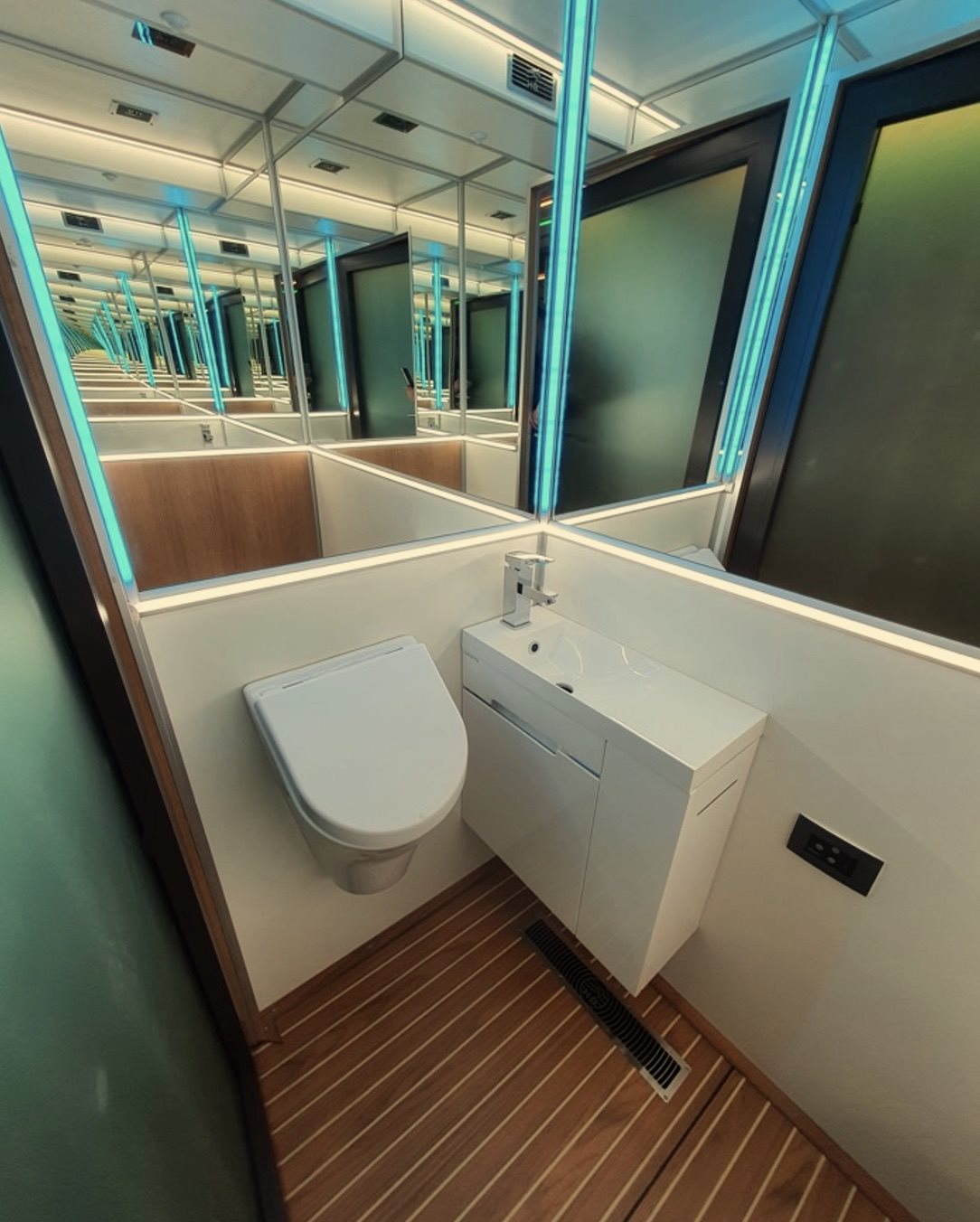

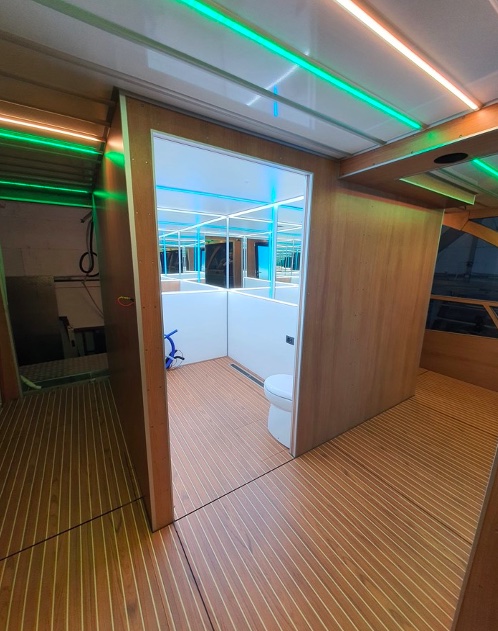

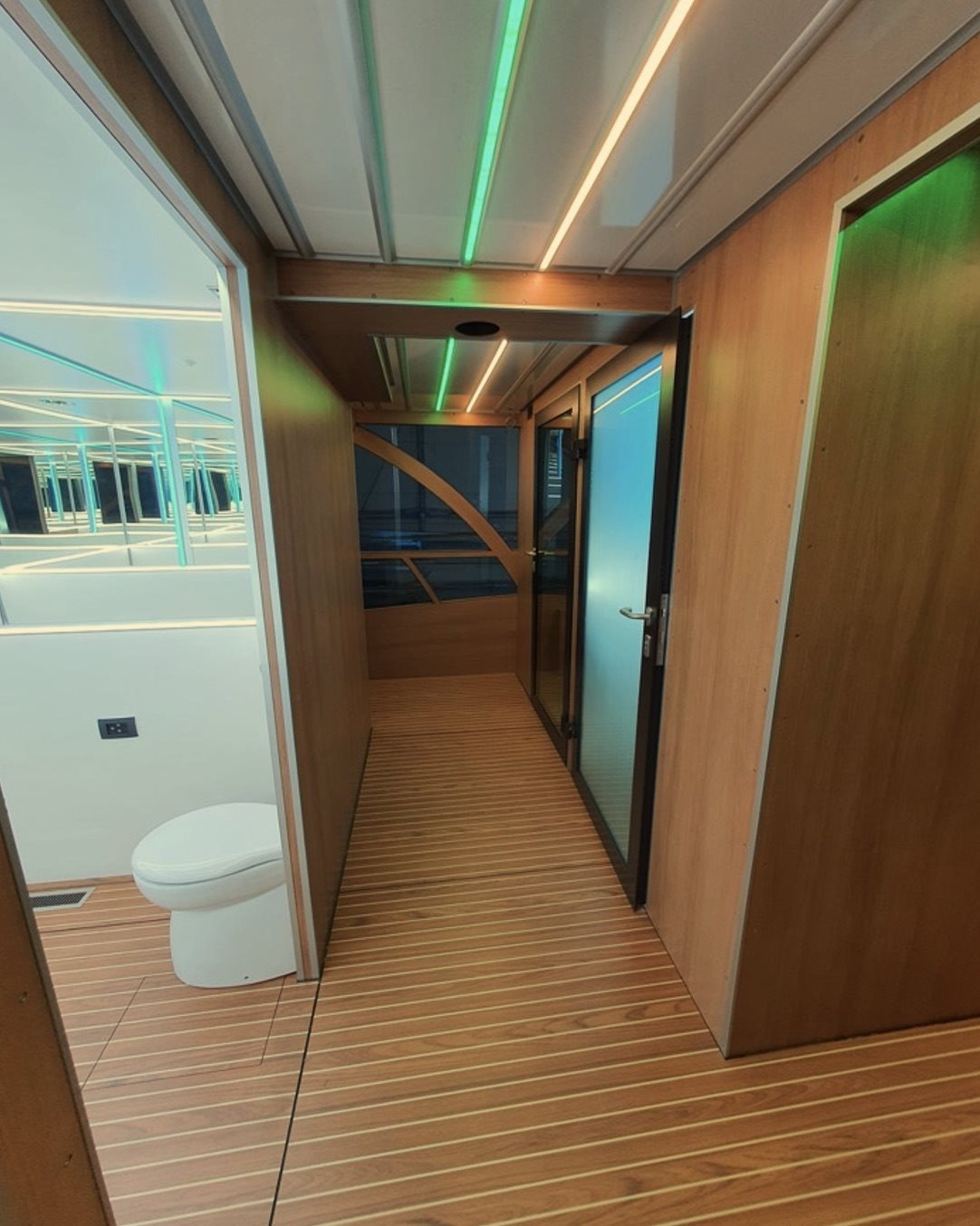

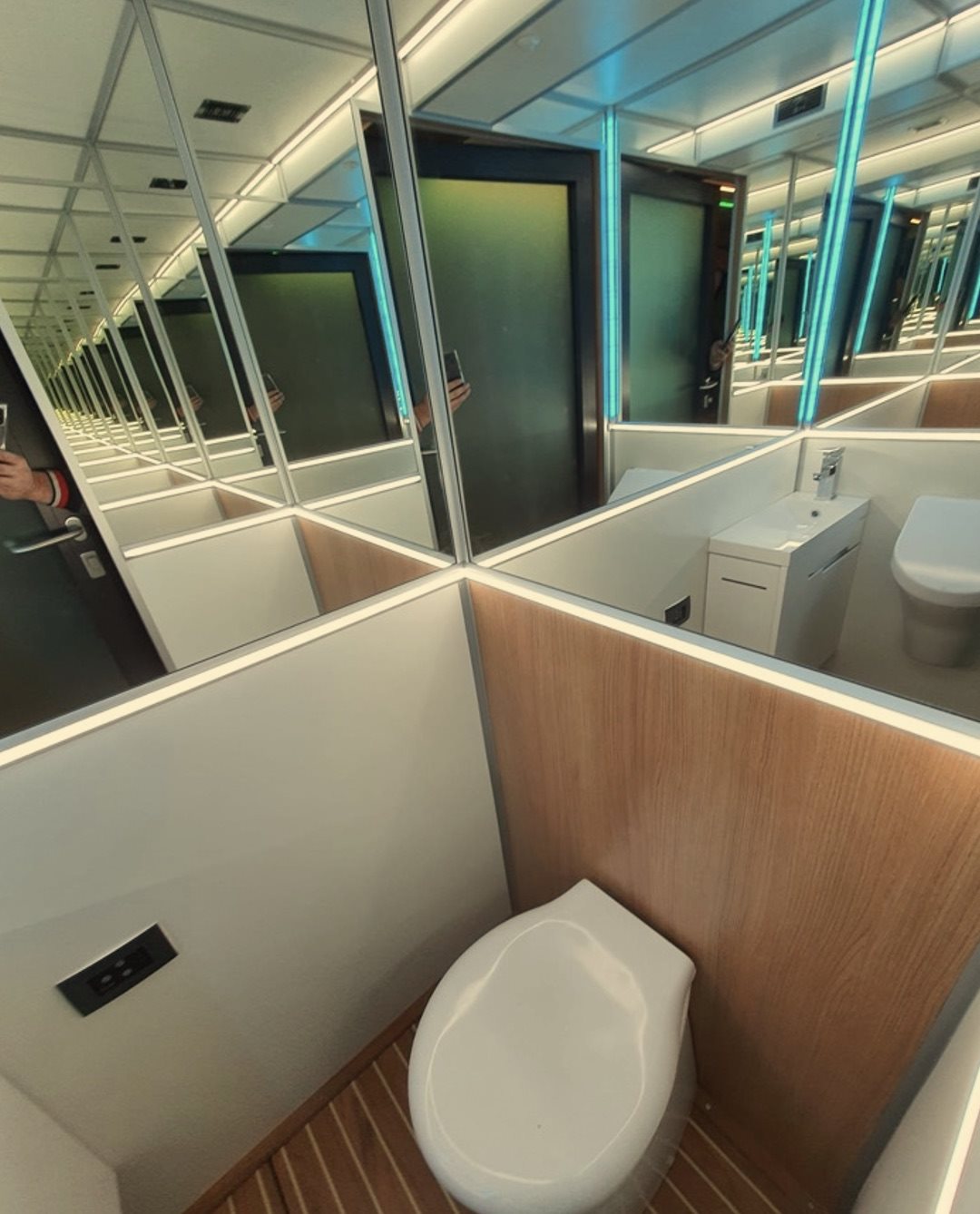

Two Toilets

Including one for people with disabilities:

mirrors on the walls

granite countertop

sink, faucet

cabinet

Marine Toilet with macerator Marine Toilet Silent Premium 12V

A92-07-04-014

LED lighting white (cold color)

handgrips for the disabled

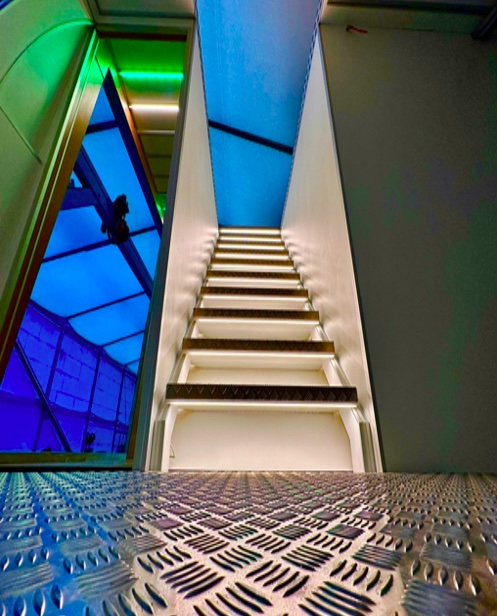

Sun Deck:

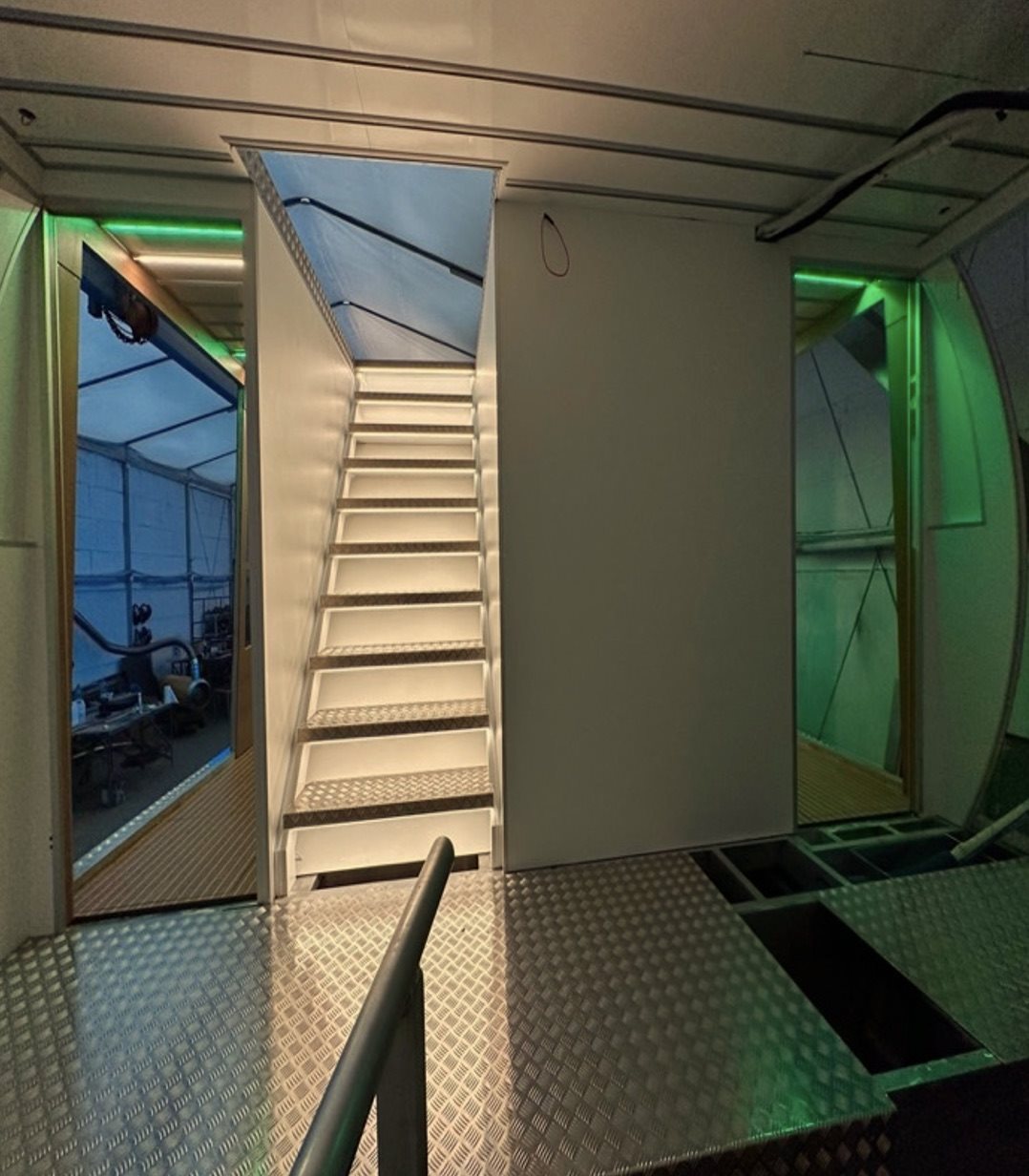

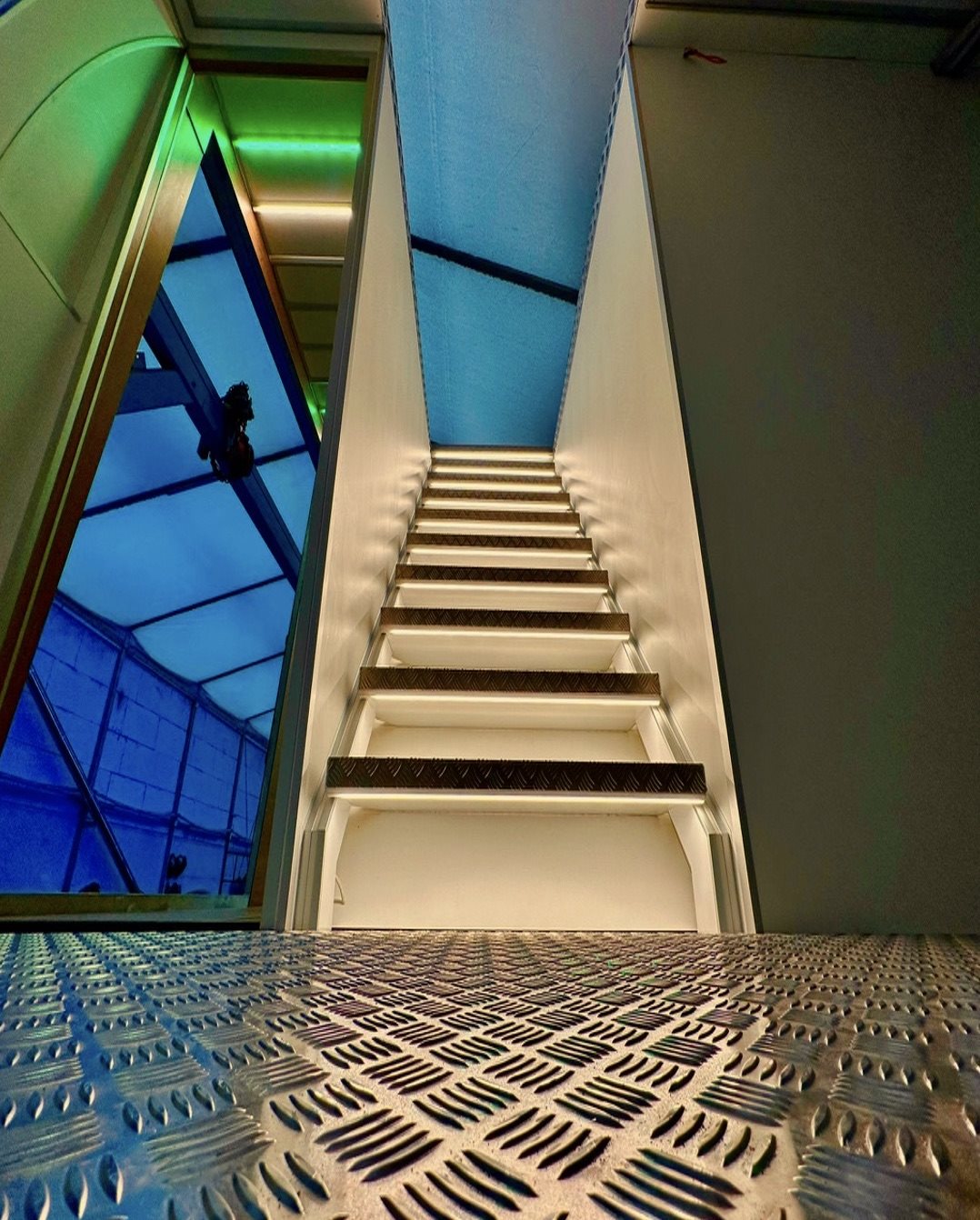

staircase

stainless steel stair railing

stainless steel balustrade of the sun deck

RGB LED lighting of the sundeck

230 V outlet

additional external speaker

(Focal 100 OD6 Outdoor Water and UV resistant loudspeaker)

solar panels

III. Utilities

Clean water installation:

water tank 200 l

clean water land connection

clean water taps in the kitchen

Albin Flush Pump 12V 20 L double pump system

electric boiler electric boiler ariston velis wifi 50 therma

Fecal installation:

Fecal tank 300 l

Albin Macerarator Pump 43L 12V

Fuel Installation:

fuel tank 400 l

fuel pump

fuel filters

additional 100l fuel tank

Electrical installations:

12 V domestic power supply system

12 V lighting system

music installation with amplifier and 8 speakers

(SONY MARINE XS-MP 1621 speakers located in the ceiling in the passenger

compartment)

amplifier power 1000 watts

monitoring of 8 IP cameras with internet access

installation of 230 V outlets with 12/230 V inverter

generator 5 KW

land connection with 20 m cable

solar recharge system

projector with screen with installation

Ducted air conditioning with high air compression

Lighting:

Positional: red, green, white

LED halogen

LED RGB: ceiling living room + kitchenette, bedroom, hallway,

outdoor under roof, sun deck

LED exterior blue along the sides

LED white under stair treads

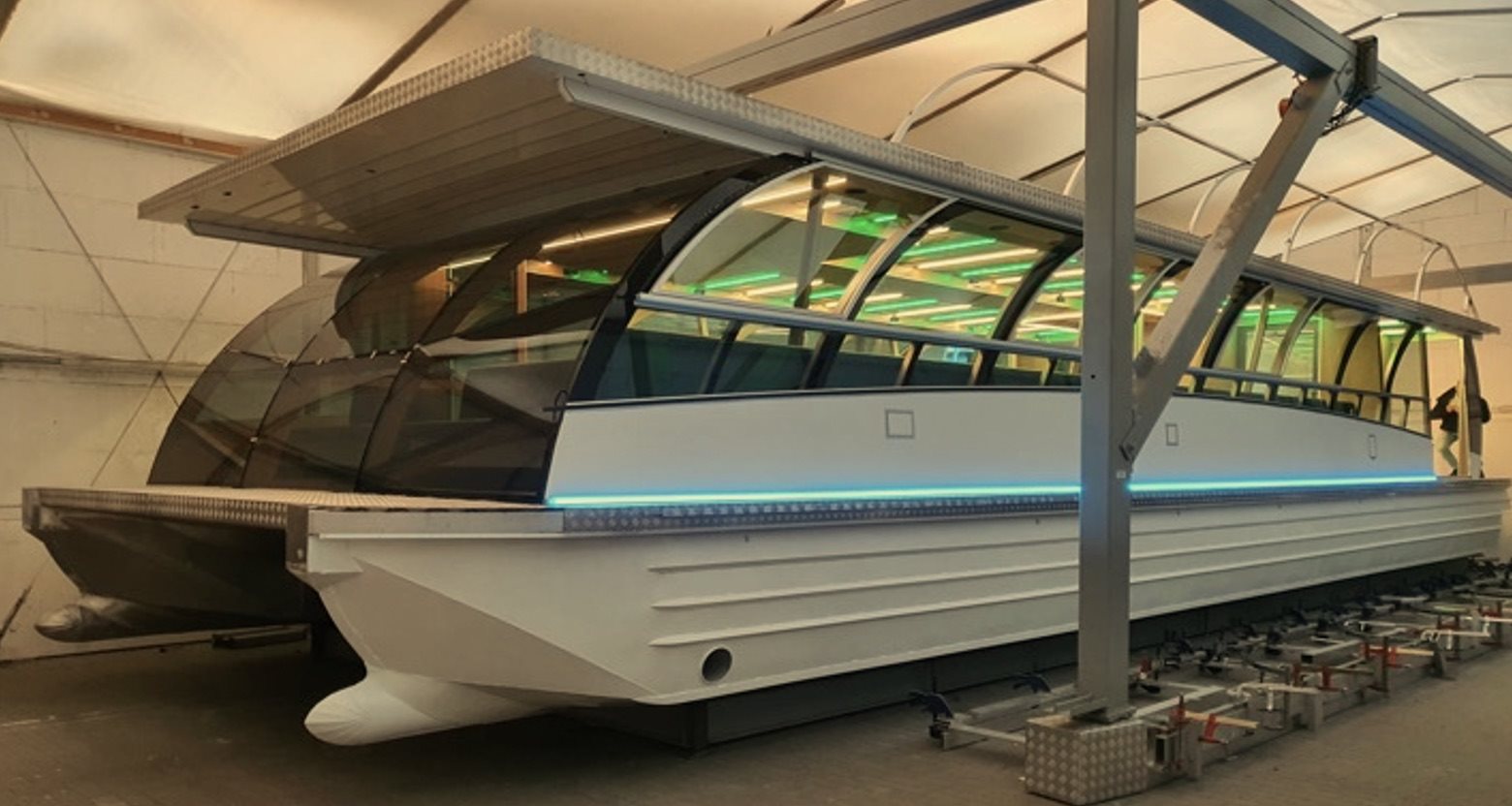

IV. Construction of the catamaran

Design:

unsinkable aluminum modular floats connected by the structure of the utility deck and the technical deck

exterior and interior walls made of bent and straight aluminum profiles

aluminum stair structure with stainless steel railing

roof/sun deck structure made of aluminum profiles and corrugated sheet metal

stainless steel railing of the sun deck

Deck construction:

HPL teak board

12 mm waterproof board

aluminum profiles of the passenger deck

aluminum profiles of the technical deck

4 mm aluminum sheet

External wall construction:

Composite plate (0.5 mm aluminum - 3 mm LDPE core - 0.5 mm aluminum)

aluminum construction made of bent profiles.

HPL teak board

8 mm safety glass glazing

Interior wall construction:

construction made of aluminum profiles

5cm mineral wool filling

HPL teak board on both sides

Construction of the sun deck:

3 mm corrugated aluminum sheet

aluminum profiles

mineral wool 10 cm

1 mm powder coated aluminum sheet

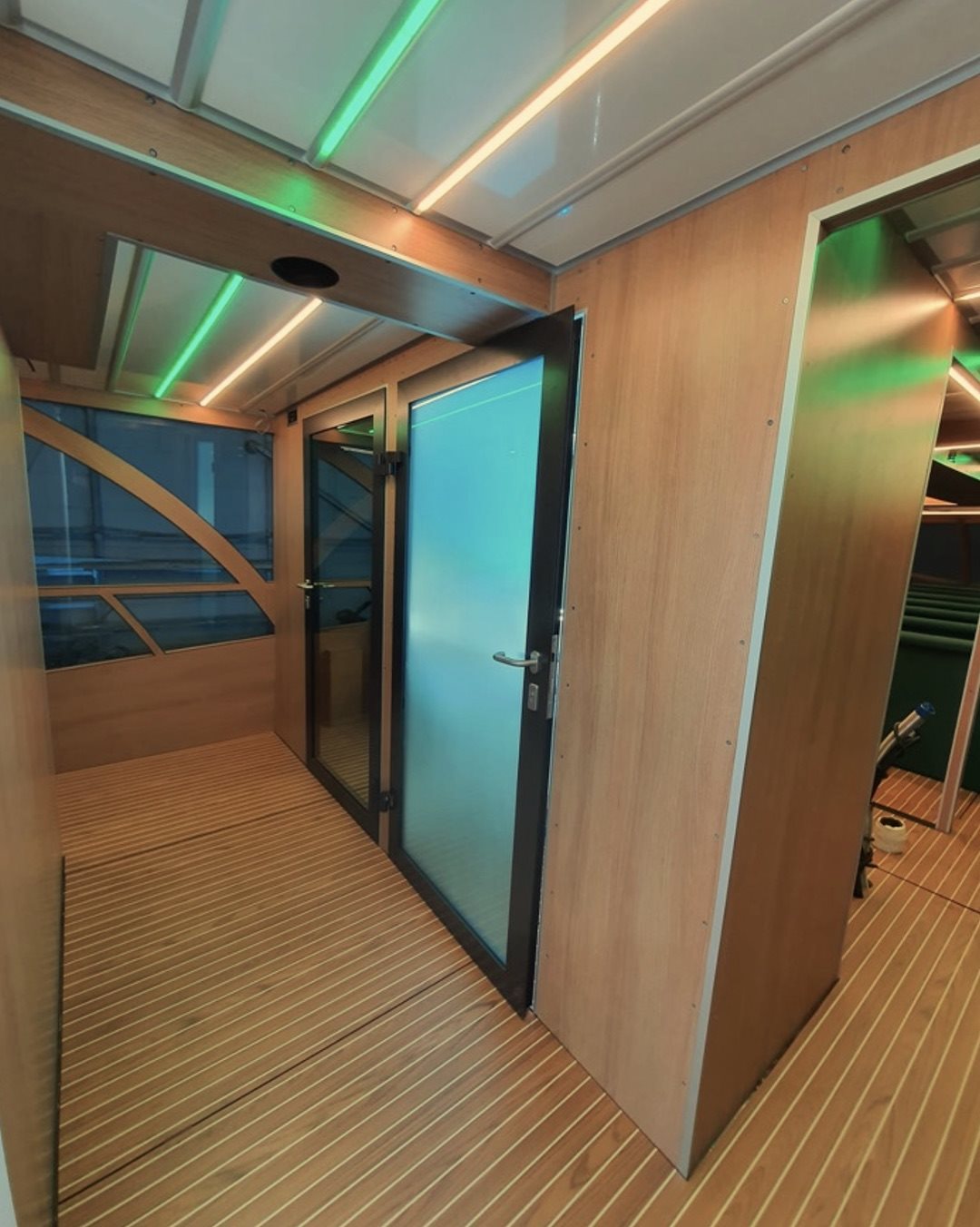

Window and door woodwork:

4 pcs. of aluminum sliding windows with 6 mm safety glass filling

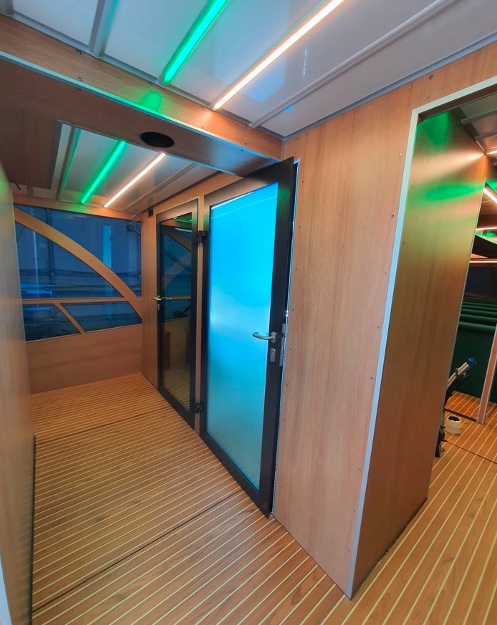

3 pieces of sliding doors with filling 6 mm safe glass

3 pieces of interior doors with filling 6 mm safe glass

V. Additional equipment included in the price:

1. Vetus Bow Pro Thruster

2. Garmin or Raymarine Echo sounder navigation

3. Solar recharging 4 x 455 watts

4. Port charger 100 a

5. Two-tone horn

6. 230 V outlet on the sundeck

7. Household batteries 4x200 Ah

8. Thruster battery 200Ah

9. 100Ah music battery

10. Sinus plus 12/230V 2000/4000W inverter

11. 9 kW Webasto diesel type heating with regulation

12. 1000 W music amplifier with 8 speakers with Subwoofer

13. Illuminated bar

14. Monitoring of 8 IP cameras with Internet access

15. Indicators of fuel, clean water, faecal levels

16. Trap with barriers in accordance with requirements security for the boarding and leaving of people on board

17. Ducted air conditioning with high compression

18. Purchase of an additional thruster

19. Light and information belt with controller

20. Additional refrigerator, size to be determined

21. UKF radio with installation and antenna

VI. Fire Prevention Installation.

Installation performed according to PE 2016 ESTRIN standard

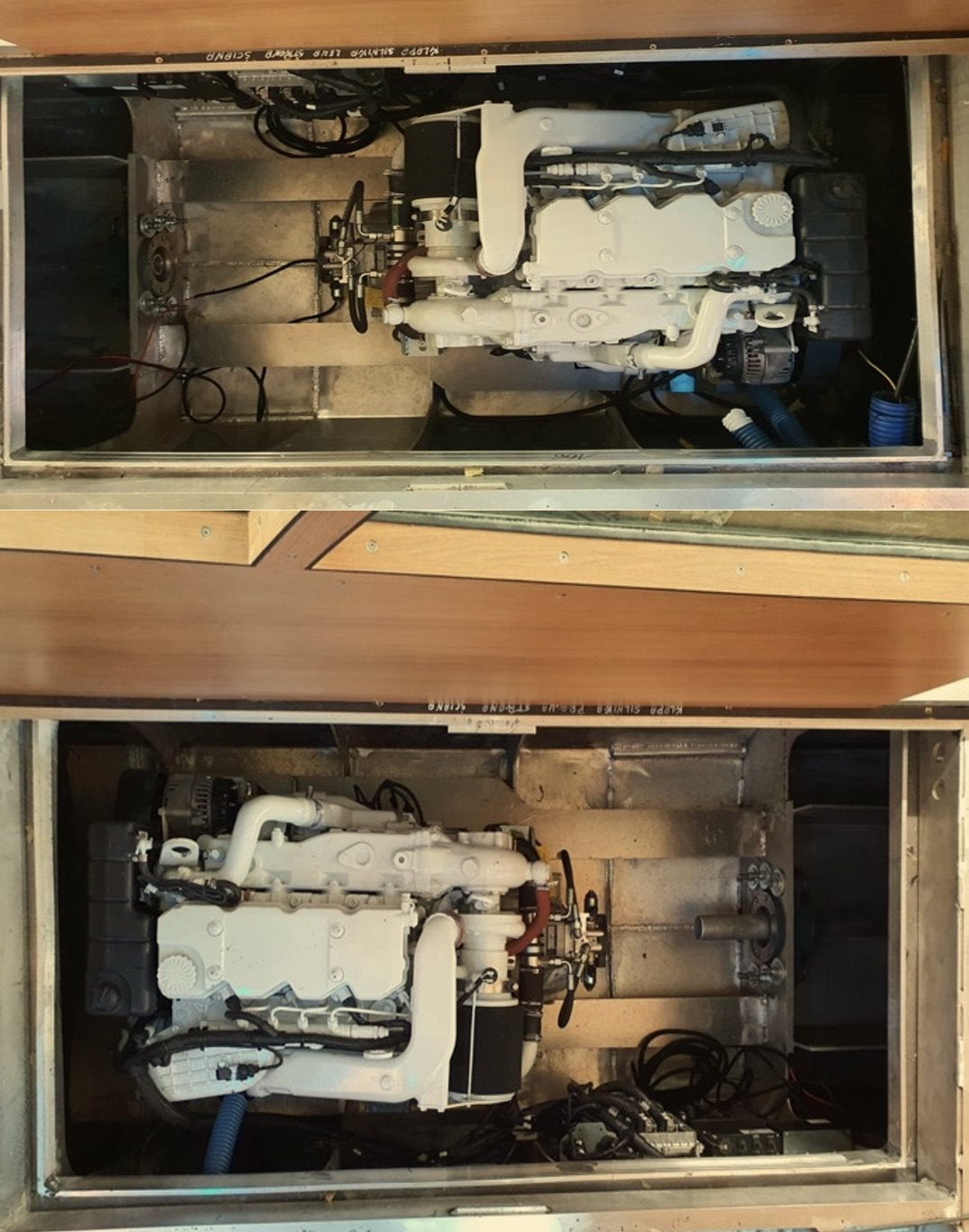

VII. Drive:

Drive for choice:

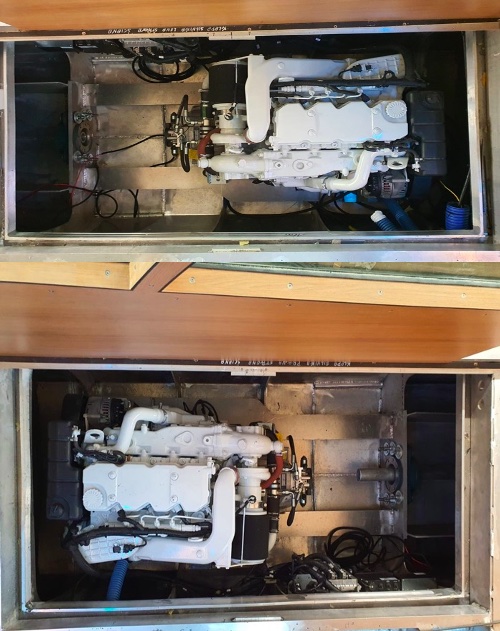

Propulsion: Diesel FTP 2 x 125 KW Euro V standard + transmission + shaft line + screws + steering fin

Electric

VIII. Valuation

2 Above-standard equipment:

RGB LED light and information display

VETUS Bow Pro Thruster

Refrigerated display case

UKF radio with antenna:

Stationary:

1 Horizon GX 20400 price x 2 pcs

2 Manual: 4.2.1 Horizoen HX 300

The Furuno M1815 radar

IX. Price

PRICE INCLUDES ABOVE-STANDARD EQUIPMENT

The price includes the cost of the project and the classifier recognized for each required region according to the customer's needs.

Commercial Class IACS for use worldwide.

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
