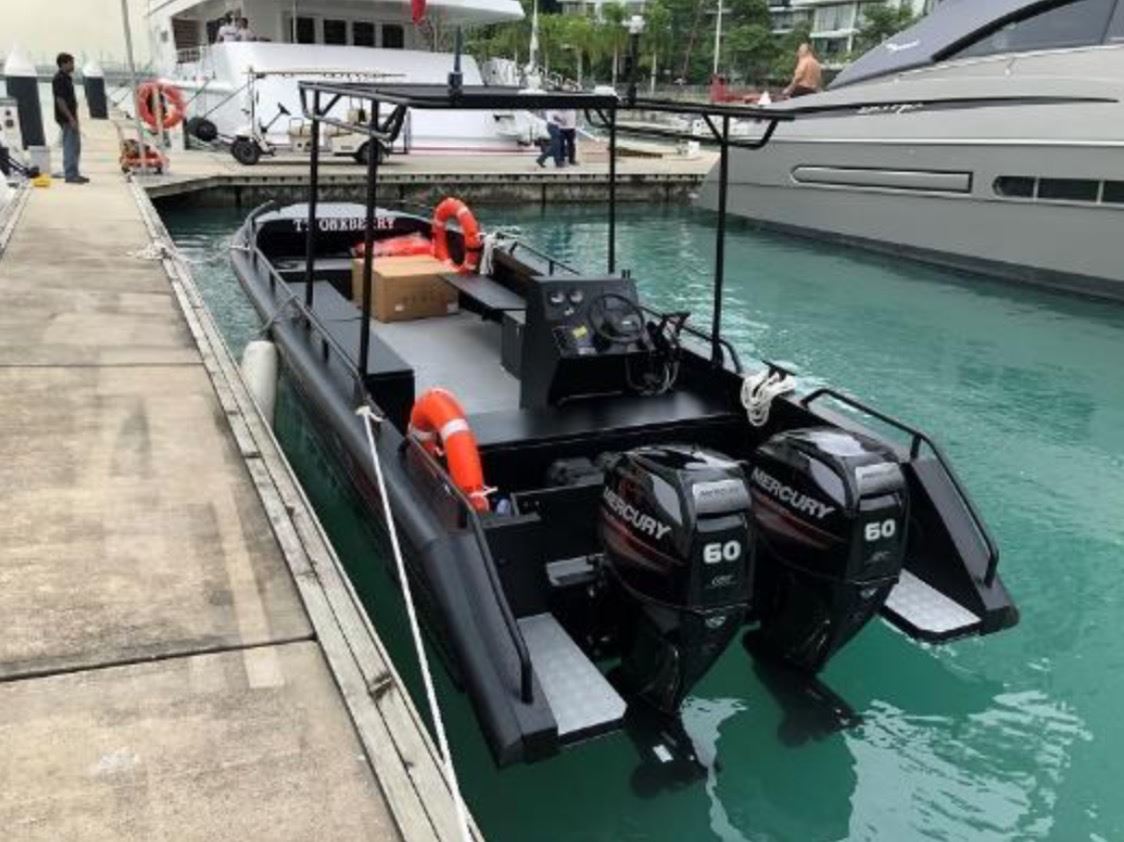

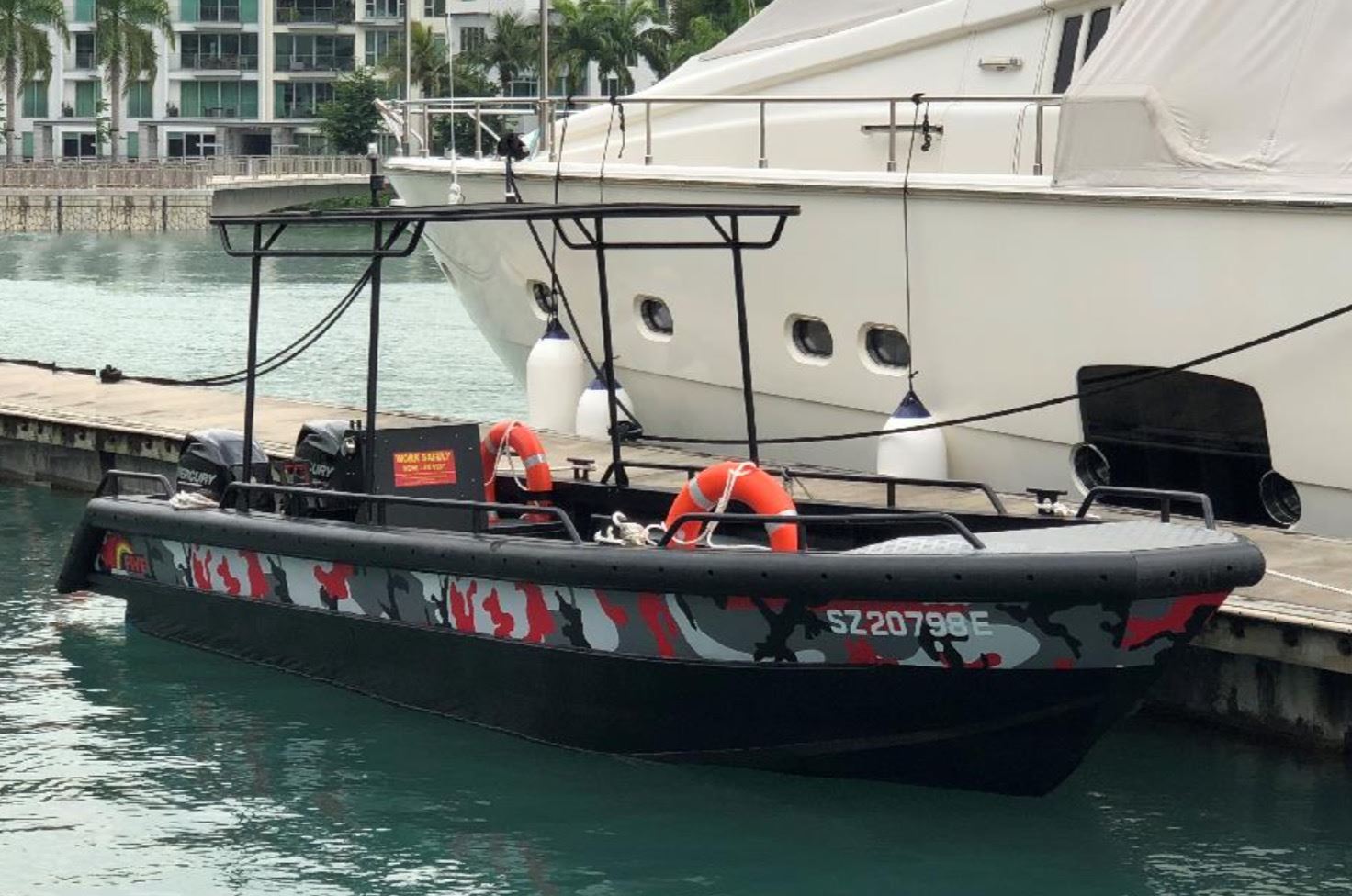

The Centurion 24 Surveillance Boat is a special design boat equipped with latest sophisticated technology surveillance system that is capable of monitoring a remote sites real time. This little boat is small enough and easy to maneuver in tight locations in the marina or canal systems. It can be record the video or send back the real time footage for the management to remotely monitor the situation on site.



Hull Length: 7.43m (24ft)

Beam: 2.34m

Depth: 0.9m

Draft: Approx. 0.25m unladen

Hull Weight: 2500kg unladen weight

Power by: Twin Mercury 60HP 4 stroke Petrol Outboard Motors

Fuel Tank Capacity: Built-in 200litre Fuel Tank

Material: Marine Grade Aluminium Alloy (5083H321)

Hull bottom thickness: 4mm

Hull side thickness: 4mm

Deck: Aluminium Alloy Checker Plate (Thickness:4mm)

Class Type: Not build to Class Survey



1.Hull Structure: Marine Grade Aluminium Alloy, Multiple Transverse & Longitudinal Frame Reinforcement Structures; Multiple Chambers filled with Unsinkable Foam; Reinforced keel and chines; Reinforced side bar on hull sides.

2.Hull Coating: PU Paint to Owner’s Choice

3.Cockpit Floor: Aluminium Alloy Checker Plate.



S/n / Description: Quantity

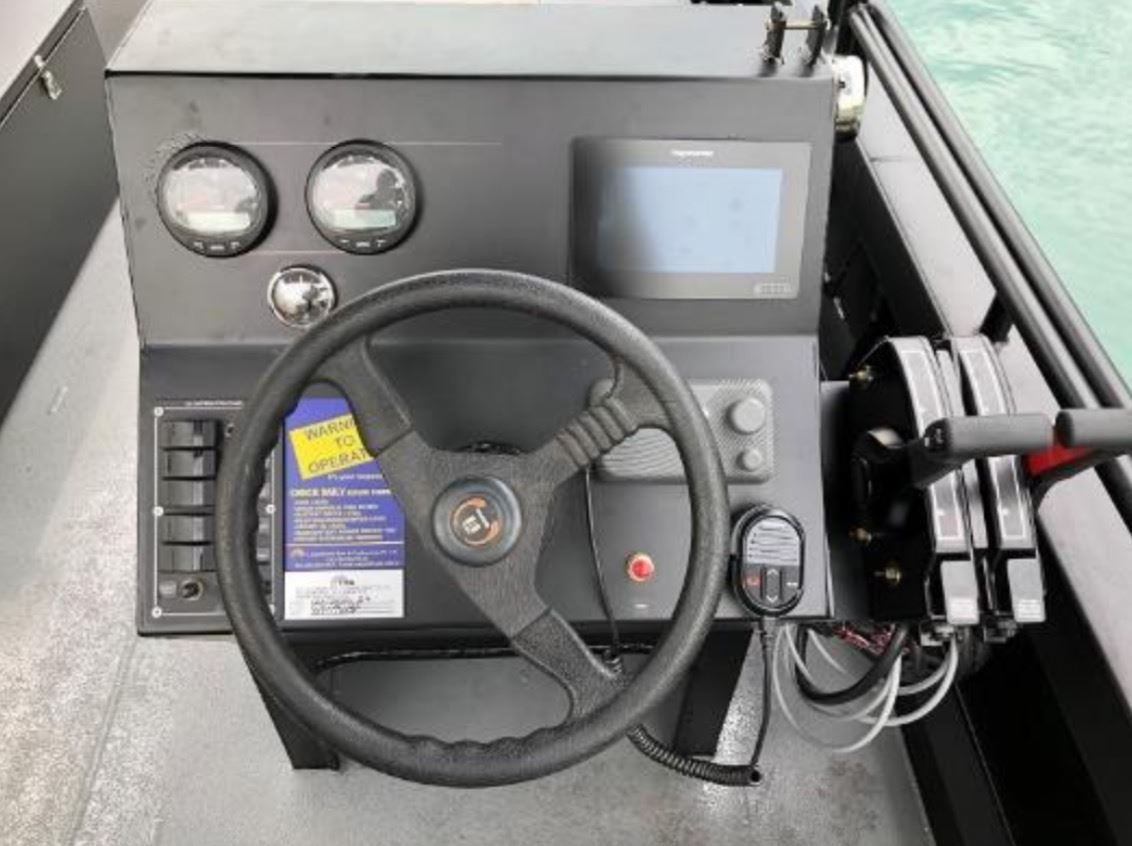

1/Forward Steering Console with Hydraulic Steering System: 1

2/Forward Bow Platform with Step: 1

4/Aluminium Grab Rails Set (1 1/4" Diameter): 1

5/PU Foam Fender System (Heavy Duty 6” Width): 1

6/Coxwain Seat (removable aluminium frame): 1

7/Welded Alloy Cleats and Lifting Rings Set: 4

10/Self-draining Holes: 2

11/Anchor Storage: 1

12/Built-in Aluminium Fuel Tank (200 Litres): 1



S/n / Description: Quantity

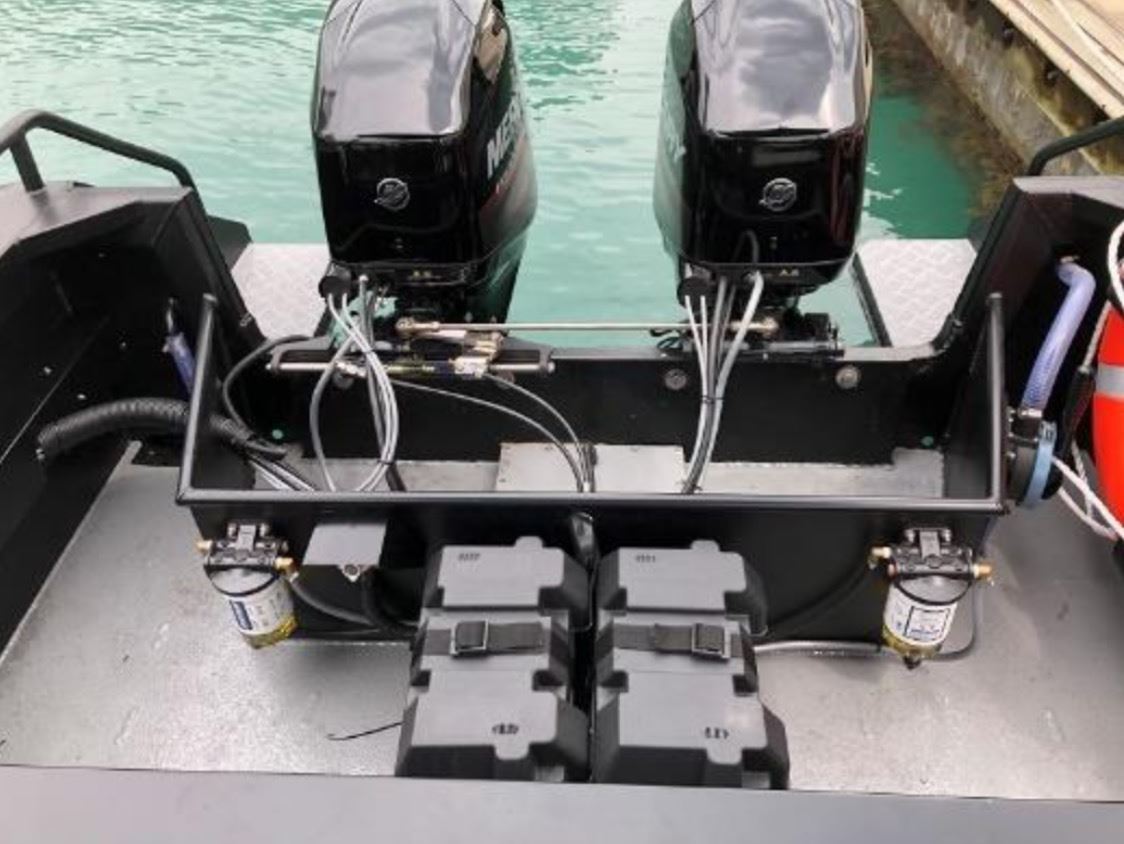

1/MERCURY 60HP 4-stroke Petrol Outboard Motors: 2

2/Battery On-Off Switch: 1

3/Fuel Emergency Shut Off Cock with Fuel Hose: 1

4/24VDC Bilge Pump with Automatic Float Switch: 1

5/ Stainless Steel Rudder Blade with Rudder Stock and Packing Gland: 1



S/n / Description: Quantity

1 / 6-way Toggle Type Gang Switches (24 VDC) at the Driving Console: 1

2 / Fuel Meter: 1

3 /  Navigation Lights (All round white combination of Port and Starboard Light, Mast Light): 1

4 /  12V Electric Horn: 1

5  / 12V Maintenance Free Lead Acid Battery with Plastic Battery Box: 2



Surveillance and monitoring system can be customized to fit the customer requirement.
