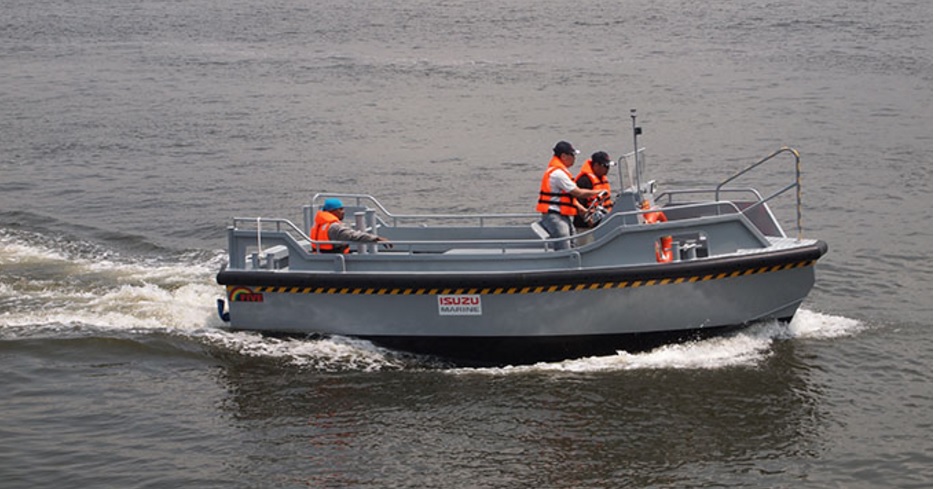

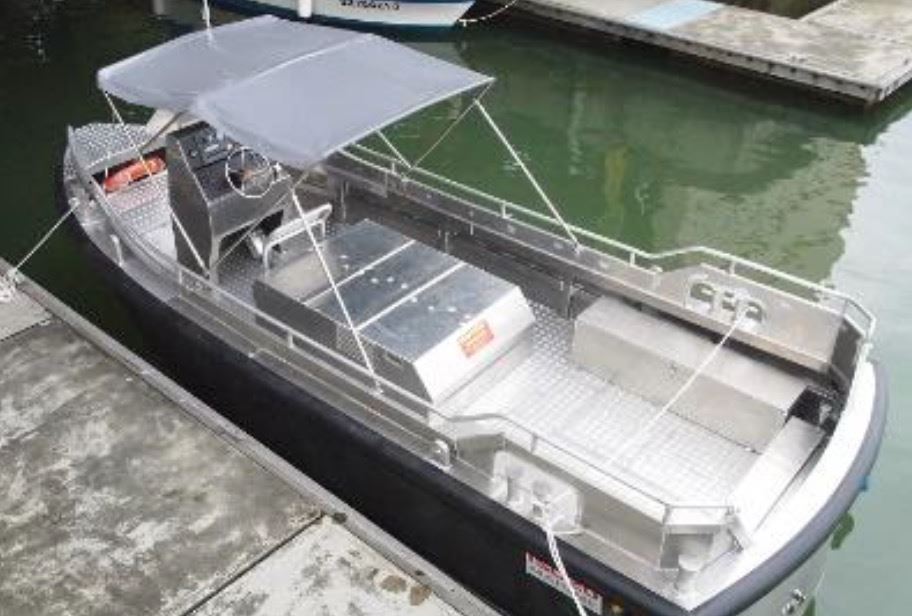

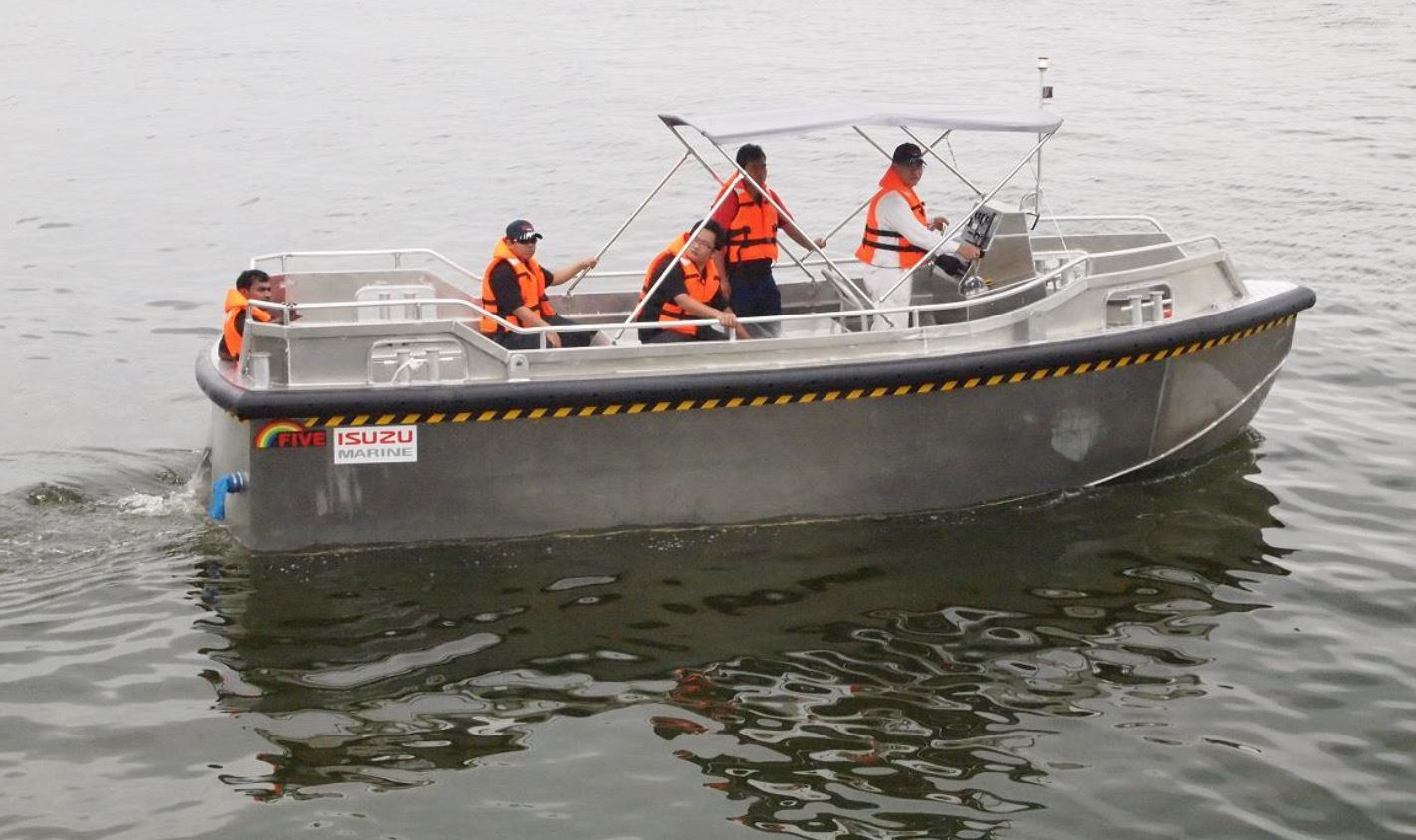

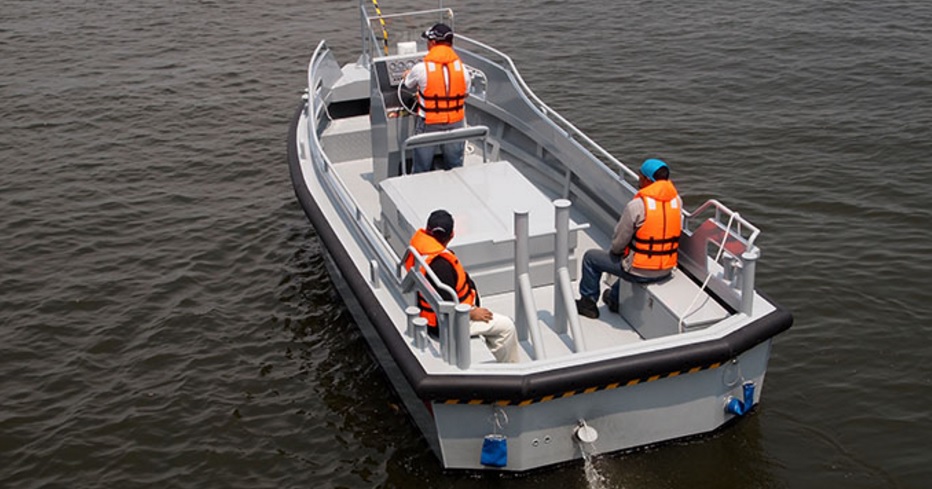

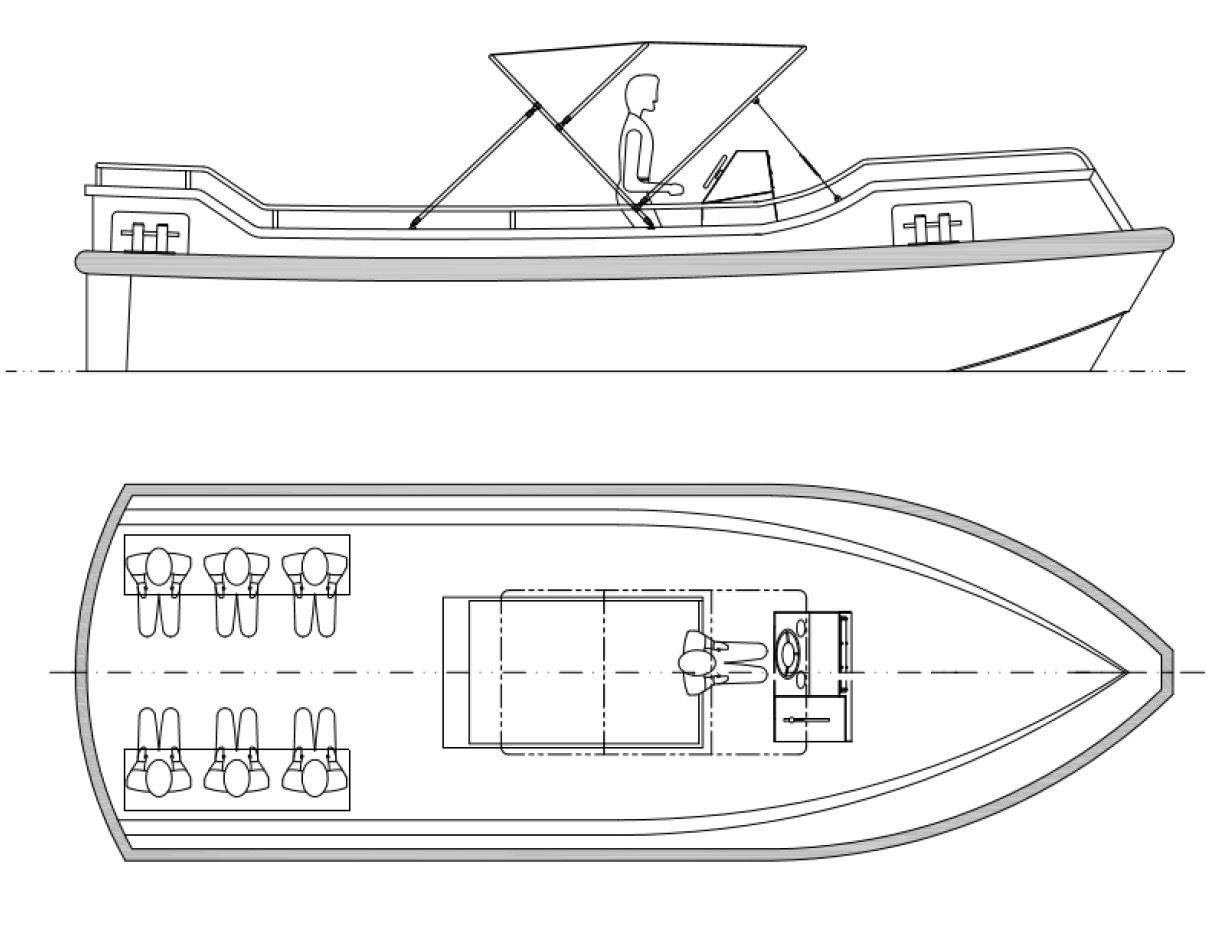

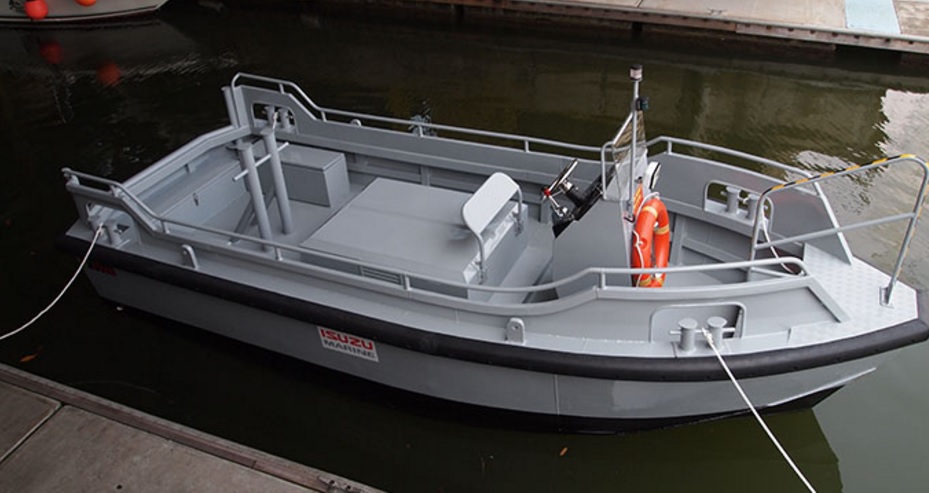

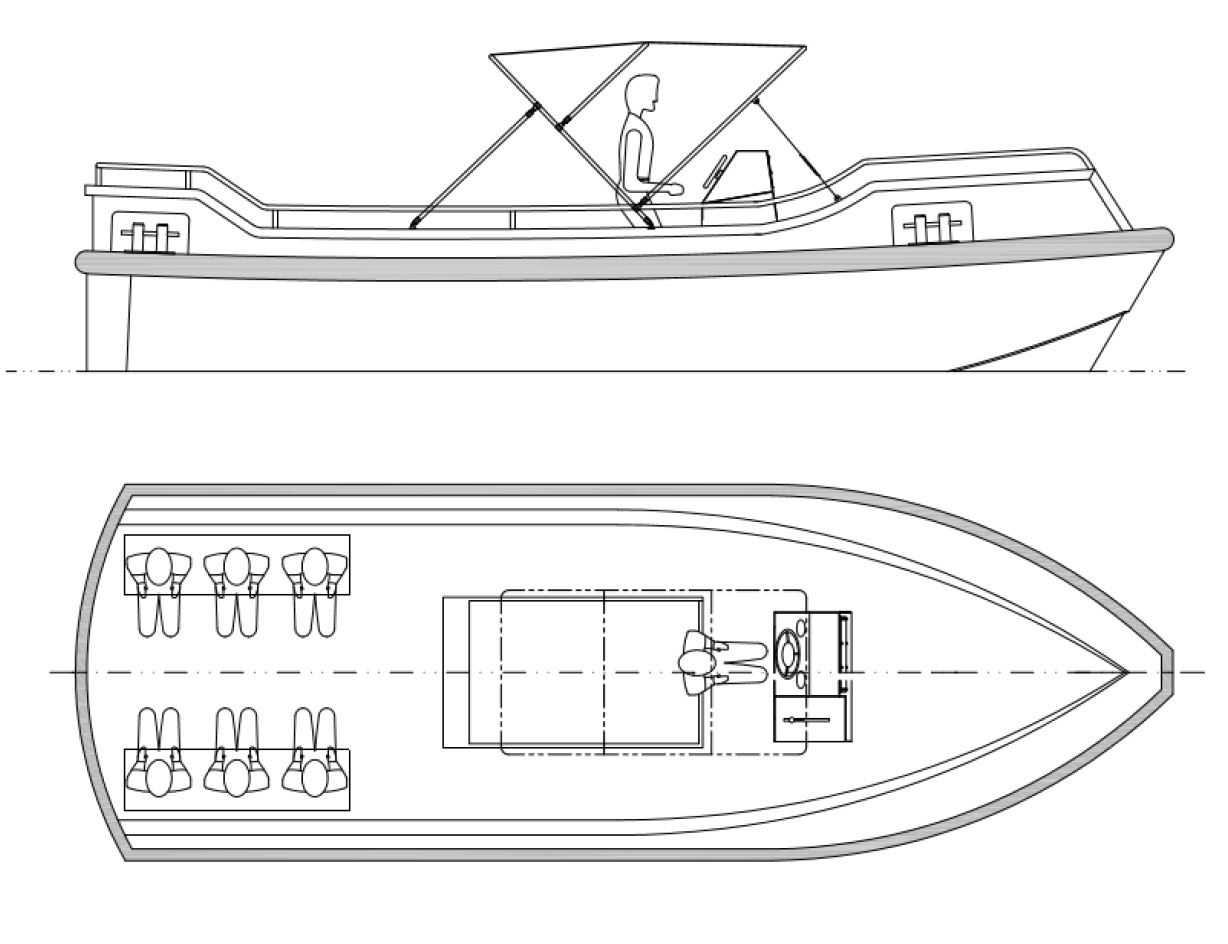

The Centurion 24 is our latest model workboat powered by the new ISUZU 197hp Inboard diesel engine. Capable of carrying 12 crews or equipment and having a top speed of 18 knots. This boat is a work horse suited for working under tough conditions. The Centurion 24 is constructed with double hull bottom, foam filled, with self-baling cockpit, with huge 6” D-fendering system, making it ideal for work inshore and offshore.



Hull Length: 7.30m (24ft)

Beam: 2.5m

Depth: 1.2m

Hull Weight: 2500kg unladen weight

Power by: Single ISUZU UM4GB1TCX (281HP) Marine Diesel Engine

Gearbox Ratio: 1.97:1 or as required (subject to availability)

Fuel Tank Capacity: Built-in 400litre Fuel Tank

Material: Marine Grade Aluminium Alloy (5083H321)

Hull bottom thickness: 6mm

Hull side thickness: 6mm

Deck: Aluminium Alloy Checker Plate (Thickness:4mm)

Draft: Approx. 0.6m unladen

Passenger Capacity: 12pax

Bollard Pull: 2 Tons

Class Type: Not build to Class Survey



1. Hull Structure: Marine Grade Aluminium Alloy, Multiple Transverse & Longitudinal Frame Reinforcement Structures; Multiple Chambers filled with Unsinkable Foam; Reinforced keel and chines; Reinforced side bar on hull sides

2. Hull Coating: Unpainted and in Natural Aluminium Colour

3. Cockpit Floor: Aluminium Alloy Checker Plate

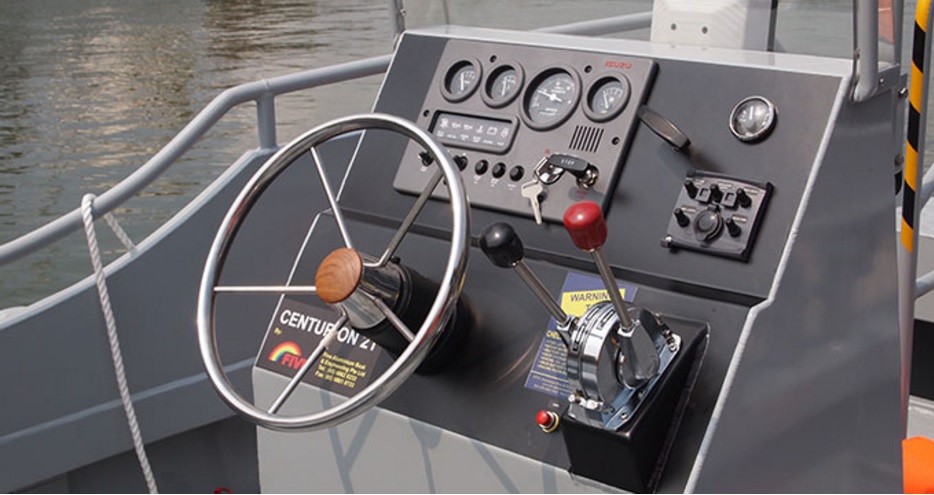

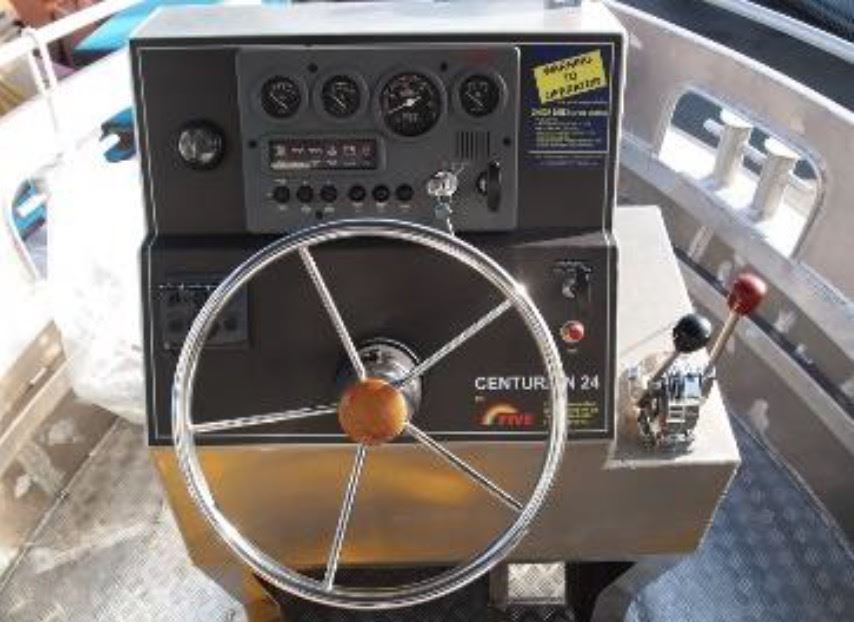

Forward Steering Console with Hydraulic Steering System: 1

Forward Bow Platform: 1

100mm Aluminium Gunwale: 1

Aluminium Grab Rails (1 1/4" Diameter): 1

PU Foam Fender System: 1

Aluminium Passenger Bench Seats with Storage Box underneath (3 passengers each): 2

Helmsman Seat with Storage Box underneath: 1

Welded Alloy Cleats with Lifting Rings Set: 4

Welded Rear Towing: 2

Self-draining Holes: 2

Anchor Storage: 1

Aluminium Engine Box Cover with Ventilation Fins on side: 1

Built-in Aluminium Fuel Tank (400 Litter): 1



6-way Gang Switches (24 VDC) at the Driving Console: 1

Fuel Meter: 1

Navigation Light (All round white, combination of Port and Starboard Light): 1

24V Electric Horn:  1

12V Wet Cell Battery (Model:MF115D31) with Plastic Battery Box: 2

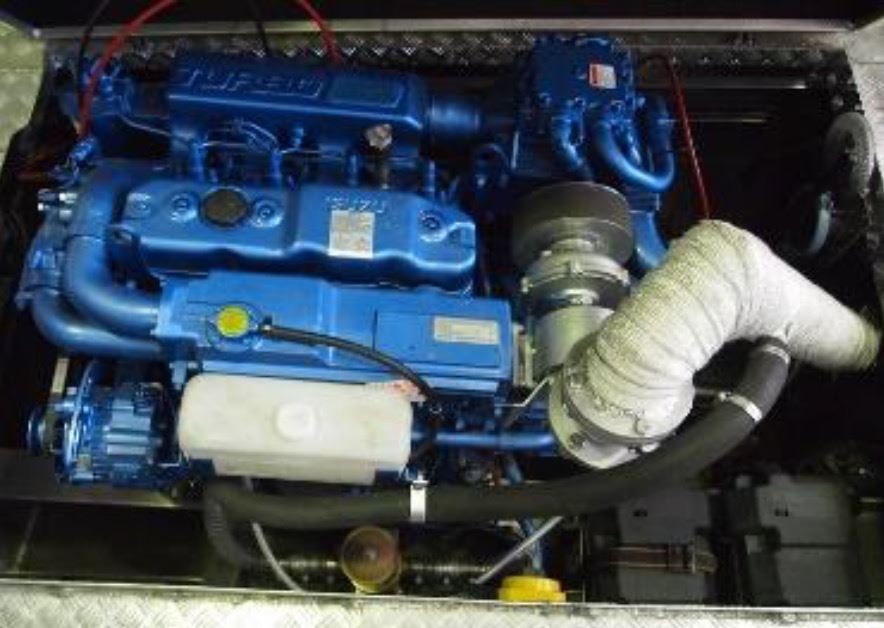

ISUZU UM4BG1TCX (281HP) Marine Diesel Engine with Gearbox: 1

Stainless Steel 318 Shafting 1” Diameter: 1

Shaft Seal System: 1

Bronze Propeller: 1

Aluminium Alloy Propeller Ring: 1

Bronze Seawater Filter (External Mounted): 1

Kingston Valve with Bronze Seawater Scoop: 1

Battery On-Off Switch: 1

Stainless Steel Rudder Blade Set: 1

Fuel Emergency Shut-off Cock with Fuel Hose: 1

1500 GPH Bilge Pump: 1
