Listing ID - 681806 | |
|---|---|
| Length | 78m (255ft 10in) |
| Beam | 18.4m (60ft 4in) |
| Location | ex Shipyard, China |
| Broker | John Kearns john.kearns@seaboatsbrokers.com +64 21 400 805 |
| Price | POA |
| View As PDF | |
78m DP2 KCM PSV currently under construction at top quality Chinese Shipyard with delivery scheduled for April 2015. Built to class notation ABS +A1 (E) Offshore Support Vessel (SUPPLY, FFV1, OSR-C2) + AMS, ACCU + DPS-2. Powered by two 2400kW main engines driving Z-pellers with a top speed of 13 knots at 100% MCR.
Work deck area 750m² with a deck design load of 5.5t/m².

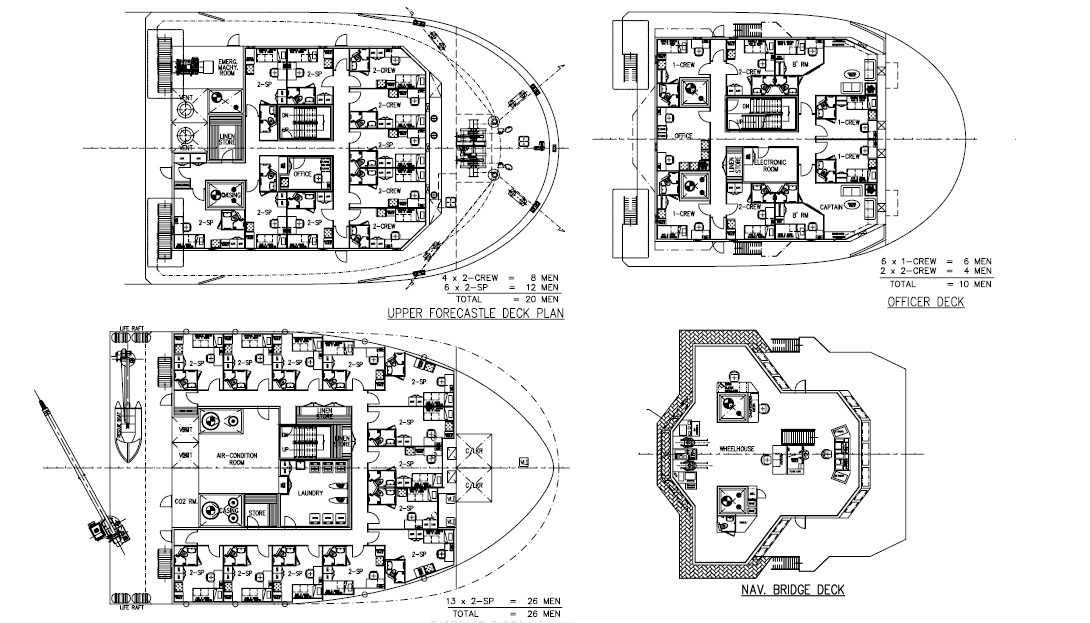

Accommodation for 40 persons.
Length over all: 78.00m
Length water line: 77.40m
Length B.P.: 72.45m
Breadth moulded: 18.40m
Depth moulded: 7.80m
Draft designed: 6.35m approx.
Accommodation:
Crew – 18
Special Personnel – 40
Total = 58
Tankage (approx.)
Fresh Water: abt. 550m³
Drill Water / S.W. Ballast: abt. 1500m³
Fuel Oil: abt. 850m³
Dirty Oil: abt. 10.0 m³
Lube Oil: abt. 10.0 m³
Bilge Holding: abt. 10.0 m³
Bulk Cement: abt. 226 m (4 x 2000 ft.)
Mud/Rec Oil/Brine: abt. 750 m³
Methanol: abt. 200 m3
Foam: abt. 14 m³
Detergent: abt. 14 m³
Speed: Min of 13.0 knots in ballast condition.
Endurance: 28 days approx.
Range: Abt 8500 nautical miles at 12 knots
Deadweight: 4000 tonnes approx. at 6.35M
Deck cargo:1500 tonnes²
Deck area: Minimum of 750 m²
Deck strength: 5.5 t/m² uniform loading
Gross tonnage: 2950 approx.
Net tonnage: 885 tonnes approx.
