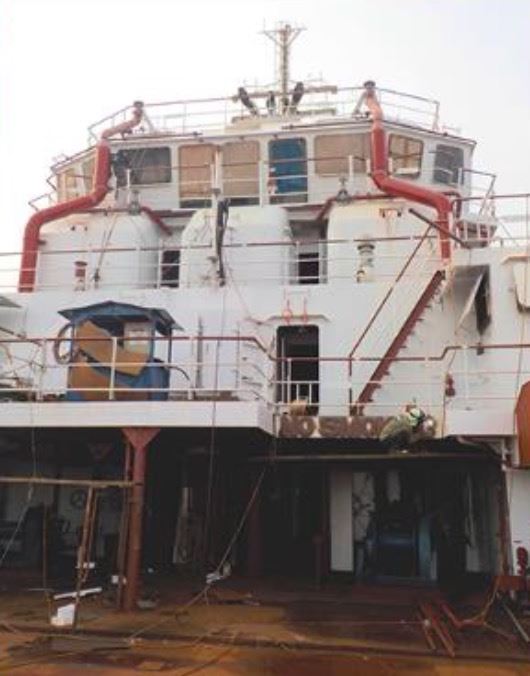

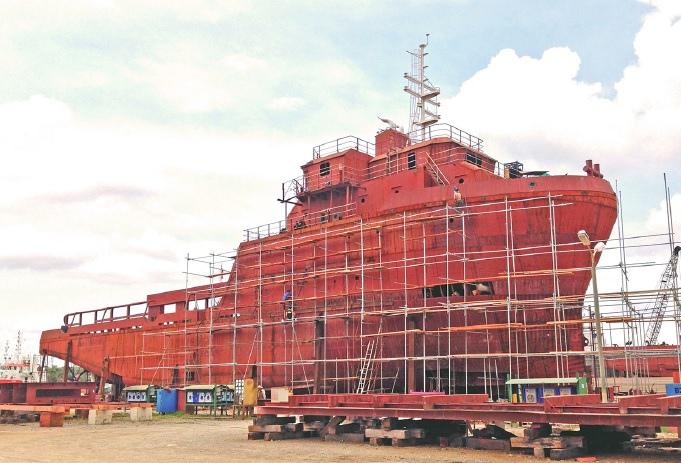

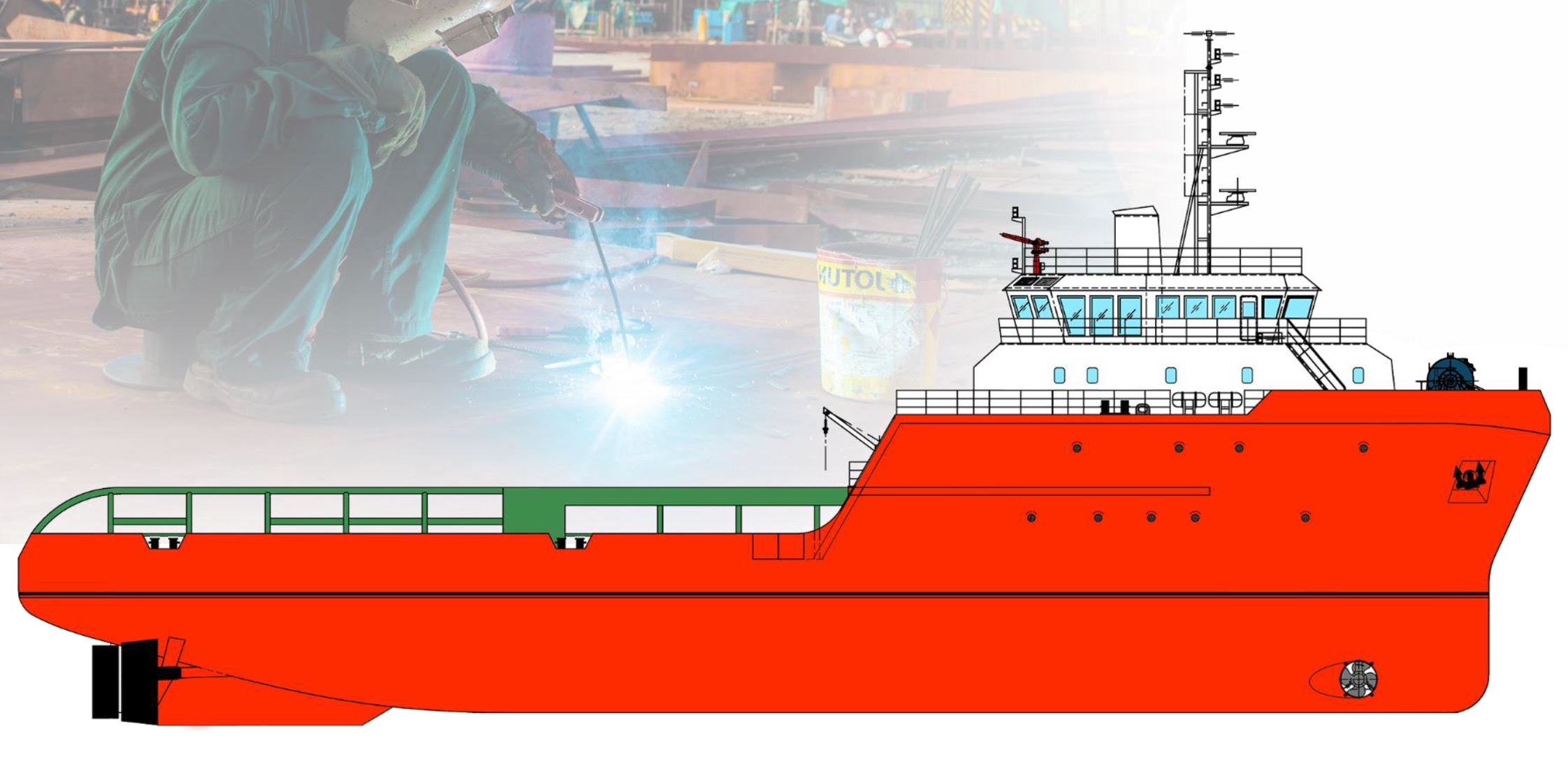

NEW BUILD - 60m Offshore Support Vessel.


Listing ID - 678445


DescriptionNEW BUILD - 60m Offshore Support Vessel
Length59.84m (196ft 3in)
Beam13.80m (45ft 3in)
Draft4.65m (15ft 3in)
Locationex Shipyard, Malaysia
BrokerJohn Kearns
john.kearns@seaboatsbrokers.com
+64 21 400 805
PricePOA
View As PDF

GENERAL
Basic Function: Offshore Support Vessel
Classification: Bureau Veritas
Notation: BVI +HULL MACH, Special Service, Fire fighting1 with Waterspray / Offshore support vessel, Unrestricted Navigation, MLC 2006, Special purpose ships
Descriptive Note: Multipurpose Vessel
Gross Tonnage: 1547 Ton (approx.)

DIMENSIONS
Length O.A.: 59.84m (196ft 3in)
Length B.P.: 53.84m (176ft 7in)
Breadth Mld: 13.80m (45ft 3in)
Depth Mld: 6m (19ft 8in)
Design Draft: 4.5m (14ft 9in)
Max Draft: 4.65m (15ft 3in)
Endurance: 30 Days
Deadweight: 1562.6T

CARGO CAPACITY
Cargo Fuel Oil: 326.8 m³
Cargo Fresh Water: 443.8m³
Deck Strength: 7 Ton/m³

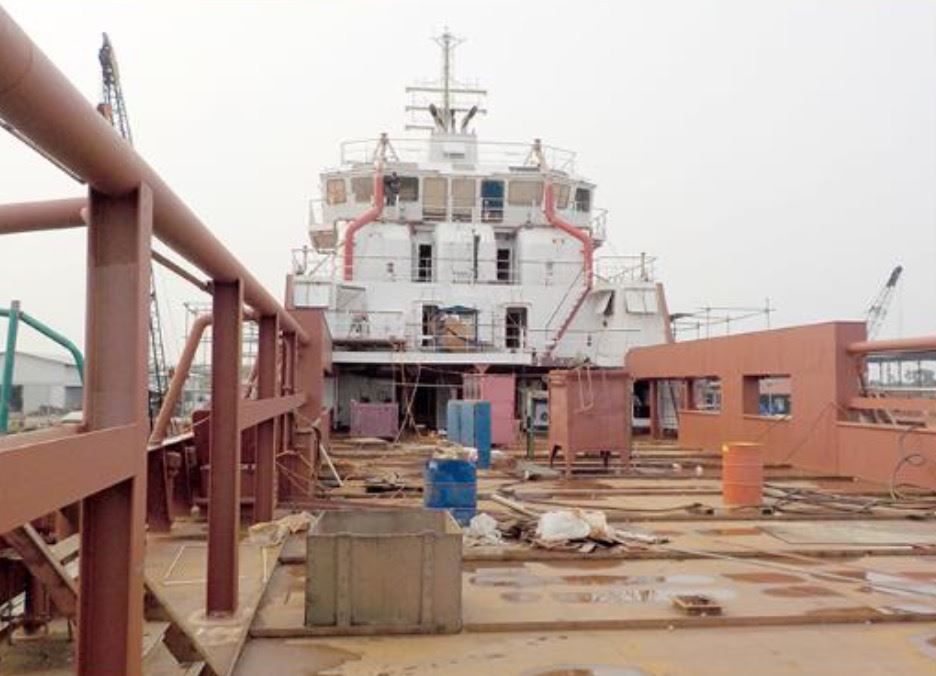

Open Deck Space: est. 400m²

CARGO DISCHARGE RATE
Fuel Oil 2 (Two) Dia. 80, 200m3 /hr, 75th
Fresh Water 1 (One) Dia. 80, 100m3 /hr, 75th

TANK CAPACITY
Fresh Water Ballast: 301.9m³
Portable Water: 348.4m³
Daily Fuel Oil: 340.2m³
Foam: 16.3m³

PERFORMANCE
Free Running Speed: 12 knots
F.O. Cons Max Speed est. 15T perday
F.O. Cons Service Speed est. 7.5T perday

PROPULSION SYSTEM
Main engine: 2X Cummins KTA50-M2, 1800bhp at 1900rpm, 1342kW
Propellers: 2X BERG, CPP, Dia. 2250mm (4 blade, brand) With KORT-NOZZLE
Steering System: 2X 4.0TM INDEPEDENT STEERING SYSTEM, OVER 2 X 35° STEERING ANGLE
Bow thruster Engine: 1X Caterpillar C18, 601bkW at 1800rpm
Bow Thruster: 1X BERG, 8 Ton, CPP

AUXILIARY EQUIPMENT
Network: 415V, 50Hz
Marine generator engine: 3X Caterpillar C18 each 275 ekW at 1500rpm
Emergency generator set: 1X Cummins 6BT5.9DM, 80kW, 100kVA, 122.13bhp at 1500rpm

PUMP EQUIPMENT
Cargo F.O. Pump: 2 x 75m Total Head, 200mÉ/h
F.O. Transfer Pump Cargo Fuel Oil Transfer: 1 X 75m Total Head,  100m TH
F.O. Transfer Pump Ship’s Fuel Oil: 1 X 15m Total Head, 20m TH
Oily Bilge Separator: 1 x 1mÉ/h x 2 kg/cm²
Dirty Oil Pump: 1 x 15m Total Head, 8m TH
F.W. Transfer Pump: 1 x 75m Total Head, 100m TH
Sewage Pump: 2 x 15m Total Head, 8m TH
Air-Cond S.W. Cooling Pump: 2 x 30m Total Head, 48m TH
Chiller/Freezer S.W. Cooling Pump: 1 x 30m Total Head, 25m TH
ECR Package A/C S.W. Cooling Pump: 1 x 30m Total Head, 5m TH
F.W. Pressure Set & Sea Water: 3 x 35m Total Head, 5m TH
H.W. Circle Pump: 1 x 35m Total Head, 0.4m TH
Bilge Pump: 1 x 57m Total Head, 50m TH
Ballast Pump: 1 x 57m Total Head, 50m TH
G.S. Pump: 1 x 57m Total Head, 50m TH
Fire Pump: 1 x 57m Total Head, 50m TH
Emergency Fire Pump: 1 x 45m Total Head, 40m TH
Sewage Treatment Plant: MAX. 58 Persons / Days, Flow rate: 4375L / days
Sewage Pump: 8m³/h @ 75m TH
Calorifire: 4 x Joven 90 Liter

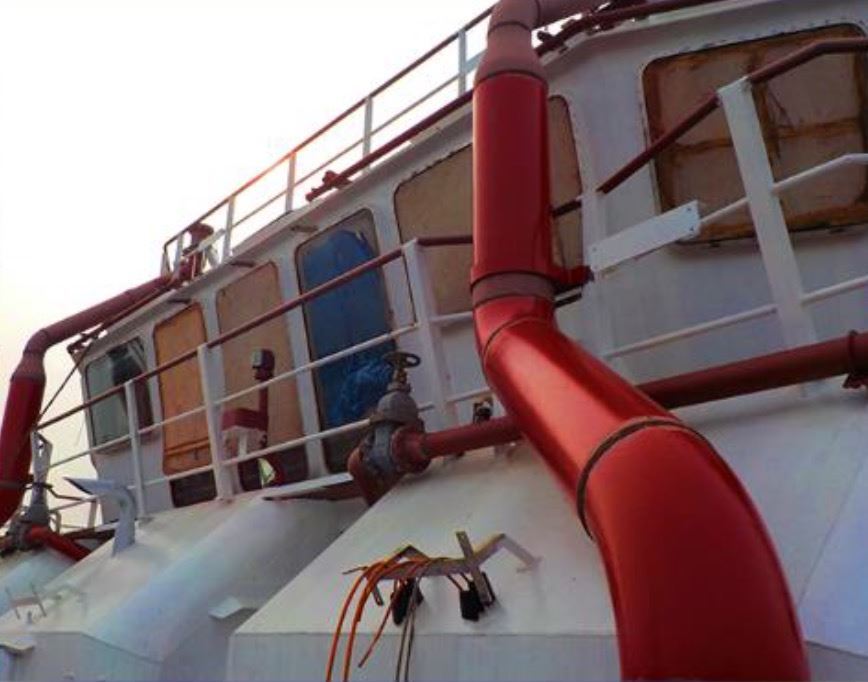

FIRE FIGHTING SYSTEM
Capacity 2X 1200m3/hr, per Monitor
Foam: 1X Foam inductor adjustable, Max 300 I/min, 16.7 bar inlet pressure
Oil Dispersant: Dispersant system included

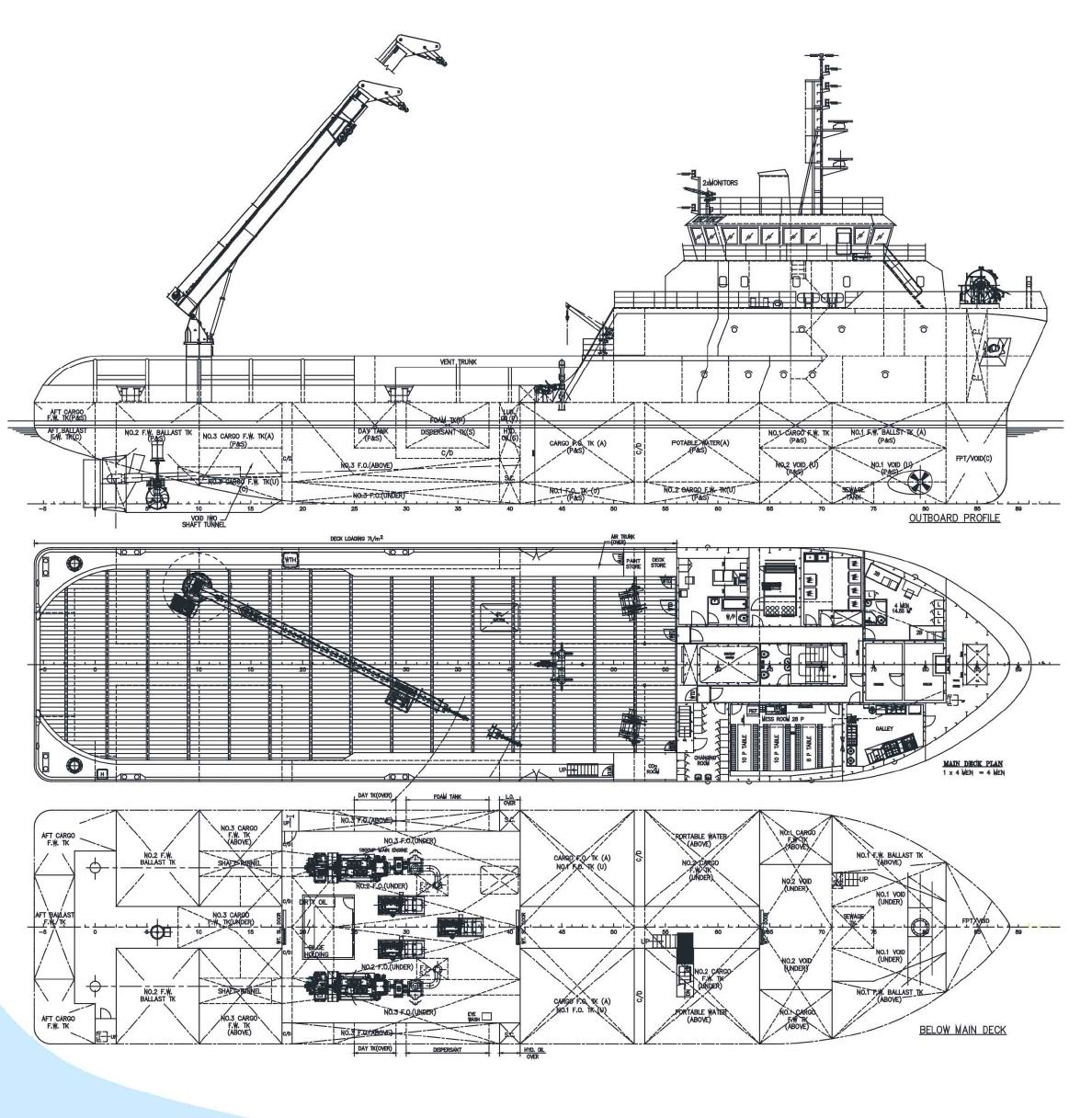

DECK LAYOUT
Hydraulic anchor windlass: 1X 8 ton capacity, 36mm U2 grade chain
Hydraulic Tugger winch: 2X Single drum, wire rope, Dia. 20mm x 200m
Hydraulic telescopic crane: 10T static load, 15m outreach
Towing hook: 1X Disc type, pneumatic quick release, 40T (rated), 60T (proof), 24V DC

ACCOMMODATION
Berths:
1 men room x 2
2 men room x 6
4 men room x 9
Berths Total: 50 Men

NAVIGATION & COMM EQUIPMENT (A1 + A2 +A3)
Radar System: 1 x Furuno FAR 2177
GMDSS Sea Area A1-A2-A3: 1 x Furuno Model RC-1800T 250W GMDSS
GPS: 1 x Furuno GP 150
HF: 1 x Furuno FS 2575
AIS: 1 x Furuno FA 150
Speed Log: 1 x Furuno Model DS-80
Echo Sounder: 1 x Furuno FE 700
MF/VHF Radio Telephone: 1 x Furuno FS 2575
Navtex Receiver: 1 x Furuno NX 700 B
Radar Transponder: 2 x KANNED MARINE SART RADAR TRANSPONDER
EPIRB: 1 x GME ME403FF EPIRB
Walkie Talkie (GMDSS); 1 x SAMYUNG Model STV-160 Walkie Talkie
Gyro Compass (IMO):  1 x SIMRAD GC 80
Bridge Navigational Watch Alarm System: 1 x Furuno Model BR-500

SPECIAL REMARK
1. Moon Pool (upgradable) DIM. 2.4m x 2.4m
2. Upgradable to DP1



The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
