NEW BUILD - 42m Fast Crew Boat

Listing ID - 818619
Description	NEW BUILD - 42m Fast Crew Boat
Date Launched	Built to Order
Length	42m (137ft 9in)
Beam	8.20m (26ft 10in)
Draft	1.95m (6ft 4in)
Location	ex Shipyard, Vietnam
Broker	Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323
Price	POA
View As PDF

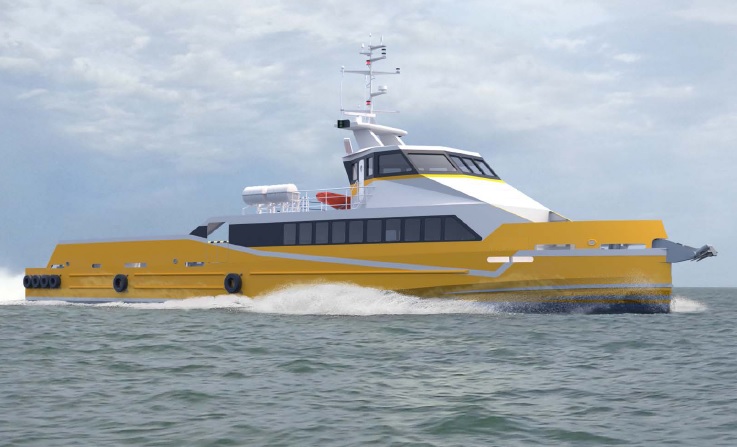

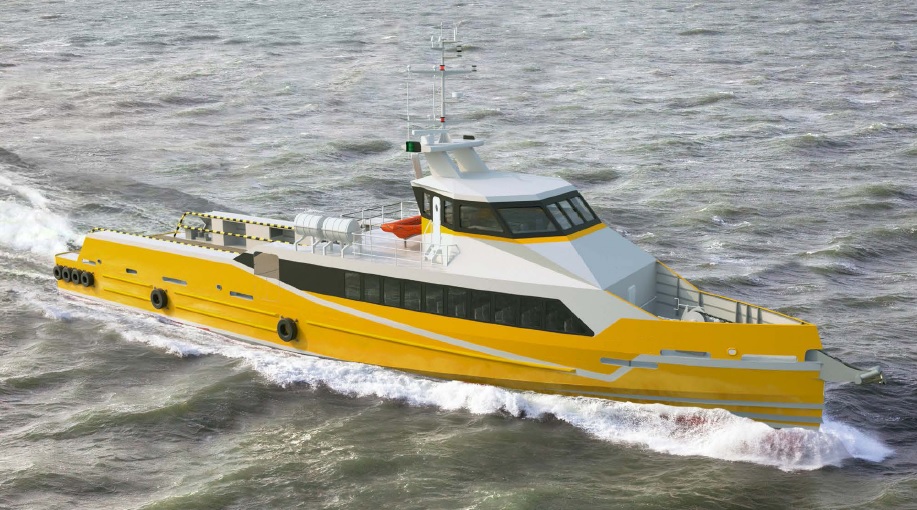

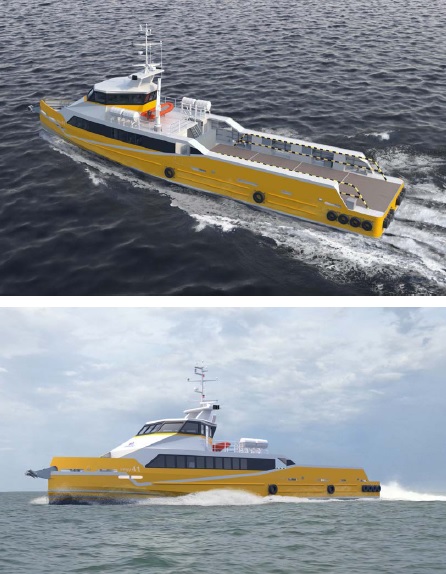

THE FAST CREW BOAT WITH SUBSTANTIAL DECK LOAD

Concentrate of 25 years experienced in fast crew boats, the FPSV 41p is designed with seating for 80 personnel and a cargo deck of 100 m². She is the perfect vessel for operations such as rig crew transfer, quick transportation of supplies and in field support.

Made of aluminium and equipped with 3 engines coupled to fixed pitch propellers and a 80 m³ fuel oil capacity, the FPSV 41p offers a range in excess of 3,000 NM. Her speed of 25 knots meets most of the requirements and guarantees a quick transfer of personnel.

Extremely versatile, her layout can be adapted for in field patrol operations by replacing the lounge seating with cabins and a mess for security personnel.

Design

Spacious lounge area offering seating for 80 industrial personnel

100 m² cargo deck with a 50 tons capacity

Economical operations thanks to a fuel efficient hull design

High speed to transfer crew and supply faster and further away

Optimized bow offering reduced slamming in rough seas

Shallow draft allowing access and operations near the shore and in deltas

Excellent panoramic visibility for safety and easy maneuver

MAIN CHARACTERISTICS

Length overall: 42m (137ft 9in)

Breadth: 8.20m (26ft 10in)

Draught: 1.95m (6ft 4in)

Hull / superstructure: aluminium

Cargo deck area: 100 m² @ 2 t/m²

Deck load: 50t

Crew: 10

Industrial personnel: 80

Fuel oil: 80 m³

Fresh water: 20 m³

Grey/black waters: 2 m³

Fire fighting (internal) CO ²: all machinery

OPTIONS

Engine upgrade: 3 x 1342 kW

Fire fighting capacity: Fi-Fi 1

Dynamic positioning: DP 1

Security pack / patrol

Ballistic protection panels

Bow landing

Business class seats

Sickbay

Deck crane

CLASSIFICATION

Bureau Veritas I, HULL, • MACH

Crew boat

Sea area 3

ACCOMMODATION

Fully air conditioned

Cabins for 1 person: 2

Cabins for 4 persons: 2

PERFORMANCES

Full load speed (100 % MCR full load): 18 kn

Max. Speed (85 % MCR light trial load): 25 kn

With optional 3 x 1342 kW engine configuration:

Full load speed (100 % MCR full load): 23 kn

Max. speed (80 % MCR light trial load): 28 kn

PROPULSION / MACHINERY

Propulsion

Engines: 3 x 1007 kW @ 1900 rpm

Propulsion: 3 FPP

Bow thruster: 1 x 90 kW

Machinery

Generator sets: 2 x 110 kVA
