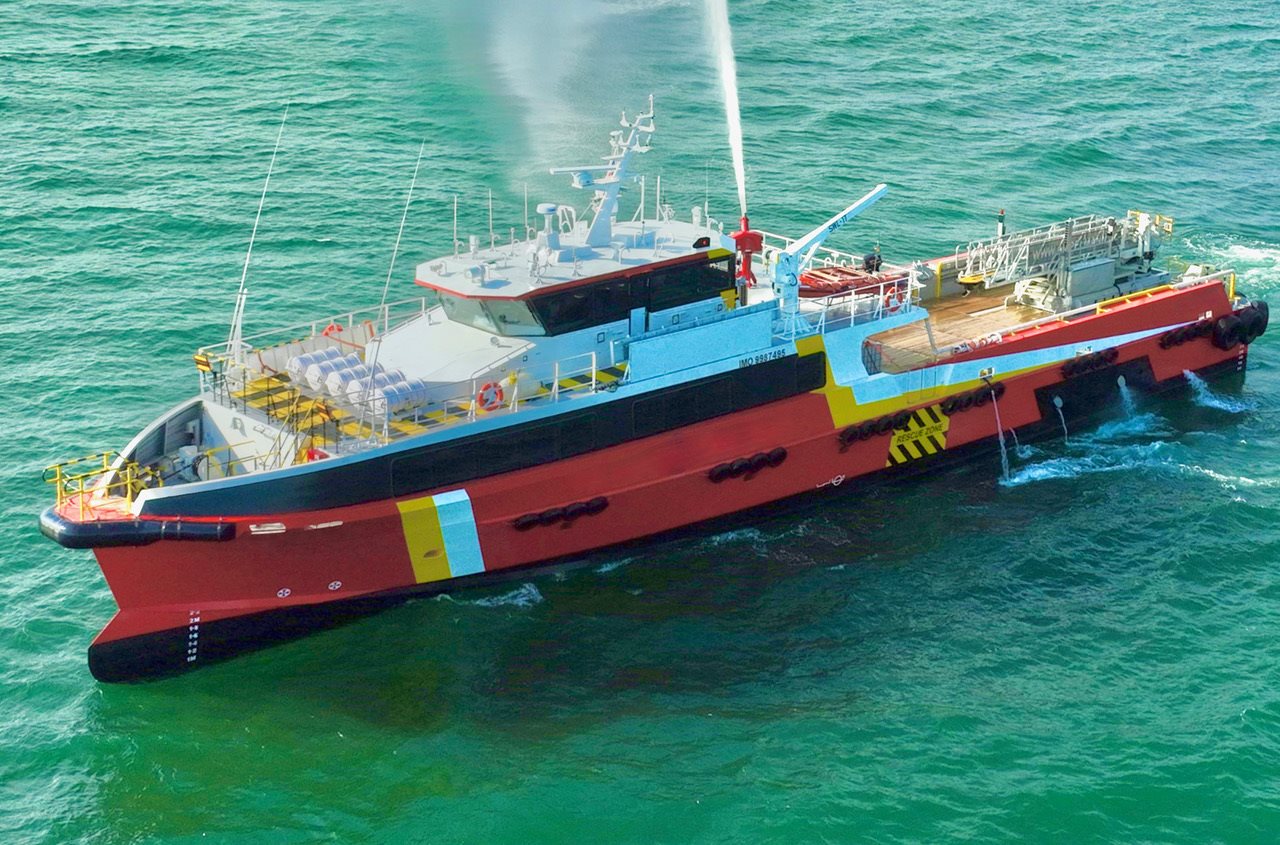

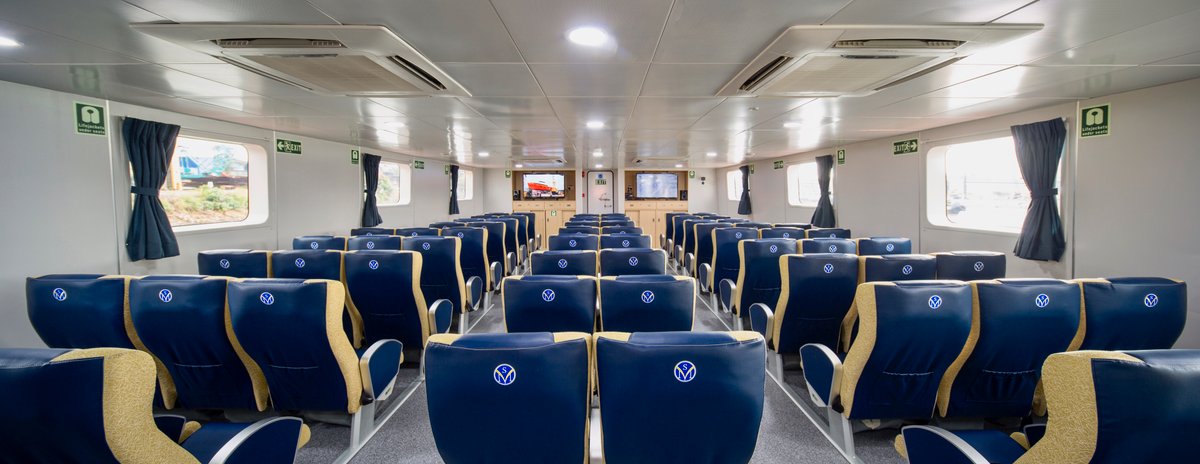

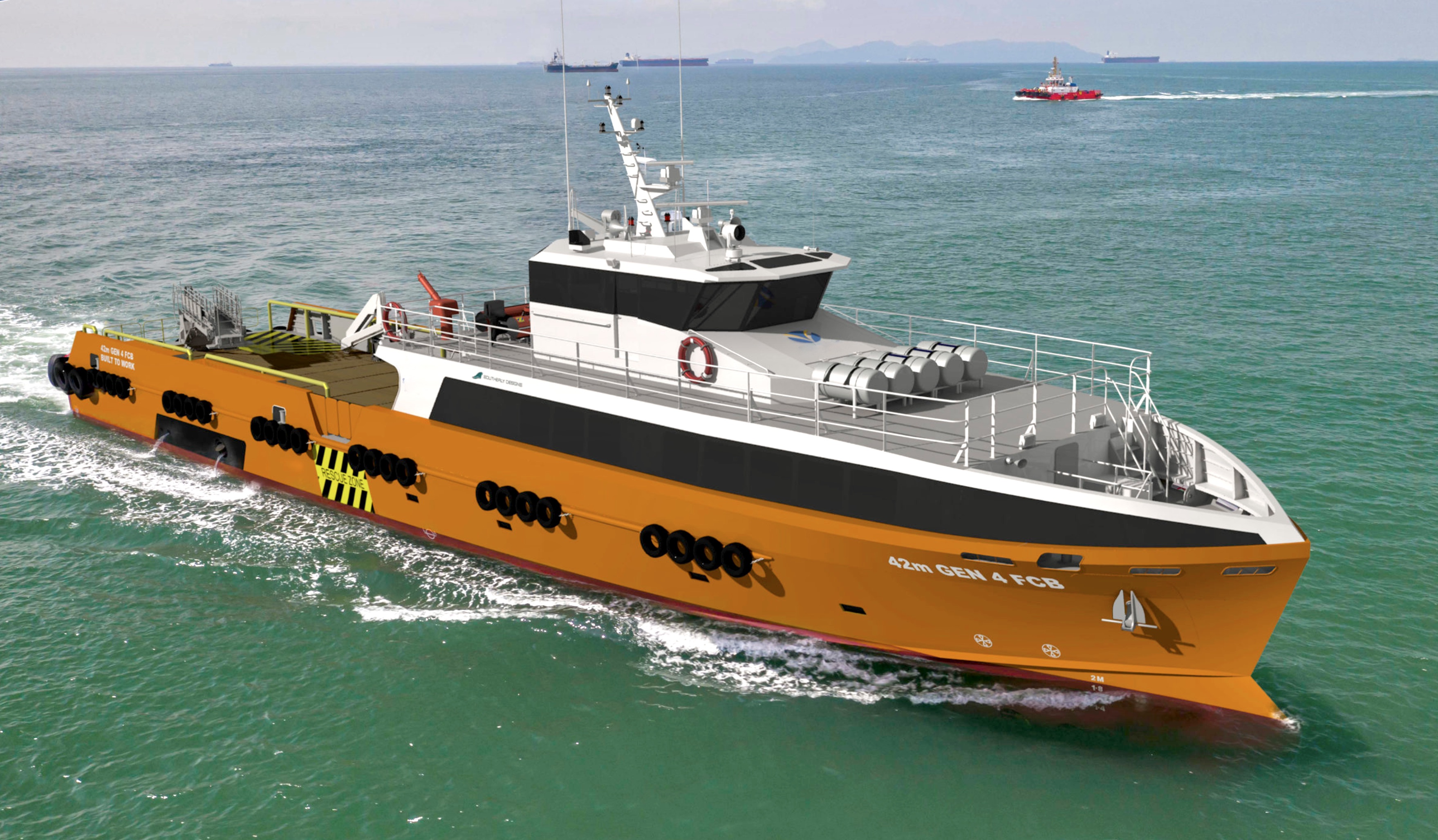

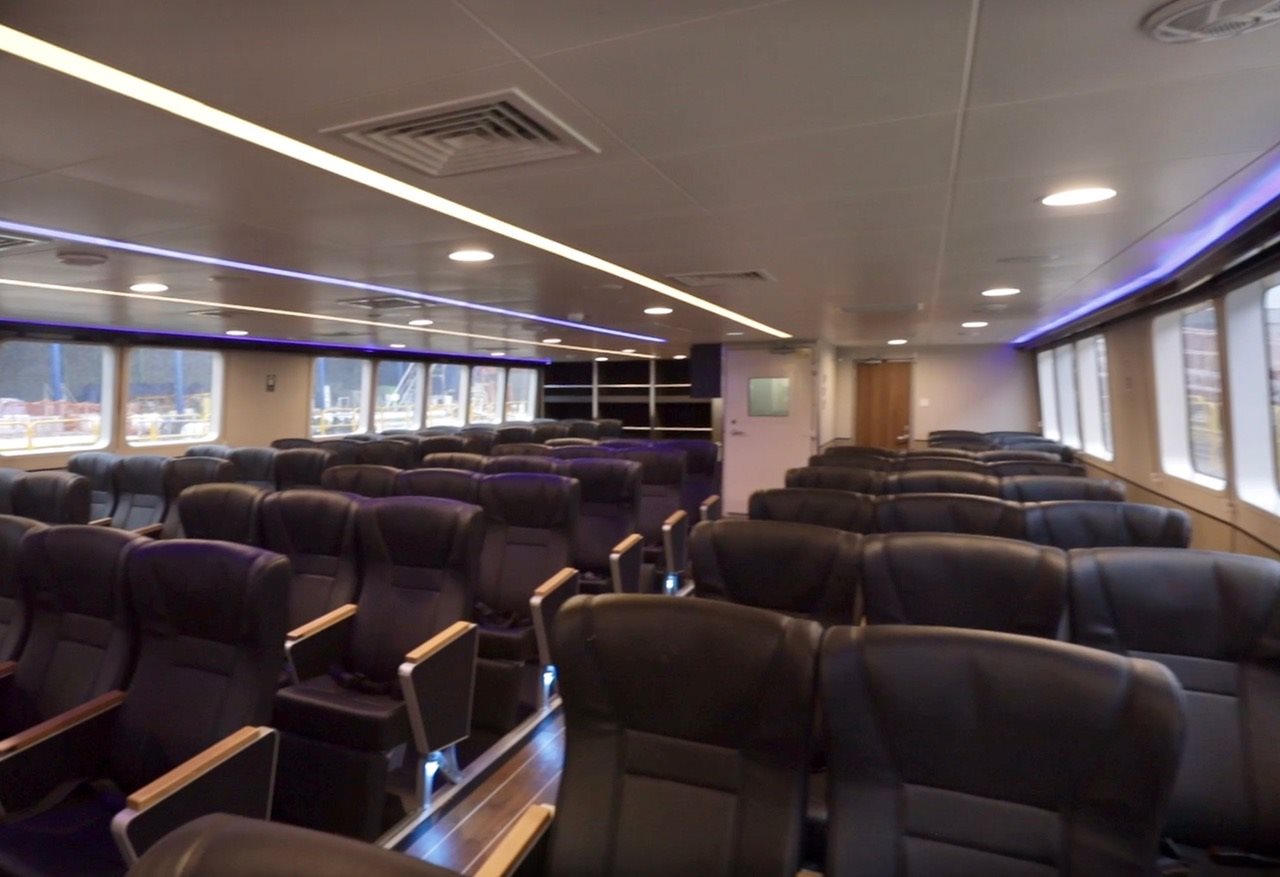

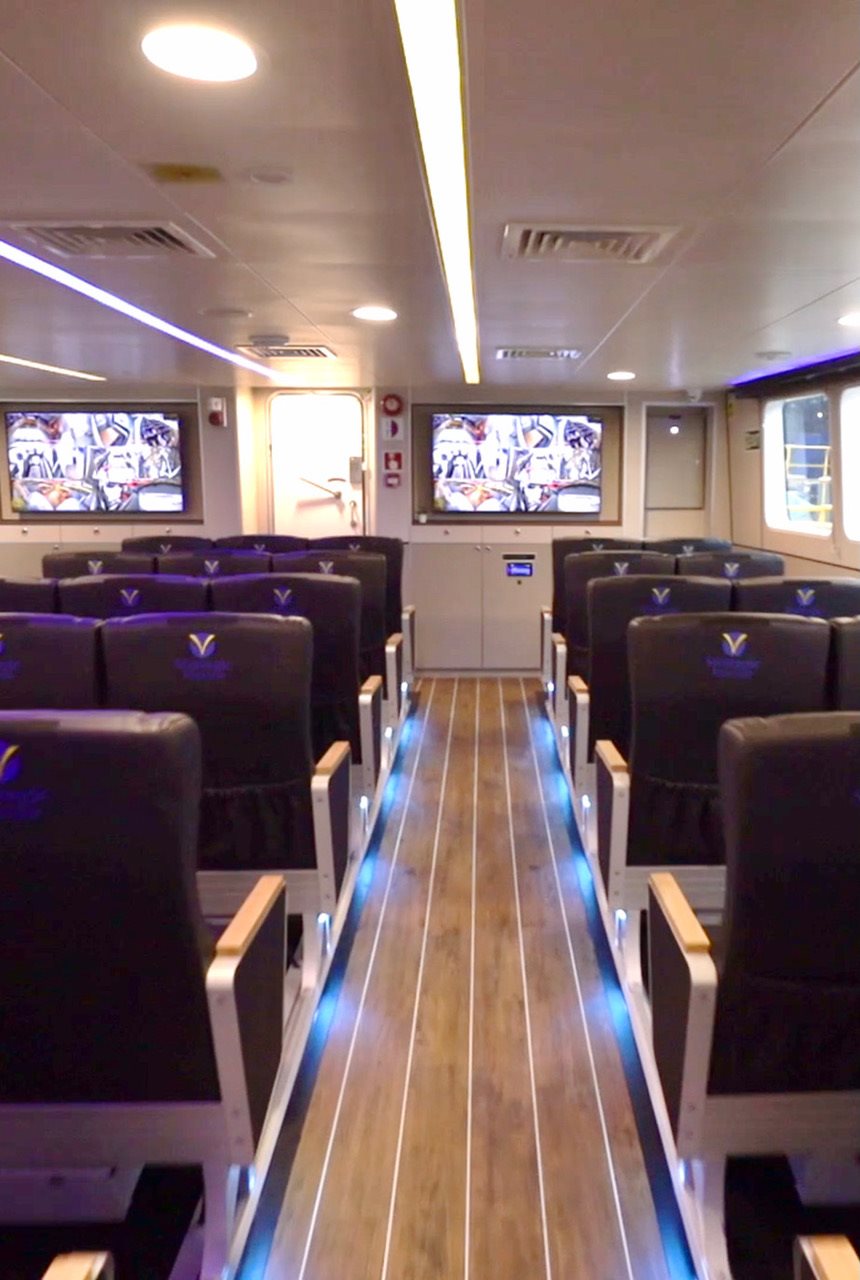

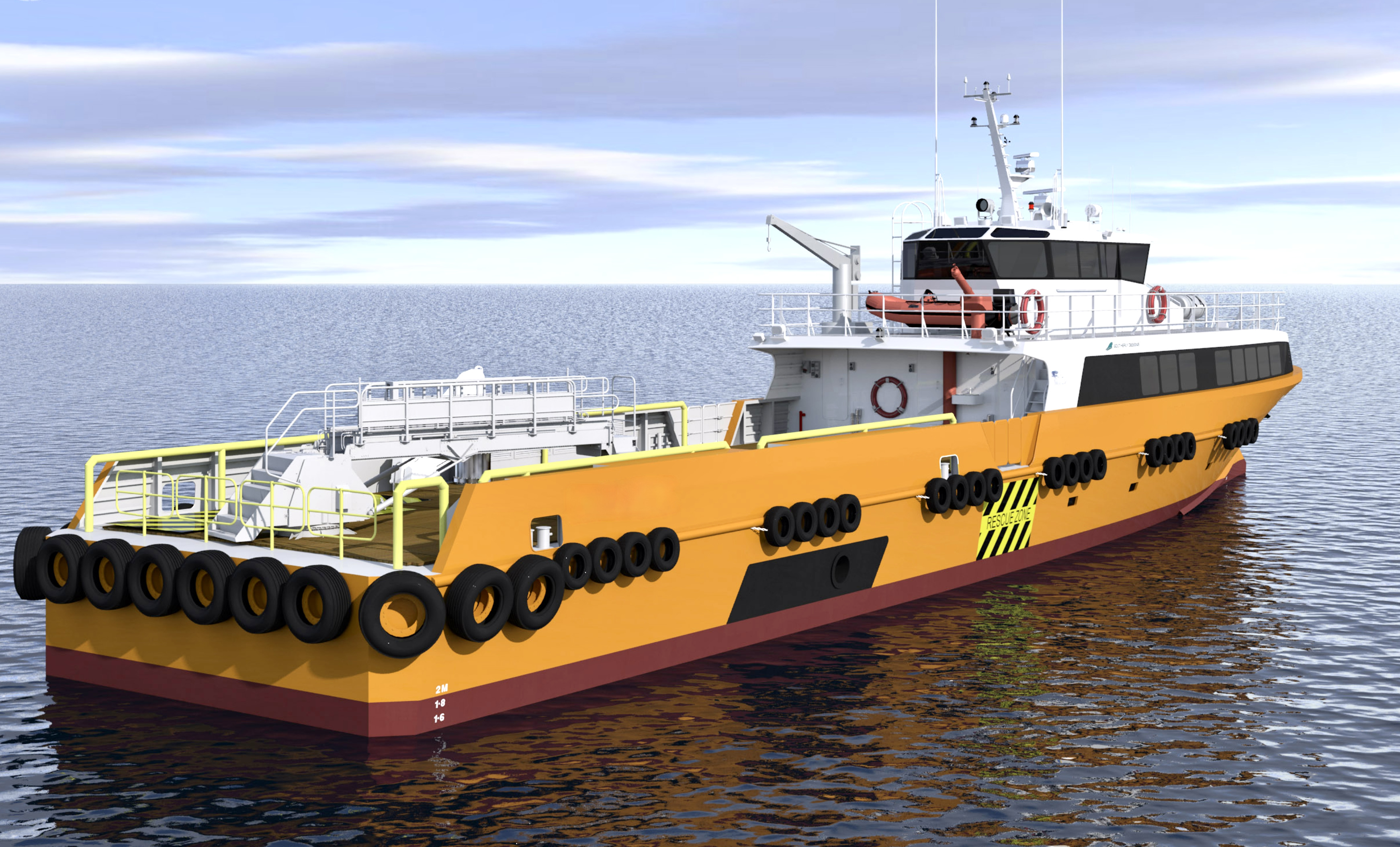

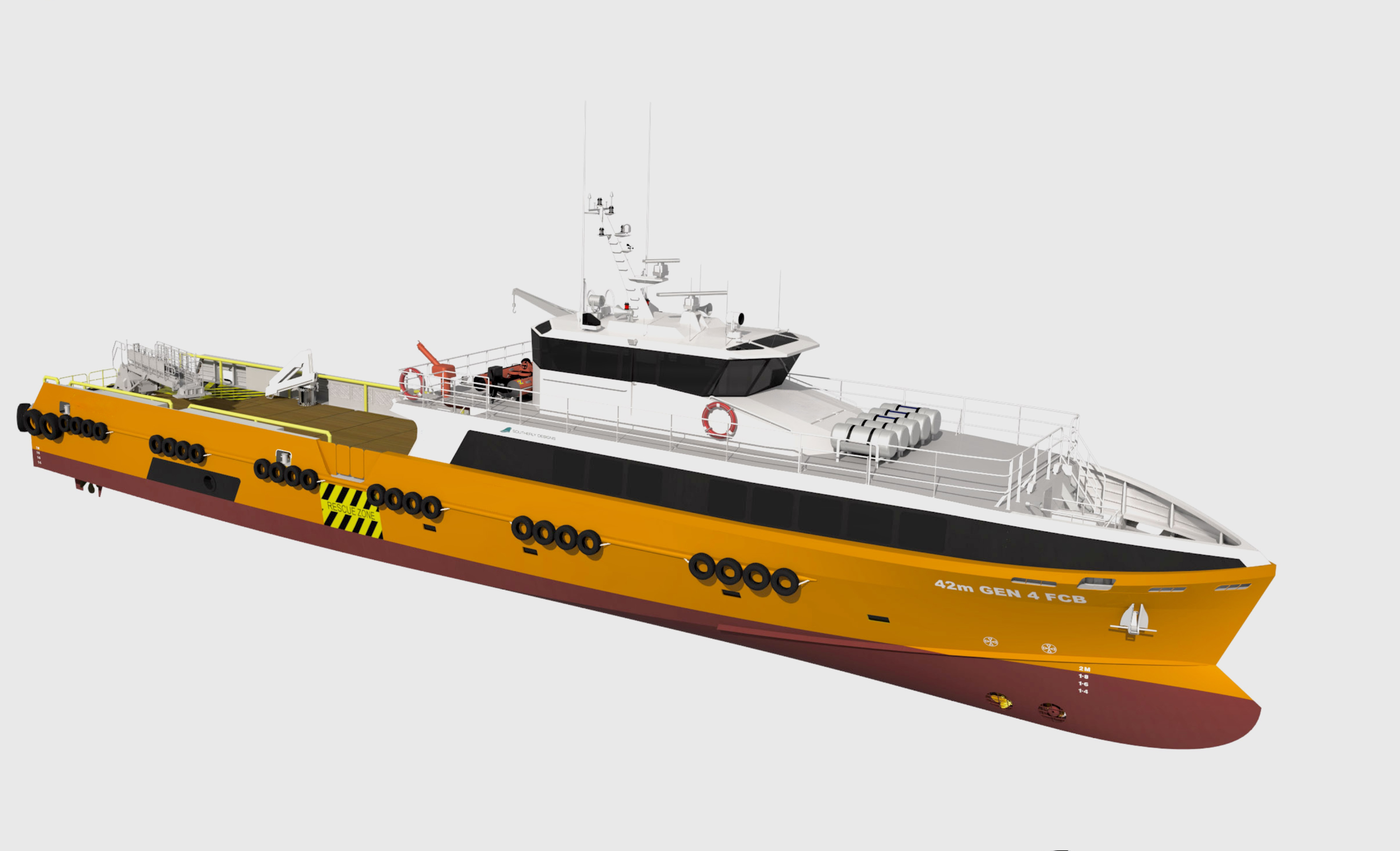

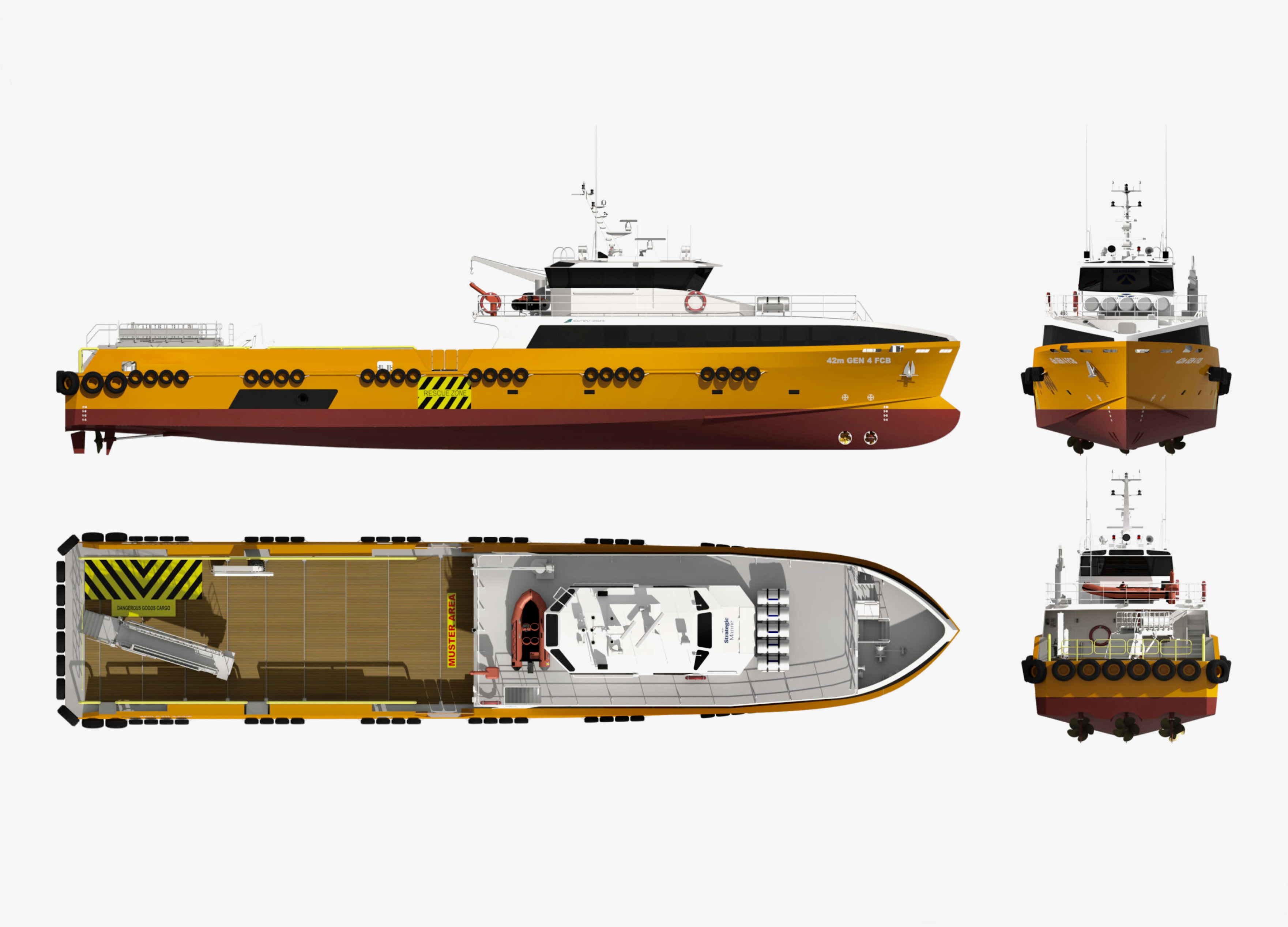

42m Fast Crew Boat, built to Lloyds Register.  Powered by three 1800 BHP Cummins KTA50-M@ Marine Diesel engines coupled to three FFP and providing a top speed of 32 knots at 100% MCR @ 30 DWT and 30 knots at 85% MCR @ 30 DWT.  Aircraft type seating is provided for up to 100 personnel in the large deckhouse cabin in air conditioned comfort.  The shipyard has delivered more than 25 Fast Crew Boats to the Offshore sector over the last 12 years and has now developed it’s 4^th Generation Fast Crew Boat from Southerly Designs in Australia, that provides a very efficient hull form.



Length Overall:             42.0m

Length Waterline:          42.0m

Scantling Draft:             1.90m

Propeller Draft:             2.10m

Deck Strength:             2.5 t/m2

Construction:                Marine Grade Aluminium

Structural Warranty:      24 Months (2 Years)



Fuel:                            84,220 L

Fresh Water:                 30,000 L

Black Water:                 500 L

Crew:                           12

Passengers:                 Up to 100

Cabins:                        5 x Two Berths + 2 x Single Berths + 1 medical/office

Max Deadweight:         190 Tonnes

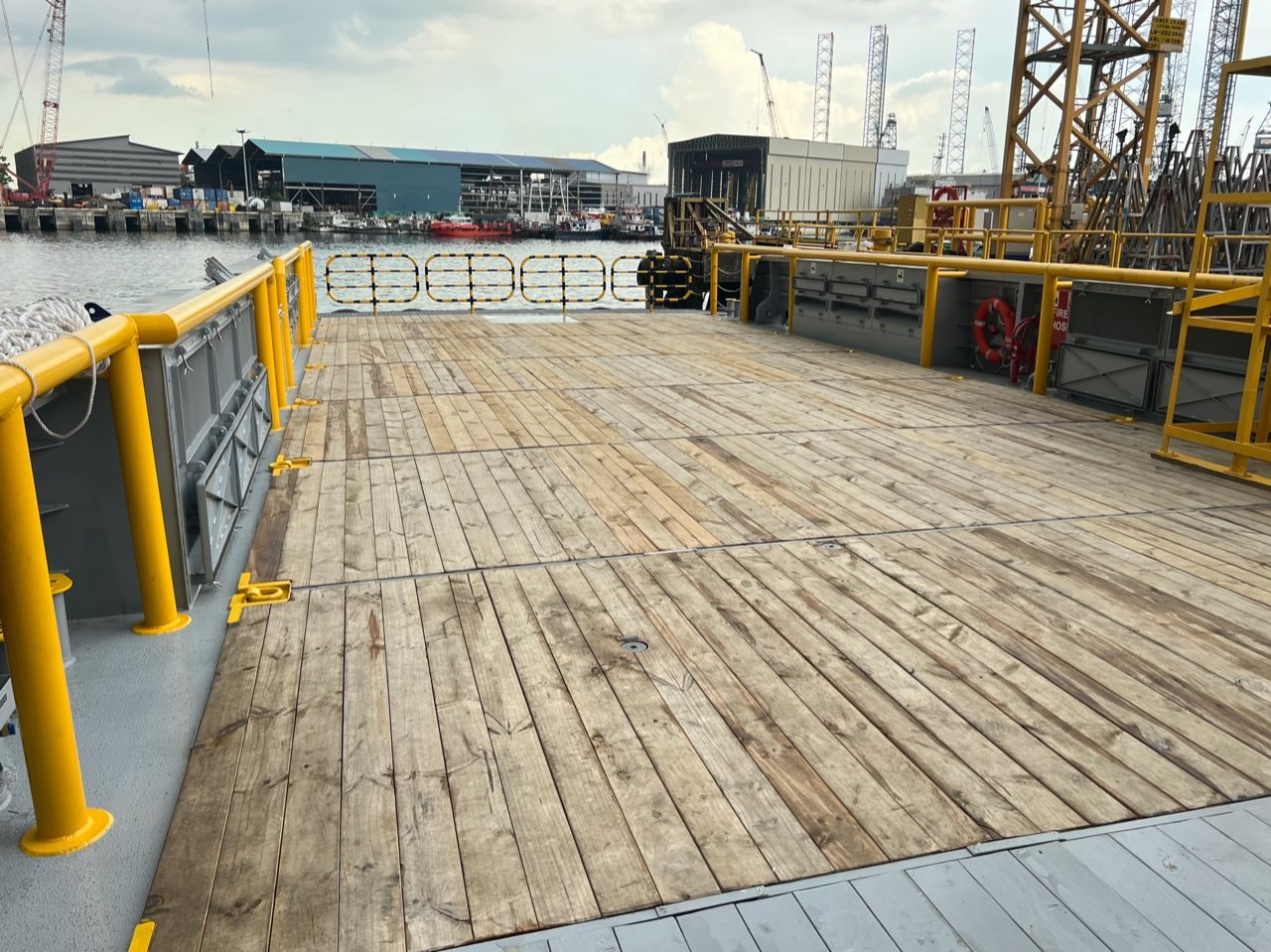

Cargo Deck Area:         120.0m2

Clear Deck Area:           140.0m2

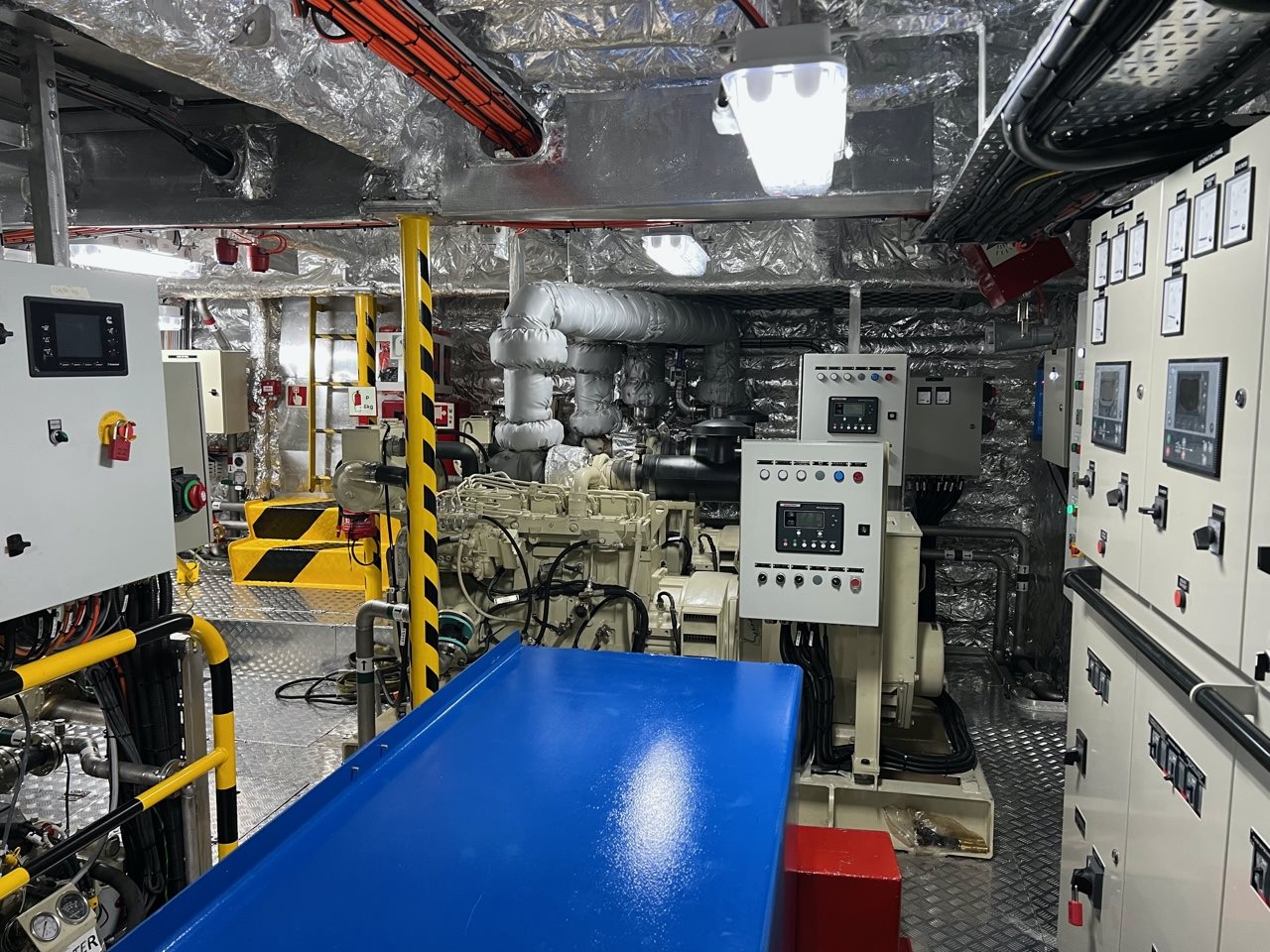

Auxiliary:                       2 x Cummins 6BT or Similar



Class:                           Lloyds Register/IACS

Flag:                            TBA

GRT:                            317 (Approx.)

Designer:                     Southerly Designs



Gangway:                    Safe Transfer of Passengers (Motion Compensated)

GYRO:                         Vessel Stabilizing System

½ Fifi:                           600/1200 m3/hr

Bow Thruster:               1 or 2 Electrical with 1 Tonne of Thrust (Approx.)

Deck Crane:                 Palfinger or Similar

Ride Control:                Naiad Active Interceptor or Similar

Biosafe Notation:          Infectious Disease Control

Green passport:            Safe Ship Recycling

IMO Tier III:                  SCR System

Semi Autonomous:       Sea Machine or Similar

DP1:                            Dynamic Positioning

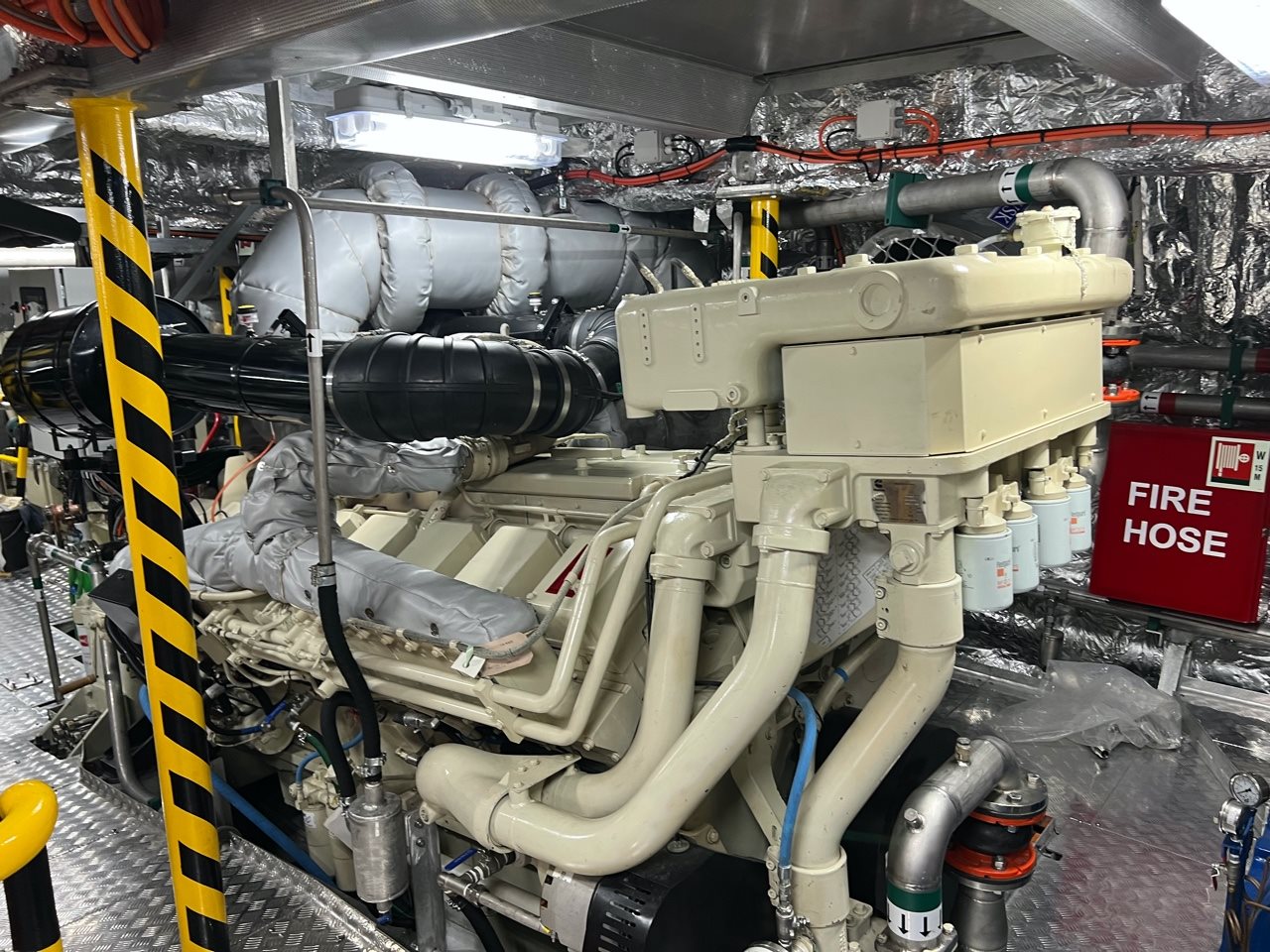

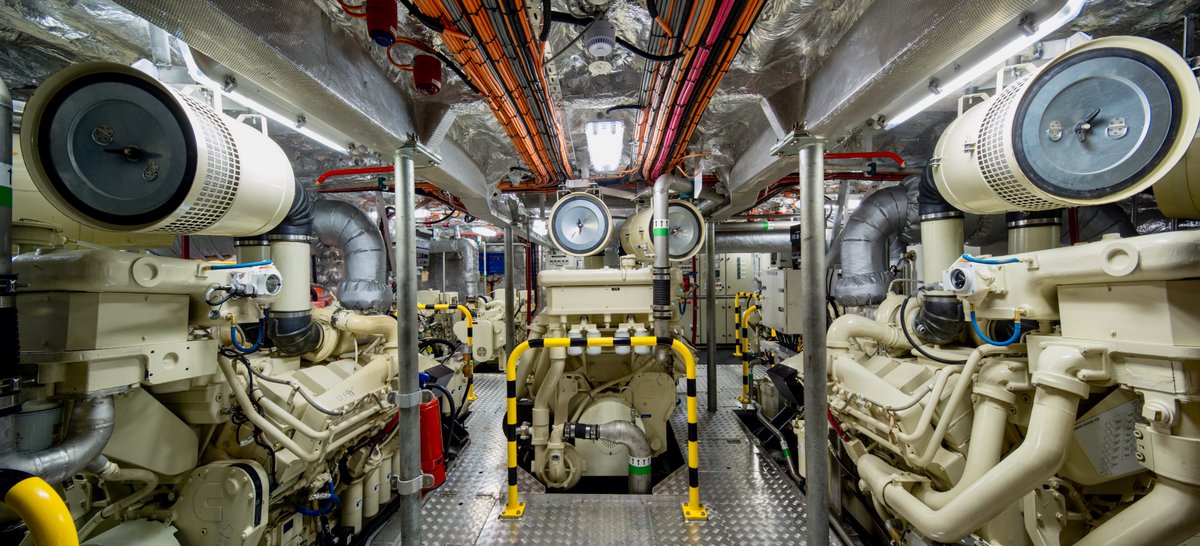

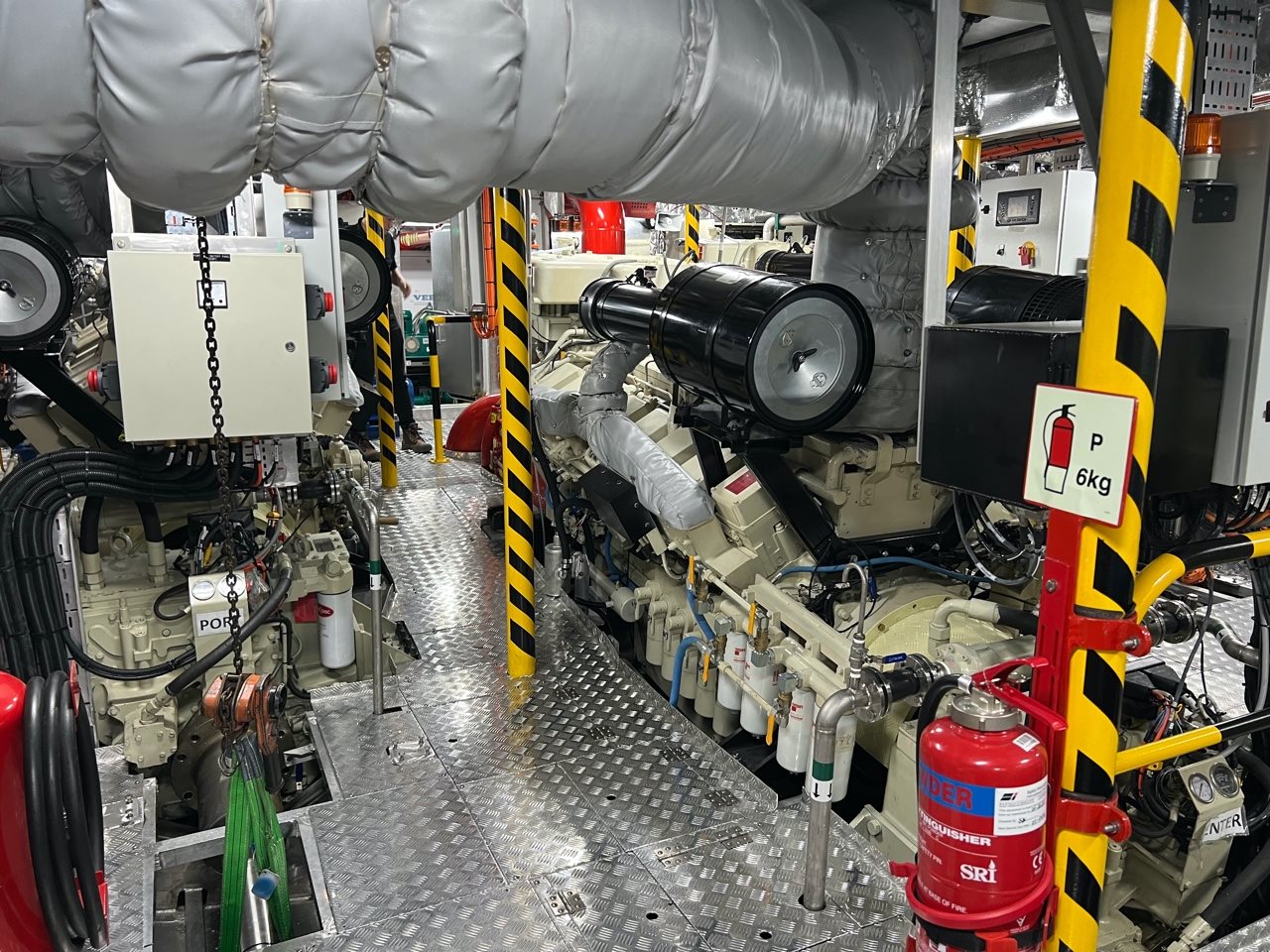

Main Engines:  3 x Cummins KTA50-M2            3 x 1342 kW (1800bhp) @ 1900 RPM (HD Rating)

Propulsion:       3 x Fixed Pitch Propellers          FPP

Speed @85%:  30.0 Knots (30DWT)                  Fuel Consumption (No Gen)905 l/hr @ 85% MCR

Speed @100%: 32.0 Knots (30DWT)                  Fuel Consumption (No Gen)999 l/hr @ 100% MCR





Main Engines:  3 x CATERPILLAR C32             3 x 1081 kW (1450bhp) @ 2300 RPM (C Rating)

Propulsion:       3 x Fixed Pitch Propellers         FPP

Speed @85%:  28.0 Knots (30DWT)                 Fuel Consumption (No Gen)728 l/hr @ 85% MCR

Speed @100%: 30.0 Knots (30DWT)                 Fuel Consumption (No Gen)872 l/hr @ 100% MCR





Main Engines:  3 x YANMAR 12AYM-WET        3 x 1140 kW (1550bhp) @ 1900 RPM (H Rating)

Propulsion:       3 x Fixed Pitch Propellers          FPP

Speed @85%:  28.5 Knots (30DWT)                  Fuel Consumption (No Gen)735 l/hr @ 85% MCR

Speed @100%: 30.0 Knots (30DWT)                 Fuel Consumption (No Gen)870 l/hr @ 100% MCR





OTHER PROPULSION OPTIONS INCLUDE:

3 x MAN D2862 LE483, 3 x BAUDOUIN 12M26.3 P2 or Similar
