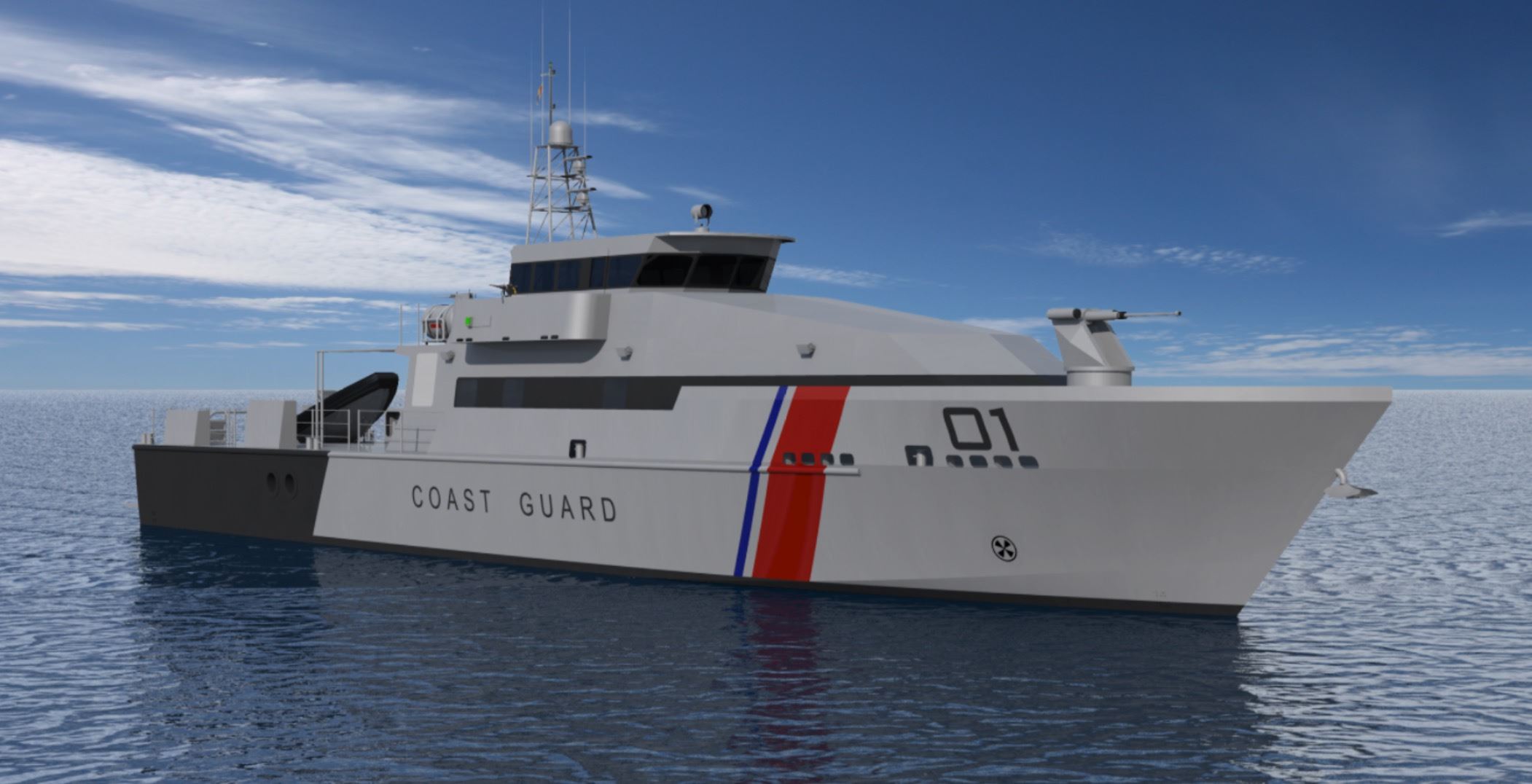

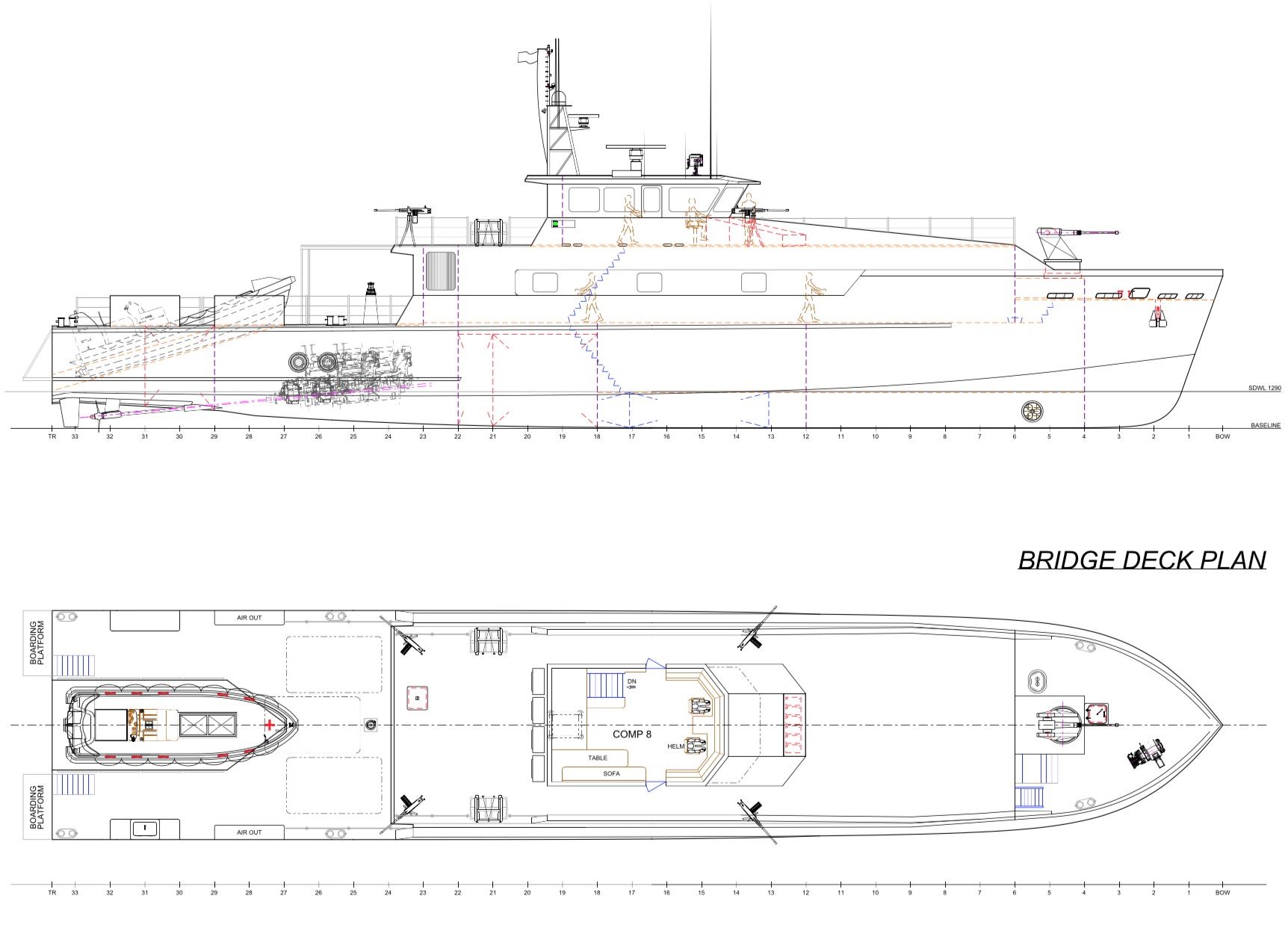

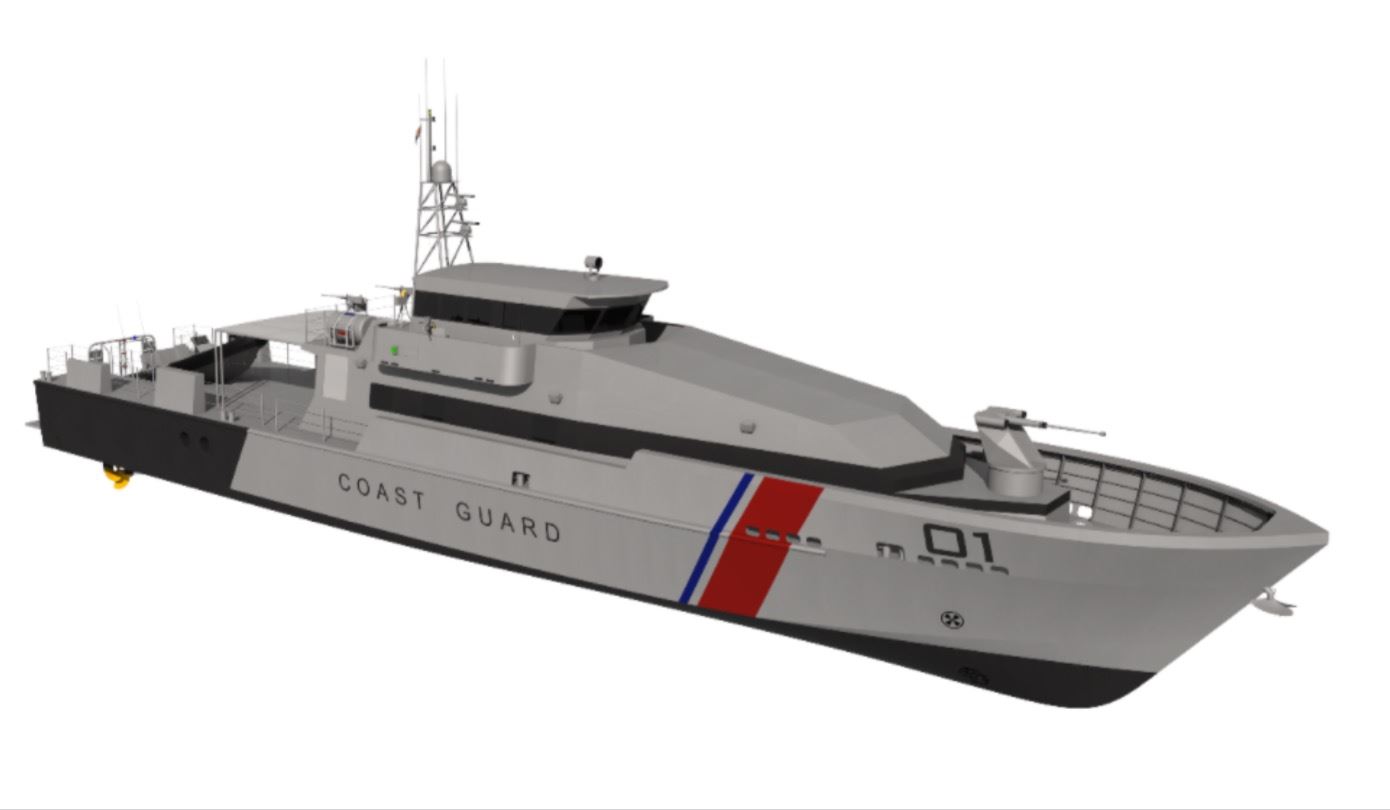

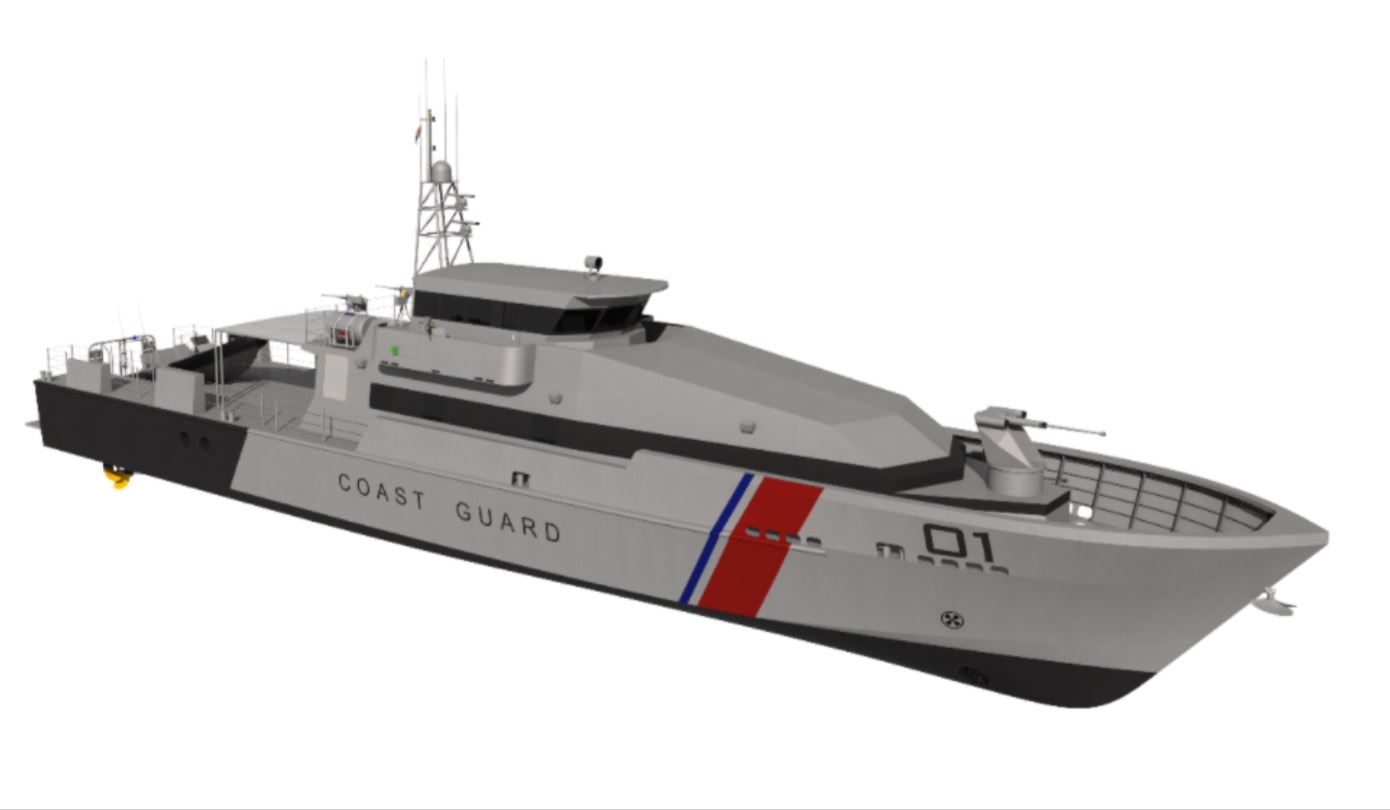

40m Raptor Offshore Patrol Vessel built to Lloyds Classification to +100A1 SSC, MONO, PATROL, G4, MCH notation on a well proven 3^rd Generation hull platform.

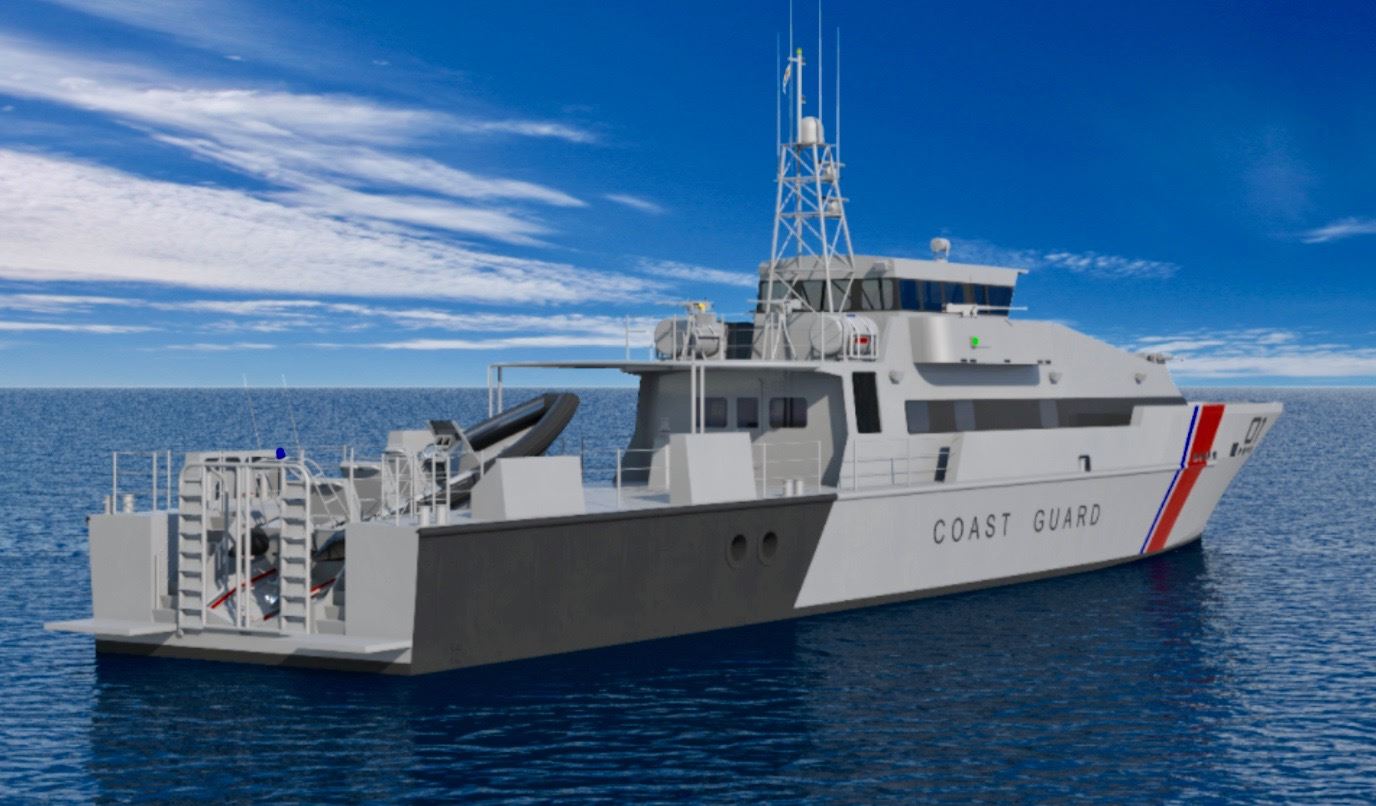

Triple Cummins KTA50 developing 1342 kw/1800hp @ 1900 RPM each and providing a service speed of 28 knots @ 85% MCR at 30 DWT.  Ballistic protected to NIJ level III Nato standard including the Bridge and Main deck cabin sides and fwd/aft bulkheads from deck level to top of windows.  Five Weapon stations are provided for owner supplied and installed weapons.  An aft deployment RHIB ramp shall be constructed integral to the vessels transom for RHIB deployment (RHIB not included).

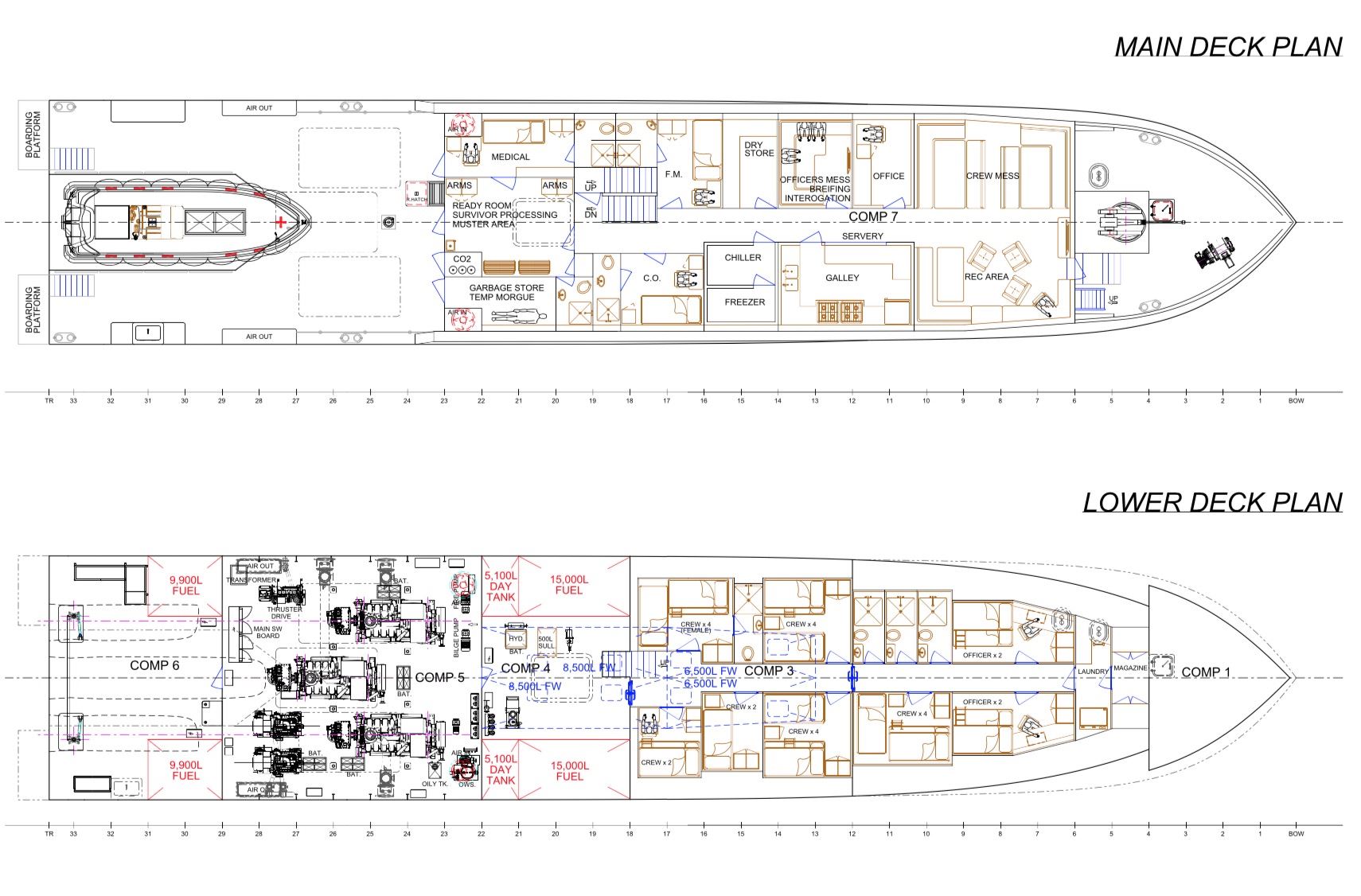

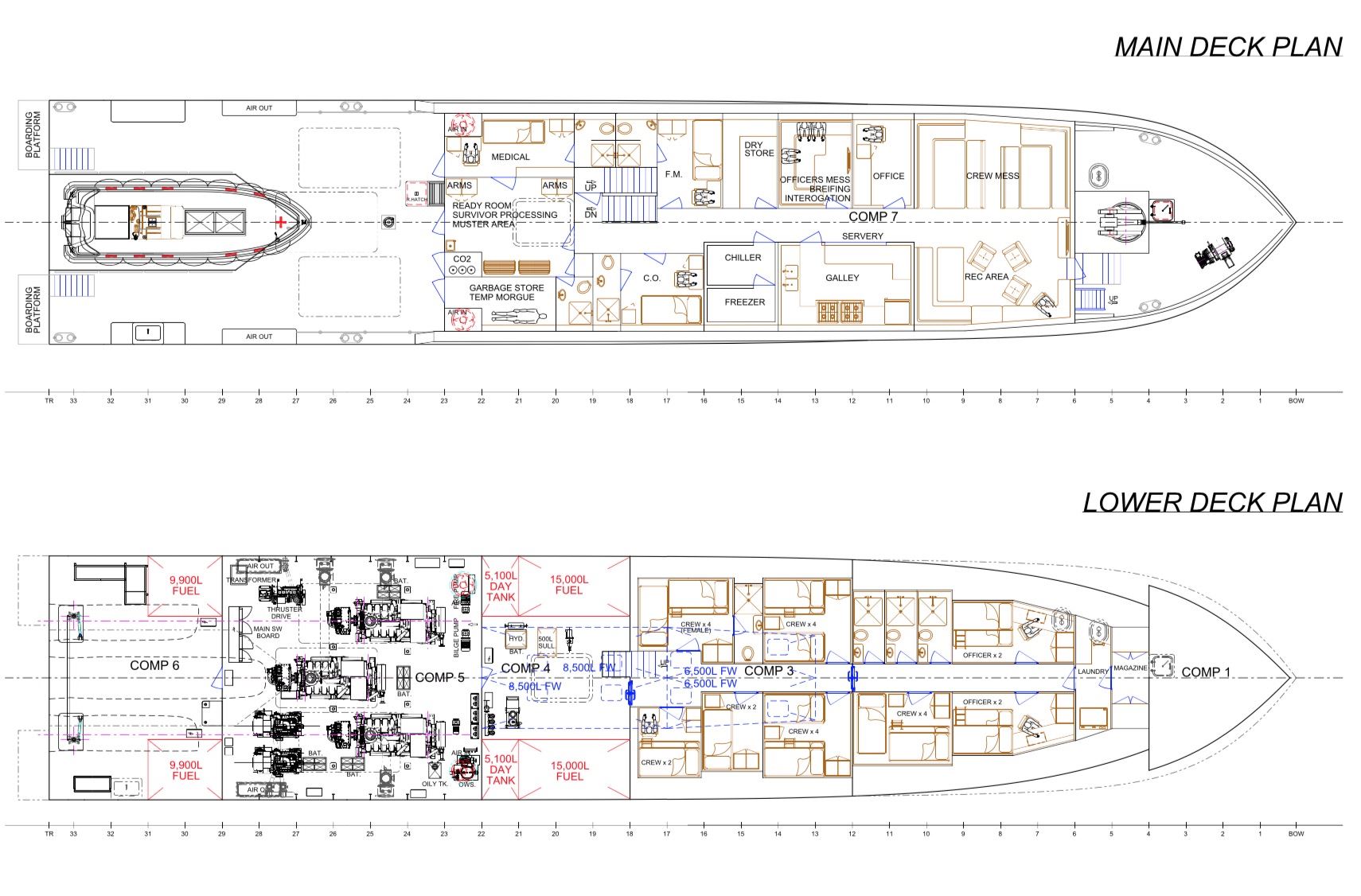

Air-conditioned accommodation for up to 26 crew members.

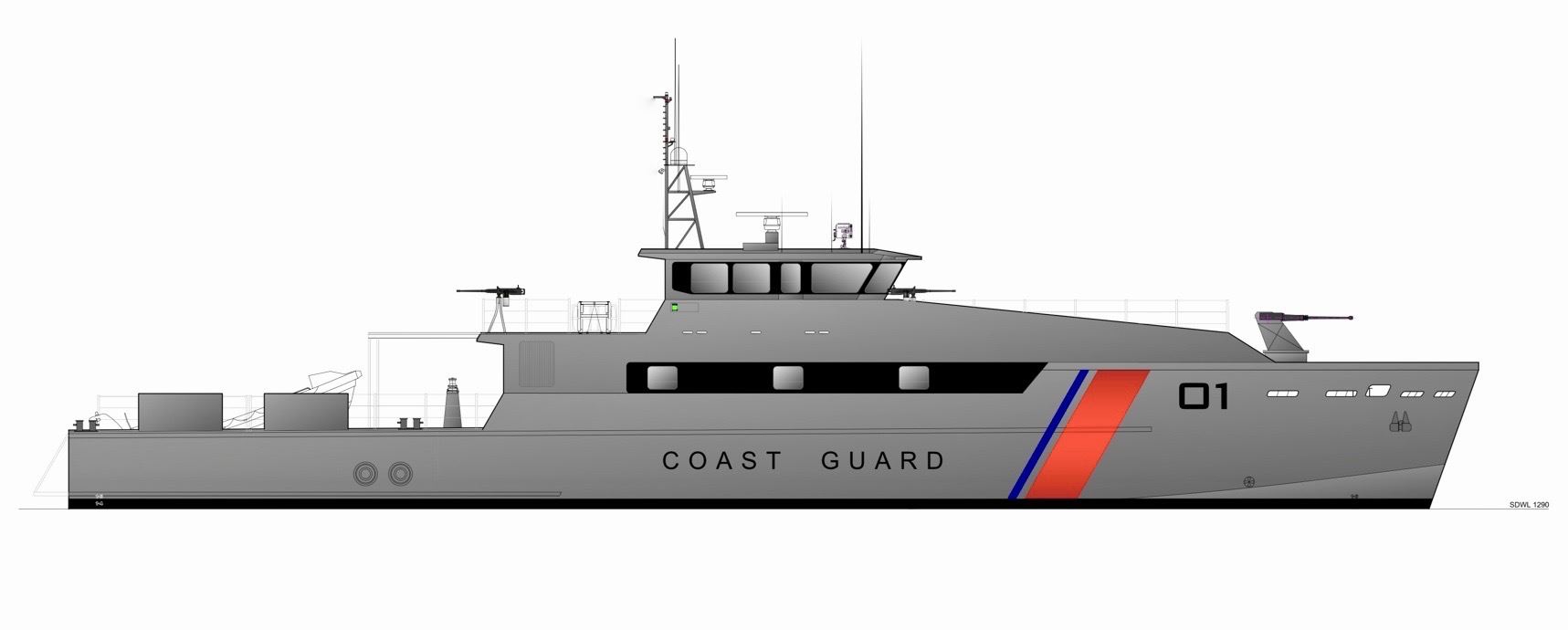

Length overall: 40.4 metres

Beam (Max) Moulded: 7.90 metres

Hull Baseline Design Draft (approx.): 1.7 metres

Propeller Draft (approx.): 1.9 metresGRT: Below 500 GT



TANK CAPACTIESFuel Oil: 60,000 litres

Fresh Water: 30,000 litres

Black/Grey Water: 500 litres



Main Propulsion Engines: 3 x Cummins KTA50 at 1342 kw (1800hp) @ 1900 RPM

Propulsion: 3 x Fixed Pitch Propellers

Generators: 3 x Cummins 6BT5.9 at 80ekW, 415V/50Hz

Bowthruster: 1 x 60kw Electric tunnel thruster



PERFORMANCEService Speed: 28.0 knots @ 85% MCR at 30 DWTExternal air: -10 C to + 35 C (80% relative humidity)

Internal air: +20 C to + 25 C (50% relative humidity)

Machinery space: Max 45 C

Sea water: 0 C to 32 C



ACCOMMODATIONS
Crew: 26 Persons
