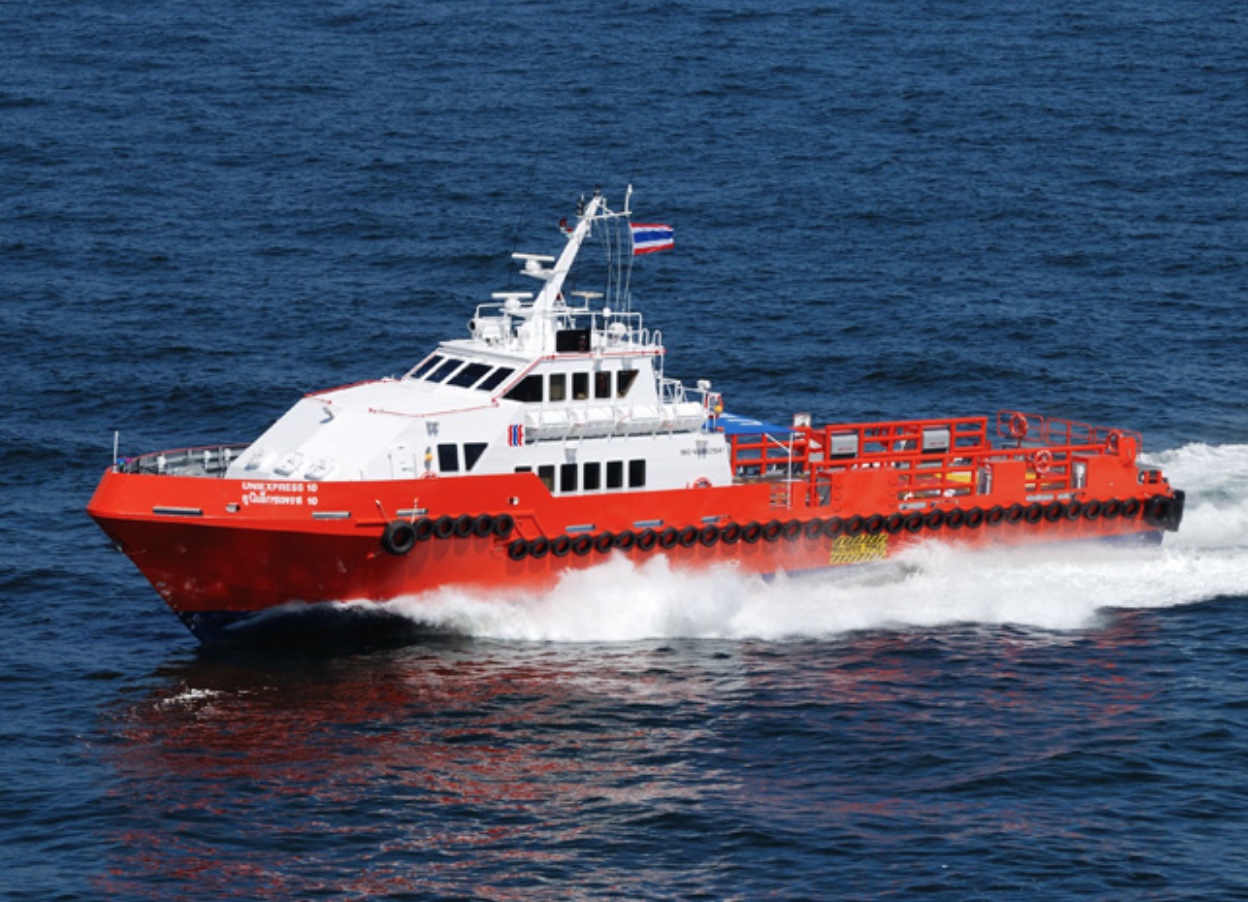

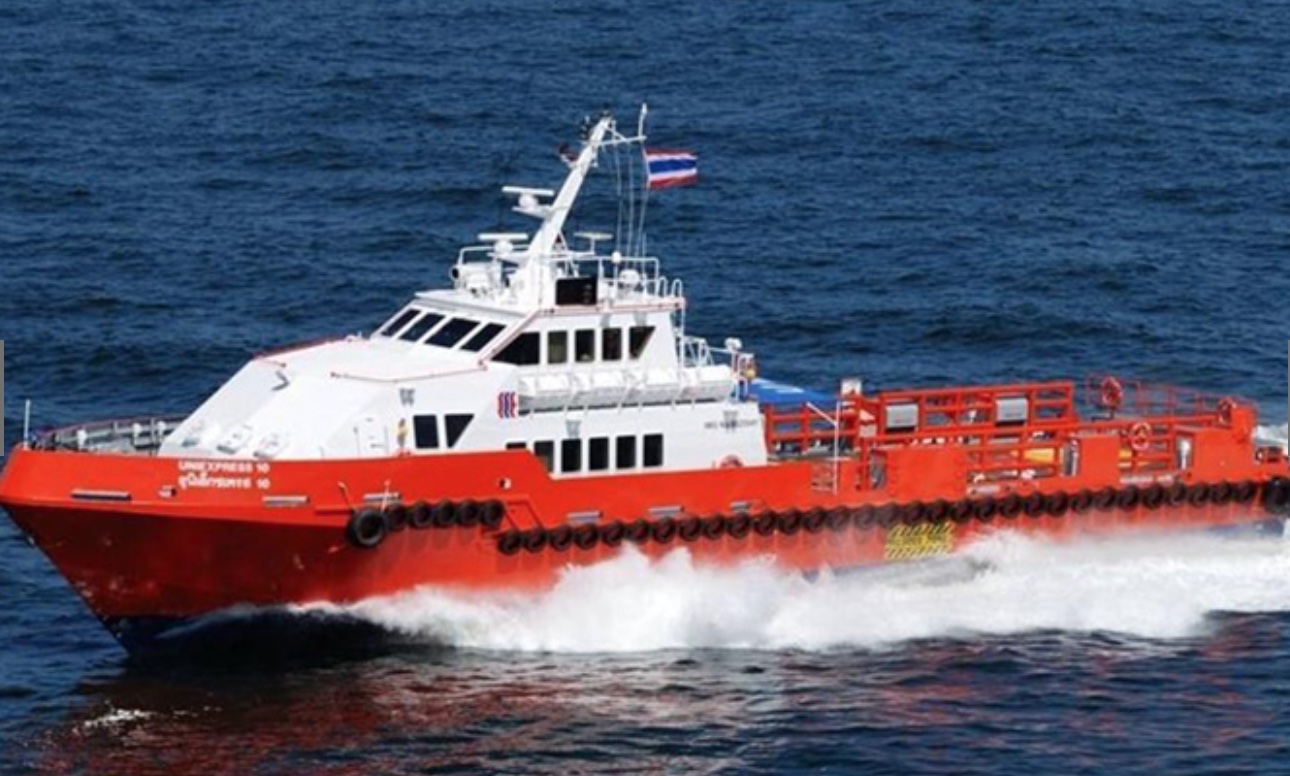

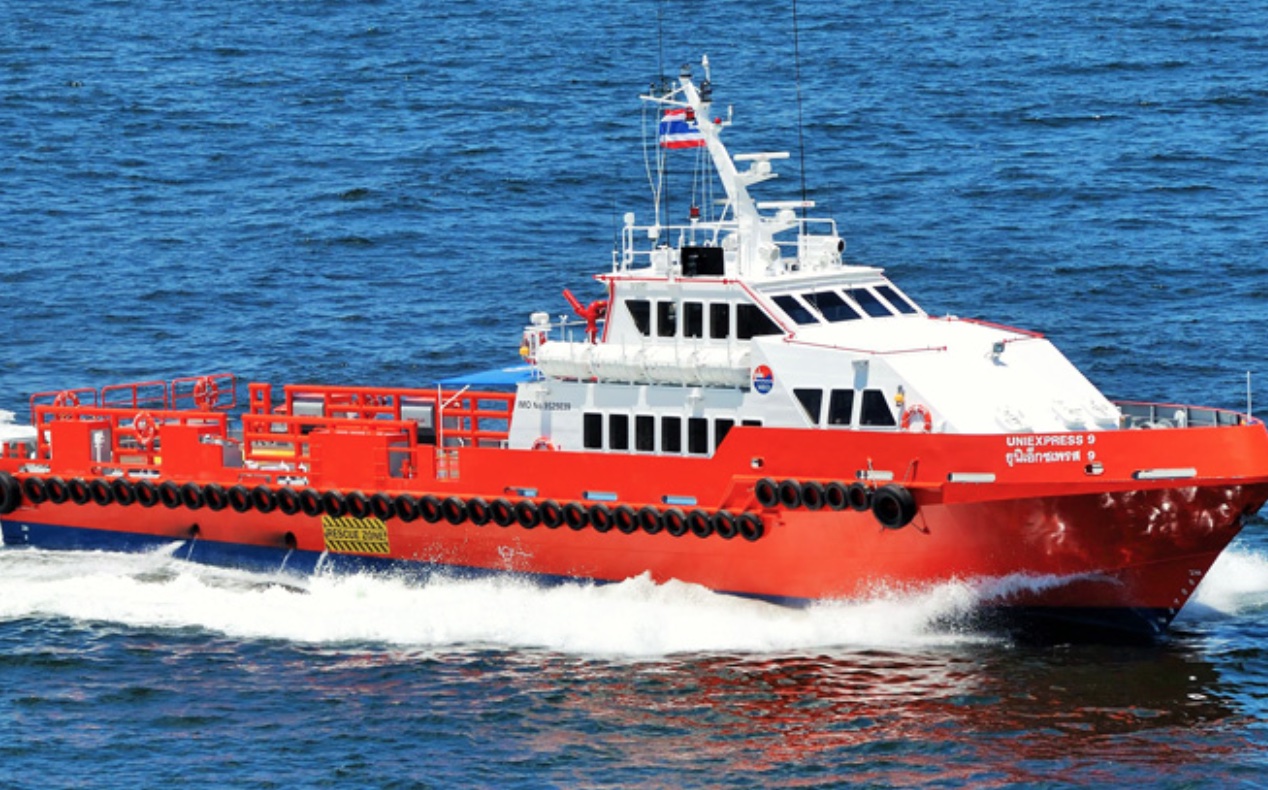

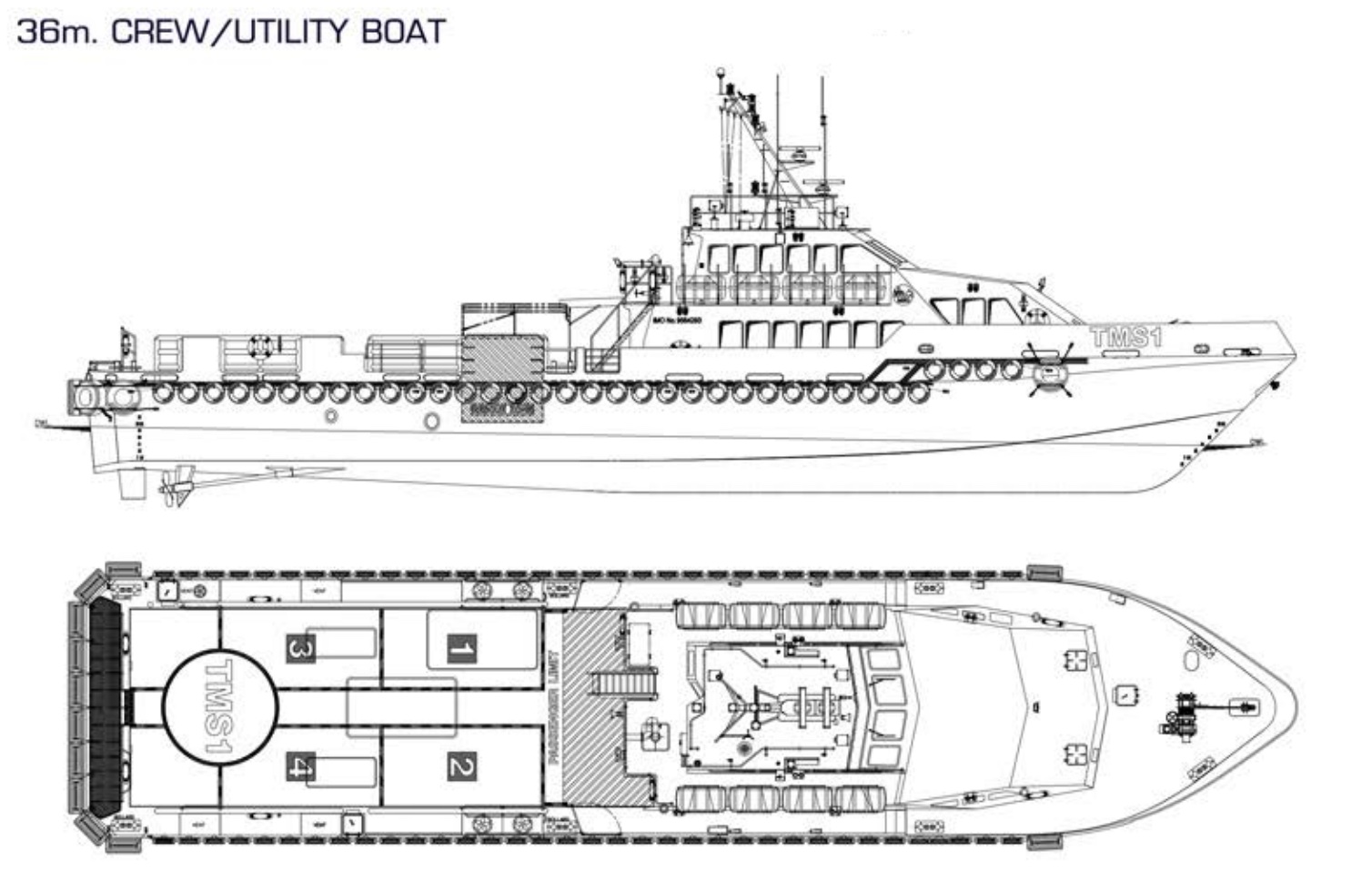

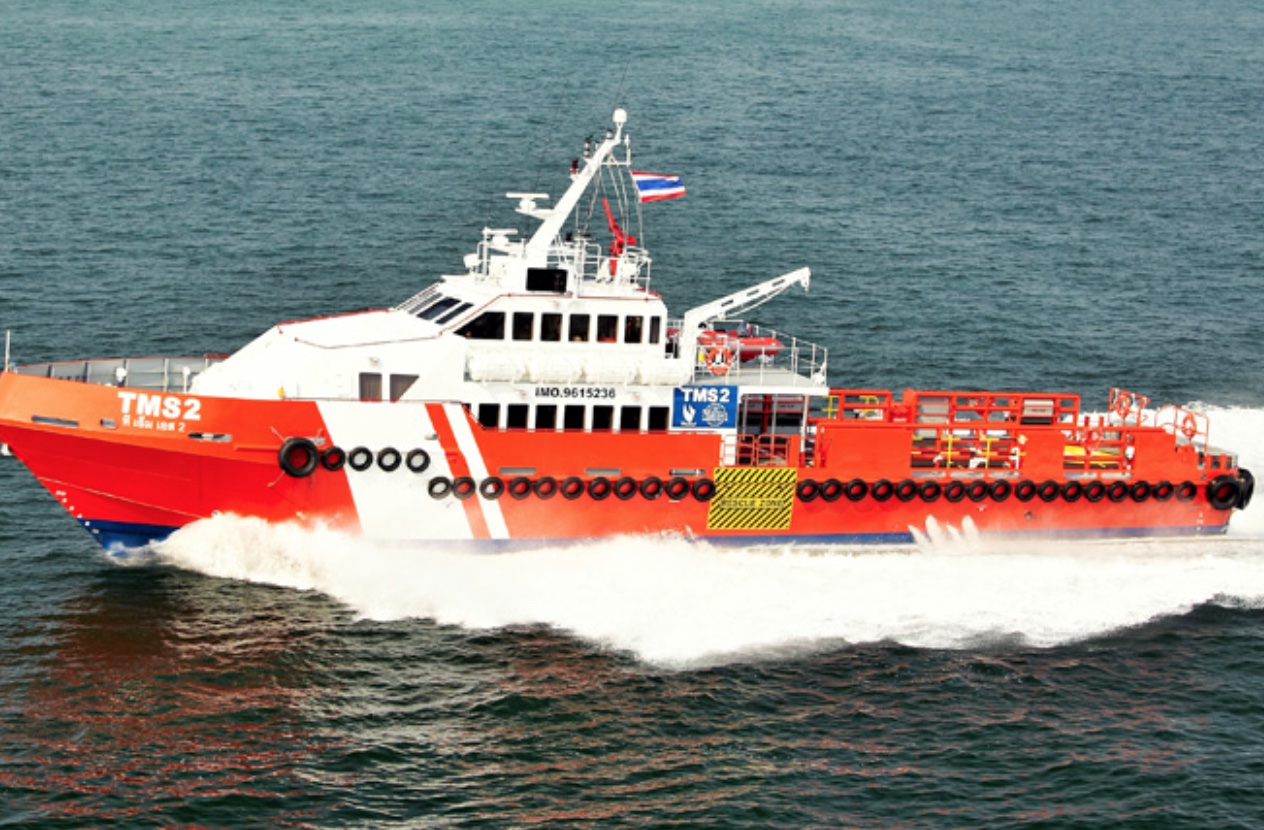

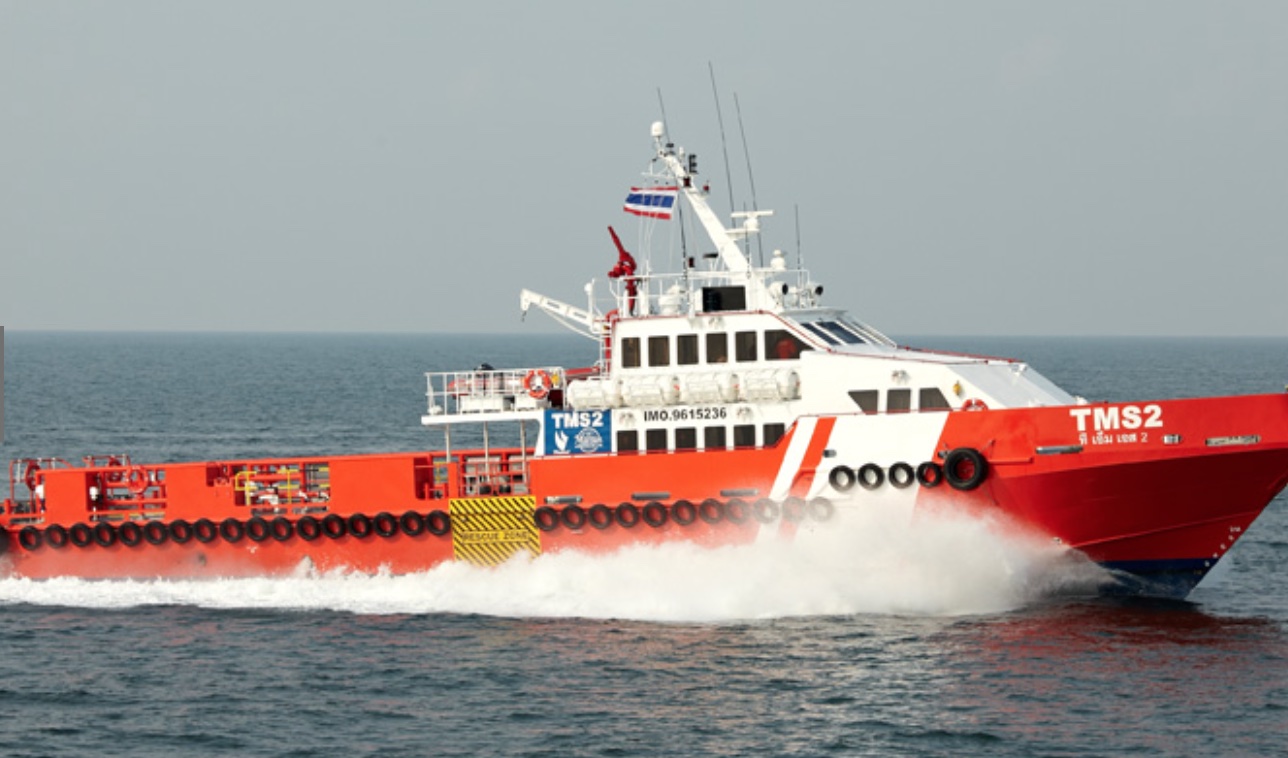

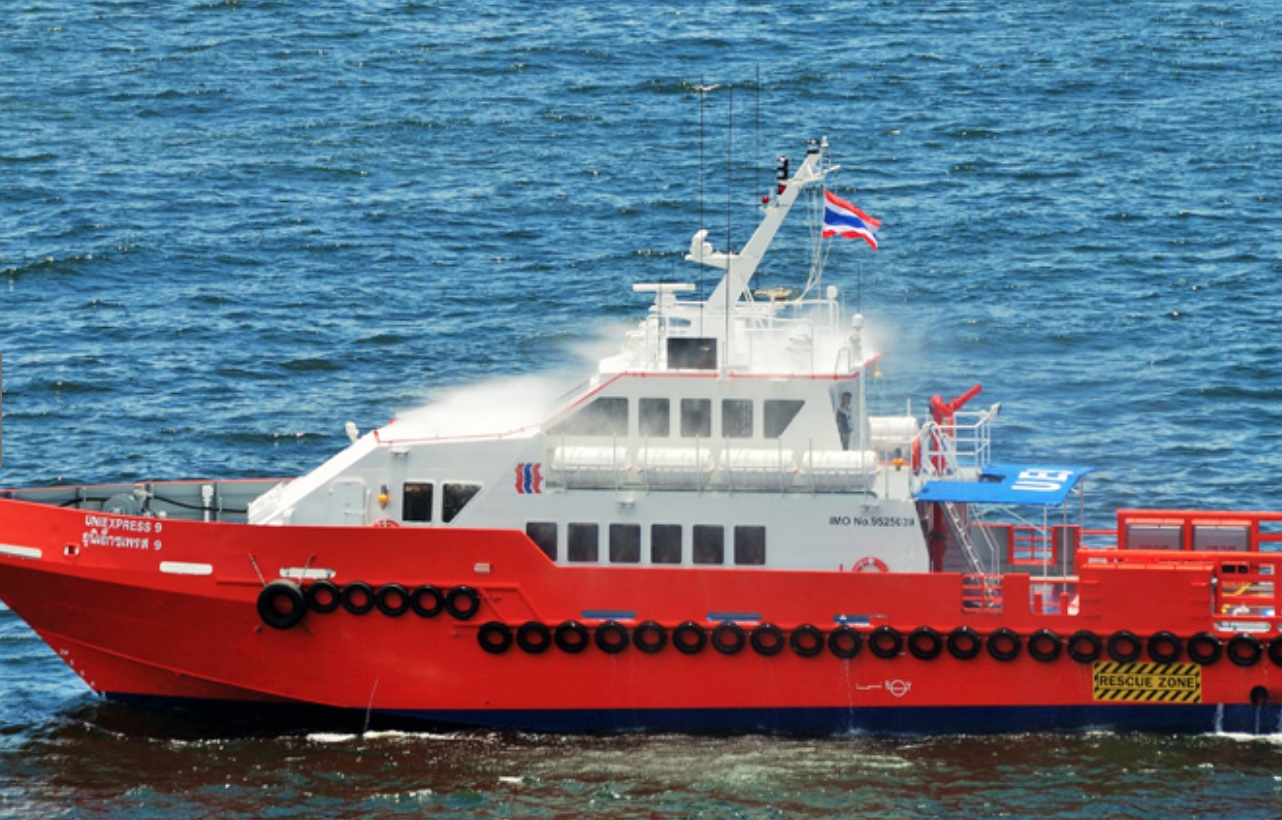

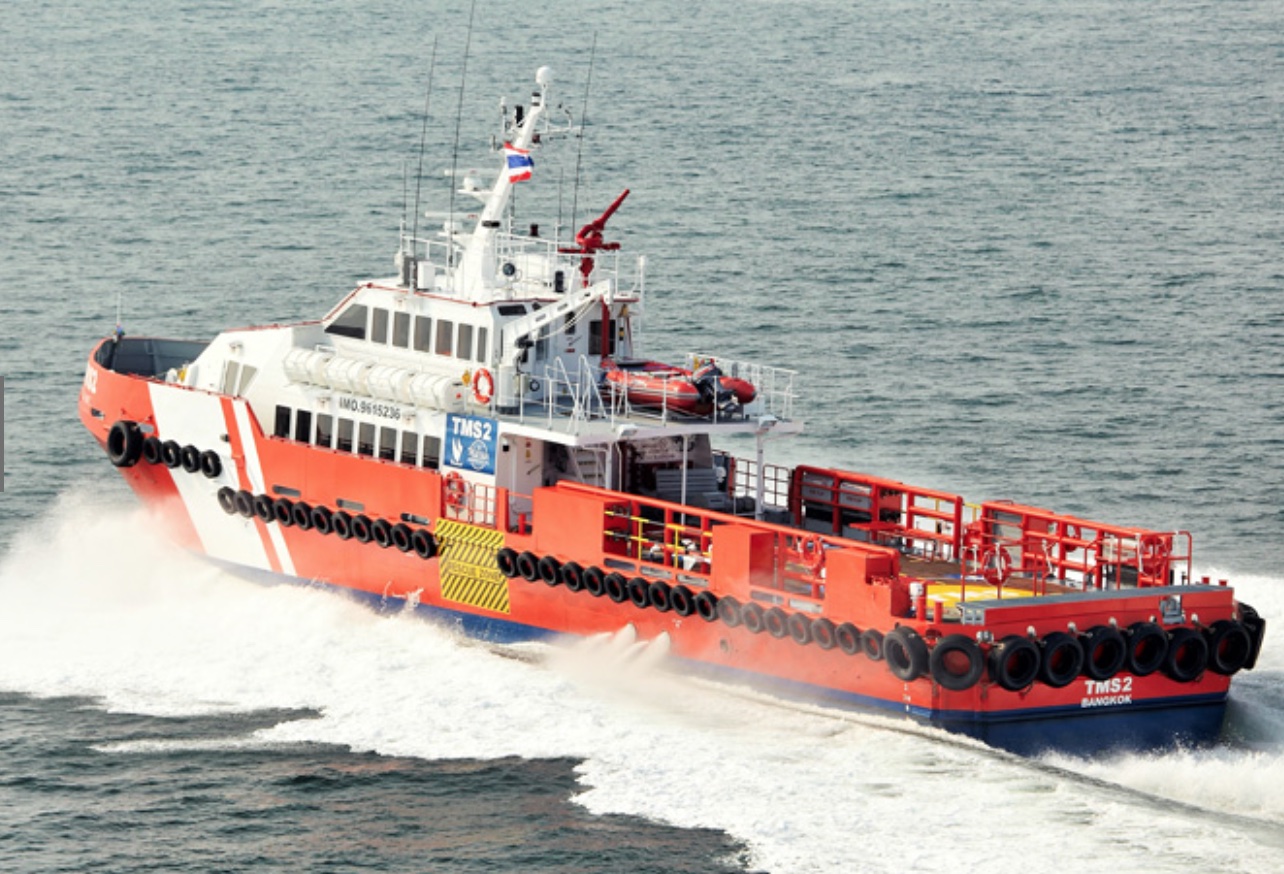

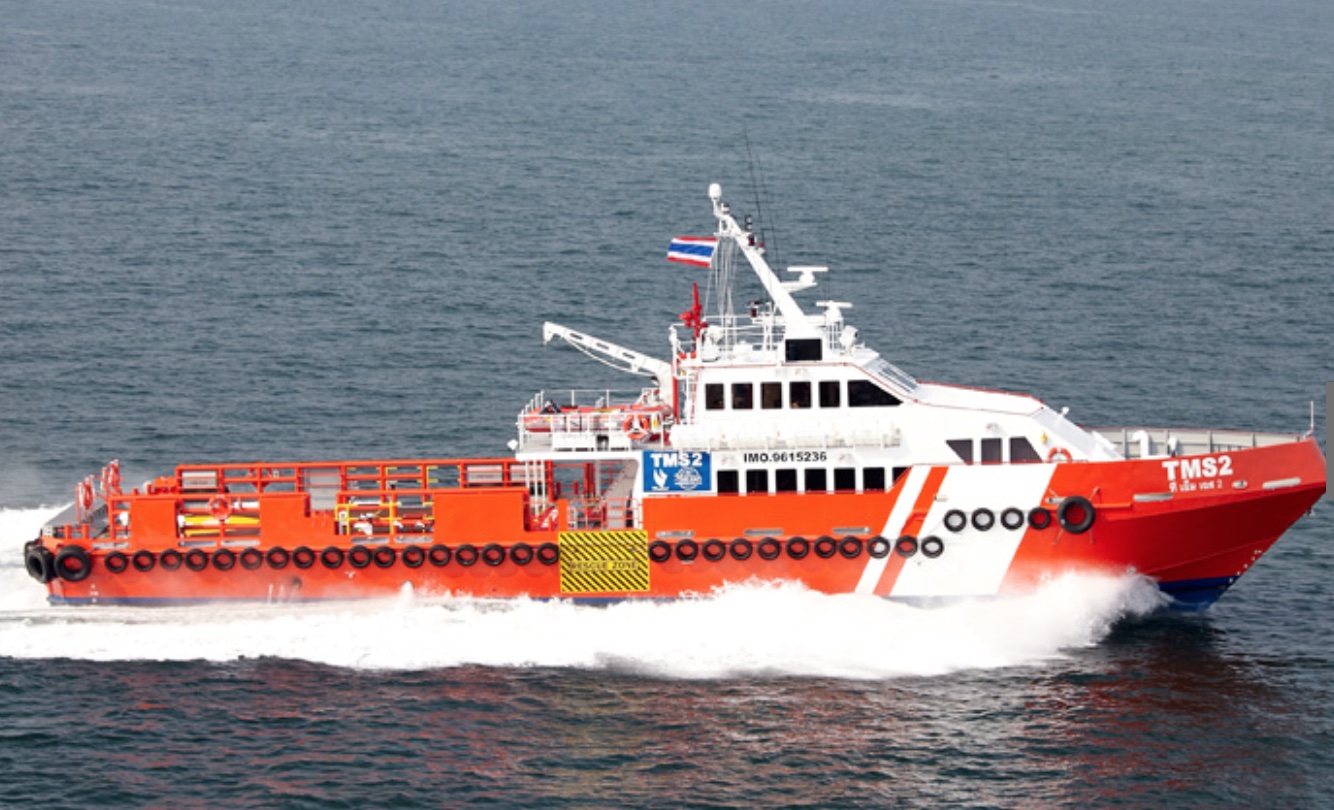

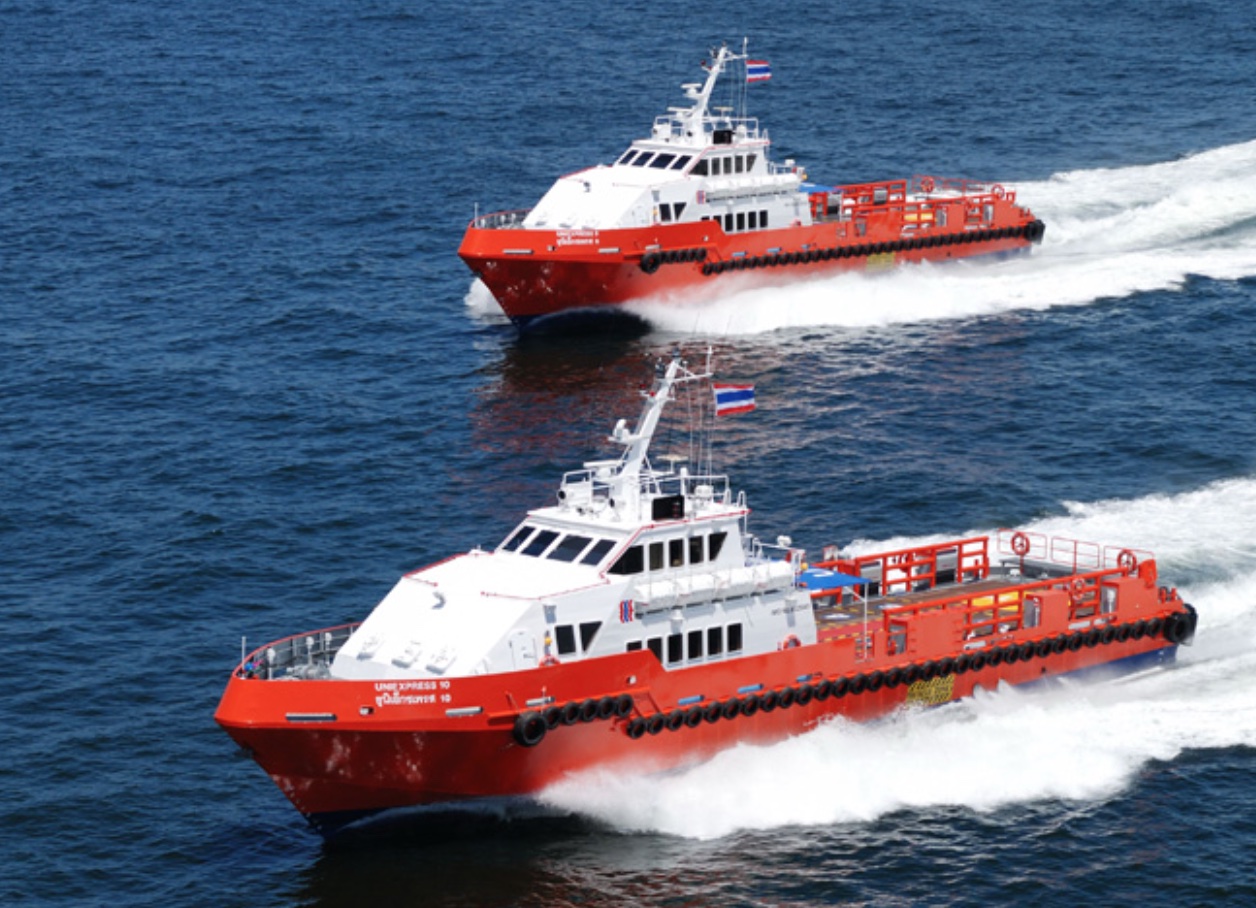

NEW BUILD - 36m Crew / Utility Boat

Listing ID - 3990
Description	NEW BUILD - 36m Crew / Utility Boat
Date Launched	Built to Order
Length	36m (118ft)
Beam	7.6m (24ft 11in)
Draft	1.25m (4ft)
Location	Thailand
Broker	Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323
Price	POA
View As PDF

LOA: 36m

Beam: 7.6m

Depth: 3.3m

Draught: 1.25m

Fuel Capacity: 50 cu m

Fresh Water Capacity: 20 cu m

Clear Deck Space: 67 sq m

Deck load: 50 tons

Max Speed: 24+ knots

Range: 1200+ nm

Structure: Aluminium Hull and Superstructure

Classification

Bureau Veritas

“1, +Hull, +Mach, Crew Boat / Cargo Utility Vessel Coastal Area”

Main Machinery

Engines: 3x MCR 1350 BHP

Cummins KTA 38M 2

Propulsion: 3x FPP

Auxiliary

2x 85kWe

Diesel Generator Sets

Electrical Systems

220 / 380V AC 3Ph 50Hz and 24V DC system with batteries for back up of control systems and emergency lighting

Complement

Crew: 8-10

Passenger: 97

Communication / Navigation

Full equipment with MF/HF, VHF with DSC, Inmarsat-C, Navtex, Radar Transponder and EPIRB

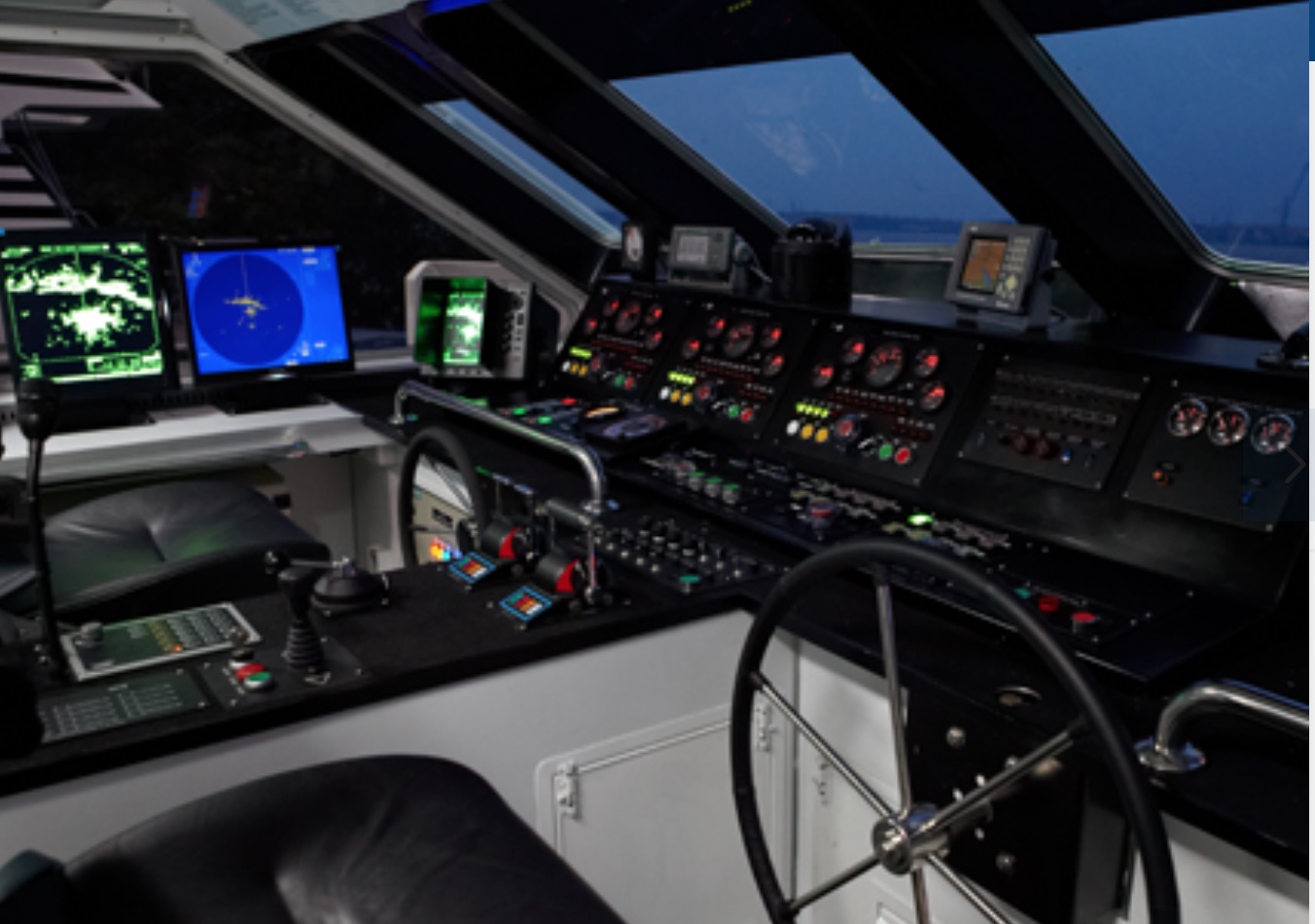

ARPA Radar, Navigation Radar, Gyro Compass, GPS, Speed Log, Echo Sounder, Wind Speed + Direction

Main Features

2 Combined Internal fire Main / Bilge / GS pumps

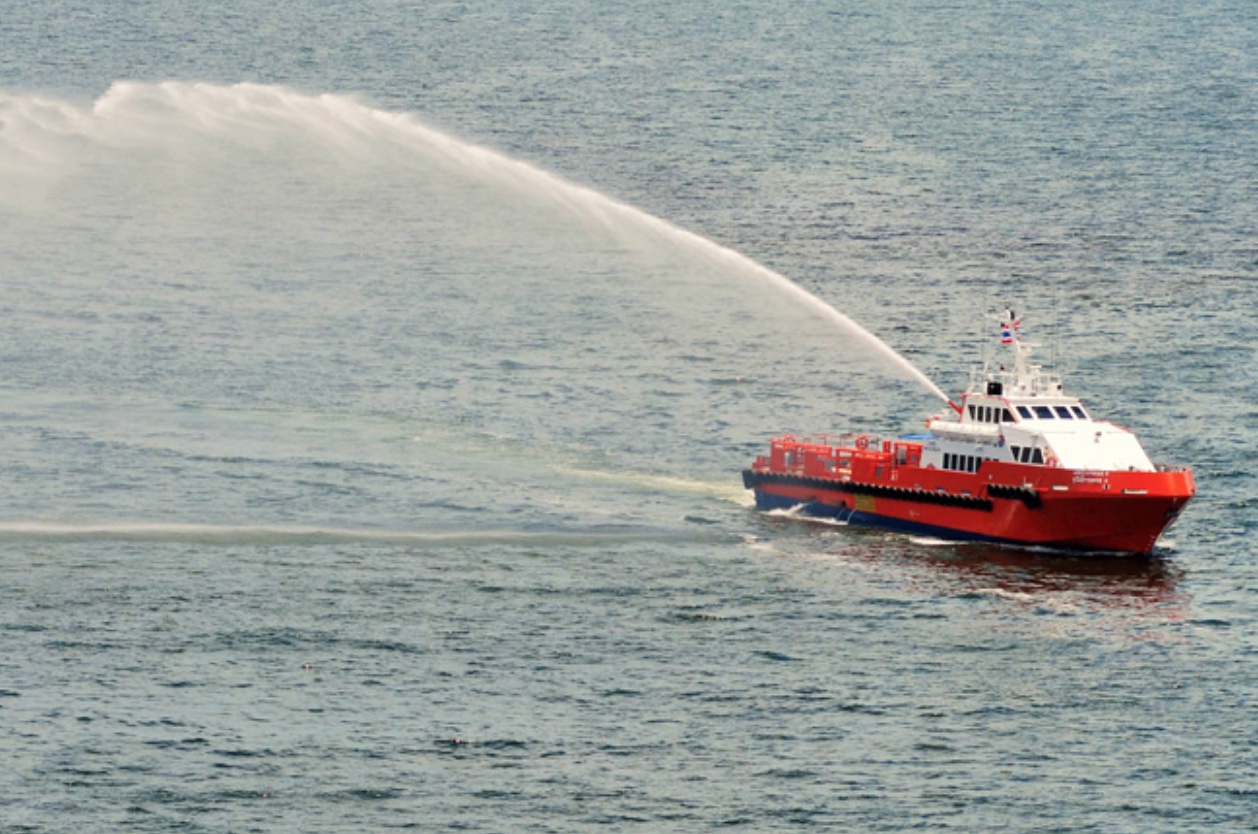

External fire-righting system with dedicated pump and monitor, half Fi-Fi, 1200 cu m/hr

Bow Thruster (optional)

Anti-pollution equipment according to IMO Rules

Well-proven design 16 deliveries to PTTEP and Chevron.

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
