NEW BUILD - 24m Passenger Ferry

Listing ID - 3527
Description	NEW BUILD - 24m Passenger Ferry
Date Launched	Built to Order
Length	23.6m (77ft 5in)
Beam	6.1m (20ft)
Draft	1m (3ft 3in)
Note	60 t
Location	Latvia
Broker	Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323
Price	TBA
View As PDF

Length overall: 23.6m

Waterline length: 23.5m

Beam: 6.1m

Draught: 0.8 - 1m

Air Draught: 1.9 - 2.12m

Displacement (max): 60t

Engines: (2x) 209kW

Cruising speed: 10 knots

Passengers: 130 pax

Bicycles: 48 pc

Fuel capacity: 2500 litres

Freshwater tank: 240 litres

Hull and Superstructure material: Aluminium

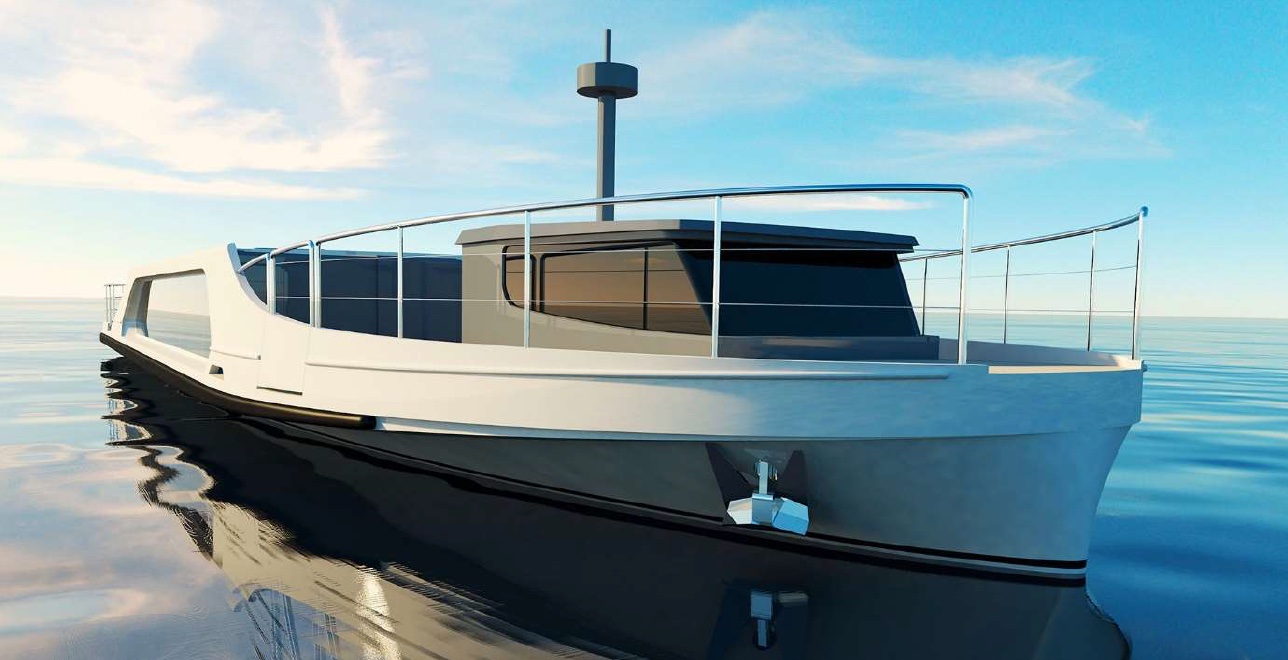

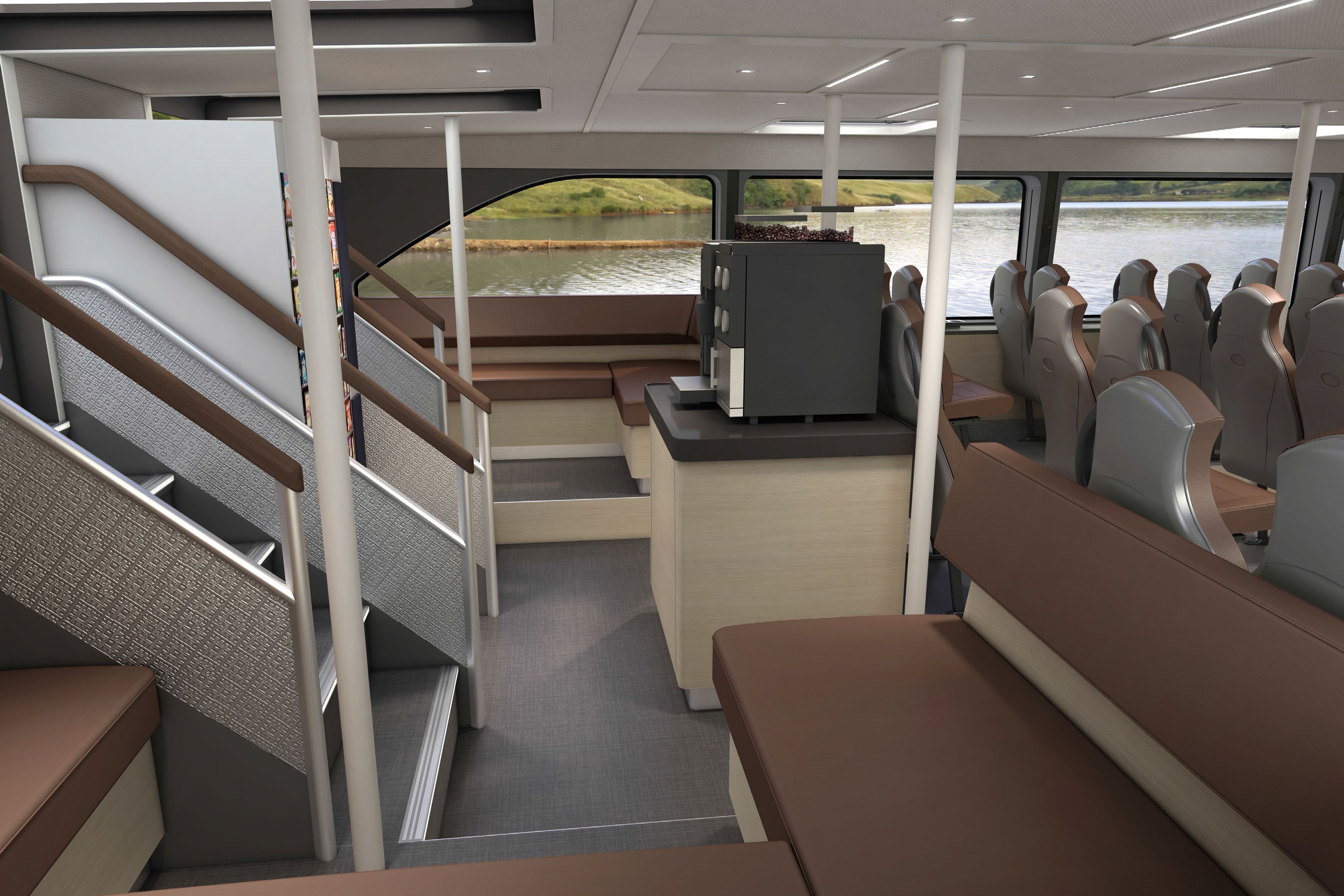

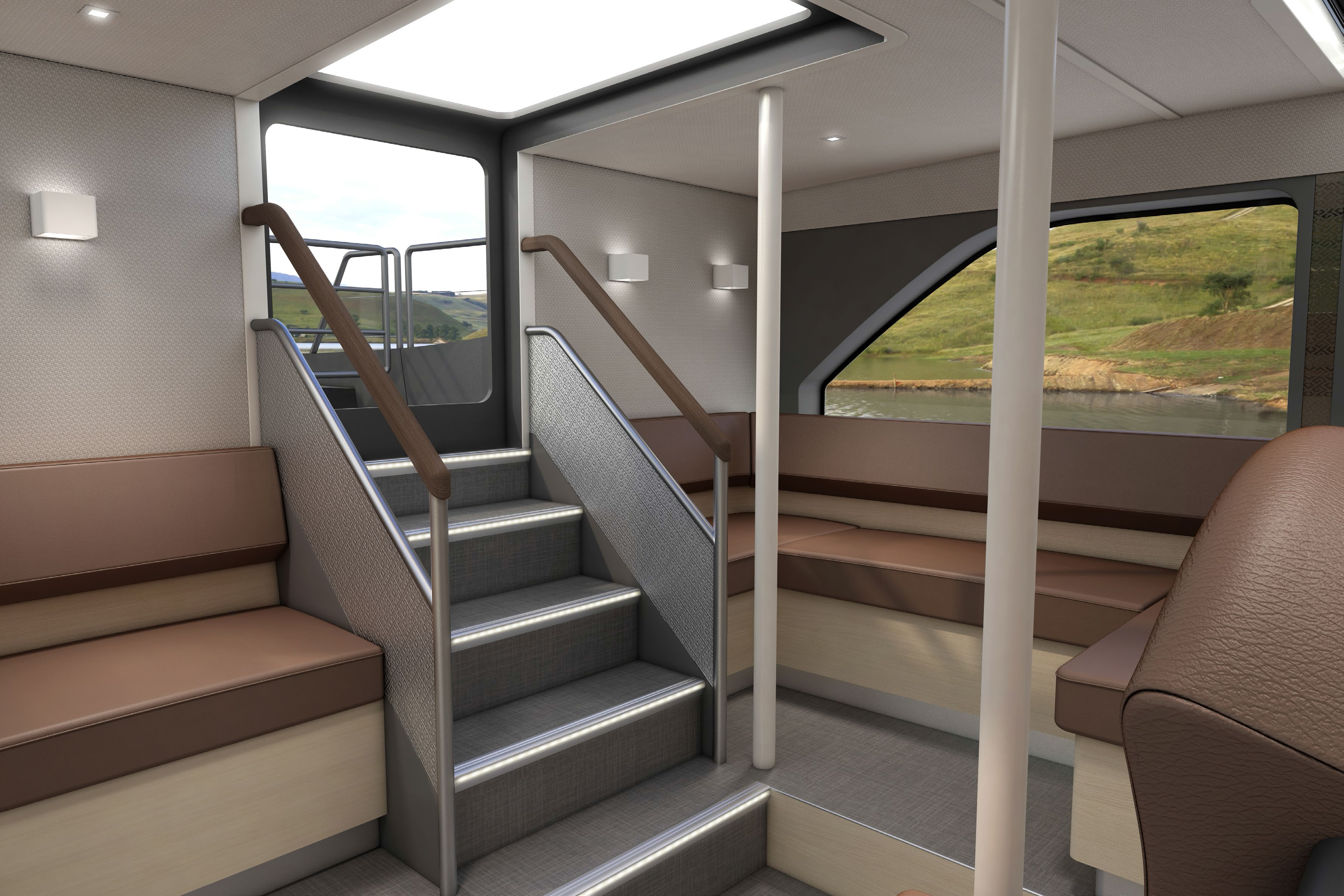

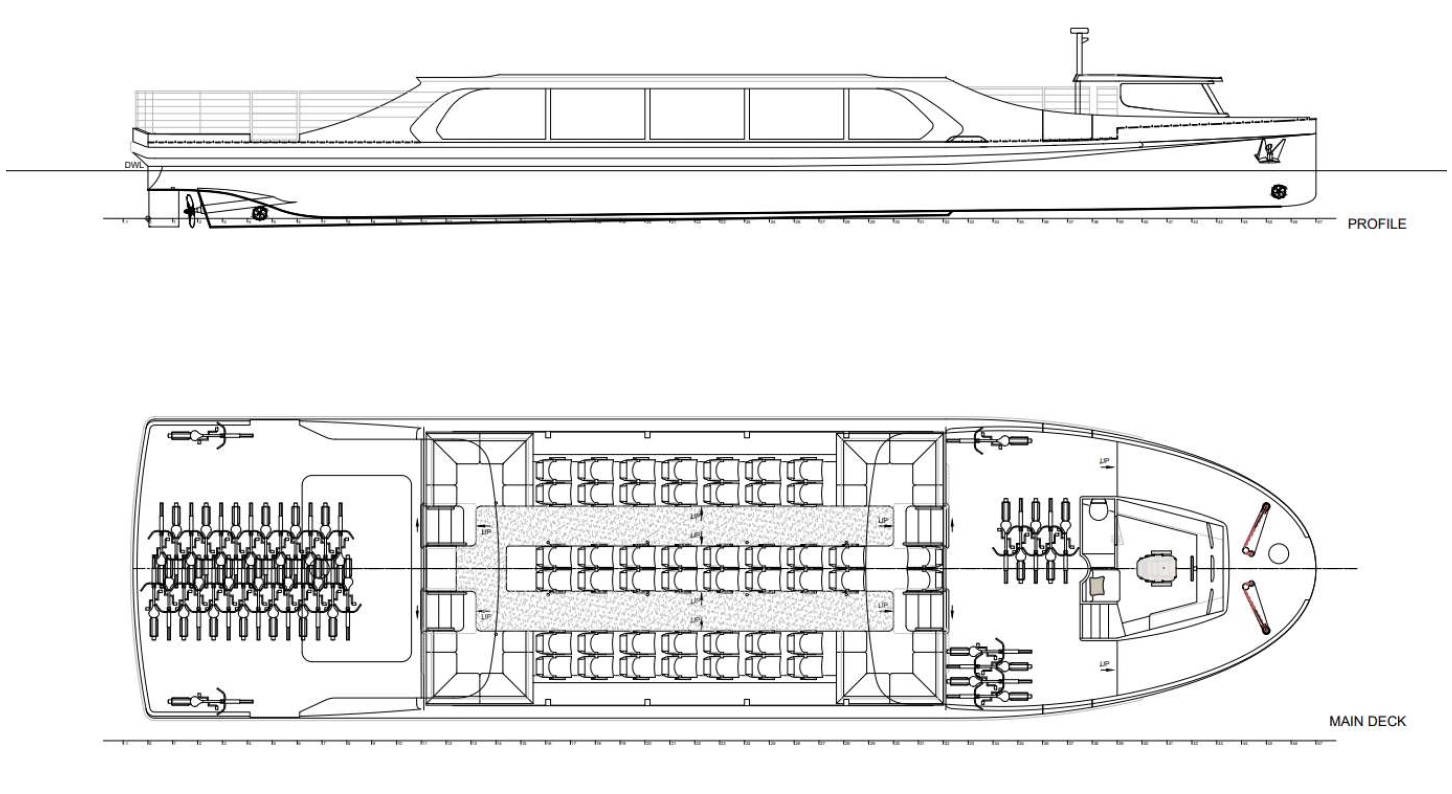

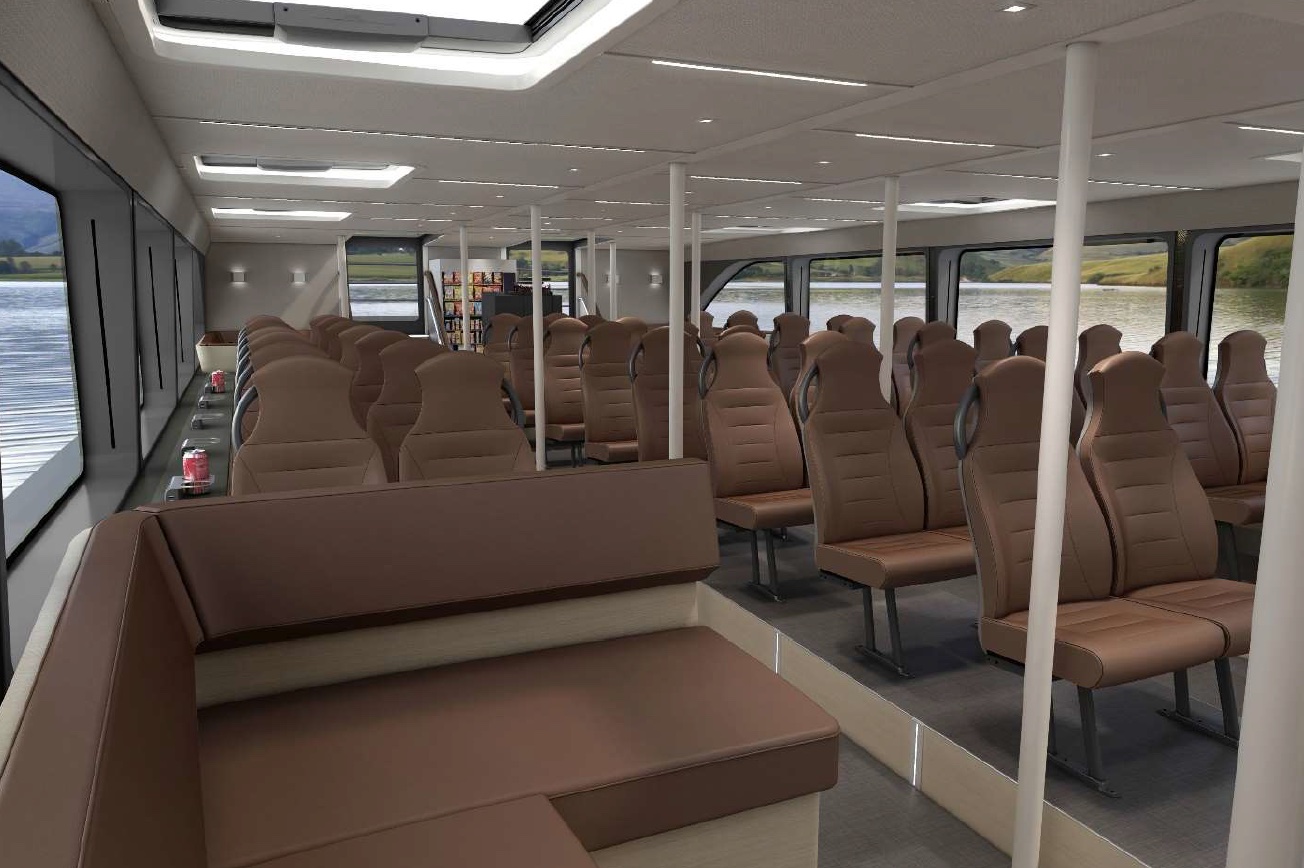

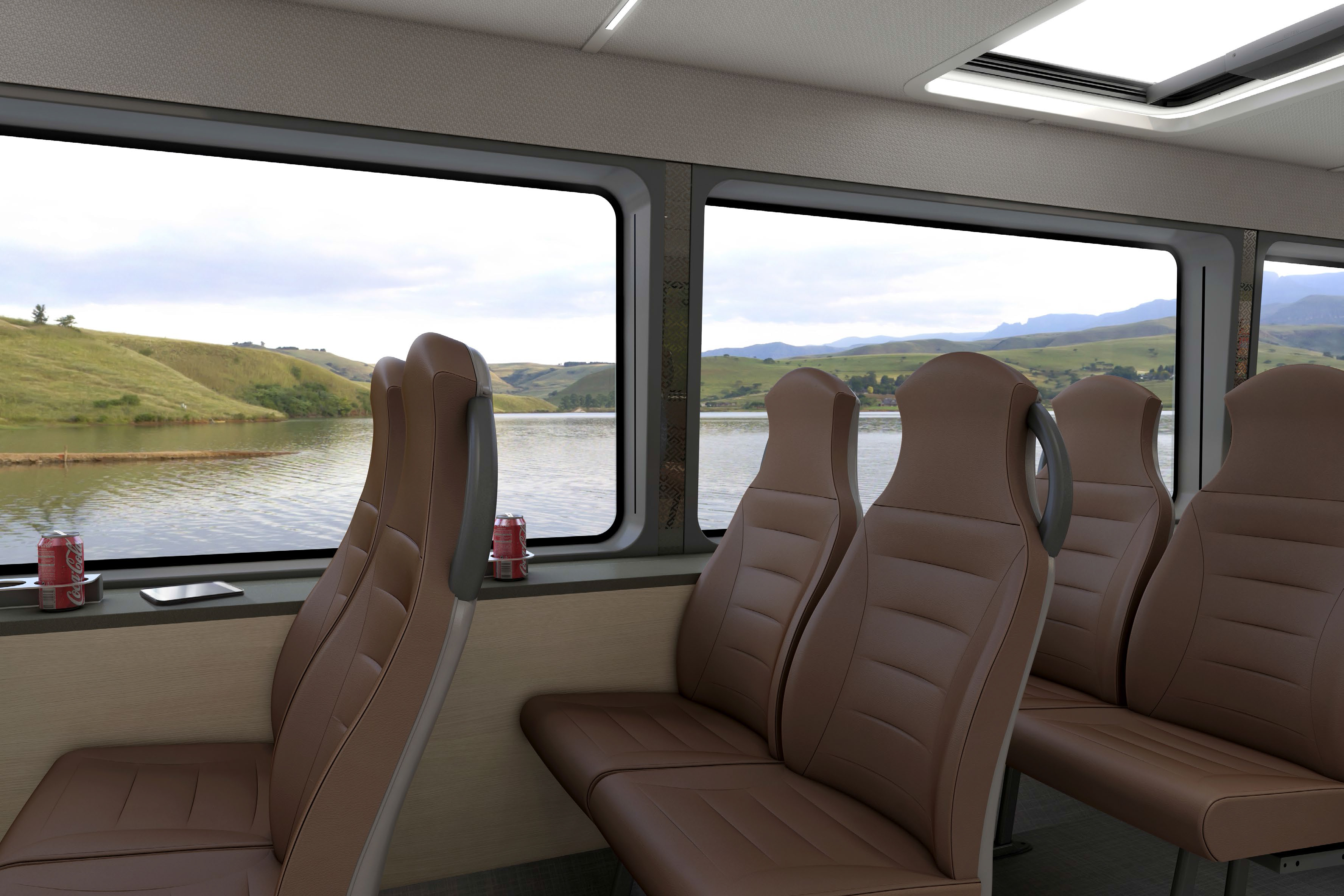

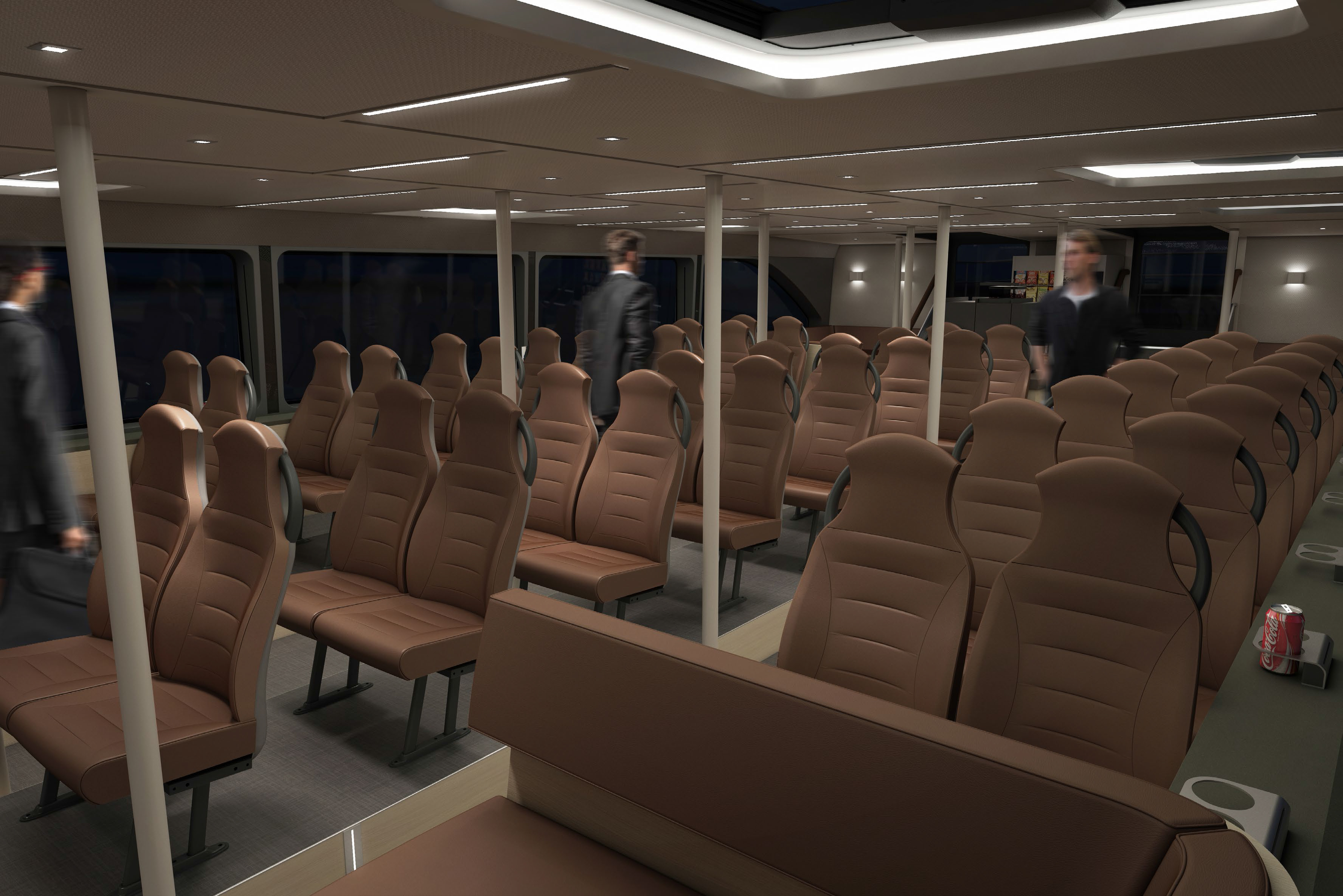

This is a passenger ferry to carry 130 persons of which 78 seated and 52 standing.

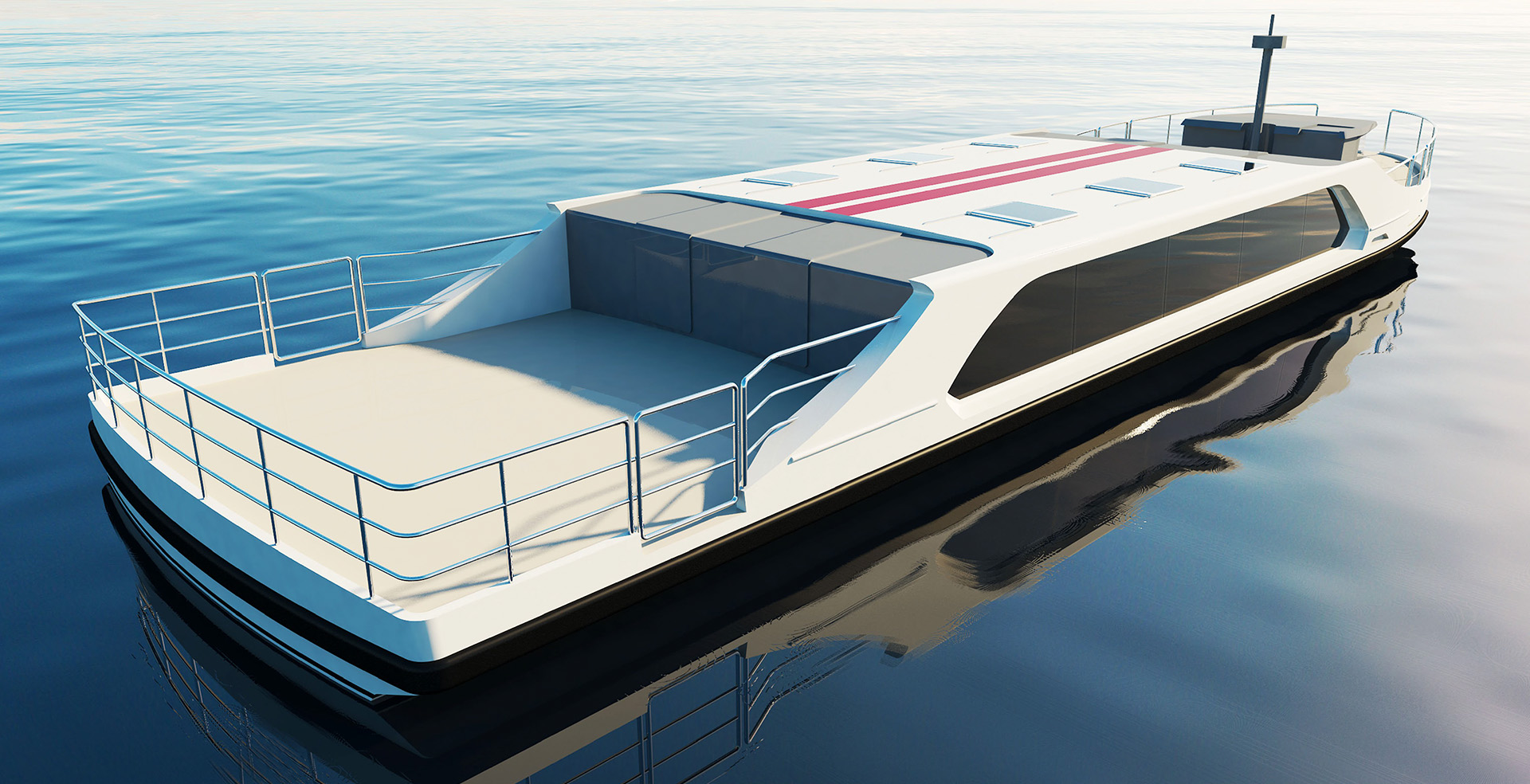

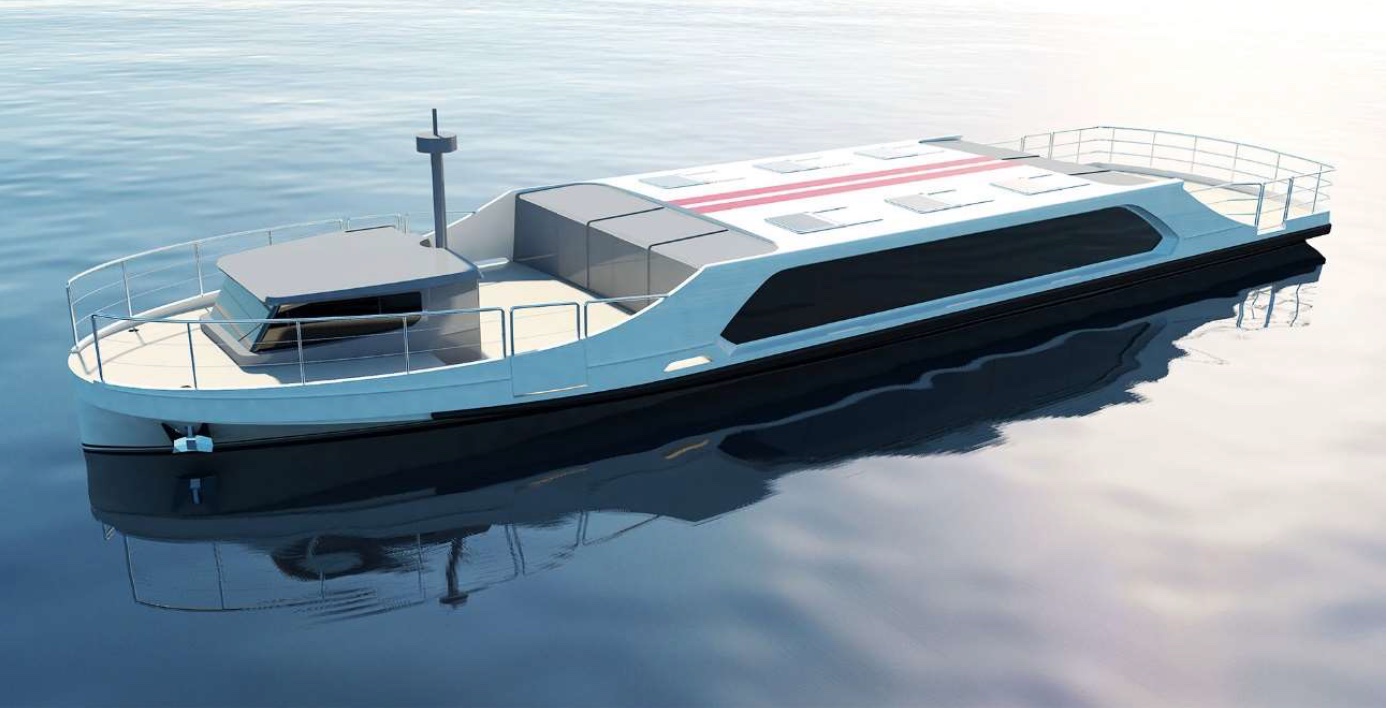

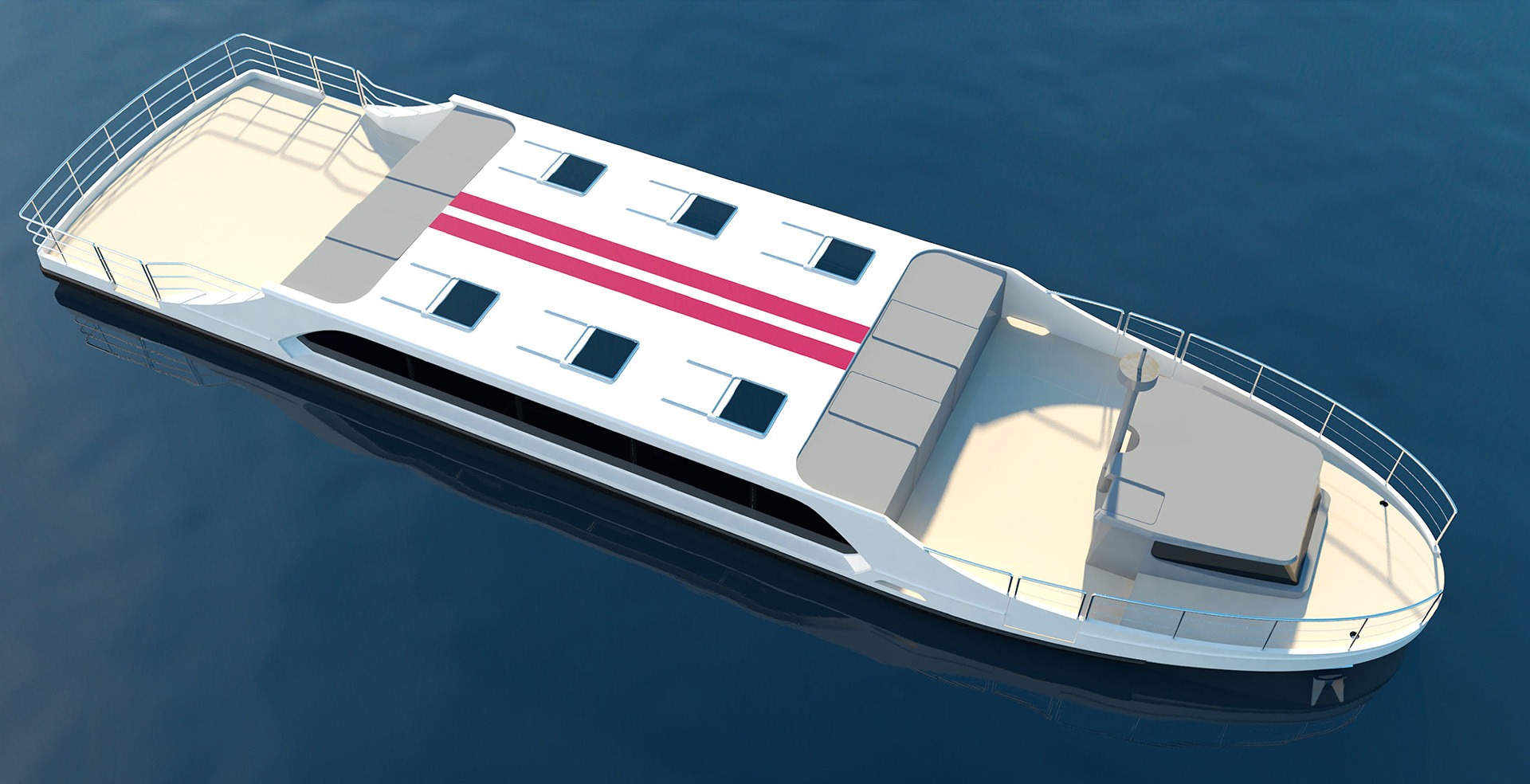

Additionally, 48 bicycles can be stored on the aft and fore deck. The ferry is designed to sail on the rivers and internal waterways of the city.

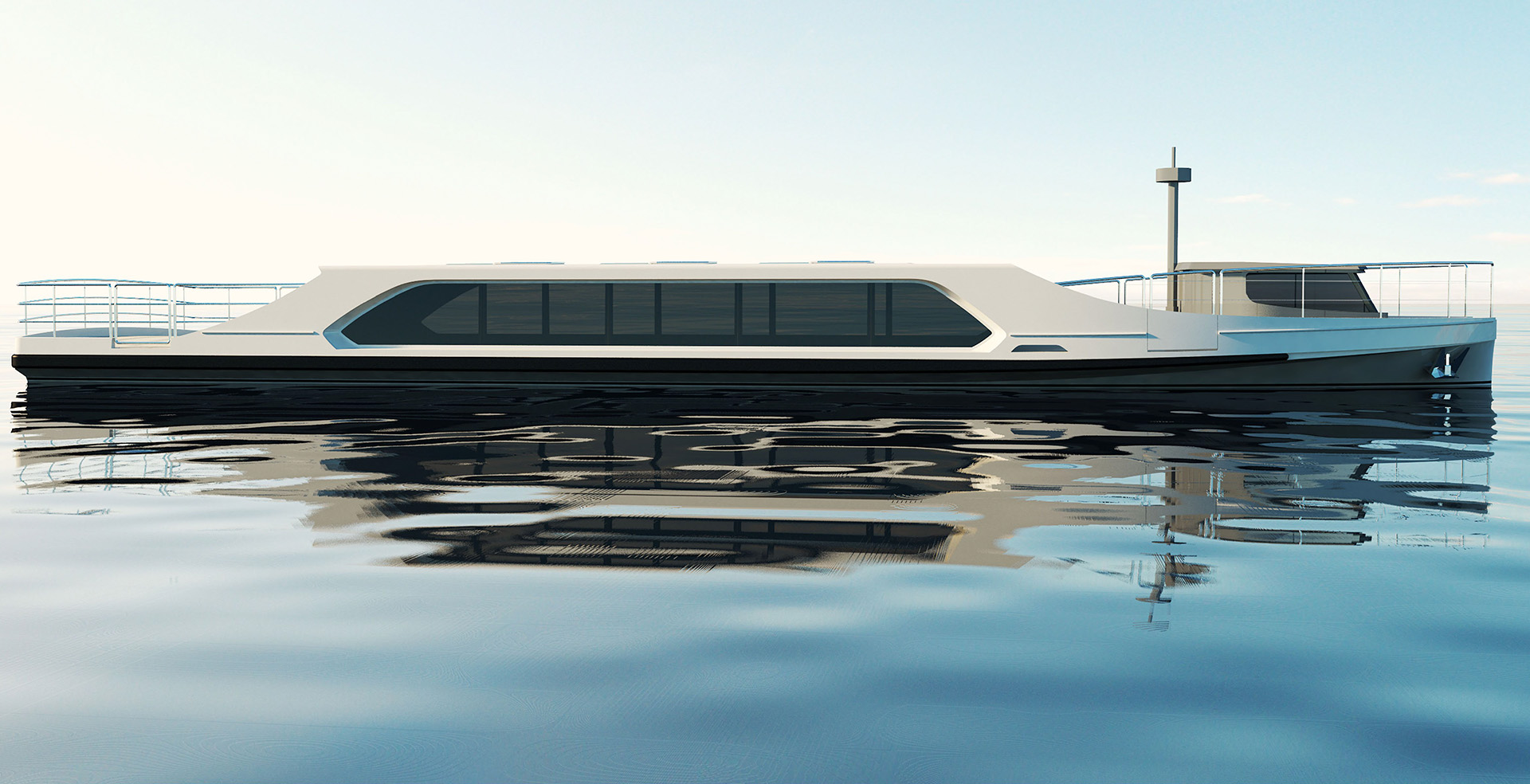

The ferry benefits of the low air-draft design reaching minimum of 1.9m to compliment low exposed elements over the waterways.

The vessel has four entrance ramps in the side with a width of 1.00 m. At the bow an entrance ramp is positioned at CL and also with a width of 1.00 m.

The construction material of the vessel is marine grade aluminium alloy with a minimum stress after welding of 125 N/mm2. The construction is calculated based on the LRS S.S.C. regulations. The additional ice strengthening at the bow is according to LRS I.W.W.

The vessel has been built under class Lloyd’s Register of Shipping. Class Notation: +A1, IWW, Ferry, ICE, Zone 3, LMC-UMS.

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
