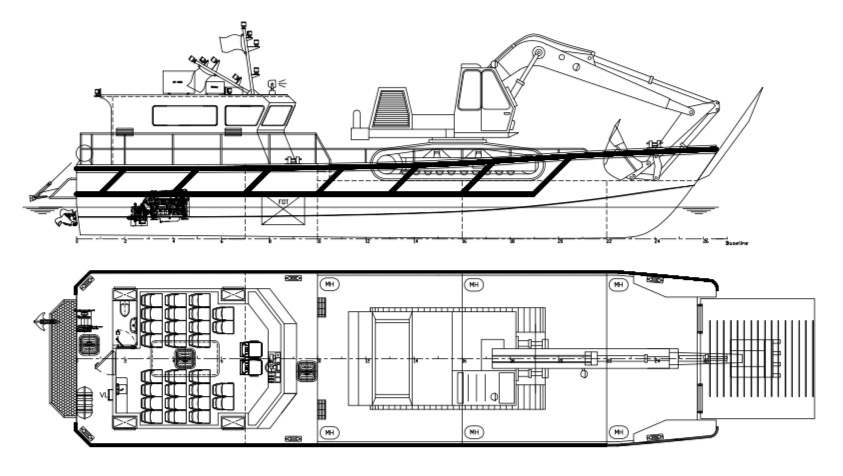

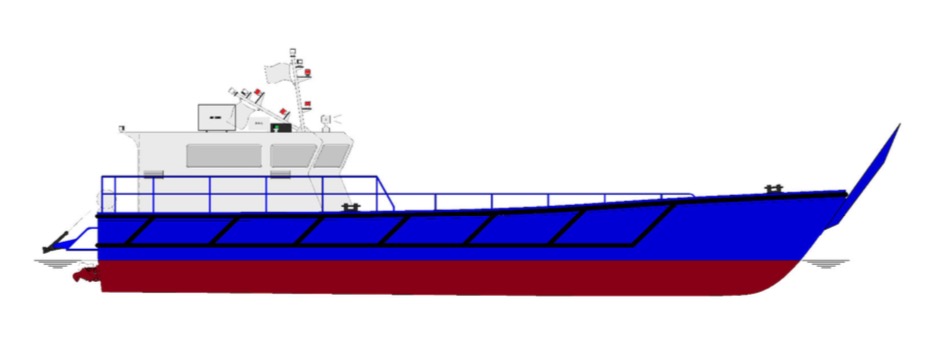

NEW BUILD - 20m Landing Craft


Listing ID - 1494


DescriptionNEW BUILD - 20m Landing Craft
Date Launched
Built to Order
Length20m (65ft 7in)
Beam 5.40m (17ft 8in)
Draft1m (3ft 3in)
Locationex Shipyard, Singapore
BrokerJohn Kearns
john.kearns@seaboatsbrokers.com
+64 21 400 805
View As PDF


1. GENERAL
Vessel Purpose: Construction and Maintenance support, Cargo Supply, Personnel Transfer, etc.
Vessel Type: Monohull, Semi displacement
Hull: Aluminium Alloy
Superstructure: Aluminium Alloy

Length (hull): 20m ( approx )
Beam (overall): 5.40m ( approx )
Depth: 2.35m ( approx )
Draft: 1m( approx )

TANKAGE
Fuel Oil: 2,000 litres ( approx )
Freshwater: 250 litres ( approx )
Sewage Holding: 250 litres ( approx )

OPEN DECK SPACE
Area: 58 sq metres ( approx )
Deck strength: 2 ton/m2

Compliment: 28 passengers + 2 crew

Classification Society: Bureau Veritas
Notation: I • HULL • MACH Lightship/Utility Vessel, coastal service
Scantlings: To meet BV Class requirement for up to 2 metres significant wave height

2. MECHANICAL SYSTEM
Main Engines: 2 units CATERPILLAR C9.3, 375bhp @ 1800 rpm
Propulsion: 2 x MJP or HAMILTON Waterjets
Clutch: 2 x LOGAN Clutch
Generator: 1 unit 20 ekW, 240V, 1 phase, 50Hz

3. PLUMBING & PIPING
Bilge System
Individual Submersible Pumps
Alarm and centralised control at wheelhouse

Fire Main System
1 unit electrical driven centrifugal pump
2 x fire hydrant with hose reel (E/R and Main Deck)
Remote start/stop in wheelhouse

Emergency Fire & Bilge pump
1 unit portable submersible pump

Seawater Systems
Seawater shall be supplied to the following services:
Main Engines
Generator Engines
Fire Main System

Freshwater Systems
FW Tank: 1 no, total approx 250 litres
Tank construction: non-integral to hull
Tank sounding: level gauge at tank bhd
FW Tank Filling: 40ND Above deck: SS304, below deck: MS
FW Tank Vent pipe size: 50ND Above deck: SS304, below deck: MS
Pressurised distribution System to pantry and toilet
1 x Auto Freshwater Pump 17 Ltr/min 220V

Grey Water System
Directly piped overboard

Black Water System
Piped to sewage holding tank with bypass to overboard
Macerator pump for sewage tank discharge with international shore connection
Sewage Holding Tank: 1 no, approx 250 litres

FUEL OIL SYSTEM
FO Tank: 1 no, total approx 2,000 litres
Tank construction: non‐Integral to hull
Tank sounding: Electrical Gauge with display at wheelhouse & Level gauge at tank
FO Tank Filling: 40ND Above deck: SS304, below deck: MS
FO Tank Vent pipe size: 50ND Above deck: SS304, below deck: MS
M/E Supply pipe size: 15ND MS API pipe sch 40
G/E Supply pipe size: 15ND MS API pipe sch 40
Fuel return line pipe size: 15ND MS API pipe sch 40

Fuel Oil Quick closing: Remote pull wire type

4. HVAC
Engine Room Ventilation
Air in trunk
Ventilation Style: Fan forced
Fan style: Fan (1 phase)
Trunking location: Main deck

Air out trunk
Ventilation Style: Fan forced
Fan style: Natural
Trunking location: Main deck

Other spaces: 50ND tube with weathertight closing device

Air Conditioning
Passenger area, wheelhouse & crew accommodation.
HVAC Style: Split Unit air cooled (LG or equivalent)
Capacity: 30,000 btu (1 outdoor & 2 indoor Units)

5. ELECTRICAL
Voltage
AC Voltage and Frequency: 240V/ 1 phase / 50Hz
DC Voltage: 24V

Batteries
Engine Starting Battery: As per Engine Maker's recommendation
Nav & Comm Battery: 2 x 12V 150AH

Switchboards
1 x 220V Distribution board
1 x 24V Distribution board

Deck lightings
Main deck: 2 x Floodlights LED 50W 4500LM
Around deck house: 4 x double tube lights with emergency backup batteries

Shore supply socket: Installed at main deck
Main deck electrical socket; 1 x 230V
Internal lightings: Adequate and suitable lightings, including emergency back up batteries shall be provided in all internal spaces. Tanks excluded.

DECK EQUIPMENT
Anchoring
Anchor Windlass: 1 unit x Manually operated

Anchor Size & Quantity: 1 unit x According to BV EN calculation
Anchor Style: High Holding Power
Chain Length & Material: Steel wire rope, according to BV EN calculation

Ramp Door
Approx 3.5m x 3.7m, open web system for Captain's line of sight.
Manually operated with winch or chain pulley

Double Bitt Bollards: 6 sets

ACCOMMODATION
Thermal Insulation
On (internal) ‐ exterior surfaces: mineral wool batts

Interior Linings
Wheelhouse, Passenger Areas & Crew accommodation
Floor coverings: Vinyl Flooring / Rubber studded mat
Wall Linings: Aluminium Composite Panels
Ceiling Linings: Aluminium Composite Panels

External Fore and Aft deck
Floor coverings: Painted with anti‐slip
Wall Linings: Painted
Ceiling Linings: Painted

Internal Passenger seats: 28 units PVC lined
Pilot chair: 2 units installed in wheelhouse

Toilet
Location: 1 no. at main deck
Fittings: 1 no. gravity type toilet bowl
  1 no. wash basin with tap
Floor coverings: Painted with Anti‐slip
 Wall Linings: Painted
 Ceiling Linings: Painted

Pantry
Fitted at main deck with the followings:
1 x wash basin with tap and cabinet below
1 x 20L microwave oven
1 x 1900W induction cooker
1 x 45L bar fridge

PAINT & PROTECTION
Painting System: BERGER Paints or Equivalent
Colour Scheme: To be approved by Owner

Hull Below Waterline
Surface preparation: mechanical etch
1 coat Primer
1 coat tie‐coat
1 coat Anti‐fouling

Hull Above Waterline
Surface preparation: mechanical etch
1 coat Primer
1 coat Finishing

Superstructure Exterior
Surface preparation: mechanical etch
1 coat Primer
1 coat Finishing

External Decks
Surface preparation: mechanical etch
1 coat Primer
1 coat Finishing with anti slip

Toilet
Surface preparation: mechanical etch
1 coat Primer
1 coat Finishing

Cathodic Protection: The vessel shall be fitted with sacrificial zinc anodes for 12 months protection.

NAVIGATION & COMMUNICATION EQUIPMENT
Navigation Equipment
Radar: 1 x Garmin GMR18HD (36 nm)
Plotter: 1 x Garmin Aquamap 80xs (8inch)
GPS: 1 x Garmin GA 38 (display on Aquamap 80xs)
Echo sounder: 1 x Airmar SS502 (display on Aquamap 80xs)
Magnetic compass: 1 x SeaMaster 7800F
AIS: 1 x Em‐Trak B100 (Class B)
Search light:1 x TG26 500W
Clear view screen: 2 x Daiko or equivalent

Communication Equipment (GMDSS A1)
GMDSS Fixed Mount DSC/VHF: 1 x Samyung STR‐6000A
Navtex: 1 x Samyung SNX300
Handheld VHF: 2 x Samyung STV160
SART: 1 x Samyung SAR 9
EPIRD: 1 x Samyung SEP 500
Air horn: 1 x Marco
Public Address system: 1 x Soundtech

Navigation lights
5 x lights (mast, anchor, port, stbd, stern)
2 x NUC

SAFETY & LIFE SAVING EQUIPMENT
Fire Alarm & Detection System: Appropriate smoke and heat detectors shall be fitted at various internal spaces.
General Alarm: Integral to Fire alarm
Engine room fixed fire fighting: Aerosol

Portable fire extinguishers
2 x 9 litres portable foam fire extinguisher
4 x 6 litres portable dry powder fire extinguisher

Life Saving Apparatus
1 x 30 men Life Raft
2 x Lifebuoy 2.5kg
2 x LifeBuoy 2.5kg with 30mtr Lifeline
2 x Lifebuoy 2.5kg c/w Self Igniting Light
30 x SOLAS approved Adult Life Jackets
1 x 25 men First Aid Kit
12 x Rocket parachute flares
6 x Red hand flares







1494: NEW BUILD - 20m Landing Craft - 090.jpg
