NEW BUILD - 18m LCT

Listing ID - 1437
Description	NEW BUILD - 18m LCT
Date Launched	Build date 4 to 5 months
Length	18m (59ft)
Beam	3.6m (11ft 9in)
Draft	1m (3ft 3in)
Location	East Java, Indonesia
Broker	Craig McKay craig.mckay@seaboatsbrokers.com +61 412 295 595
Price	USD 225,000
View As PDF

Type: Aluminium Landing Craft Utility (Alloy LCU)

Material: Aluminium plate type marine use 5083, will be prepared for BKI class hull only

Thickness: bottom 5 mm, side plate: 4 mm, wheel house 3mm, engine hatches 3mm, tank top, inner wall: 4 mm, ramp door (double plate) 4 mm

Double wall :(top10cm, bottom 20 cm), double bottom (400 mm), except in engine room

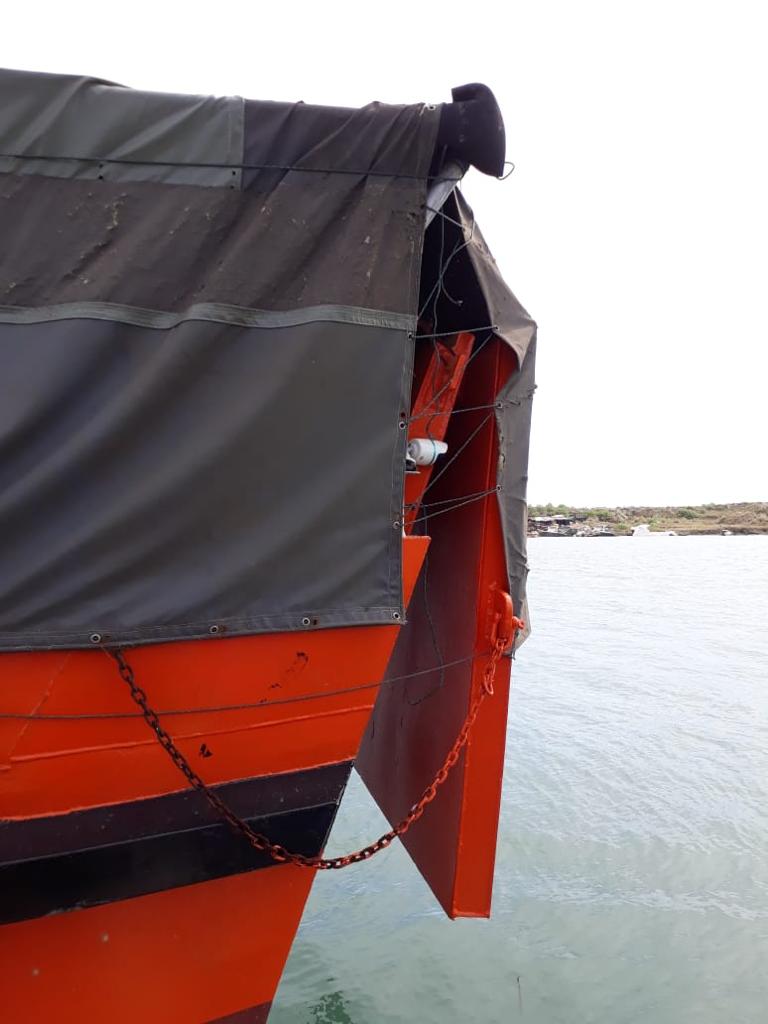

Complete with aluminium ramp door size 3m length x 2,45 m beam and 2 manual hand winches cap @ 250kg

Flag: Indonesian

Principal Particulars

Length Overall: abt 18 m

Beam Overall: 3.6 m

Beam at top main deck: 3,2 m

Average beam at cargo hold: 3,3 m

Beam at of side wall: 3,6 m

Draught max: abt 1 m

Free board to main deck :0,5 m

Free board to side wall :0,8 m

Side wall height :0,3 m

Depth to main deck :1,5 m

Depth to side wall :1,8 m

Height of canopy :500 mm

Estimate displacement: approx 59 ton at max draught

Estimate of DWT: approx 50 to 51 Ton

Estimate of LWT: approx:approx 9 Ton

Capacity cargo max: approx 51 ton with density 1

Speed service: 10 knots

Total Crew: 3 persons

Passengers: ---- persons

Crew: 3 persons

Life Jackets: 3

Life Buoy: 4

Life raft: 1 (to be supplied by owner)?

Crane or cargo winches: 1 set with DC power (to be supplied by owner)?

VHF Radio : Icom IC – M304

CCTV with 4 cameras: 1 set

GPS + radar (3 in one) Garmin: 1 set (3 in one: GPS + Radar + Echo Sounder)

Compass: 1 set

Fire Extinguisher: 2 pcs

Search Light: 2 pcs

Cargo hold light: 2 pcs

Navigation light (red and green): 2 pcs

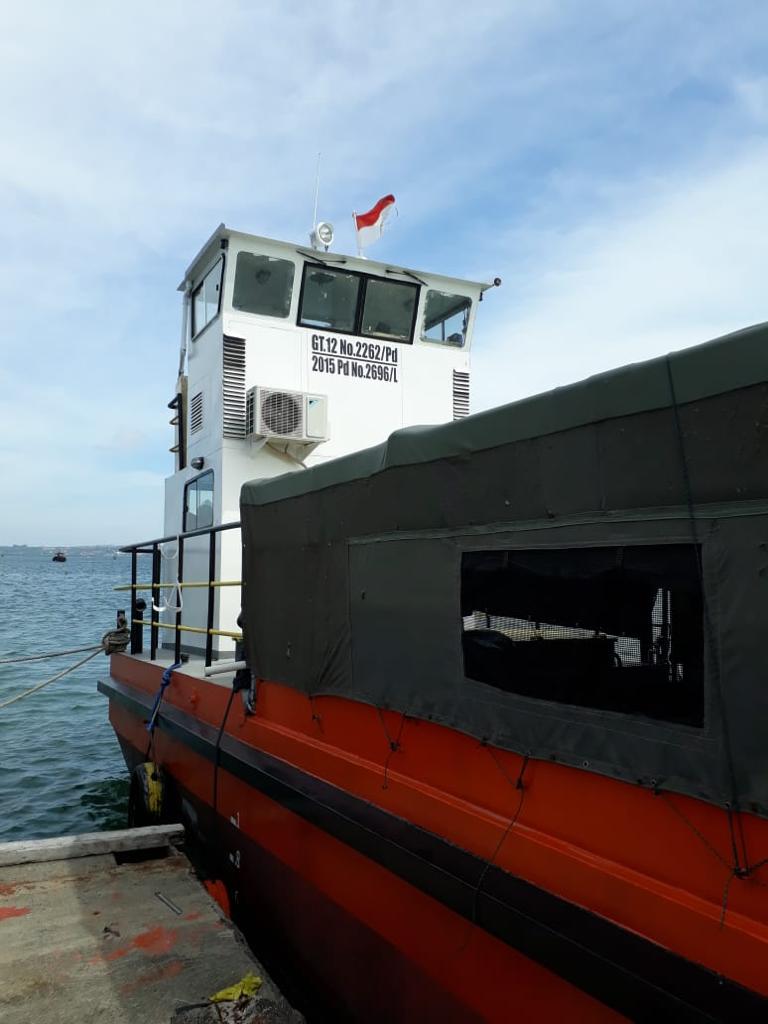

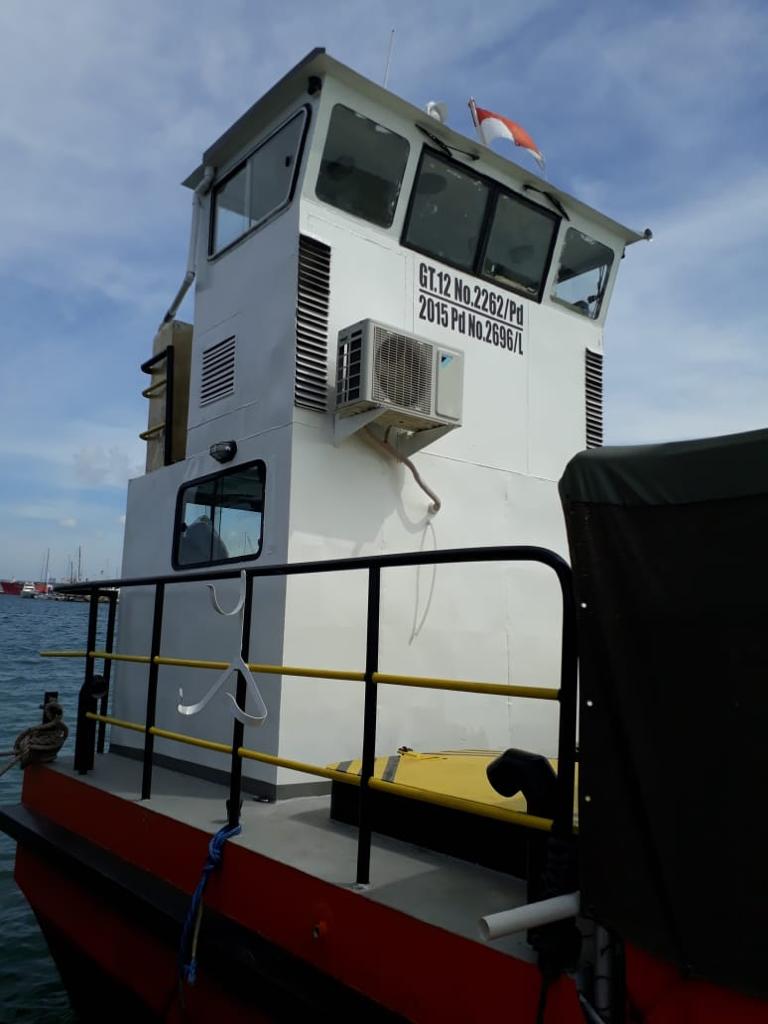

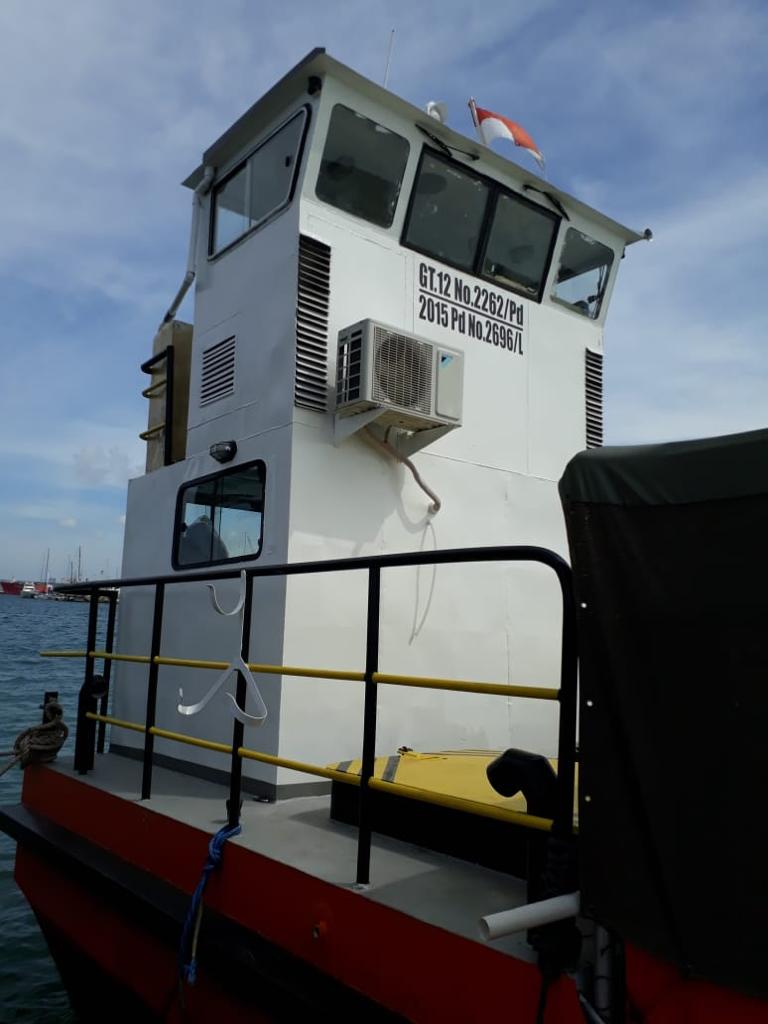

Closed type nav bridge :1 set (2 m x 1,6 m)

Aluminium console box

Complete with window glasses at front, side and back

Canopy: galvanized pipe(painted), approx alongside cargo space

Propulsion

Main engine (in board): 2 x min 160 PS ex Mitsubishi 6D14 (eq 2 x 125 PK) incl batteries

Gear box: 2 sets

Sea chest: 2 sets

Rudder blades aluminium: 2 sets

Rudder stocks: 2 sets

Sea water cooling pumps: 2 sets

Propeller: 2 sets x dia prop 710 mm stainless steel

Skeg: 2 sets

Fuel Capacity daily tank: 2x 200 lt.

Knalpot: 2 sets

Portable genset: 1x 2800 watt (HSD)

Electric socket 220 V/50 Hz to be provided in following location:

Engine room 1set

Wheel house 1 set

Cargo hold area at aft 1 set

Sea Water pump untuk radiator cooling: 2 sets

Portable pump dia 1 inch: 1 set (HSD driven)

Mechanical steering system 1 set

Aluminium fender each side

Bollards: 6 sets

Galvanized (painted) railings at wheel house

Aluminium seat benches

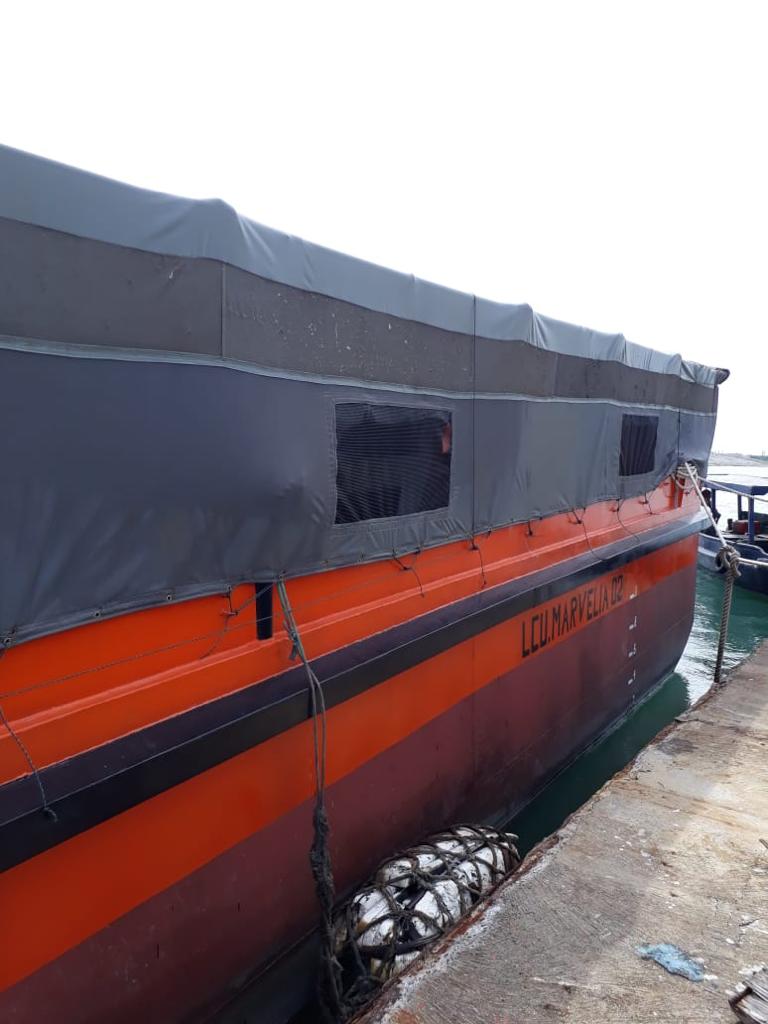

Cargo Hold Canvas covers: 1 set

Engine hatches: 2 sets

Mechanical and natural ventilation: 2 sets with total cap min 30 kali engine room per minutes

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
