NEW BUILD - 16m Sailing Catamaran

Listing ID - 4818
Description	16m Sailing Catamaran
Date Launched	Built to Order
Length	16m (52ft 9in)
Beam	7.70m (25ft 3.15in)
Draft	1.20m (3ft 11.2in)
Note	100 Hp 2x Volvo Penta D2-50 Hp
Location	Cambodia
Broker	Craig McKay craig.mckay@seaboatsbrokers.com +61 412 295 595
Price	USD 910,000.
View As PDF

Dimension:

L (hull) : 16.000 m (52' 5.9")

LOD : 15.526 m (50' 11.2")

LWL : 15.980 m (52' 5.1")

Beam Overall : 7.700 m (25' 7.0")

Beam (Hull Centres) : 5.900 m (19' 4.3")

Draught (Canoe) : 0.658 m (2' 1.9")

Draught (Fixed Keel) : 1.200 m (3' 11.2")

Performance:

Displacement : 14700 kg (32408 lbs)

Power : 100 Hp 2x Volvo Penta D2-50Hp

Hull Speed under power : 10 Knots Approx

Air Draft : 23.03 m excludes aerials etc.

Sail Area Upwind : 154.5 m2 (1663 sq ft)

Underwing Clearance : 845 mm (2' 9.29")

Capacity

Fuel Capacity : 860 litres (227 USG)

Fresh Water Capacity : 900 litres (238 USG)

Structural

Hull, Bulkheads, Main Deck, Superstructure constructed using certified (DNV or similar class) marine grade 5083 H116 aluminum.

Extrusions 6061 T6 with mill certificate. Welding wire to be 5183 with ABS certificate.

David DeVilliers design and CNC parts.

Propeller Shaft Stern Tubes

Rudder Shaft Tubes

Fully welded Thru hulls for S/W cooling and ancillary supply

Overboard discharges integral, welded.

Rudders and dagger boards per plan

Davit to launch and retrieve tender.

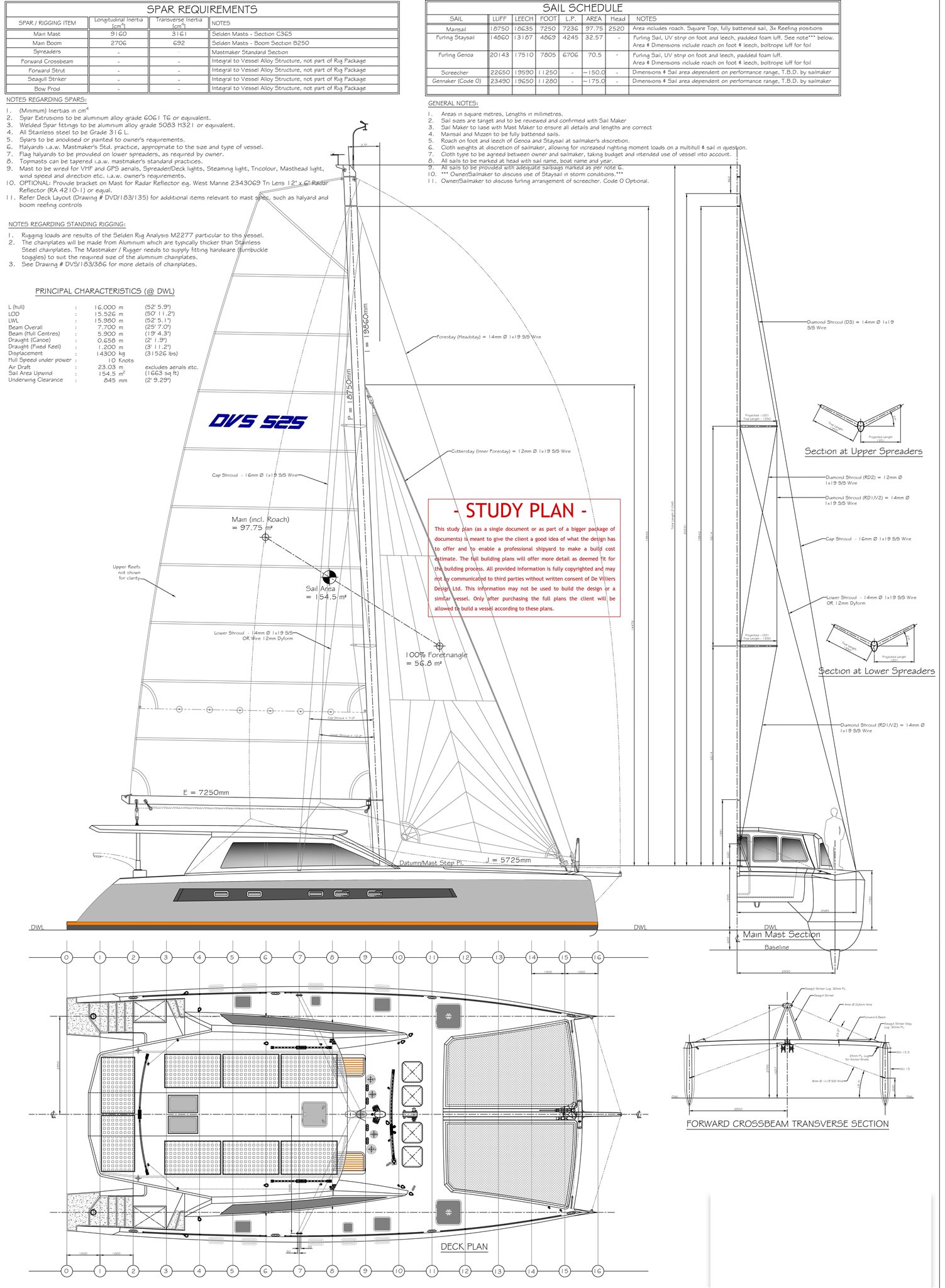

Mast and Rig

Seldon mast, boom, rigging, running rigging and halyards.

Seldon Headsail foils package.

Mainsail traveller system Deck Layout and Gear: 3 m radial track in

forward cockpit with Lewmar or similar mainsheet traveller and 2 x

40ST self-tailing winches.

Primary winches 5 x 46ST. Mast winches 2 x 40ST. Halyards, outhaul

etc are also handled at the base of the mast. Roller furling on jib.

Standard Ronstan or similar deck equipment fitted for jib and screecher furling.

Aluminum forward beam.

Aluminum pulpit and pushpit rails

Heavy Duty PVC Mesh (10mm sqaures)Trampoline

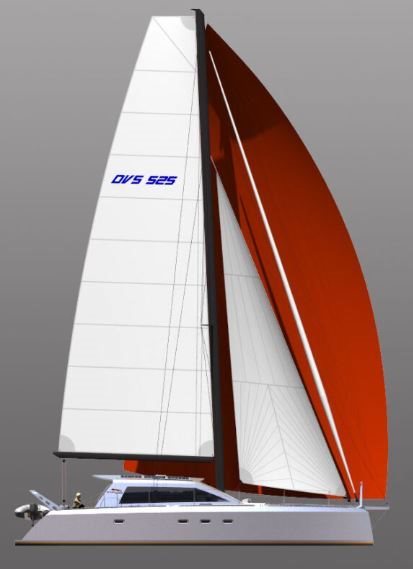

Sails

Mainsail Offshore Fully Batten

Measurements TBA : Area 97.75 m2

10 oz US Dacron Crosscut with Twin Ply Leech

Webbing on batten pockets both sides

3 reefs, flying foot, Overhead Leechline

PNP Batten Receptacles included

Battens and Battcars included

UV Cover Sunbrella

Furling Staysail Offshore

Measurements TBA : Area 32.57 m2

10 oz US Dacron Crosscut

UV Cover Sunbrella

Luff Foam

Furling Headsail Offshore

Measurements TBA : Area 70.5 m2

10 oz US Dacron Crosscut

UV Cover Sunbrella

Luff Foam

Asymmetric Spinnaker Offshore

Measurements TBA : Area 150 m2

1.5 oz Nylon FullRadial Cut

Spinnaker Sock included

3 Colours include

Hull Finishing

Primer- Epoxy- Maestria, 2 coats exterior only

Fairing Compound

Paint- Enamel, Maestria, 2 coats, yacht finish

Antifouling paint Jotun 2 coats

Zincs- Bolt on Type- 4 Minimum

Saloon Doors to Cockpit and aft deck - Weatherproof hinged

aluminum commercial door with window - Seamac

Windshields- 10 mm clear safety glass

Windows- tempered 6mm glass tinted each side and aft in Salon,

storm covers window screens on all opening windows in salon

Deck hatches built per plans or Lewmar or similar manufacture

Tanks, Piping & Pumps

Grey water Tank - 200 Gal aluminum

Sewage Tank - 60L aluminum

Fresh Water Tanks 2 - aluminum 500L Total

Diesel Fuel Tanks - 2 at 185L and 470L

Diesel Fuel Piping

Fresh water piping and fittings

Shore Water Supply Fitting

Salt Water piping PVC/drains

Through hull fittings – welded aluminum

Seacock Valves – Marelon

Sea Strainers

Tank Vents

Tank Fill Plate s/piping

Tank monitoring system BEP Marine

Hydraulic Steering Lines/helm pump, Seafirst

Bilge Pumping- Manual Amazon

Bilge pumps-electric with float switches and control panel, Jabsco

Salt Water washdown Pump, Jabsco

Shower Drain Pump with Float Switch, Rule

Fresh water Pressure Pump, Jabsco 38LPM, accumulator tank

Grey Water Discharge Pump with Y-Valve

Waste Macerator/Discharge Pump with Y-Valve

Waste Piping, low odor

Waste pump-out fitting

Mechanical

Propeller- 2 or 3 blade – Gori or similar folding x 2

Propeller Shaft Coupling x 2

Propeller Shaft- 38mm minimum 316 L standard SAE Taper x 2

Cutlass Bearings, Johnson x 2 sets

Dripless Shaft Seal, Duramax or Deep Sea x 2

Spur Line Cutter on Propeller Shafts

Main Diesel Propulsion 2 x FNM 30HPE 40HP @ 4,000rpm or Yanmar 40HP

Marine gear 2 x Hurth ZF or Technomarine

Main Engine Exhaust Pipes

Engine Space Ventilation Blowers - 1 inlet, 1 exhaust

Main Engine Mufflers - Halyard or similar

Parts Locker

Rudders - per plan

Rudder Stock- S/S 316L

Steering per plan

Battery Ventilation System

Engine Room Ventilation Ducts

Engine Room Soundproofing

Electrical

DC-AC Inverter/Charger-Victron 3000W

SOLAR PANELS - 8 Panels at 365W each. 2880 watts Mechanical

Engine Starting Battery- 2 x 100 Ah

House Batteries- 6 x 100Ah 12V LiFePO4 Deep Cycle Battery

Battery Boxes with Covers for all battery sets

Battery Switches

Power management system and battery monitoring, Victron or similar

50 Amp Shore Power Cord Reel,

Electrical Wiring- Tinned Copper- Marine

Grade- Ancor- color coded per ABYC

Electrical Panel 230/120 VAC / 12VDC with Ammeters & Voltmeters

Lighting System Wiring 12 VDC

Light Fixtures- Quartz Ceiling/LED

Light Fixtures- Fluorescent LED

Light Fixtures- Weatherproof LED

Light Fixtures- Courtesy LED

Light Fixtures- Reading Lights LED

Sockets 230/120 VAC in each cabin & Passageway

Sockets 12 VDC- Cockpit and Saloon

Light Switches- Wall type for cabin & exterior lighting

PVC Conduit for all power wiring

Radio/TV Wiring

Engine Alarm System

Electronics

Client supply

Main Deck Equipment

12VDC Windlass/Capstan with local control at Bow

Waterproof hatch for Dual Chain Locker

Bow Roller, Anchor 60lb CQR, chain 3/8” High Test, rope .”

Aluminum Bollard

Mooring cleats welded on, aluminum

Vents

Escape/Ventilation Hatch - Lewmar or similar

Handrails- Welded 32mm aluminum with 38mm Stanchions

H/C Fresh Water Cockpit Shower

Salt/Fresh Water Washdown Taps - Bow & Stern

Deck Filler Fresh Water- Port & Starboard

Deck Filler Diesel Fuel- Port & Starboard

Cockpit Equipment

Navigation. Anchor Lights

Red/Green Side lights

Mast head light

Flood lighting on mast

Engine Instrument Panel

Stainless Steel Destroyer type steering wheel

Engine Throttle/Transmission Controls- Cable, Morse, twin engine

Engine Tachometer – Digital / Analogue

Engine Water Temperature

Engine Oil Pressure

Engine Oil Temperature

Engine Ammeter

Engine Hour Meter

Compass- Binnacle Mount

Rudder Angle Indicator

Pilot’s Seat

Passenger Seat

Dinette Seating /Storage

Pedestal Table

Gear Lockers

Access Ladder- aluminum

Air Horn with compressor

Rigging for Flags

Welded aluminum Railings

Interior Finish

Nidacore subfloor- painted

Composite or GRP lightweight panel for walls and ceilings

Solid timber – Trim

Floor coverings, laminated panel

Cork Flooring - Galley

GRP moldings for heads/bathroom

Interior Doors & quality hardware

Upholstery/Cushions

Galley

Refrigerator/freezer standalone 10 cu ft

Chest freezer

3-Burner ceramic cook top electric/gas

230/120 VAC Outlet, 4 gang

Convection/Microwave oven

Corian or other Galley Counter

Base Cabinets

Galley Overhead Cupboards

Stainless Steel Double Sink

Faucet with pull-out sprayer

Cutting Board

Saloon/Lounge

L-Shaped Dinette Table- Converts to Bed

Seating as per plan

Safety grab bars, fiddles placed at practical places

Radio/TV Outlet

230/120 VAC Outlet, 2 gang

Master Stateroom

Bed Frame- Queen size

Hanging lockers lined, with shelf & light

Bedside Table

Chest of drawers

230/120 VAC Outlet

Reading lights

Recessed Overhead LED lights with wall switch

Radio/TV Outlet

Aft Cabin [port and starboard]

Double bed

Hanging lockers- lined with shelf & light

Desk/drawer unit

230/120 VAC Outlet

Reading light

Recessed Overhead LED lights with wall switch

Radio/TV Outlet

Heads

Porcelain Electric head, Tecma [household size]

Shower

GRP Vanity with Corian or other countertop & S/S sink

Medicine Cabinet with Mirror & Storage

Ventilation Blower

Shower Faucet

Shower Head

Shower Curtain

Soap Dish / Toothbrush Holder

Towel Rod to Handrail Strength

Engine Room

Soundproofing

Perforated Stainless or Aluminum wall sheathing

Aluminum Checkerplate Flooring

Fluorescent lights with wall switch

230/120 VAC Outlet, 2 gang

Safety Equipment

Fire Extinguishers

Additional

Electrical and mechanical drawings plus vessel manual
