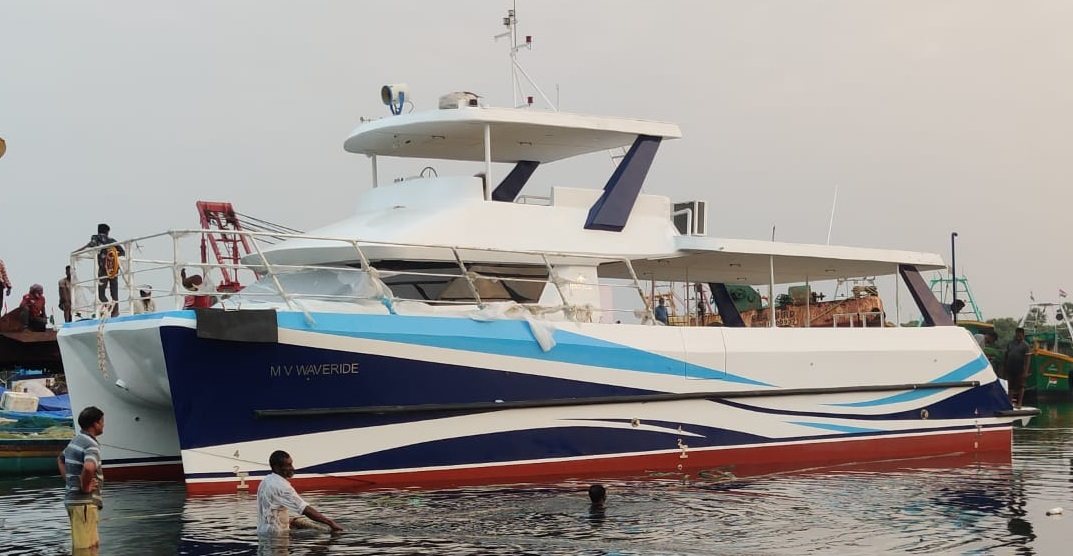

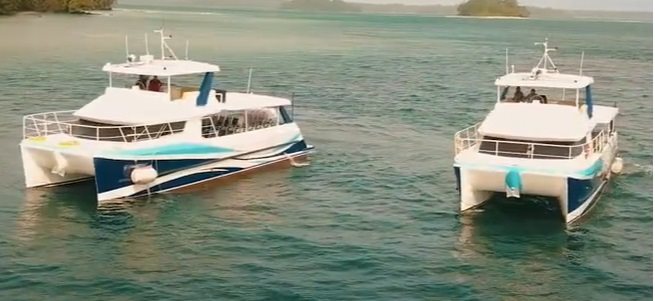

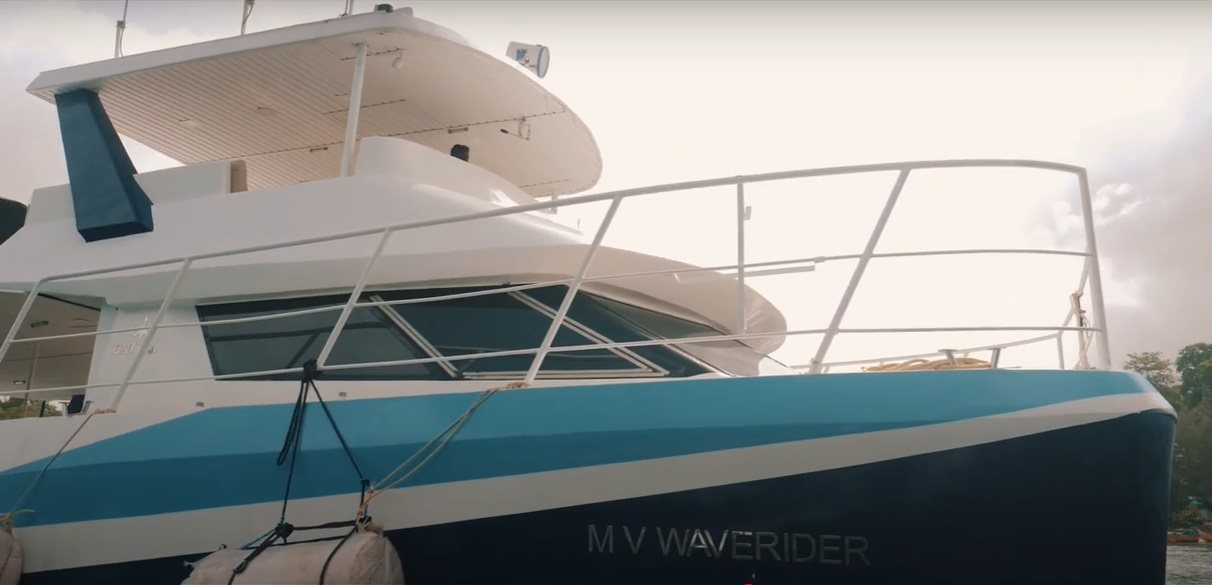

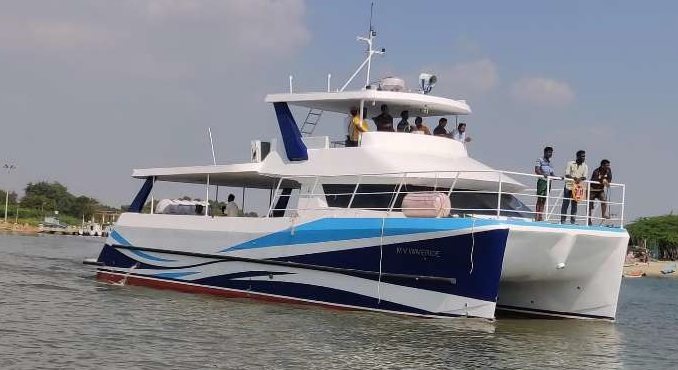

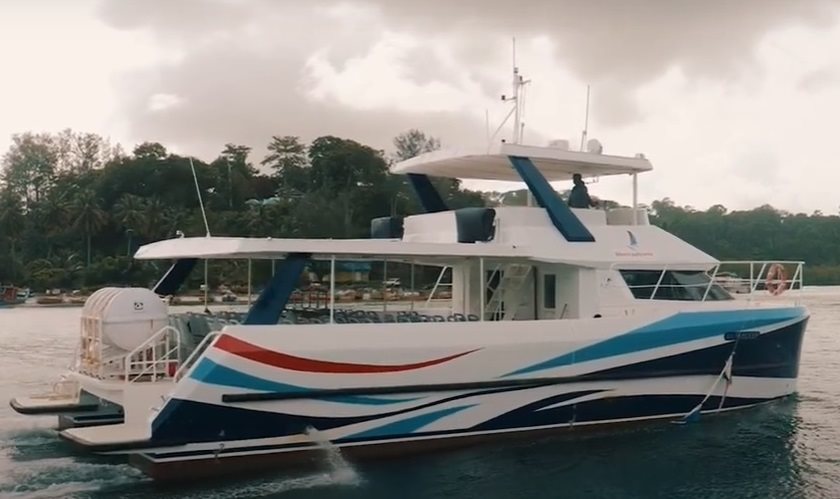

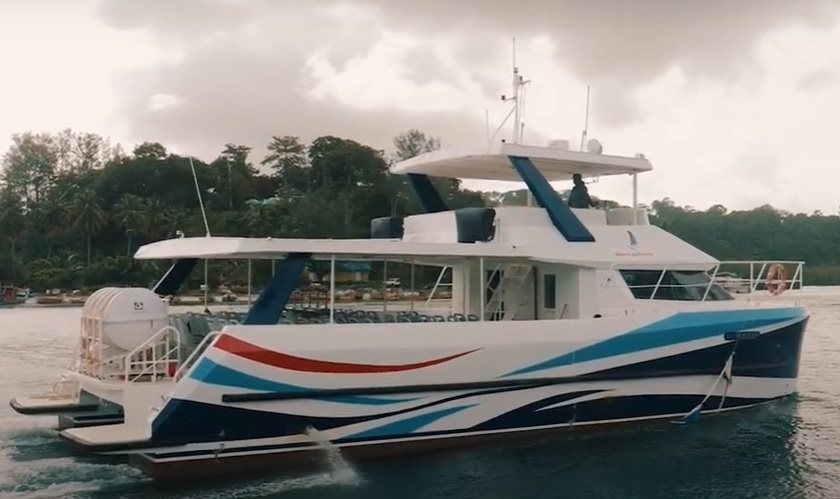

NEW BUILD - 15.90m Passenger Catamaran

Listing ID - 5326
Description	NEW BUILD - 15.90m Passenger Catamaran
Date Launched	Built to Order
Length	15.90m (52ft 2in)
Beam	6.00m (19ft 8.2in)
Draft	0.85m (2ft 9.4in)
Note	Engine: 2 x Yanmar 6MP 140Hp, 2200RPM
Location	India
Broker	Craig McKay craig.mckay@seaboatsbrokers.com +61 412 295 595
Price	Fully finished from USD 334,000 ex factory, India.
View As PDF

PARTICULARS

Length Overall:15.90m

Beam Overall: 6.00m

Breadth Of Each Hull: 1.8m

Depth: 2.90m

Draft: 0.85m (Loaded)

Fuel: 2 x 500L

Fresh Water: 2x 300L

Sullage: 1x 500L

Passengers: 50

Crew: 4

Main Engines: 2 x Yanmar 6MP 140Hp, 2200RPM

Gear Box: DONG-I Model DMT90A Ratio 2.06:1

Maximum Speed: 12 knots

Cruising Speed: 8 knots

Genset: 2X 12Kva

5 x CCTV Install.

Able to afford up to 2.5 Mtr wave height.

Canopy structure:

Canopy Structure Is Made Out Of FRP Composites With SS Piping Support.

Deck Fittings:

Anchor – SHHP anchor with 50 kg

Winch – with required motor winch will be fixed on deck to operate the Anchor load.

Rope/ Chain – combined of 2-meter chain with 30-meter rope will be provided for anchor.

Mooring Ropes and Towing Ropes will be provided as per drawing

Bollard – 4 nos of aluminium Bollard fixed.

Rub rail – 100 mm rubber rub rail fixed all the way of hull on both sides will be fixed through SS bolts and nuts.

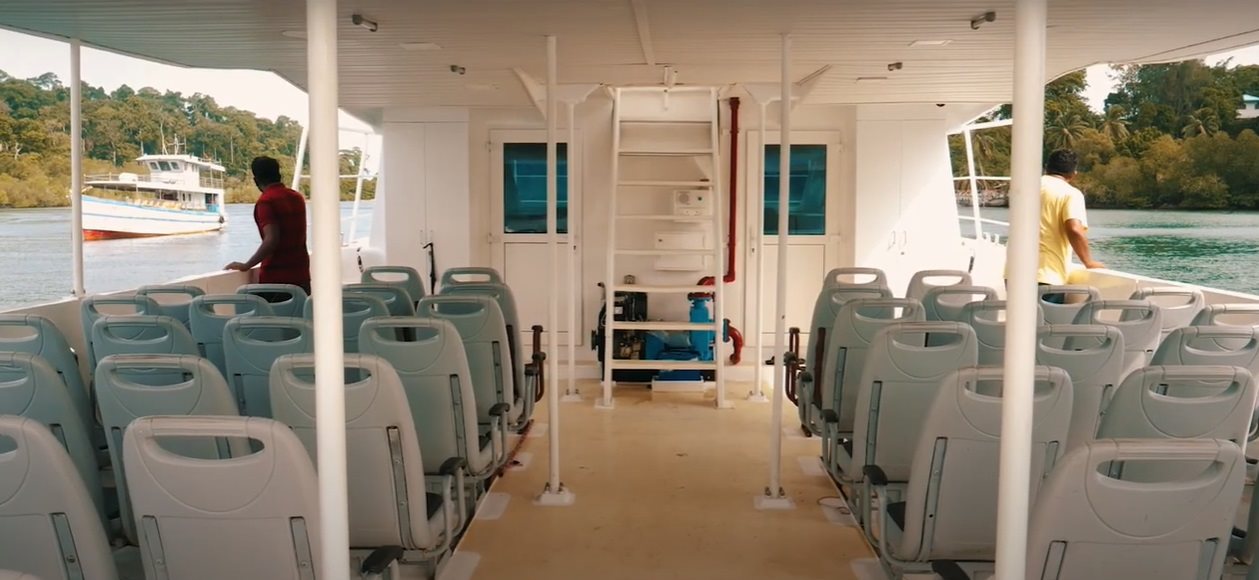

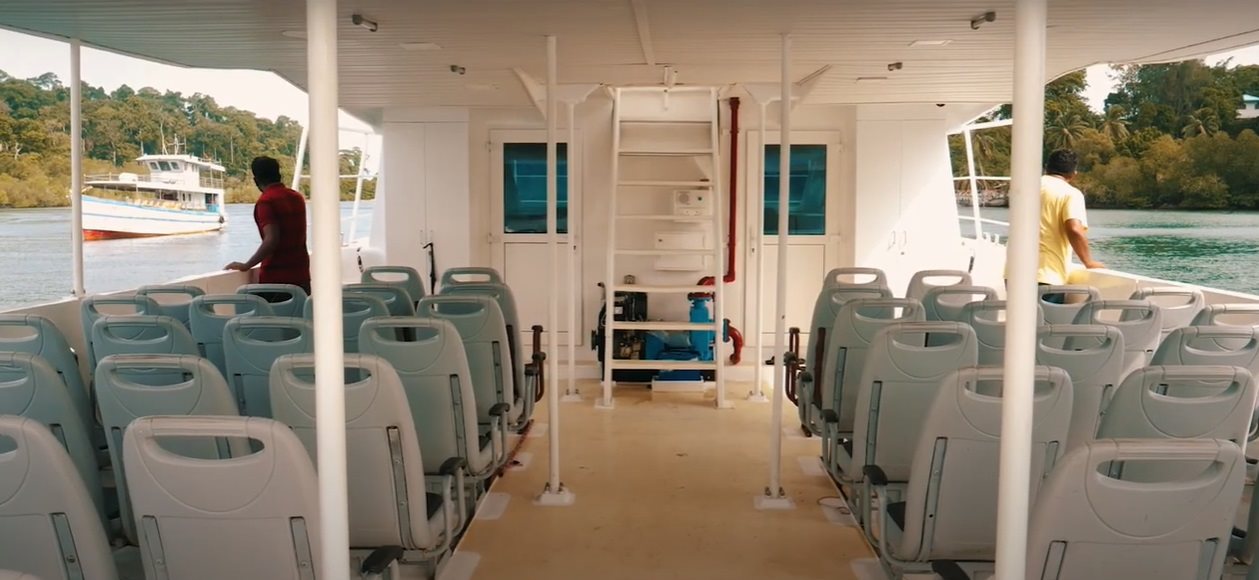

Seats with UV Resistant Cushion.

Fire Fitting equipment:

Fire extinguisher (powder 5kg DCP type) – qty 6 nos Type approval.

Fire Alarm

Fire hydrant 32NB

Fire hose 32NB, 60 ft long hose with nozzle spray jet – 1 set

Sand Scoop ( 0.075 Cum )

Buckets (2 with LANYARD) – 2 nos

Lifesaving Appliances:

Life jacket Adult – 55 qty

Life jacket Child – 6 qty

Life buoy(2nos)

Rope S.I light

Life raft (2nos) – 25-person capacity will be fixed fore deck part.

Nav. Equipment:

VHF

GPS

Compass & Binocular

Radar, Echo sounds

Rudder angle indication

Navigations Search light

SART & AIS type B

Electrical & Plumbing

Wiring Cables- all IACS approved cable will be fixed for electrical wiring

Panel board – IACS type approved panel fixed.

Lights – LED lights fixed on top of deck inside and hull and wherever necessary.

Battery – 4 Nos of 200 AH capacity Litium battery will be attached.

Sockets / Switches

Electrical Toilet fittings / 2nos

Piping / Pump as approved drawing.

Auxiliary

Tanks

Fuel tank – Made out of Marine grade aluminium with IRS approved certificate.

water tank + pump

Sewage tank pump

PAINTING

Hull outside, below waterline

2 coats : Primer: 150 microns DFT

1 coat : Sealer Coat: 100 microns DFT

2 coats : Antifouling: 100 microns DFT

SUPER STRUCTURE OUTSIDE

2 coats : Epoxy Primer: 150 microns DFT

2 coats : TOPCOAT: 85 microns DFT

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
