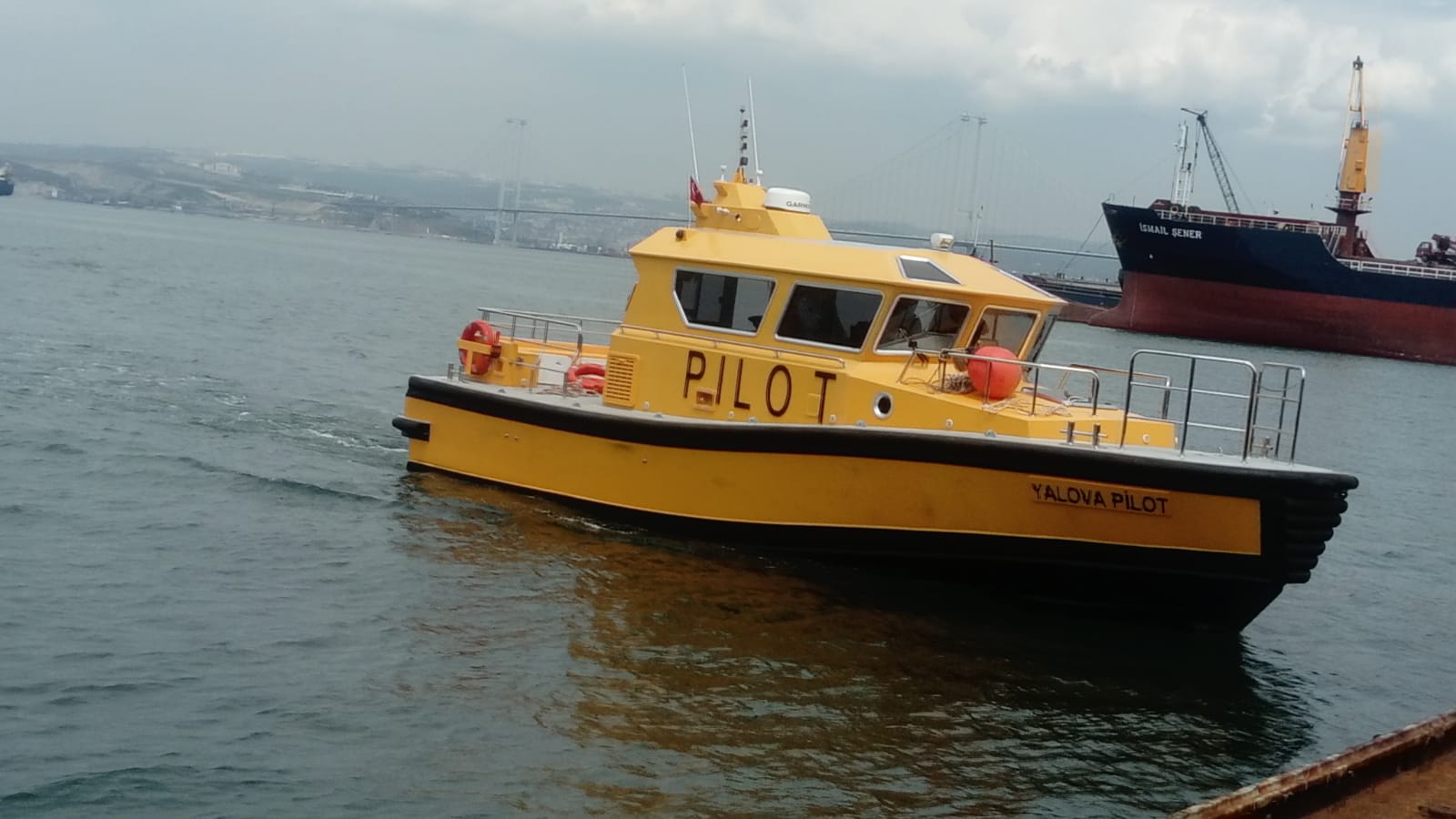

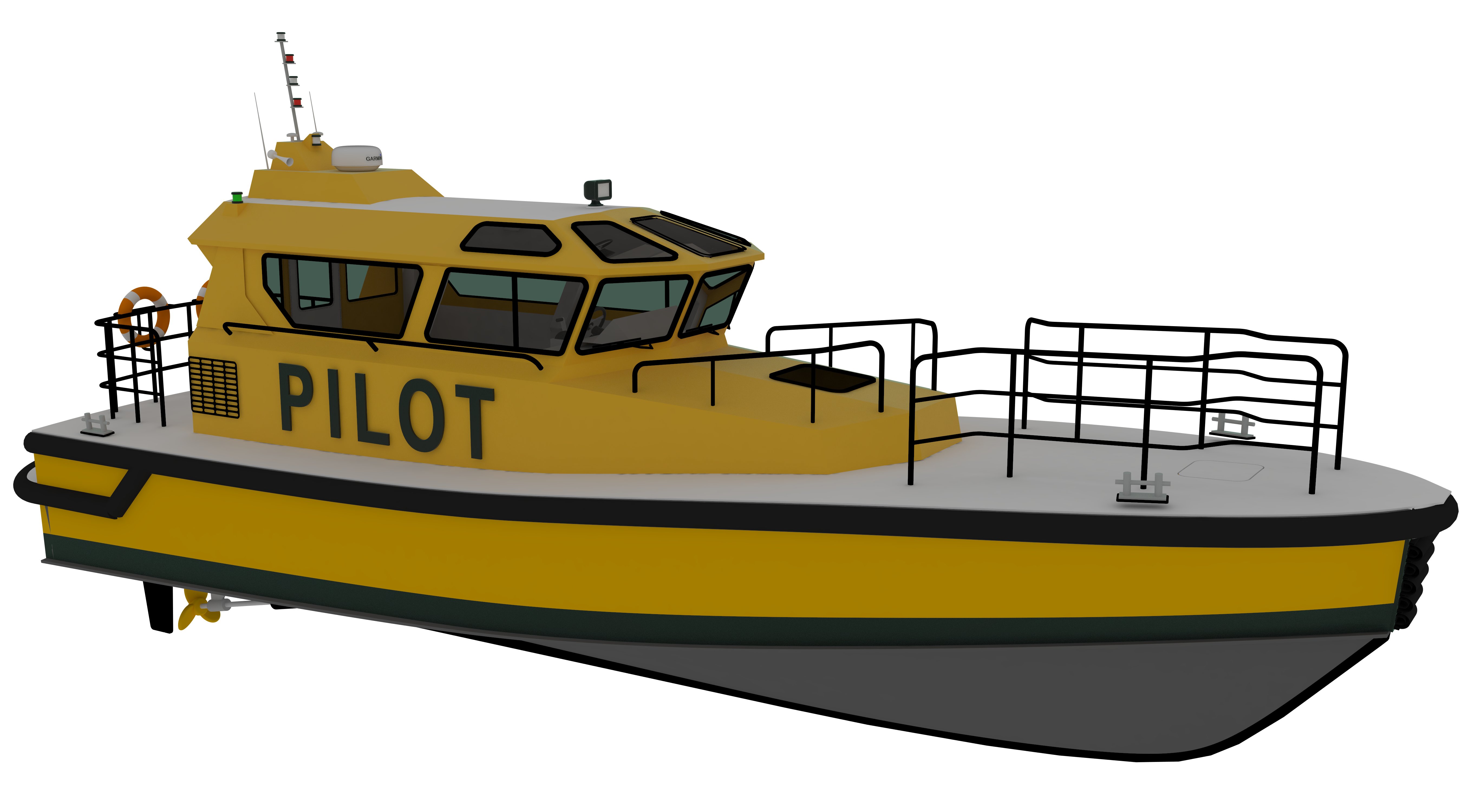

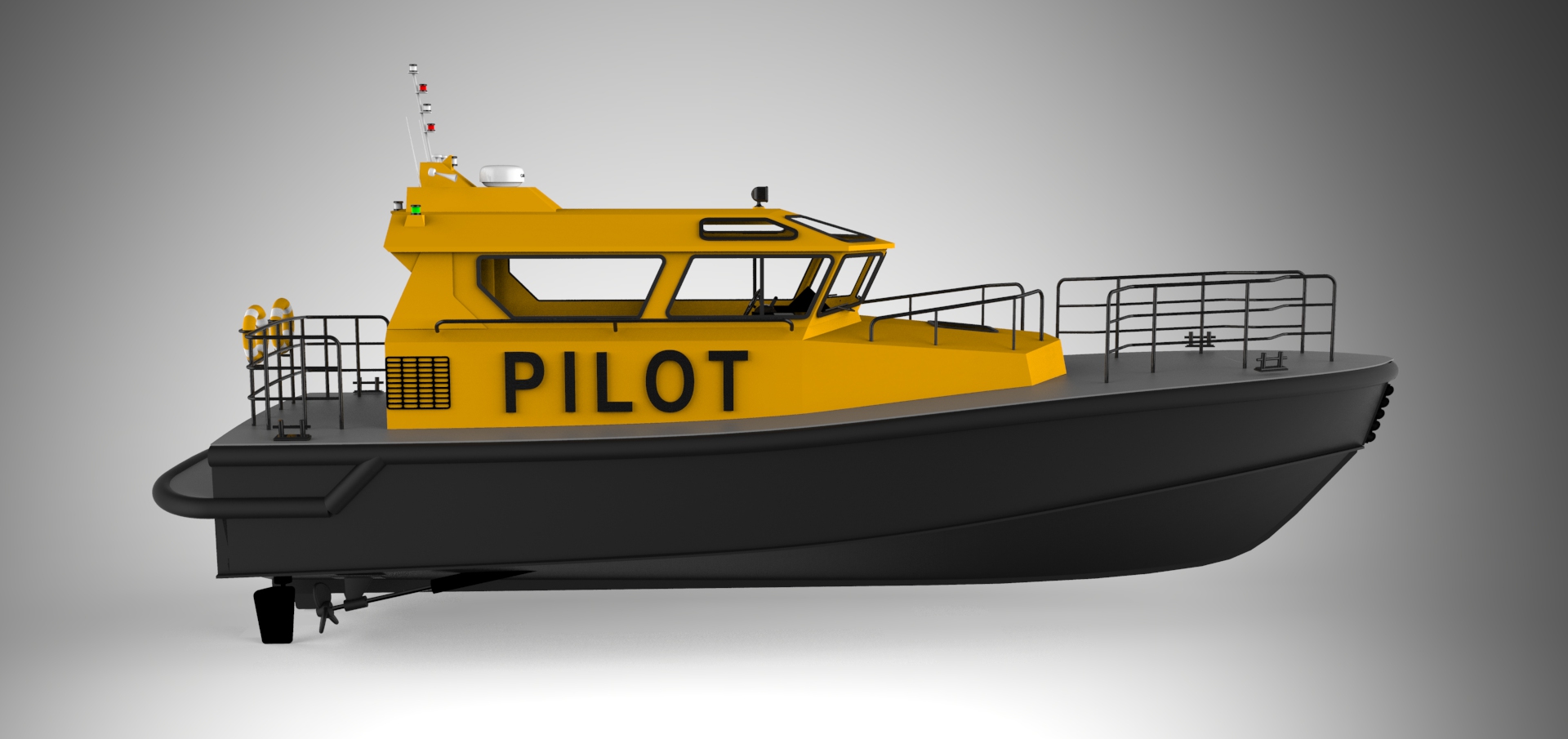

NEW BUILD - 14m Pilot Boat

Listing ID - 3396
Description	NEW BUILD - 14m Pilot Boat
Date Launched	Delivery period : Normally 140 calendar days. But to be decided at contract phase
Length	14m (45ft 11in)
Beam	3.80m (12ft 5in)
Location	Delivery in Tuzla - Istanbul - Turkey
Broker	Georgi Savchev georgi.savchev@seaboatsbrokers.com +359 88 7228674
Price	From 293,000 EUR
View As PDF

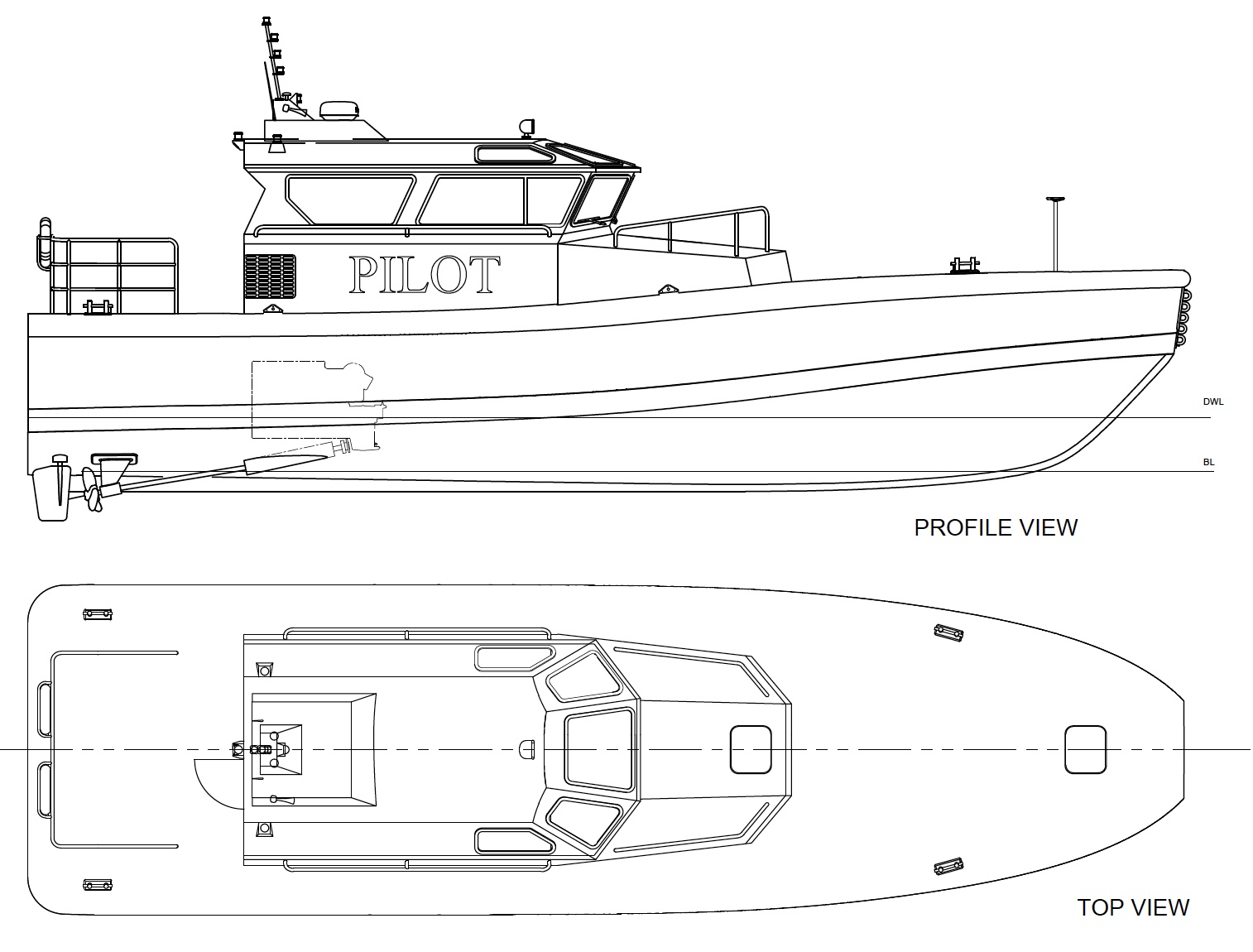

General specifications

Length: 14 m

Breadth: 3.80 m

Hull and cabin made of high-density polyethylene

Polyethylene is so elastic that the hull cannot be crashed even at collisions with high speed. So it is safer than all kind of hull materials ever.

Polyethylene not to be affected by corrosion so no painting needed

Double hull. Foam between hulls

Antislip surface on maindeck

Insulated covering inside cabin

Propulsion system

2 x Cummins QSB6.7-425 main engines (419 hp, 3000 rpm, 2000 hours annual)

ZF reduction gears

25 knots speed at maximum rate

Electronic throttle

Shafts: 316 L stainless steel,

Rudder blades: 316 L stainless steel

Propellers: Brass

I bracket: 316 L stainless steel

Bow thruster

8 HP, 24V Bow thruster

Air conditioning

1 x 24000 BTU air conditioner in cabin

1 x 13000 BTU in crew rest room

Electric system

1 x 7.5 kW generator (220 V / 50 Hz)

Separated battery groups for engines, generator and service equipment

Separated battery cut-offs for battery groups

Diots for charging the batteries by means of main engines

Battery chargers (All battery groups are chargeable with 220V shore connection or generator)

Reverse polarity cut-off for 220 V shore connection and generator

Invertor 24/250, 230V

Carling control buttons for equipment

USB charger

LED lighting for all closed spaces

Certified marin cables for all connections

RG 213 cable for antennas

Navigation equipment

Navigation lights

Electronic control card for navigation lights

Remote controlled search light projektör (360° horizontal, 137° vertical, 150m/10 lux)

1 x Garmin GMR 18HD+ 32nm Radar antenna

2 x Garmin GPSMAP 922XS Worldwide radar screen (GPS)

1 x ICOM IC-M323 Marine radio

1 x Garmin Echosounder

CCTV monitor system

Exterior announce system

Fuel, fresh water, dirty water, bilge

2 x 800 lt fuel tanks, 1 x 250 lt fresh water tank, 1 x 130 lt grey water tank, 1 x 130 lt black water tank, 1 x 80 lt bilge tank (All tanks made of polyethylene)

Level sensor and low-level alarm for fuel tanks and fresh water tank

Level sensor and high-level alarm for bilge, grey and black water tanks

Tank level gauges on control desk

Alarm panels for tanks and bilge wells on control desk

24V electrical toilet

Bathroom

1 x 20 lt/min Hydrophore (24 V)

1 x 20 lt boiler (220 V)

Macerator pump for grey water and black water tanks

Submersible bilge pumps in tank room, engine room (Front & aft). Emergency submersible bilge pump in engine room

10 lt/min bilge circulation pump for pump the bilge out of the boat

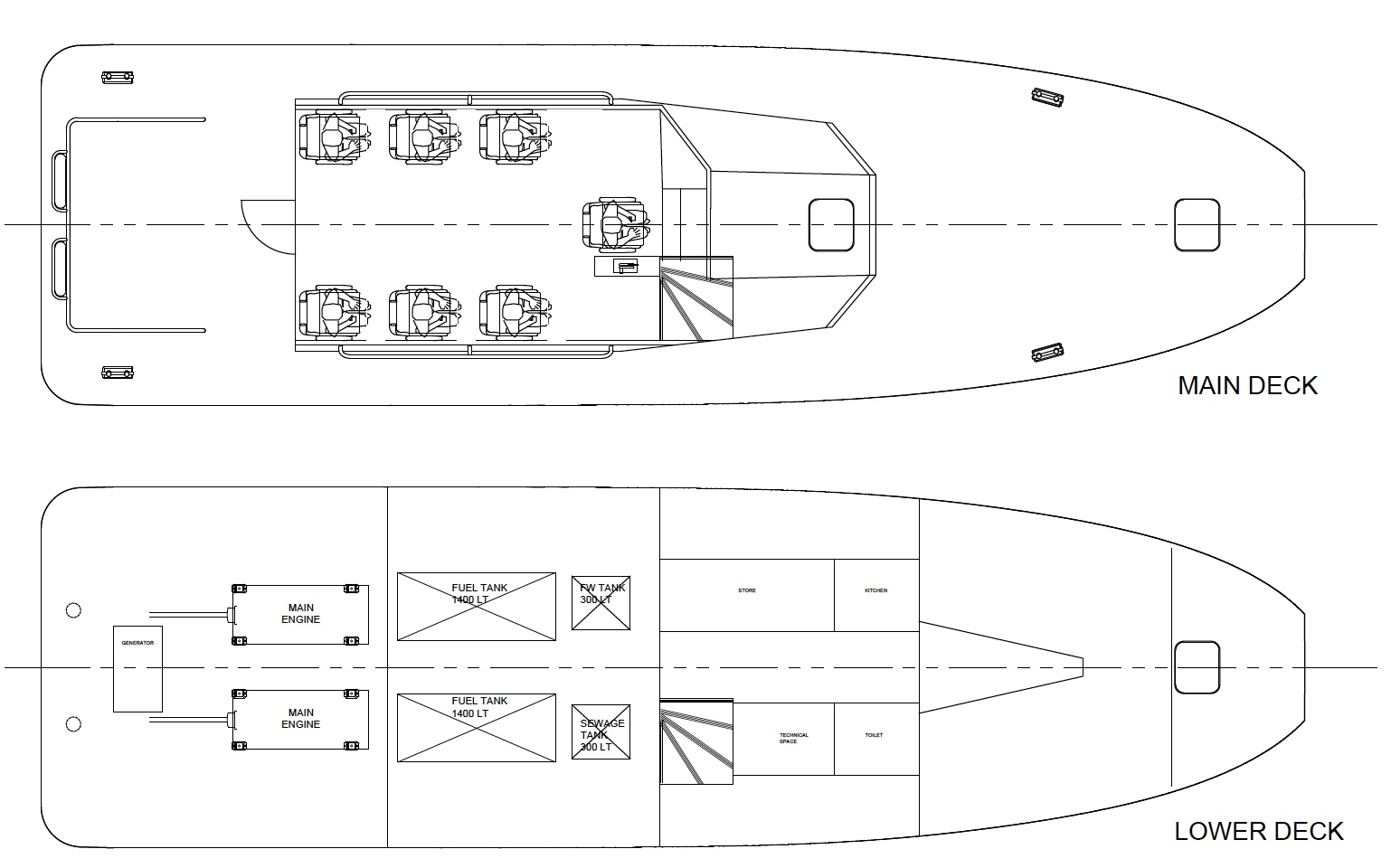

Internal outfitting

Rest room for 2 crews

1 + 6 seating capacity in cabin. All seats have shock absorbers

Aluminium framed windows around cabin. Windshields are heat resisted with timer. Sliding windows fore and aft Aluminium framed hinged doors at aftside of cabin

120 mm D type Rubber fenders around hull

2 x Blower in engine room (37 m³/min) (24 VDC)

1 piece of ventilating fan with 5 m³/min capacity in tank room (24 VDC)

2 pieces of silent ventilating fan inside control desk (24 VDC)

Wipers

Windshields washing system

Electronic wipers control card

Main deck

4 x 316L stainless steel bollards on main deck

316L stainless steel handrails

10 kg galvanic anchor

Ø6 mm chain (20 m)

Rudder system

Helm pump

Rudder cylinder

Rudder angle indicator

Safety & fire fighting

8 x life jackets

4 x life buoys

1 x 24 VDC internal fire Pump (100 lt/min)

Heat and fire detectors at closed spaces

2 x 6 kg powder self-activating fire extinguisher in engine room

1 x 6 kg powder fire extinguisher in cabin

2 x 1 kg powder fire extinguisher in cabin and rest room

First aid kit
