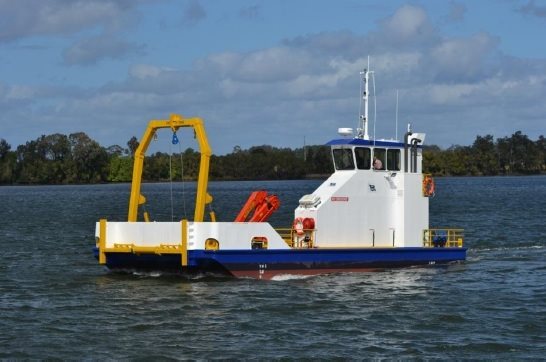

NEW BUILD - 14.95m Workboat


Listing ID - 424386


DescriptionNEW BUILD - 14.95m Workboat
Date Launched
2011
Length14.95m
Beam7.0m
Draft1.0m
Locationex Shipyard, NSW, Australia
BrokerIvan Colaco
ivan.colaco@seaboatsbrokers.com
+61 401 695 814
View As PDF

PRINCIPAL DIMENSIONS:
Length Overall: 14.95 metres
Beam (moulded): 7.00 metres
Depth (moulded): 1.80 metres
Hull Draft (approx): 1.10 metres

PAYLOAD CAPACITIES:
Fuel: approx 2 x 5800 litres
F/W Ballast: approx 2 x 2200 litres
F/W: approx 200 litres
Sullage: approx 300 litres

PROPULSION:
Main Engine: 2 x Caterpillar 3406 DITA, 400BHP @ 1800rpm
Gearboxes: 2 x ZF 350 gearboxes with standard ratios of 4:1
Rudders, Propellers & Shaft: 2 x 4-bladed Kaplan type propeller with bronze nuts. Shafting to be 3” Ø, material 2205 duplex grade stainless steel, tapered and keyed both ends fitted with nuts and keys. Rudder stock to be 2 x 2” 316 stainless steel with mild steel plate rudder

PERFORMANCE:
Speed: approx 8.5 knots

CLASS/SURVEY:
Survey: MSQ Class 2C/2D (6/12)
Hull Structure: LRR SSC G2 CLASS
LIFE SAVING APPLIANCES/FIRE FIGHTING EQUIPMENT(As per survey requirement):
2 x battery operated waterproof torch
12x coastal life jacket with a light and whistle
1x scale of first aid kit
2 x 406 MHz EPIRB one in life raft
1 x portable air hom
2x life buoy with buoyant line
1 x life buoy with a light
2 x hand held flares
1 x hand held orange smoke signal
3 x parachute distress rockets
1 x 6 man capacity inflatable coastal liferaft
4 x fire extinguishers (ABE dry chemical powder, 4.5kg capacity)
1x smoke detector unit
1 x fire extinguisher (foam, 9 litre capacity)
1 x fire hydrant
1 x remote control for fire pump
1 x remote control for bilge pump
2 x 9 litre red metal fire buckets with lanyards
1 x control panel for fire detection and fire alarm system
1 x fire hose and fire nozzle
1 x fire pump

NAVIGATIO0N & COMMUNICATION EQUIPMENT (As per survey requirement): TO BE CONFIRMED

GNSS Receiver (A2)
Depth Sounder
Speed and distance Indicator
Clock
Binoculars
Navigation Lights
Barometer
Signalling Light
Magnetic Compass, 100mm Dia Card
VHF Radiotelephone & Suitable Antenna System
Charts and Nautical Publications

WINCHES/WINDLASS and MOORING EQUIPMENT:
Anchor and chain to survey requirements
4 x deck corner winches are to be fitted and plumbed of 4t capacity. A main central deck winch of 6t capacity is to be fitted and plumbed

FITOUT
Deck mounted AC system. Deck head to be insulated with rockwool or similar with a laminate finish. Wheelhouse forward window fitted with one windscreen wiper. Aluminium painted console for gauges and controls, steering by mean of joystick. Cupboard to be fitted at aft port side for personnel effects and navigation aids and log book. Wheelhouse floor is non slip painted grey. Remainder of wheelhouse interior is exposed aluminium painted black








The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
