NEW BUILD - 13m Aluminium LCT

Listing ID - 1483
Description	NEW BUILD - 13m Aluminium LCT
Date Launched	Built to Order / Build time 3 months from signed contract.
Length	13m (42ft 7in)
Beam	2.8m (9ft 2in)
Draft	abt 0.2 to 0.4m
Location	East Java, Indonesia
Broker	Franklin Taylor franklin.taylor@seaboatsbrokers.com +64 27 276 5383
Price	USD 92,000. Ex-factory
View As PDF

Type: Landing Craft Utility (LCU)

Hull: Aluminium 1100 (industry), non class due to small boat (under harbor master regulation), endurance max 20 nm, day boat

Double hull, double bottom, except in E/R

Displacement abt 16-17 ton, Lightweight abt 2 tonnes

Principal Particulars

Length overall: abt 13 m

Breadth: abt 2.8m

Depth to main deck : abt 0.6 m

Height from bottom line to side wall: abt 1.6 m

Draught max: abt 0.2 to 0.4 m

Drop gate/ramp door: 1 (double plate, 1 x 1.5 m)

Bollard: 6

Hand winches and steel wire: 2

Frame spacing: abt 0,5 m

Service speed at light: abt 12 to 15 knots

No paint ( optional)

Canopy + canvas cover for cargo area

Canopy: galvanized pipes or stainless steel

Complement: abt 2 crews

Live saving appliances: life buoys (2) , life rings (4)

Navigation light: 2

VHF radio: 1

Battery 2

Simple wheel house

Steering console

Manhole access to E/R:1

Ventilation in E/R by goose neck

Railing

Small anchors and chain 1

Simple toilet 1

Aluminium seat benches 40x40x35

Machinery / Propulsion

Single engines

Main engine in board, 4D32, 1 x (120) ps, Mitsubishi marinised ex sin,

Battery 1

Gear box

Shafting 1

Propeller 1

Rudder 1 (aluminium)

Rudder stock 1

Mechanical Steering by chain

Fuel capacity tank max 400 litres

Spec fuel consumption 25 to 30 litres per hour,

FRP (1) fresh water tank for toilet

Area of cargo without pax: ( 8m x 2,6 m)

If pax = 20 pax (with seat benches)

Area of pax ( 4 m x 2,6 m), area of cargo ( 4 m x 2,6 m)

Volume of cargo without pax: ( 8 m x 2,6 m x 0,7 m)

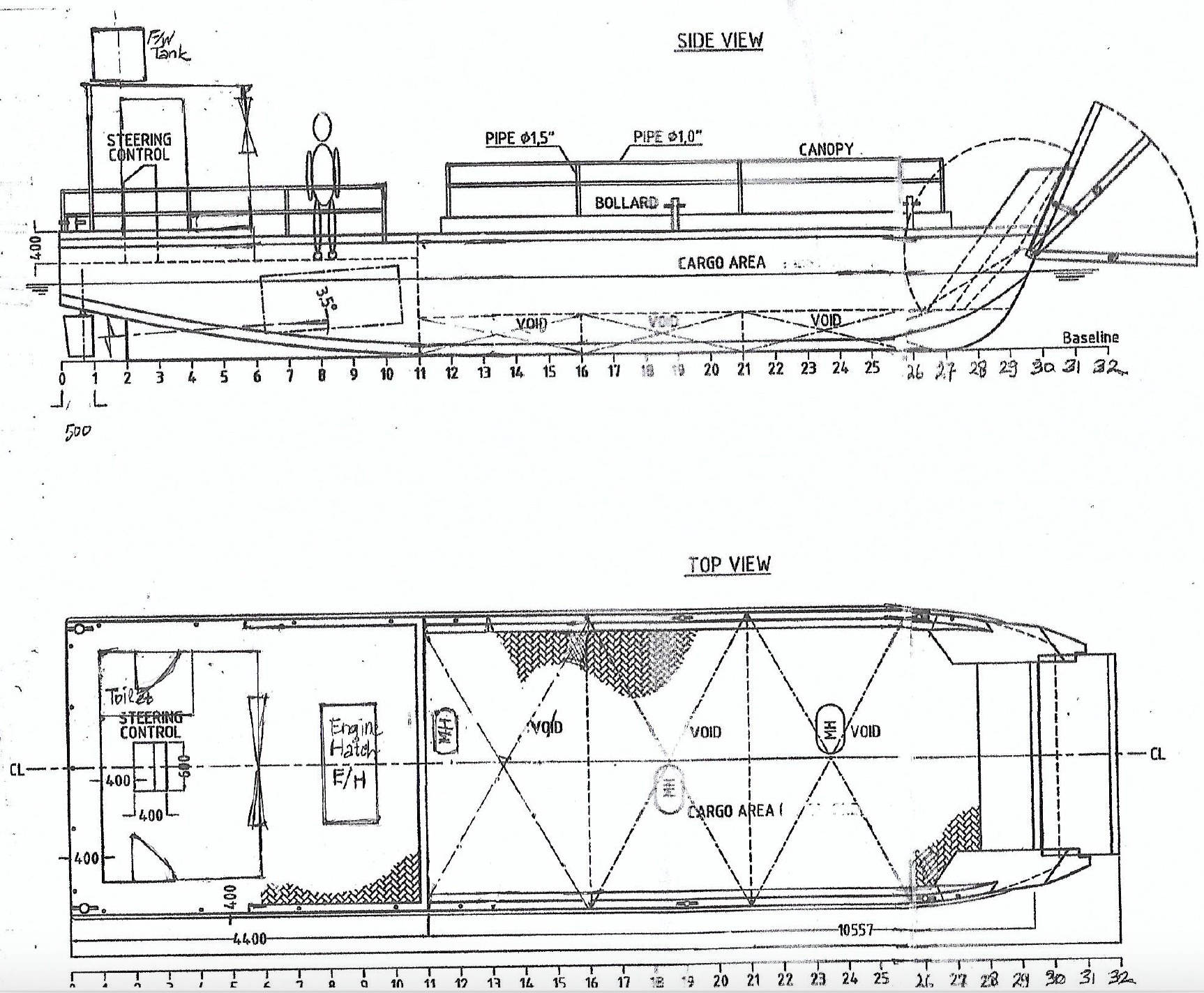

1483: NEW BUILD - 13m Aluminium LCT - 091.jpg

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
