NEW BUILD - 10m Work Boat

Listing ID - 5809
Description	NEW BUILD - 10m Work Boat
Date Launched	Built to Order
Length	10m (32ft 9.70in)
Beam	3.27m (10ft 8in)
Draft	0.90m (2ft 11in)
Location	UK
Broker	Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323
Price	POA
View As PDF

PROVEN HALMATIC NELSON HULL

LARGE WHEELHOUSE

SINGLE & TWIN ENGINES

LARGE OPEN COCKPIT

MULTI- PURPOSE VESSEL

ROBUST COMPOSITE CONSTRUCTION

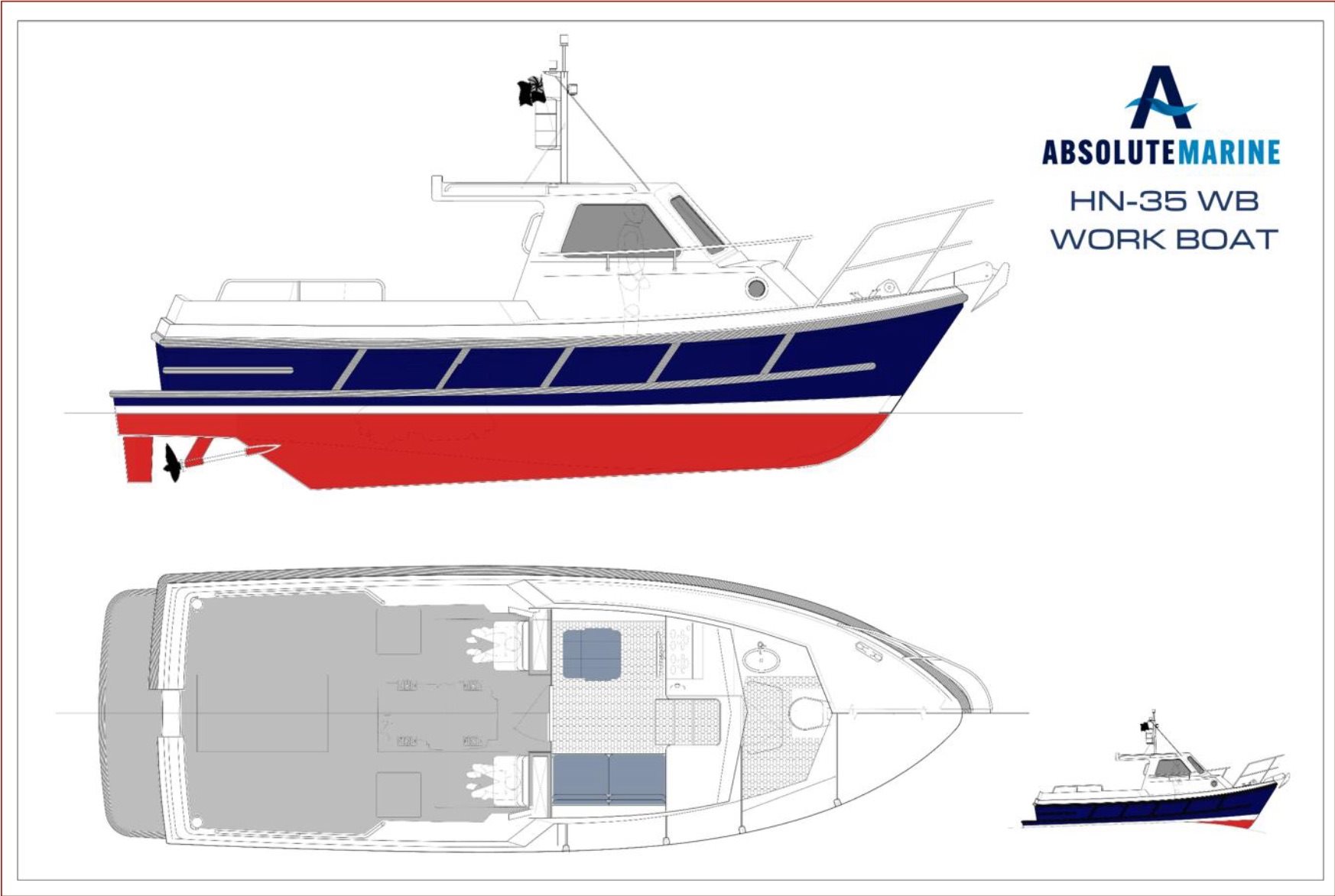

The HN-35 WB (Work Boat) is built today by Absolute Marine using the famous Nelson hull design., which is the same as used by Halmatic commercial boats worldwide.

The HN-35 WB (Work Boat) is available in single and twin engine configuration with a generous forward wheelhouse and large open cockpit, which makes it ideal for any number of operational roles, including mark-laying and committee boat, service launch, general workboat, and fishing boat.

MAIN CRITERIA

Length Overall (LOA): 10m

Length On Water Line (LWL): 9.02m

Beam: 3.27m

Draft: 0.90m

Displacement: 9.5 tonnes (Approx)

Air Draft (mast down): 2.80m

Fuel Tank Capacity: 600ltrs (Approx)

Design & Build Standard: CE Certification

SUMMARY SPECIFICATION DETAILS

HULL & DECK COLOURS

• Hull – White

• Deck – White

• Superstructure – White

• Non-slip deck – Painted

• Antifouling Paint – Crimson

• Boot-top paint – Black

ENGINES & RELATED SYSTEMS

• Engine options available, *including Volvo, Nanni, Caterpillar

*Note: other engine types are subject to compatibility (priced separately)

• Conventional shaft and rudder

• Heavy duty P bracket and contra rotating nickel aluminium bronze propeller

• Single fuel tank

• Engine has its own primary and secondary fuel filter

• Single station hydraulic steering

ELECTRICAL (24V DC)

• 1 x Battery for engine starting

• 3 x Batteries providing power for domestic equipment

• Each bank with voltmeter, battery switch and parallel switch

• Horn

• Navigation lights

• LED overhead interior lights

• Chart light

• 12-volt power socket

• Pantograph wipers

• Screen washers

Electrical (AC)

• Shore Power Connection

• Shore power lead

• Battery Charger

• 2 x AC power sockets

Cont.

07/26Interior Fit-Out – Wheelhouse

• Helm to Port Side

• 1 x Helm seat

• 2 x Crew seats (plus 2 seats in cockpit)

DECK EQUIPMENT

• 2 x Stainless steel bollards on transom

• 4 x Cleats, foredeck, midships

• 2 – Fairleads, foredeck

• Mast in black powder coat finish

NAVIGATION SYSTEMS

• Multi-Function Display - 4” Screen - Wind, Speed, Depth & Temp

• VHF – DVC

• AIS700 - Class B with splitter

Note: Navigation system options are available, subject to customer requirements (priced separately)

Fire detection/fighting

• Portable fire extinguishers as appropriate

• Fire blanket as appropriate

• Automatic engine room fire extinguishers

GENERAL

• Echomax Radar Reflector

• Anchor & Chain

• 6 mooring warps

• Magnetic Compass

• Manual & electric bilge pumping

• Bilge water level alarm system

NOTE:

Other optional items and equipment are available on request.

This summary specification is for illustration purposes only and is non-contractual.

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
