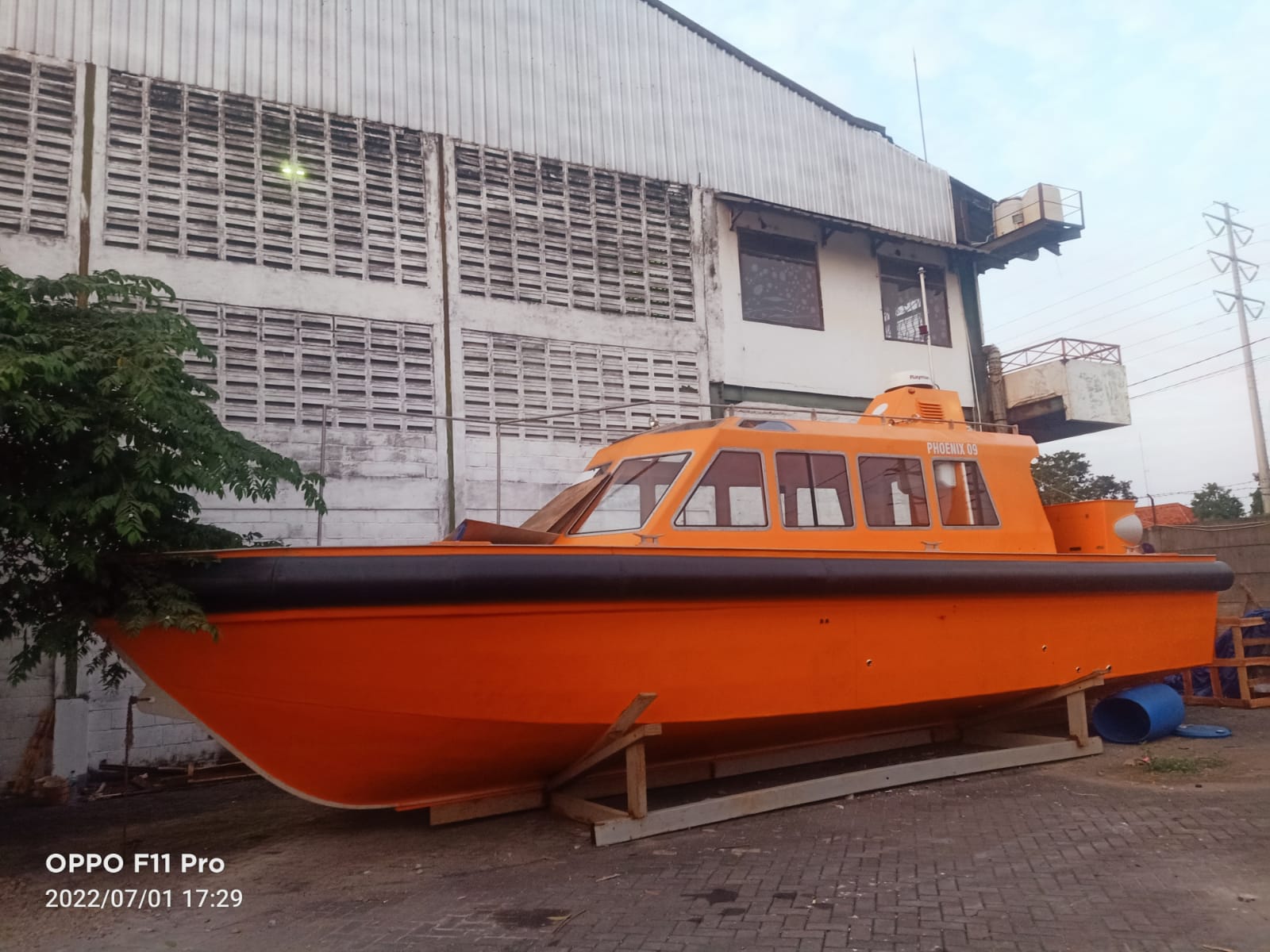

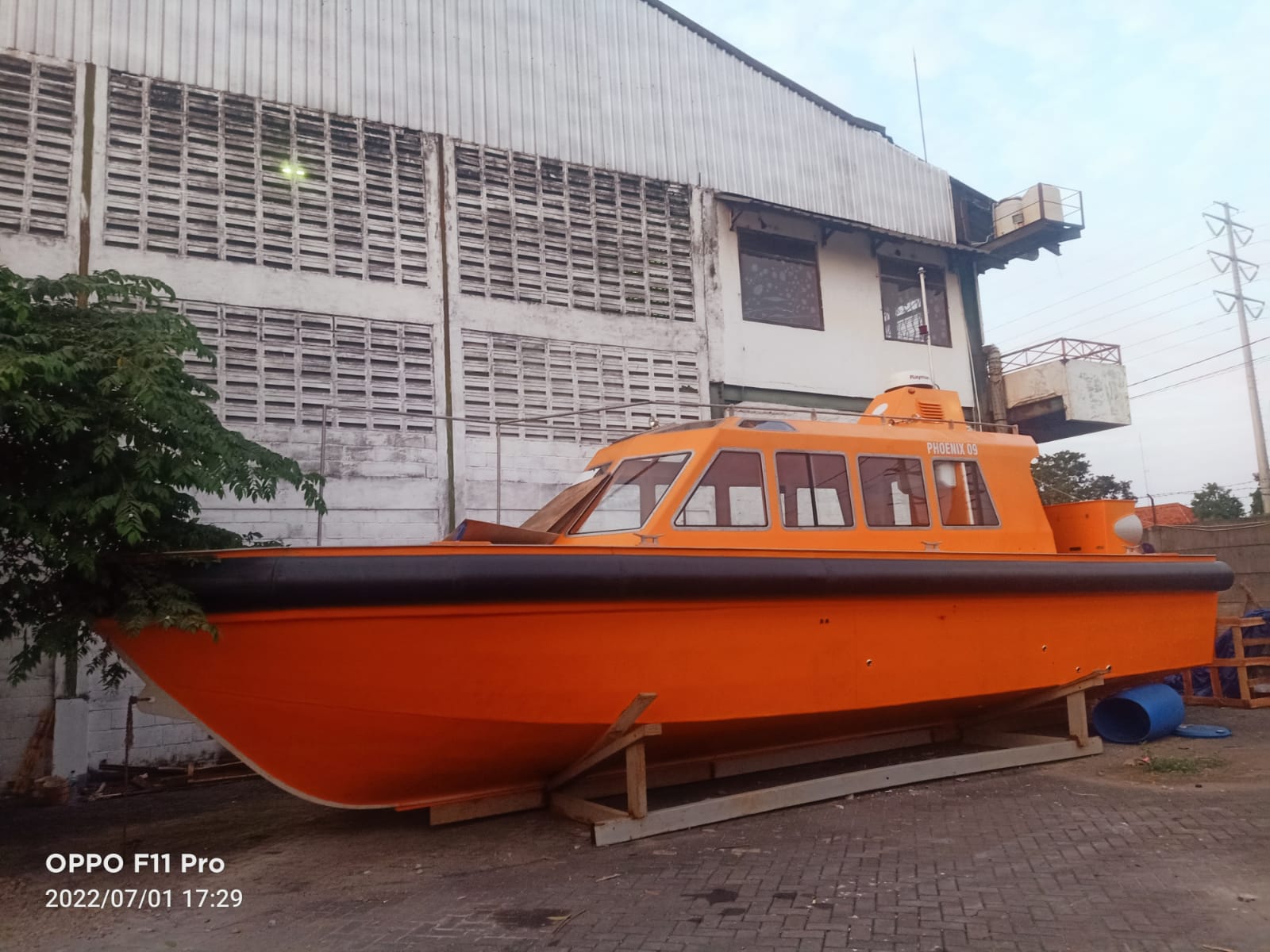

NEW BUILD - 10.50m Pilot Boat

Listing ID - 4427

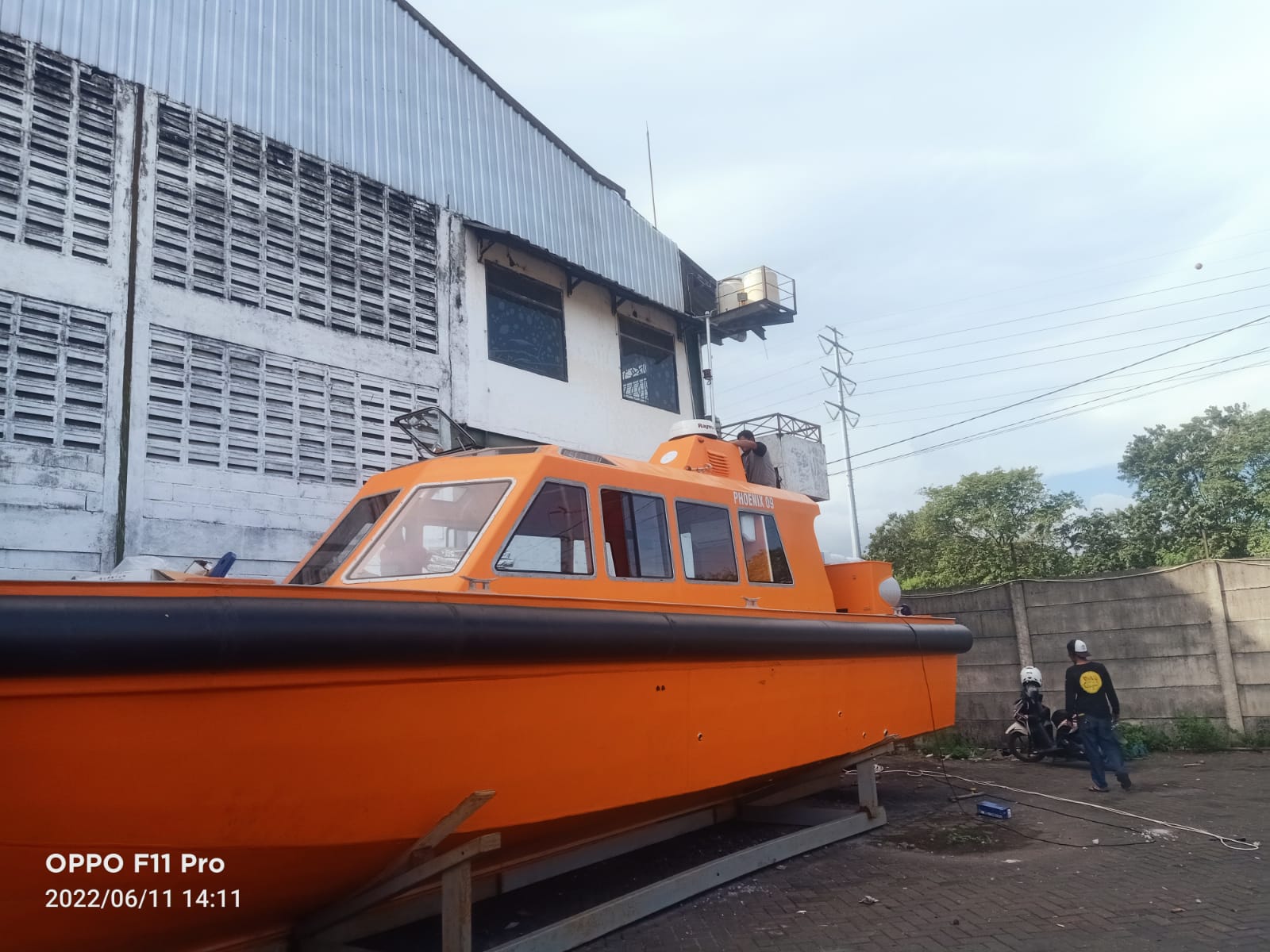

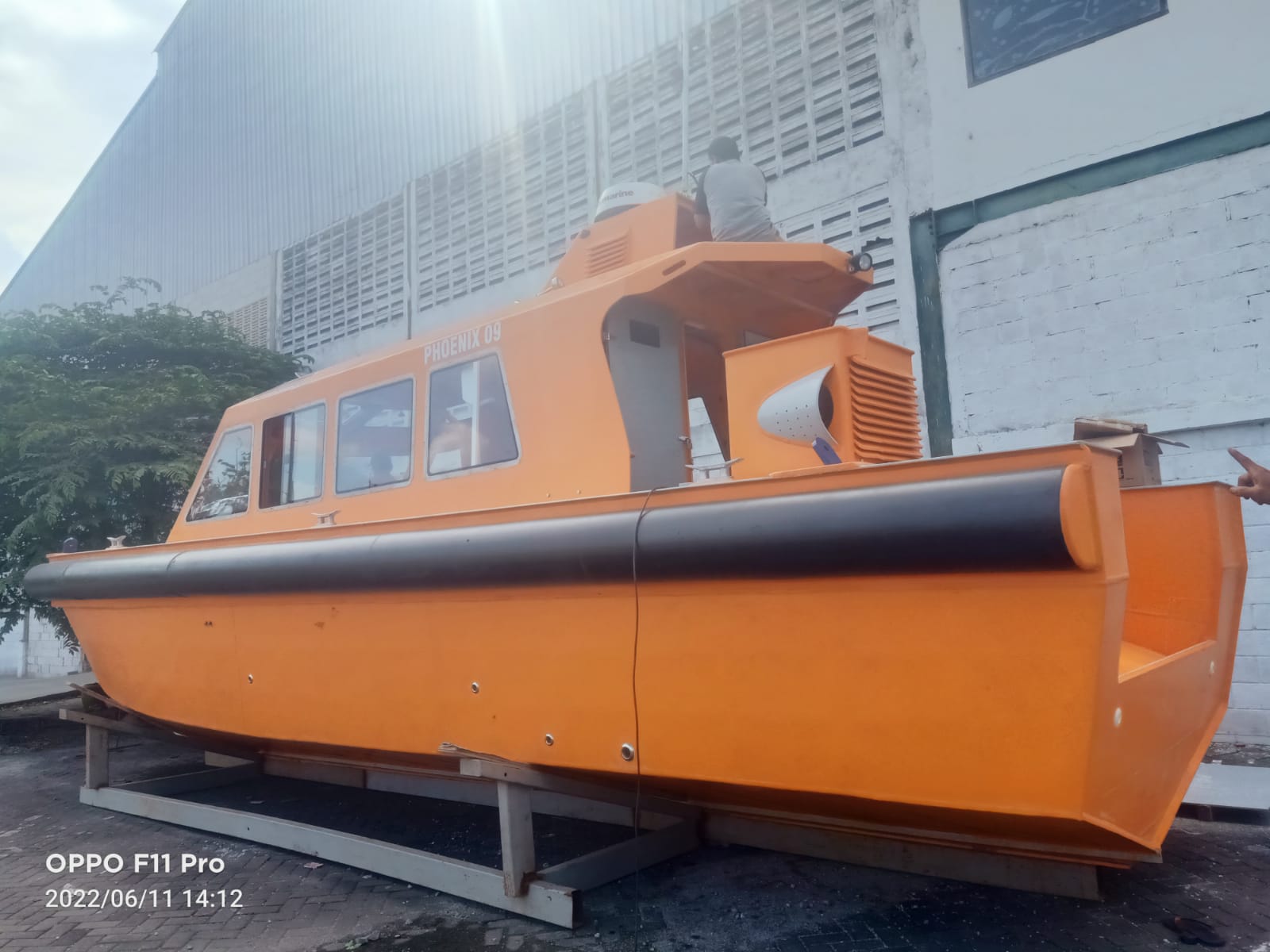

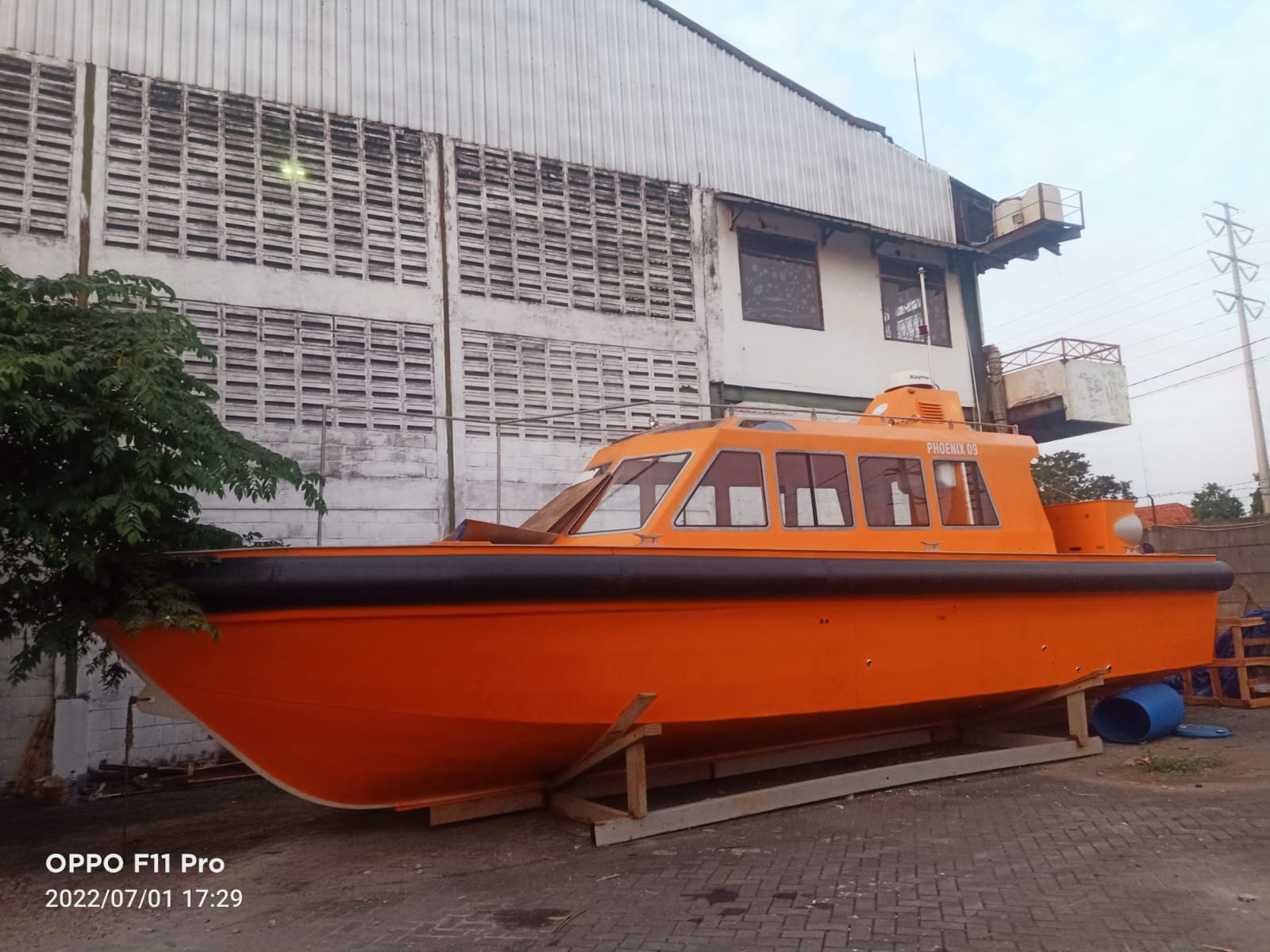

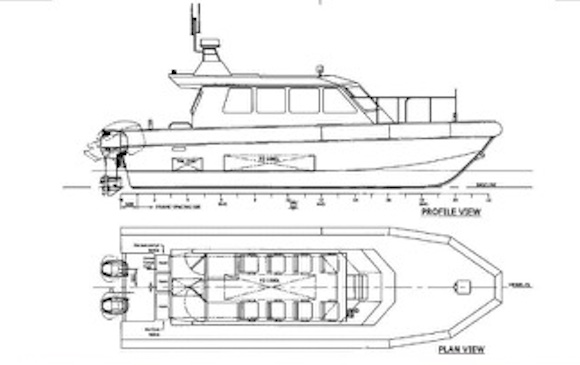

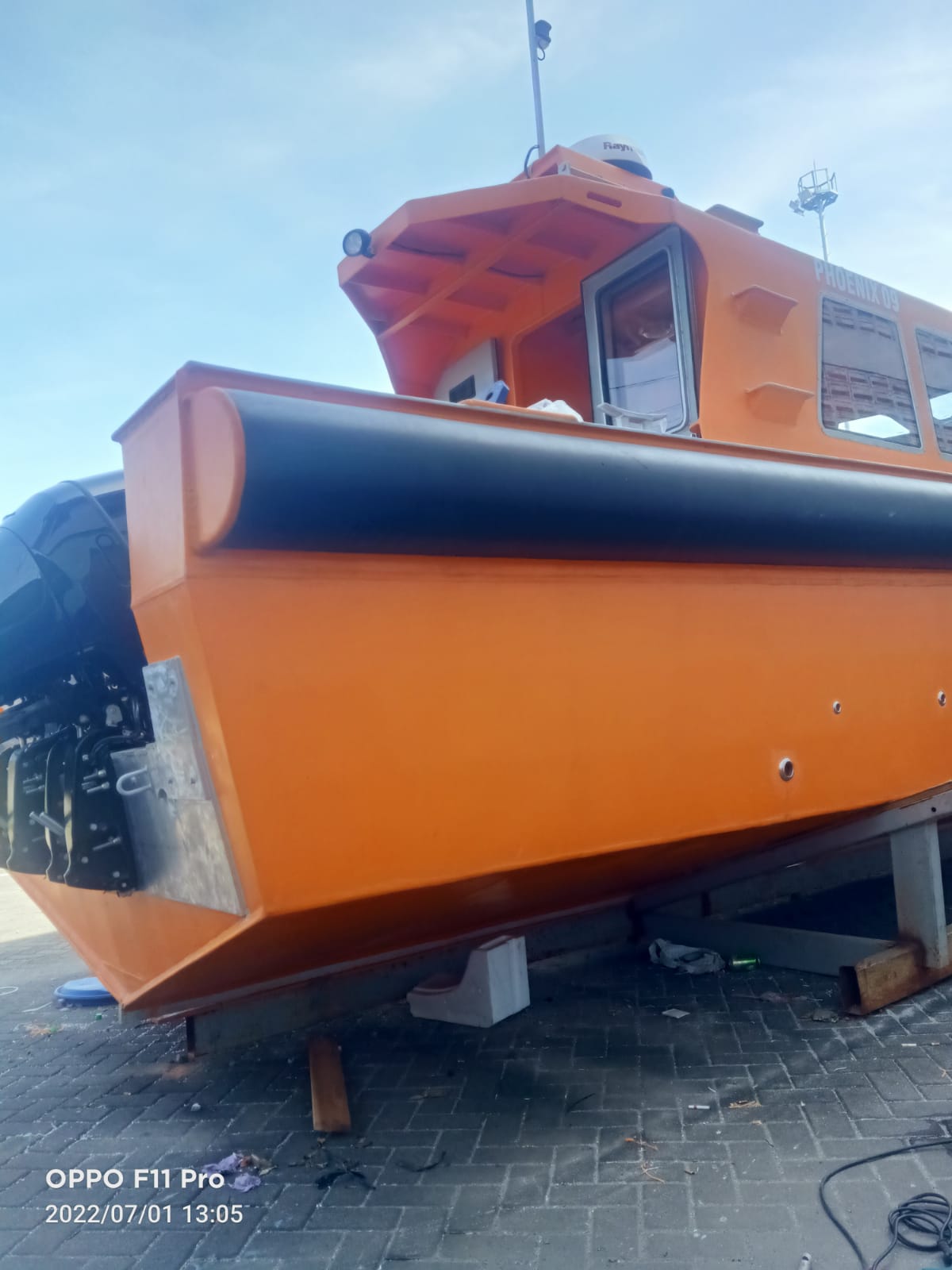

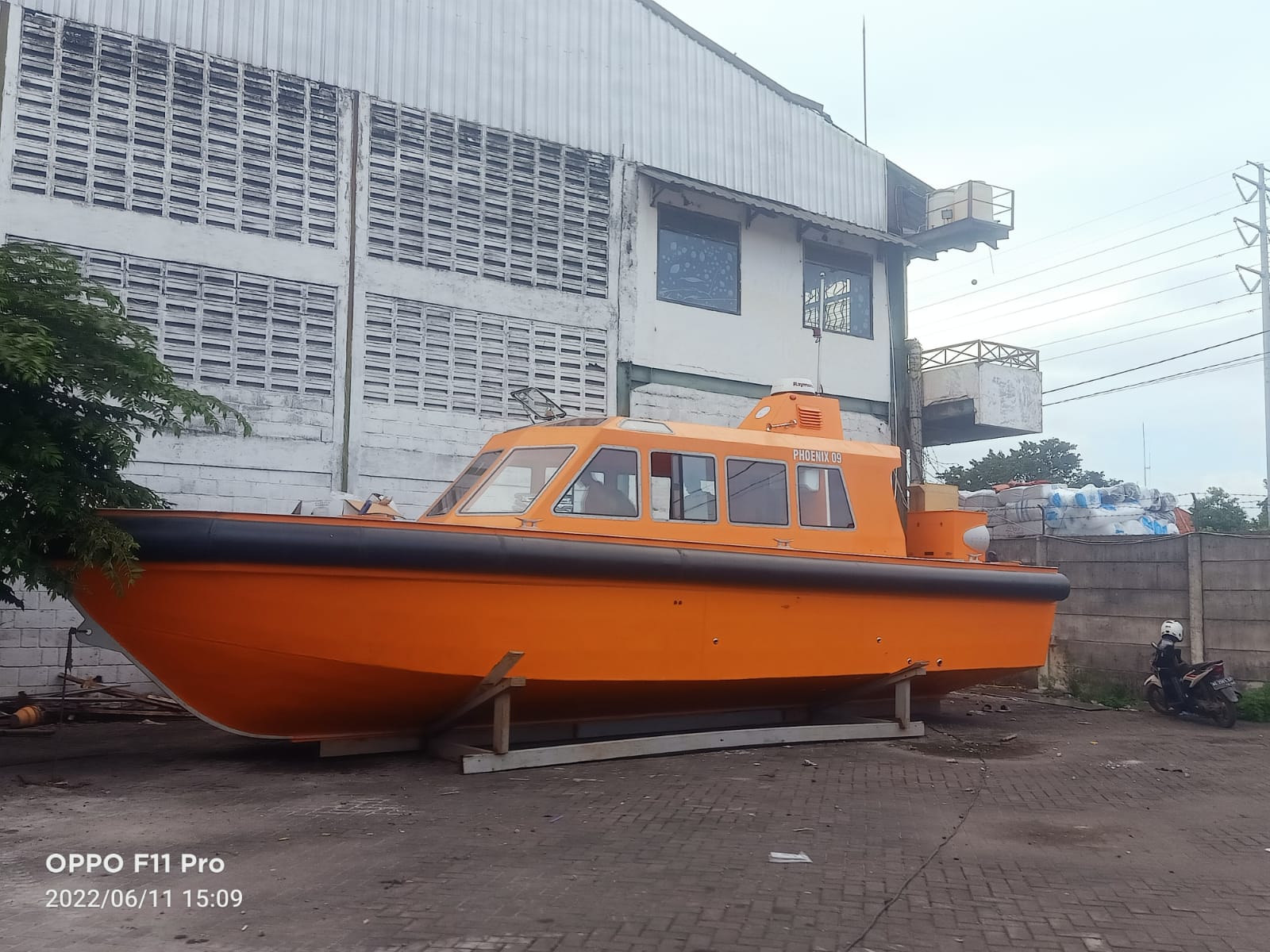

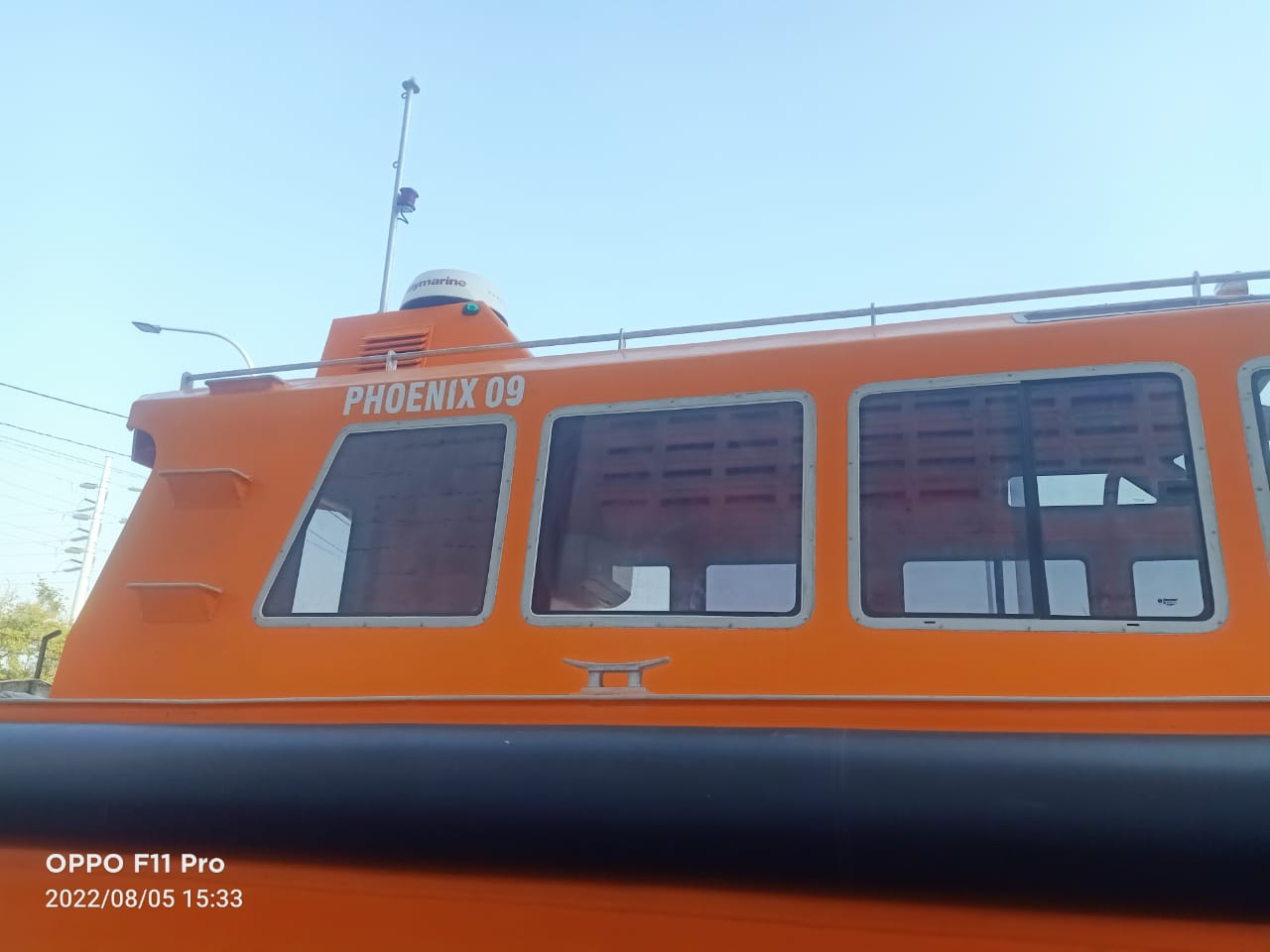

Description	10.50m Pilot Boat
Date Launched	Built to Order
Length	10.50m (34ft 5in)
Beam	3m (9ft 10in)
Draft	1.95m (6ft 4in)
Note	twin engine Suzuki out board motors 2 x 250HP
Location	Indonesia
Broker	Craig McKay craig.mckay@seaboatsbrokers.com +61 412 295 595
Price	ex works, USD 353,000
View As PDF

LOA: 10.50m

Beam: 3m

Draft: 1.95m

Displacement: 6,500 kgs

Fuel Tank Capacity: 1.040 liters

Fresh Water Tank Capacity: 200 liters

Hull Material: High Density Polyethylene

Performance

Contract speed (sea state 2 in full load condition) 25 knots.

Engine Propulsion and Equipment

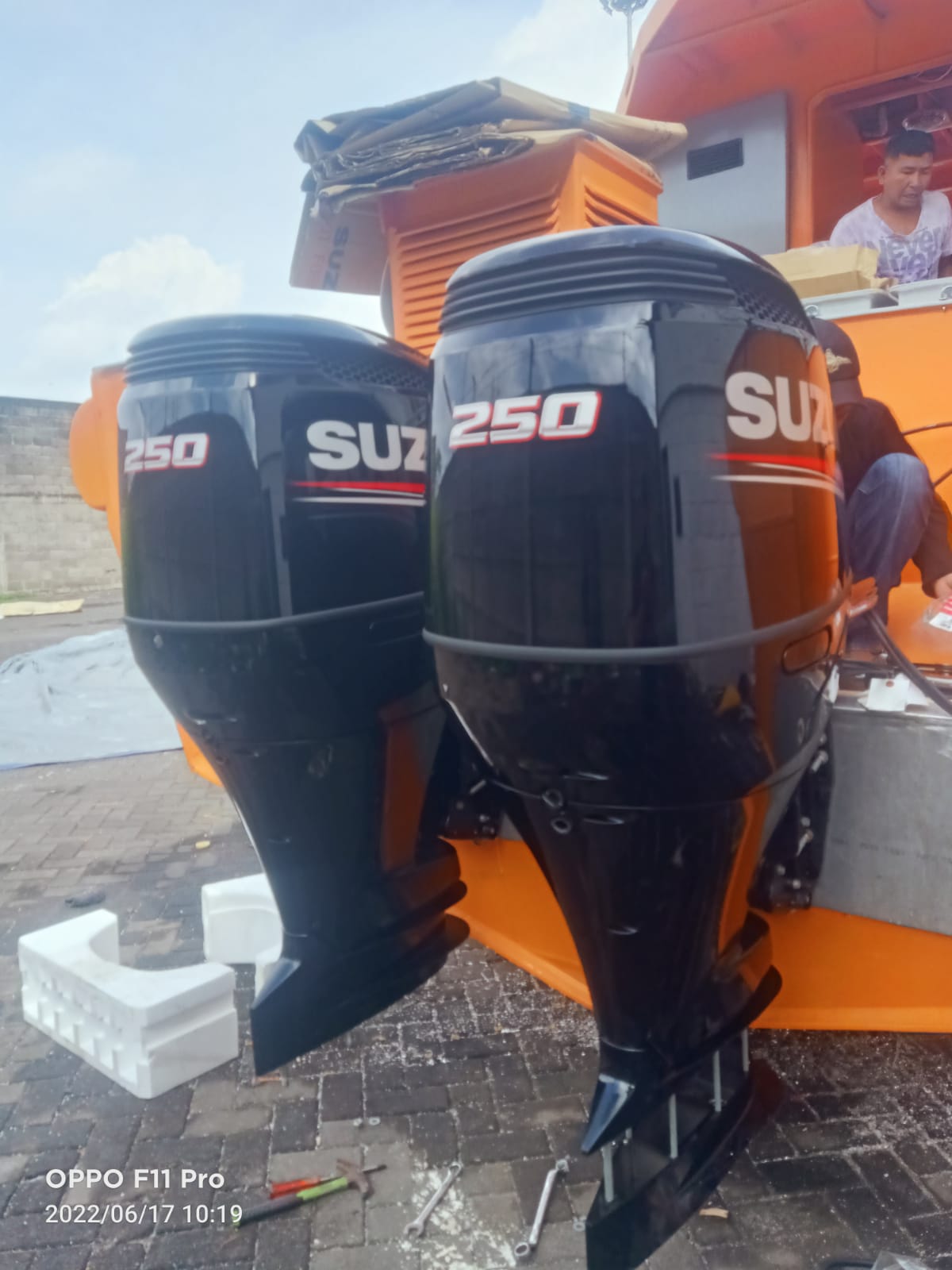

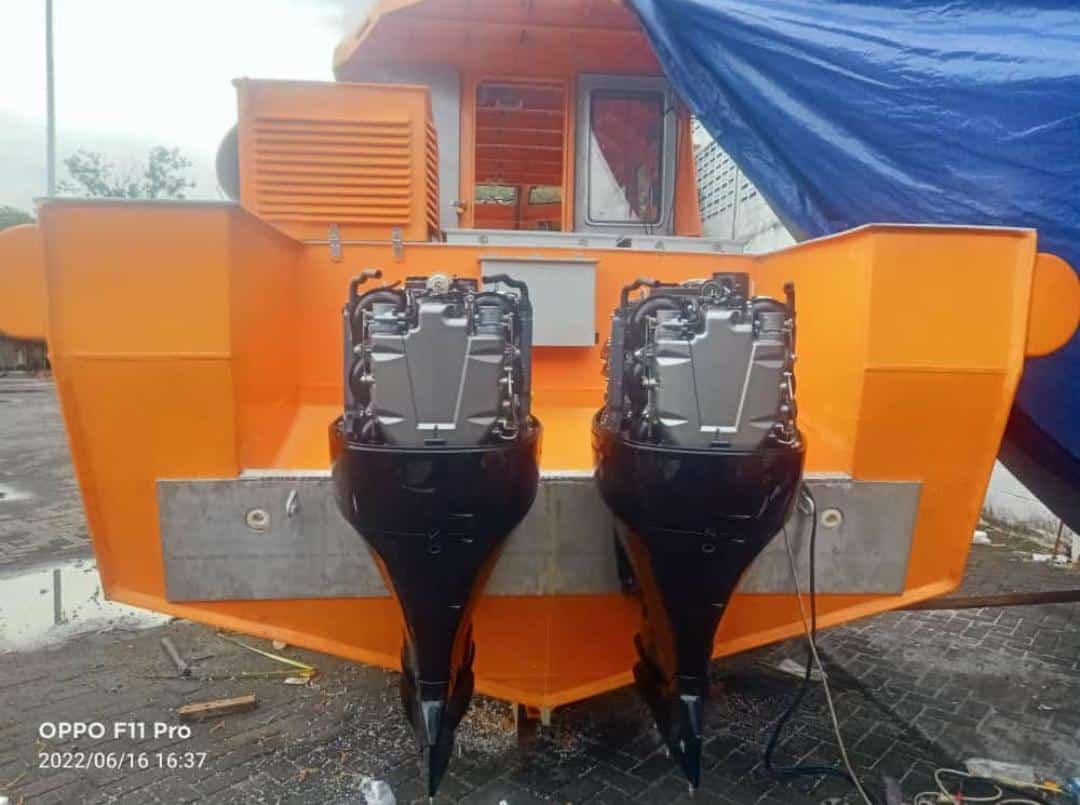

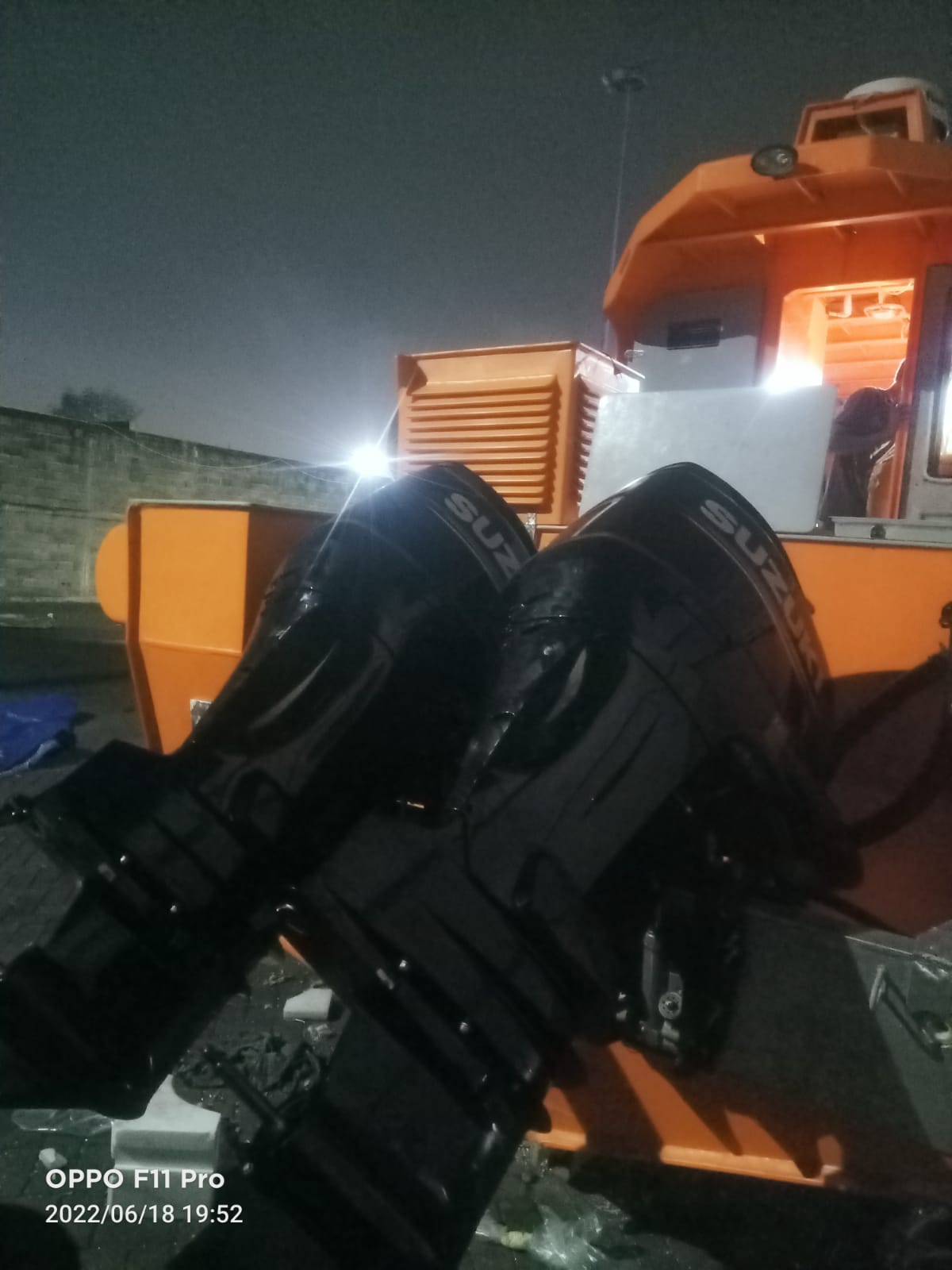

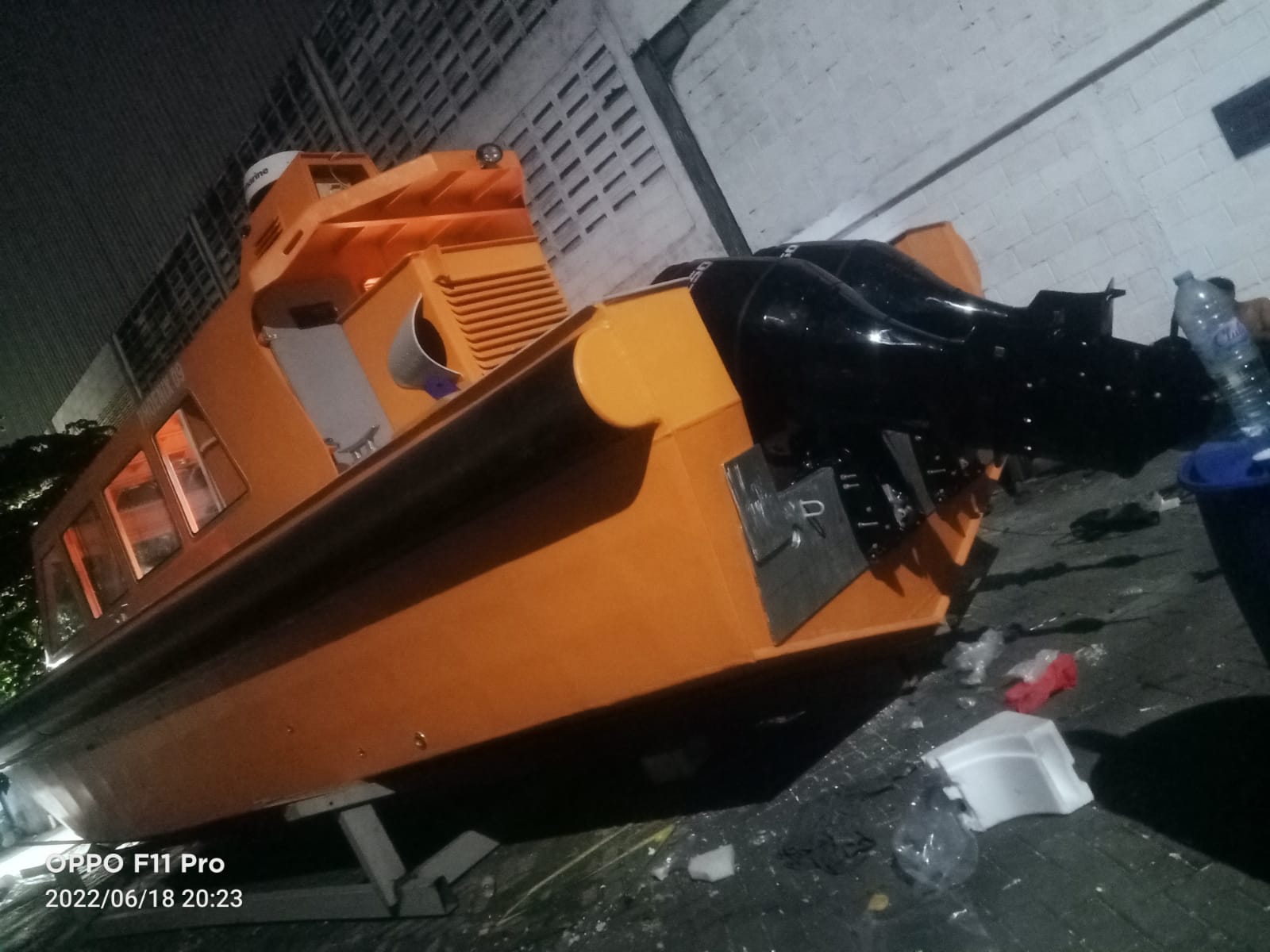

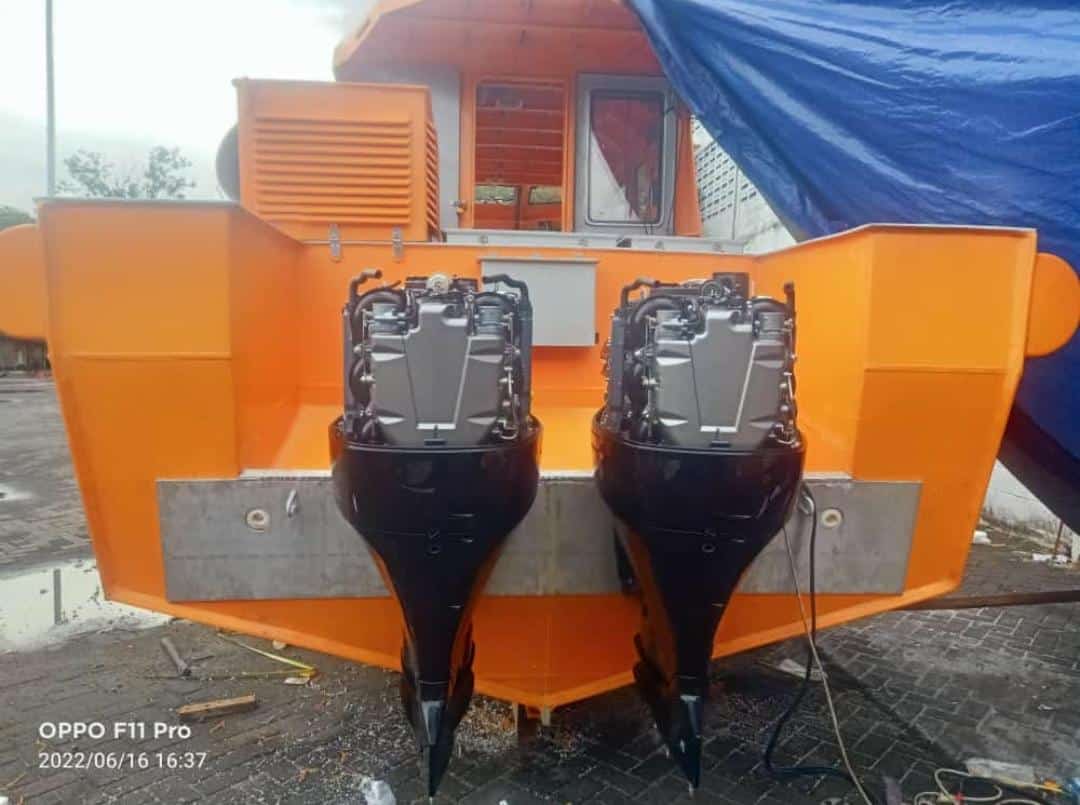

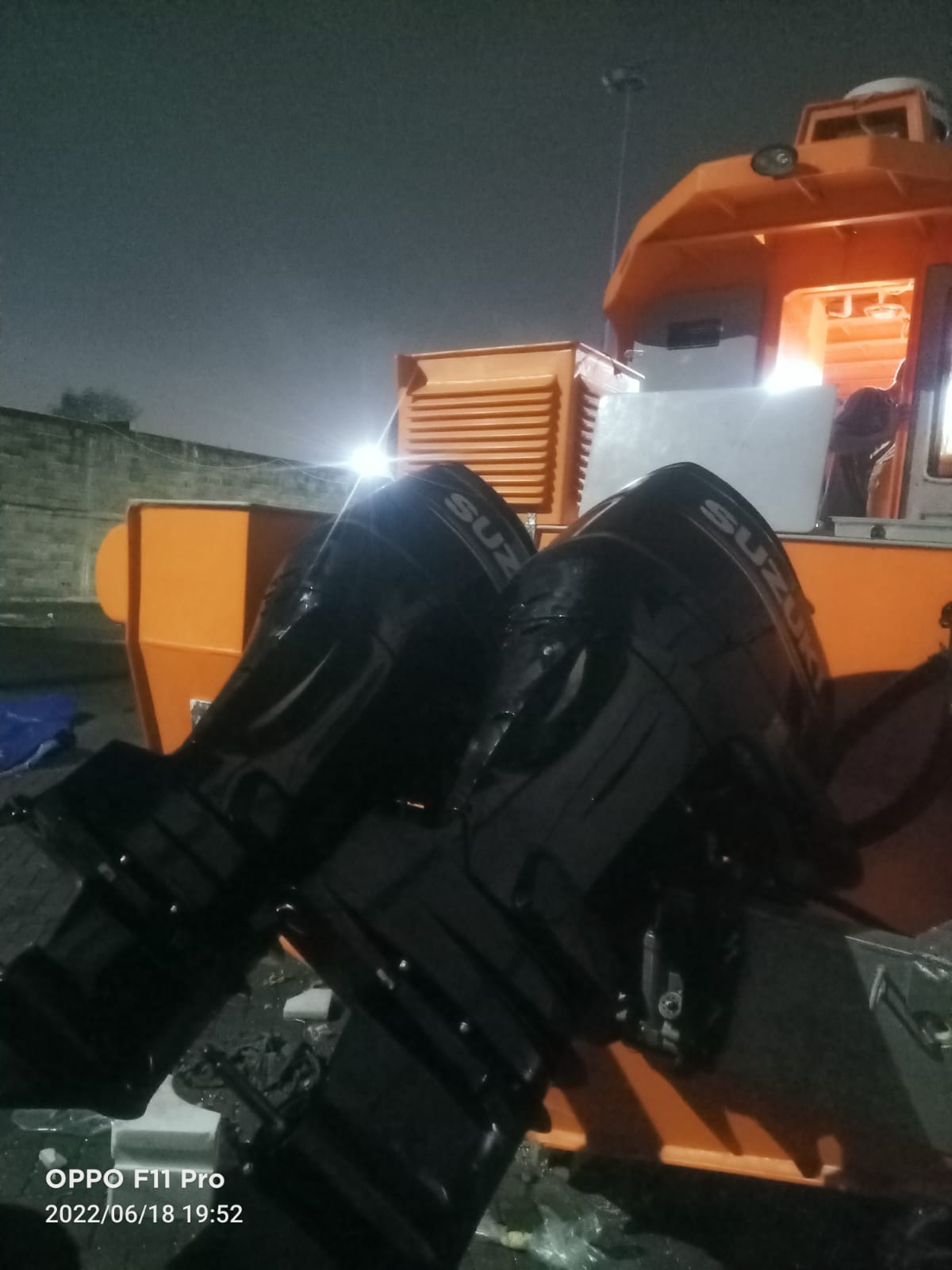

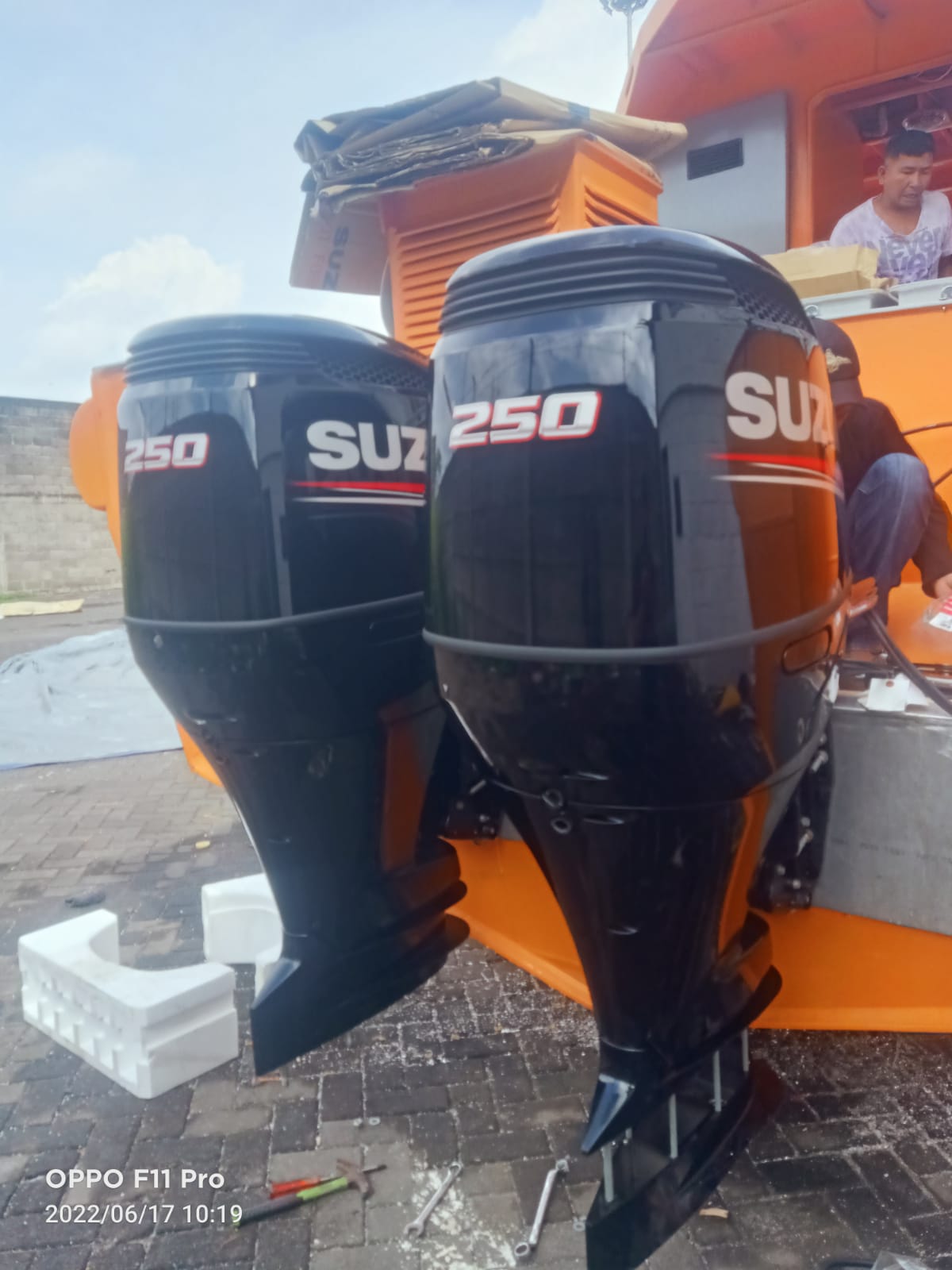

2 pcs Suzuki 250hp outboard motors

2 pcs remote mounted fuel water separator filters

1 pc fuel tank level sensor

2 pcs fuel breathers

1 pc fuel tank injet

Pumps, Pipes, Valves

3 pcs Automatic electric bilge pumps. (5,670 lph capacity)

3 pcs Manual bilge pumps (47 lph capacity)

3 pcs Fresh water circulating pump

1 pc toilet macerator pump

Electric / Shore Power

Main Power System 12 VDC

2 x 12 volt DC 150 amp/hr batteries for engine starter

1 x 12 volt DC 200 amp/hr house battery

1 x battery charger

1 x main control panel 12 volt DC

1 x shore power receptacle rated @230 volt AC

1 x yamaha 2600 petrol genset

Deck Hatches

1 pc Anchor well hatch

2 pcs fuel tank hatch

1 pc water tank access hatch

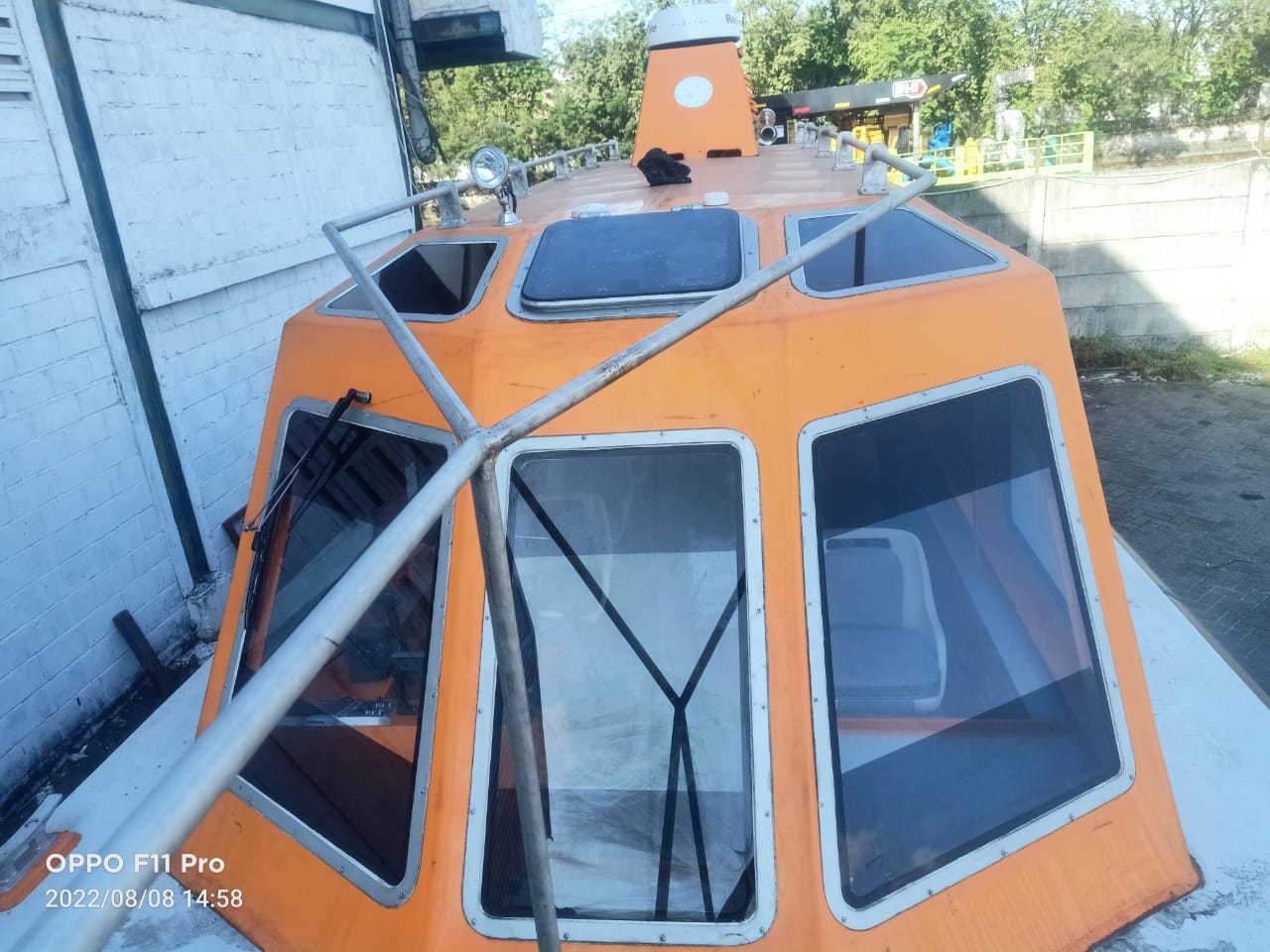

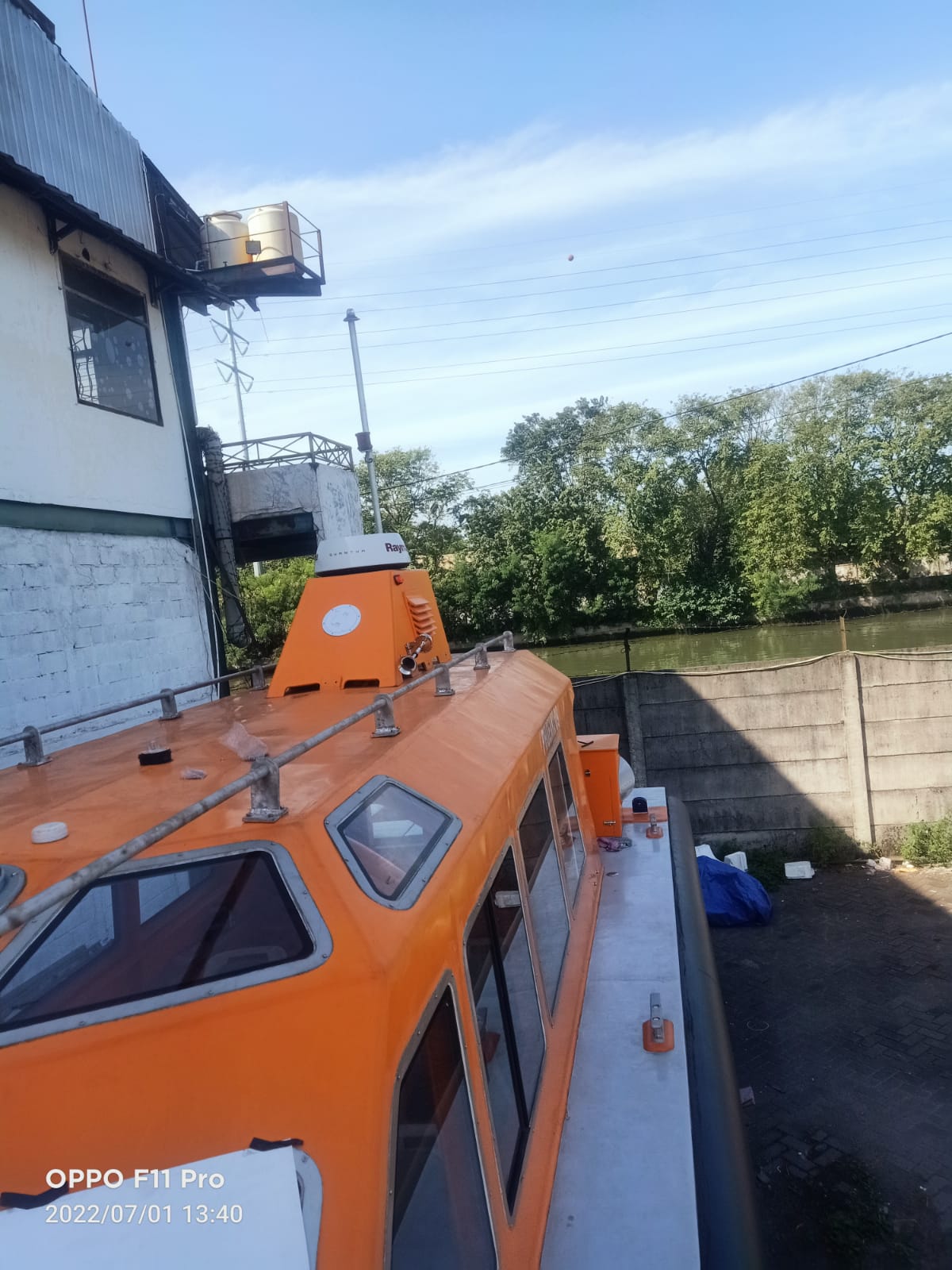

Stanchions, Handrails, Ladders

Stanchions, handrails and ladders is marine grade aluminium.

Lighting Systems

Navigation light provided in accordiance with the International Rules of the Road (COLREGS) applicable to the vessel’s size.

Main lighting 12 volt DC

Navigation light 12 volt DC

Search light 12 volt DC

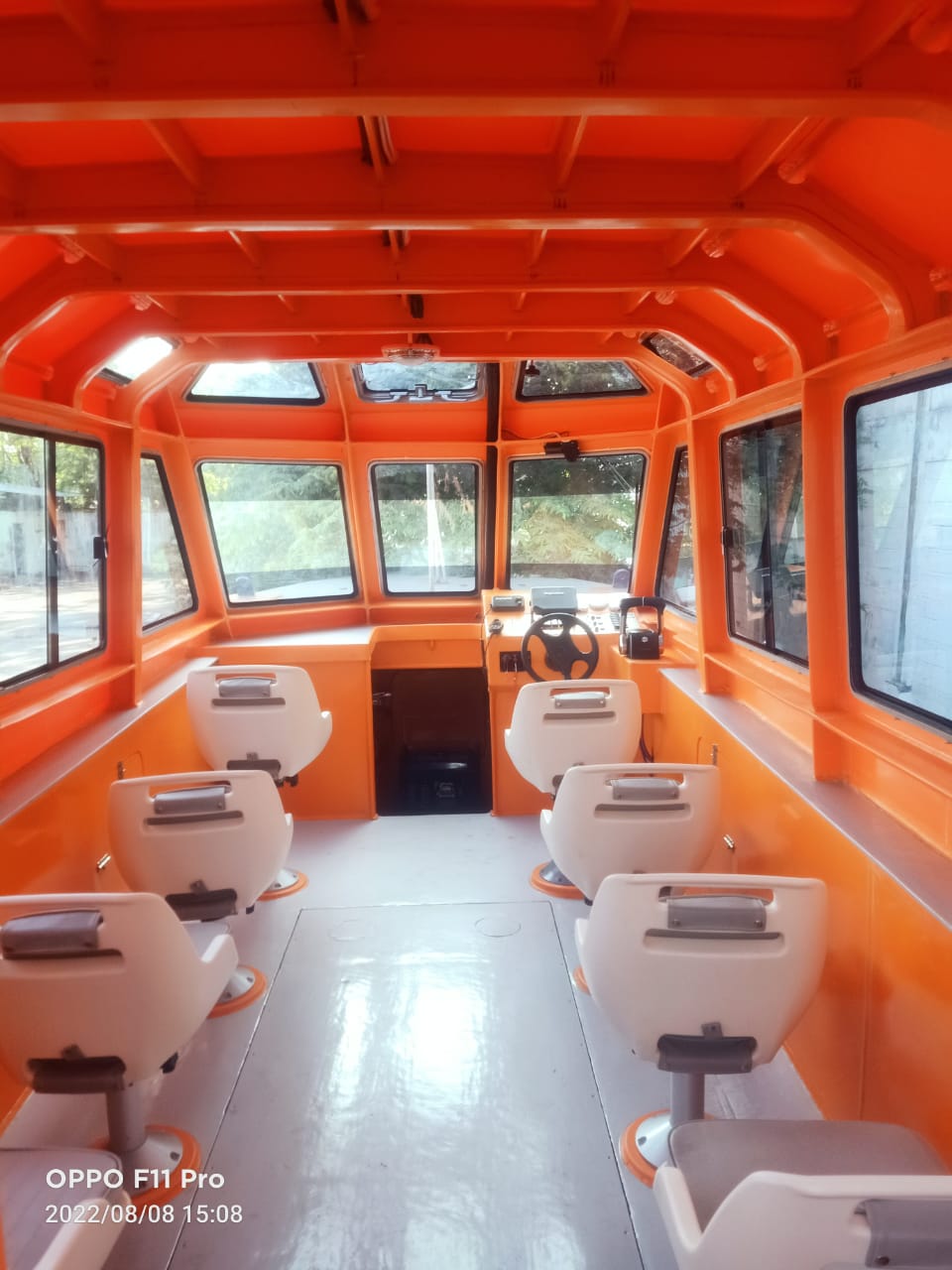

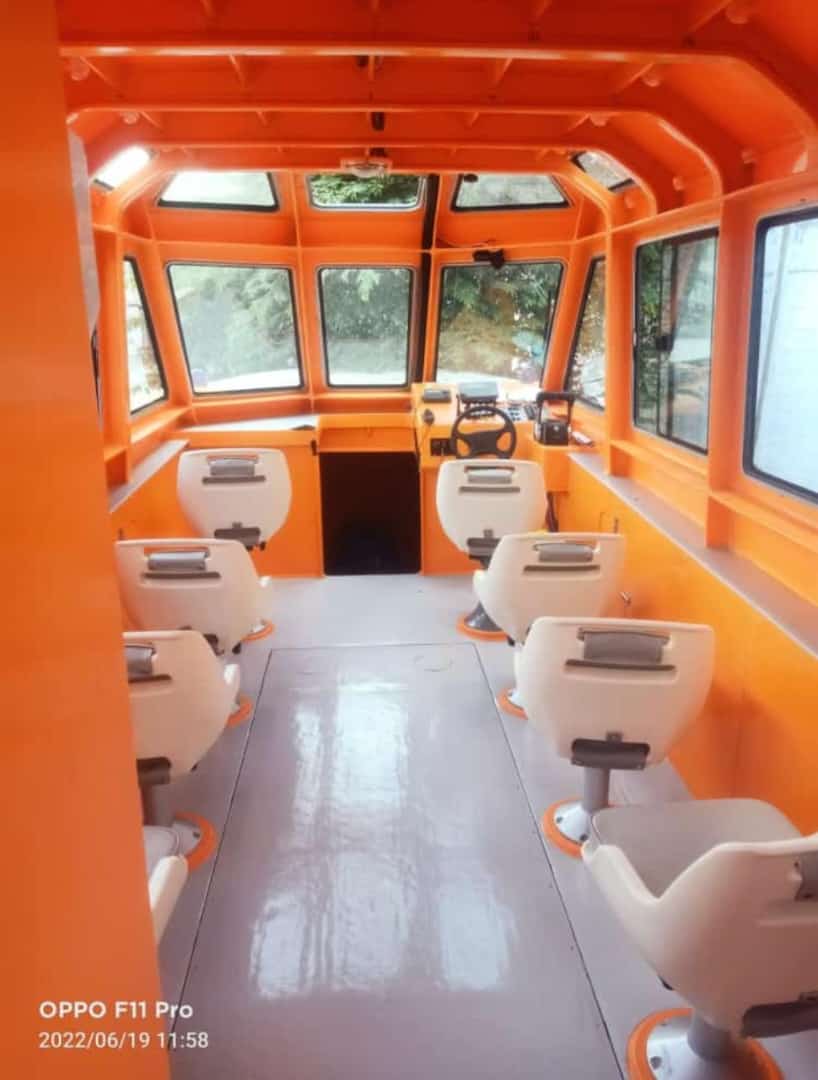

Command and Control

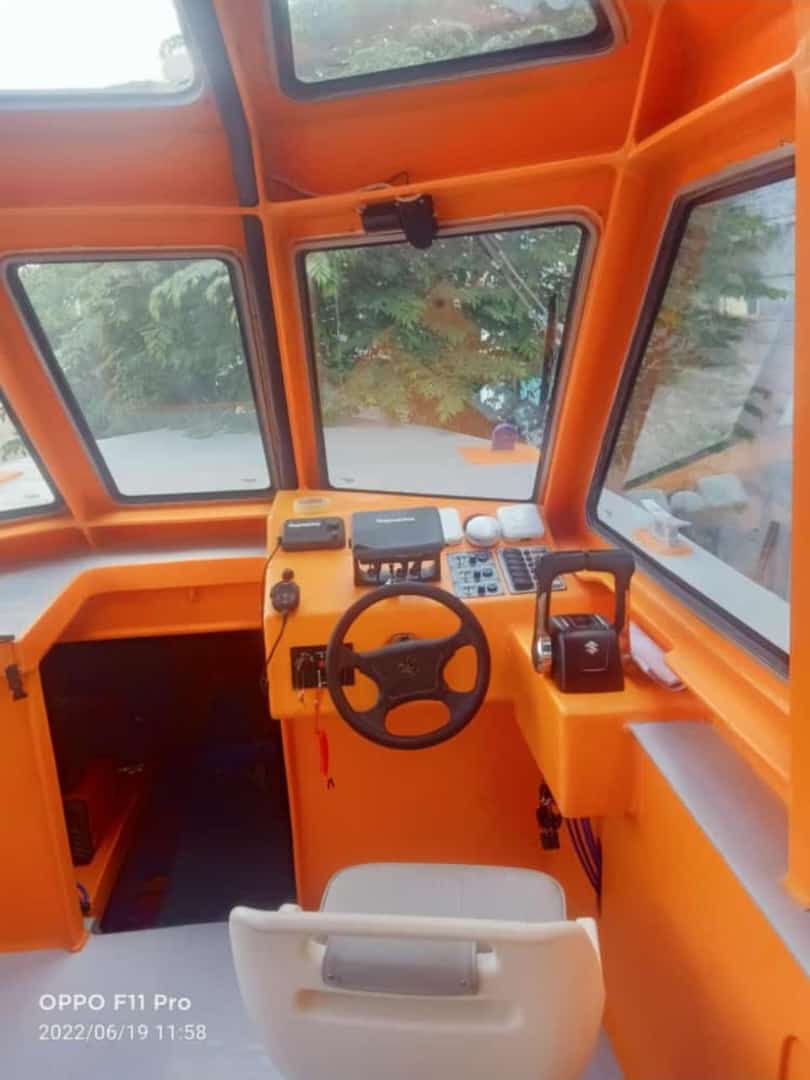

1 x Multifunction GPS chart plotter / radar / depth sounder display

1 x Marine VHF Radio

1 x AIS transceiver clss B

1 x Magnetic Compass

1 x Horn

1 x Manual control search light

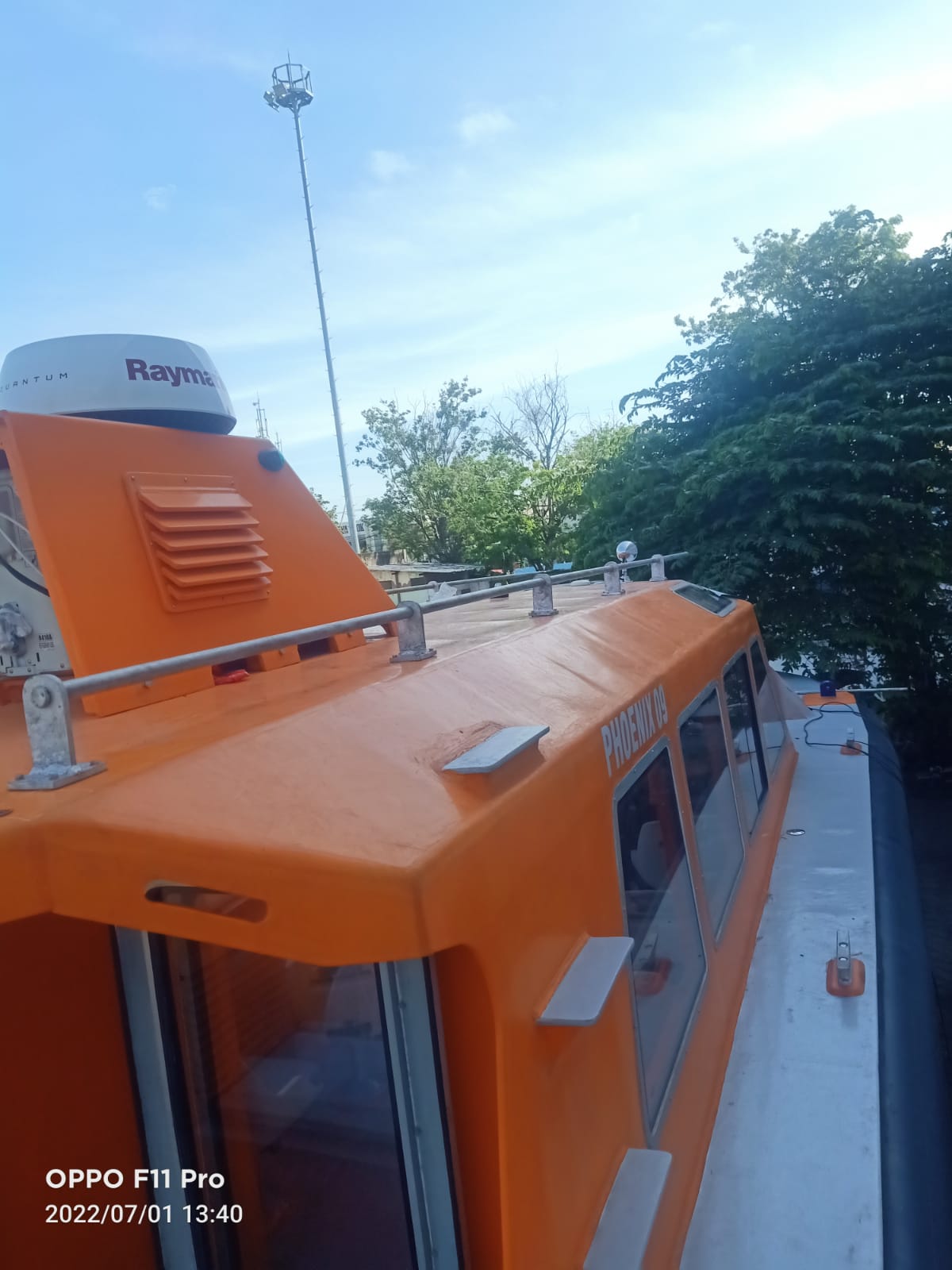

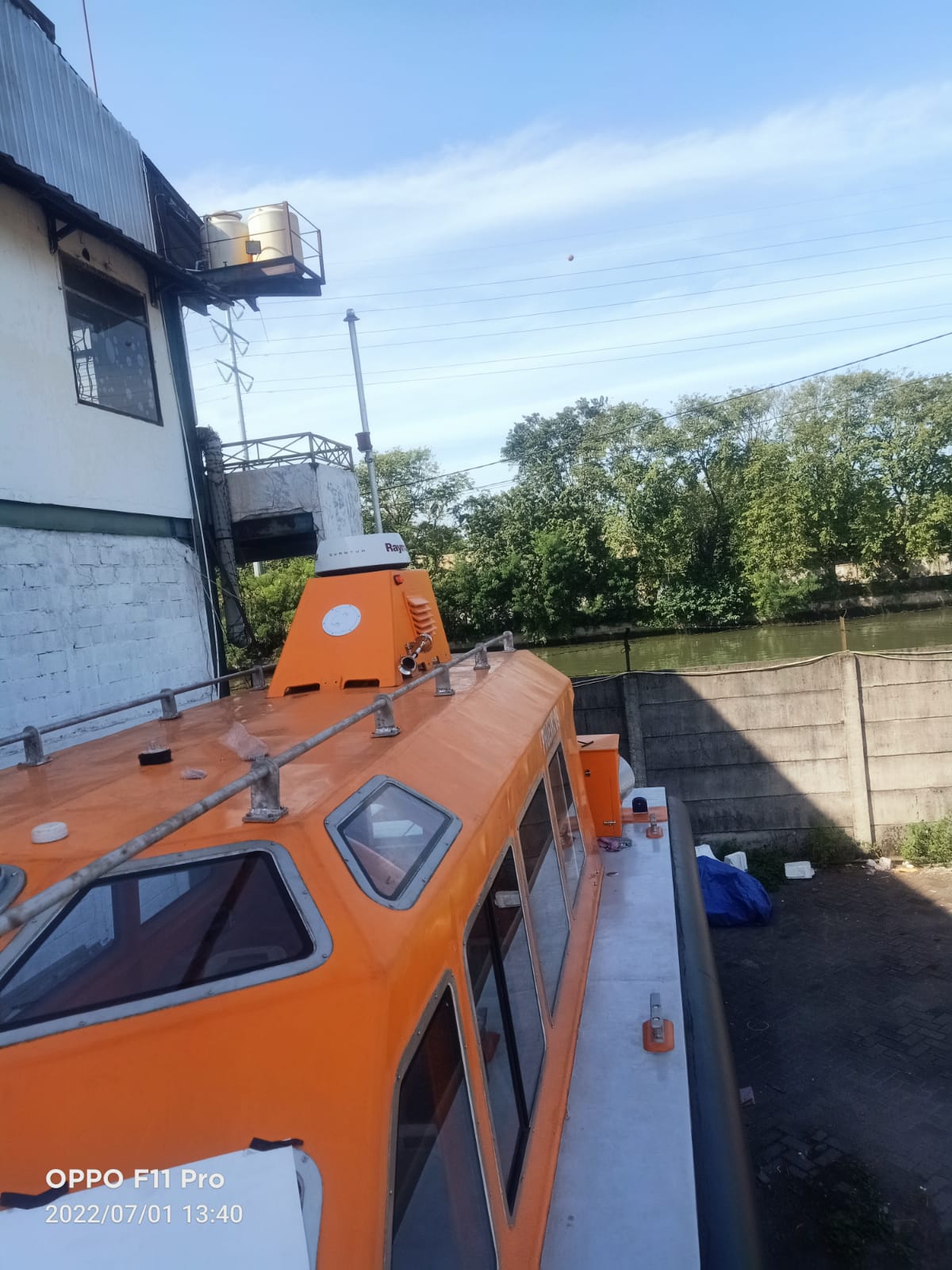

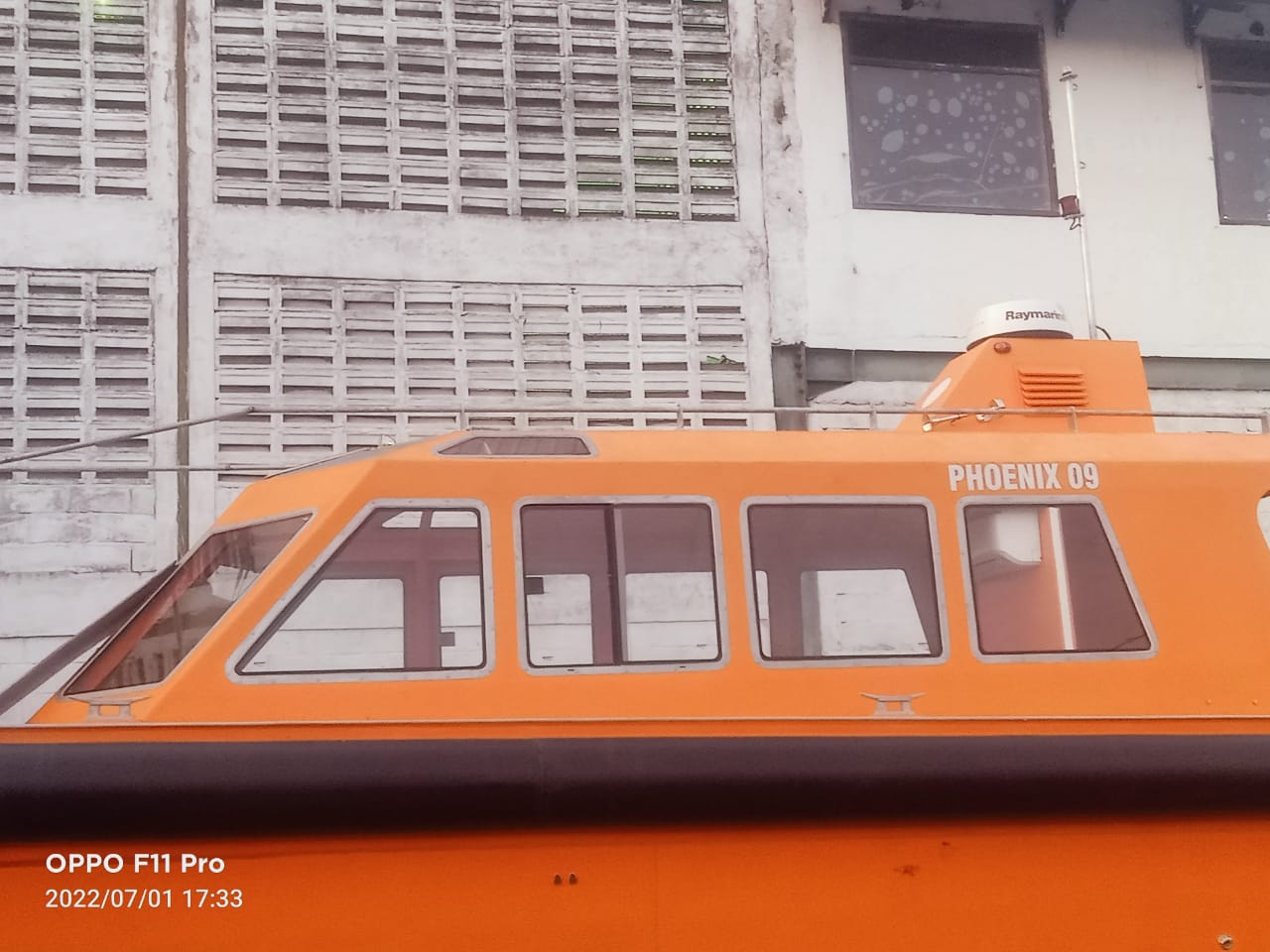

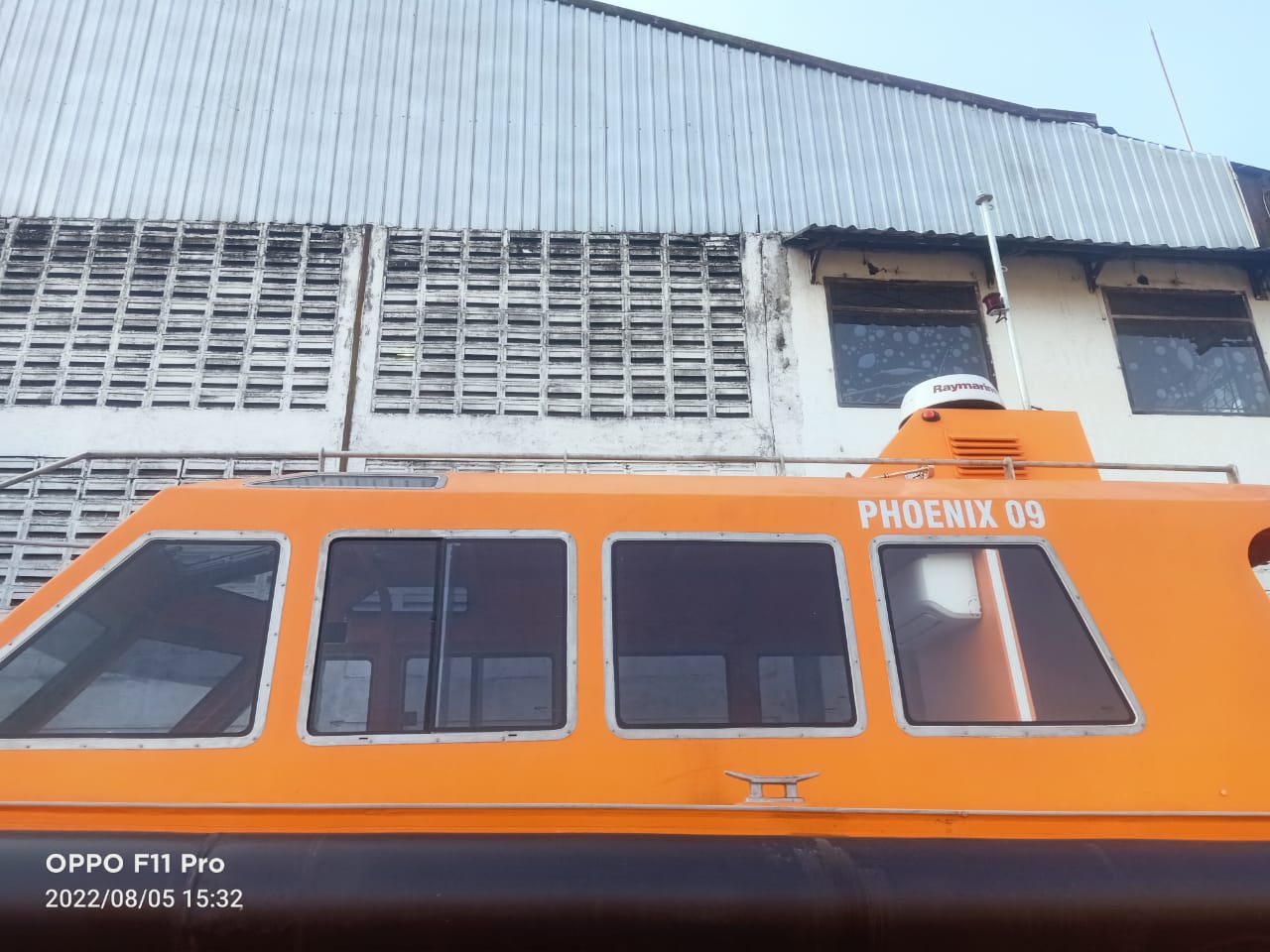

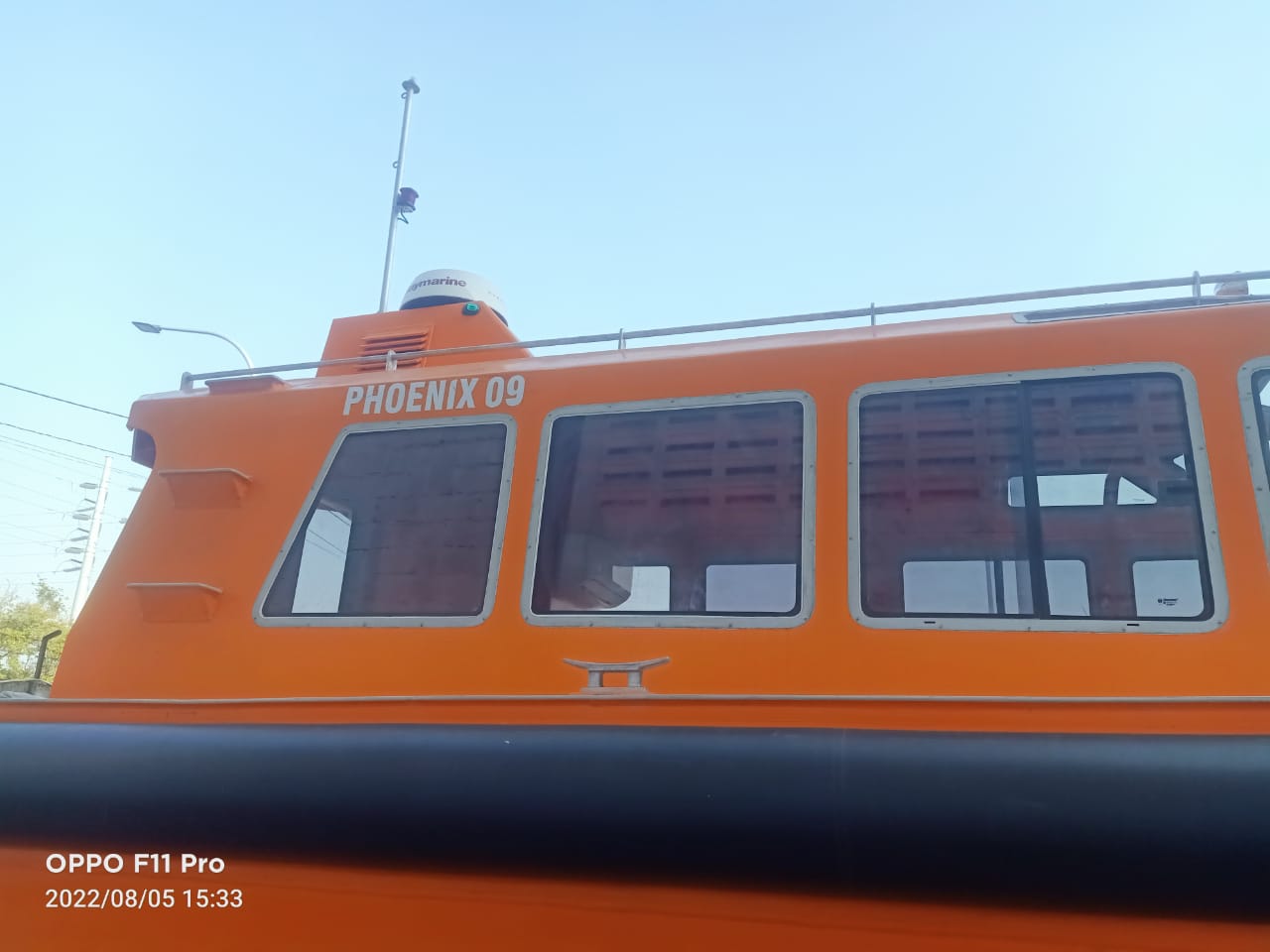

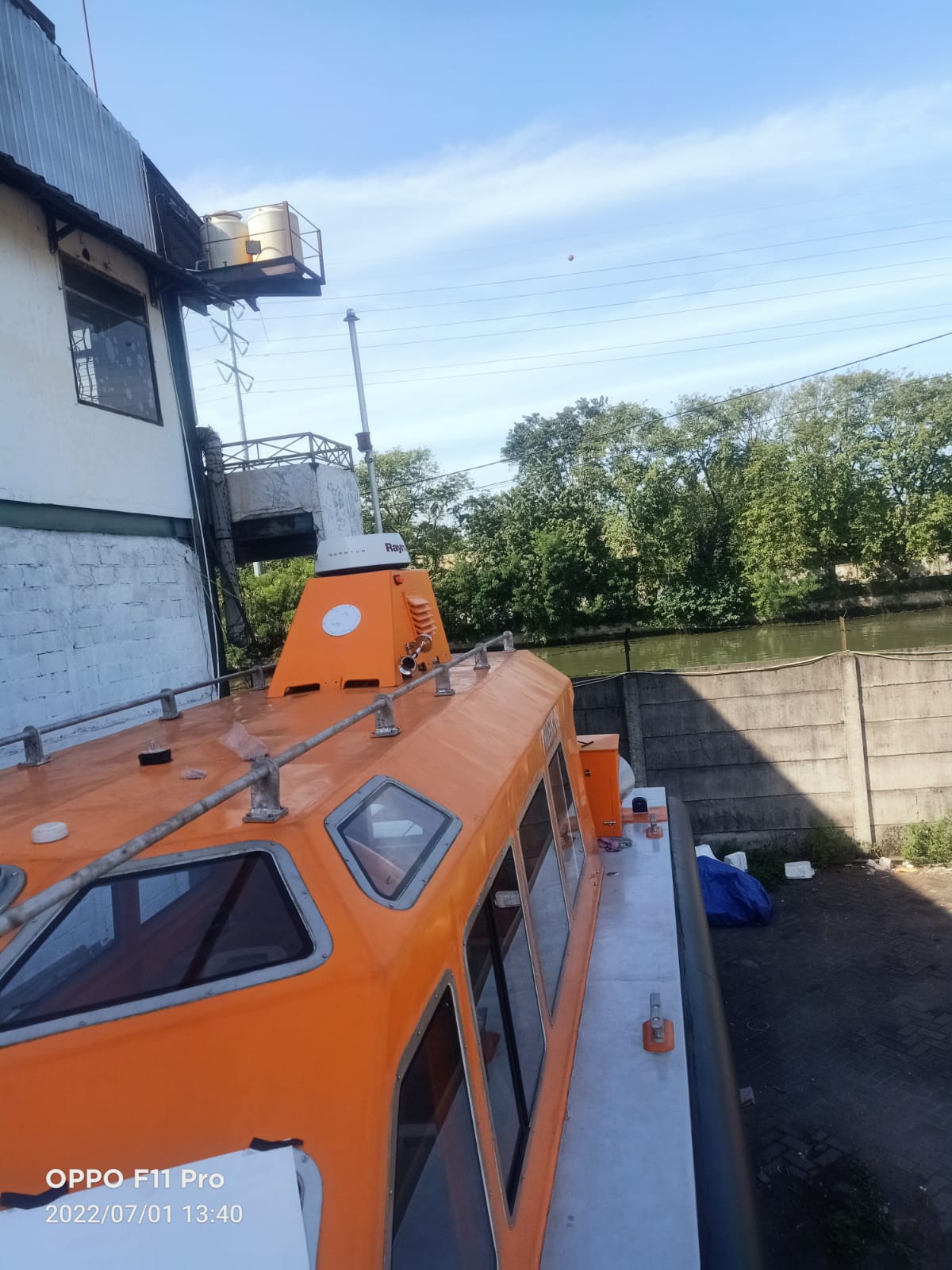

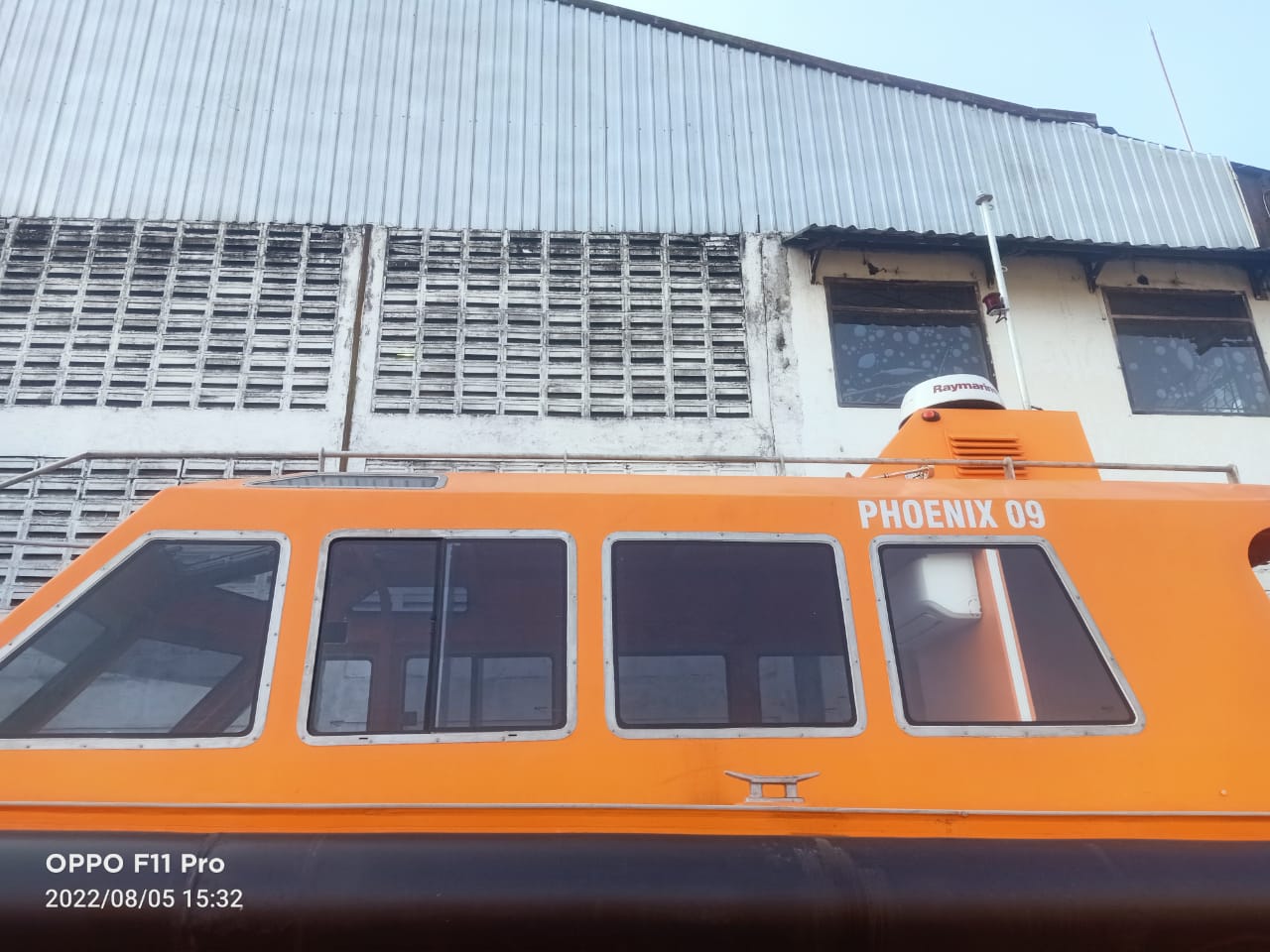

1 x box on the cabin top to accommodate the folllowing items:

1 x masthead light

1 x VHF antenna

1 x GPS antenna

1 x AIS antenna

1 x radar scanner

2 x Navigation side light

1 x orange rotary light

1 x all around red pilot light

Steering System

The steering system is electro hydraulic with power assist

Air Conditioning

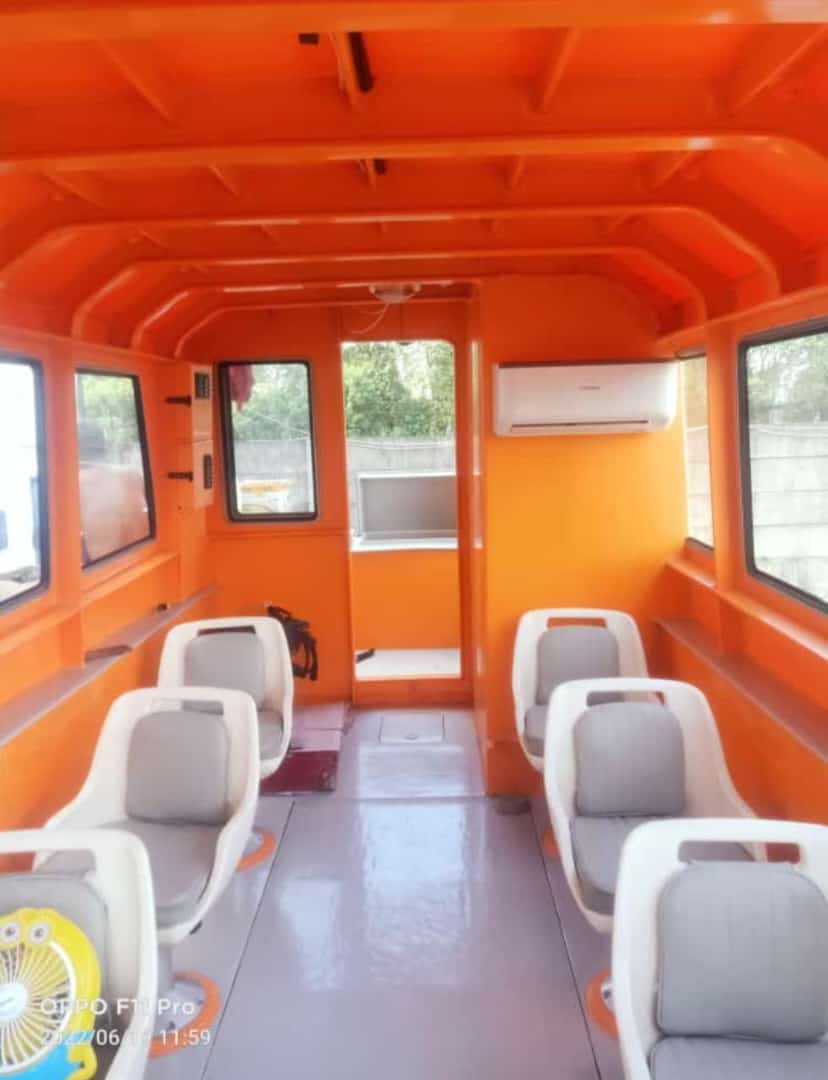

1 x Domestic 1/2 HP split air conditioning system

Fresh Water System

1 x 200L fresh water tank with pressure sensitive accumulator and pump with direct feed to the hand basin.

Forward Compartment

2 x Bunks

1 x Luggage storage area

Lifesaving / Safety Equipment

8 x SOLAS approved 150N life jacket

2 x Buoyant life rings

1 x first aid kit

1 x set distress flares

1 x boat hook 2m

2 x manual fire extinguishers

Anchor & Mooring Systems

1 x anchor 12kg

1 x galvanized chain 5m

1 x anchor warp 50m

6 x mooring cleats

1 x towing eye at the bow

2 x towing points - one on each side of the transom

4 x mooring ropes 10m

3 x inflatable mooring fenders.
