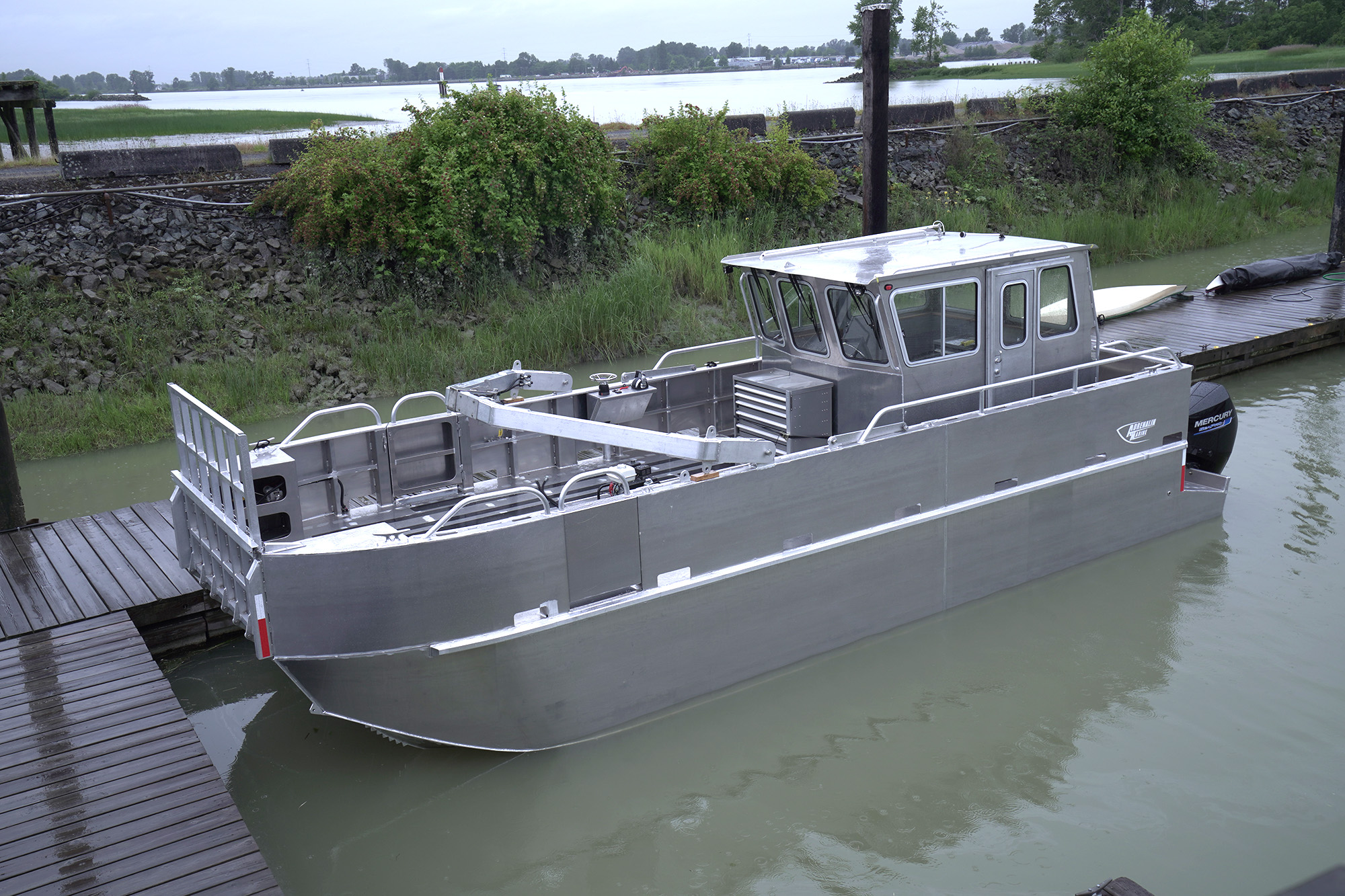

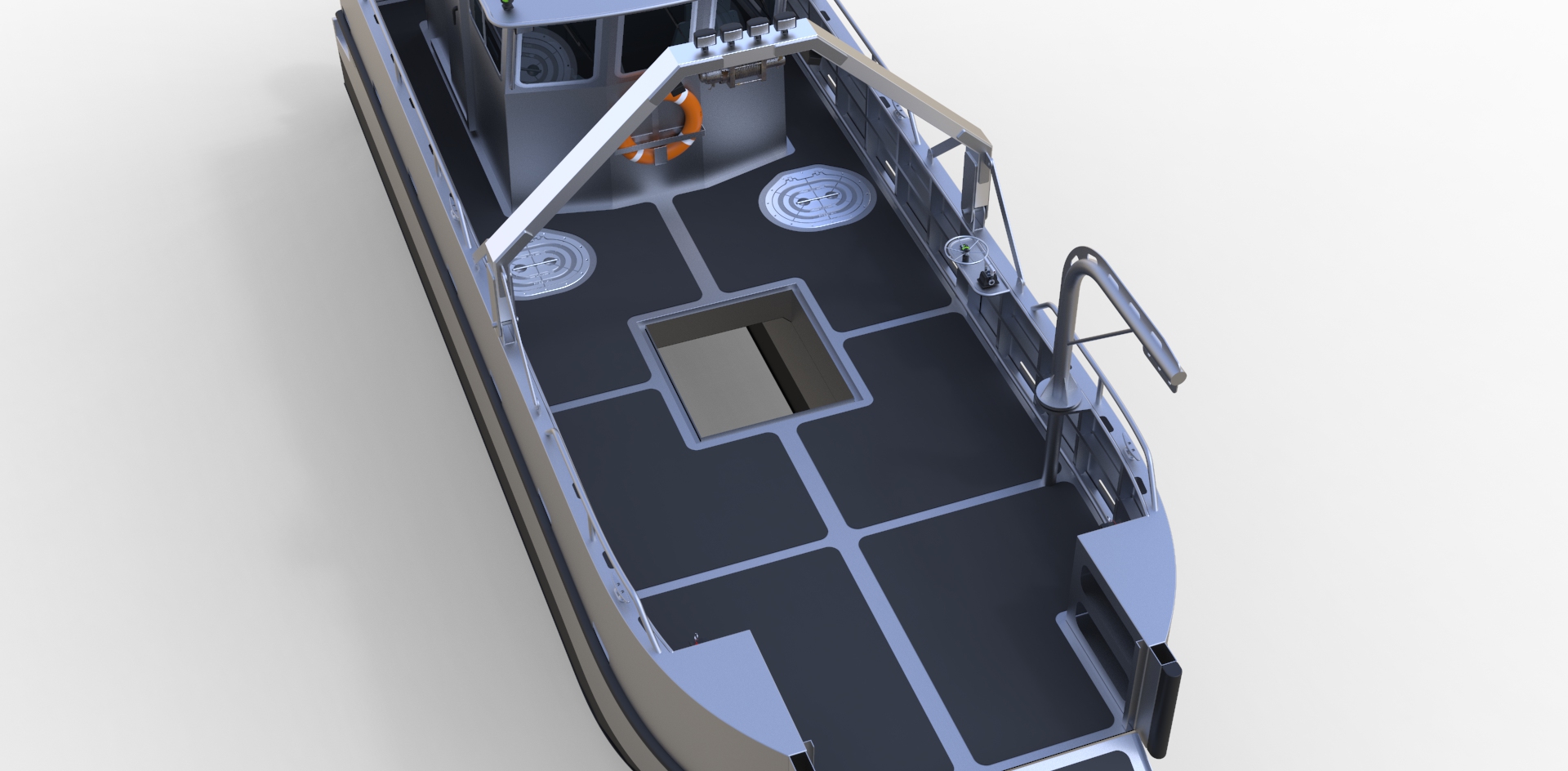

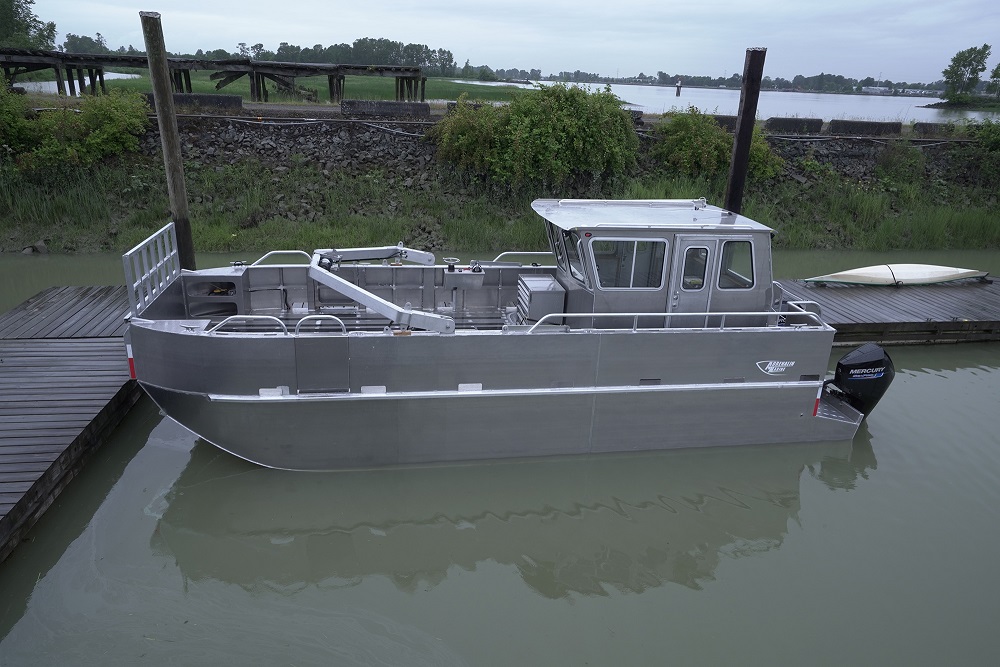

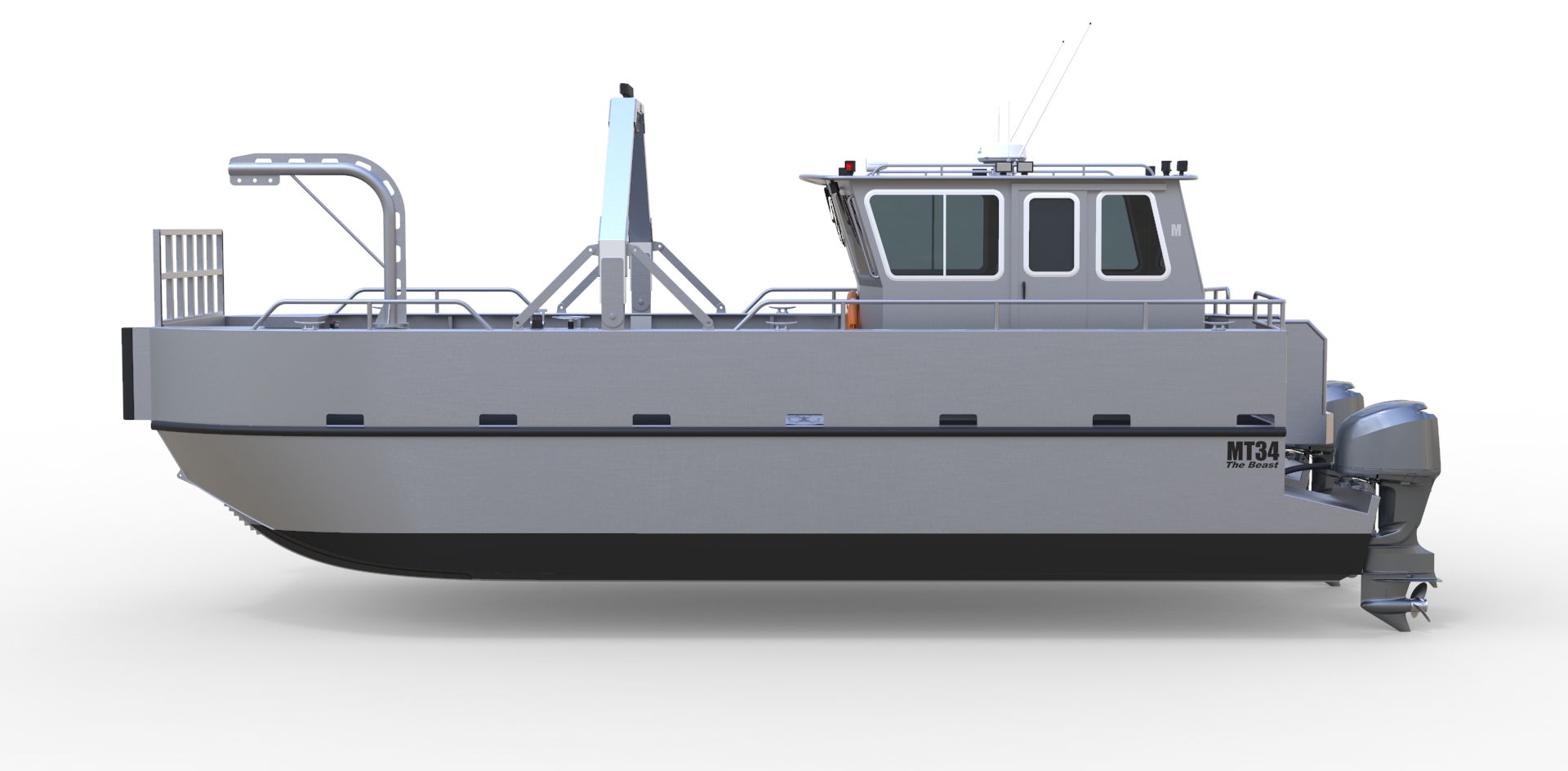

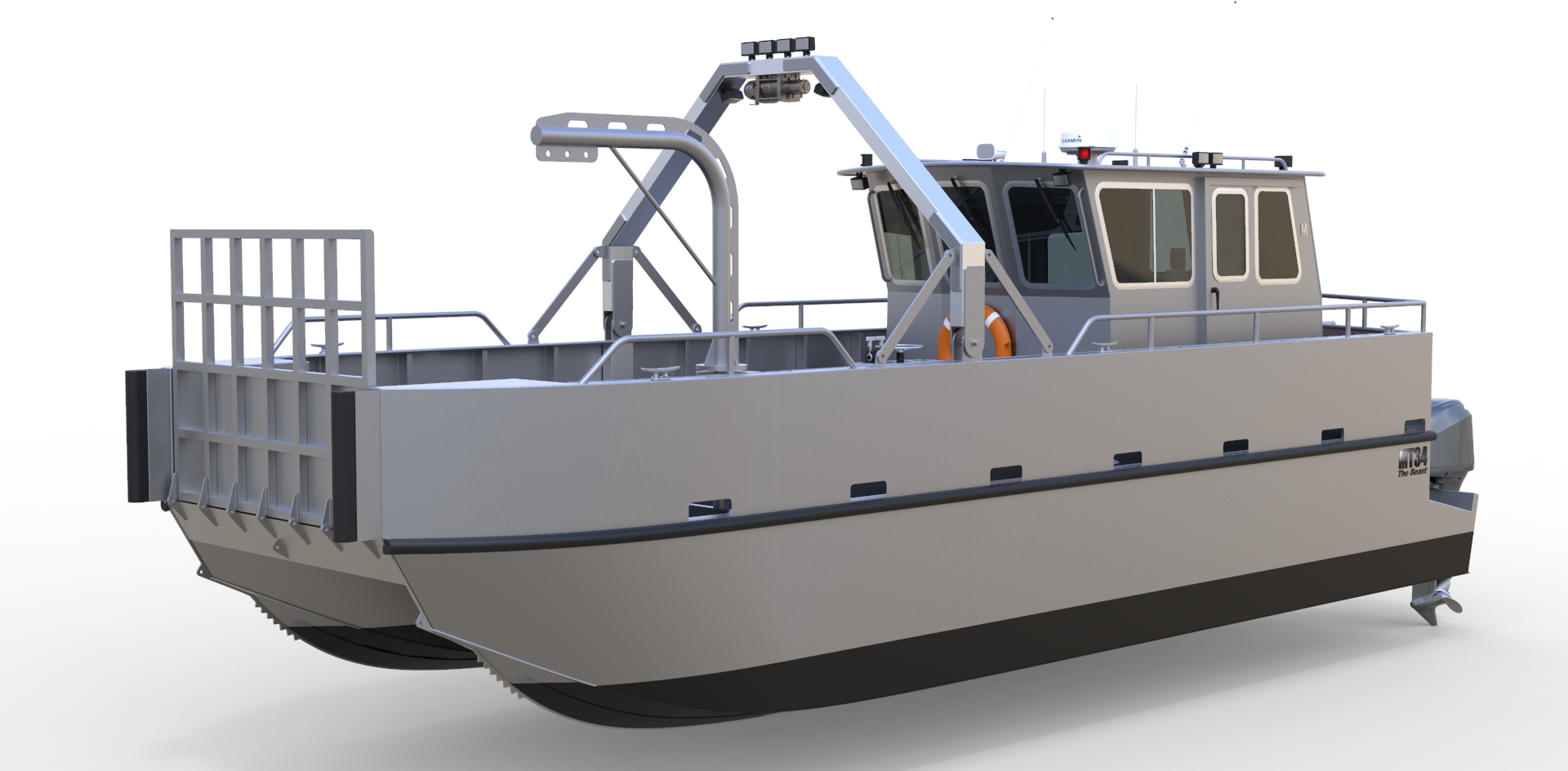

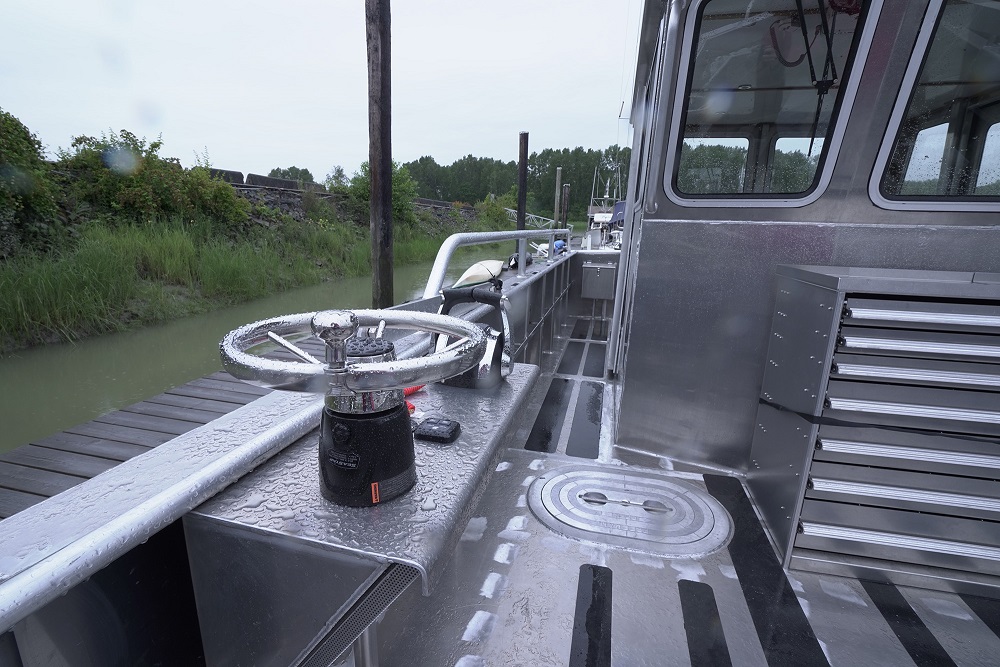

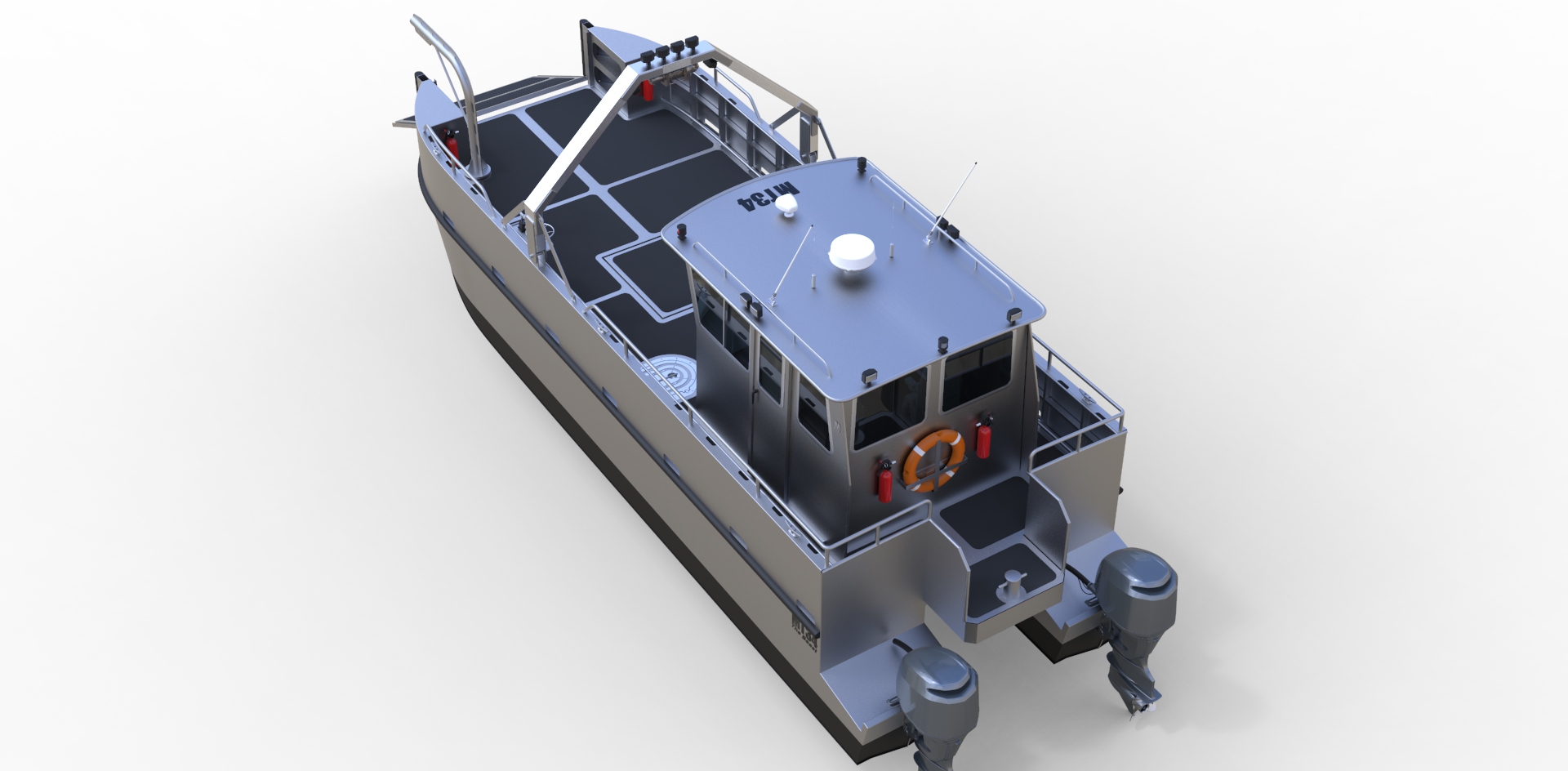

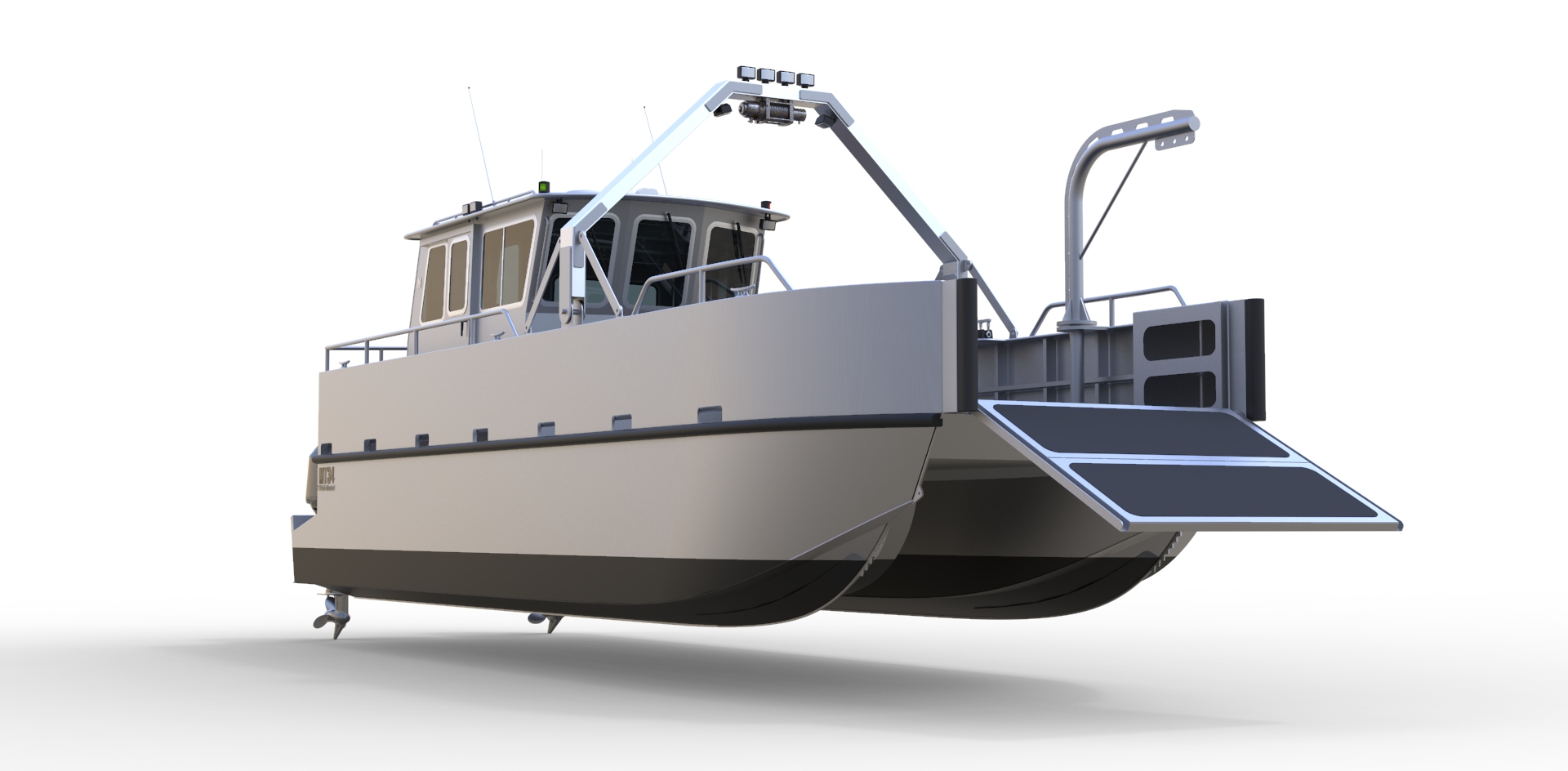

Designed by the renowned designer Rick Welin (Canada) this very versatile workboat can handle serious loads for her size. Whether you need a Landing Craft, Dive Boat, Recovery Platform, Fish-Farm Tender, Portable Work Platform, Crew Boat, or ALL of the above, she can handle the job. This is a "Do Anything" coastal worker, and she's trailerable. Designed to Lloyd's Registry Small Craft Scantlings rules for workboats she'll pass muster in any workboat category. The through-deck Moon-Pool allows her to hover above underwater loads for lifting at her center of flotation which allows a lifting capacity beyond that of any deck-mounted Hiab type of configuration. (NOTE: She can be built without the moon-pool as well).



Other cabin sizes and configurations can be created as modifications to suit the owner needs. You may need an open deck with center console, or a small hardtop for instance. Or a larger cabin for crew-boat or water-taxi type of operations.

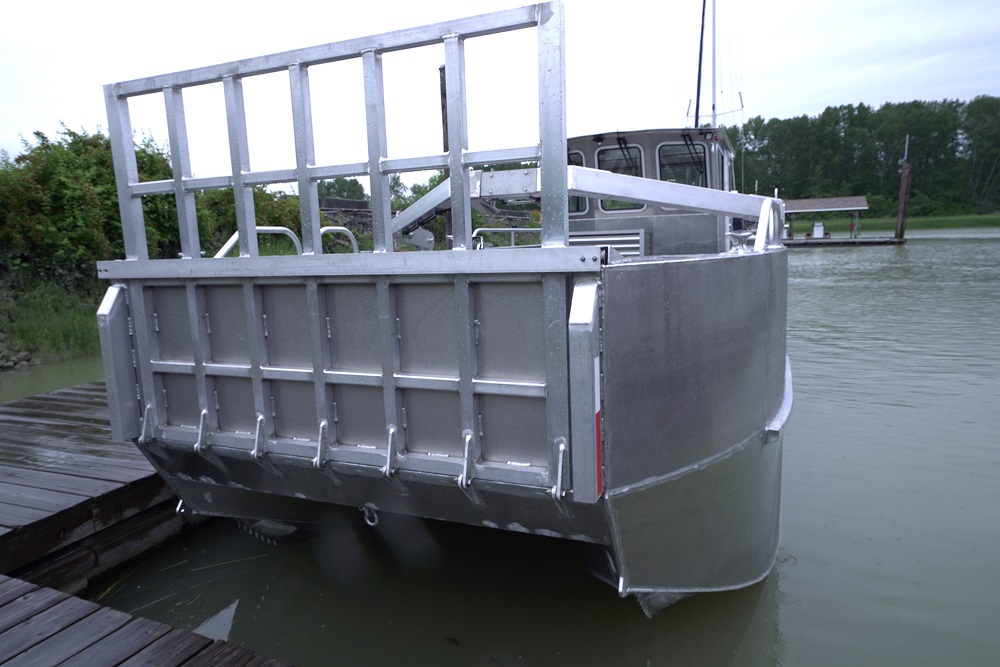

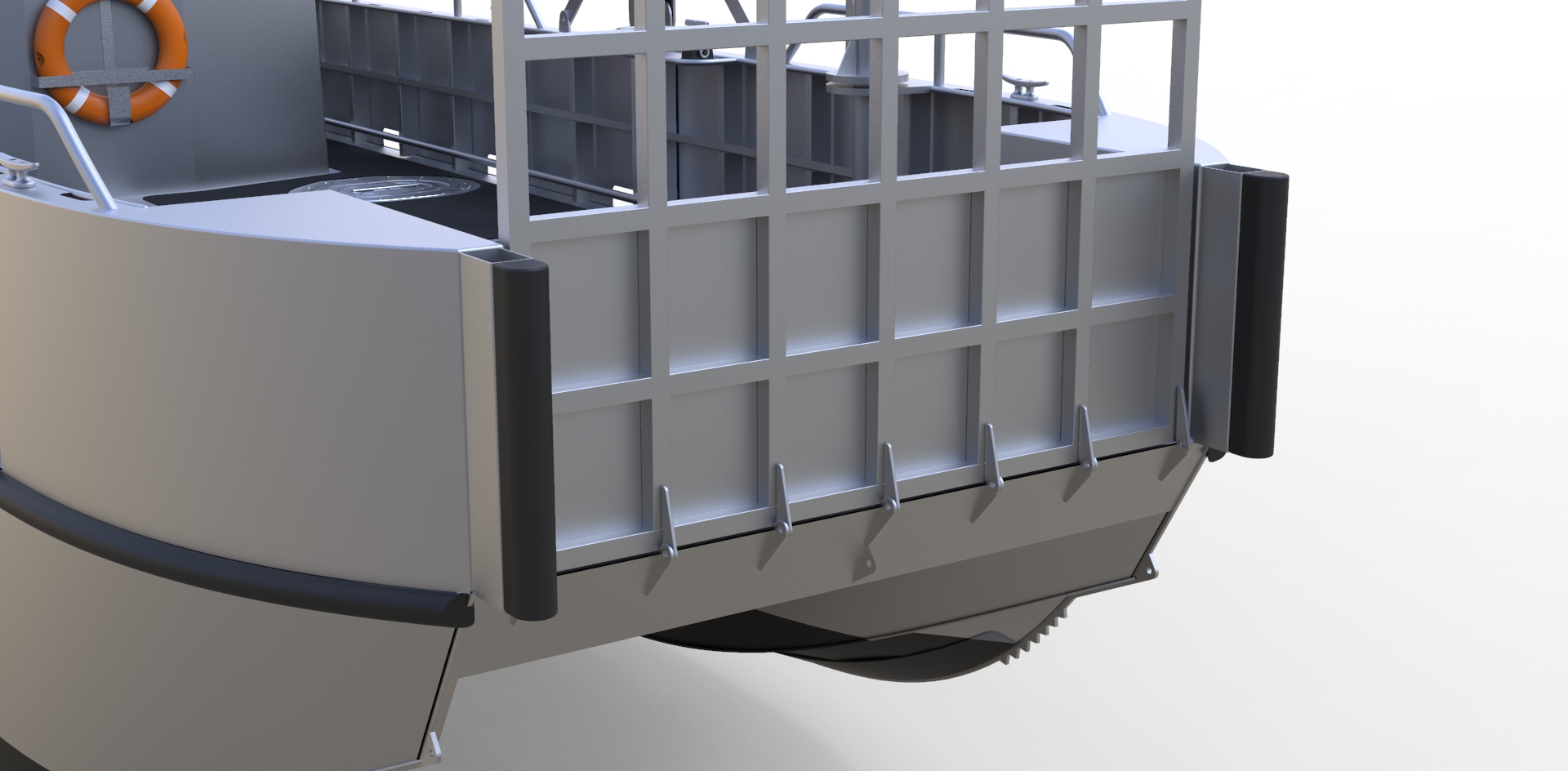

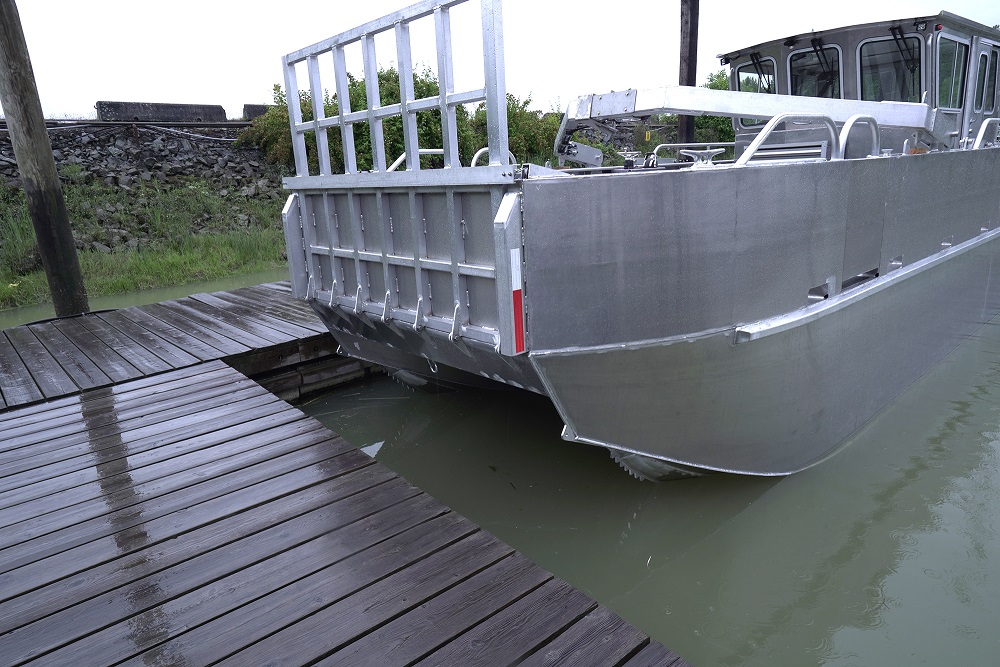

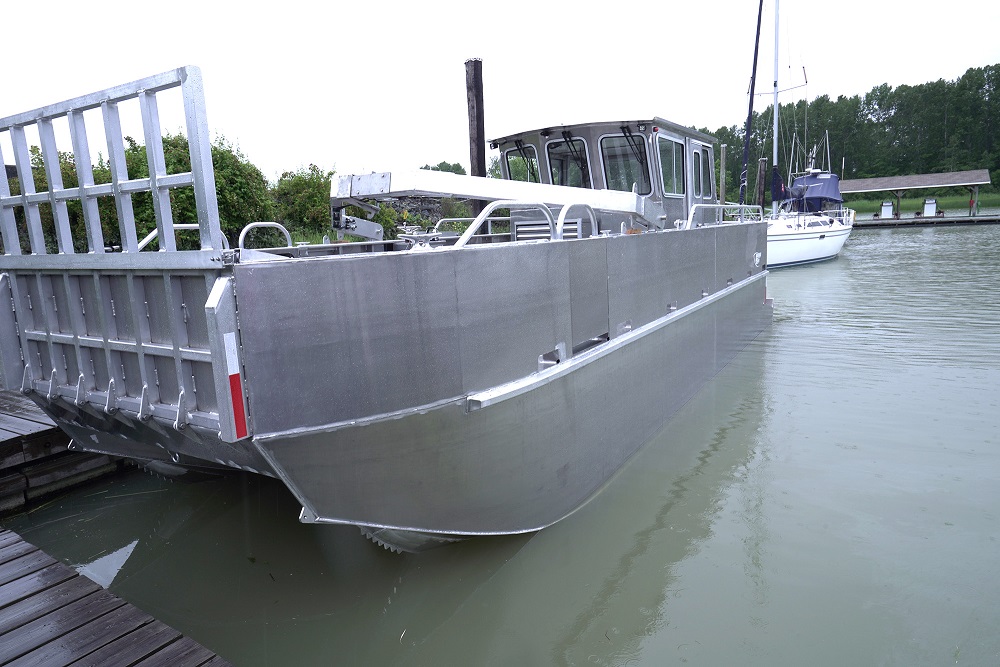

6mm bottom plating with beaching plates means never having to worry about landing on gravel shorelines, and her twin hulls mean you can ground her on any tidal flat and she'll sit level to provide versatility. Catamaran hulls lend themselves to beached stability beyond any mono-hull Landing Craft.

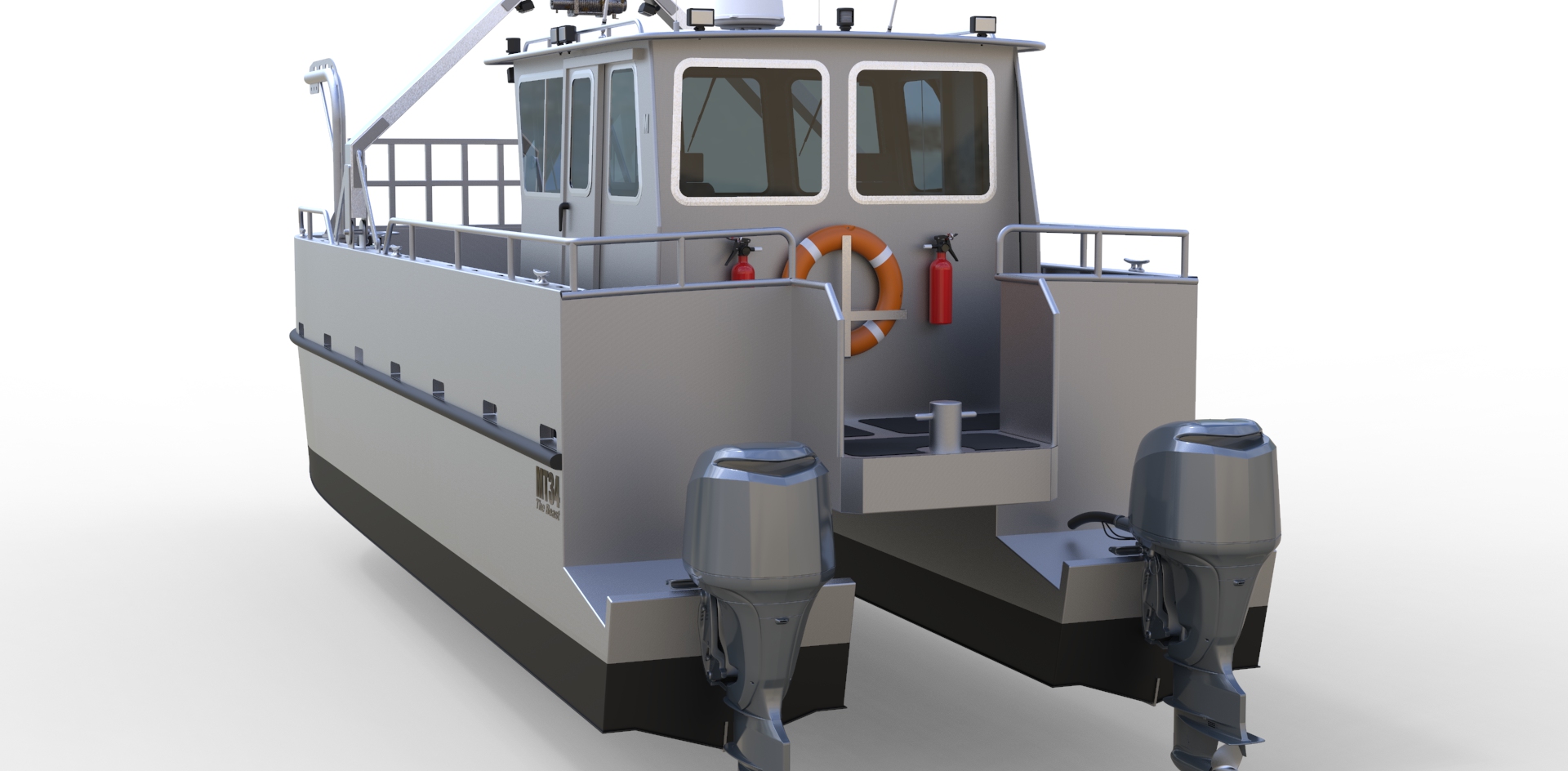

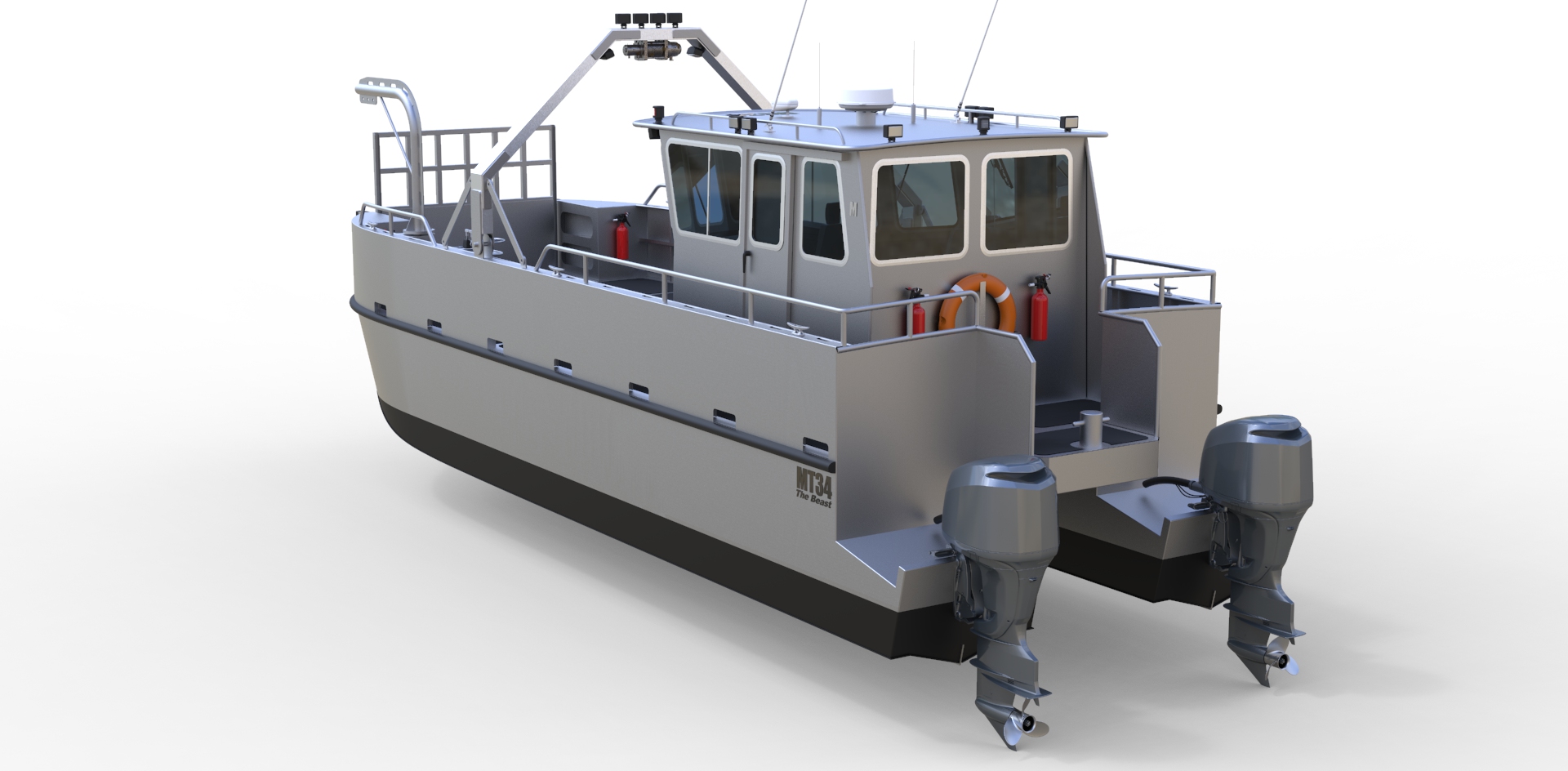

Outboard power allows for a range of powering options depending on budget or speed requirements and affords the busy commercial operator the ability to upgrade or re-power at any time without significant downtime.



LOA: 10.24 Meters ( 33.6 Ft)

Beam: 3.5 Meters  (11.5 Ft)

Draft: 45 Cm (18″ )

Molded depth at Transom: 86 Cm (34″)

Deadrise: 18 deg.

Crew: 5

Displacement:

Light Ship (Trailer Weight/No Cargo): 4310 Kg (9500 Lbs )

Fully Loaded: 6800 Kg (15,000 Lbs )

Cargo Capacity: 2495 Kg (5000 Lbs )

Max Power: Outboard 400 HP

Twin 150HP: 32 Knots

Twin 250HP: 42 Knots (Est.)

CE Category: “C”

Lloyd’s Service Area: G2 (Coastal)

Lloyd’s Service Type: Workboat



Built to be strong and very reliable this is a perfect choice if you require a safe and versatile platform, able to perform even in shallow waters. This catamaran has been specifically designed for serious work in any weather condition and its 6 mm thick aluminium construction allow safe landing in any situation.



Every unit is custom built to Owner’s requirements and we can incorporate additional features to address specific needs.



We can also design and build similar Catamaran Landing Craft to any size.
