Listing ID - 1847 | |
|---|---|

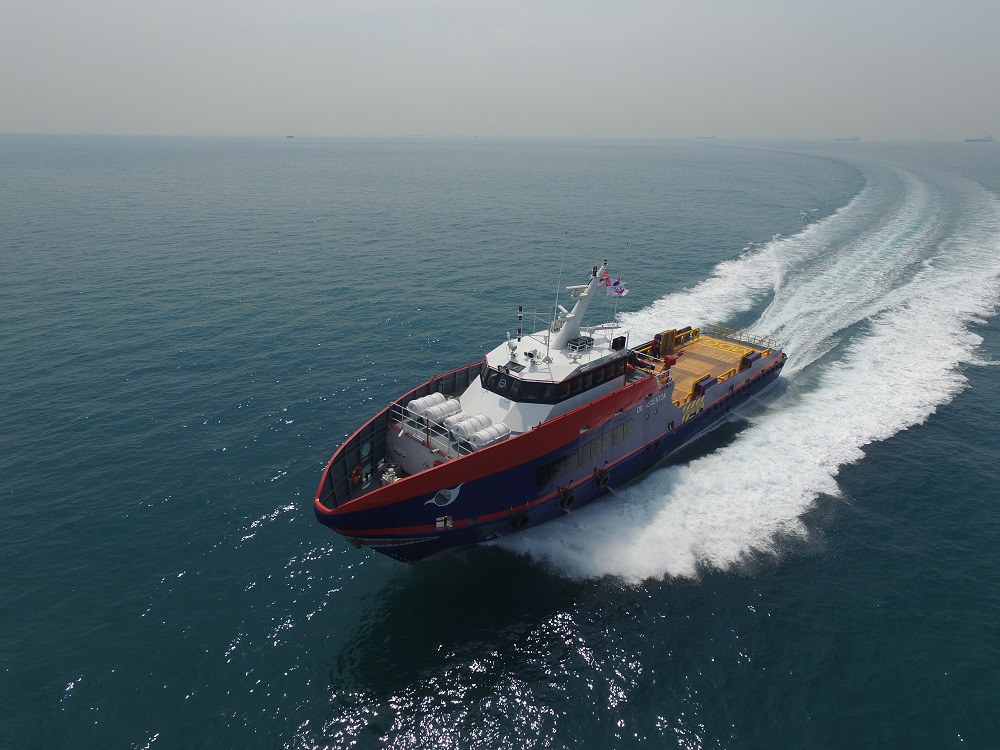

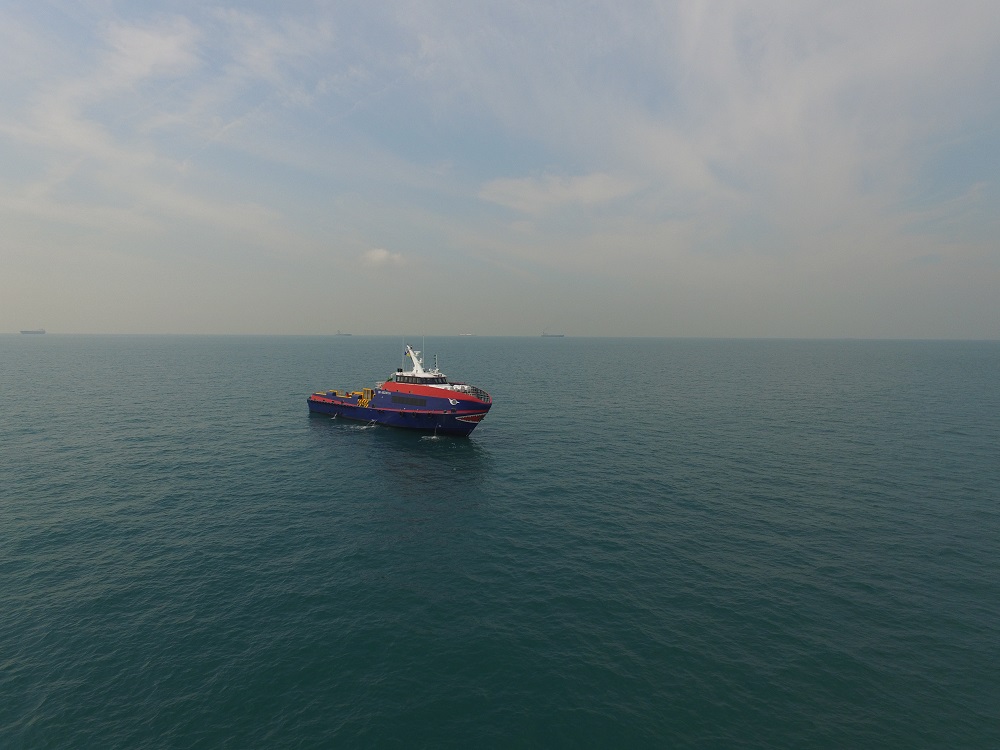

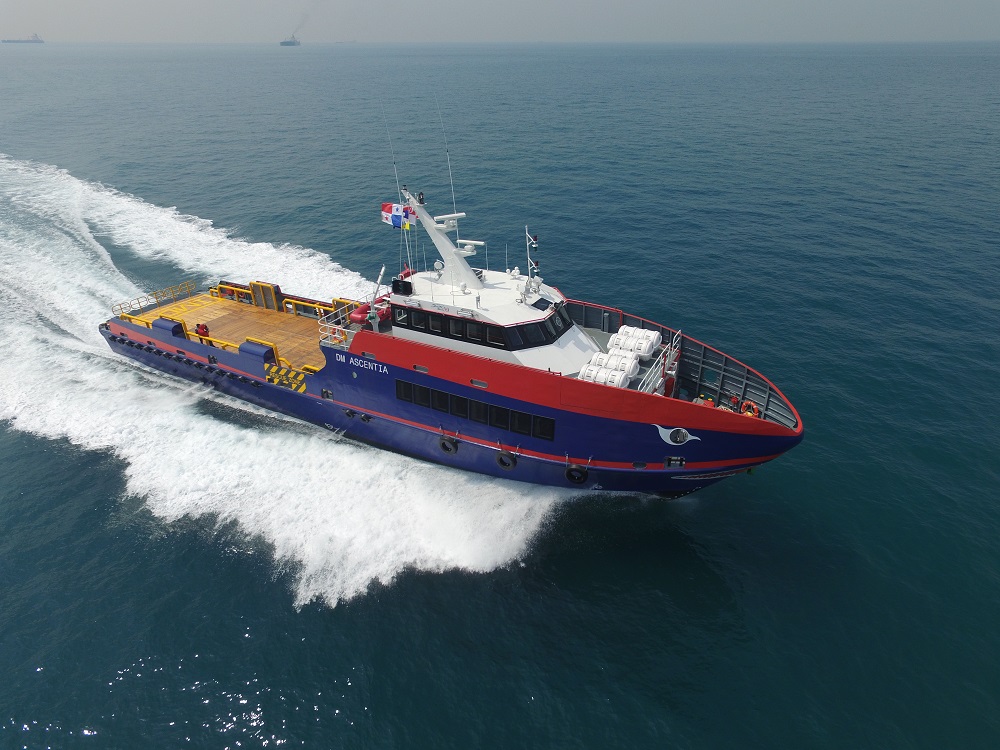

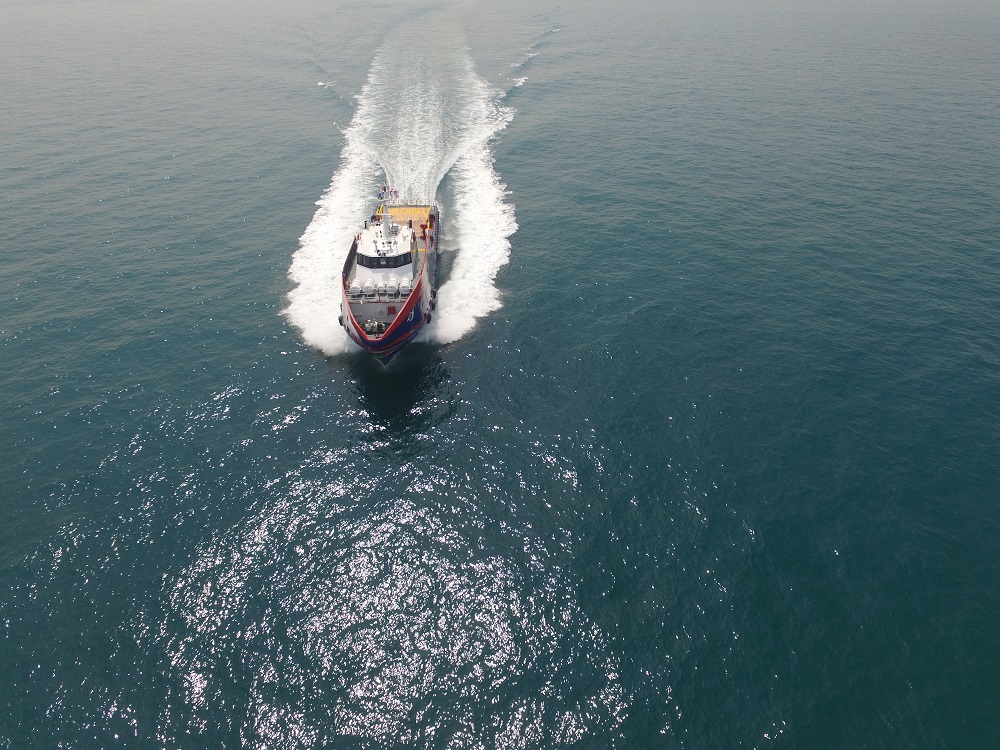

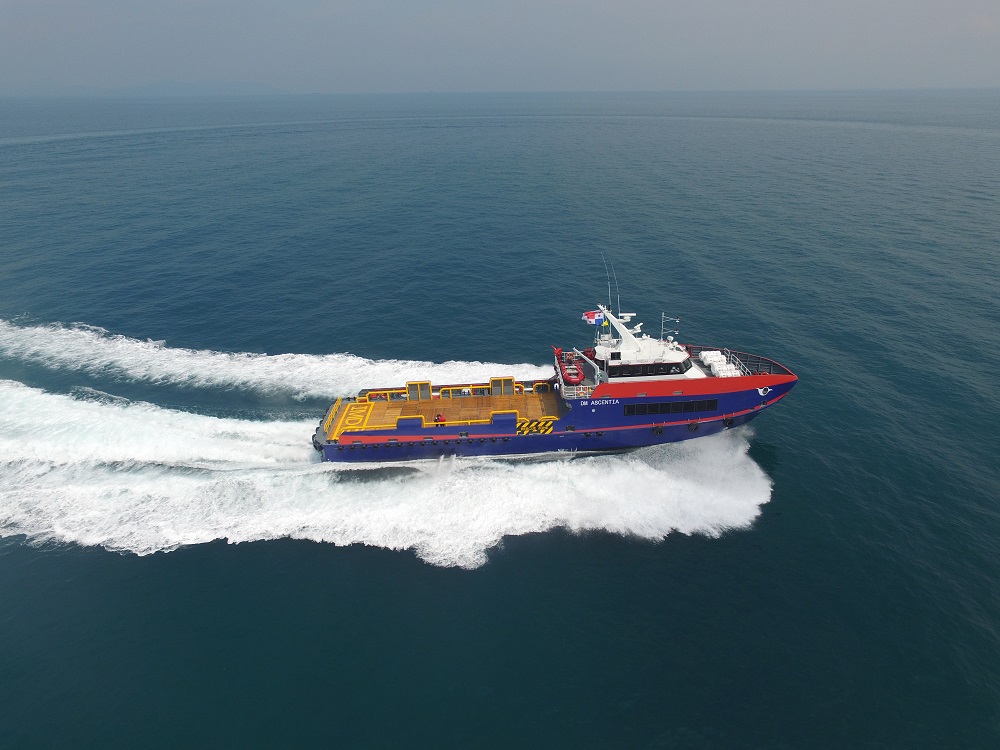

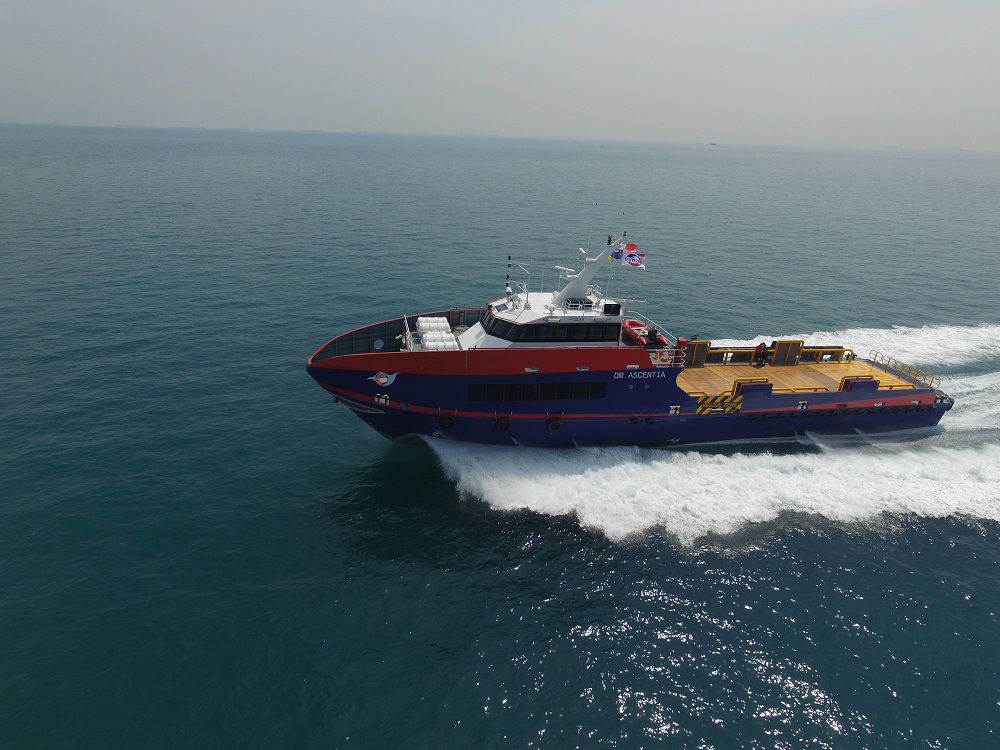

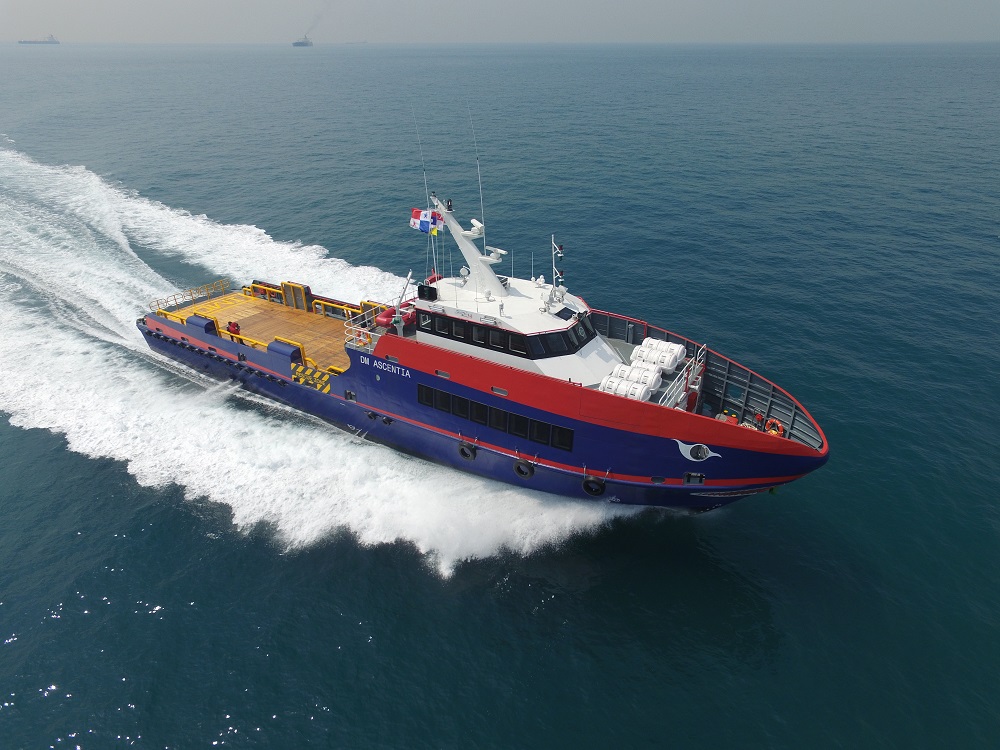

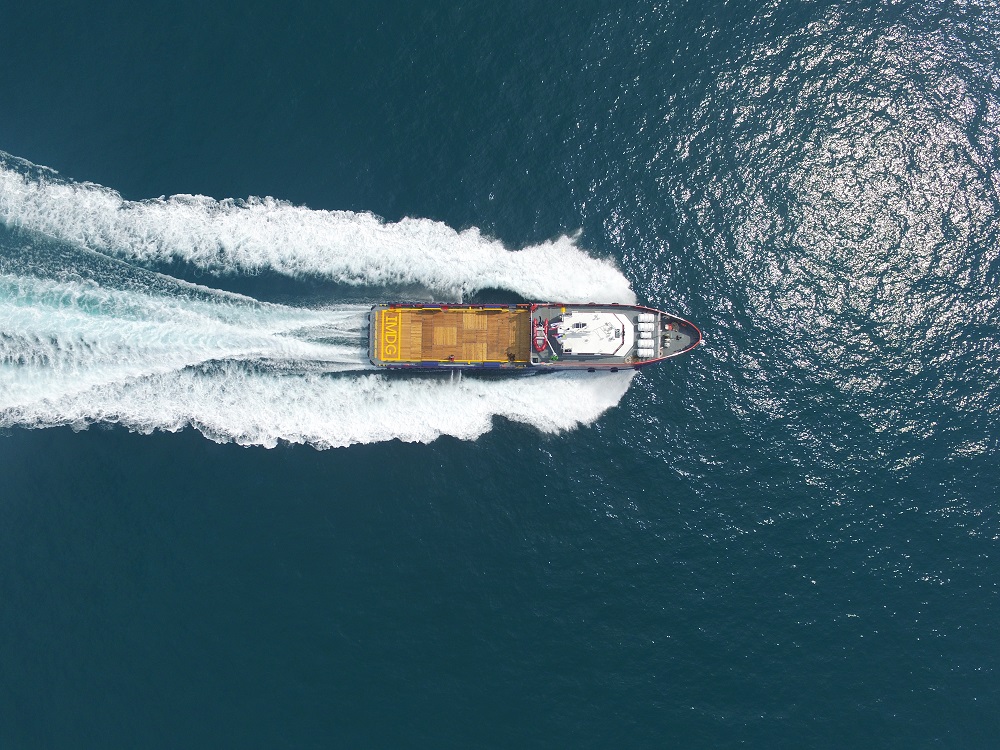

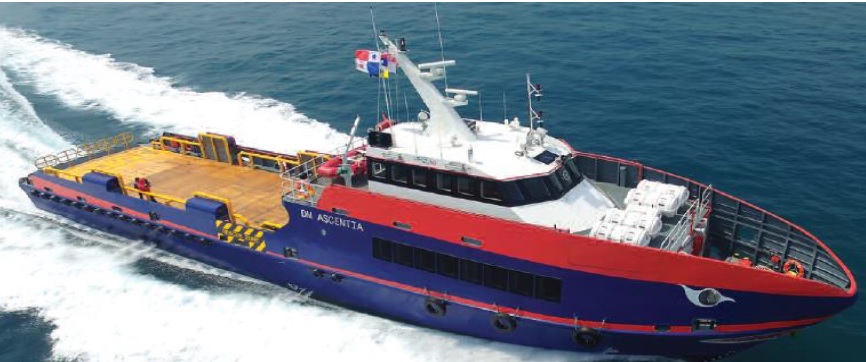

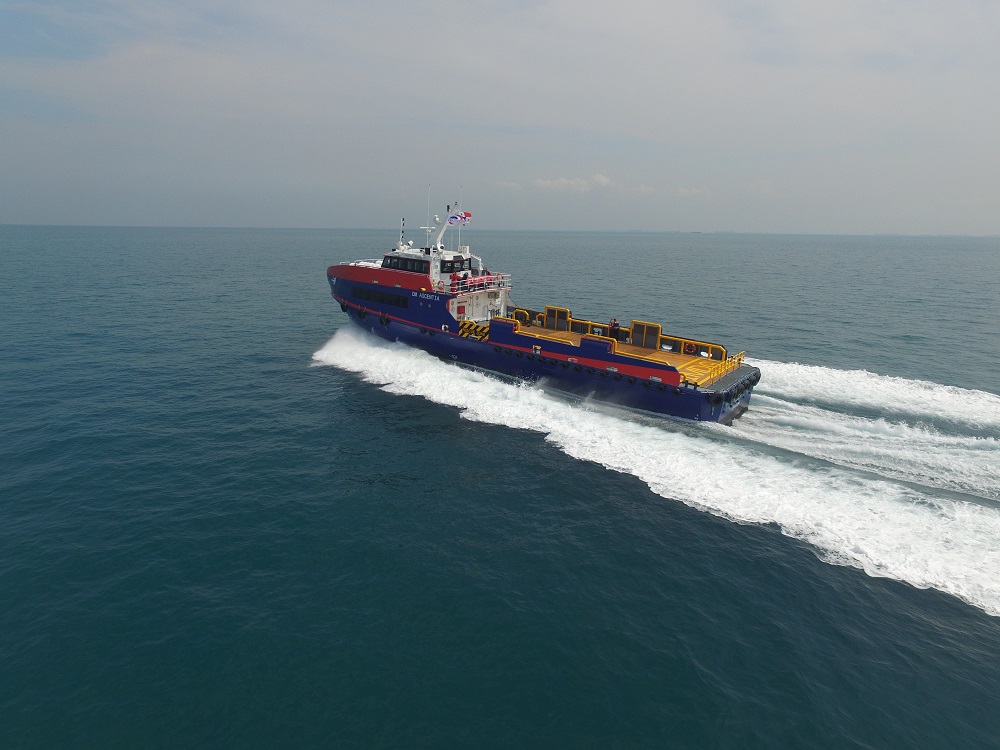

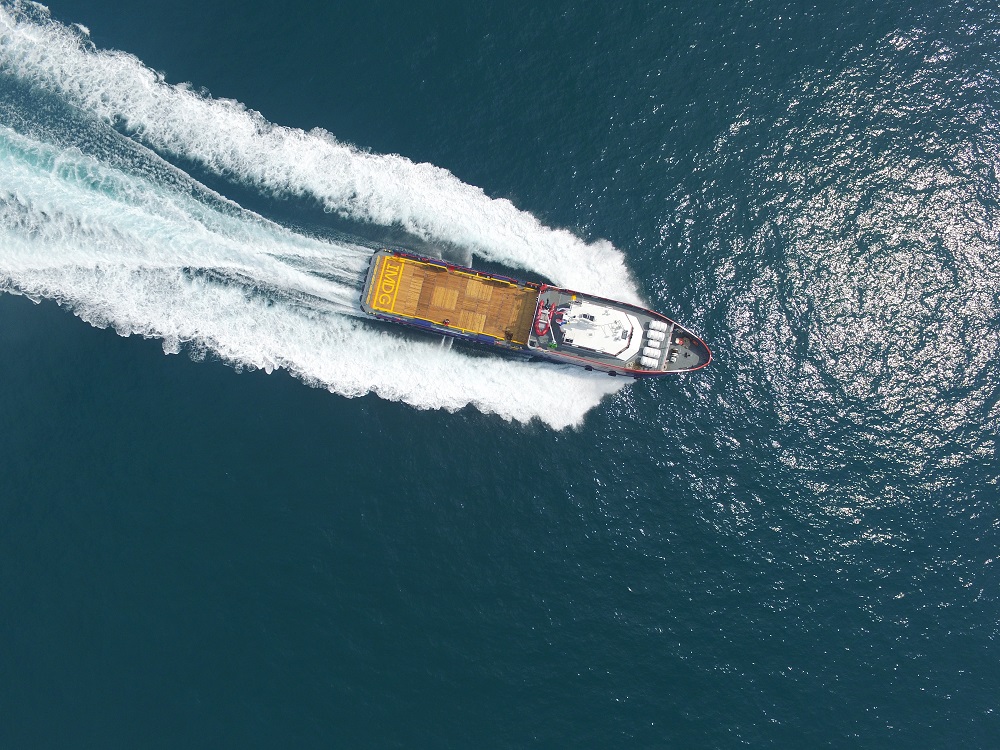

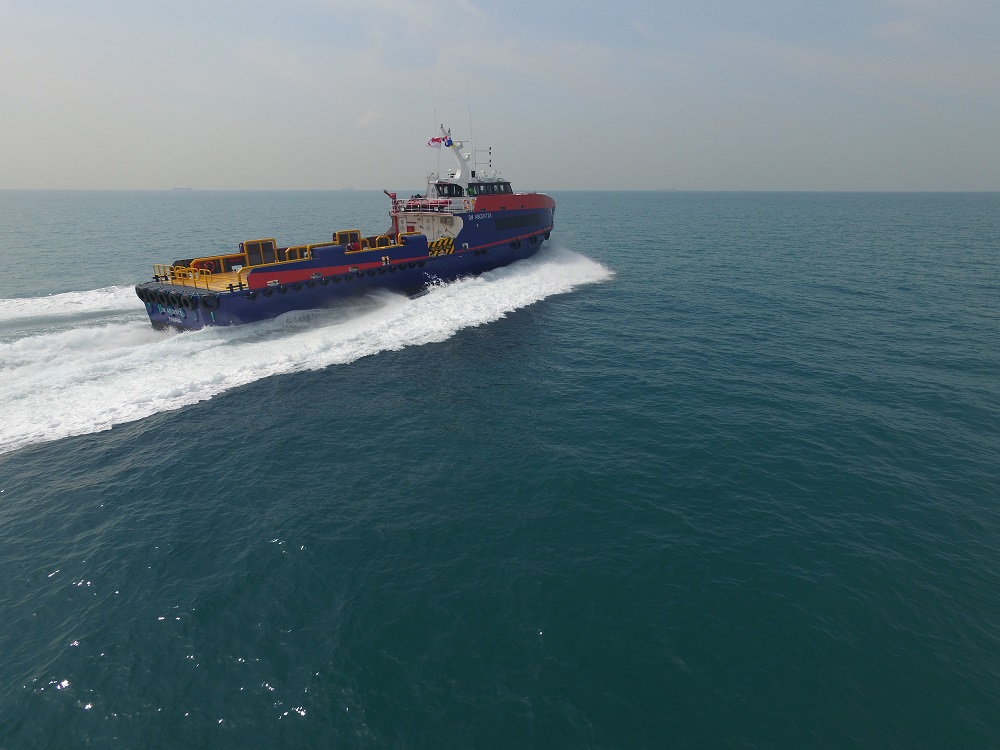

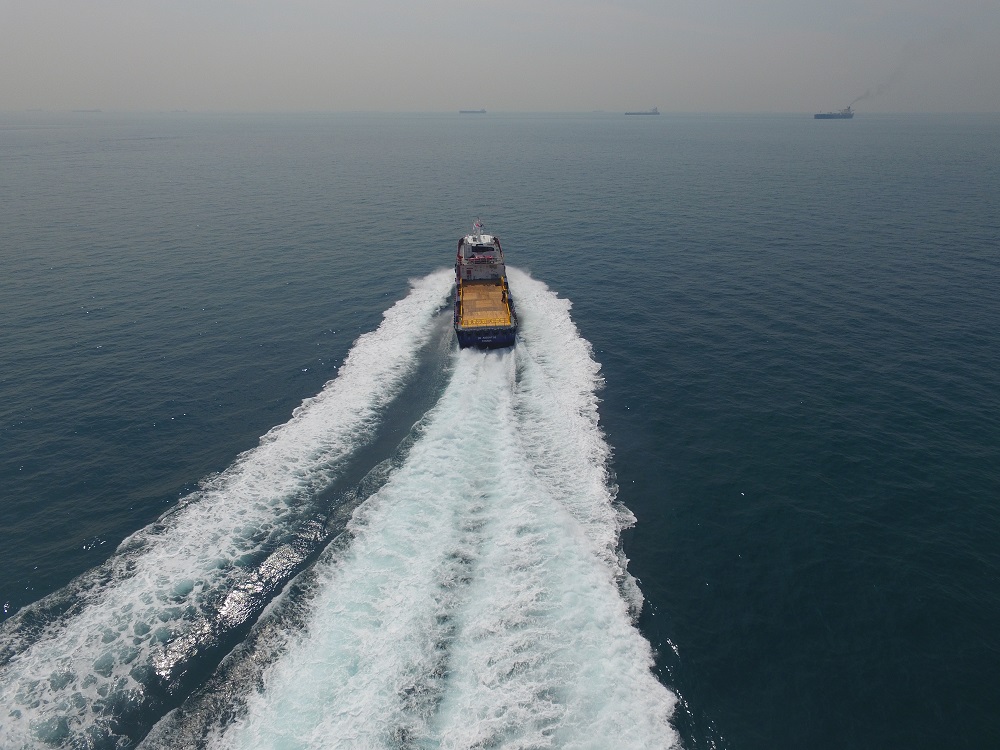

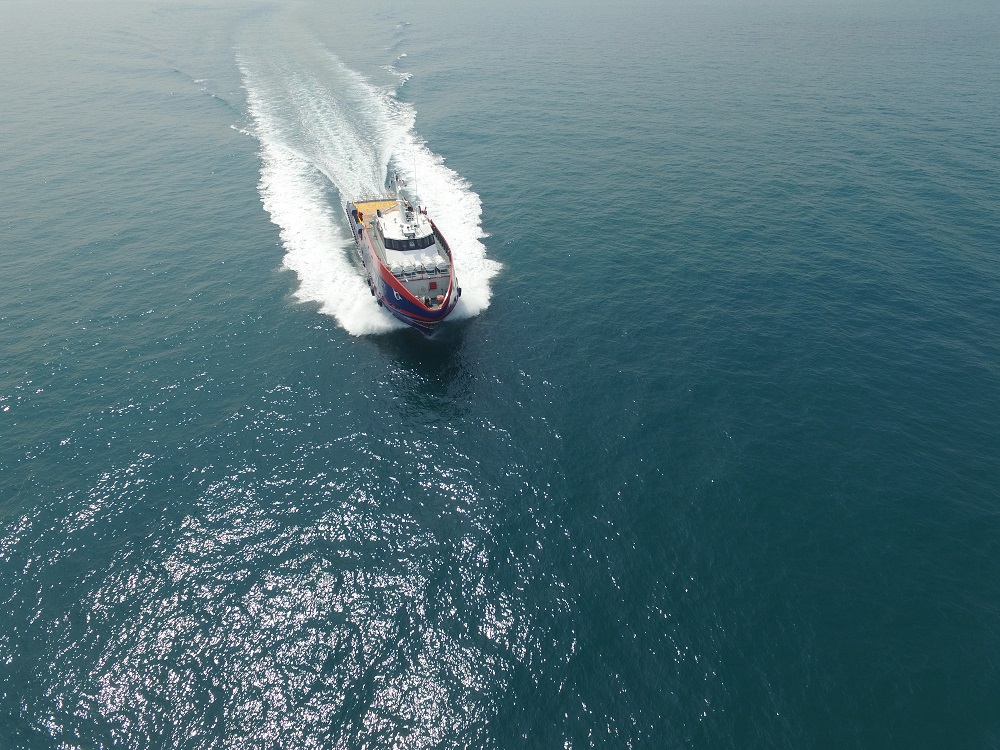

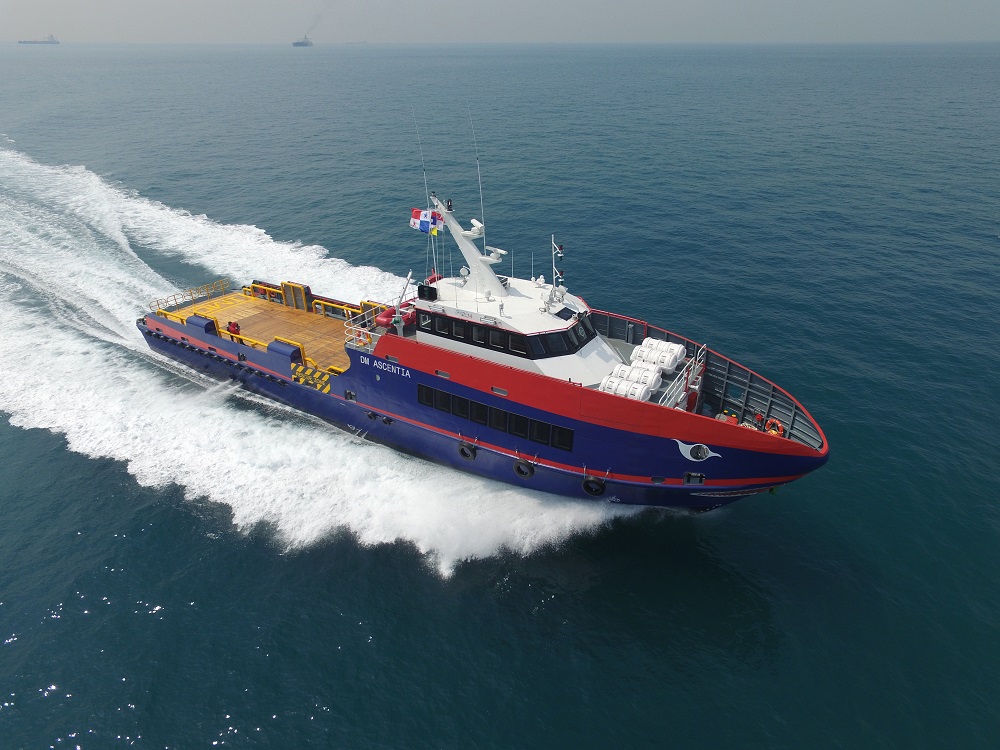

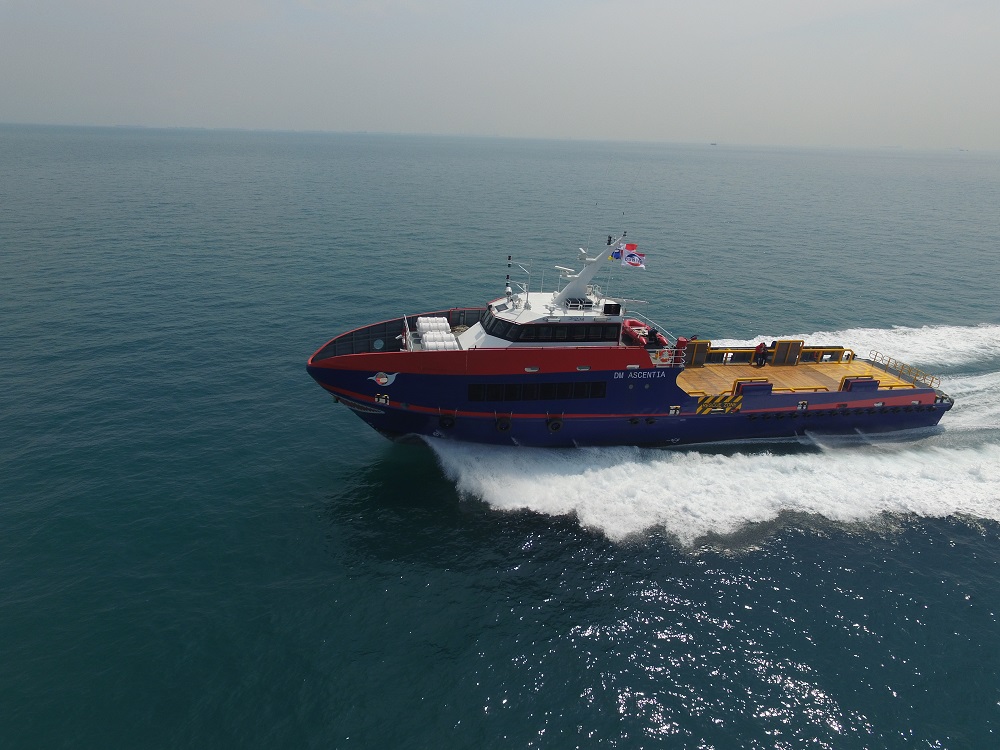

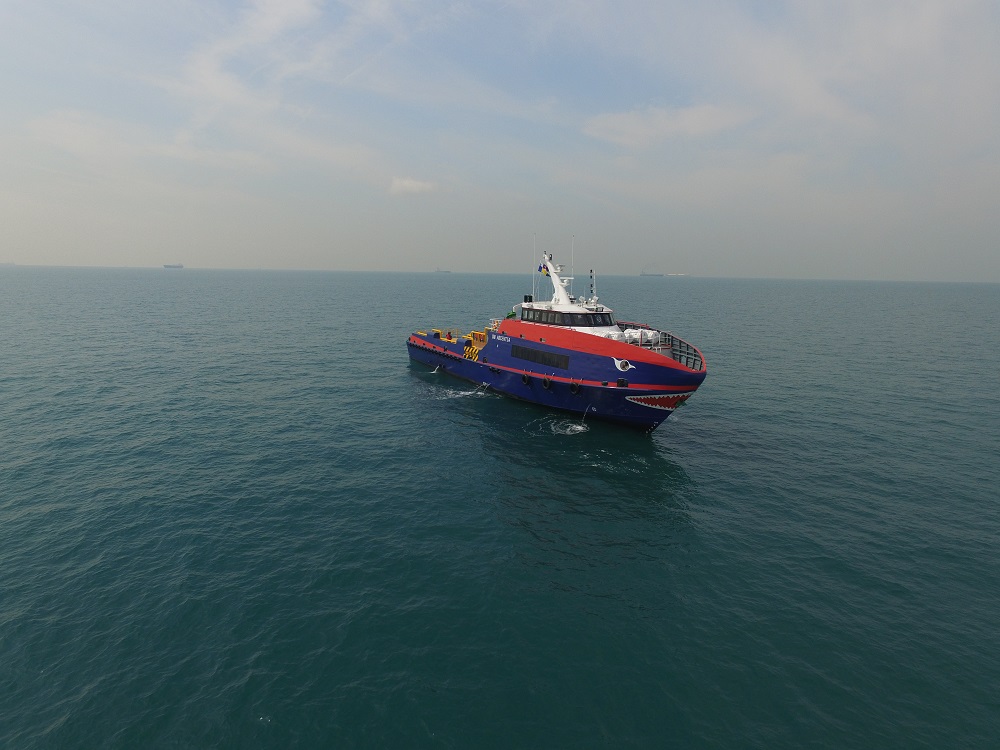

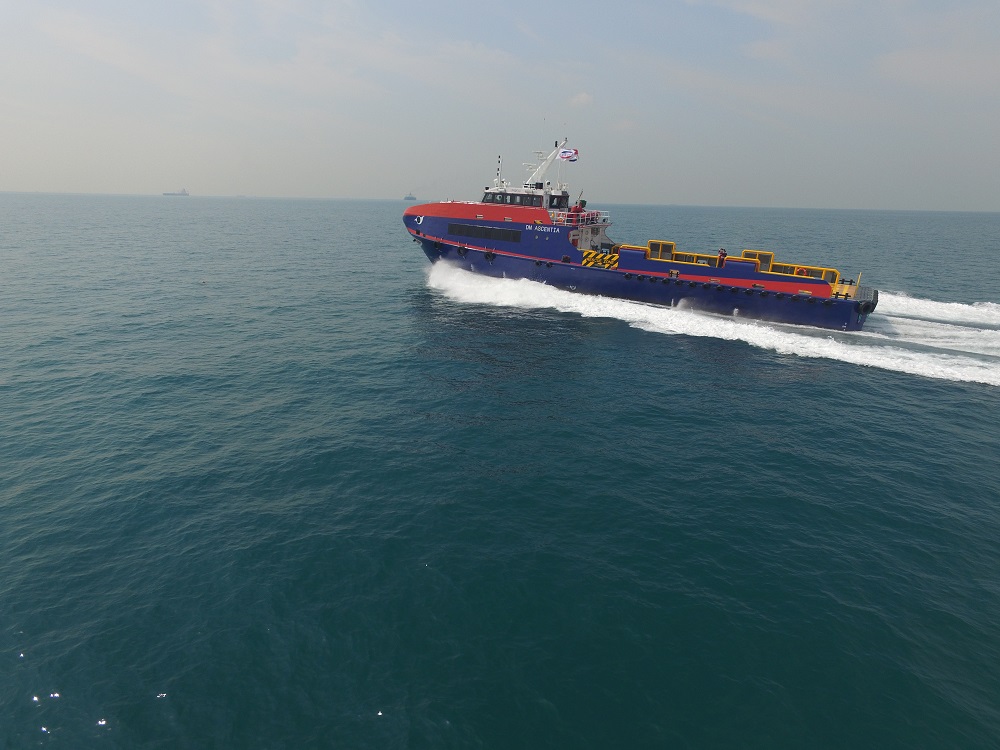

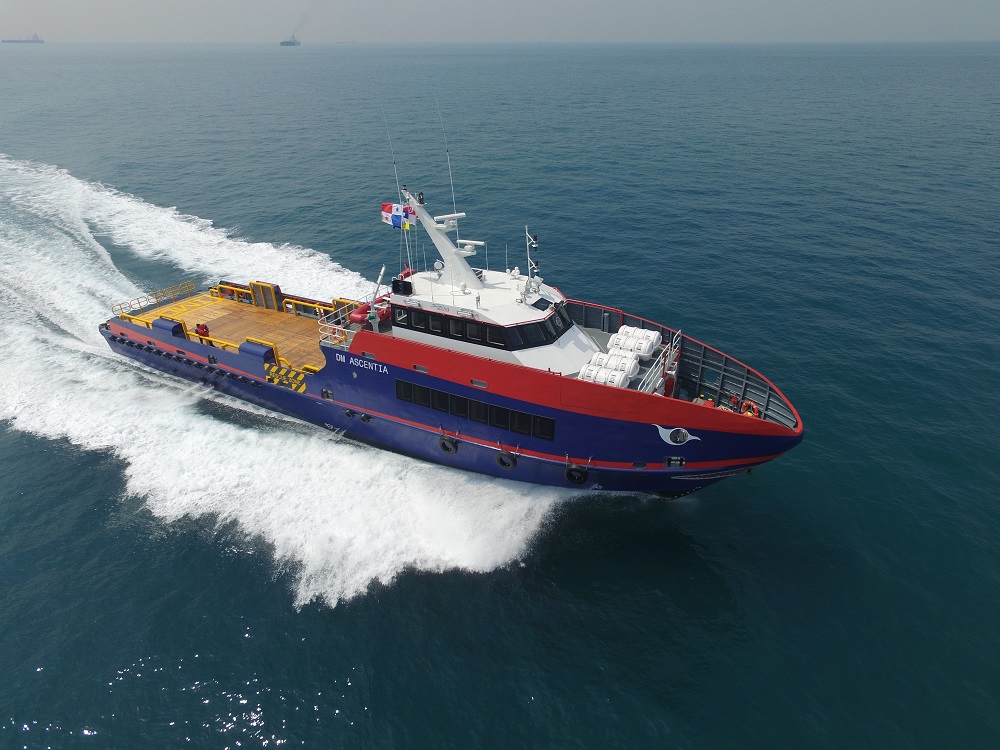

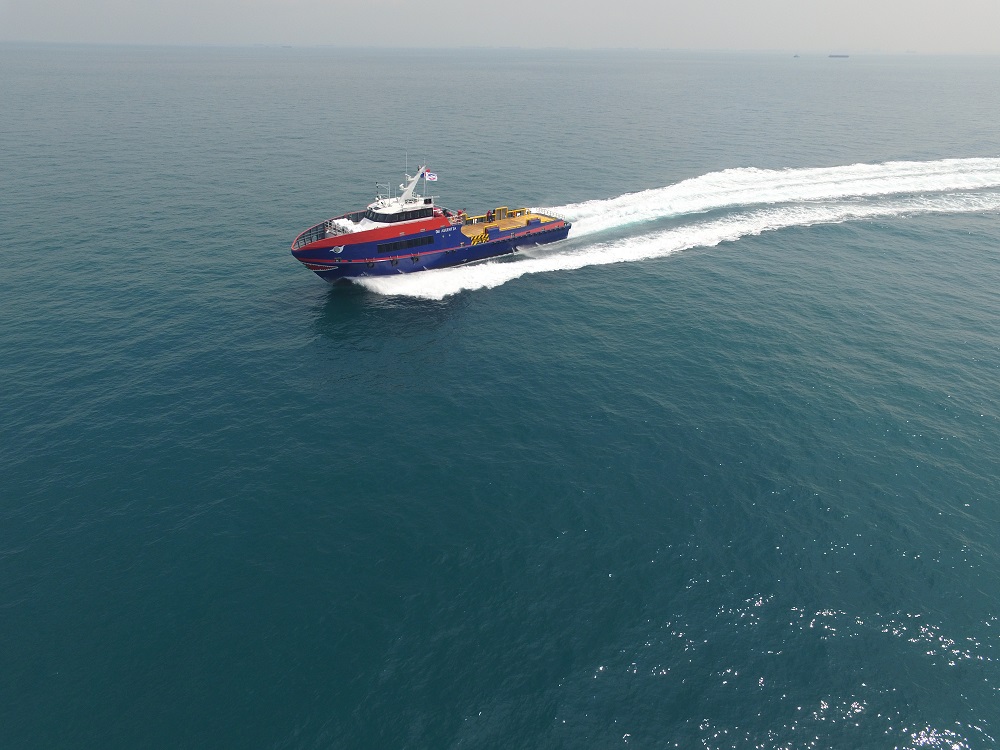

| Description | 39m Fast Crew Supply Transporter |
| Date Launched | Built to order |
| Length | 39m (127ft 11in) |
| Beam | 7.6m (24ft 11in) |
| Location | Singapore |
| Broker | John Kearns john.kearns@seaboatsbrokers.com +64 21 400 805 |
| Price | POA |
| View As PDF | |

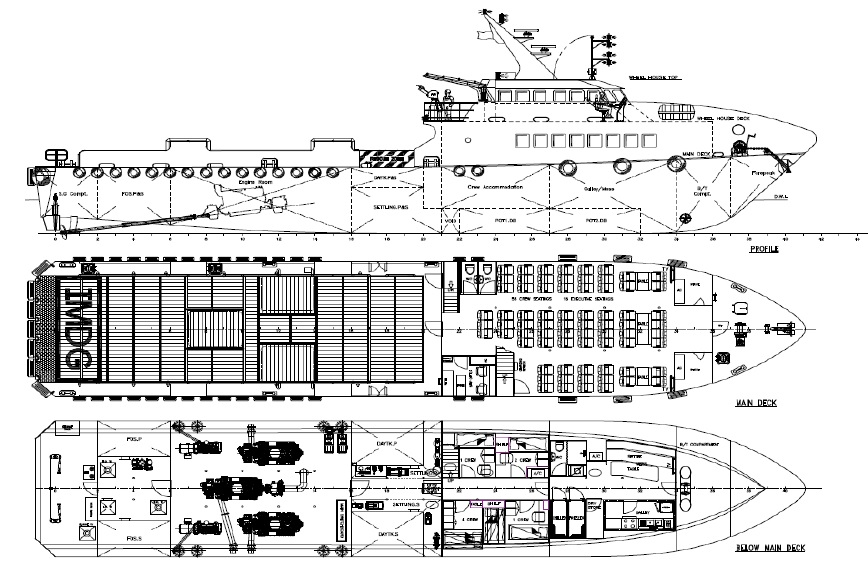

Length O. A.: 39m
Beam Moulded: 7.6m
GT / NT: 267 / 80
Classification: Bureau Veritas
Flag: Panama
Propulsion System

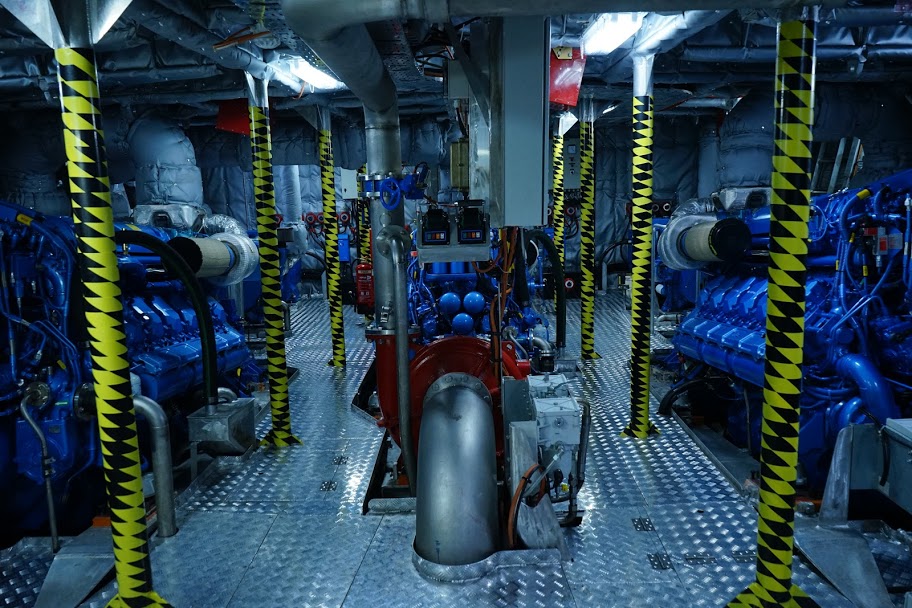

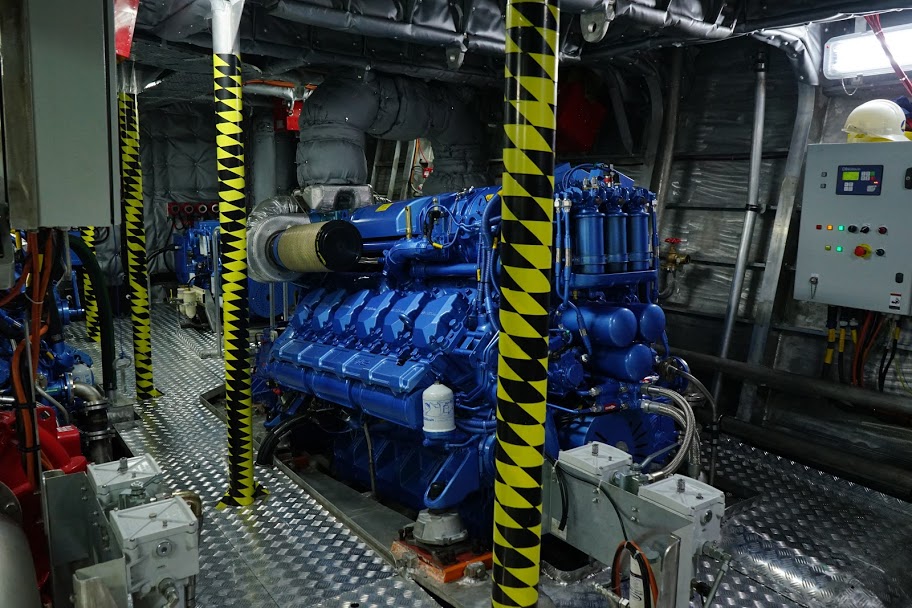

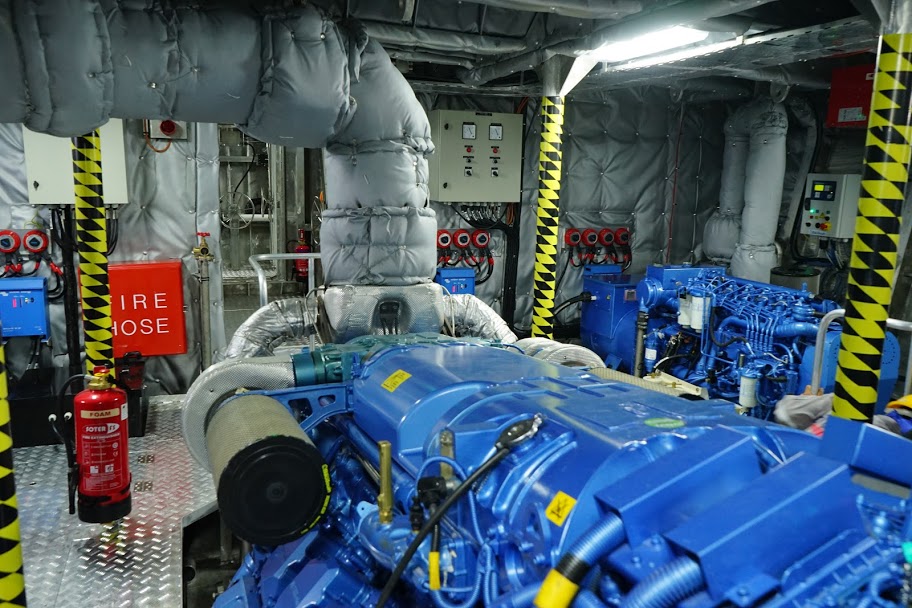

Main Engines: 3 x Baudouin 12 M26.3 P2
Power: 3 x 1500bhp @ 2200 rpm
Engine rating: Heavy Duty (5000 hrs/yr)
Gearboxes: 3 x ZF 3050
Propellers: 3 x Fixed Pitch NIALBR
Bow Thruster: 1 x twin counter rotating 5 bladed
Rating: 1,100kg intermittent thrust
Capacities
Fuel Oil: 81,000 litres (approx.)
Freshwater: 25,000 litres (approx.)

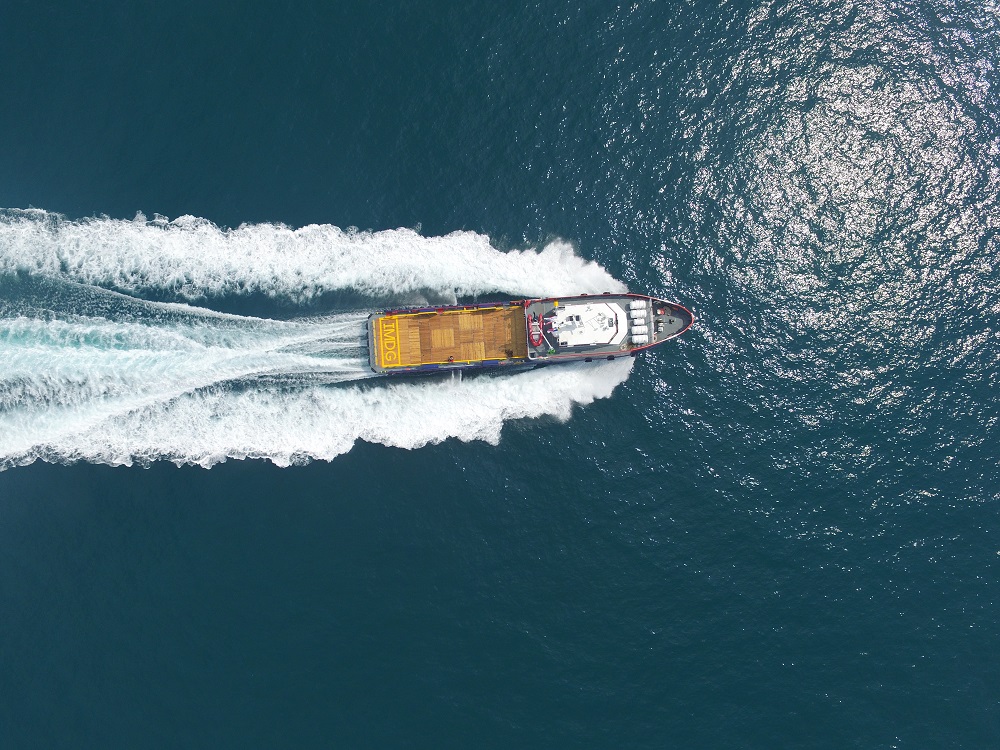

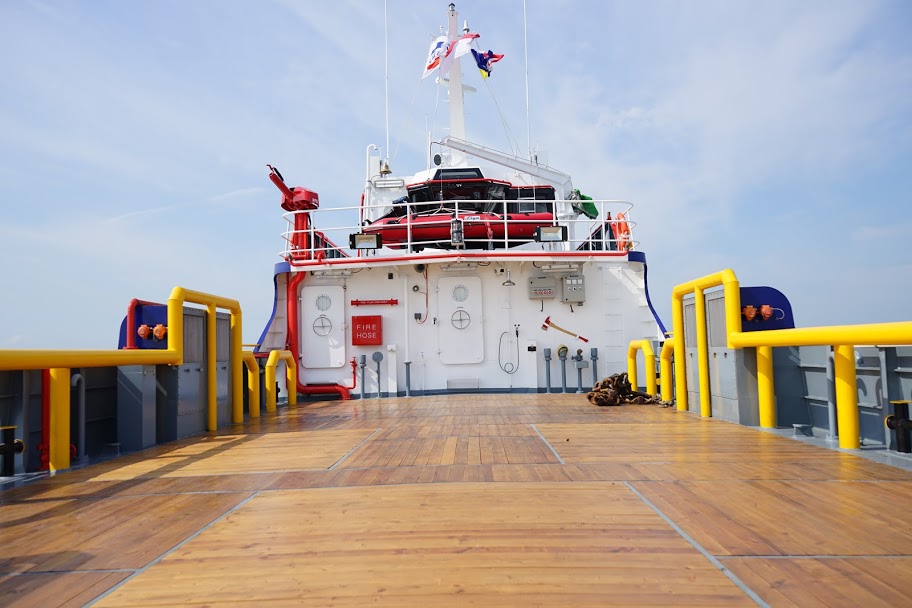

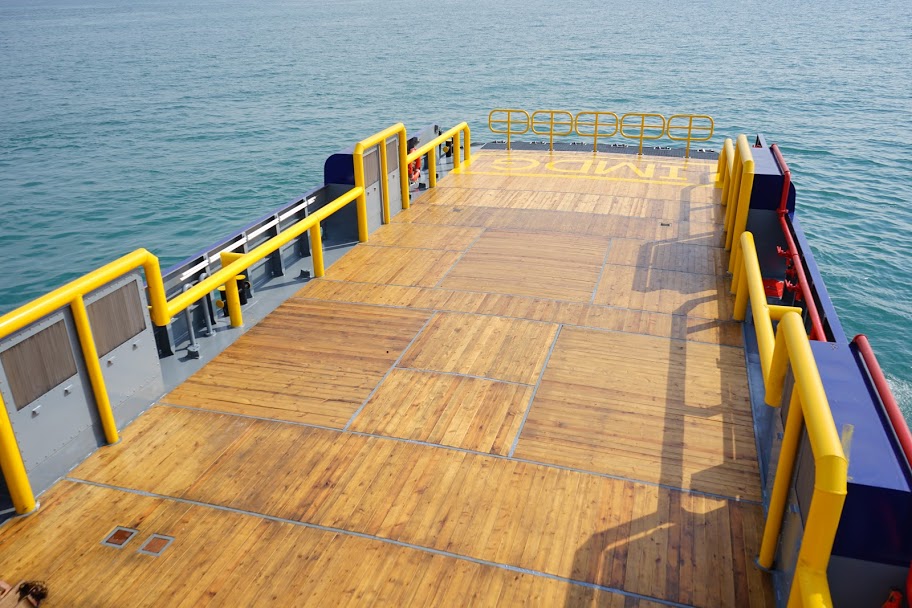

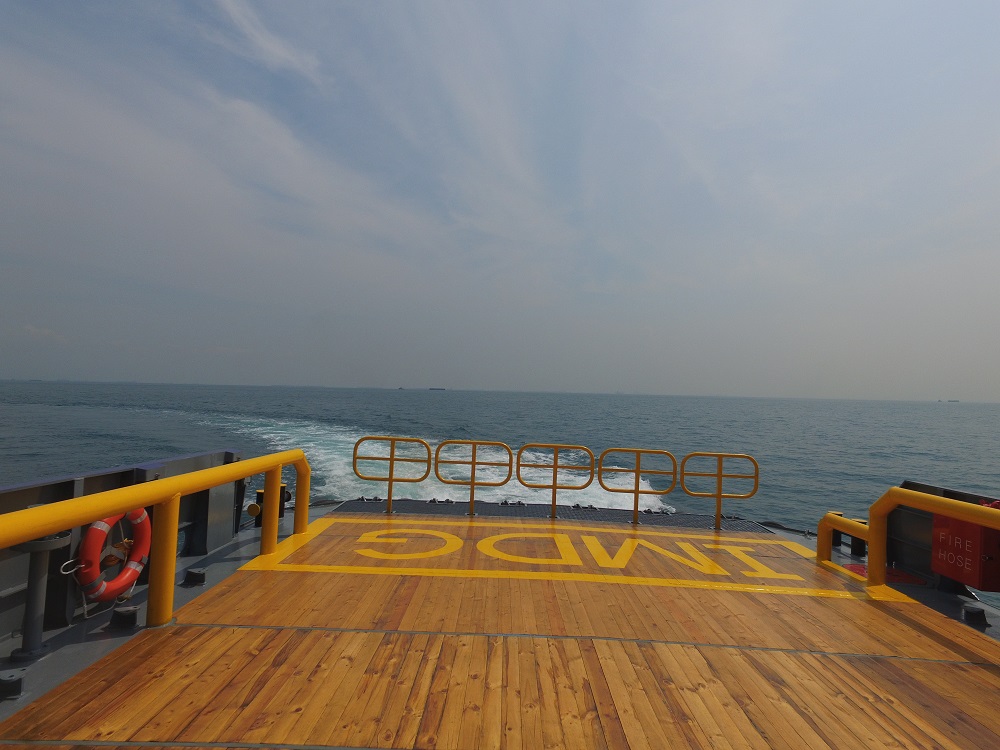

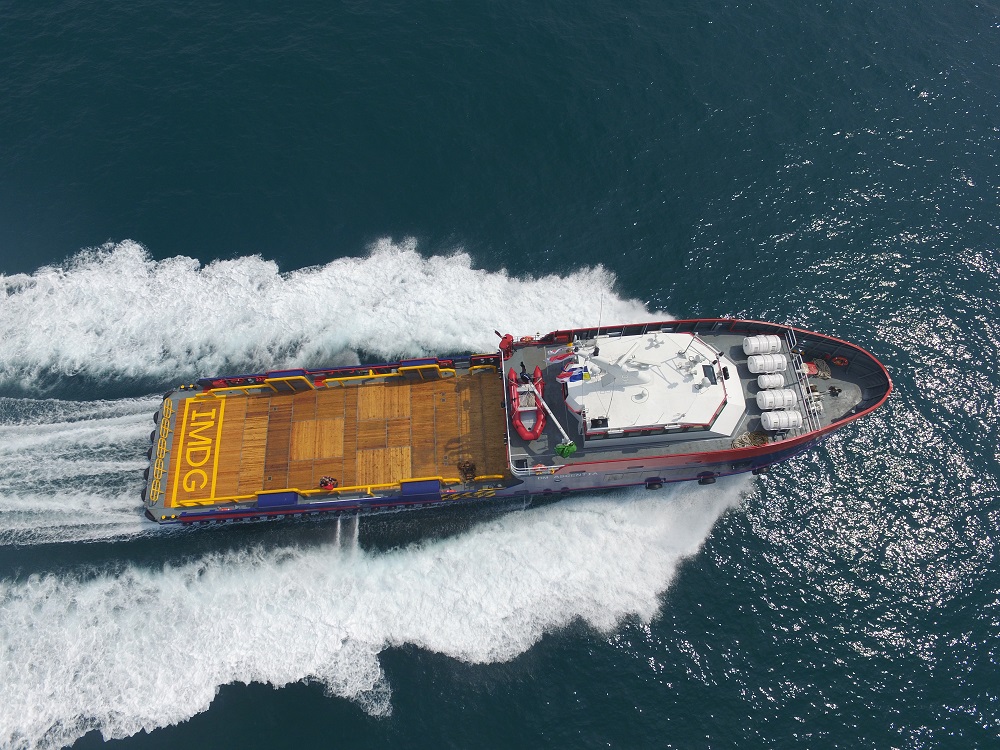

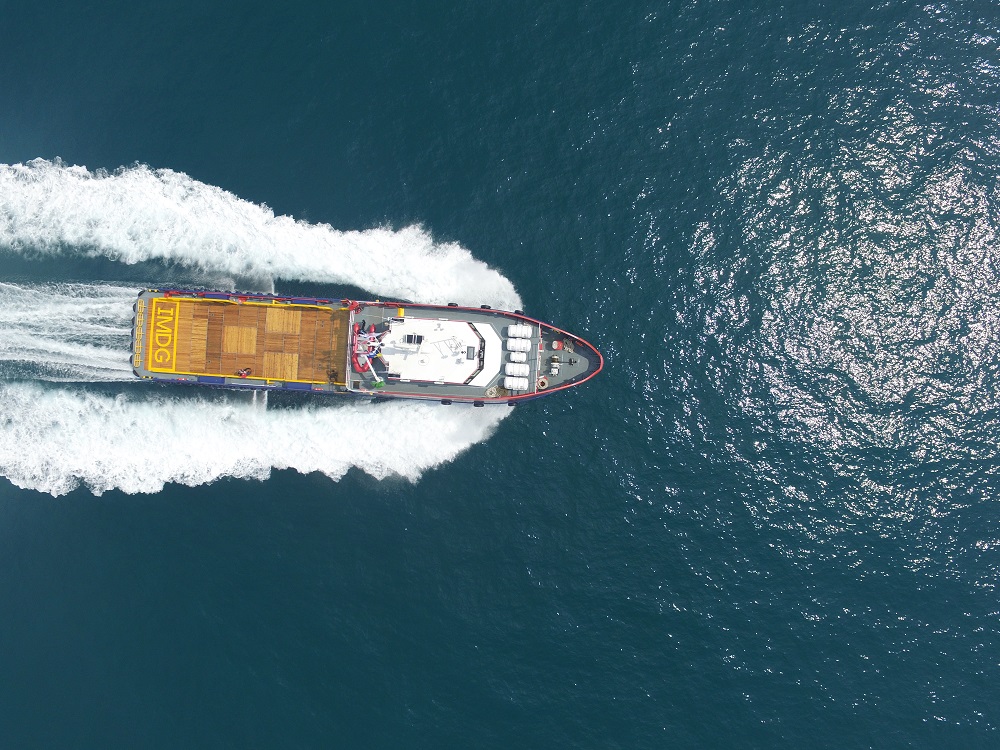

Cargo Deck: 110 sq. metres (approx.)
Crew: 8
Generators
Aux Engines: 2 x Baudouin 6W1055
Power: 2 x 92 kWe @ 1500 rpm
Alternators: 2 x Leroy Somer

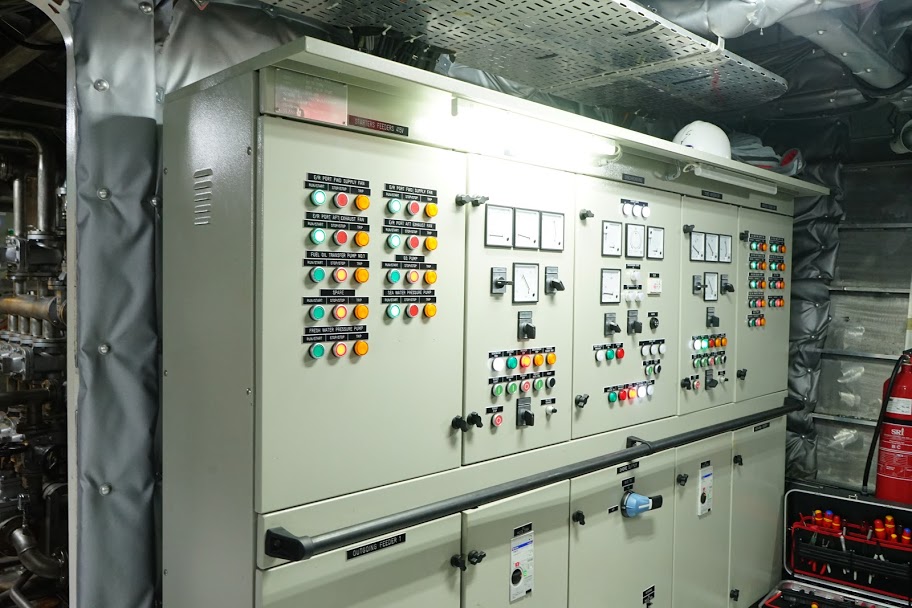

Electrical Supply: 415/230VAC 50 Hz, 24VDC
Performance

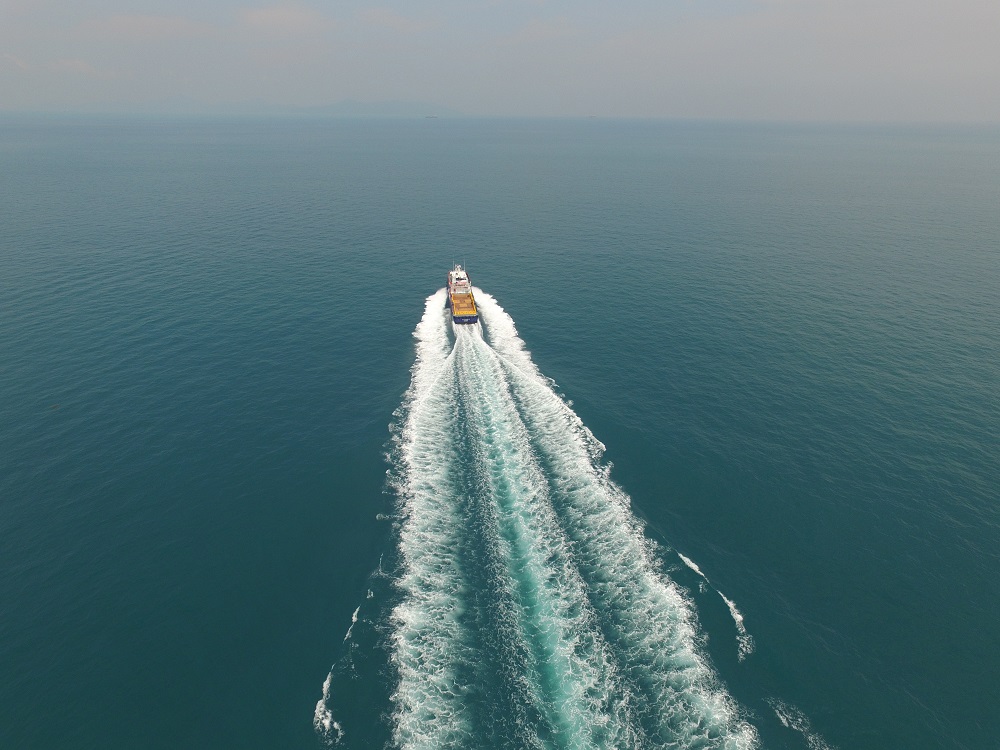

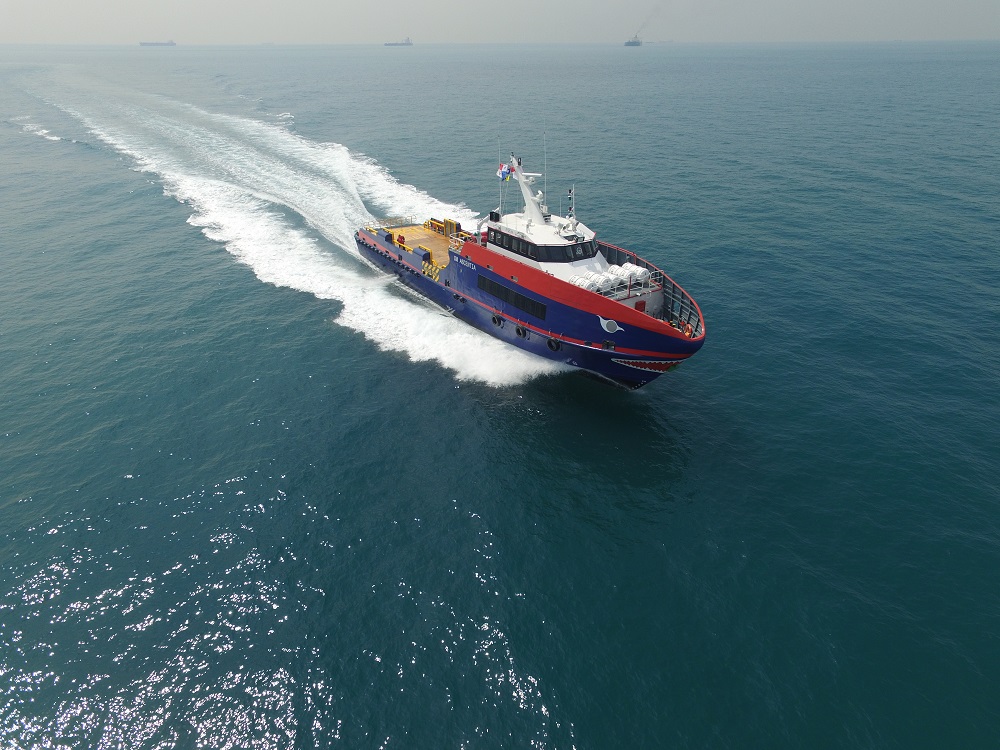

Speed (Max): More than 31 knots
Speed (Cruising): 28 knots @ 85% MCR
Deck Equipment
Anchor: 1 x 195kg HHP c/w steel wire
Anchor Windlass: 1 x Palmarine

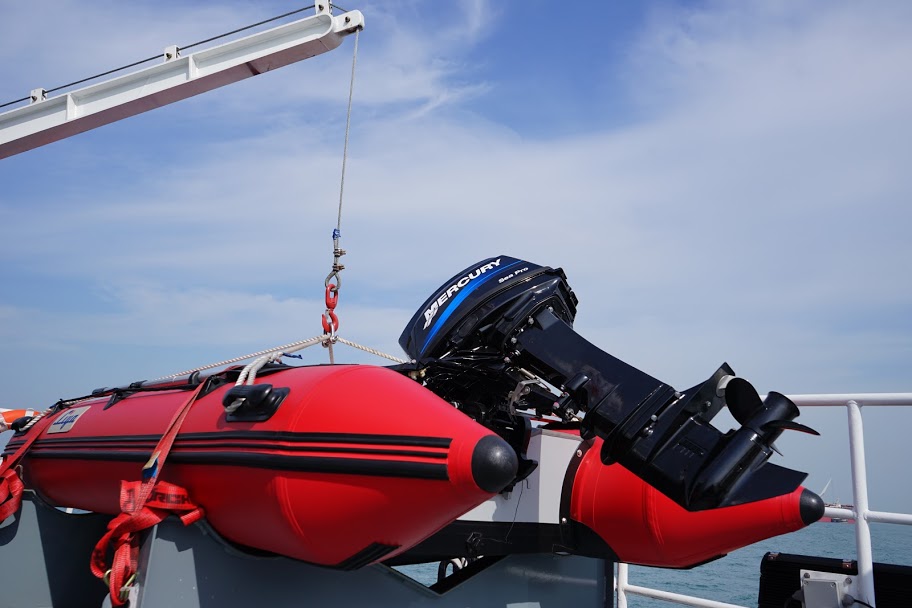

Workboat c/w davit: Fitted

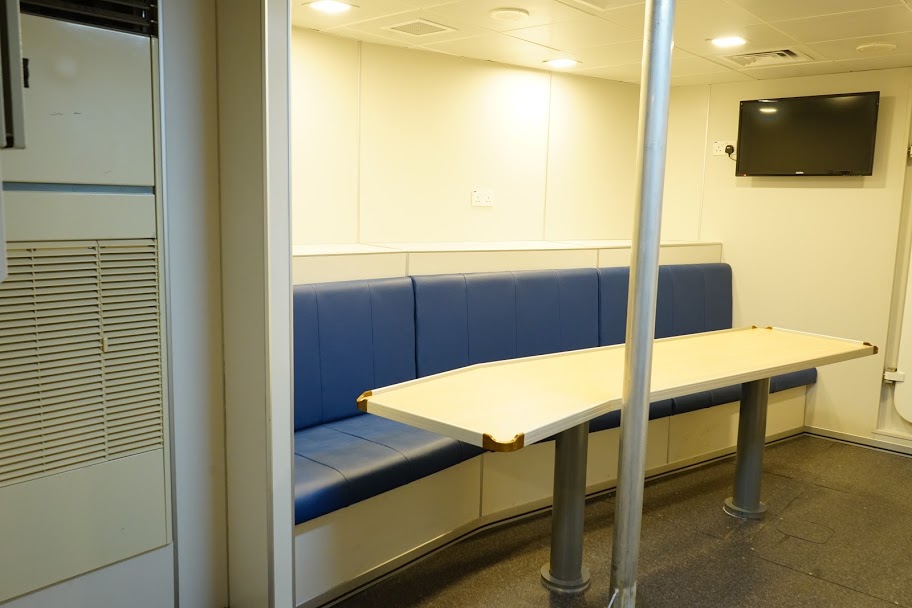

Accommodation and Seating

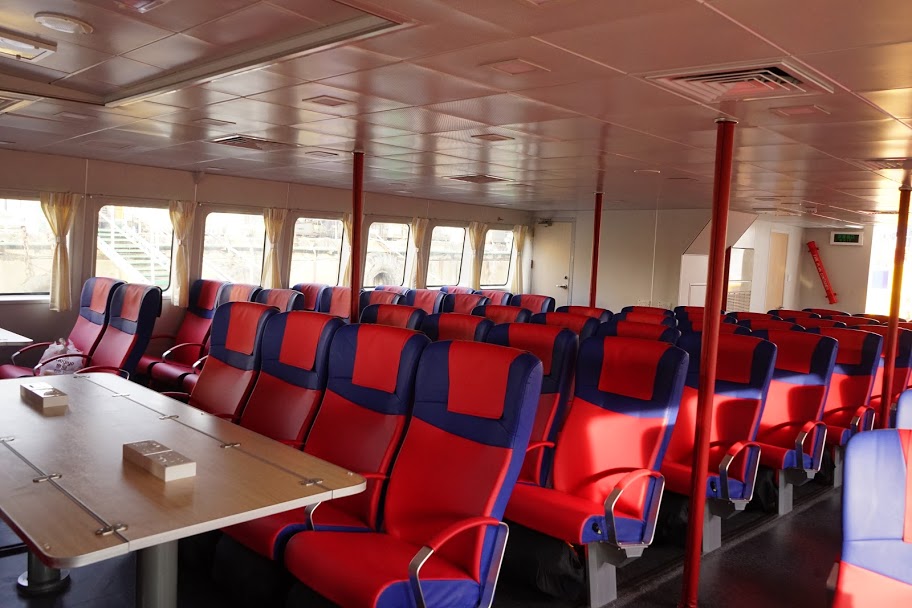

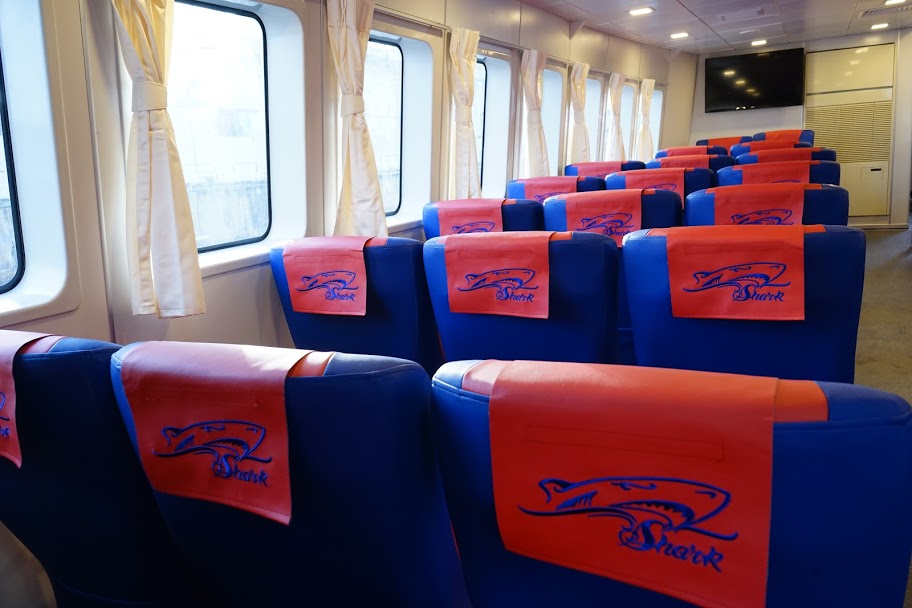

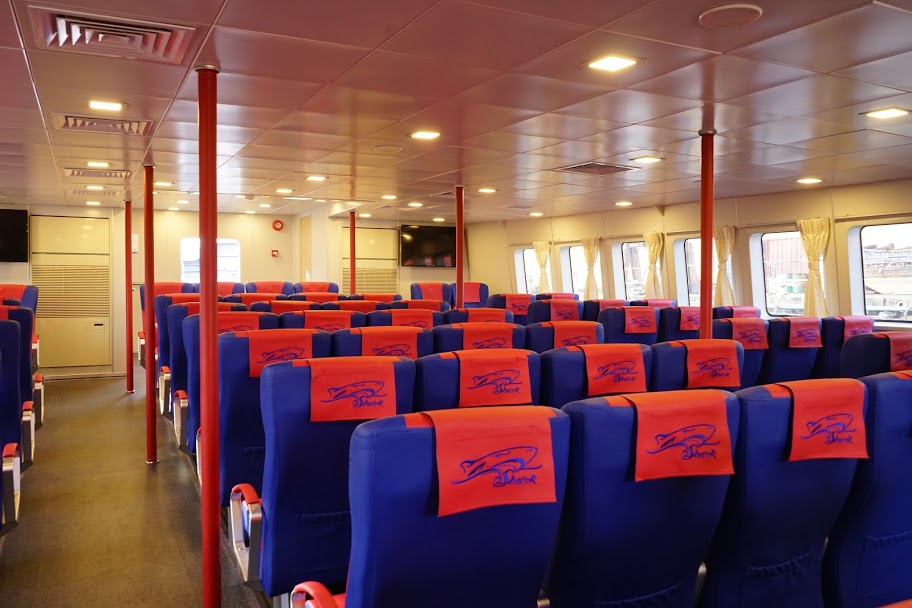

Seating Class: 72 Business Class Reclinable Seats

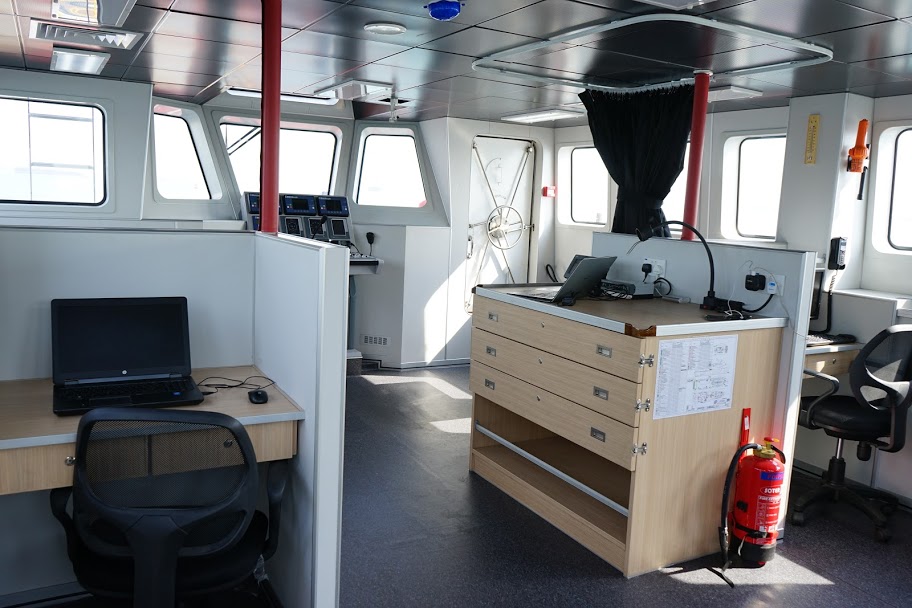

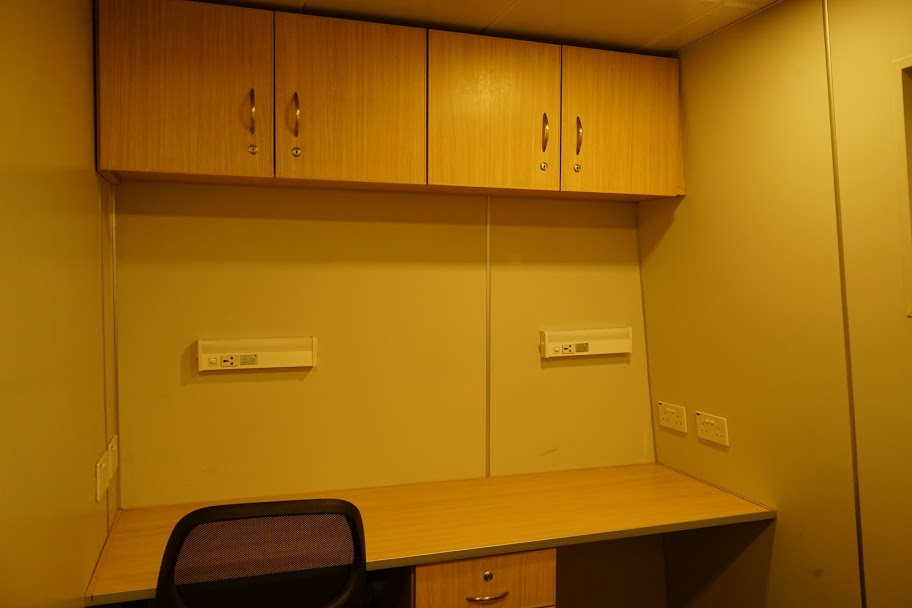

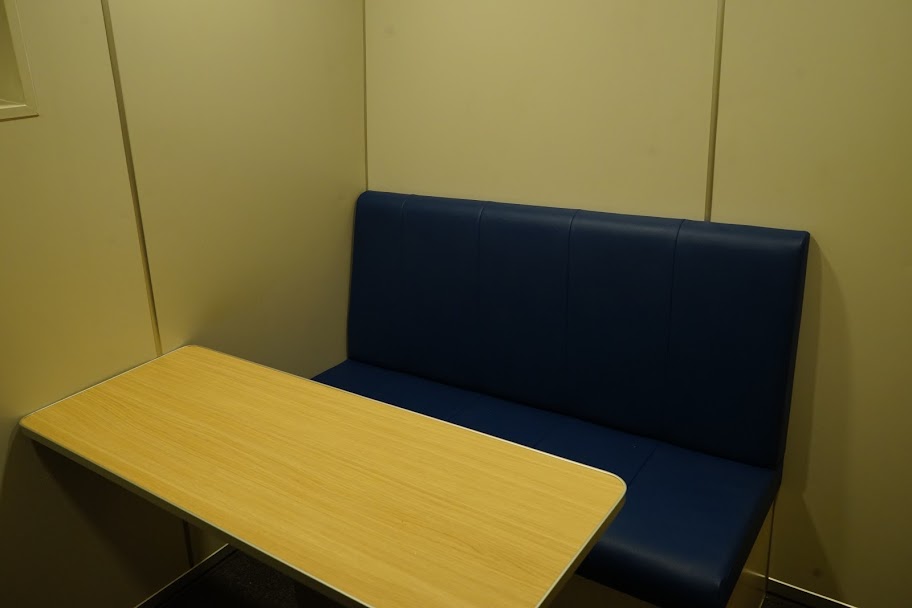

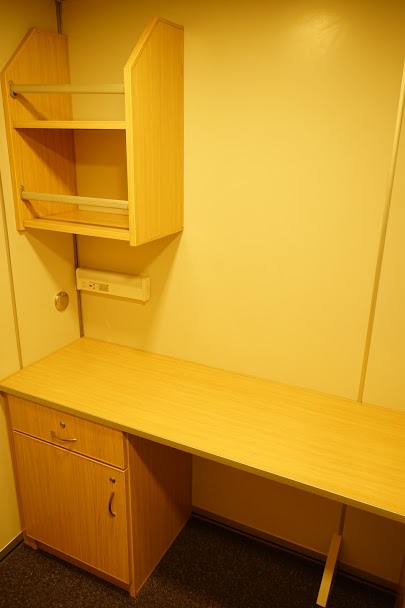

Ship’s Office: Fitted at main deck

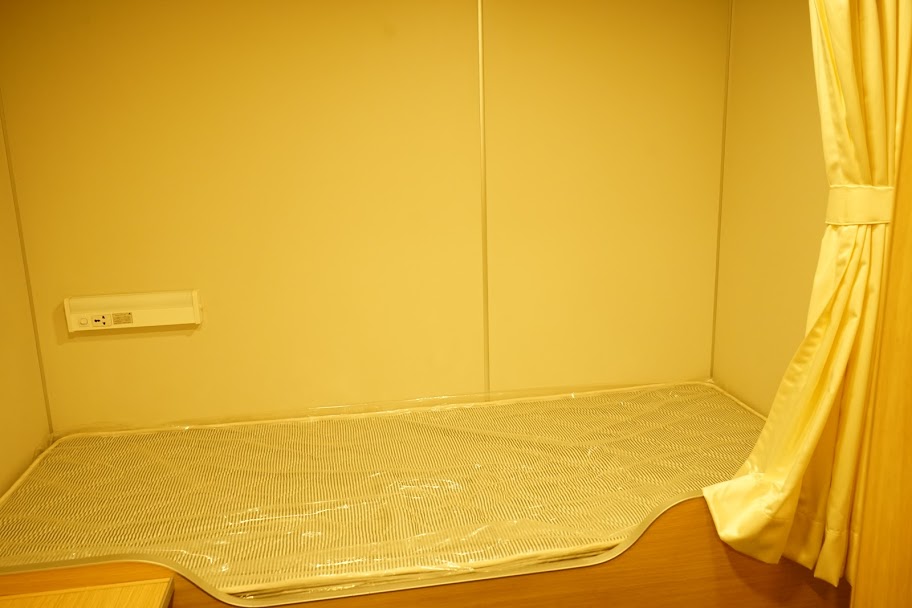

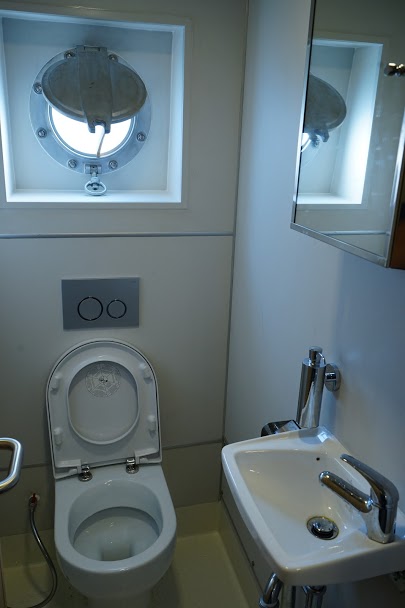

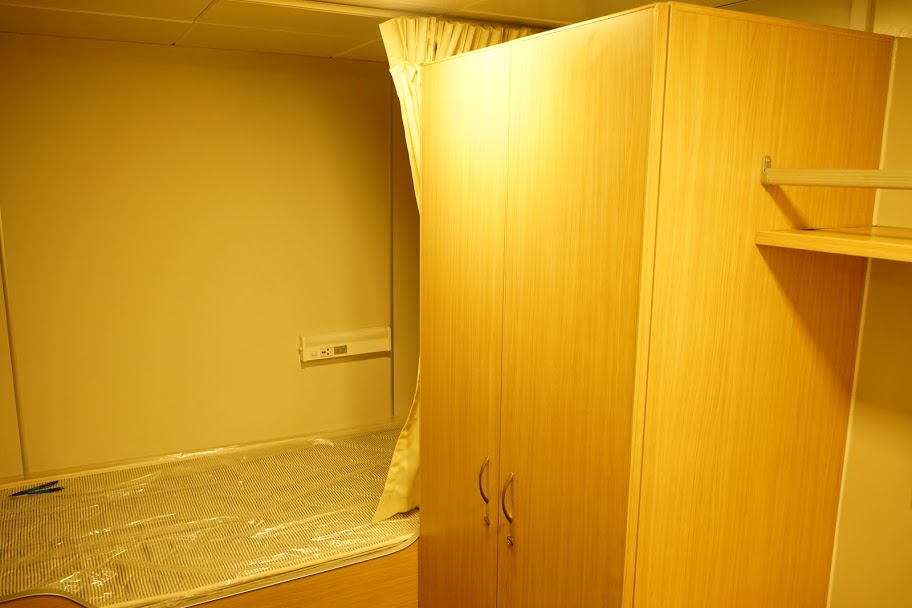

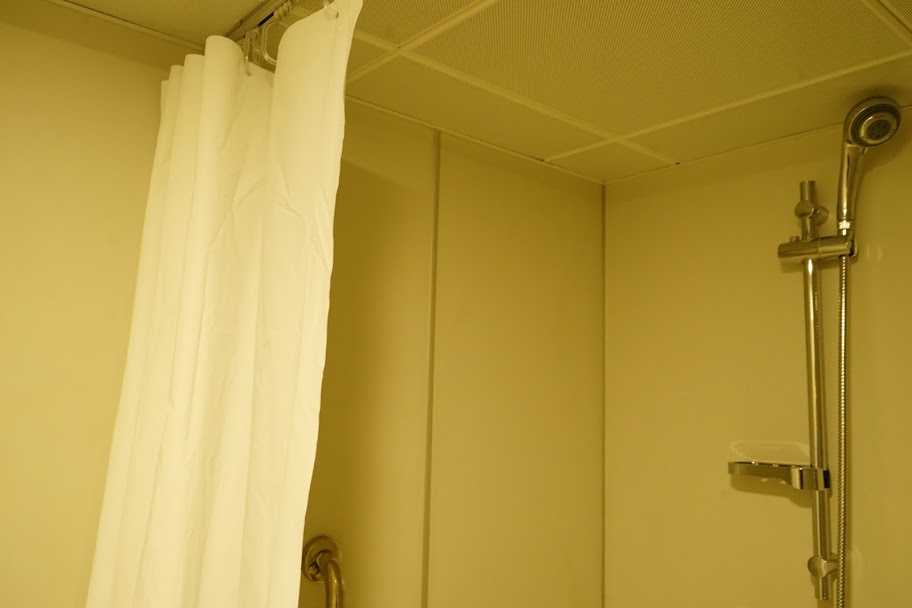

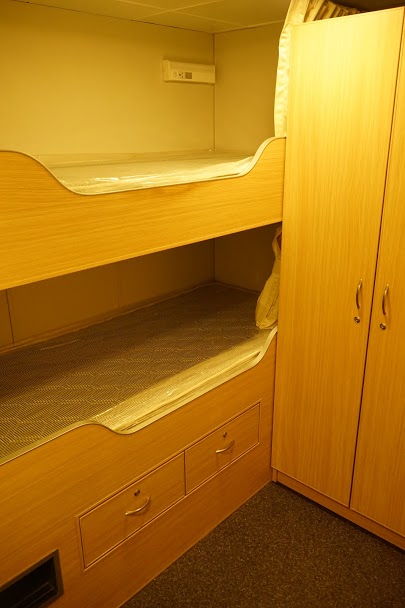

Cabin / Bunk: 4 / 8

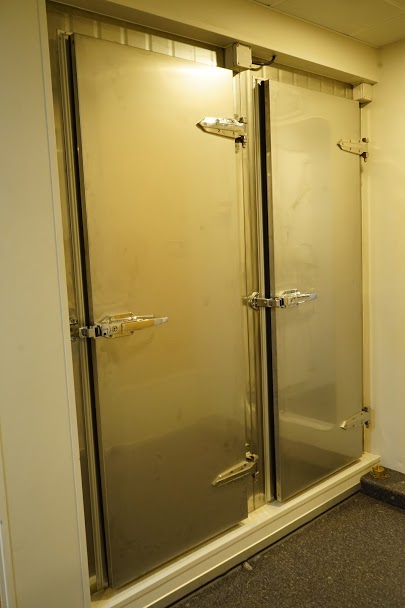

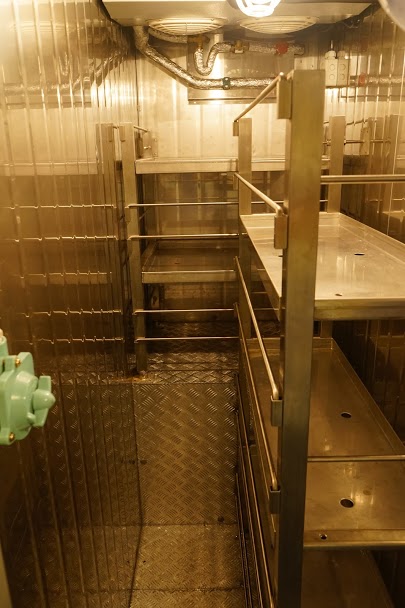

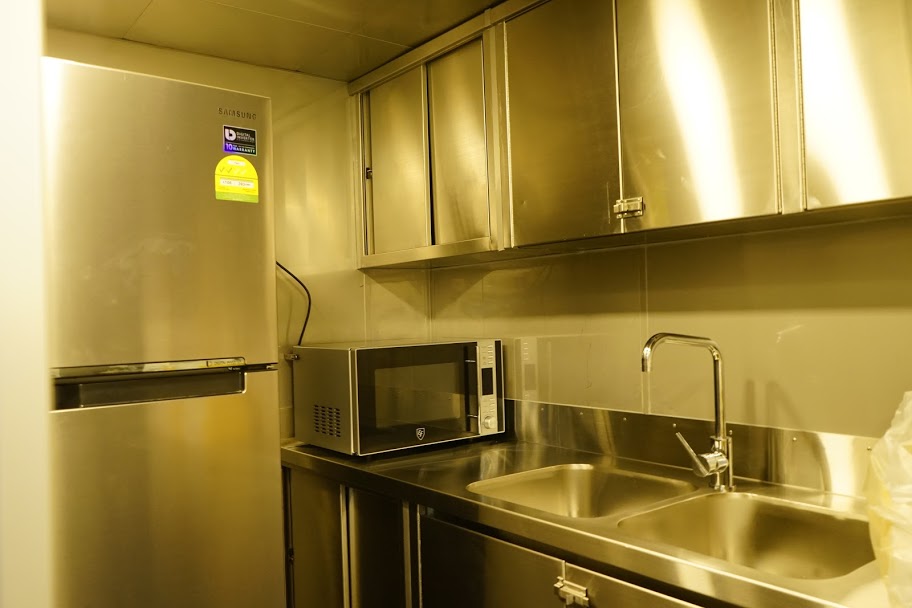

Freezer and Chiller: Fitted, walk-in type
Air Conditioning: Central type for all areas
Safety and Emergency Response
Life rafts: 4 x 50 men + 1 x 10 men
IMDG: In compliance

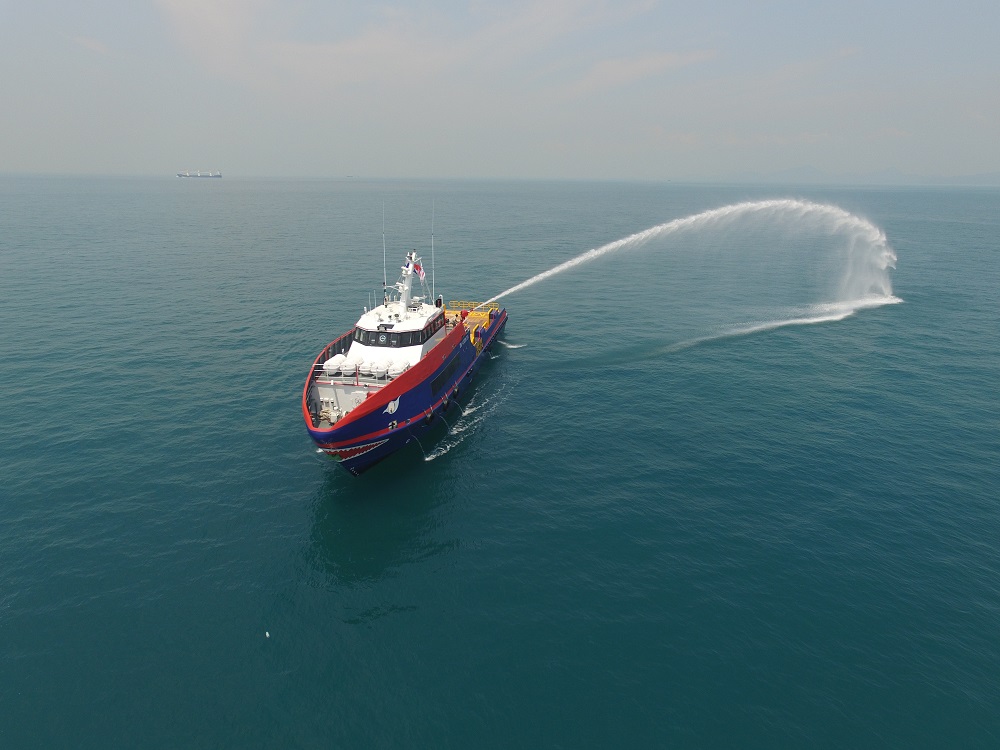

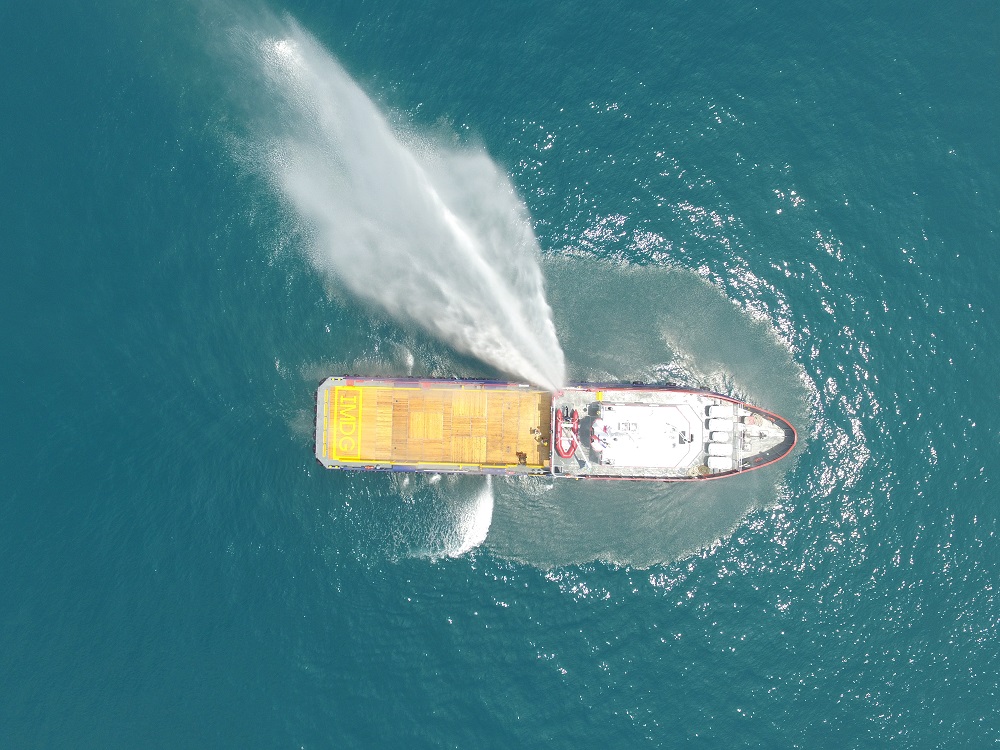

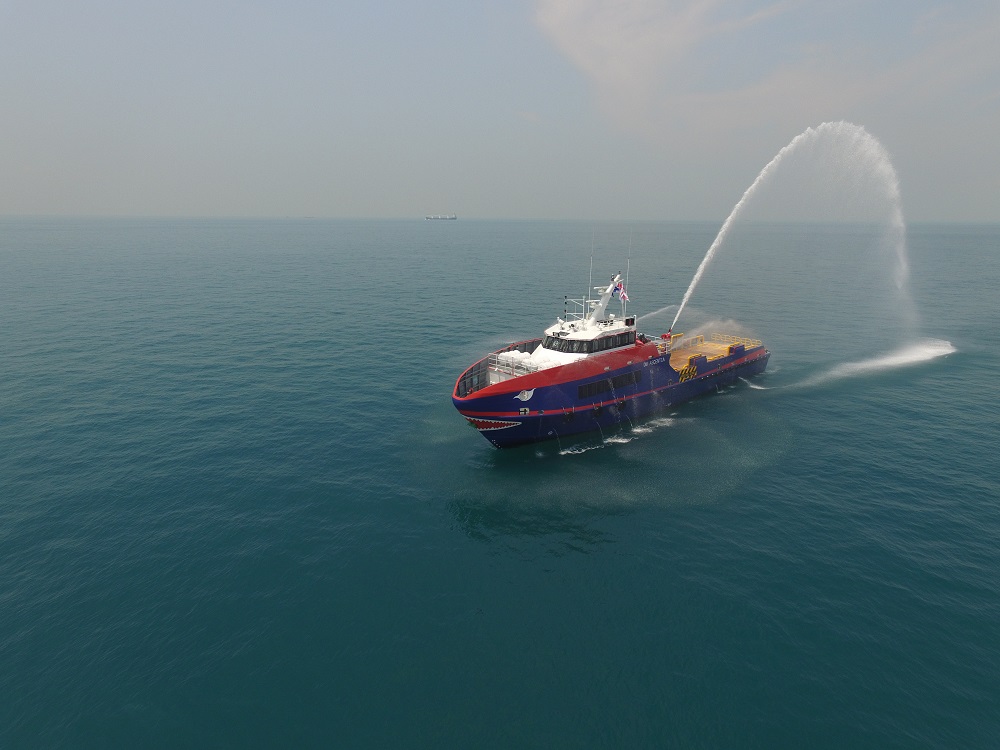

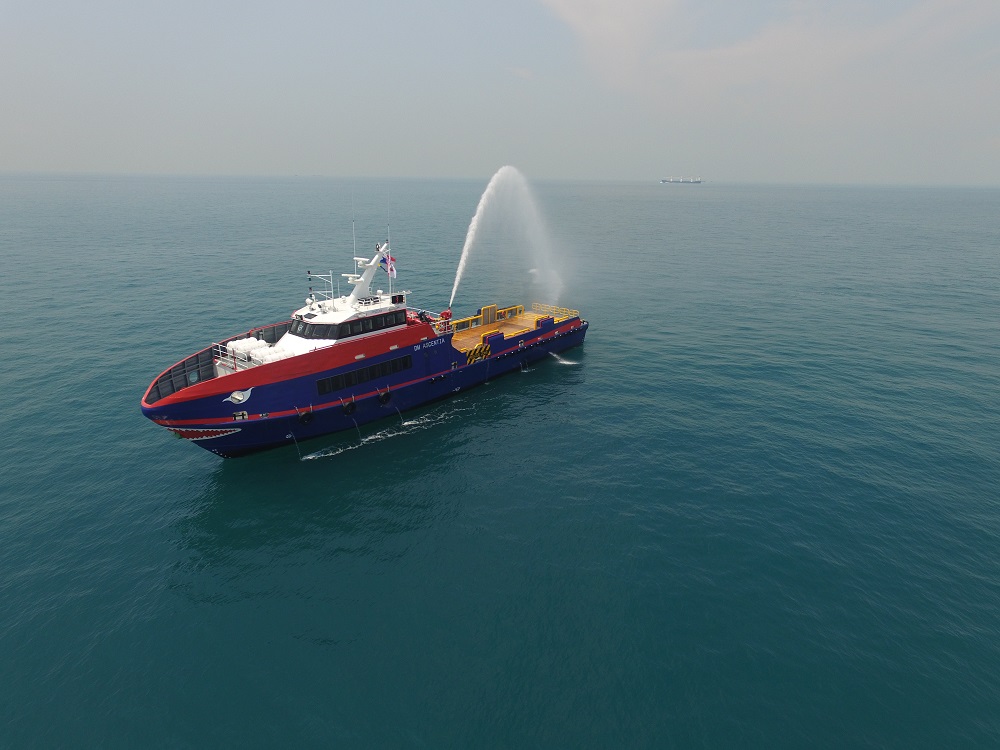

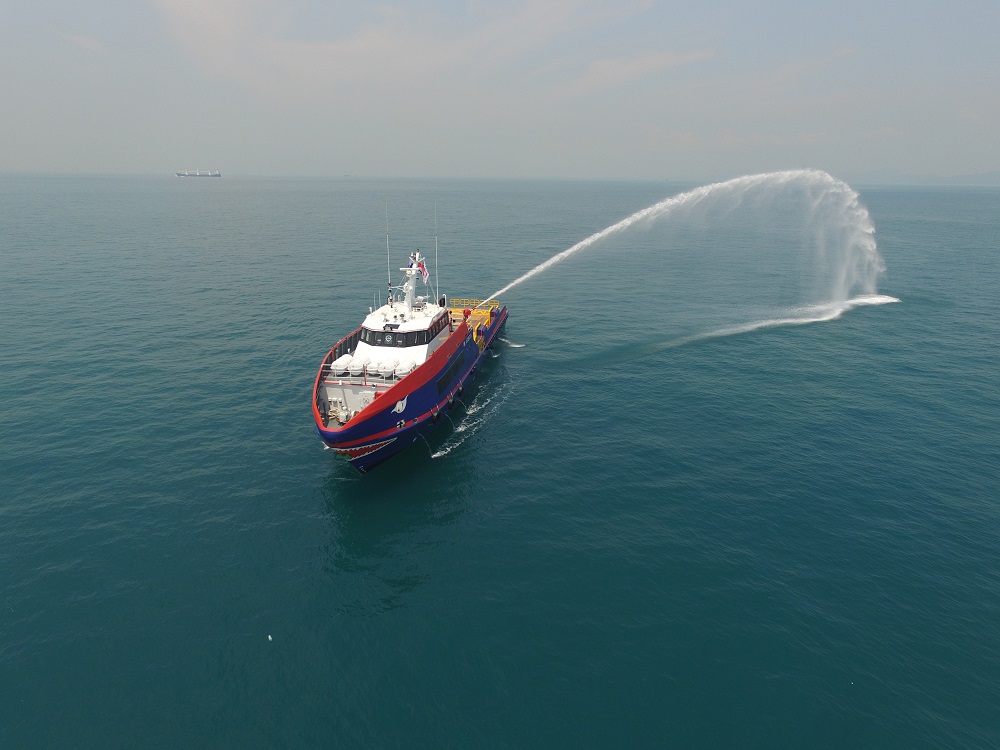

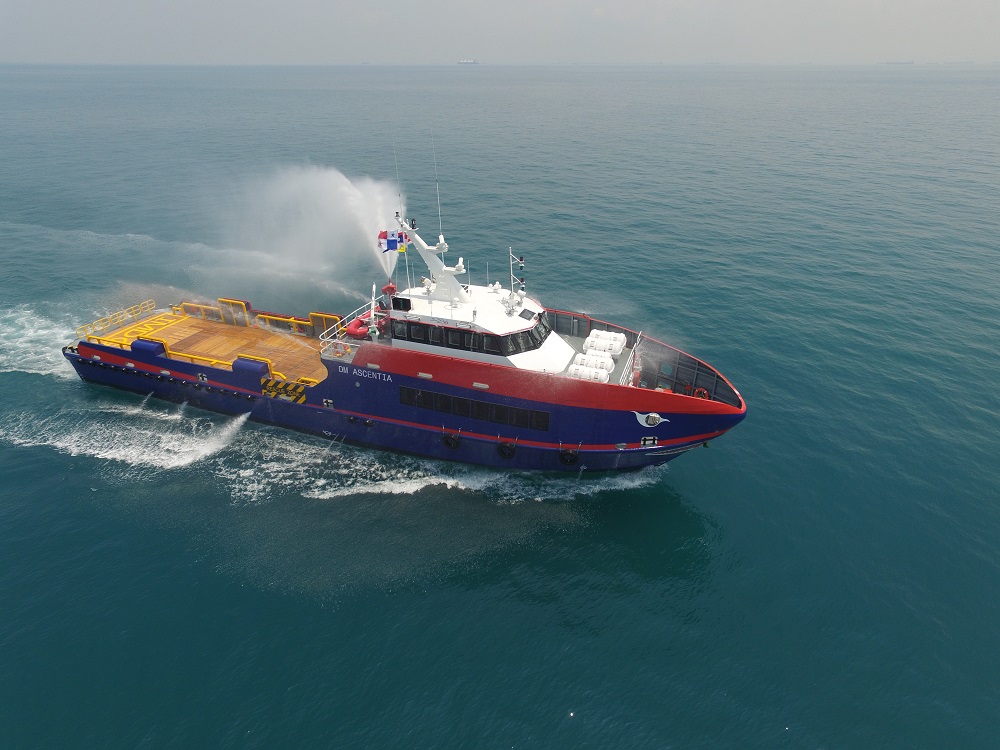

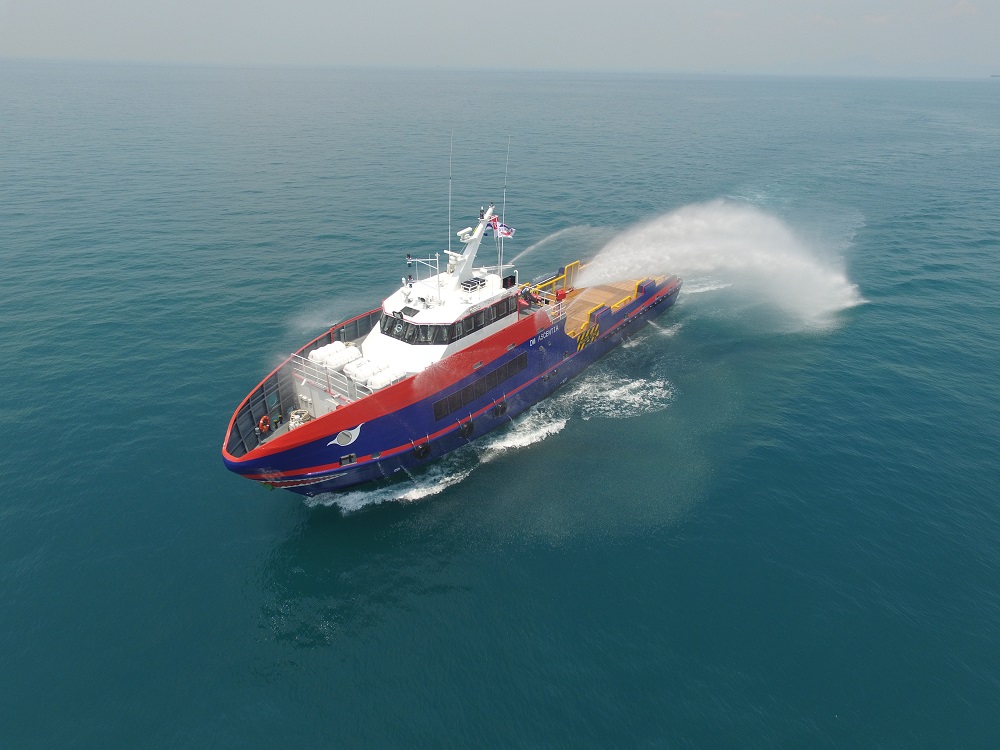

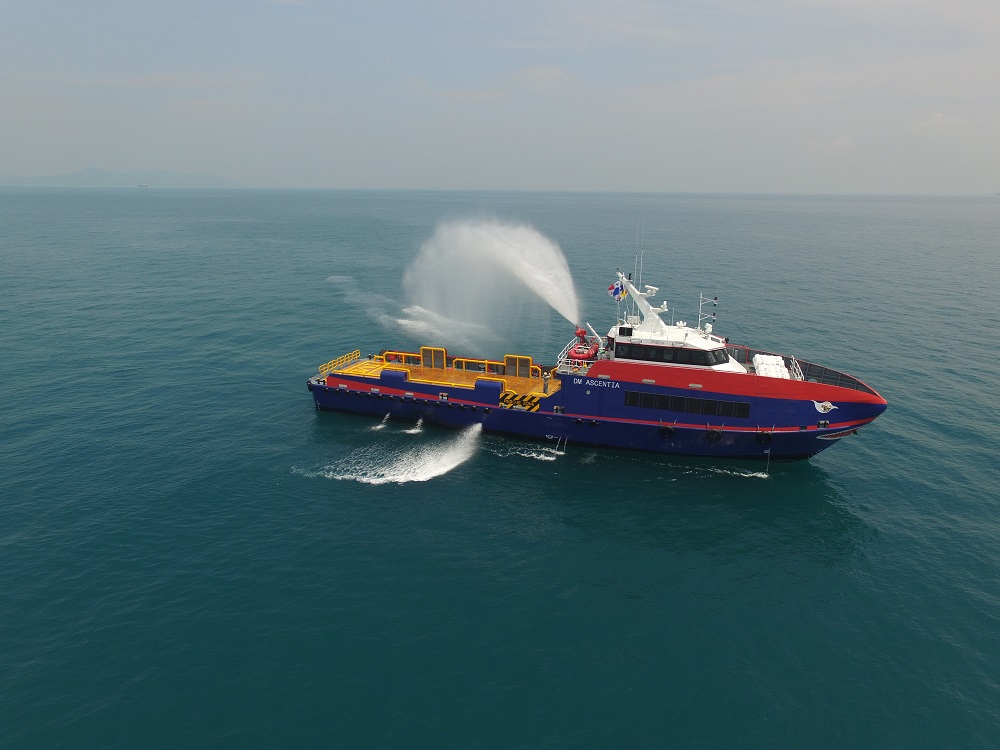

FIFI Pump: 800 m³/hr

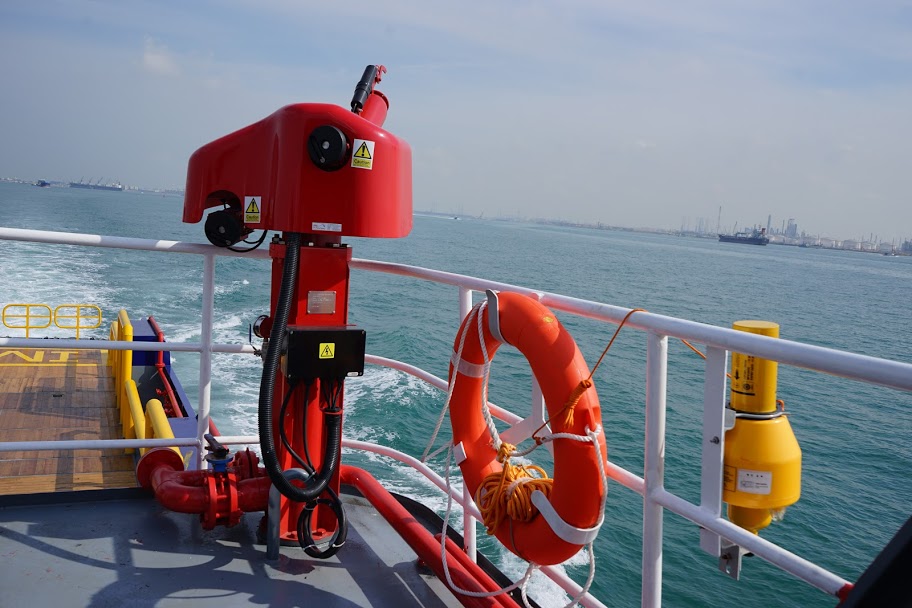

FIFI Monitor: Remote controlled
Water curtain: fitted

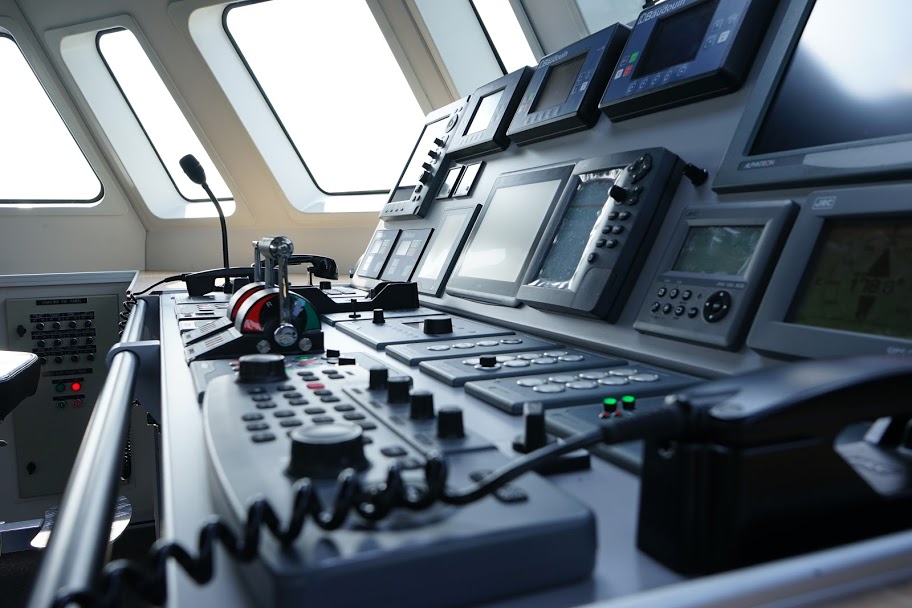

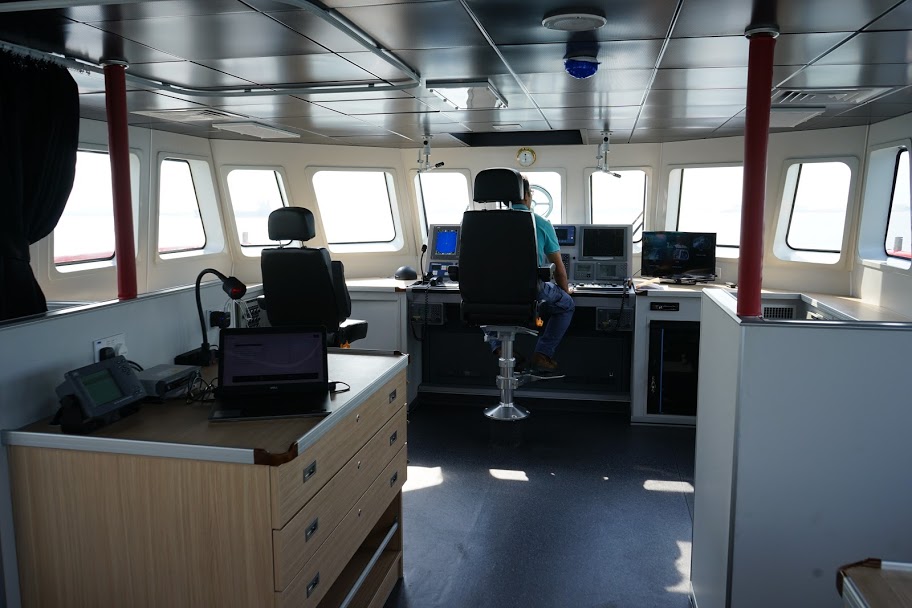

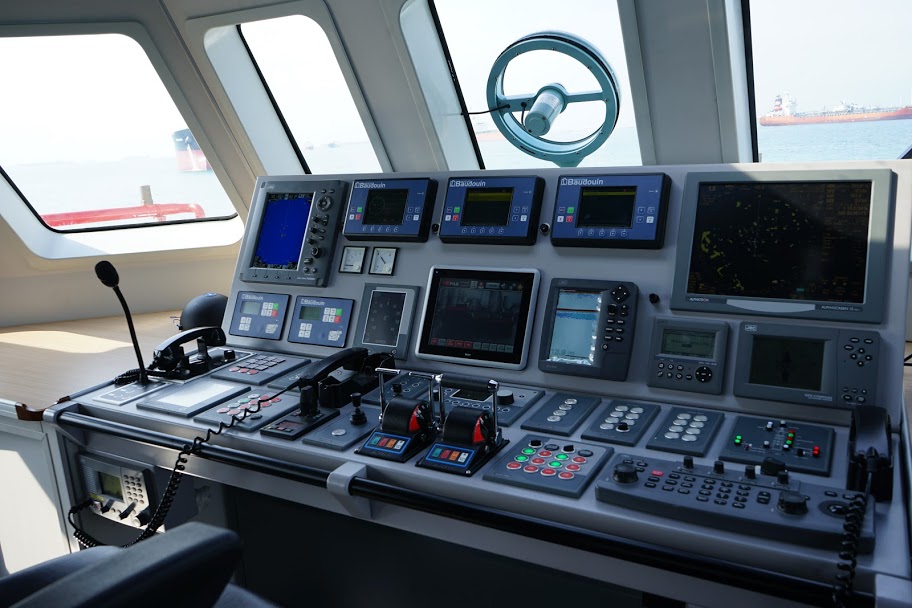

Navigation and Communication Equipment
Radar (Main): JRC JMA–5212- 4HSBB
Radar (Secondary): JRC JMA-3336
Search light: 3 x 1000W
Magnetic Compass: Seastrel FW7700
GPS Compass: JRC JLR-21
GPS: Furuno GP-32
Echo Sounder: JRC JFC-7050
Anemometer: Alpha wind WSO 100
AIS: JRC JHS 183
Autopilot: AlphaSeaPilot
Navtex: JRC NCR-333
SSAS: JRC JUE-770S (A1 +A2)
Fuel consumption as below.
|
From sea trial (Dwt at 31.5ton) |
||
|
23.15 knots |
1800 RPM (53% MCR) |
450 l/hr |
|
25.00 knots |
1911 RPM (65% MCR) |
525 l/hr |
|
27.31 knots |
2050 RPM (85% MCR) |
720 l/hr |
|
30 knots |
2200 RPM (100% MCR) |
840 l/hr |
Currently not installed with watermaker. Can be installed if required.
PAX seats be taken out and a couple more 2 place cabins be installed.
