Hull Length: 8.05m (26ft)

Beam: 2.48m

Draft: Approx. 0.60m (2ft)

Hull Weight: 3500kg

Power by: Single 240HP YAMAHA Marine Diesel Engine with Sterndrive

Fuel Tank Capacity: Built-in 400litre Fuel Tank

Material: Marine Grade Aluminium Alloy (5083H321)

Hull bottom thickness: 4mm

Hull side thickness: 4mm

Deck: Aluminium Alloy Plate

Class Type: Not build to Class Survey

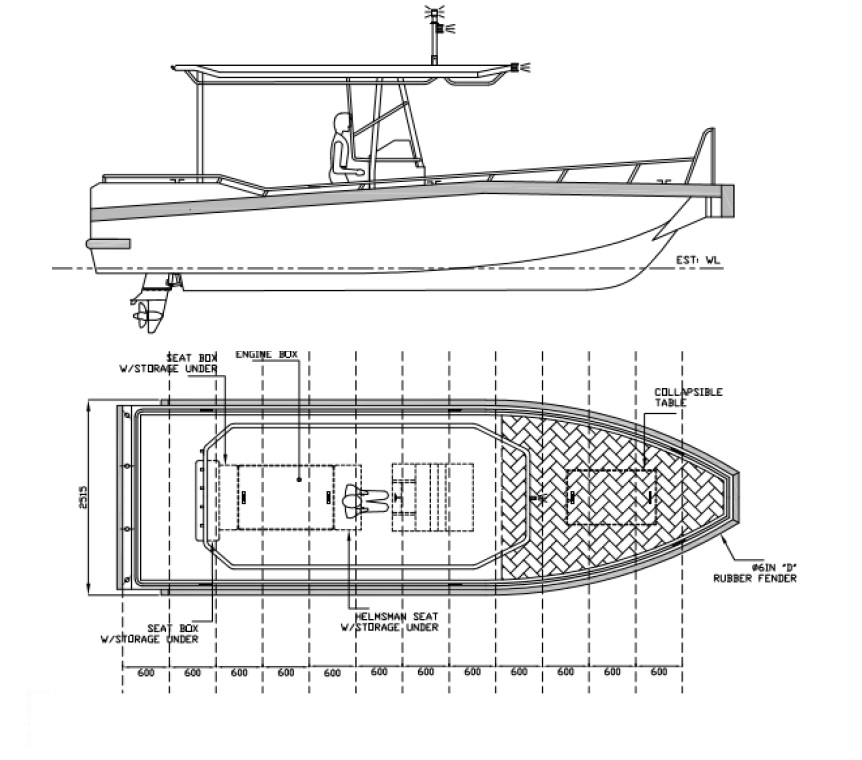

General Design

1. Hull Structure: Marine Grade Aluminium Alloy, Multiple Transverse & Longitudinal Frame Reinforcement Structures; Multiple Chambers filled with Unsinkable Foam; Reinforced keel and chines

2. Hull Coating: Marine PU Re-painting to Navy Brue Color

3. Cockpit Floor: Aluminium Alloy Plates and painted with non-skid Grey PU Paint



Configuration

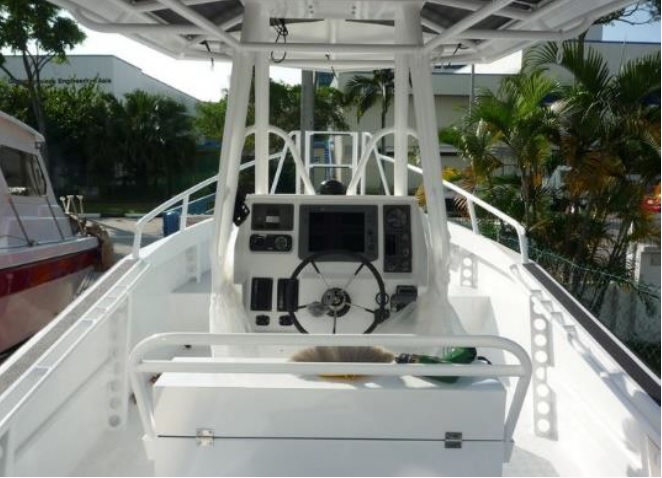

1 x Forward Steering Console with Manual Hydraulic Steering System

1 x Overhead Aluminium Canopy with Alloy Frame

5 x Overhead Aluminium Rocket Launchers (ROD Holders)

1 x Forward Bow with Opening Deck

1 x Forward Bow with Opening Deck

1 x Aluminium Grab Rails

1 x Aluminium Alloy Gunnel with 6-inch PU Foam Fender System

1 x Rear Engine Cover with Cushion Seat for Passenger on top

1 x Swivel Bucket Seat for Driver with storage box underneath

4 x Welded Alloy Cleats

1 x Anchor Locker and Hatch

Manual Flush Marine Toilet underfloor in front of the Driver Console

1 x Live-Bait Well

2 x Self-draining Holes

1 x Built-in Aluminium Fuel Tank (400 Litter)

1 x Swim Platform



Electrical and Electronics

1 x 6-way Gang Switch Panel at the Driving Console

1 x Garmin Color Fish Finder GPS-MAP Plotter (Model: GPSMAP 720S)

1 x Navigation Light

1 x Overhead Canopy Light

1 x Fuel Meter

1 x 12V Electric Horn

1 x 12V Cigarette Lighter Socket



Engine Room

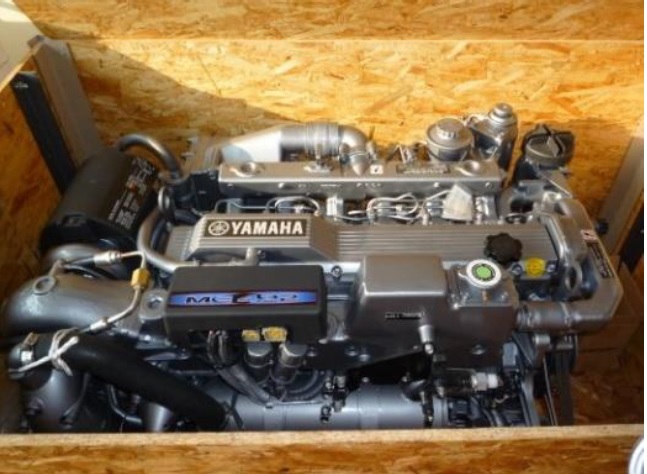

1 x YAMAHA 240HP Diesel Engine (ME421STIP2)

1 x YAMAHA HYDRADRIVE Sterndrive System

1 x TACHO Meter

1 x TRIM Meter

1 x Volt Meter

1 x Tilt Meter

1 x Key Switch and Warning Panel

1 x External Mounted Diesel Fuel Filter

1 x Bronze Scoop Water Intake with S/S ON/OFF Valve

1 x Maintenance Free Lead Acid Starting Battery (MF115D31)

1 x Automatic / Manual Bilge Pump

1 x Battery On-Off Switch
