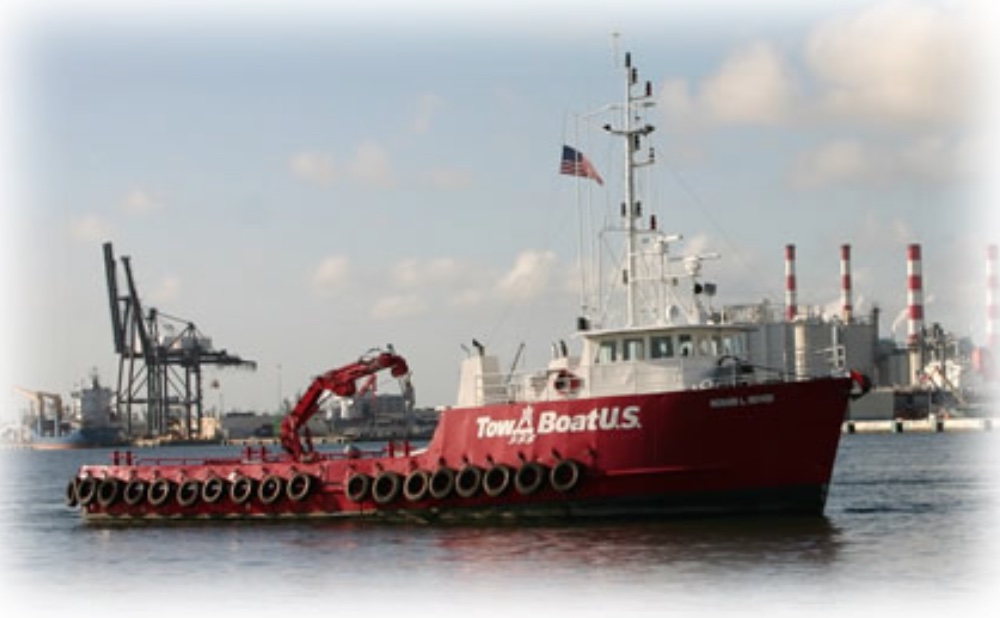

96' Graham for Charter Only


Listing ID - 4182


Description96' Graham
Date Launched
1976
Length29.26m (96ft)
Beam7.32m (24ft)
Draft2.54m (8ft 4in)
Note2x 12V71N Detroit Engines
LocationFlorida, USA
BrokerReynaldo Gil
reynaldo.gil@seaboatsbrokers.com
+58 414 243 4966
PricePOA
View As PDF

Classification:
Offshore Supply Vessel
T Boat designation as of 9/01/2004
COI Certification:
42 Passengers on Domestic Voyages
12 Passengers on Intl Voyages
ABS Load Line Certificated

Built:
1976 Graham, Bayou La Batre, LA
Refit Date: 2008 / 2013 / 2018

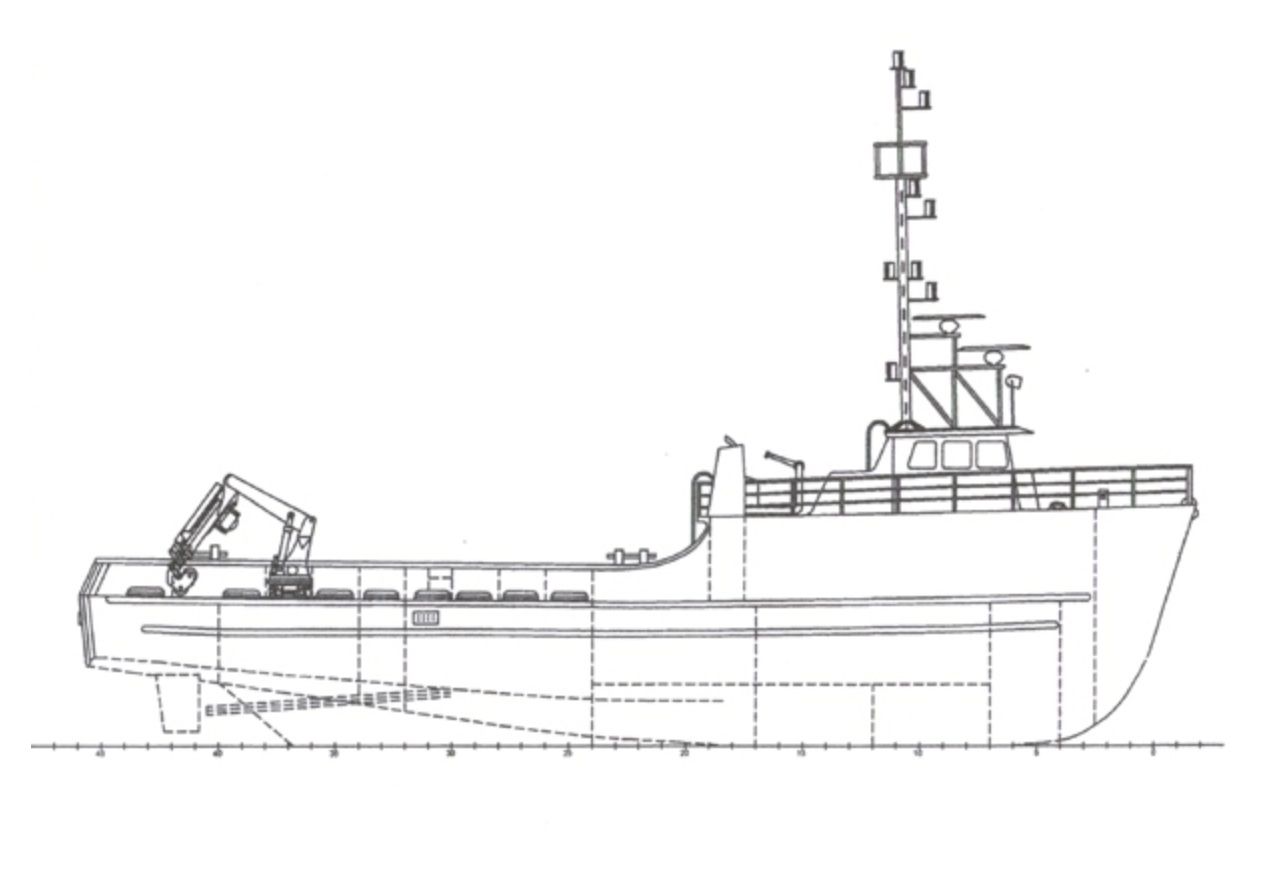

Dimensions:
Overall Length 96',
Beam 24',
Draft 8'4",
Air Draft 52' 6"
Main Cargo deck 50' x 22'

Mooring Systems:
Anchors: Danforth
50,000 lb Line Pull Anchor Winch

Deck Winch:
Manufacturer: Lantec
Barrel: 24"
Flange: 40"
Length: 36"
Pulling Capacity: 25,000 lbs
Wire Capacity: 5,200 ft of 1/2" Wire
Wire Currenlty on Winch:600 ft of 20mm Hylift Galvanized
Weight Empty: 5,000 lbs
Weight Loaded: 5,785 lbs

Oceanographic Winch:
Manufacturer: InterOcean
Pulling Capacity: 1,000 lbs

Horizontal Capstan:
Pulling Capacity: 5,000 lbs

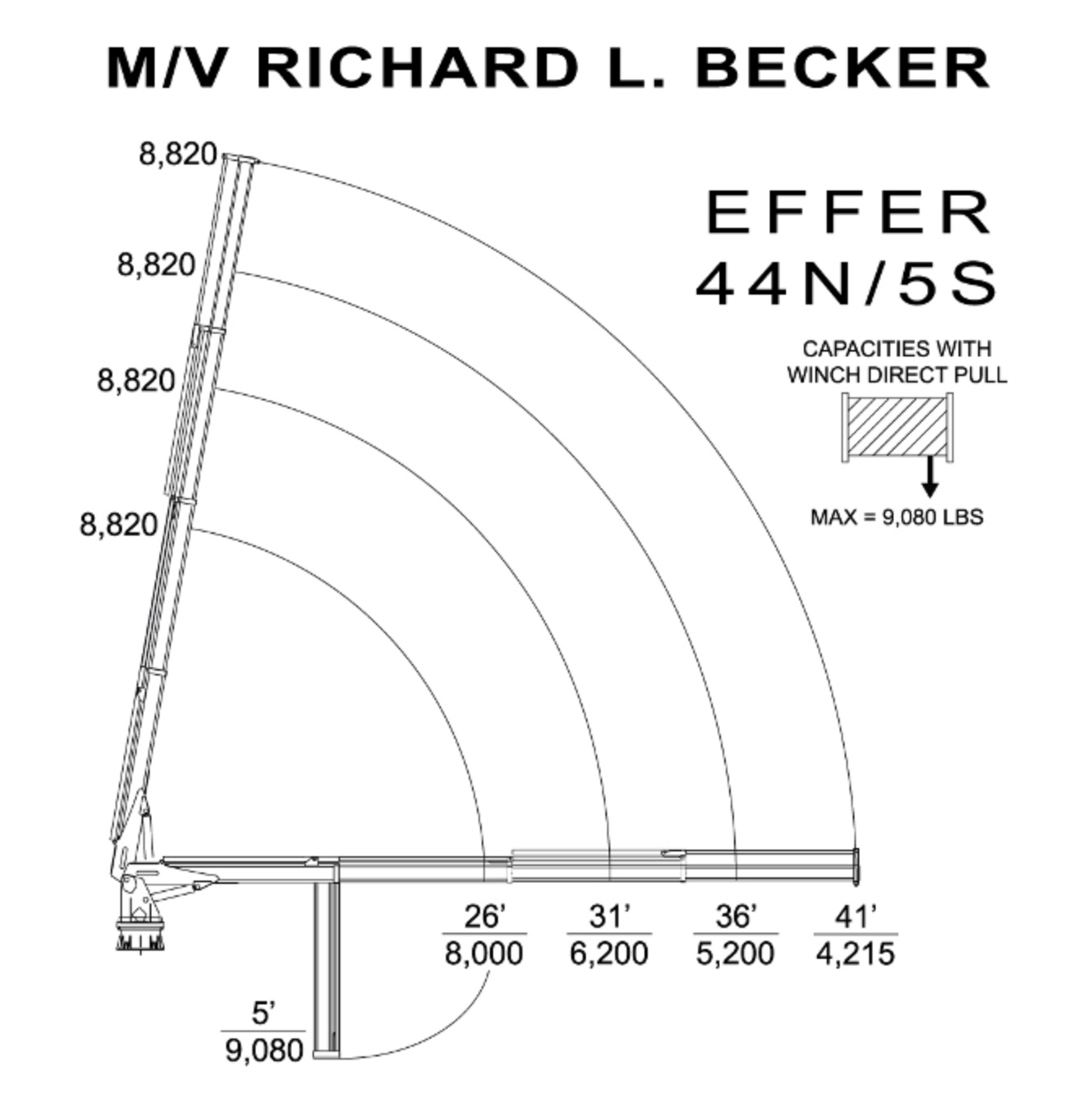

Deck Crane:
Manufacturer: Effer / Model: 44 N-55 with winch
Capacities: 9,080 lbs at 5 ft, 4,215 lbs at 41 ft
Winch Cable:210 ft of 5/8" Non-Rotating Wire Rope

A-Frame:
Pin Height: 16'
Throat: 12'
Max Safe Working Load: 16,576 lbs
Weight: 11,000 lbs

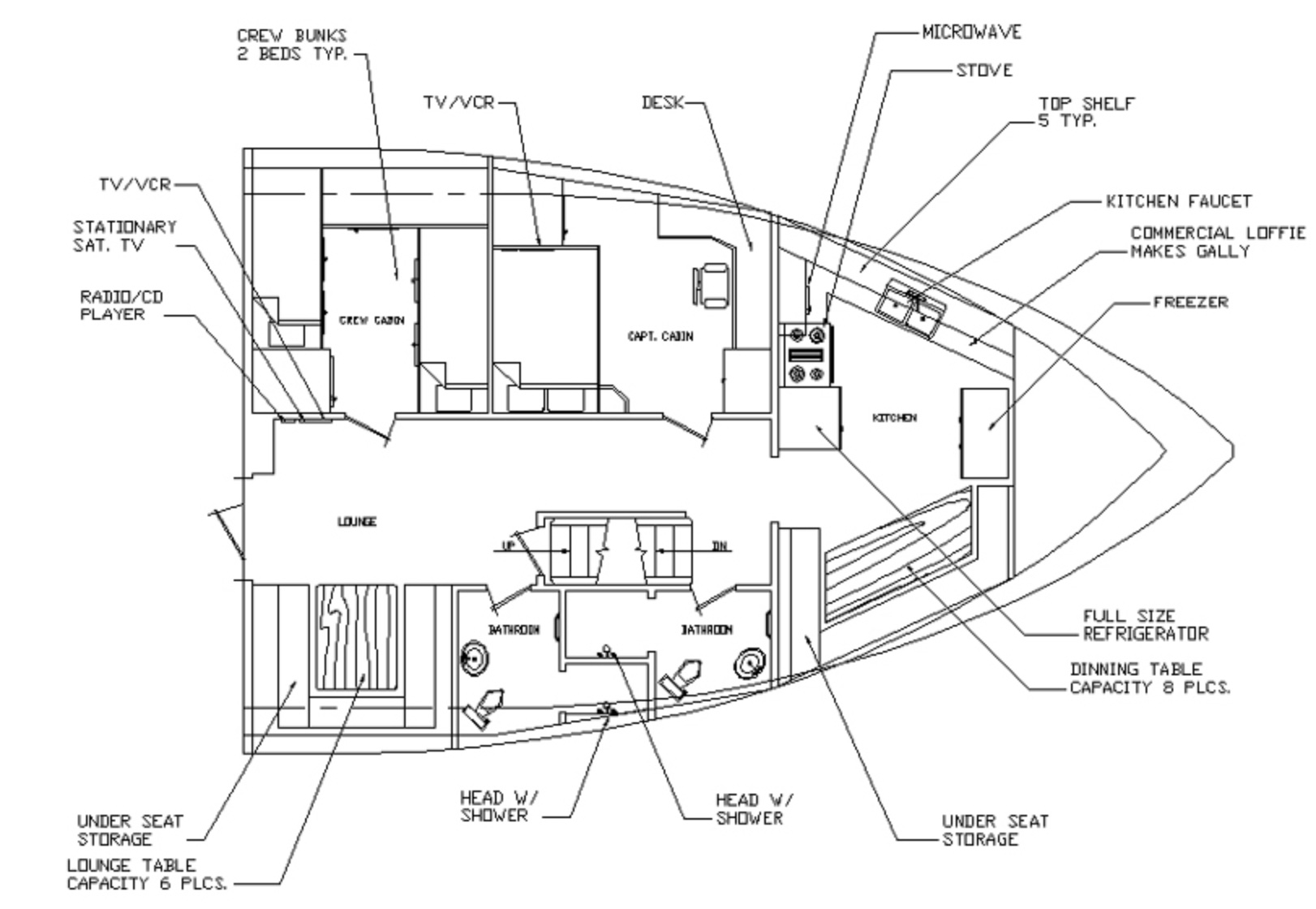

Accommodations:

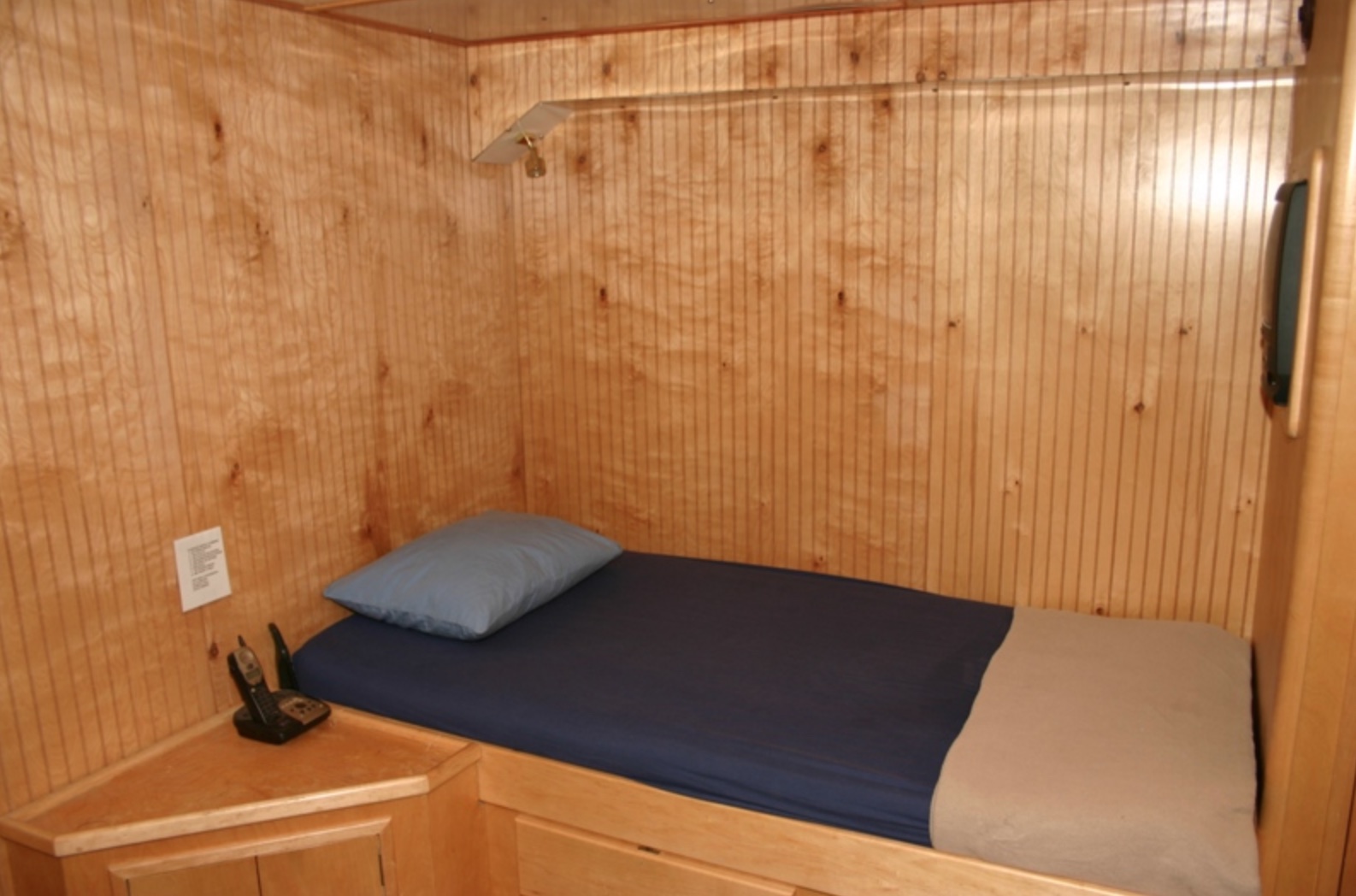

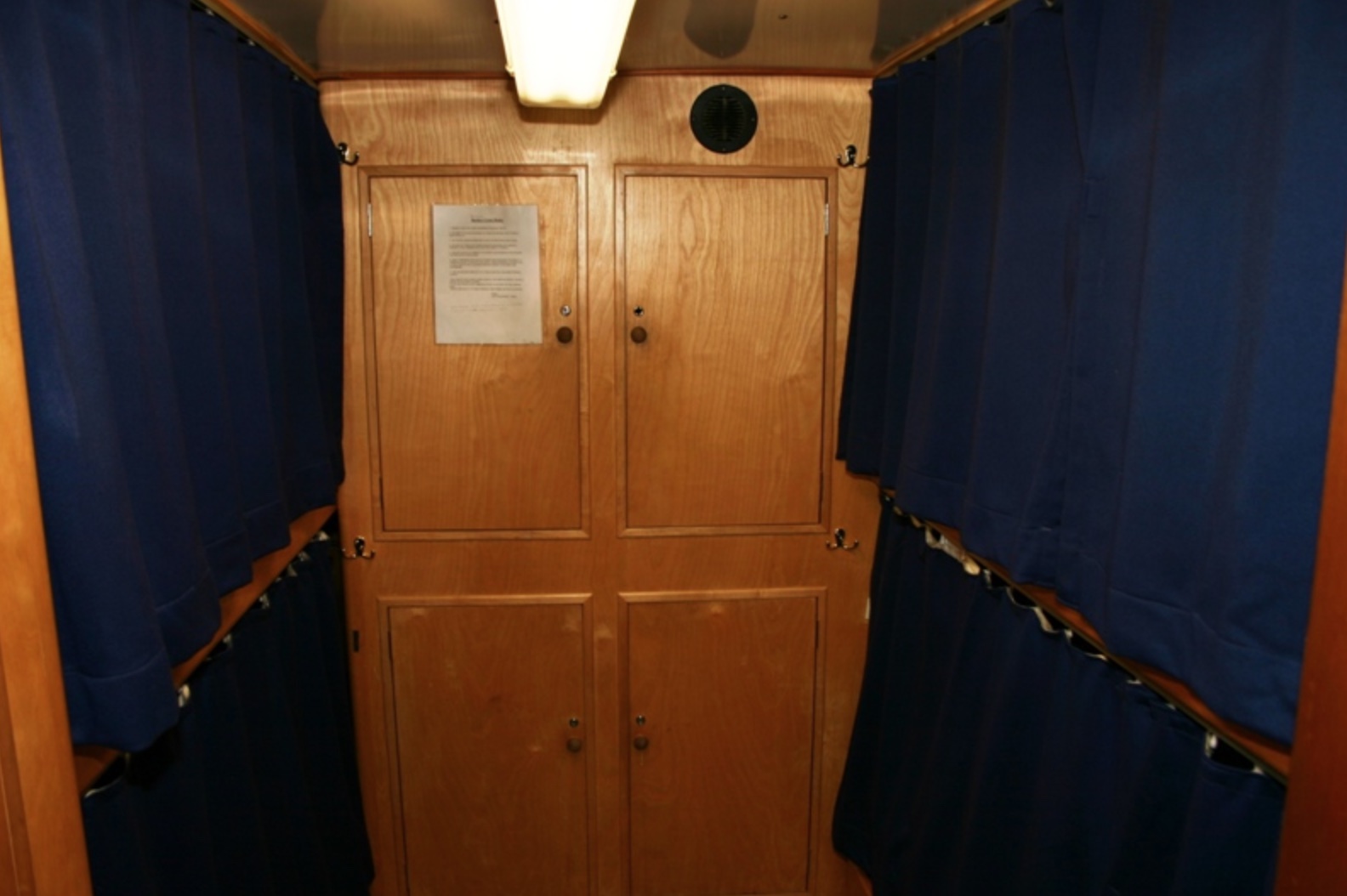

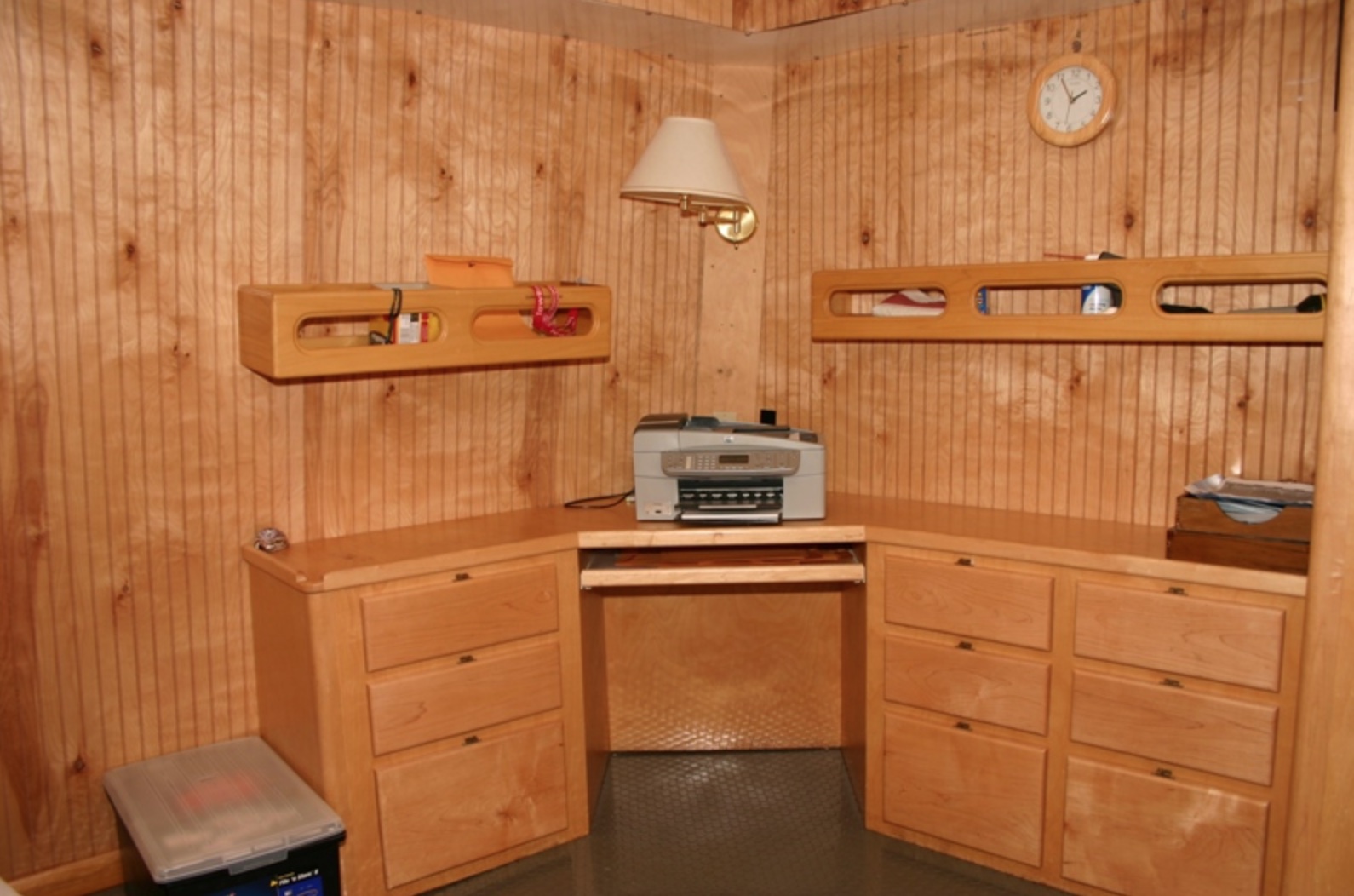

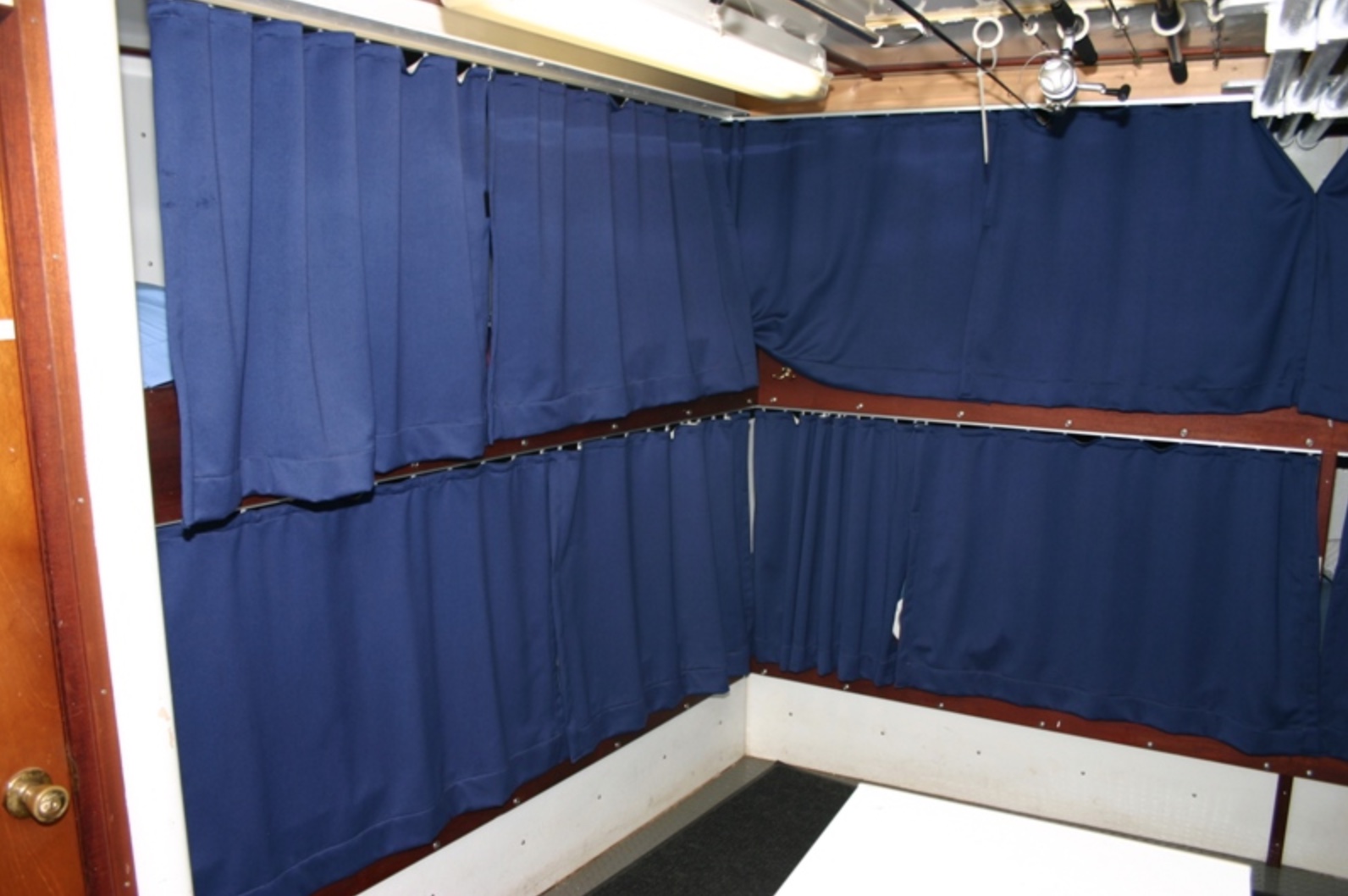

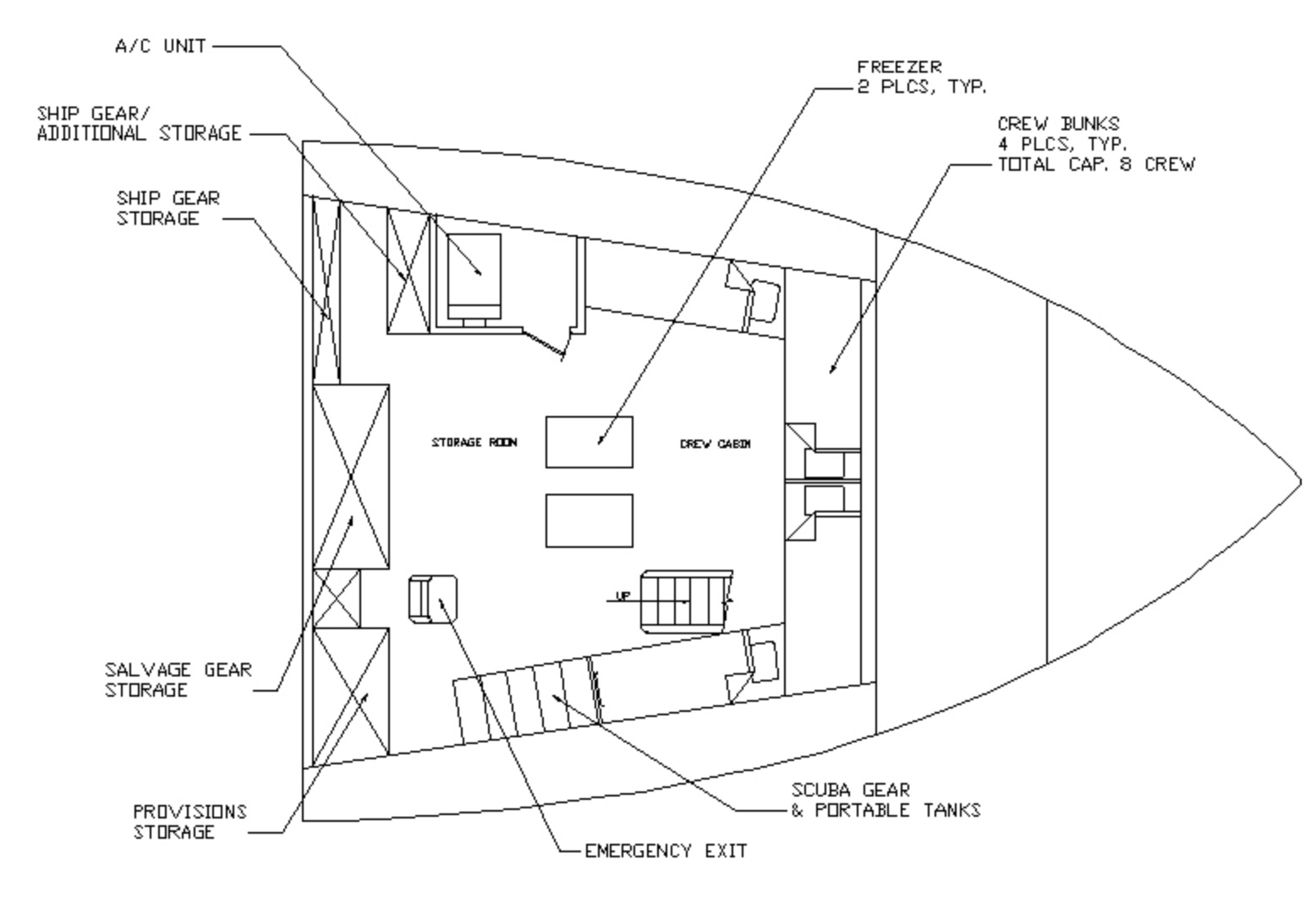

Staterooms:
2 crew with 5 bunks
2 passengers, 1 with 4 berths, 1 with 8 berths

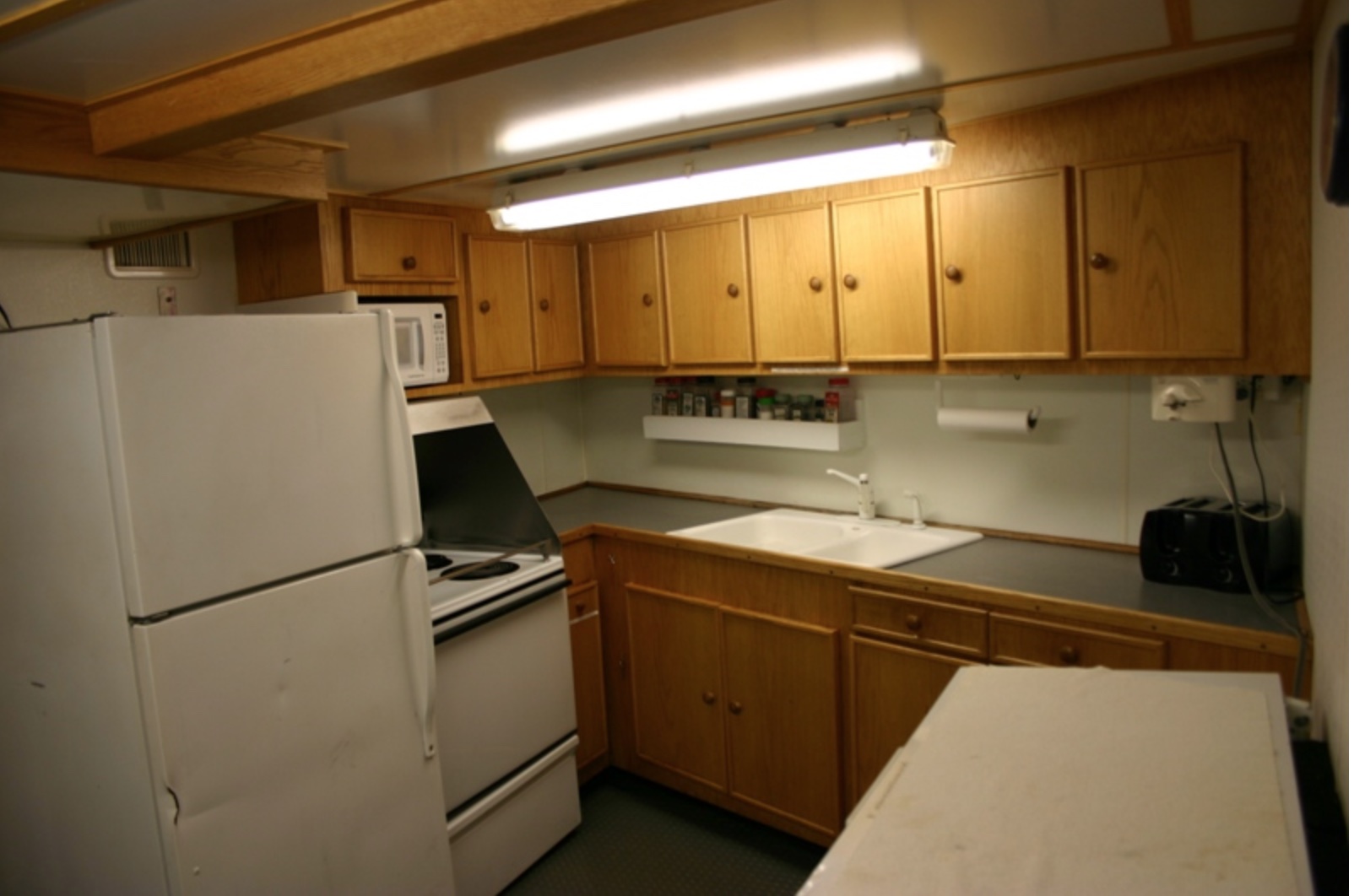

Full Galley with Barbecue Grill

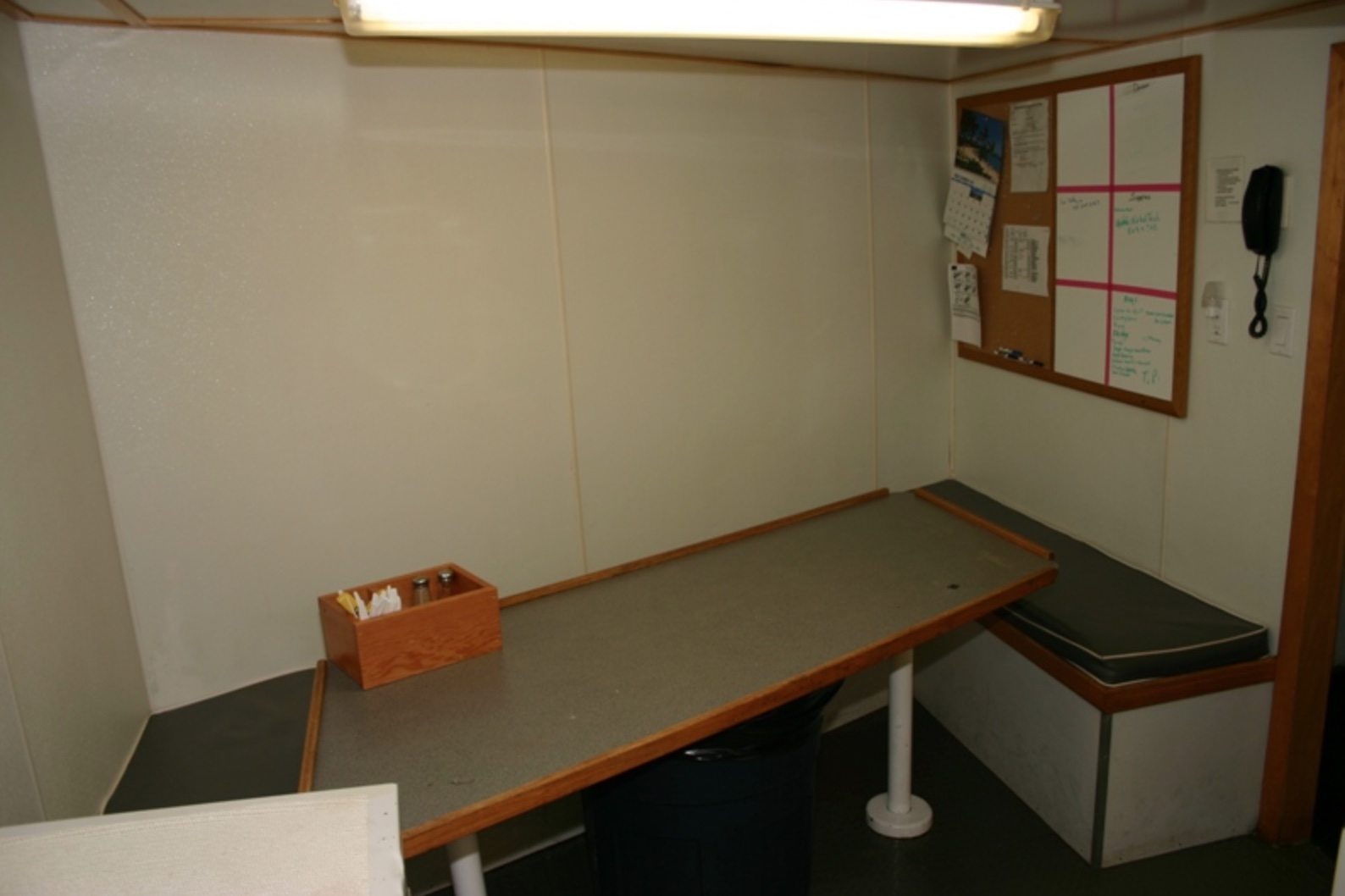

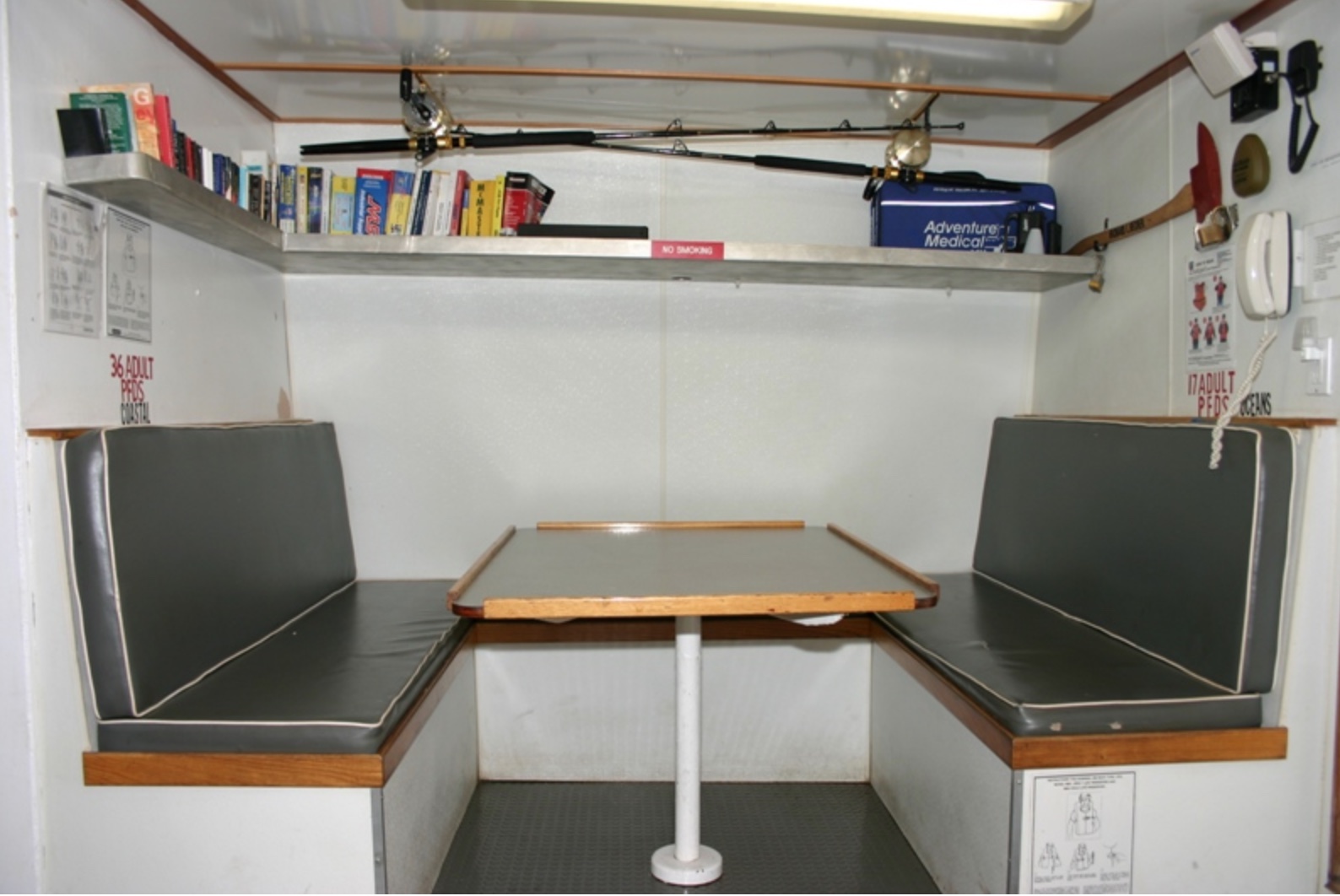

Lounge Area: TV, Stereo, VCR, Satellite TV and Sirius Radio
WiFi Internet Access via 3G/4G Cellular Network
VSAT Satellite Internet

Air Conditioning / Heating:
Number of units: Keel cooled (2)
Central AC

Capacities:
Fuel Oil: 18,743 Gallons
Lube Oil: 150 Gallons
Hydraulic Oil: 100 gallons
Potable Water: 1,056 Gallons with 1000 Gallon per day water maker
Ballast: 27,293 gallons
Cargo: 38 Long Tons
Deck will accommodate 30 pallets

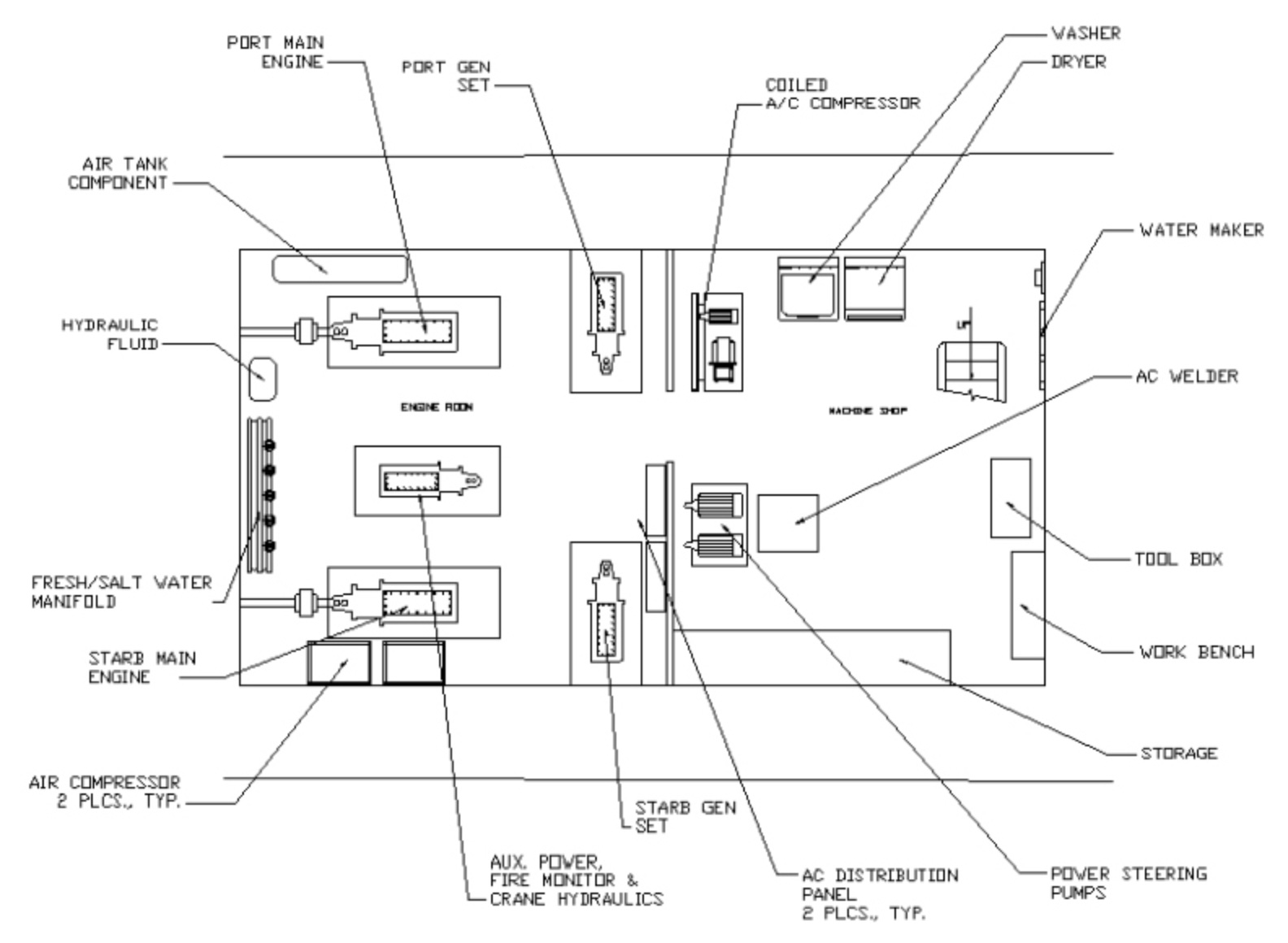

Machinery:
Main Engines: (2) 12V71N Detroit
Generators: (2) 371N Detroit 30KW
Hydraulic Pump: 471N Detroit
Auxiliary Hydraulic ports on work deck 40-50 GPM at 1800-2200 PSI
Welder: AC/DC 208V and oxygen-acetylene torch set
Nato Grid to secure deck loads and equipment
Aft and Wheel House bulkhead pass-throughs

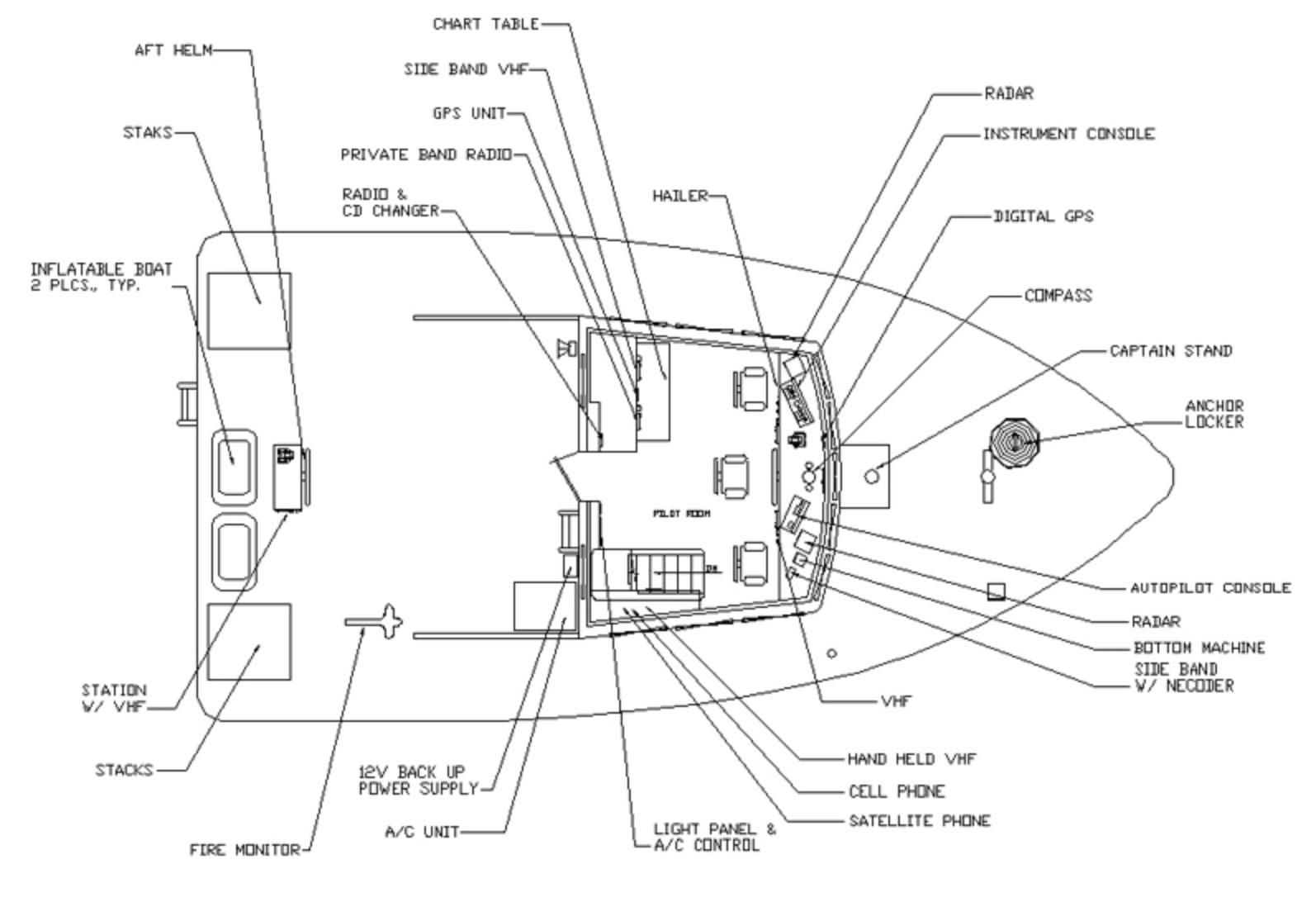

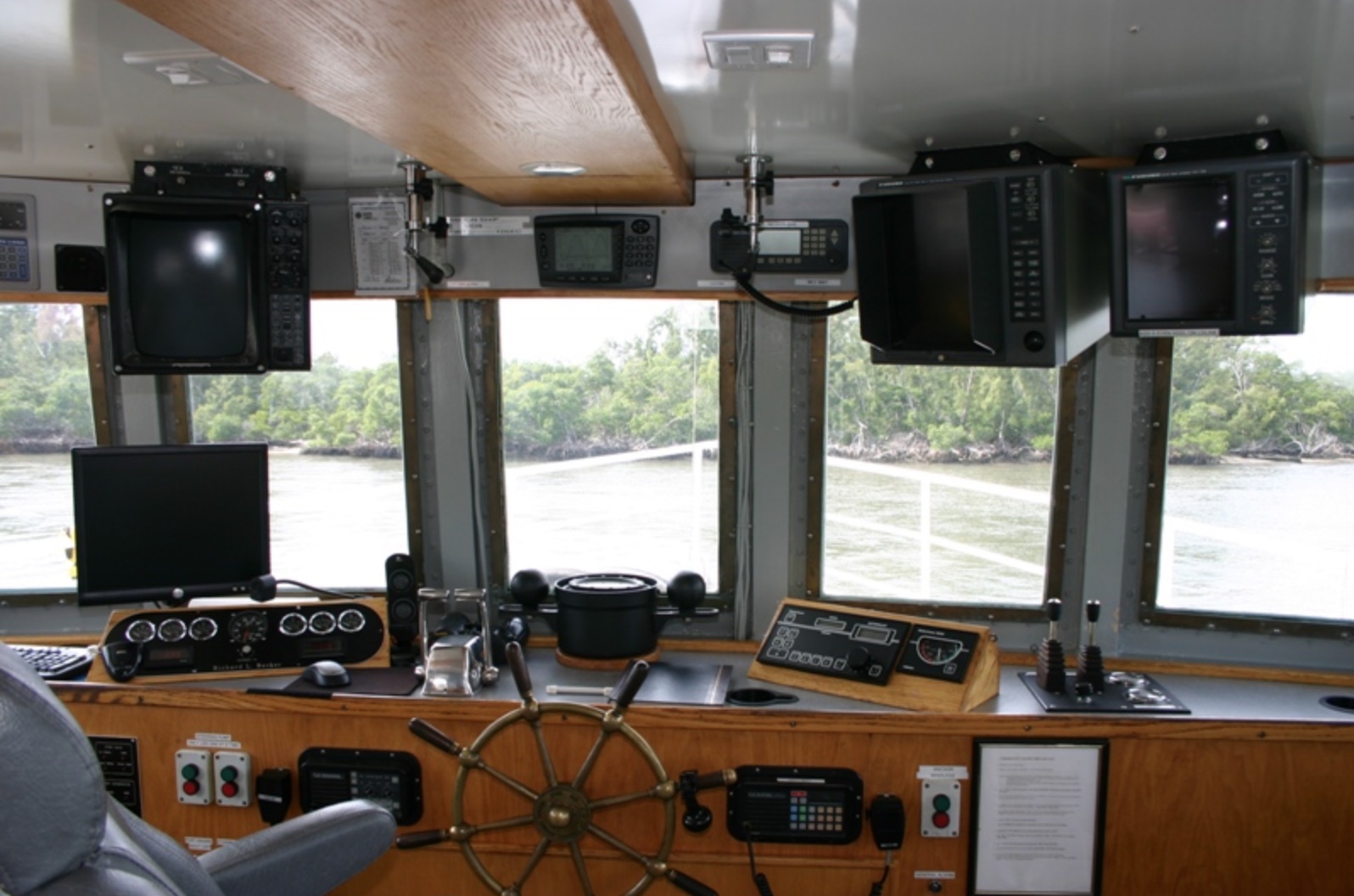

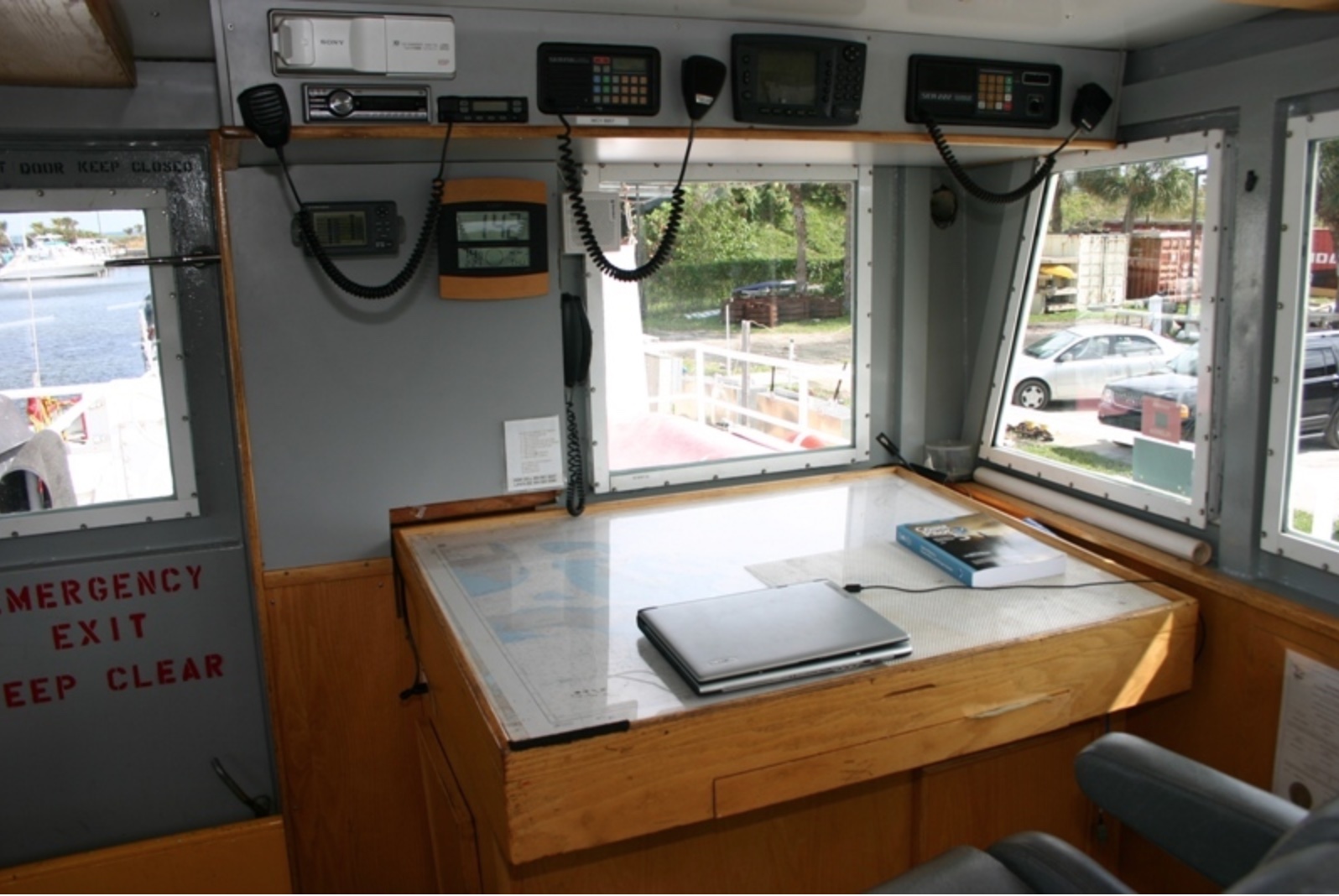

Electronics / Navigation:
SSB: (1) Stevens SEA 222, (1) Stevens SEA 235 with Necoder
VHF: (2) Furuno FM8900S Class-A DSC
AIS: (1) Furuno FA150 Class-A AIS Unit
Hailer: (1) Stevens Loud Hailer
Fathometer: Furuno Dual frequency 50/200 KHz
Radar: (2) Furuno 810D 10 KW, 72/98 Mile rang
Autopilot: Robertson AP45
GPS: (2) Northstar 951X
Dell CPU with Nobeltec Navigation software
406 MHz EPIRB
Sat. Phone: Nera Fleet 77 Global internet w/ wifi access fax/phone
Weatherfax
Panasonic PBX system with TDMA and GSM cell service also land line capabilities

Equipment:
Offshore Marine Towing has a full compliment of salvage / dive equipment stored in our Pompano Beach warehouse and our mobile salvage response trailer. This inventory includes a variety of gas, diesel and electric pumps, lift bags, straps, lines, patching materials, underwater epoxy and more. This equipment can be put into service on the Richard L. Becker as needed.

18' Kropf Marine Tender with 60 HP 4-Stroke Yamaha outboard engine, and tow bitt (Weight: 2,400 lbs)

Fuel Consumption:
Station Keeping - 23 GPH
1400 RPM Cruise (10 Knots) - 34 GPH
At Anchor - 13 GPH

Range:
4,675 Miles


The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
