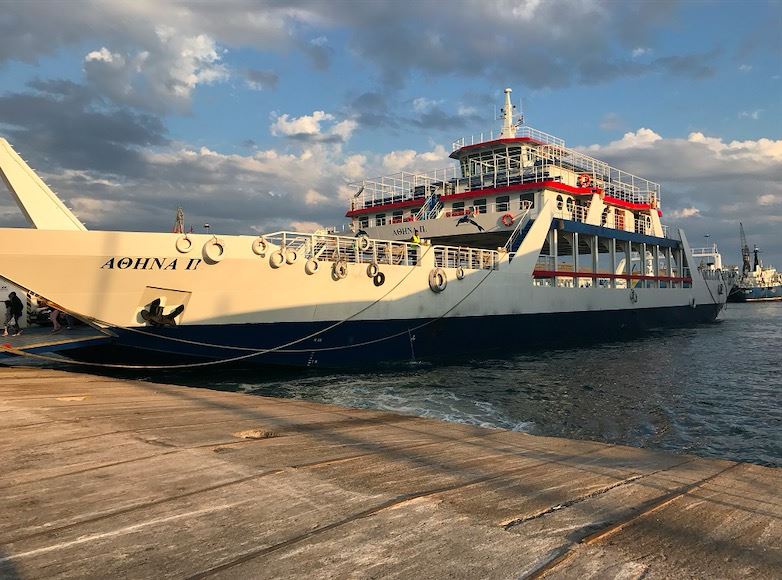

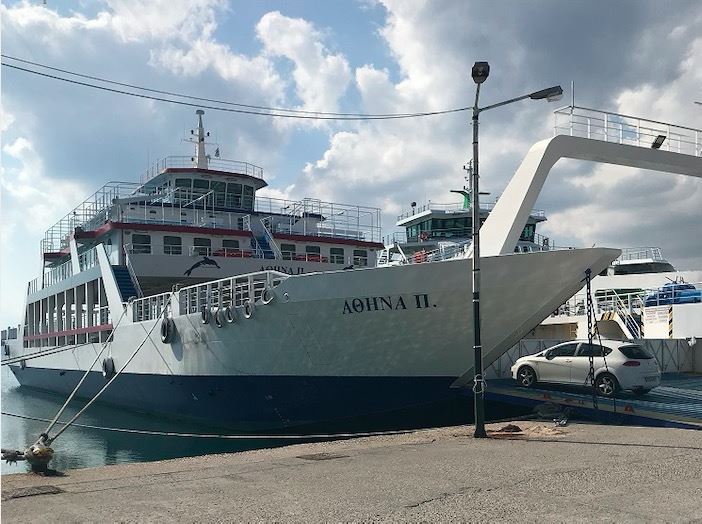

84 Mt. Double Ended Ferry

Listing ID - 1323
Description	84 Mt. Double Ended Ferry
Date Launched	2005
Length	83.86m (275ft 1in)
Beam	20m (65ft 7in)
Draft	1.7m (5ft 6in)
Location	Greece
Broker	Giuseppe Filippone giuseppe.filippone@seaboatsbrokers.com +39 329 886 8343
Price	Owners invite best offer, but, as brokers, can guide it very closely upon request.
View As PDF

Loa: 83.86m

Beam: 20m

Depth: 3.60m

Lightship Draft: 1,65m

Summer Draft: 2.45m

Dwt: 980

Grt: 1349

Nrt: 649.33

Sea Trial Speed: 13.5 knots

Service Speed: 12 knots

2 Decks For Passengers.

2 Decks For Vehicles.

Cars 188 Totally (144 On Main Deck And 44 On Lower Deck)

Load Resistance On Main Deck 15 Mt/Truck Axle.

Load Resistance On Lower Deck 1,5 Mt/ Car Axle.

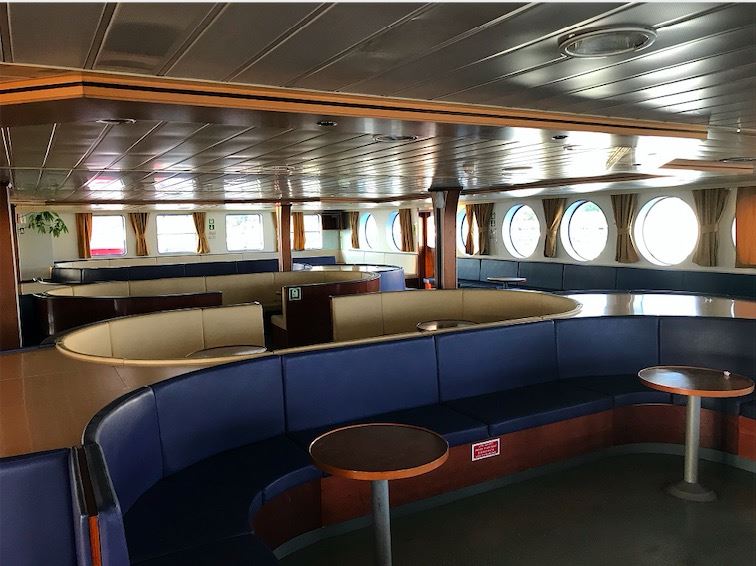

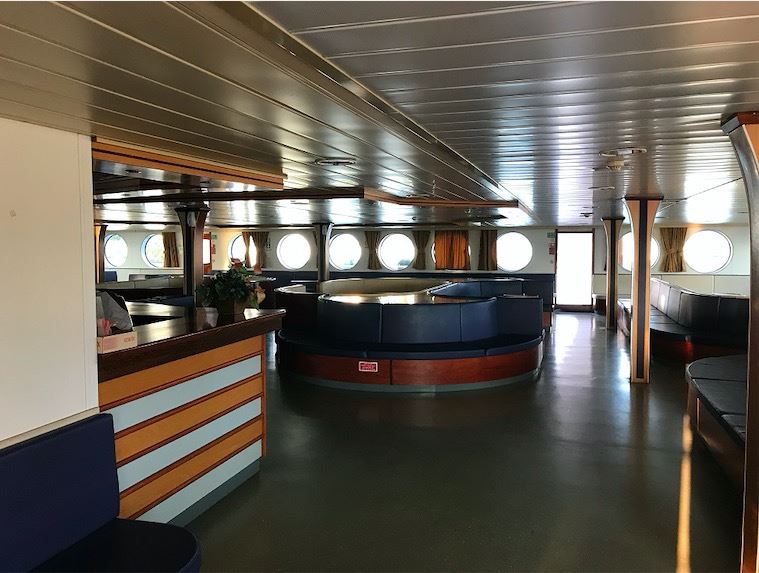

Summer Passengers 600 / Winter Passengers 380 (Saloon). Liferafts+Rescue Boat.

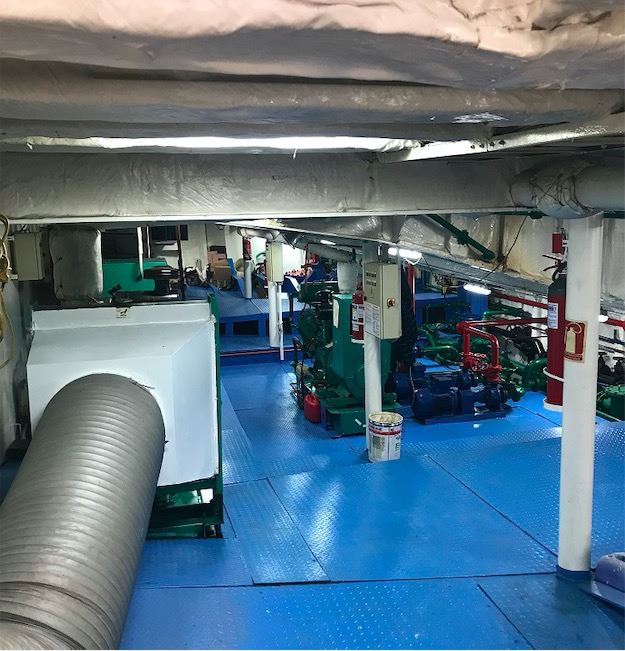

All Brand New Machinery:

4 M/E(2400 Hp Total) Guascor F240ta

4 Rudder Propellers Z-drive: Veth Vz400

4 Propellers 5 blade Diam1.25m/ Pitch1.20m

3 Cummings 6ct8.3 /140kva

3 Stamford Alternators 140kva

1 Pump 30hp

4 Pumps 15hp

Biological Cleaning Unit For Toilets Effluents For 1000 Passengers.

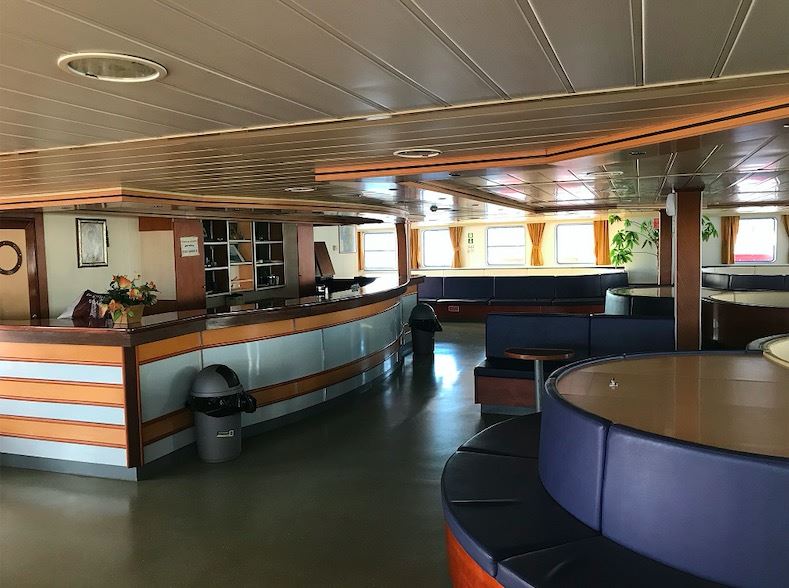

Luxury Accommodation.

Net Height Between Main Deck And Accommodation Deck 5 M.

Net Height Between Lower Garage And Main Garage 2m

Ttl Bunkers Capacity 65 M3.

Fresh Water Capacity 60 M3.

Drencher Fire Fighting System On Lower Garage.

Sprinkler Fire Fighting System No

Emergency Generator Room.

Solas/Iacs Certified Construction Materials/A-60 Fire Proof External Doors Engine Room

All Areas B-15 Fire Proof Insulated.

Fully Air Conditioned.

Fitted Smoke Detecting Sensors.

Heating Description: 4x 50000btu Heat/Cool

Crew Cabins:

2 X 1 Person

3 X 2 Person

Notice:

Space Available For Extra

A) 2 X 4-person Cabin,

B) W.C. On Upper Deck At Crew Area

C) Galley

D) Plus 50-person Saloon On Upper Deck.

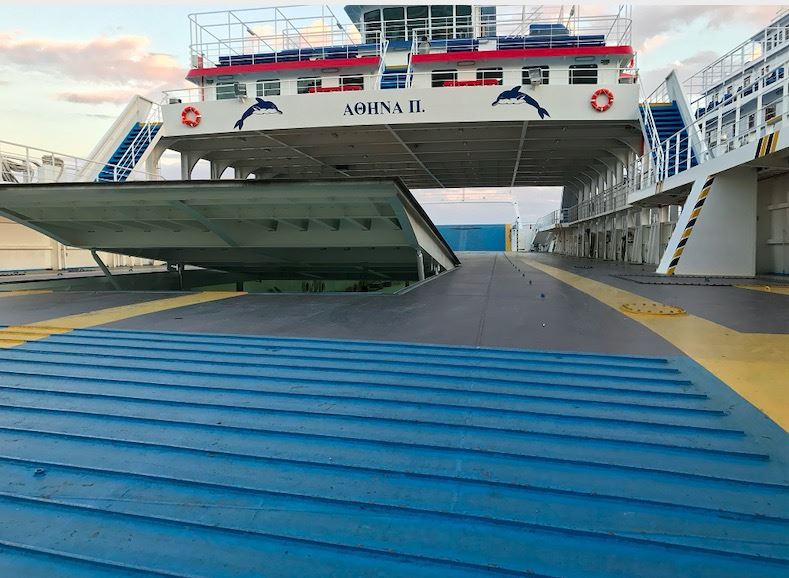

Both Ramps Ended - Open Type - Day Ferry

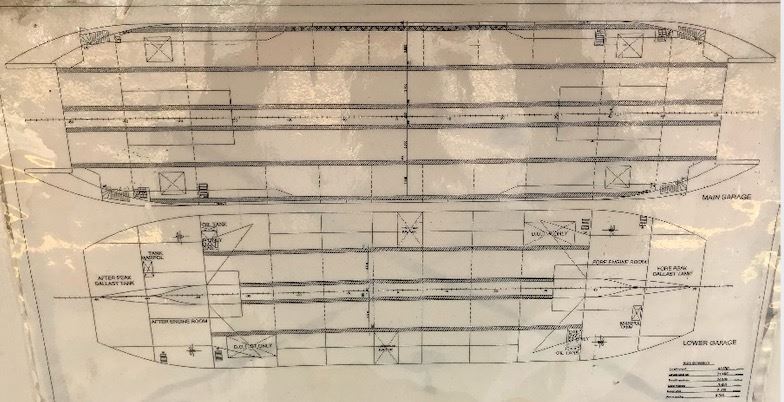

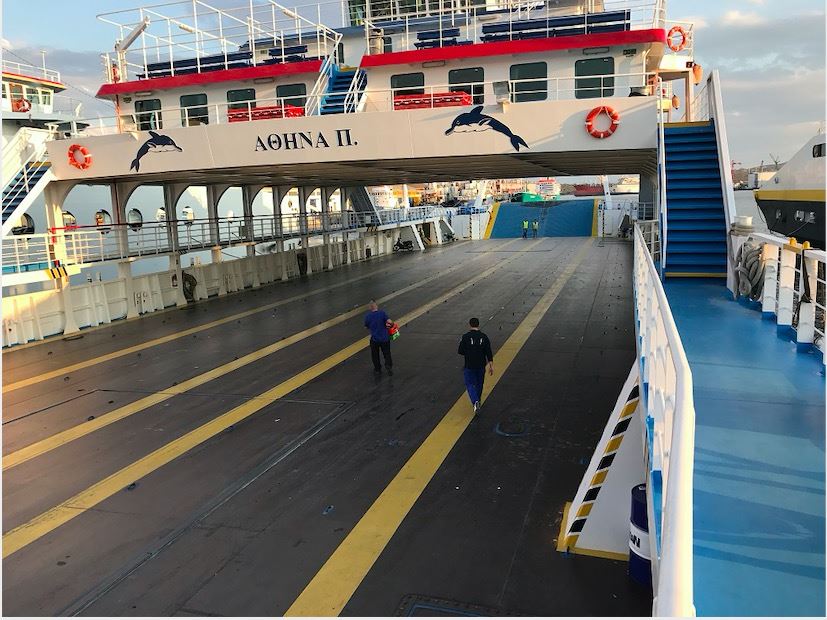

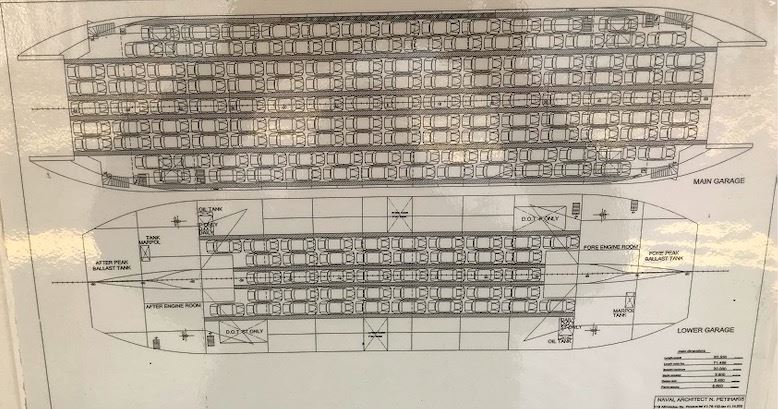

Twin Decks For Vehicles. (Main And Lower Garage).

Both Main Ramps Dim.: Breadth 11m Length 8m

Both Lower Garage Ramps Dim.: Breadth 5m Length 12m

1323: 84 Mt. Double Ended Ferry - 011.jpg

1323: 84 Mt. Double Ended Ferry - 012.jpg

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
