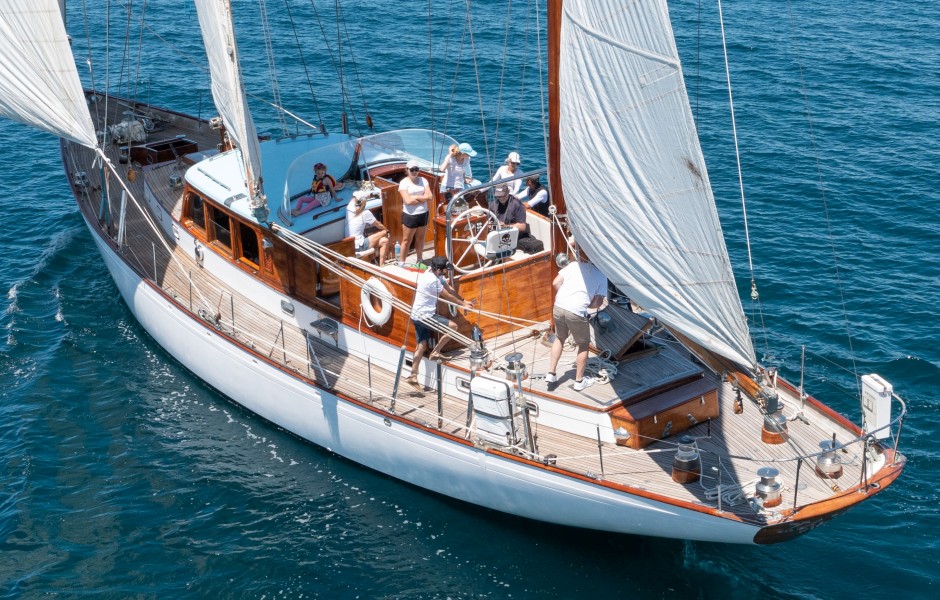

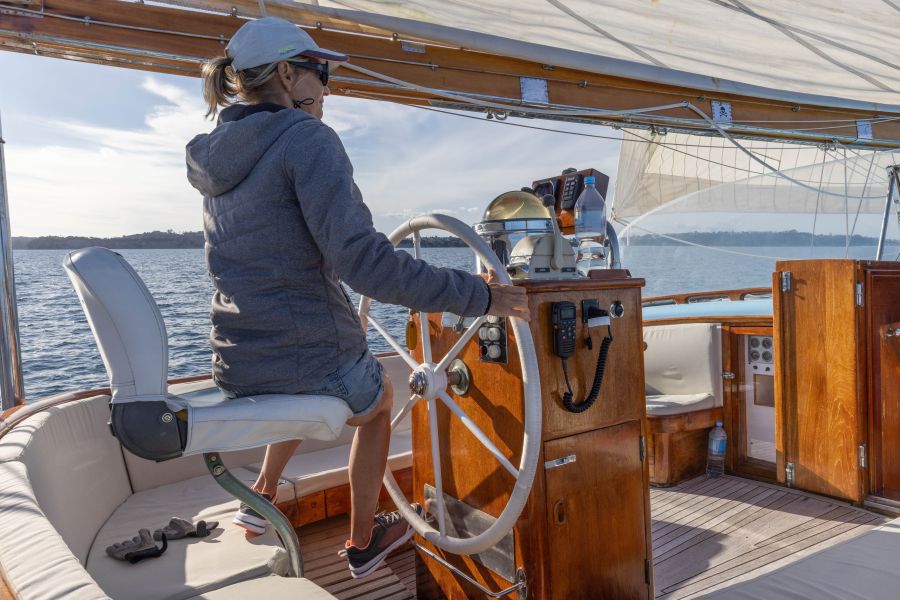

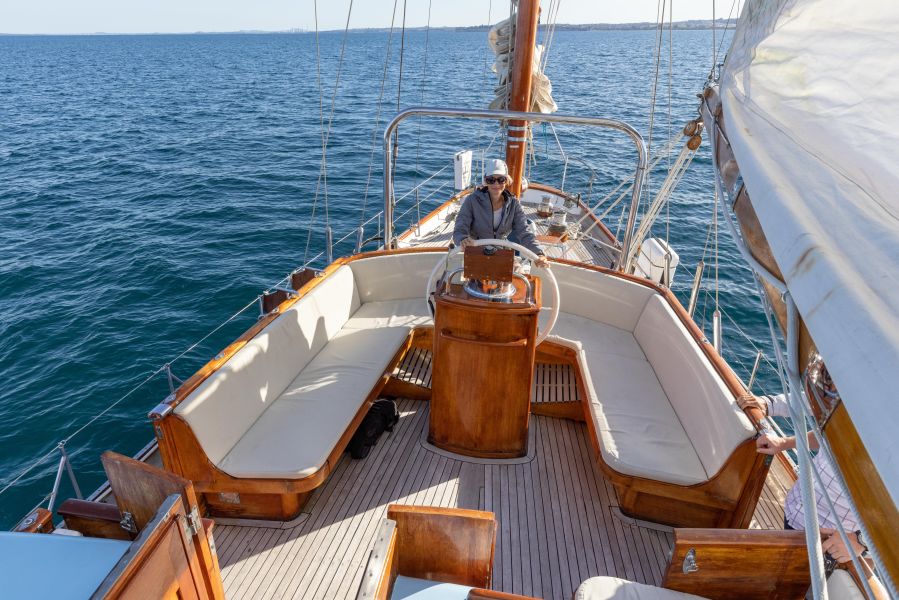

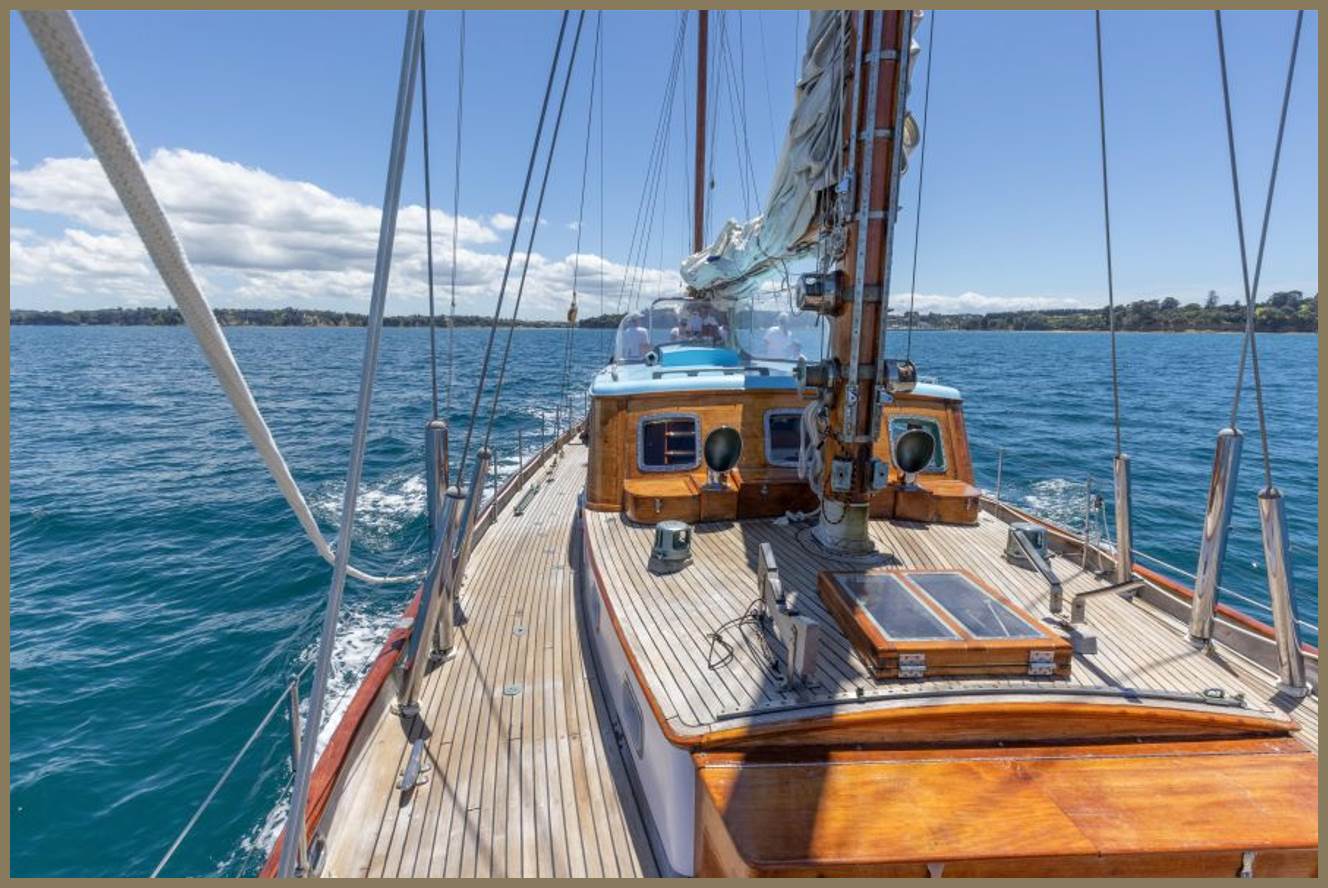

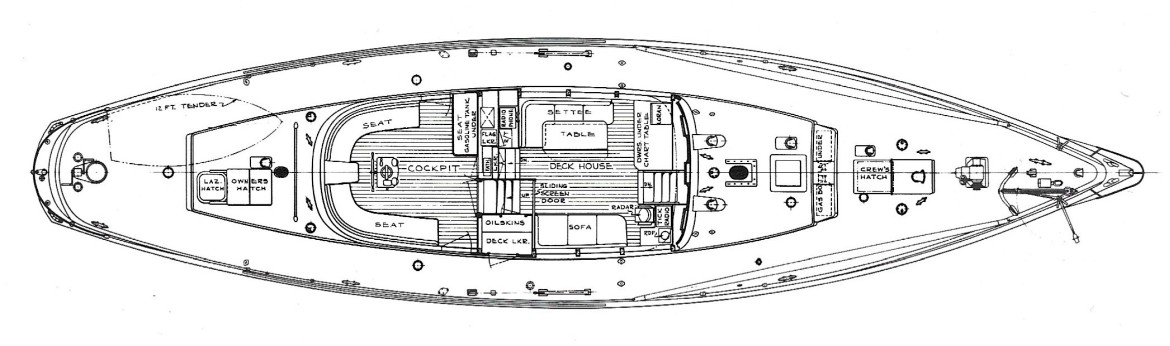

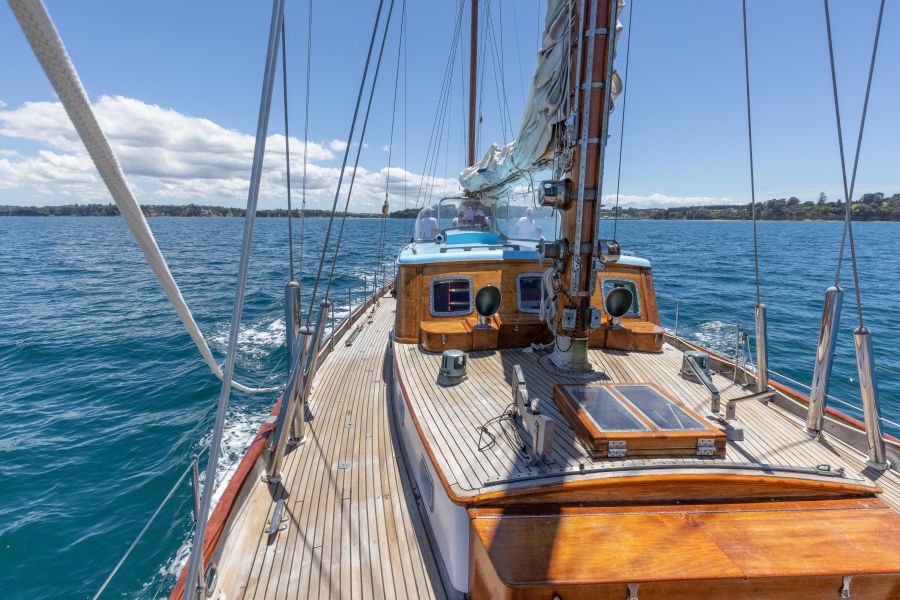

U-shaped raised helm area with seating for eight has a stainless and plexiglass spray dodger forward. There are two removable forward hatches (racing “doghouse” and conventional). The upper saloon has custom roll-up opening side windows. Combined with the classic Rhodes large deck saloon, they make for an extremely comfortable, light and airy space, leaving the decks free for sail handling and leisure.
- Stainless boom gallows
- Stainless steel bow and stern pulpits
- Stanchions with double life lines
- 2 x Deck Stowage boxes
- Numerous winch handles

Sheet Winches
- 2 x Sheet winches main sheet.
- 4 x Sheet winches foredeck
- 4 x Barient self tailing sheet winches aft deck
- 2 x Mizzen mast sheet winches

Ground Tackle
- 230 V AC Electric Ideal Windlass
- 2 x Horizontal chain gypsies; 1 x vertical warping drum
- Bronze anchor davit system
- 1 x 105 lb CQR anchor
- 2 x 65 lb Danforth anchors
- 330 ft ½” High test chain
- Salt water deckwash pump

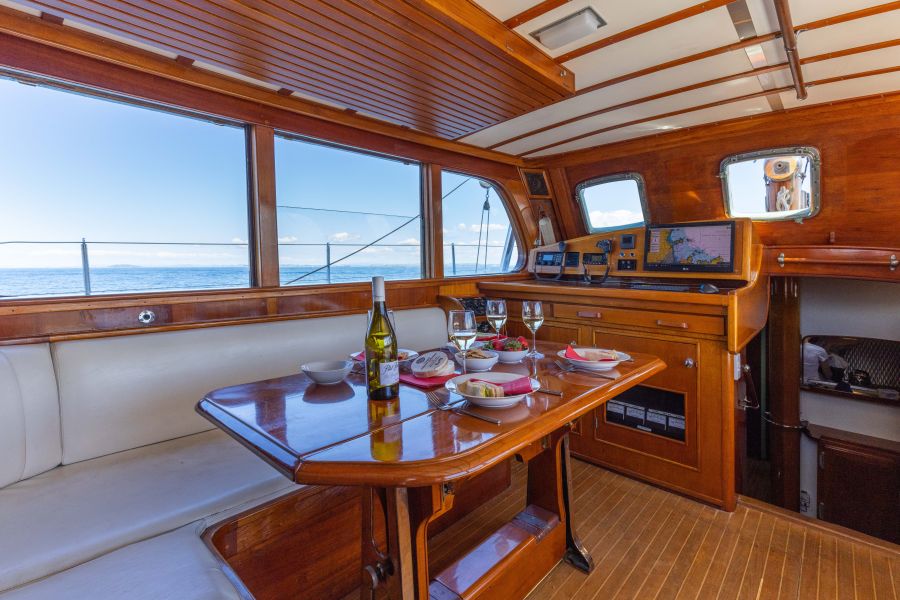

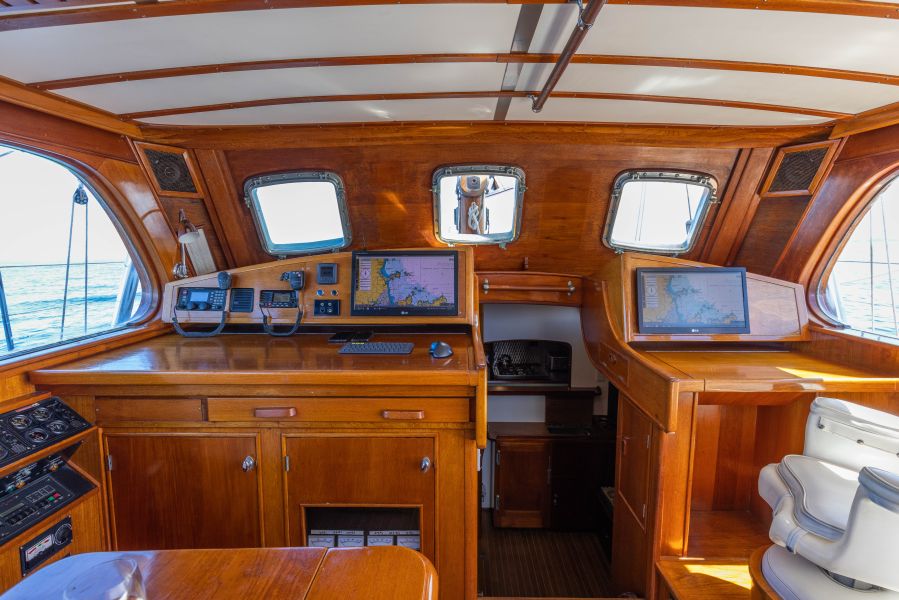

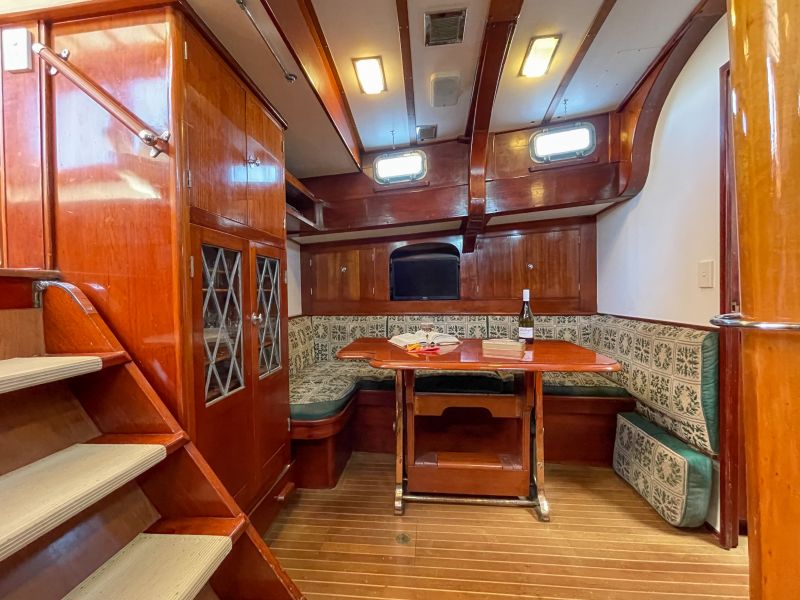

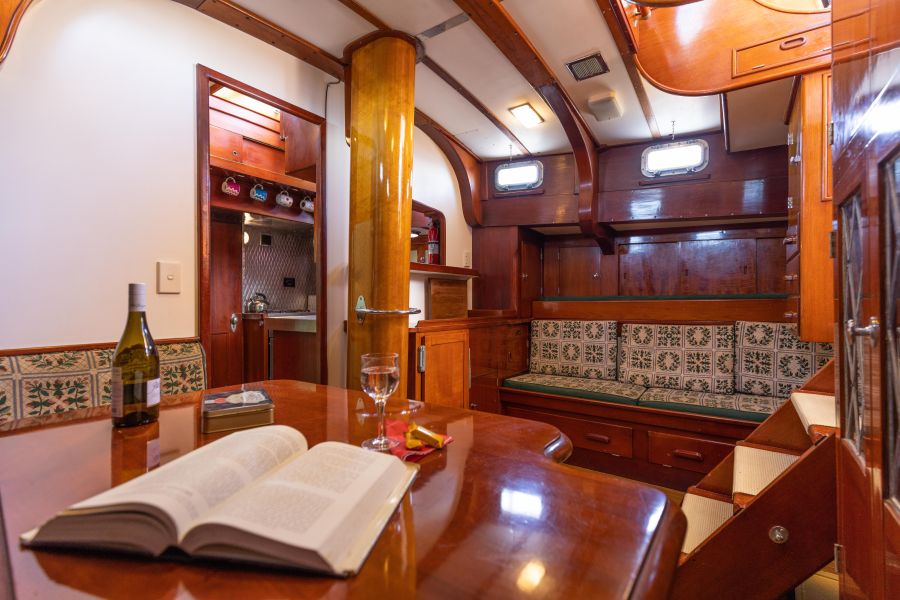

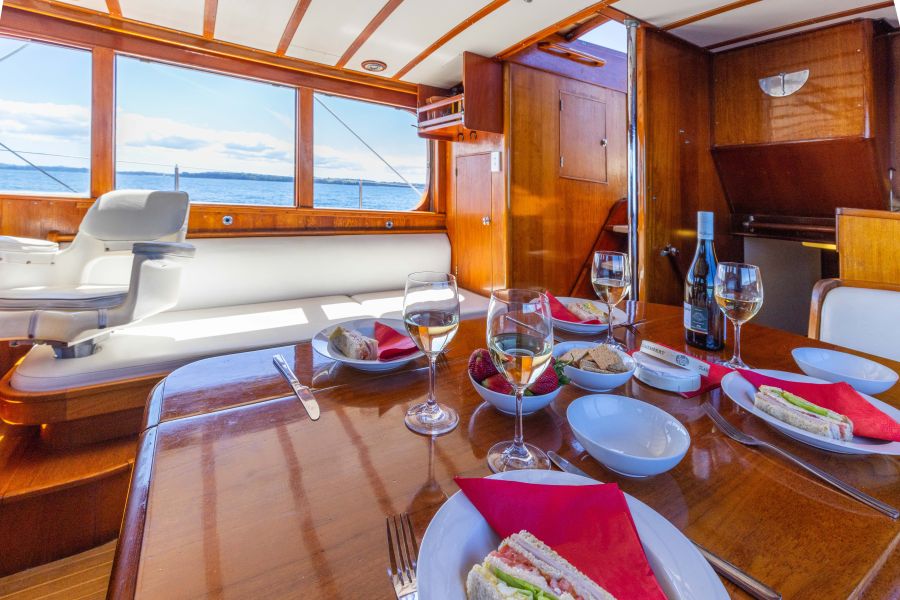

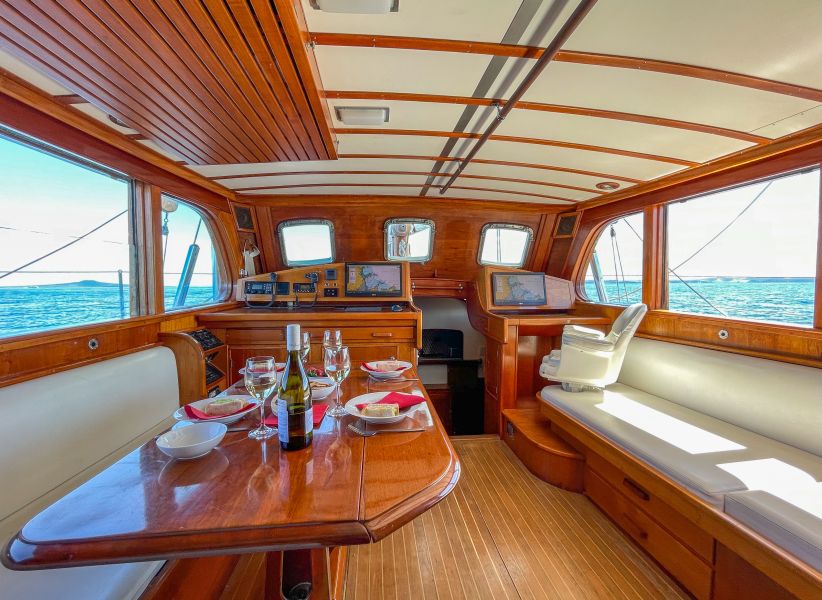

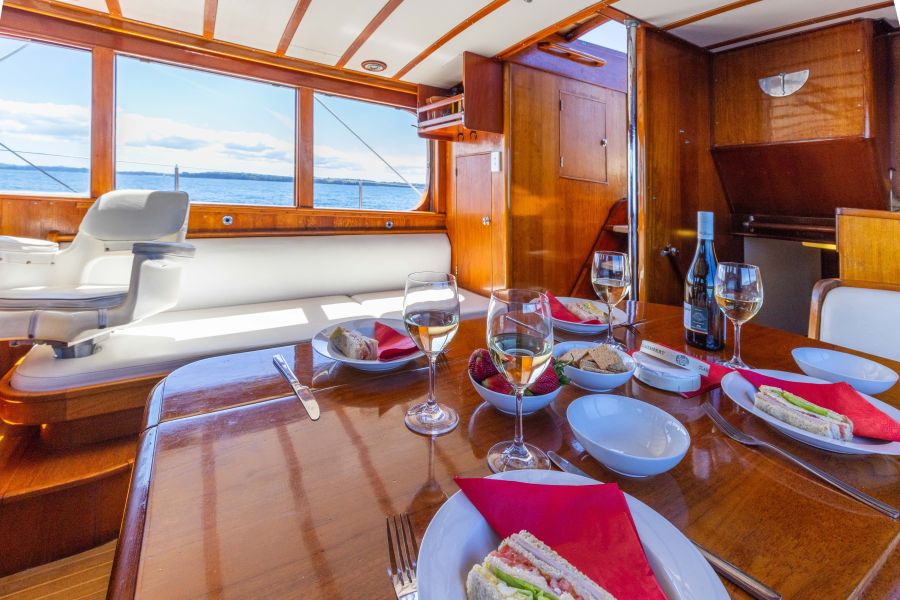

Deckhouse Saloon
- Dual navigation stations with very large navigation table
- Extensive chart storage under and in overhead lockers
- Dining table and seating to port
- Settee to starboard with pilot chair

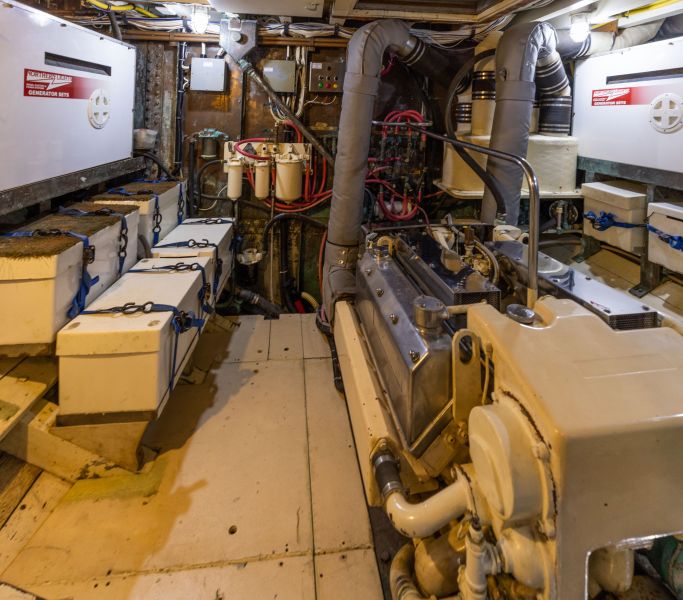

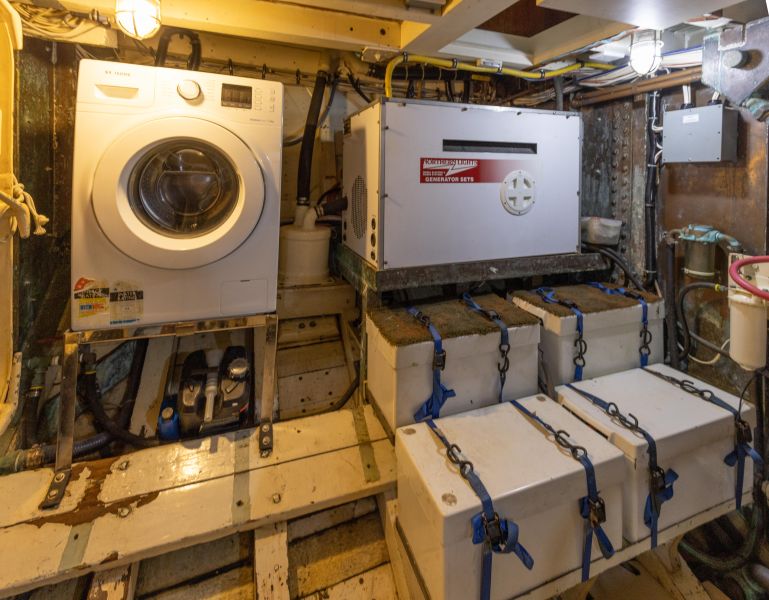

- Full standing height engine room directly underneath
- Incredibly spacious, making for easy service and maintenance of systems
- 1 x Washing Machine, Samsung 7.5 kg

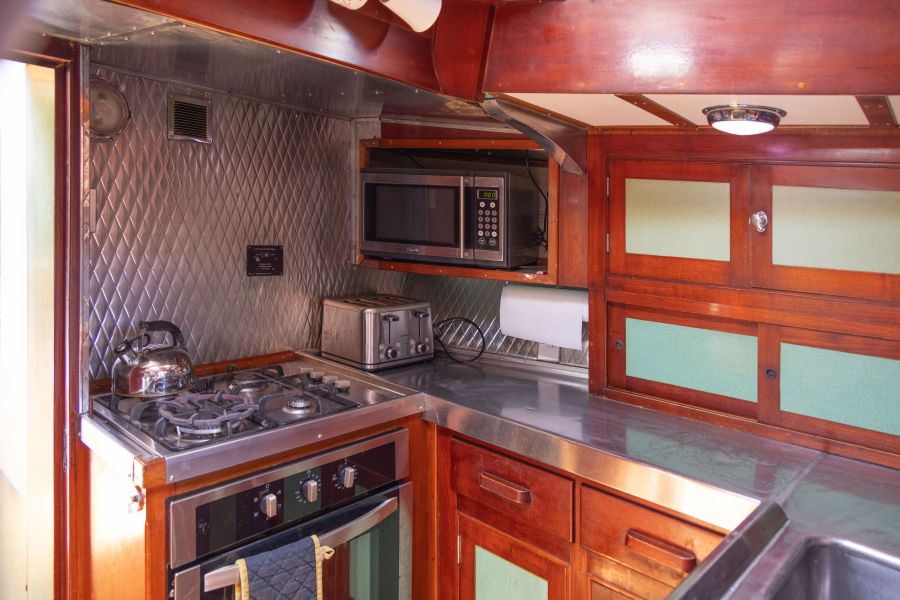

Galley
- 2 x Gimbaled tables (bronze)
- 1 x Microwave
- 1 x Electric fan oven
- 1 x Gas hob (4 burner).
- 1 x Cold plate refrigerator system
- 1 x Cold plate freezer system
- 1 x Drinks cooler refrigerator

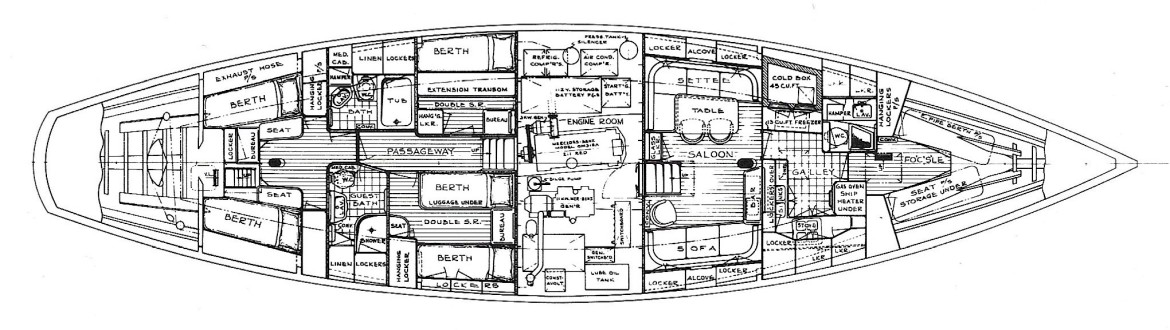

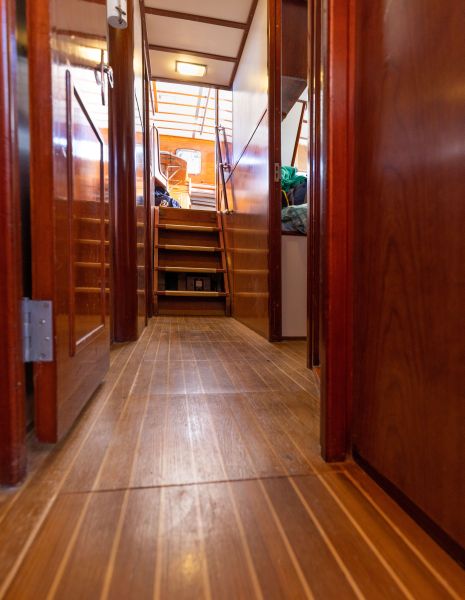

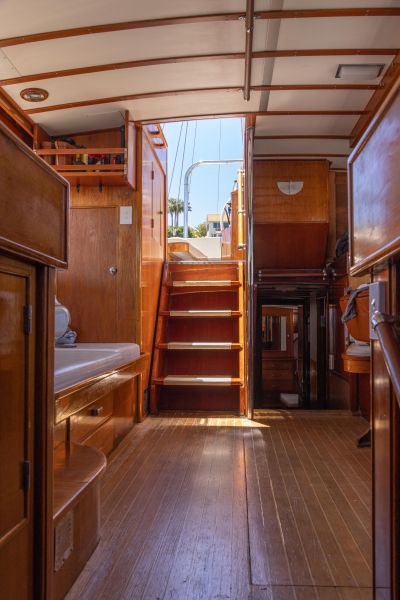

Accommodation

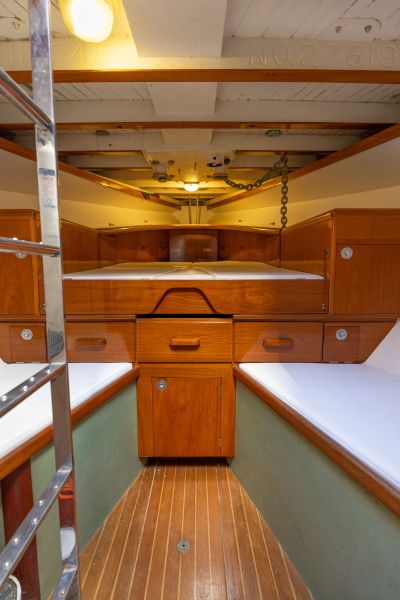

Three good sized aft cabins providing the main accommodation, with a V-berth in the fore-peak for crew, or as a guest double. Plus stowage locker

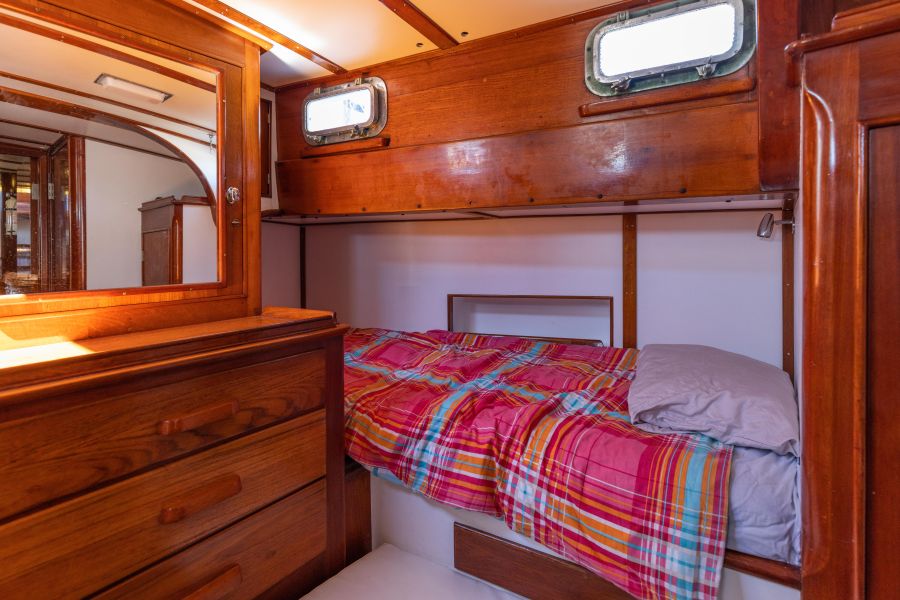

Guest double Cabin

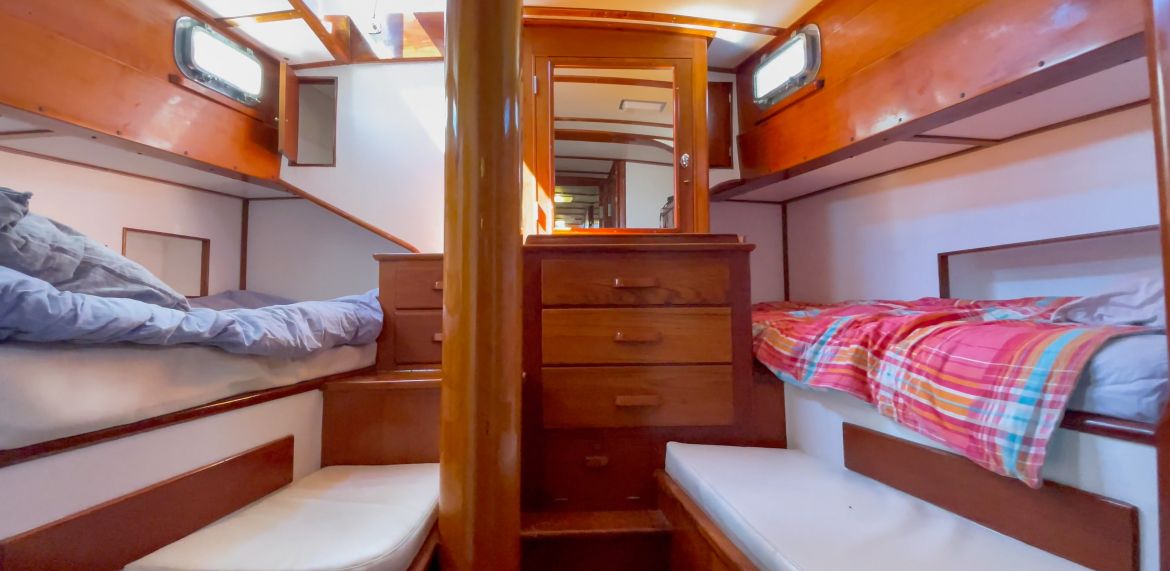

Guest Twin Cabin

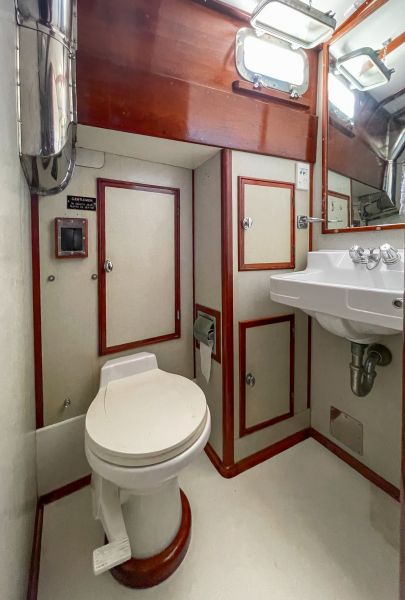

Guest - Toilet and shower

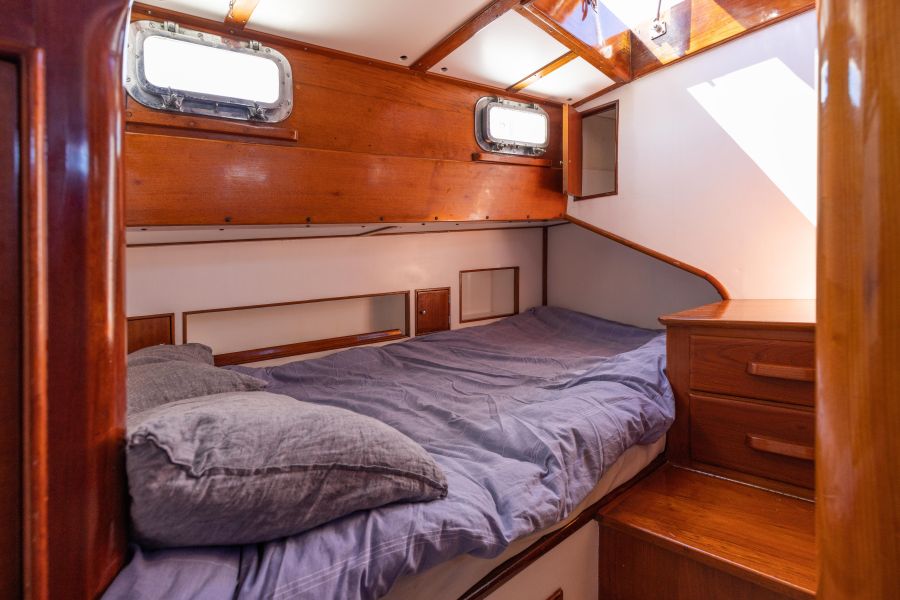

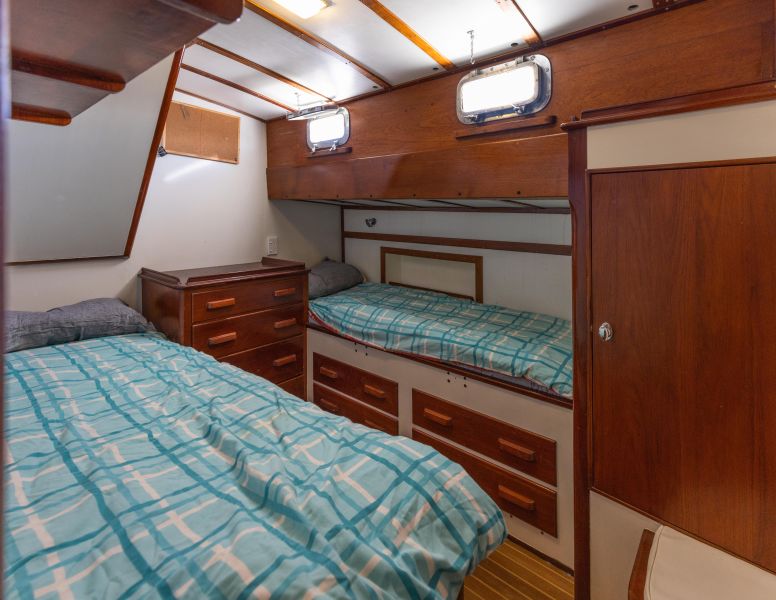

Master Cabin and ensuite

- Double berth to starboard

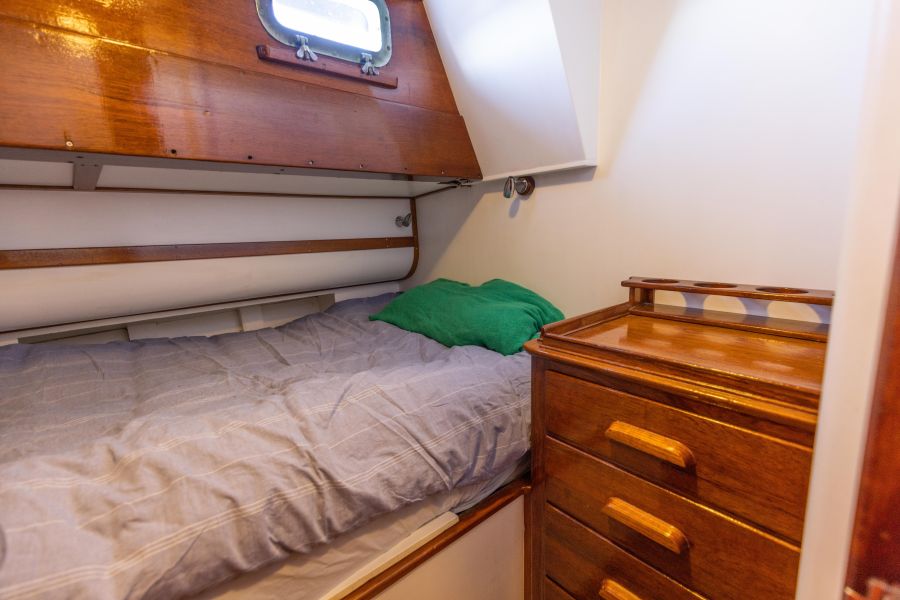

- Single berth to port
- Hanging lockers
- Overhead deck hatch

Lazarette - accessed through hatches in the aft cabin deck

General
- 2 x Vacu-Flush 24 V marine toilets
- with 100 Gallon plastic holding tank and pump out
- 2 x 220 V AC ½ HP compressor for refrigeration/ freezer
- 1 x Hot water tank with engine heat-exchanger and 230V electric heating
- Pressurised water system with triple redundant water pumps and accumulator tank
- Dock-side water hookup direct into house system with pressure regulator
- 2 x Water makers (currently decommissioned)

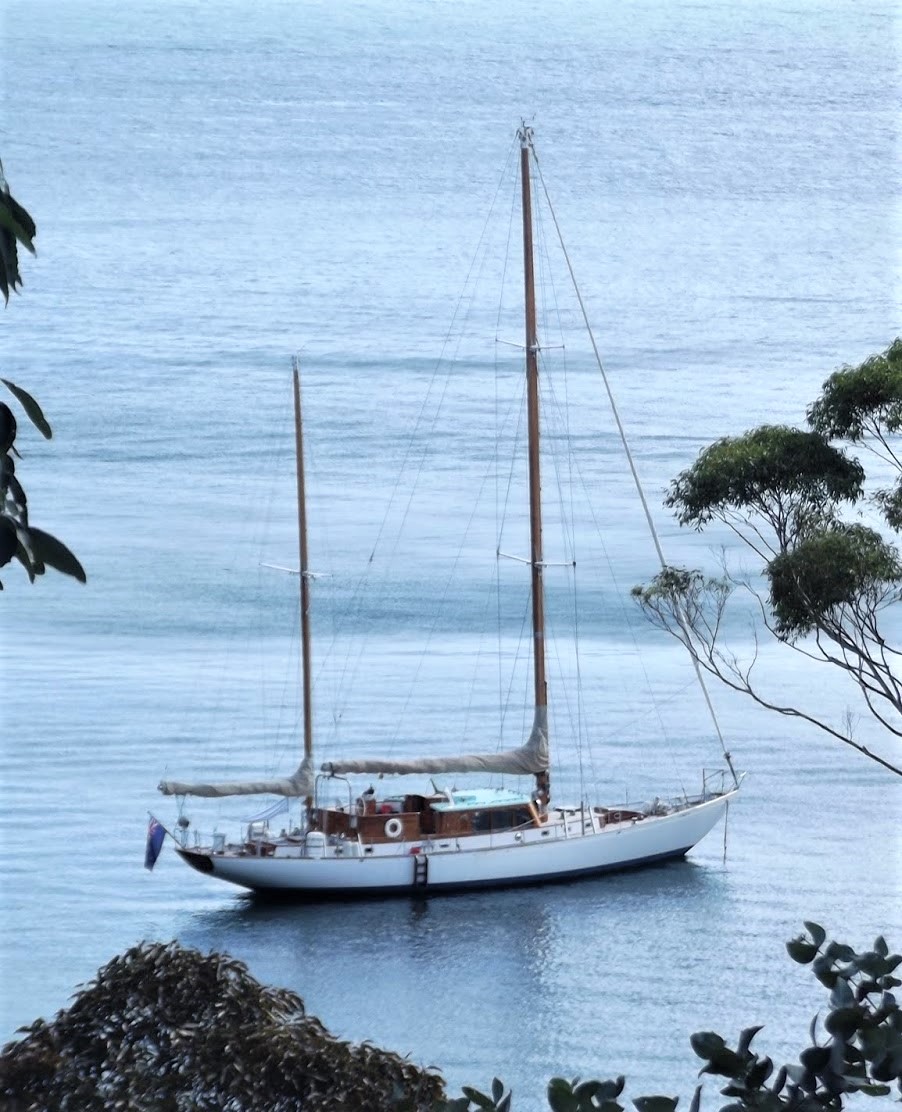

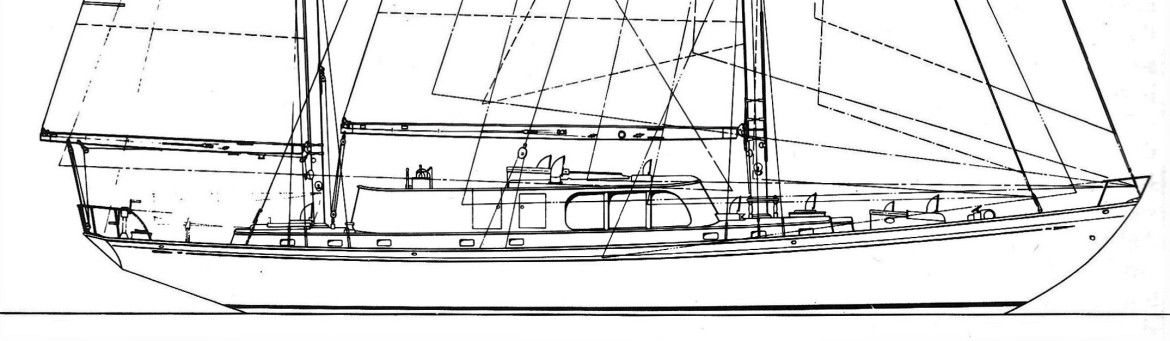

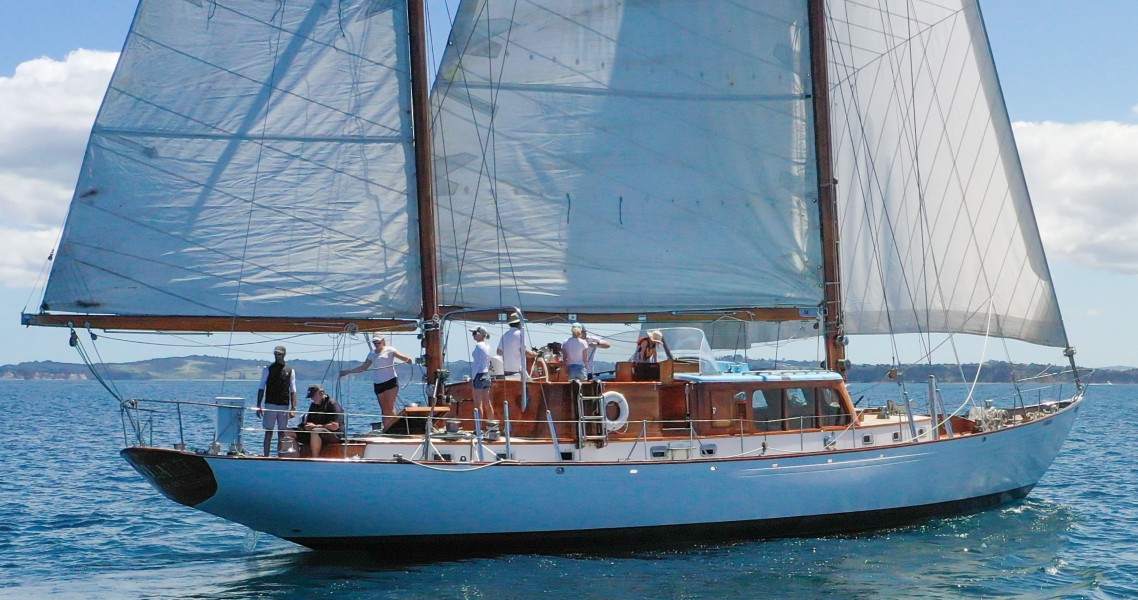

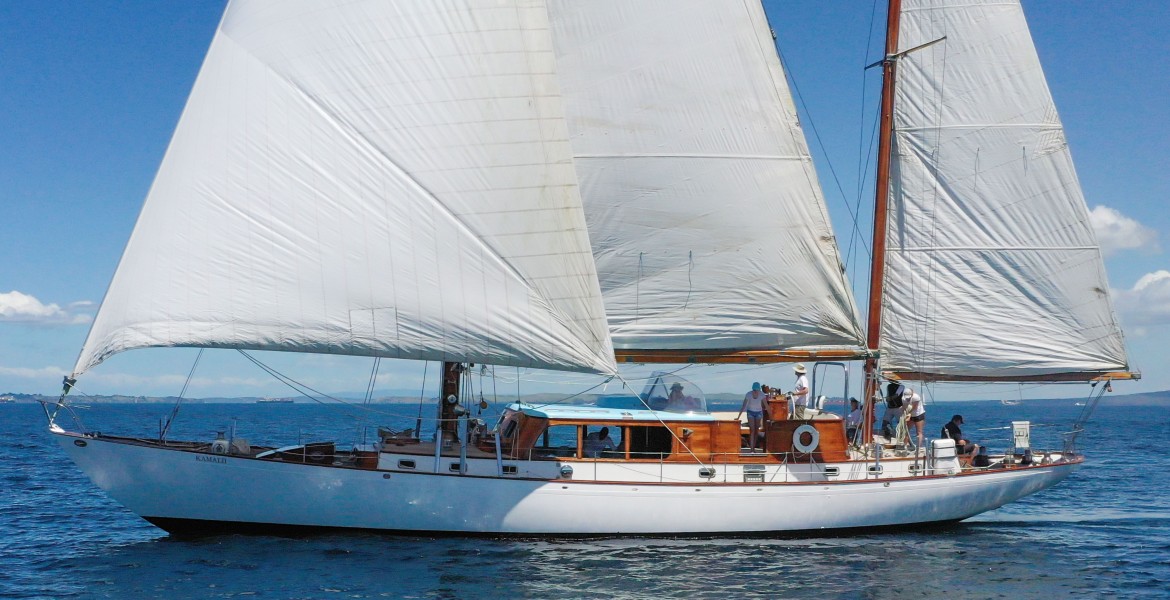

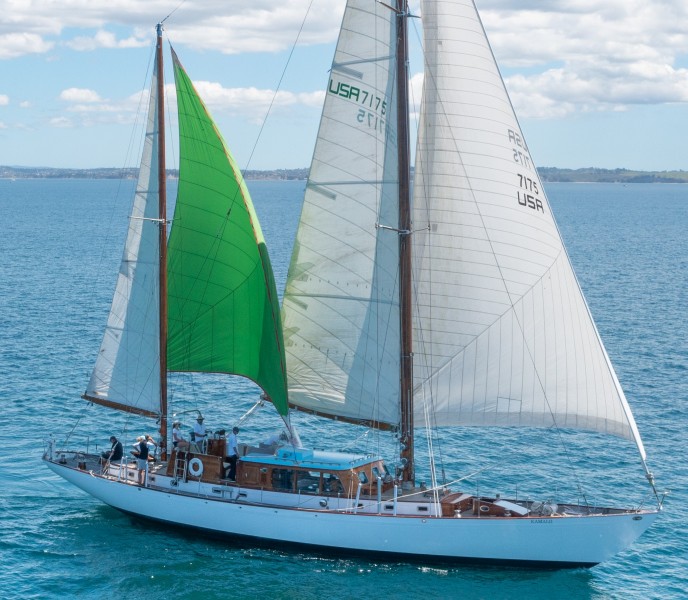

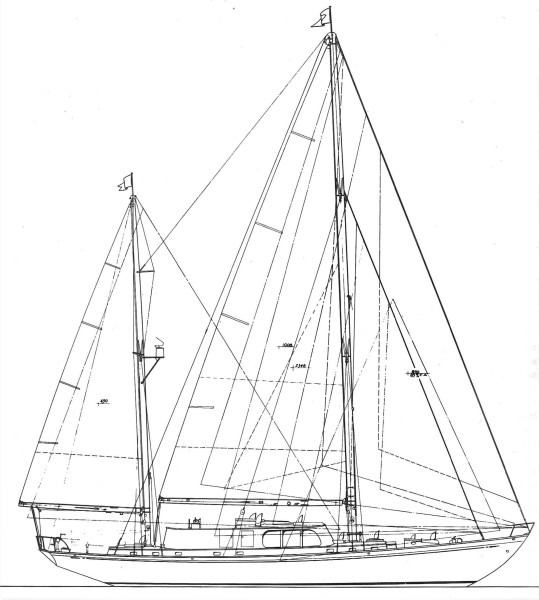

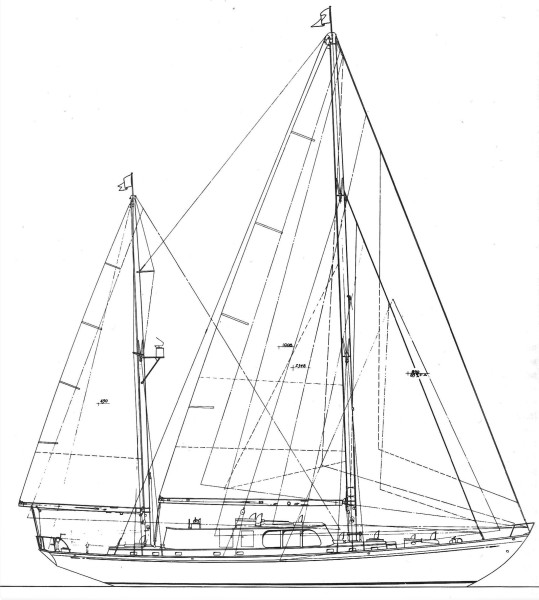

Bermudan ketch Rig
Hollow sitka spruce main mast
- Merriman winch tensioned topmast backstays
- Merriman Highfield lever-tensioned running backstays

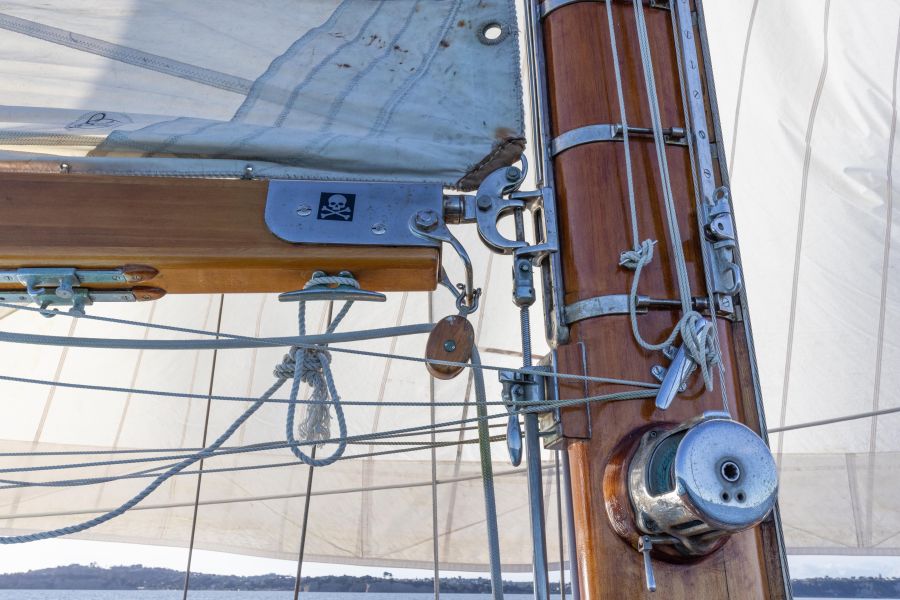

- 2 x Barient halyard winches (wire reel)
- 1 x Merriman halyard winches (wire reel)
- 1 x Rope reefing winch
- Spruce main boom
- 1 x Main boom topping lift
Sitka spruce mizzen mast
- 1 x Barient halyard winch (wire reel)
- 1 x Merriman halyard winch (wire reel)
- 1 x Barient rope reefing winch
- Merriman Highfield lever tensioned running backstays
- Spruce mizzen booms
- Spreader lights

Sails
- 2x Main sails (one working; one free-footed “delivery” sail)
- 2 x Mizzens
- 1 x Furling Genoa
- 1 x Furling jib
- 2 x Staysails (one free foot, one for self-tacker)
- 1 x Mizzen staysail
- 1 x Storm trysail
- Vessel was fitted with a self-tacking staysail
- Current owners have removed
- All components are in storage and come with the vessel

Covers
- Mainsail cover
- Mizzen sail cover
- Full boat sunshade/ weather cover with wooden poles
- Various canvas covers.



Mechanical
- Cummins V-8 300-M 300 hp diesel
- ZF dual clutch electric transmission
- 2 ¼ in / 57 mm Monel shaft

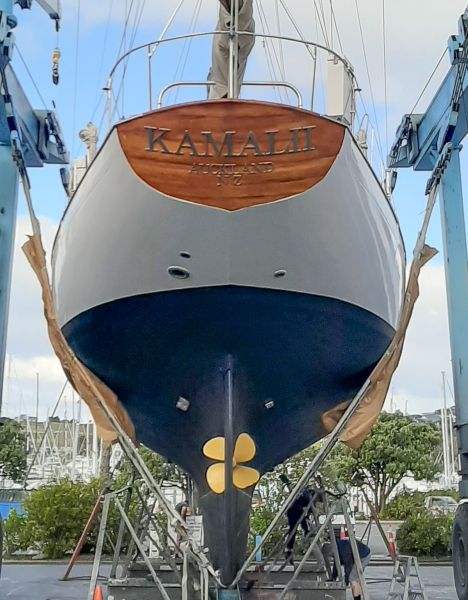

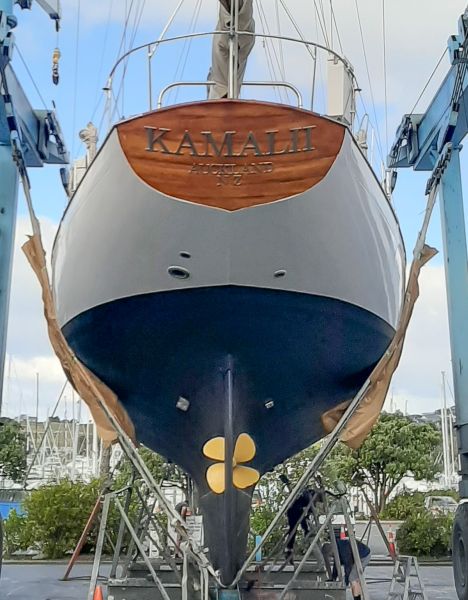

- 4 x Fixed blade bronze 30 RH 20 aperture mounted propeller
- Electrical Generators:
- 1 x Northern Lights PX-G 302 12KW (902.5 hrs)
- 1 x Northern Lights PX-G 302 12KW (870.5 hrs)


Electrical
- 12V, 24V DC, and 120/240 V AC
- System presently configured for 230 AC house outlets
- Can be readily converted back to 115 V AC
- LED lighting throughout.
House batteries:
- 4 x 220 Ah 6V lead-acid in series for 24V
- 12 V DC for electronics, sound system, etc supplied via 2 x DC-DC converters
Engine batteries:
- 2 x N200 1000CCA 12V in series
Chargers:
- House Alternator: 150A 24 V; 7-step multi-stage smart regulator
- Engine Alternator: 1 x 80A 24VDC Motorola
- 1 x 40 Amp 24V multi-bank battery charger
- 1 x 25 Amp 12V multi-bank charger
- Switchable shore-power connection with galvanic isolator.

Tankage
Fuel:
- 875 Gal / 3312 L in 5 x Monel tanks
- 120 Gal / 454 L in 1 x Converted water tank
- Fuel transfer pump
Water:
- 500 Gal / 1893 L in 2 x Monel tanks
- 2 x Water makers
- BEP Marine electronic tank level and power/ Ah meter.

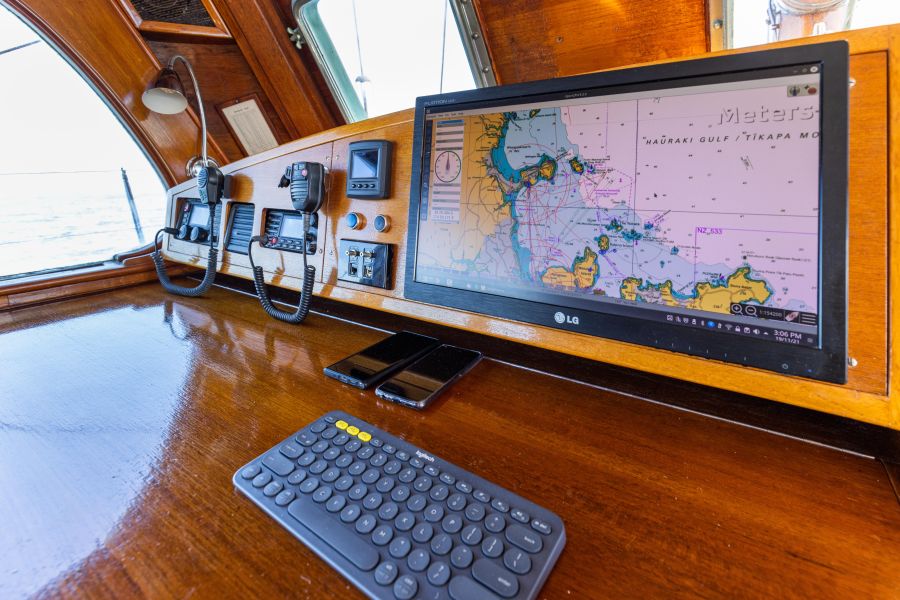

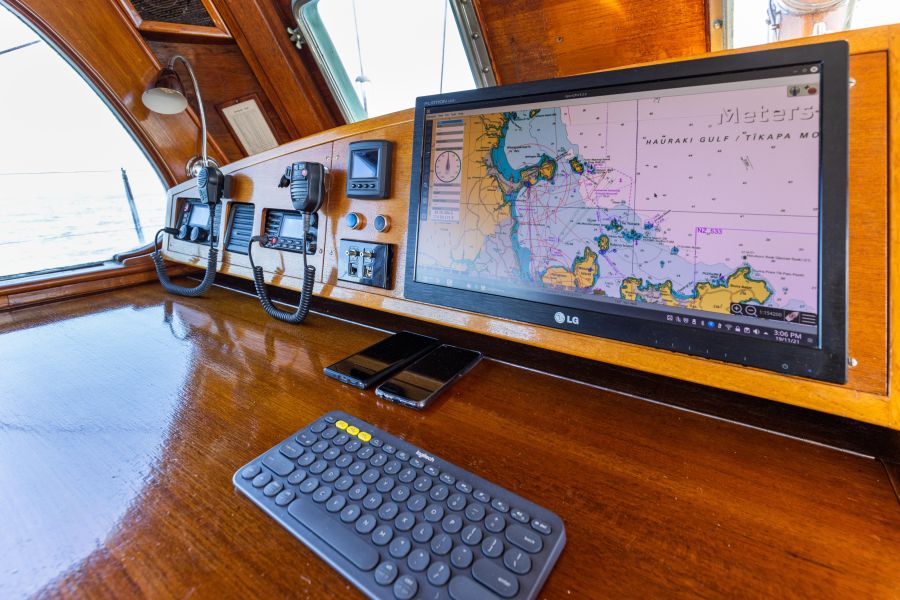

Navigation
- Cockpit Compass: 7 in /17 cm Kelvin and Wilfred liquid
- PC-based navigation computer with dual screens
- Integrated to NMEA data bus
- B&G Triton display
- AC42N autopilot with electric drive
- B&G wind
- Garmin NMEA2000 GPS
- B&G NMEA compass
- Rudder angle indicator

Communications
- ICOM SSB Radio (ICOM) with independent ground plane and auto tuner
- Standard Horizon VHF Radio 25 W with AIS receiver and remote cockpit mic
- On-board Wi-Fi and mobile internet

Entertainment
- Lower salon has an entertainment computer (Netflix etc)
- Connected to ships network and data storage
- 1200 watt four channel stereo plus subwoofer, connected to ship computer



- 6 x Removable storm windows for upper saloon
- 1 x 6-Person life raft (2013 - currently out of test)
- 406 Mhz EPIRB
- 2 x Emergency axes
- 1 x MOB inflatable retrieval unit; 1 x Lifesling, 2 x liferings.
- 3 x 24 V DC 3700 Gal p/h Rule primary bilge pumps
- Engine-driven high volume emergency bilge pump
- Switchable manifold between bilge compartments
- Additional manual bilge pump for aft bilge (fitted but not plumbed)



Alarm systems:
- Bilge high water alarm (per compartment)
- Connected to GSM module for alarm SMS messaging
- Engine oil pressure
- Engine high temperature.
- 4 x Fire extinguishers
- Emergency steering, stowed in lazarette.

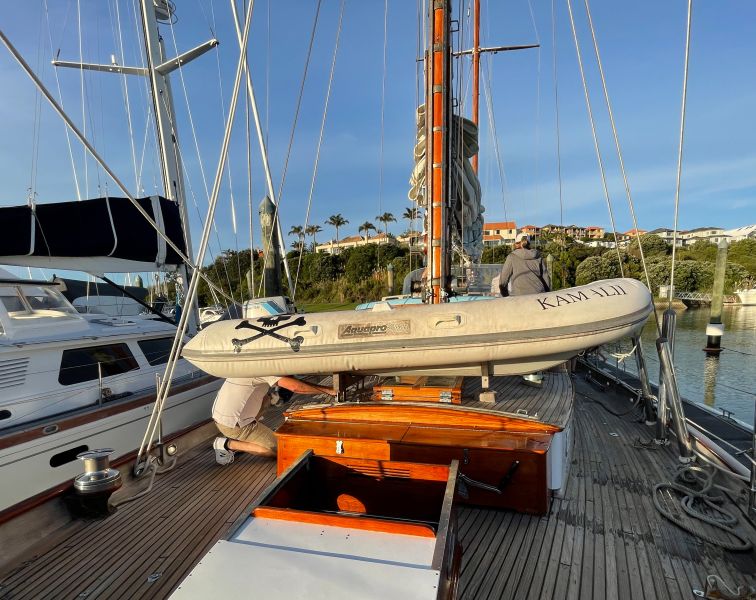

Tender - 3.5 aluminium RIB (Aquapro SMR 1101)
- 5 hp Tohatsu outboard motor
- Stern ensign flagpole
- Huge inventory of Merriman traditional bronze blocks and snatch-blocks
- Extensive spares and parts, including:
- Numerous winches
- Bronze seacocks
- Electrical and plumbing parts, etc
- New Blue Water bronze lip-seal shaft seal assembly
- Not fitted yet but intended to replace shaft stuffing box
- Assorted brightwork and winch covers, lines, etc
- Original signalling flag kit
- Swim ladder
- 6 x Boat fenders
- Teak side dock ladder with platform
- 1 x Portable Stainless BBQ
