73.15m AHTS from SeaBoats

73.15m AHTS

Listing ID - 5040
Description	73.15m AHTS
Date Launched	1986
Length	73.15m (239ft 11in)
Beam	15.85m (52ft)
Draft	4.57m (14ft 11in)
Note	Main Engines: 3x EMD (Electro-Motive)
Location	USEC
Price	5,400,000 USD
View As PDF

Built year: 1986

Hull material: Steel

Flag: United States of America

Class Society and Notation: ABS Towing Vessel, OSV, AH, AMS, DPS-2

PRINCIPLE DIMENSION

Length Overall: 73.15m

Breadth: 15.85m

Depth: 5.64m

Draft: 4.57m

DWT: 1551 tons

MACHINERY & PROPULSION
Total power output: 10800 BHP

Main Engines: 3x EMD (Electro-Motive)

Main Propulsion System: 3 CPP

Auxiliary engines: 2x 500 KW

ADDITIONAL INFORMATION

Certificates expired since 2016

Year Converted/Modified 2002

Draft (Maximum Operations): 4.78 m

Loadline Displacement: 3,770.18 LT (3,830.68 MT)

Clear Deck: 135 ft. x 44 ft. (41.15 m x 13.41 m)

Cargo Deck Area: 5,940 sq. ft. (551.82 sq. m)

Deck Cargo Capacity: 830 LT (843.32 MT)

Deadweight Tonnage: 1,527 LT (1,551.50 MT)

CAPACITIES

Fuel Oil: 178,576 gals. (675.98 cu. m)

Ballast: 325,615 gals. (1,232.59 cu. m)

Fresh Water: 23,068 gals. (87.32 cu. m)

Dry Bulk: 5,120 cu. ft. @ 45 psi (144.98 cu. m @ 3.1 bars)

Liquid Mud: 2,200 barrels (349.77 cu. m)

Total Propulsion: 13,200 HP

Bow Thrusters: Two (2) 150TV-D Tunnel

Stern Thrusters: One (1) 1,200 HP NASB/Ulstein 360° Jet

Azimuthing

Shaft Generators Three (3) x 2,400 HP/1,800 kW

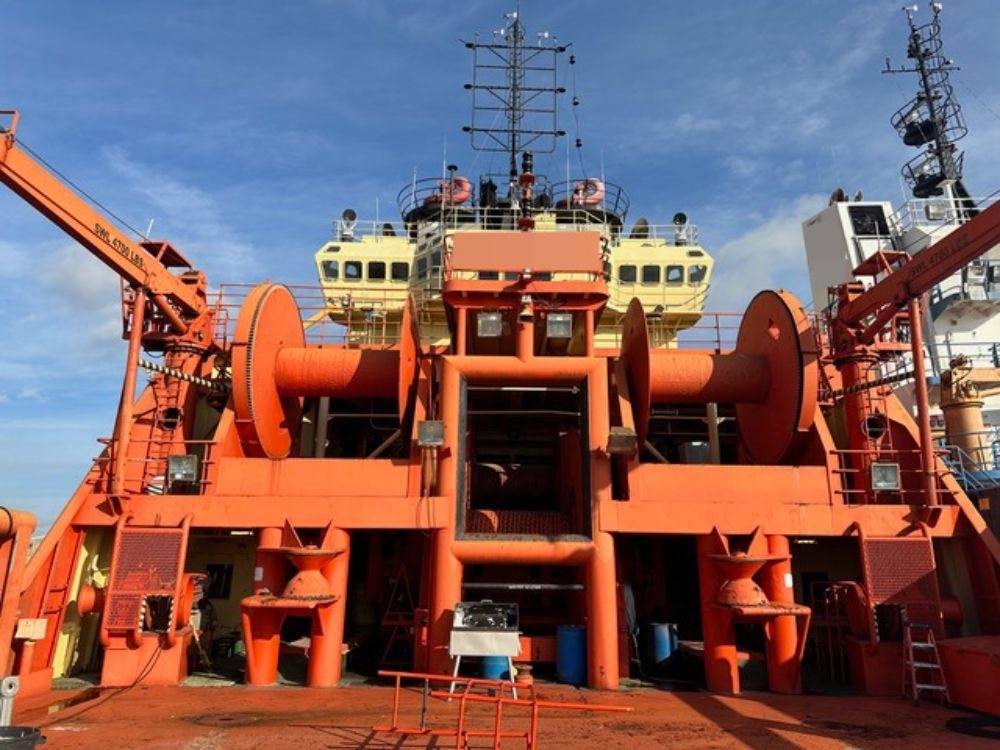

TOWING AND ANCHOR HANDLING (DECK EQUIPMENT)

Winches Brattvaag BSL 350 W Double Drum with chain mouse

Line Pull 350 MT or 926,100 lb line pull or 926 KIPS line pull per drum

Chain Lockers Two (2) x 6,000 ft. (1,828.8 m) of 3.5 in. (8.89 cm) chain each

Storage Reels Two (2) x 11,480 ft. (3,499.10 m) of 3 in. (7.62 cm) wire

Wire Capacity Two (2) x 9,800 ft. (2,987.04 m) of 3 in. (7.62 cm) wire per drum @ 350 MT

SPECIAL FEATURES

Shark Jaws One (1) x 350 MT

Tow Pins One (1) x 350 MT

Tuggers One (1) x 12-Ton Forward

Tuggers Two (2) x 10-Ton Aft

Positioning DP 2

Stern Rollers One (1) x 8 ft. x 6 ft.

Cranes Two (2) x 10 tons @ 30° radius

Firefighting Two (2) Monitors @ 12,500 GPM

ROV

ROV Schilling Robotics 200HP UHD rated for 4,000 m

LIFE SAVING EQUIPMENT

Life Rafts Four (4) x 25-Man Life Rafts

Rescue Boat/Craft One (1) x Narwhal SV-400 SOLAS FRC

ELECTRONICS

Electronics Package Two (2) Furuno FR-2115 Radars, GMDSS,

Iridium Satellite Phone, Marine Technologies

Bridge Mate DP 2, Marine Technologies

Bridge Mate Autopilot, Furuno Color-View

Depth Sounder, Furuno VHF FM-8500 @

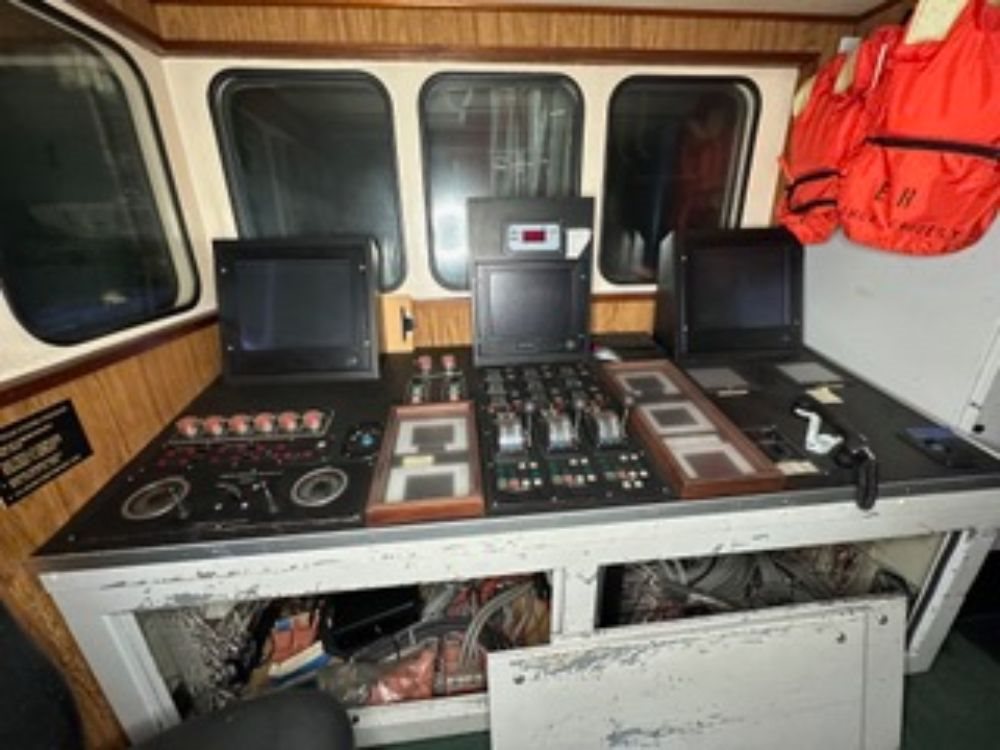

Winch Operator Panel, Seven (7) Color

Monitors, JRC NO2-127C Inmarsat-C Telex (GMDSS), SEA 222

Single Sideband Radio with Ringer, JRC NCH-802 Controller

MF/HF

Radio, JRC NCR-300A Navtex, Furuno GP- 150 GPS, Furuno

FAI50 AIS

ACCOMMODATION

Accommodations 34

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
