70m Flat Top Deck Barge - FOR CHARTER!

Listing ID - 433640

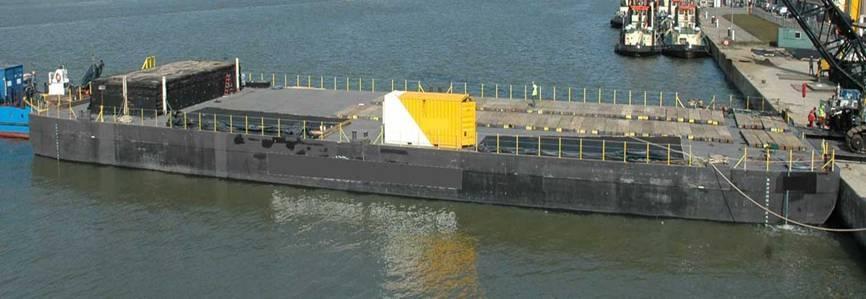

Description	70m Flat Top Deck Barge
Date Launched	2010
Beam	22.05m (72ft 4in)
Draft	3.083 (10ft)
Location	North Europe
Broker	John Kearns john.kearns@seaboatsbrokers.com +64 21 400 805
Price	FOR CHARTER ONLY
Price Notes	Available for charter from September 2018 onwards
View As PDF

General

Built: 2010, Netherlands

Hull Material: Steel

Flag: Belgium

Class: BV unrestricted navigation

Type: Flat top Ro-ro pontoon

Principal Dimension

Length Overall: 70.05m

Breadth: 22.05m

Freeboard min: 0.932m

Draught max: 3.083

Draught empty: 0.68m

Net Tonnage: 487T

Gross Tonnage: 1624T

Cargo equipment

Anchors: Emergency anchor at stern

Safety EQC Side railings and 4 lifebuoys with emergency line

Deck winches: Not equipped

Remarks: Suitable for 2 spuds, diam .915mm

Ballasting System: Not equipped

Smit brackets: 4.4 at the bow up to 50t BP

No. of ballast tanks: 36 with manhole access

Panama locks: 5.3 at the bow and 2 at the stern

Towing rig: Yes, for up to 50t BP

Ro-Ro attachments: Recess to bow for ramps

Emergency tow rig: Yes, for up to 50t BP

Mooring lines: 4 x 60m diam. 48mm

Navigation lights: 3 x Mc Dermott Solar Powered

Cargo Capacities

Cargo Deck Area: 1134 sq m

Deck Strength: 20t per sq m

Other Details
Available for charter from September 2018 onwards

Underwater Survey by BV done in March 2018

Freeboard min 0,932 m
Draught empty 0,68 m
DWT at summer draft 3550 T
Deck Strength 20t per sq. M
Bow & Stern Shape: Spoon bow & raked stern

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
