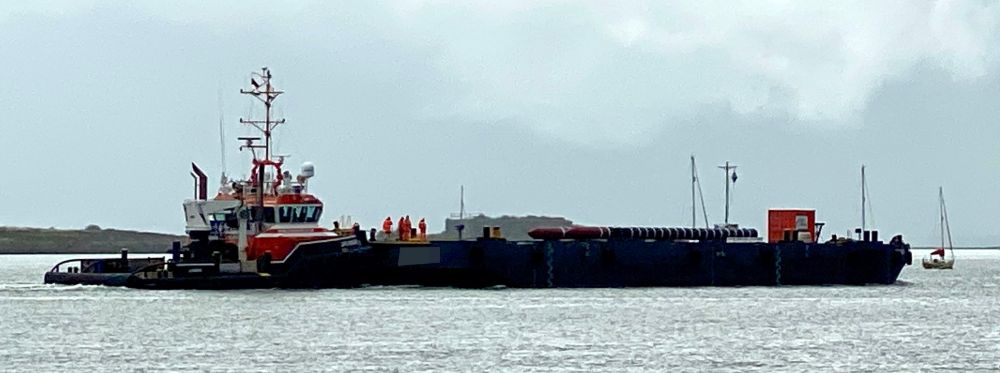

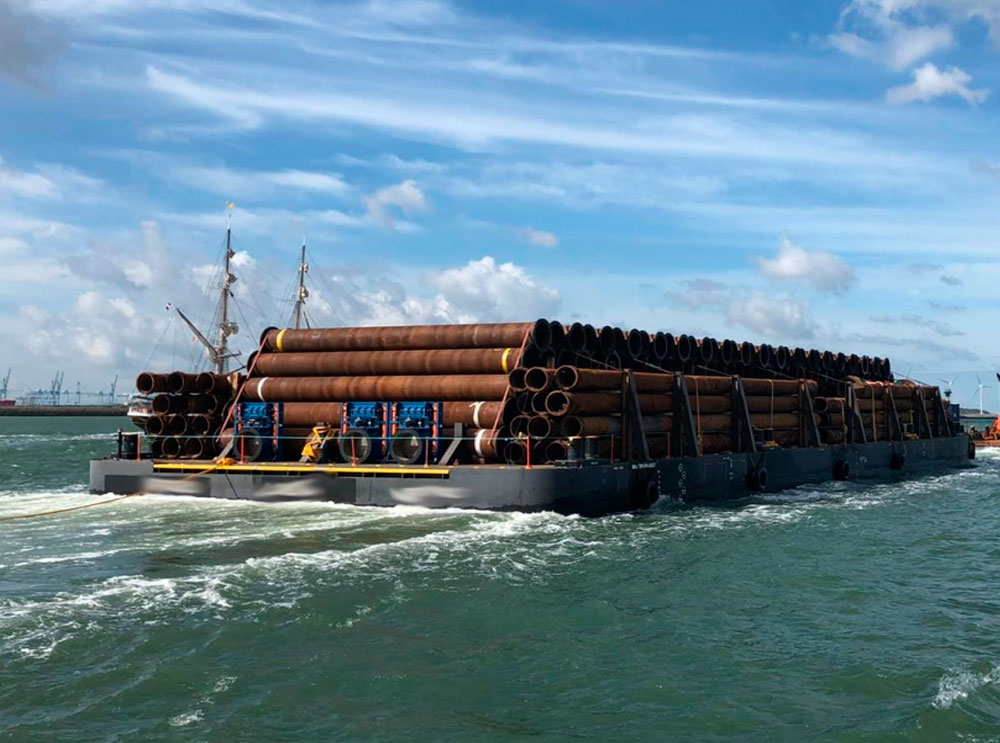

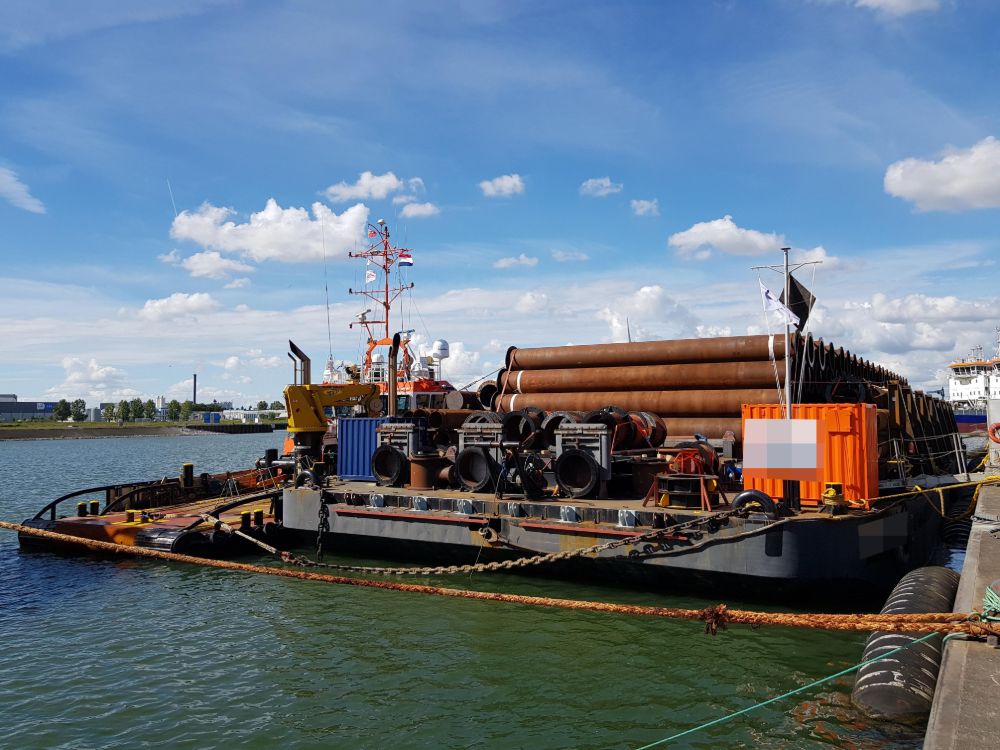

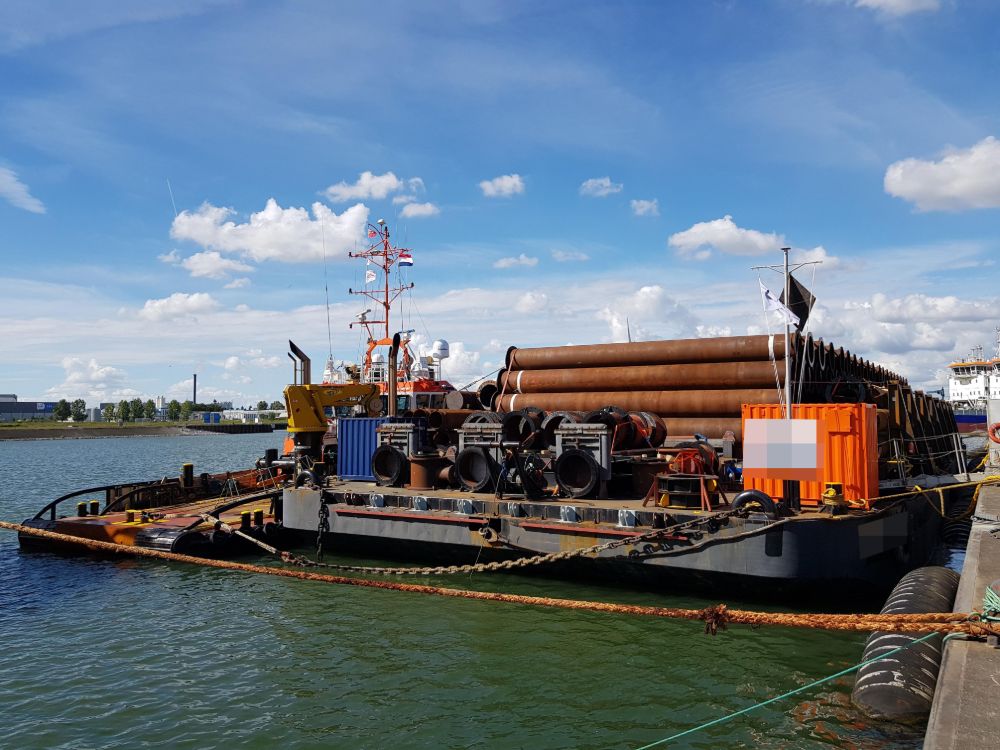

60m Flattop Barge For Sale & Charter

Listing ID - 3800
Description	60m Flattop Barge For Sale & Charter
Date Launched	2014
Length	60m (196ft 10in)
Beam	20m (65ft 7in)
Draft	3.2m (10ft 5in)
Location	UK Coast
View As PDF

Built: 2014, China

Hull material: Steel

Flag: United Kingdom

Class Society and Notation: Lloyds Register Pontoon

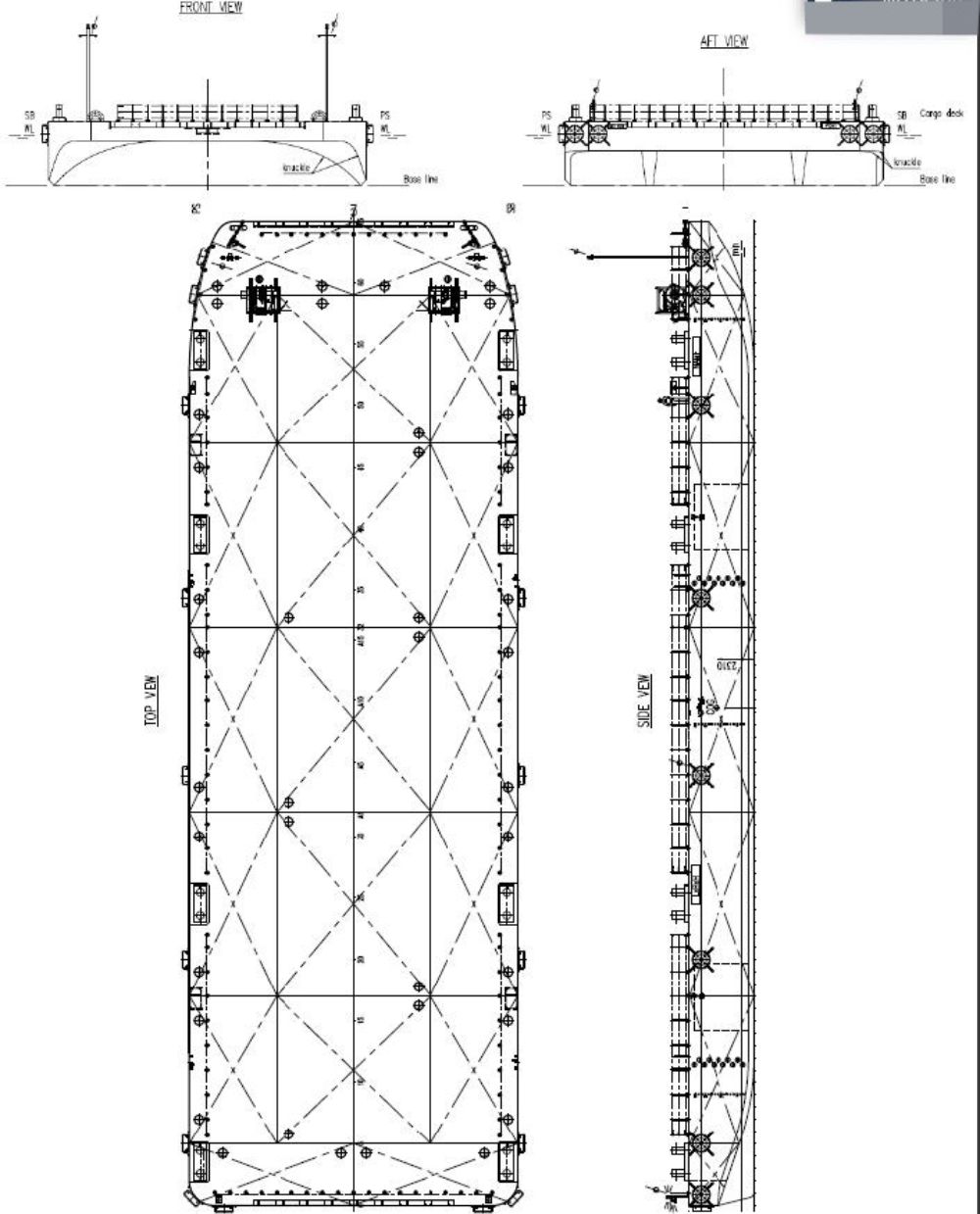

PRINCIPLE DIMENSIONS

Length Overall: 60m

Breadth: 20m

Depth: 4m

Draft: 3.2m

NT: 365 tons

GT: 1217 tons

DWT: 2840 tons

ADDITIONAL INFORMATION

Built in China at Damen Shipyards

There are two sister ships for sale.

Minimum draft 3.20 meter (From underside keel)

Clear deck area 1175m2

Deck load 20 ton/m2

Construction:

Deck plating 16mm, extra heavy deck

Number of compartments 19 void spaces : 4360m3

Deck:

Spud arrangements 2 spud wells.

Ramp Ramp access at bow (8 x 1.5m)

Ramp access at stern (8 x 1.5m)

Lifting eyes Four lifting eyes flush with main deck and covered with

bolted steel plates to lift the pontoon.

Railing Removable stanchions and wire.

Anchor winch On bow with anchor and steel wire.

FenderingTyre fenders.

Recovery system At bow for retrieval of bridle.

Bollards 8 x, + insert plates every section.

Boarding ladders Recessed ladders 2 x portside and 2 x starboard side

Manholes Flush type single pt. manholes.

Towing brackets 2 x SMIT brackets at the bow.

Options:

Towing arrangement Towing bridle with chains

Spud legs 2 x spuds 25m x 914mm

Spud handling arrangement Hydraulic spud lifters

Deck equipment Cranes, accommodation units and mooring

equipment.

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
