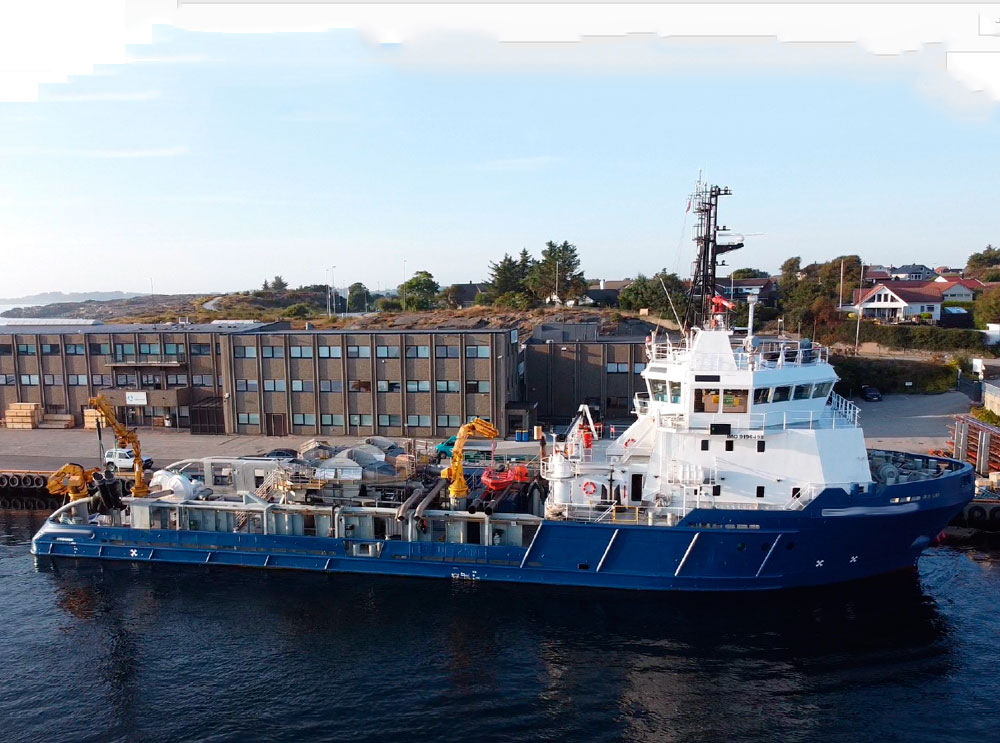

58m Multipurpose Vessel For Sale & Charter

Listing ID - 4484
Description	58m Multipurpose Vessel For Sale & Charter
Date Launched	1999
Length	58m (190ft 3in)
Beam	15m (49ft 2in)
Draft	4.30m (14ft 1in)
Note	2x Bergens Engines
Location	North Europe
Price	POA
View As PDF

Built: 1999, Japan

Hull Material: Steel

Flag: Norway

Class Society and Notation: DNV + 1A1 E0, HL (2,5)

LOA: 58m

LBP: 51.60m

Breadth: 15m

Depth: 5.50m

Draft: 4.30m

NT: 469 tons

GT: 1368 tons

DWT: 1330 tons

Bollard Pull: 69 tons

Winch Line Pull: 150 tons

Brake Horsepower: 5,440 BHP

Maximum draft midship: 4.7 meters

Clear Deck Area 31m x 12m = 372 square meters

Deck Strength general deck-5 tons per square meter, Aft A/H deck -10 tons per square meter

Deck cargo 600 tons

Ballast Water 540 cubic meters (including multiuse tanks) Brine/DMA/Glycol/Liquid Mud 112 cubic meters (s.g. 2.5) (in 2 dedicated tanks)

Liquid Mud: 210 cubic meters approximately (s.g.2.5) (in 4 tanks) Dry Bulk 127 cubic meters (4500) cubic feet) (in 4 tanks)

2 x Ulstein high-lift independent rudders

2 x Electro-Hydraulic Steering gears

Bow Thrusters 2 x 700 BHP, developing 8.25 tons thrust each

Stern Thrusters: 1 x700 BPH, developing 8.25 tons thrust

Machinery & Propulsion

Total power output (BHP): 5440 bhp

Main Engine(s) (make, type): 2 x Bergens KRMB-9

Main Propulsion System: 2 x CPP propellers in Kort nozzles

Maximum Speed: 13 knots

Cruising Speed: 10 knots

Shaft Generators 2 x shaft generators, output approximately 1600 kVA, 450 V, 60 Hz at 825 RPM of main engine

Auxiliary Generators: 2 x diesel driven Yanmar 6 HAL 2- 4 TW, output approximately 2 x 500 kVA, 450V, 60 Hz @1800 RPM

Emergency Generator: 1 x Yanmar 6CHL2-T(H), output approximately 100 kVA, 450 V, 60 Hz@1800 RPM (local on fo 'c'sle deck)

Deck Machinery

Tuggers 2 x 5 tons Brattvaag

Capstans 2 x10 tons Brattvaag

Windlass 9-ton full Brattvaag, complete with 2 x mooring drums capacity 300 m x 25 Nippon lcan, 1.5 tons at 10 m outreach.

Smit Towing Bracket 1 x200 tons SWL located on fo'c'sle

Cargo and Tanks Capacities

Fuel Tanks Capacity: 455 m3

Fresh Water Tanks Capacity: 475 m3

Additional Information

Equipped with fish farming equipment (Owners considering to remove this. It would take 2-3 weeks).

Suitable for lighter Survey work (if you install an A-Frame and expand accommodation).

DP1 and 3 deck cranes.

Looking for TC, but also open for BB, co-ownership or sale.

Originally built as AHTS, towing winch is in working condition but was never used by Owners.

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
