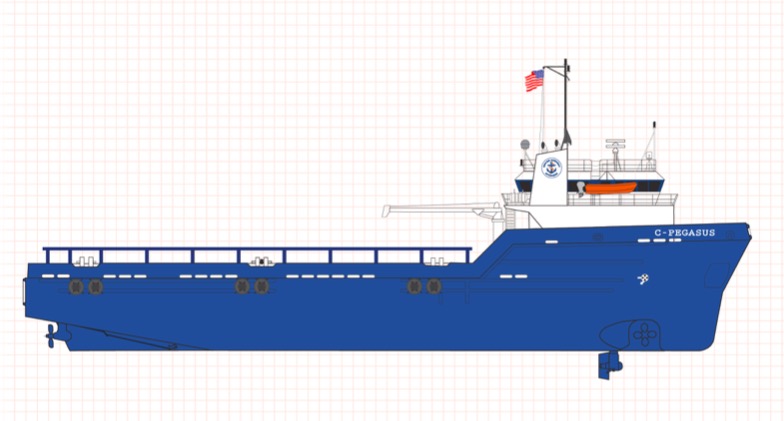

57.91m Offshore Supply Vessel

Listing ID - 1669
Description	57.91m Offshore Supply Vessel
Date Launched	1999
Length	57.91m (190ft)
Beam	13.41m (44ft)
Location	USA
Broker	John Kearns john.kearns@seaboatsbrokers.com +64 21 400 805
View As PDF

Hull: 195

Vessel Type: Offshore Supply Vessel

Year Built: 1999

Year Converted/Modified: 2014

Shipyard: North American Fabricators

LOA: 57.91m (190ft)

Beam: 13.41m (44ft)

Depth: 5.79m (19ft)

Draft (Loadline): 16 ft. 3 in. (4.95 m)

Clear Deck: 130 ft. 9 in. x 41 ft. 6 in. (39.86 m x 12.65 m)

Cargo Deck Area: 5,426 sq. ft. (509 sq. m)

Deck Strength: 540 LT/sq. ft. (2.4 MT/sq. m )

Deck Cargo Capacity: 1,300 LT (1,320.86 MT)

Deadweight Tonnage: 1,915 LT (1,945.73 MT)

CAPACITIES

Fuel Oil: 273,827.8 gallons (1,036.55 cu m)

Fresh Water: 87,630 gallons (331.72 cu m)

Potable Water: 51,102.8 gallons (193.45 cu m)

Liquid Mud: 2,754.3 barrels (437.90 cu m)

Service Tanks: 5,840 gallons (22.11 cu m)

MACHINERY

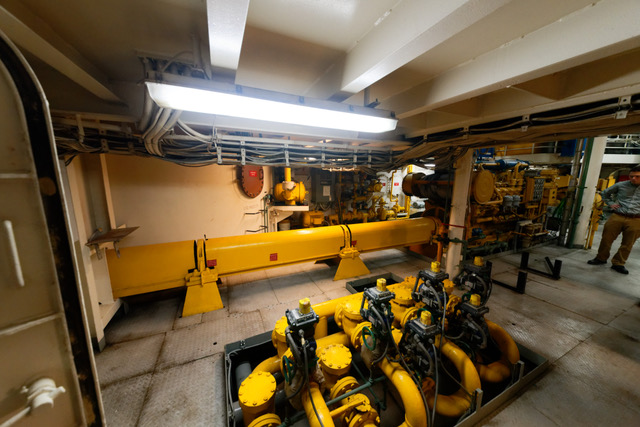

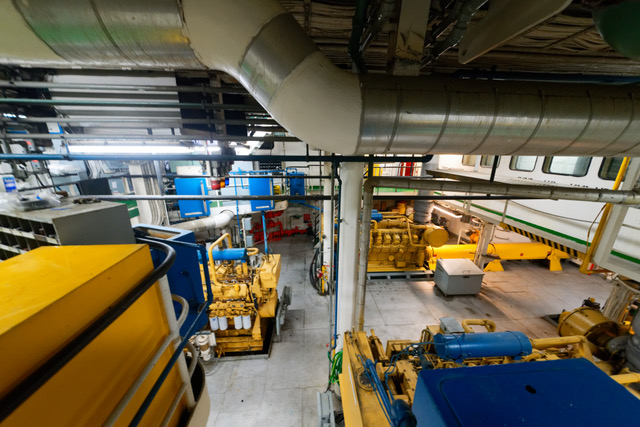

Main Engines: Two (2) 3512 CAT Diesels, 1,280 BHP @ 1,600 rpm each

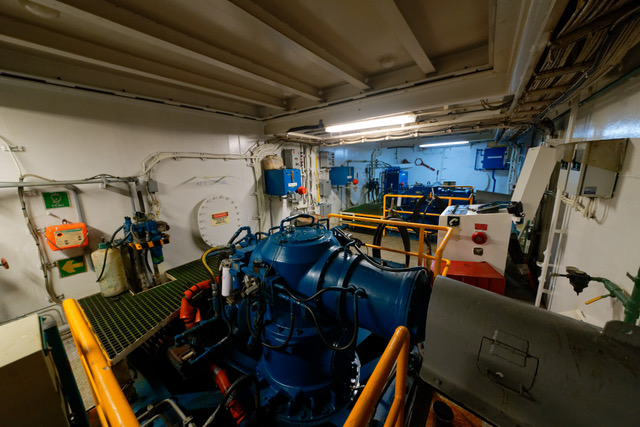

Bow Thrusters: One (1) Ulstein TCNS 73/50 Swing-Up (3508 CAT)

Azimuth Thrusters: Two (2) 900H Ulstein

Speed: 13.2 knots

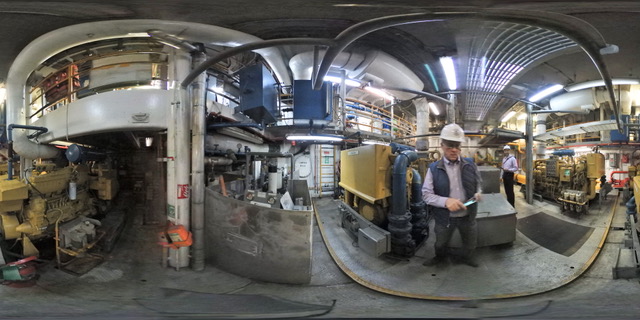

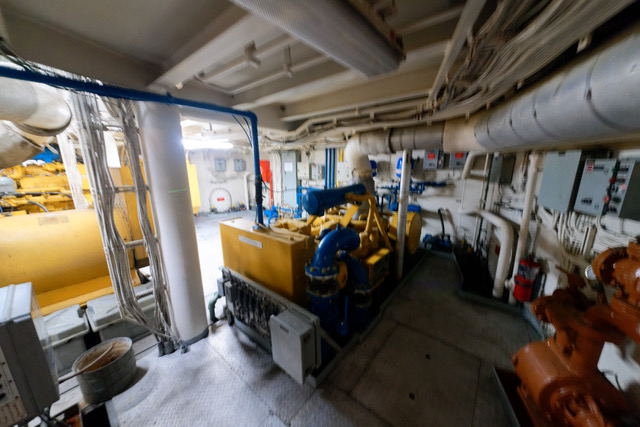

Generators: Two (2) 300 kW (3406 CATs)

Emergency Generators: One (1) 170 kW (3306 CAT)

LIFE SAVING EQUIPMENT

Life Rafts: Two (2) 20-Man Inflatable Life Rafts

Lifeboat: One (1) 5.0 m Rescue Boat and Davit

Other gear as required by authorities

CHEMICAL

500bbl Approvals: 2 X 500BBL TANKS (1,000 BARRELS)

CLASSIFICATION

ABS: Maltese Cross A1 (Hull)

ABS: Maltese Cross AMS (Machinery)

ABS: Loadline

USCG: Subchapter L (OSV)

USCG: Oil Recovery Vessel Authorization (20% DWT)

SOLAS

MARPOL

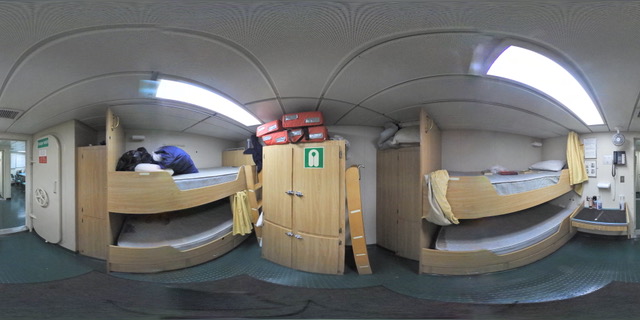

ACCOMMODATIONS: 13

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
