Basic Function

Transportation of equipment, & storage of fuel

Crew accommodation space

Offshore support

General assistance

General

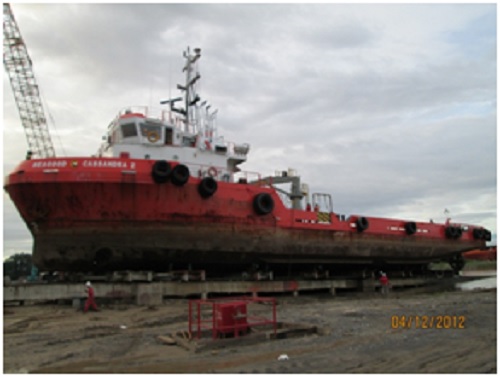

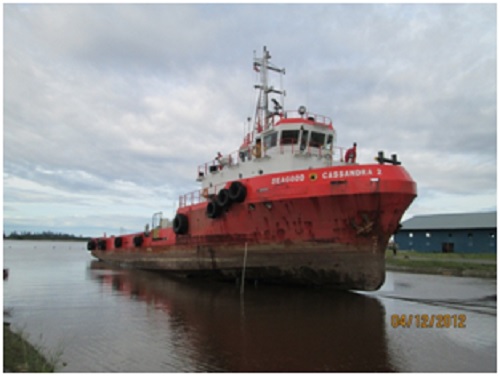

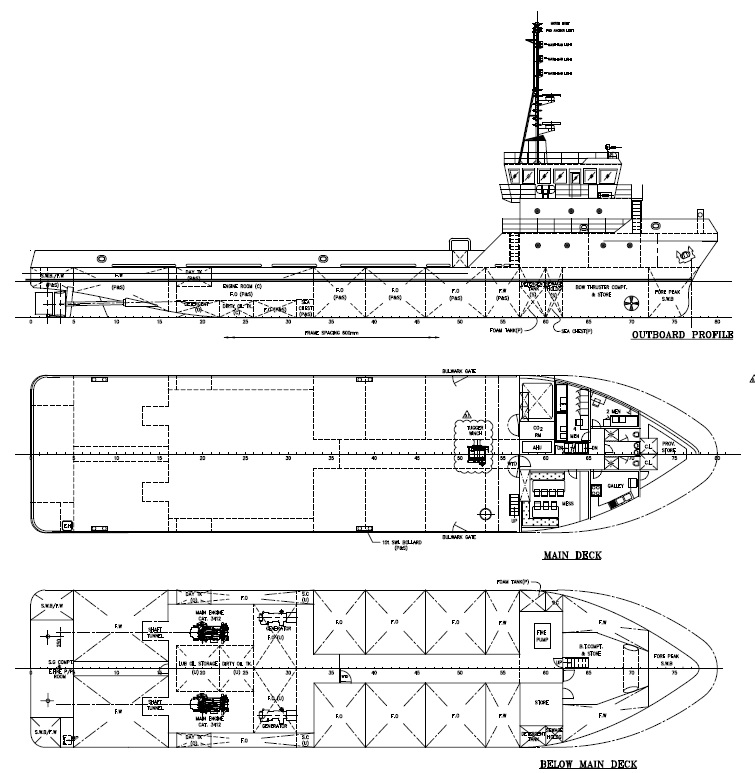

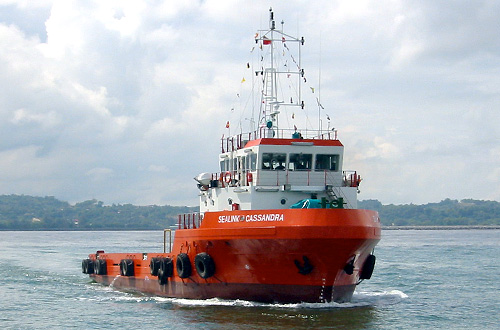

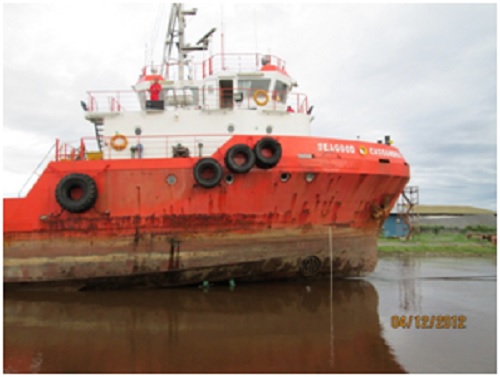

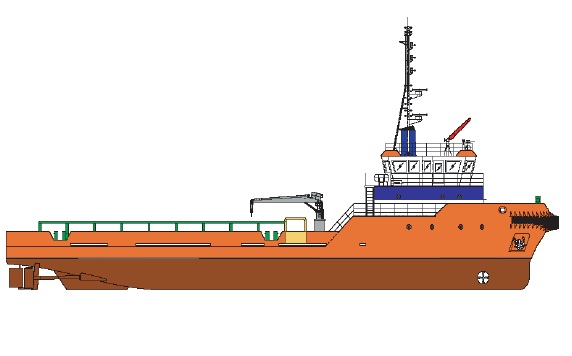

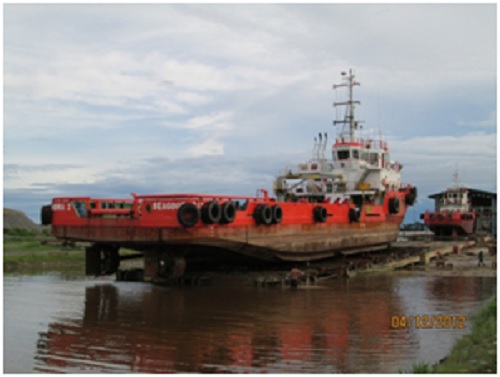

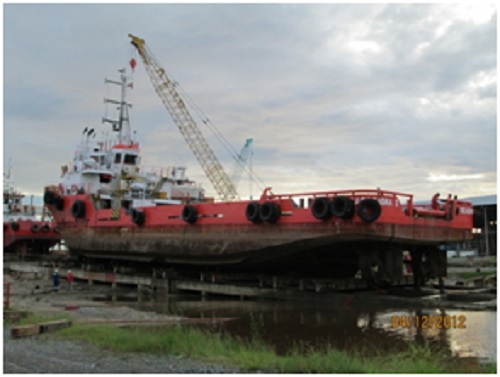

Type: 48 M Multi-Purpose Vessel

Year Built: 2002

Classification: American Bureau of Shipping (A1 + AMS for unrestricted services)

Official No. / Call Sign: 329772, 9WED4

Port of Registry & Flag: Kuching, Malaysia

Builder: Sealink Shipyard Sdn Bhd., Miri

IMO No.:  9278961

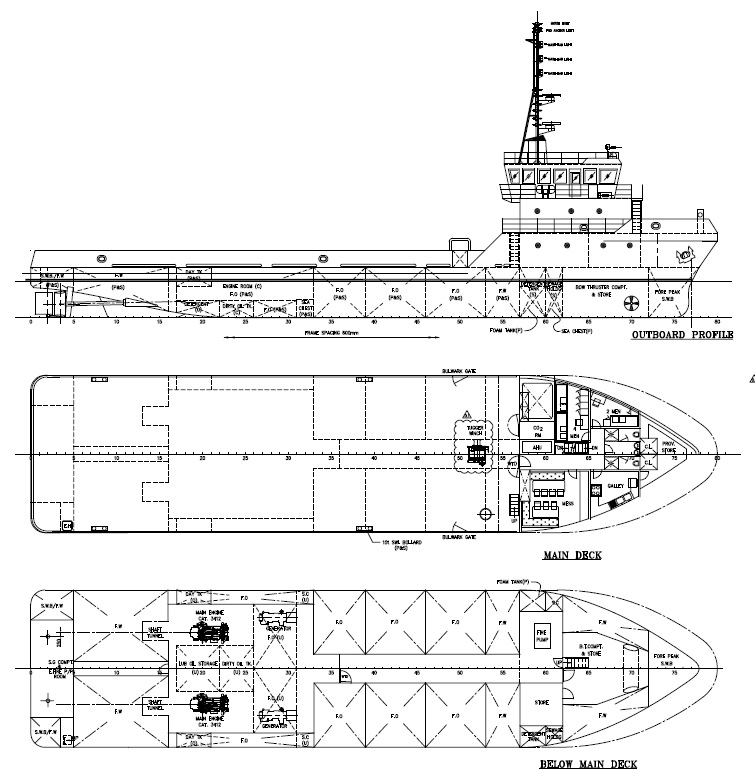

Main Dimension

Length O.A: 48.00m

Beam: 11.00m

Depth: 3.50m

Designed Draft: 2.8m

Gross/Net Tonnage: 490/147

Tank & Loading Capacity (Appx.)

Potable Water: 42.6m3

Fuel Oil: 405m3

Cargo FW: 193m3

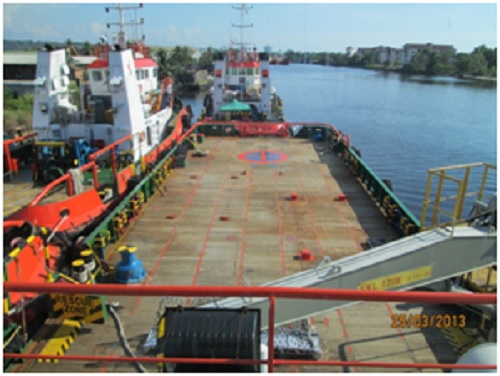

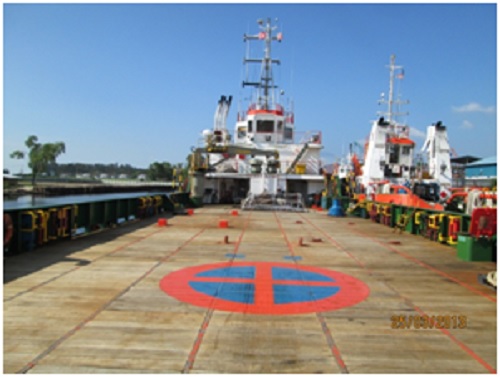

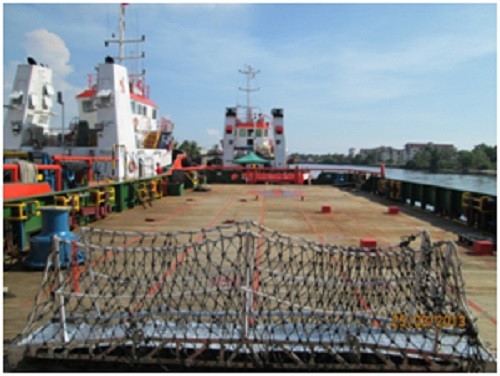

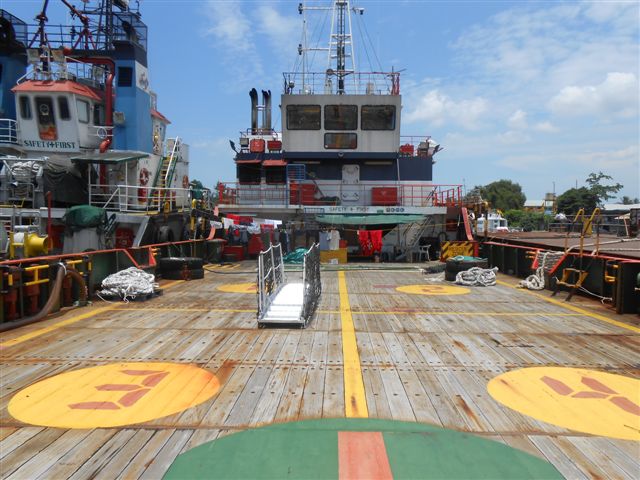

Deck Area: 320m2

Deadweight: 597mt

Displacement: 1025.68mt

Performance

Trial Speed: 11 knots at light ship, 10k at 85% MCR loaded

Power: 2 x 720 BHP @ 180 rpm

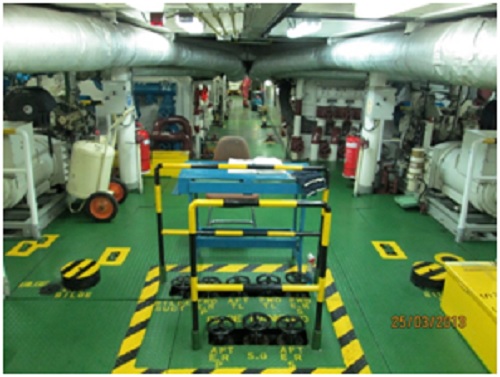

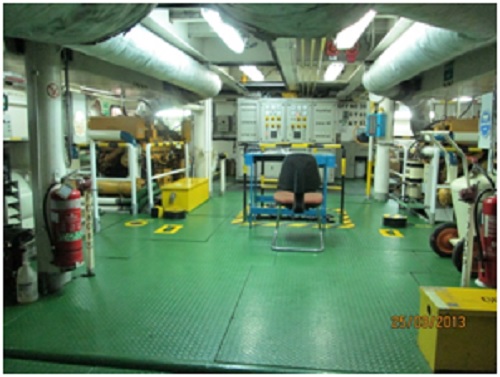

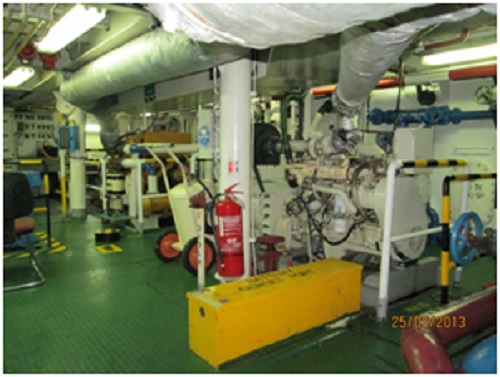

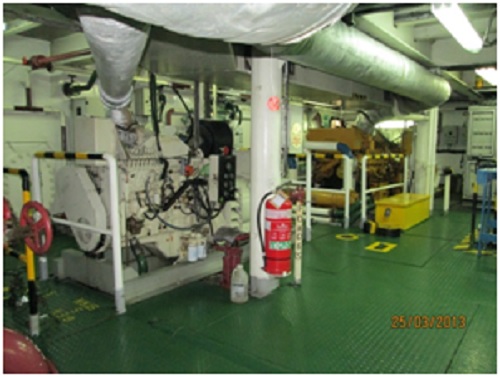

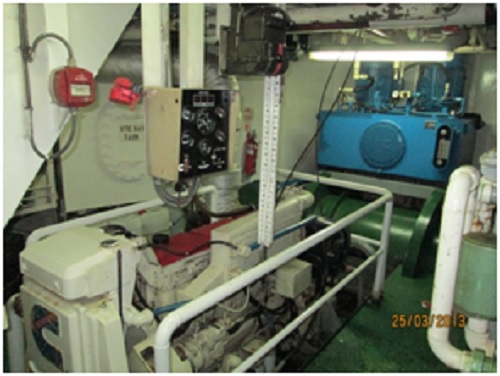

Machinery & Propulsion

Main Engine: 2 x 720hp @ 1800rpm

Caterpillar 3412 c/w Twin Disc MG5202 gearbox

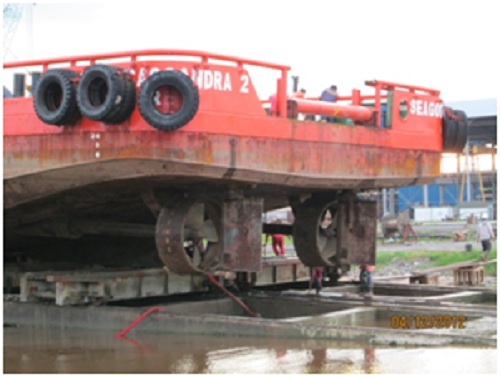

Propulsion: 2 x Fixed Pitch Propeller in Kort Nozzle

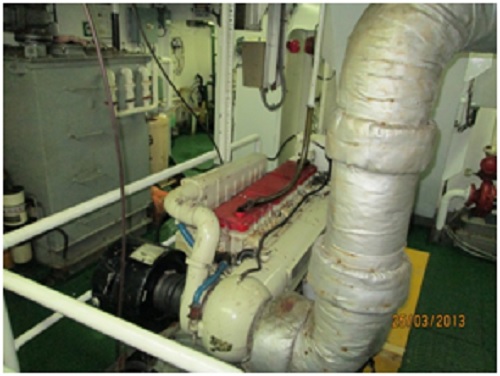

Generator: 2 x 95kW 415/3/50

Bow thruster: 3mt Schottel Tunnel jet type

Input 294 hp CAT3306TA

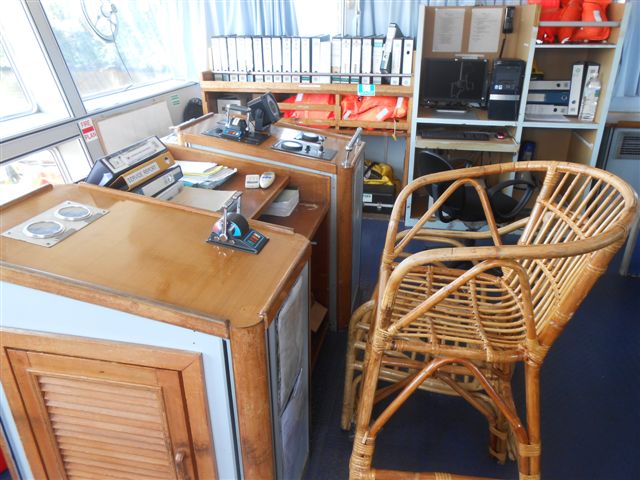

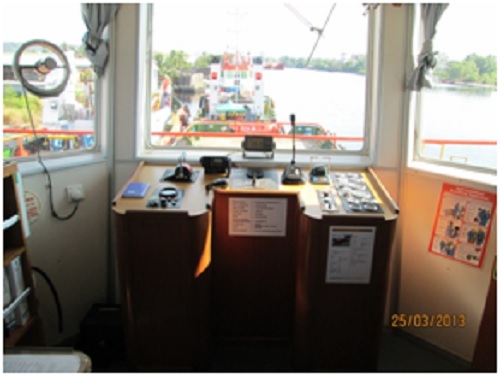

Control: Fwd & aft

Oily Water Separator

Sewage Treatment Plant: 24 Men

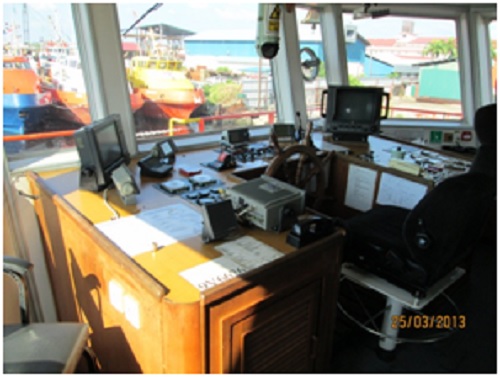

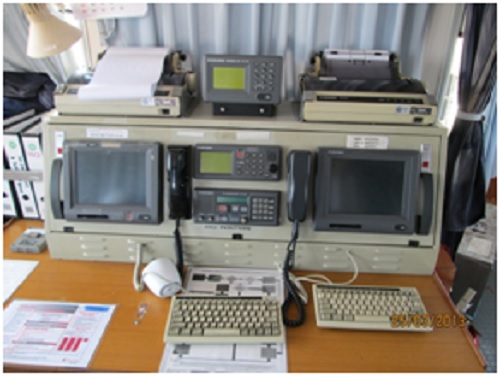

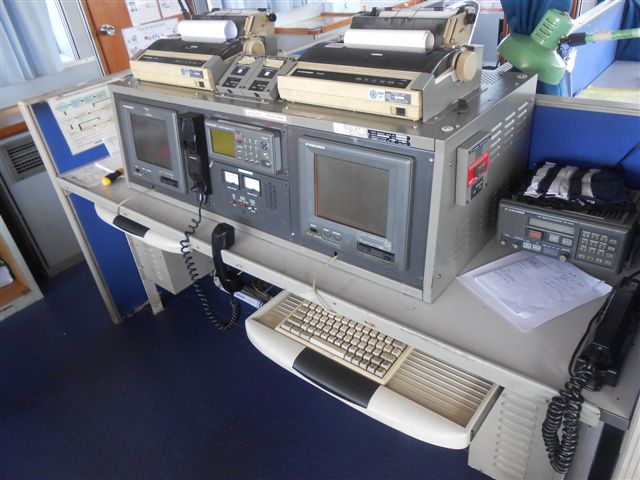

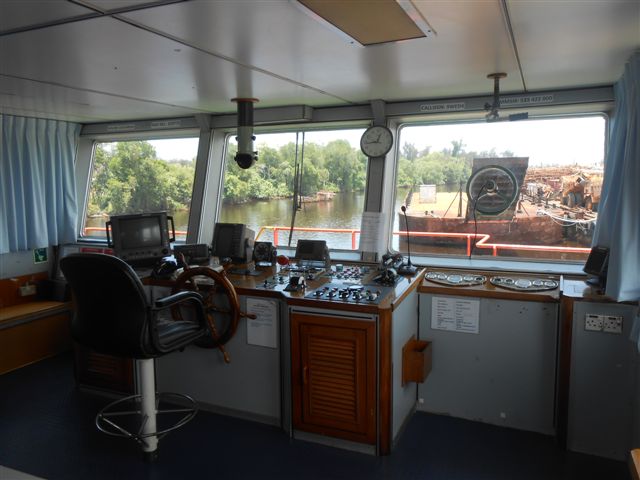

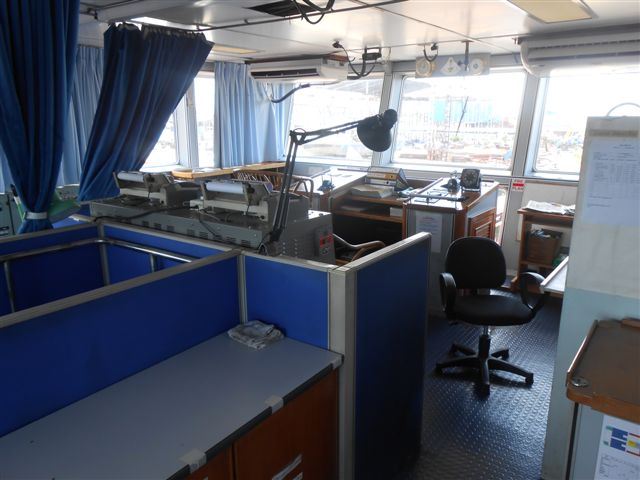

Navigation and Communication

Complied with GMDSS A3 for vessel <500 GRT

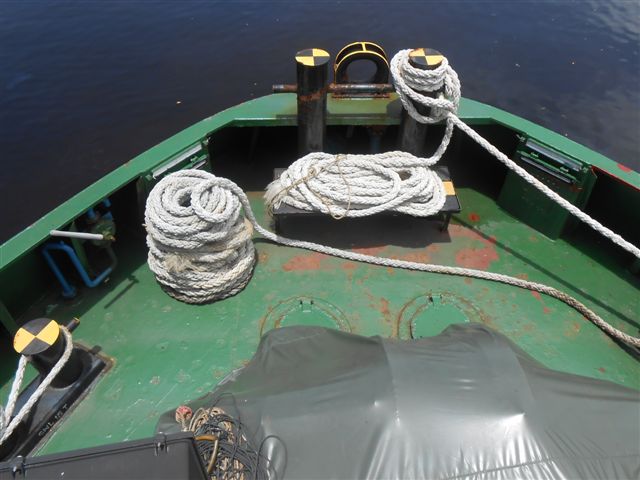

Deck Machinery

Bow Anchor: 2 x 900kg stockless anchor with 9 shackles anchor chain

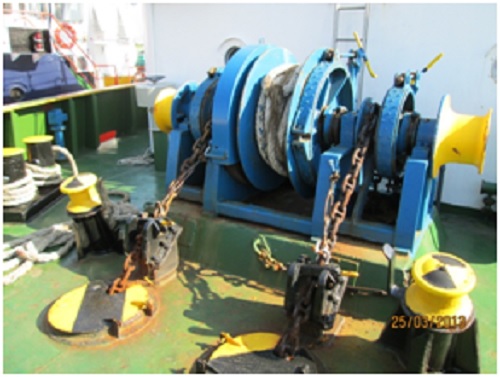

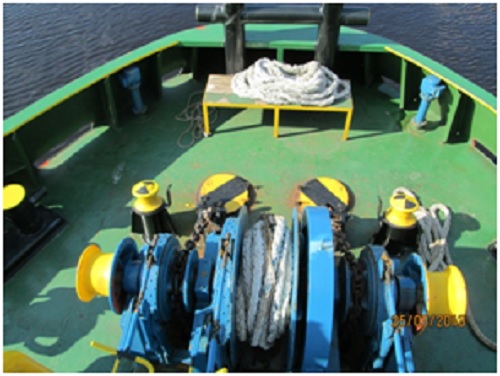

Electro Hydraulic windlass Twin Gypsy c/w 2 wrapping heads c/w hydraulic-electro power pack

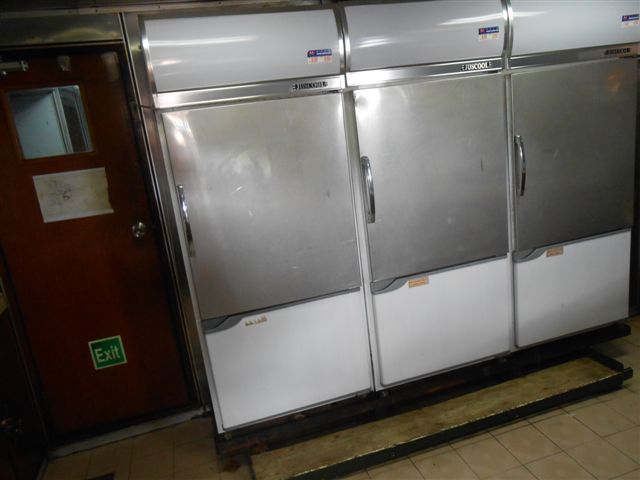

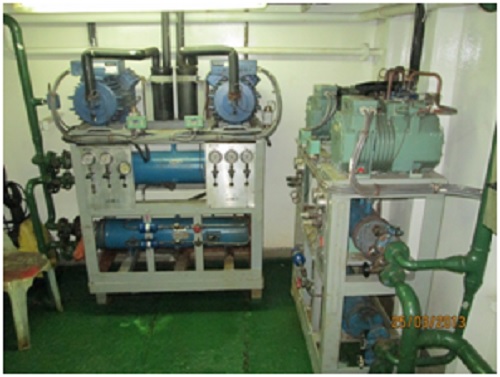

Reefer Point: 6 nos.

Capstan: 1 x 5mt

Tugger winch: 1 unit 10mt

Safety and Firefighting Equipment

In compliance with Class requirement & / requirement of Flag administration. LSA is for 20-men complement.

Rigid Inflatable Boats: 6-men c/w 25BHP outbox engine

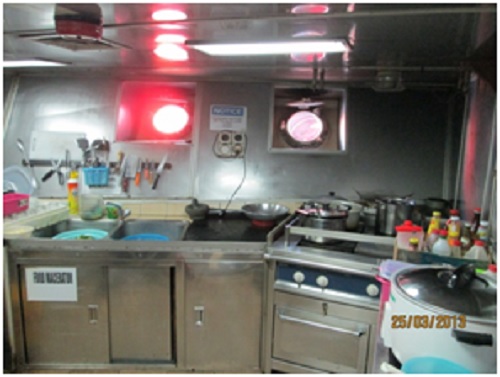

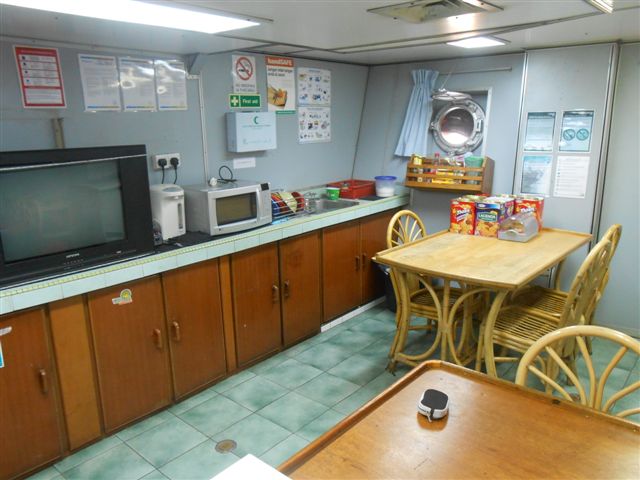

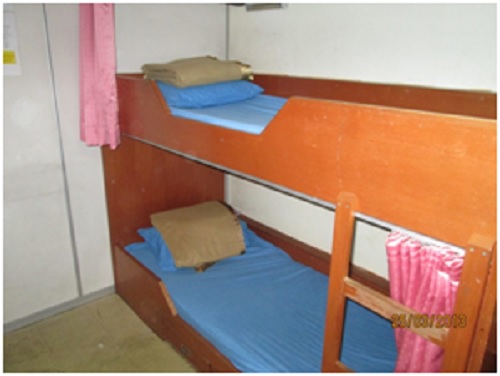

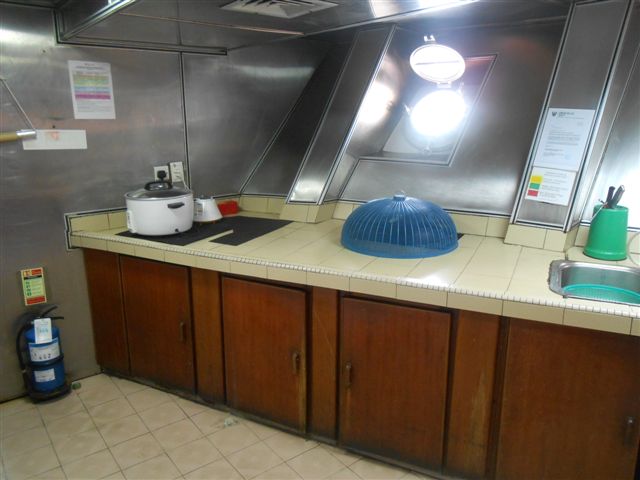

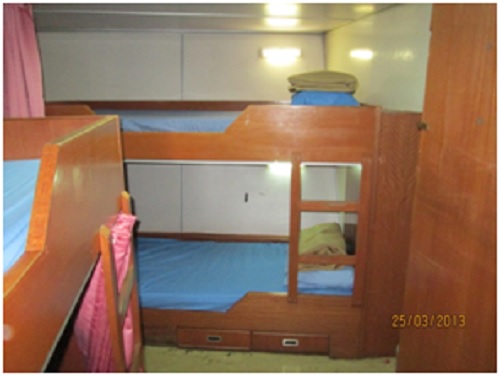

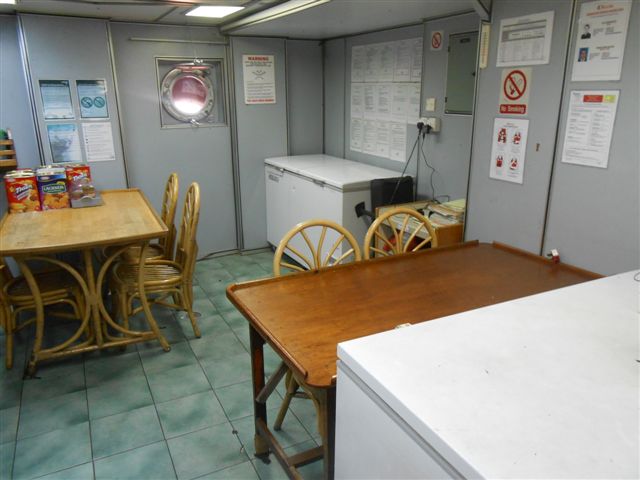

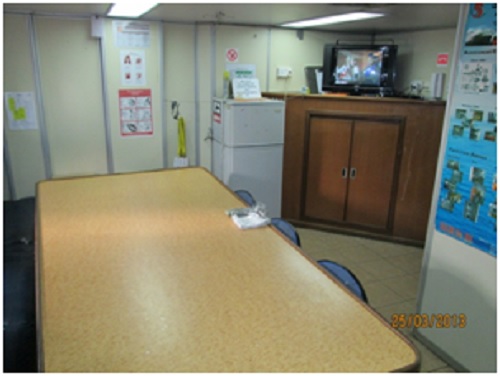

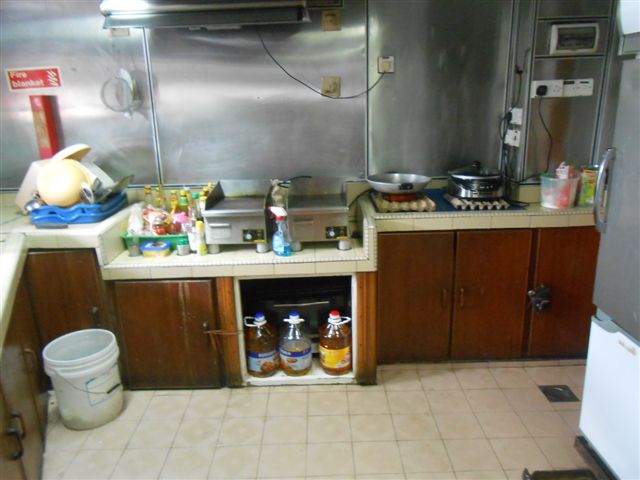

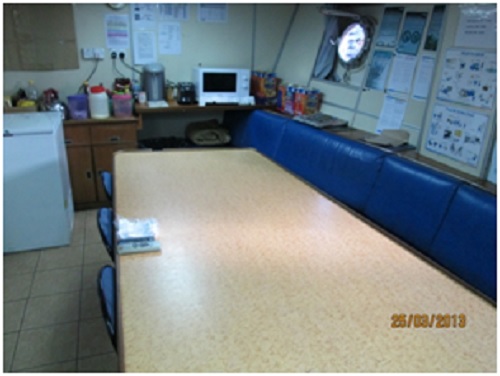

Accommodation

Central Airconditioned: 18 berth including crew

System: Complement
