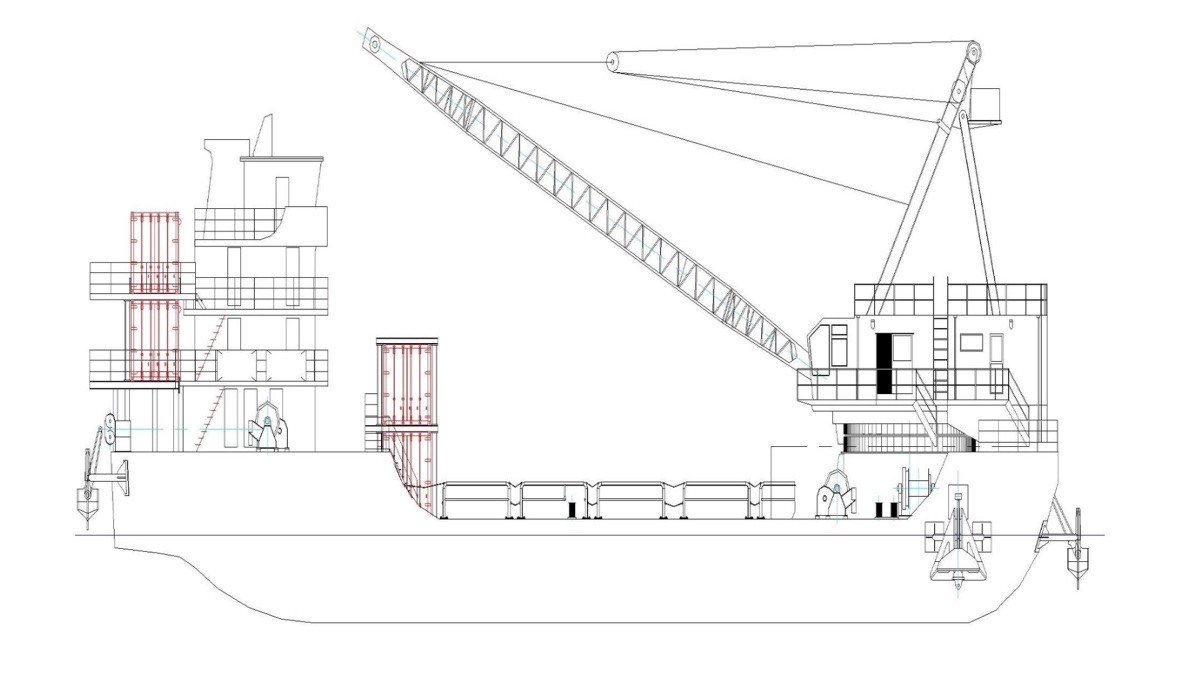

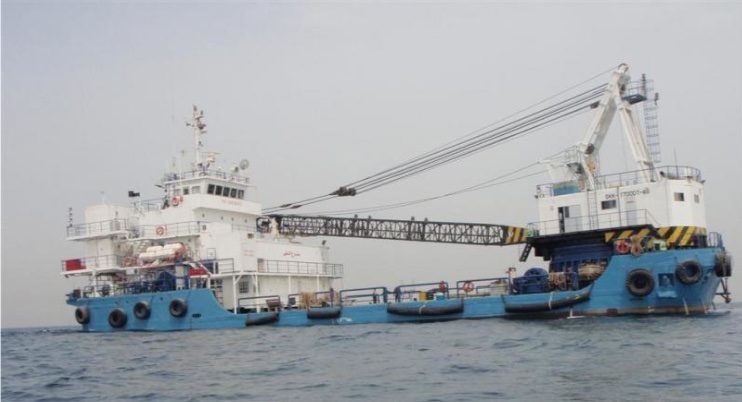

48m 150t Crane Vessel (Heavy Lift) & Diving Support


Listing ID - 3894


Description48m 150t Crane Vessel (Heavy Lift) & Diving Support
Date Launched
1985
Length47.6m (156ft 2in)
Beam17m (55ft 9in)
Draft3m (9ft 10in)
LocationWest Africa
BrokerRichard Pierrepont
richard.pierrepont@seaboatsbrokers.com
+44 7798 607 323
View As PDF

Date Built: 1985
LOA: 47.6m
LPP: 45m
Beam: 17m
Draft Operational: 2.8m
Draft (Max): 3m
Light Ship Draft: 0.75m
Flag: Panamanian
Class: PMDS
Gross Tonnage: 658 Mt
Net Tonnage: 197 Mt
Deadweight: 1060 Mt
Max Speed: 9 Knots
Service Speed: 7-8 knots

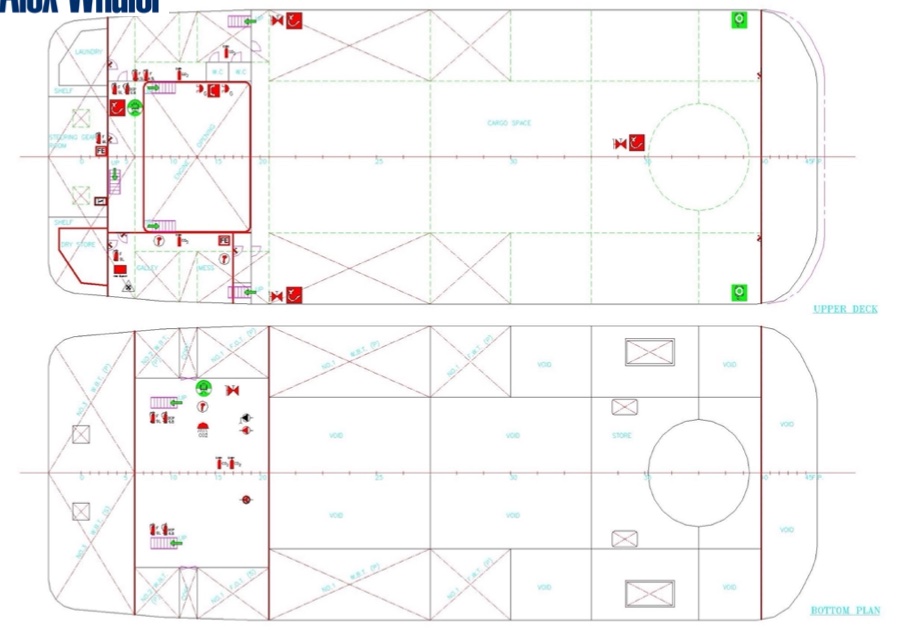

Deck Cargo Space: 400 m2
Deck Loading: 10 MT/m2

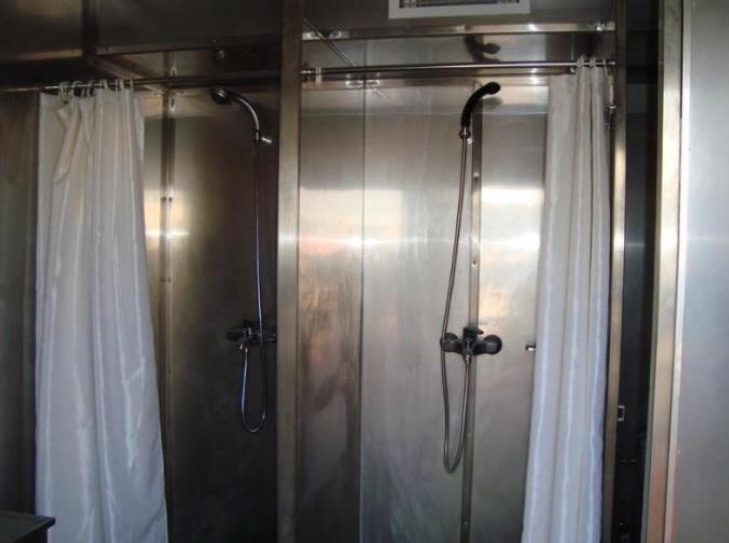

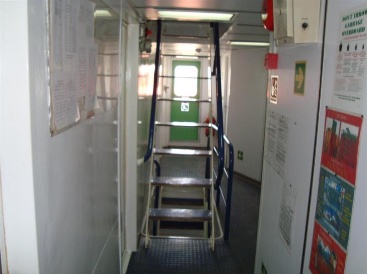

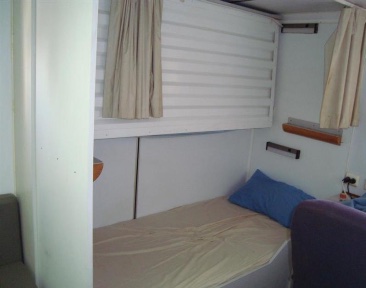

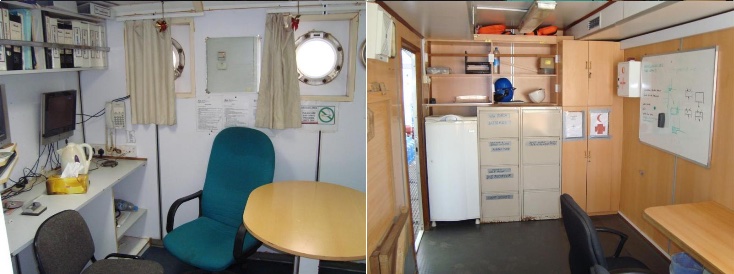

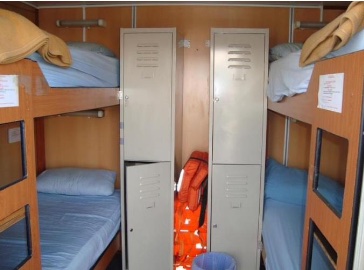

Accommodation : 50 Persons (Fully air-conditioned)
Power: 2* 650 HP (Niigata)
Fuel Consumption: 2.5 T / Day
F.W Maker: up to 16 T / Day
Machinery Container with electric and diesel driven Compressors, UW-Welding and Hydraulic Powerpack

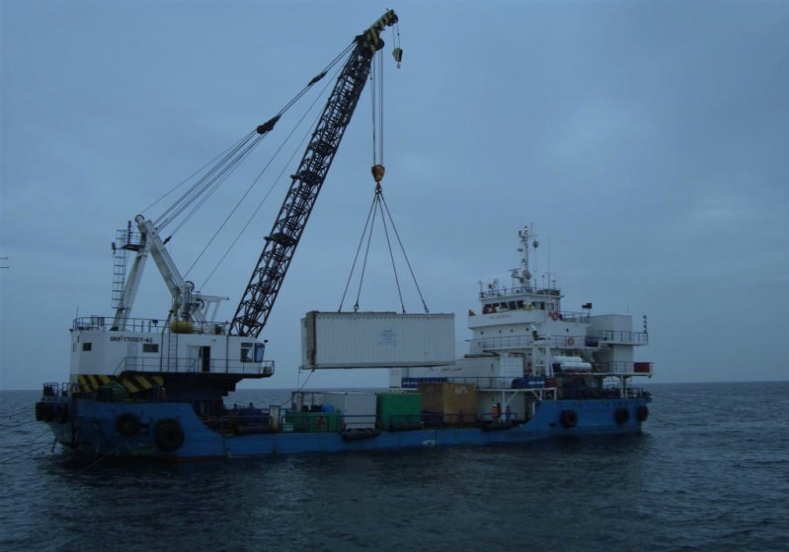

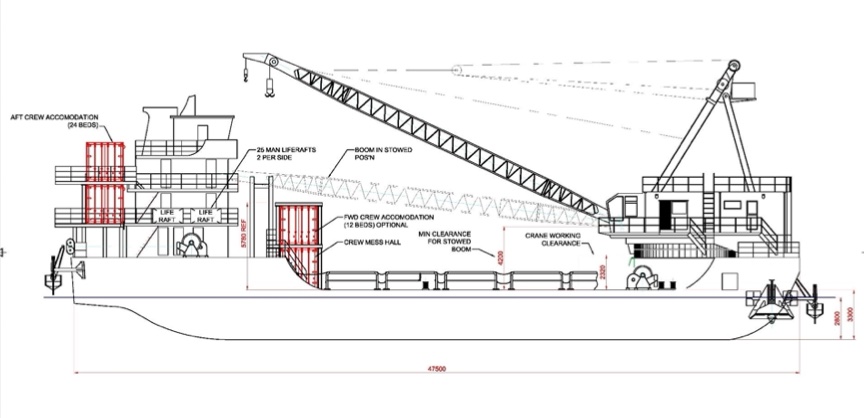

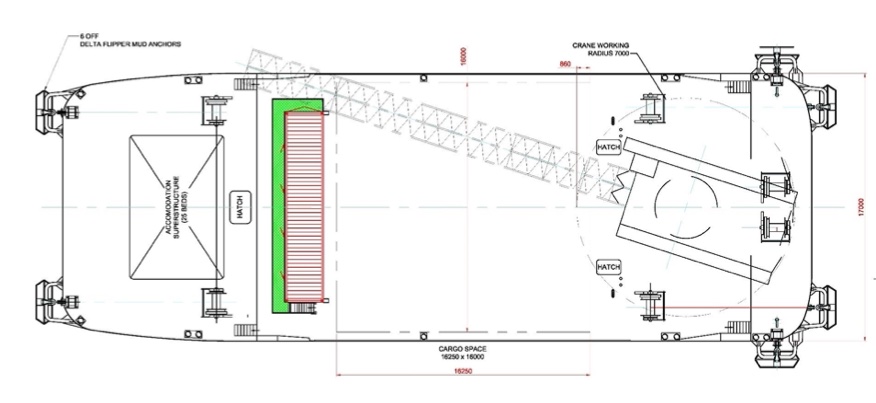

Crane: 150T and 34.5m Boom
6* point mooring

Propulsion and Machinery
Main Engines
Make: 2 x Niigata Ironworks Co. (Diesel)
Model: 6mg /L/ 18 CX
STBD Engine: S/N 17452
PORT Engine: S/N 17453
Cylinders: 6
Rated Power: 1300PS
HP: 650
Rated Speed: 950 rpm
Propellors: 2 x fixed pitch with 4 wings (diameter 1.7m)

Engine Clutches
Model: MGN 486
Clutch Operating: 17-20 kg/cm2
Lube Oil: 2-4 kg/cm2
Main Pump: 20 l/min
Standby Pump: 50 l/min
Pressure: 20 kg/cm2
PORT Clutch: No. 4861079, S03549000
STBD Clutch: No. 4861078, S03548000

Auxiliary Engines
Engines: CATERPILLAR – D348 CAT
Engine 1: S/N 36J2022
Engine 2: S/N 36J2015
HP: 480
RPM: 1500
Max Altitude: 1400

Main Generators
Model: 2 X Perkins 1300 series (1306C-E87TAG6), synchronised (installed in 2013)
Capacity: 2 x 250 KVA, 220V/400V, 50Hz (Optimum power output 350KVA)

Emergency Generator
Make: Perkins
Rated Power: 125 KVA
Poop deck providing alternative (or emergency) power for general purpose use and when in port. 1 X Atlas Copco LP Compressor delivering 311cfm at 12Bar
2 x Lincoln Welding Generators (Optional)

Cooling Sea Water Pumps
Bilge Pump – No 83251
GS Pump, bore 80mm, type SM, capacity 25m3/h, total head 26m
RPM 1800, power 5.5kw, manufacturer: Ishikura Pump Meg Co Ltd
Fire pump – No 83252
GS pump, bore 80mm, type SM, capacity 25m3/h, total head 25m
RPM 1800, power 5.5kw, manufacturer: Ishikura Pump Meg Co Ltd
Crane cooling pump – No 83253
GS pump, bore 80mm, type SM, capacity 25m3/h, total head 25m
RPM 1800, power 5.5kw, manufacturer: Ishikura Pump Meg Co Ltd
Cooling SW pump for A/E 1
Ajax – Elite; size E65-20-A20C; serial no. 33987 – 2C imp. Dia 214/F
manufacturer: KSB Aja Pumps PTY Ltd, Australia
Cooling SW pump for A/E 2
Ajax – Elite; size E65-20-A20C; serial no. 2002/004 Imp. Dia
manufacturer: KSB Aja Pumps PTY Ltd, Australia

Pre Lube Oil Pump for Main Engines
BORE 50m/m, type HMG, capacity 10m3/h, RPM 1200, head 20M, power 2.2kw, no. 83242, manufacturer: Ishikura Pump MFG Ltd

F.O. Transfer Pump
BORE 25 m/m, type HMG, capacity 3m3/h, RPM 1200, head 20M, power 0.75kw, no. 83257, manufacturer: Ishikura Pump MFG Ltd

Motor Compressor
No 58-30252, SKH-2ME, RPM 1550, capacity 10.5 m3/h, max P – 30kg/cm2

Deck Motor Compressor
Atlas Copco XA146 with 320cfm/12ltr/sec @8bar, weight 1.8t

Governors
A/E no.1 governor
Type WOODWARD UG8; designation A8520-314; governor RPM 1100-1550; serial no. 1345211 Speed motor: type V-10R V115 Hz60/DC; No Z0427488; RPM 3 INSA; Toro OZ IN 24
A/E no. 2 governor
Type WOODWARD UG8; designation A8520-314; governor RPM 1100-1550; serial no. 1390456 Speed motor: type V-10R V115 Hz60/DC; No Z0427374; RPM 3 INSA; Toro OZ IN
M/E governors
DIESEL KIKI – PHD6-PC 105856-2350 STBD Eng. Ser. No. 34612222
PORT Eng. Ser. No. 34812438
Oil SAE 20-40
Gov. speed 400-2000 RPM Change oil – every 3000 h

Mooring System
The vessel has a 6-point mooring system with 3.7 ton Delta Flipper anchors.
Winch: Single Drum
Make: APOA 7R Hydraulic
Manufacturer: Daido Heavy Machinery Co.
Rated Capacity: 12000 kg f.
Rated Speed: 10/12 m/min
Wire: each 3000ft of 32mm dia.
Hydraulic Pump for Winches: Daido Heavy Machinery Co, type A-7-0010 approx. 0012A
Video Monitoring System
Bridge monitored remote payout & load meters
Camford communications linked throughout

Safety Equipment
The vessel is outfitted with safety equipment to comply with the safety requirements as set out in the vessel safety plan in accordance with SOLAS.
The vessel is equipped with one rescue boat capable of accommodating 8 people and 8 liferafts (self- righting/with self-contained air support system/fire protected) with the capacity to accommodate 200 people as well as 12 life buoys and 112 life jackets.
Rescue boat launching and recovery arrangements: Davit, radial type, 2 Tons / Winch, electric motor, 2Tons
Line throwing appliances with 4 rockets and lines – COMET (loc. wheel house)
12 rockets parachute flares – KORYO (loc. wheel house)

Fire Fighting
8 smoke detectors (TYCO), located on bridge, Capt. deck, poop deck, mess room, engine room & other
Fire alarm (C-TECH alarm bell), located on bridge, Capt. deck, poop deck, mess room, engine room & other
Control panel on bridge, alarm is automatically activated if fire signal not acknowledged in 2 minutes
Fixed CO2 firefighting systems complete with T100 Marine Controller Fire Monitoring Systems.
Fire hydrants and extinguishers according to specifications.
A comprehensive H2S and LEL detection is installed, comprising of 4 deck-mounted sensors, with remote monitors on the bridge.

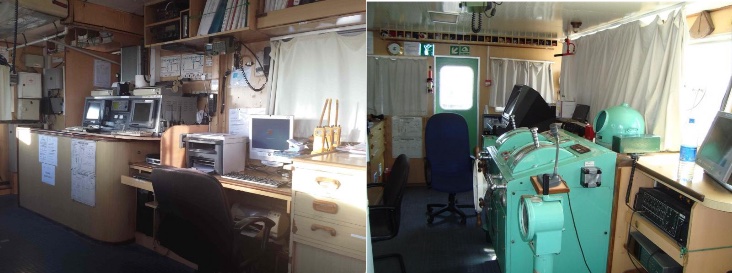

Bridge Navigation and Communications Systems
VHF Sailor: 2 sets
SSB ICOM: 3 sets
GMDSS: Area A1, A2 and A3 (International)
9 GHz Radar: Furuno FAR2817
9 GHz Radar Transponder: TAIYU MUSEN TBR600A (3 sets)
Second Radar: ICOM MR1200
ATA: Furuno FAR2817
Magnetic Compass: Daiko Keiki
Gyro Compass: Anschutz Kiel Standard ST-06
GPS Chart Plotter: GARMIN (MAP 4008)
GPS Chart Plotter: SAMYUNG (NAVIS 3000)
BNW AS: Samyung BNW50
Echo Sounder: dual digital and paper
Satellite E.P.I.R.B.: COSPAS-SARSAT
A.I.S. as required for ISPS: COMNAV X3 Class A
LRIT: SATAMATICS SAT201i
Speed and distance measuring device through the water
Echo Sounding Device: HONDEX HE-770
Rudder angle indicator: TOYO KEIL
Propeller revolution indicator
Telephone to Emergency Steering Position: PANASONIC
General Emergency Alarm System: Bridge, accommodation, alleyways, stores & engine room
Public Address Systems: Speakers in accommodation, alleyways, mess room, galley, main deck & engine room
Navigation Lights: Fore masthead/Main masthead/Port side/Stb side/Stern/Anchors # 1 & 2/NUC

Signaling Apparatus
Day Light Signaling Lamp: ALDIS lamp (loc. Bridge)
Forecastle Bell: Bronze (loc. F’ctle)
Ship’s Whistle: electric (loc. Bridge top)
Weather fax / Navtex
INMARSAT ‘C’ Satellite System
Camford Hard ware communication systems to Bridge, Crane, Dive Control, ROV/Survey Control, Project Office and Engine Room.
100 Mb Ethernet LAN connecting offices, bridge and owner / client cabins.
Internet access via SAT DSL (3Mbps)
WLAN up to 20km radius from the vessel can be provided.
Satellite Data/Communications System

Tank Capacities
Marine Gas Oil: 65T
Potable Water: 120T
Water Ballast: 374T
Lube Oil: 1000L

Fuel Consumption
Cruising Mode: 2.5T/day
On Anchor Pattern: 0.6T/day
Lube Oil: 16L/day (avg)

Water Maker
Water Maker: Selmar-Atlantic-SW700, serial no. 3051
El. Supply: 400V, 50Hz 3-phase
Consumption: 15A
Working Pressure: 850pci-60bar
Water Temperature: 1-46C
Automatic Shutdown: 1000pci-70bar
Filtration: 3x5x20”spun polypropylene
Max Silt Density Index: 5
NTU Max: 1
PH Value: 2-11
Chlorine Tolerance: 0.1 ppm
Typical Salt Reject: 99.1%
Fresh Water Production: Up to 16 Tons/Day
Max Feed Water Input Rate: 2600L/H
Minimum Required Input Pressure: 1 bar
Membrane Containers: Fiber glass
Flushing System: Manual

Sewage Treatment Plant
Certified Hamworthy Super Trident-8

Modular Accommodation Units
Modular accommodation units can be added subject to Client requirements.

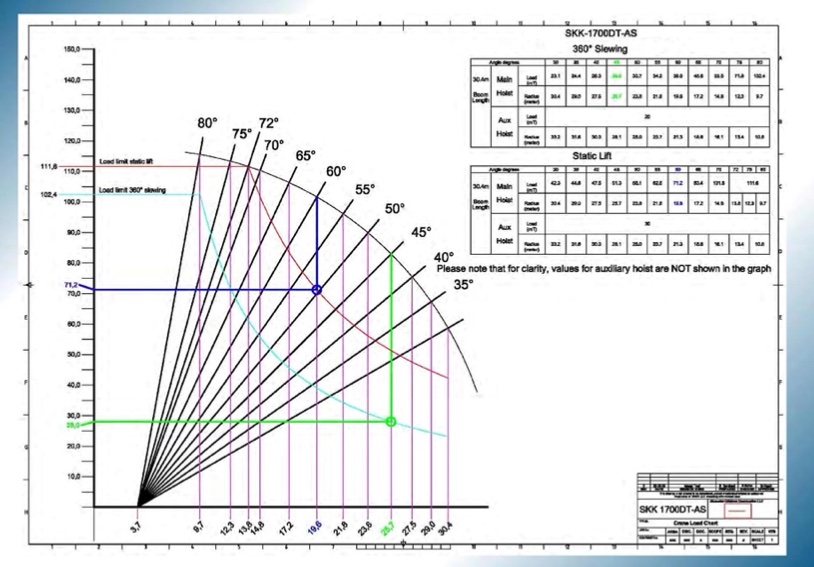

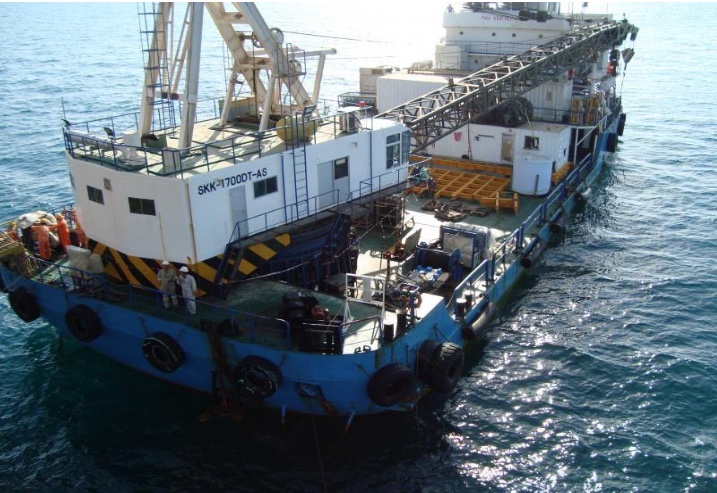

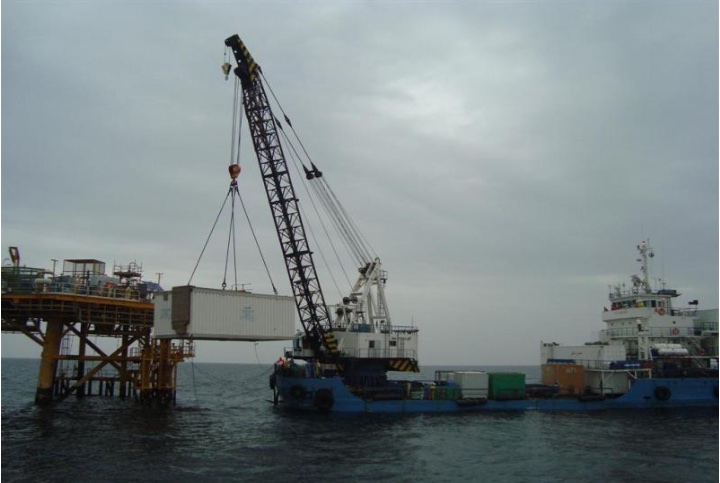

150ton Main Crane (Rigged for 120ton)
Model: SKK-1700DT-AS, Total Rotating System, Shikoku Kenki Co LTD, Kochi, Japan
Main Engine: Yanmar Diesel Engine 1 x 6LAAL-DTN-1
Rated Power: 470PS
Cylinders: 6
RPM: 1800
Engine Clutch: NIIGATA CONVERTER CO LTD, Model TDCIN 11-26045, ser. No. TY1126056
Air Compressor: Small sized reciprocating, type GN J5-3, 39kg/cm2, 58mmx2x98mm, 3.7kw, 875 RPM
MEJI AIR COMPRESSOR MFG CO LTD, OSAKA JAPAN
Air Bottle: SKK – 900 DTA, No x 42884
Crane Wires Diam: Main SWR D/A 38,35mm, Aux SWR D/A 37,79 mm, Boom D/A 28,75 mm

Boom Length: No. 1: 33.5 meters
Hook Capacity: No. 1: 120 Tons @ 8.3 m
Working Radius: No. 1: 8.3 to 23.1 m
Hoist Speed: No. 1: 0-6m/min
Lowering Speed: No. 1: 6m/min
Wire Rope: No. 1: 36mm dia. 8 Falls
Whip Line: 34.5 meters
Whip Line: 30 Tons
Whip Line: 9.2 to 25.9 m
Whip Line: 0-25m/min
Whip Line: 0-25m/min
Whip Line: 28mm dia, 2 Falls

Tugger Winches: 3 x 2.0T each
(Optional 2 x 5.0T additional if required)

On Board Surface Supplied Air Dive System
SMS Air/Mixed Gas Dive system can be made available according to Client / Project requirements. The system comprises of three units all housed in 20ft ISO containers, dimensions being L x W x H = 5900 x 2330 x 2380 mm.

DDC-Dive Control Container
60” Air Dive Chamber ADC 2011/101
Built: 2011
Built by: Shreeji Engineering
Inspected by: M/S Bureau Veritas
Rules Code: ASME SEC. VIII DIV. 1-1ED 2008
P.P. No.: SWE-SE-001
Capacity: 6762L
MFG. Sr. No.: SE-757
Content Fluid: Air
Material of Construction: SS316
Design Pressure: 135/1.055 kg/cm2 (g)
Radiography: 100%
Corrosion Allowance: 1mm
Heat Treatment: NIL
Test Pressure: 212 kg/cm2 (g)
Weight Empty: 2860 kg
Full of Water: 9622 kg

Dive Control
Dive Panel: Three Diver Air/Mixed Gas
Video Systems: Hat mounted – 2 systems, All remotable, Hand Held System (option), Remote from ROV/survey desk, Chamber Monitoring System
Communications Systems: Three Diver, Camford Comms remotable, VHF base station & hand held units
Thuraya phone system
Gas Analysis: Divers & Chamber
Burning/Welding: Remote control
IMCA Medical Kit: 2 x BA sets, Chamber Drench and fire suppressant system
Computer Systems: Project laptop, net-workable

Machinery Container
Diving Compressor No: 1 – Diesel
Bauer HP Compressor
Manufacturer: Norfolk Virginia USA
Date of Manufacture: 05/2002
Model No: K10-D/A
Block no: B/5610/01
S/N: 024532
Max Pressure: ~5000 PSIG
Capacity: 8.5 CFM
Charge rate: 10.2 CFM
Motor: 10 HP

Diving Compressor No. 2 – Electric/3 phase L&W
(Lenhardt & Wagner) HP Compressor
Manufacturer: Germany
Date of Manufacture: 2012
Model No: LW 570E
S/N: 61281110
Max Pressure: 225 bar Charging
Capacity: 20.1 cfm Power: 15 kW
Speed: 1060 rpm

Machinery
Hydraulic Power Pack x 2 Welding/Cutting machine x 1
Firefighting sprinkler system
All spares and ancillary equipment

Non-Containerized Units
Diving Compressor No. 3 - Diesel
L&W (Lenhardt & Wagner) HP Compressor
Manufacturer: Germany
Date of Manufacture: 2005
Model No: LW 450D
S/N: 2716/8/03
Max Pressure: 225
Charging Capacity: 15.9 cfm
Power: 11 kW
Speed: 980 rpm

Workshop/Rigging/Tools Container
Workshop unit containing all ancillary equipment, spare parts, equipment specific tools, project tools & rigging.
Additional equipment includes scuba replacement packs, digital hand held camera systems and a full range of underwater tools depending on Client/Project requirements.

Diving Ancillary Equipment
5 X KMB 27 Helmets
6 X KMB 18 Band Masks
3 X 300 m Jacques Diving Hoses
2 X 150 m Jacques Diving Hose
