47m Landing Craft

Listing ID - 2123
Description	47m Landing Craft
Date Launched	2009
Length	47m (154ft 2in)
Beam	11m (36ft)
Draft	2.7m (8ft 10in)
Location	Malaysia
Broker	Richard Pierrepont richard.pierrepont@seaboatsbrokers.com +44 7798 607 323
Price	USD 1.35 Million (negotiable)
View As PDF

PRINCIPAL PARTICULARS

Vessel Type: Landing Craft Tank

Year of Built: 2009

Classification: BV

DIMENSIONS

Length Overall: 47.00m

Length B.P: 43.21m

Breadth Moulded: 11.00m

Depth Moulded: 3.20m

Draft Designed: 2.50m

Draft Max: 2.70m

Deadweight: 520 tons

Gross Tonnage: 499 Tons

Net Tonnage: 149 Tons

Speed: 11.0 Knots (approx)

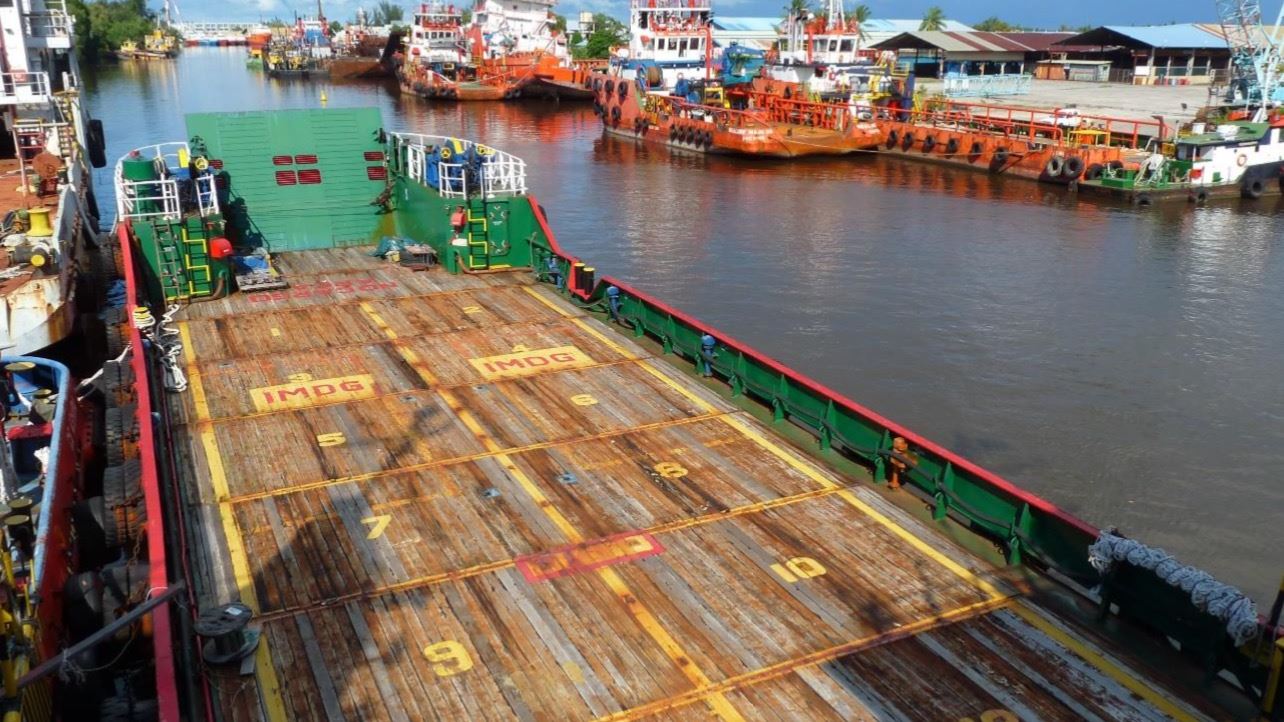

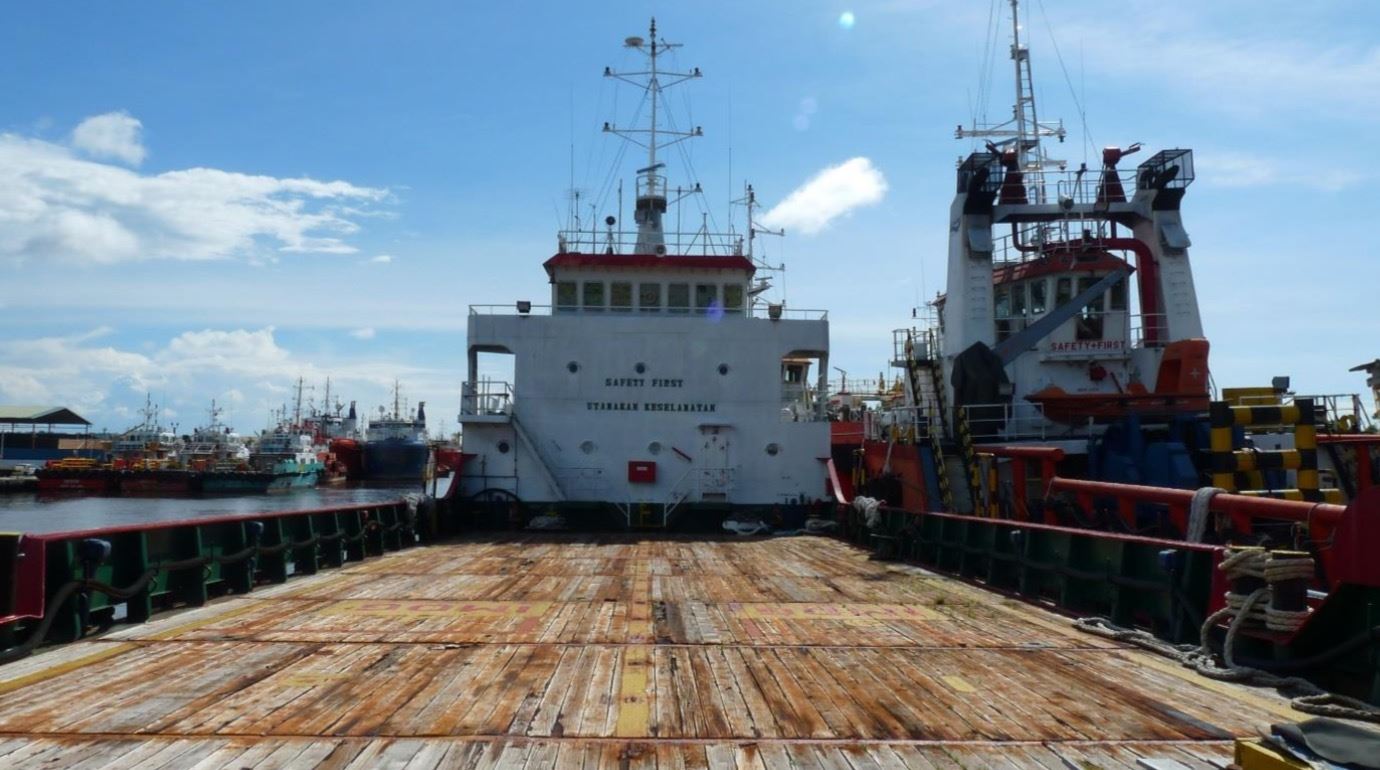

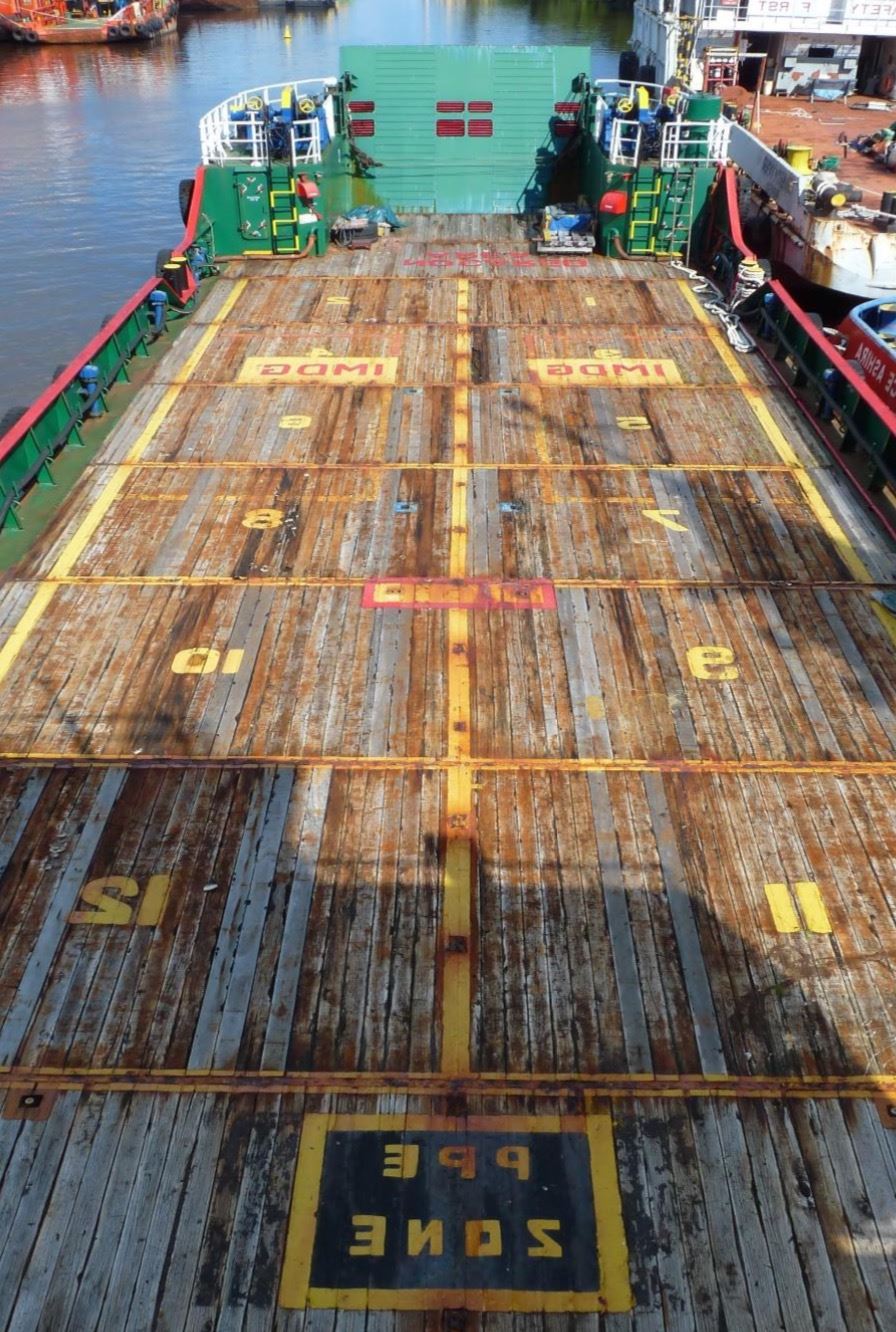

Deck Space: 276m²

Deck Cargo: 150 Tons

Deck Strength: 5t/m²

Freeboard: 7.4m

TANKAGE

F.O. Capacity: 69 Tons

Long Range F.O. Tank Capacity: 195 Tons

F.W. Capacity: 54 Tons

F.W. Cargo Tank Capacity: 269 Tons

B.W. Capacity: 182 Tons

MACHINERY

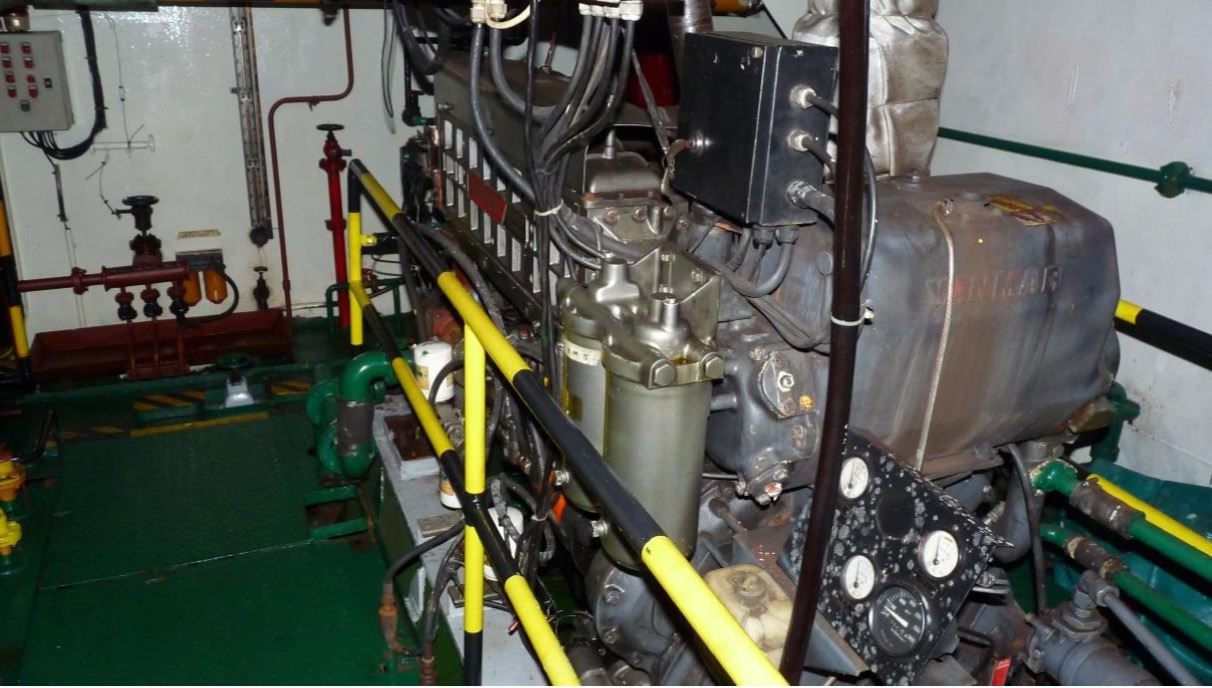

Main Engine: 2 x 630BHP @ 1900RPM Yanmar 6LAH-STE3

Reduction Gear: Reinjes WAF 364L, 4.481:1

Propeller: 2 x 4 bladed manganese bronze FPP

Bow Thruster: 1 x transverse bow thruster of approx. 3 Tons driven by Cummins 6BTA5.9M @ 315HP

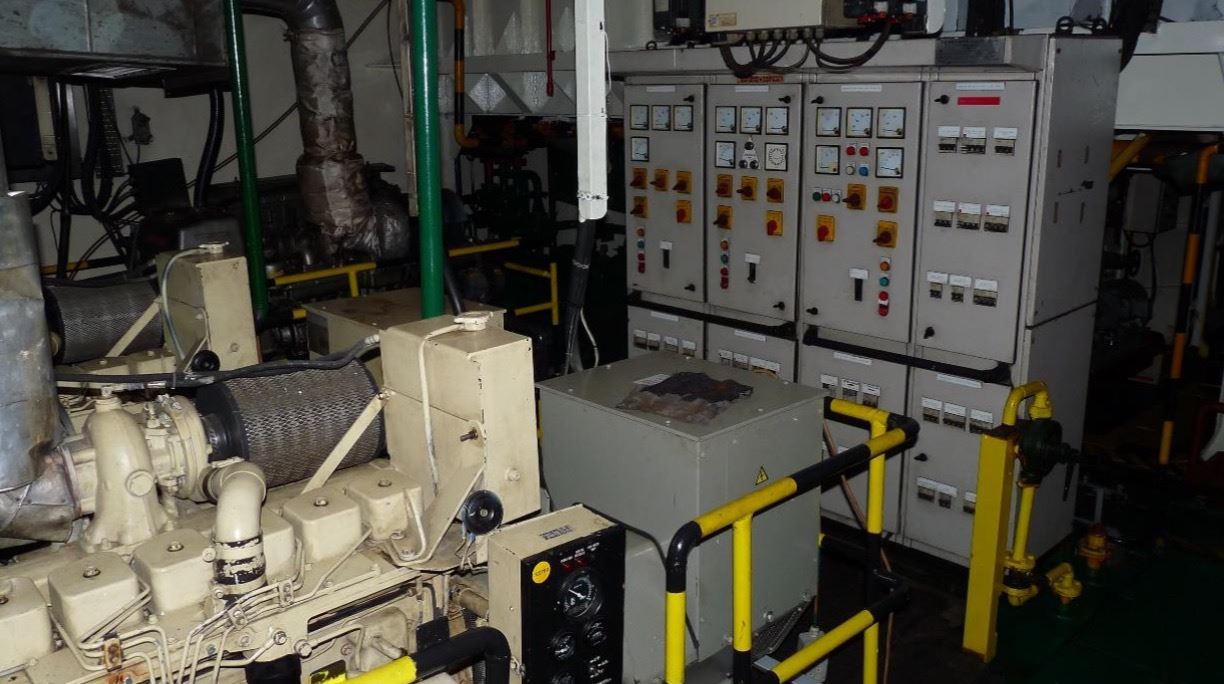

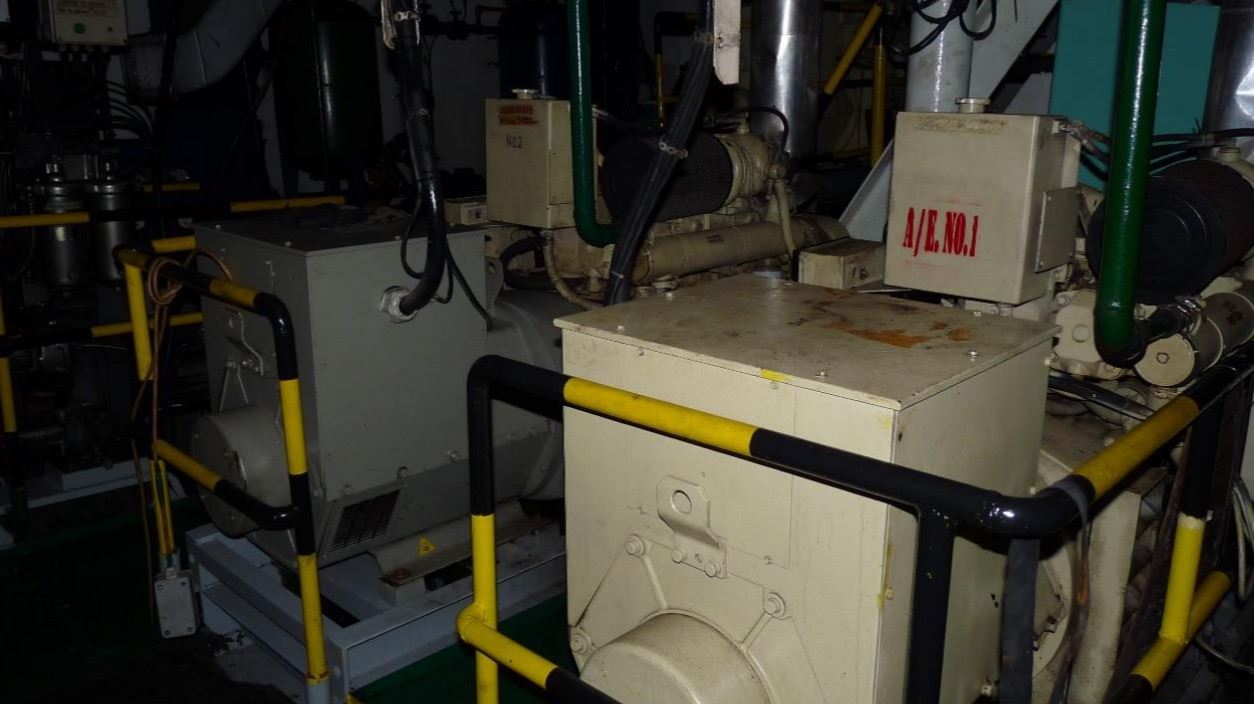

Generator: 3 x 80kw Cummins 6BT5.9DM

ACCOMMODATION

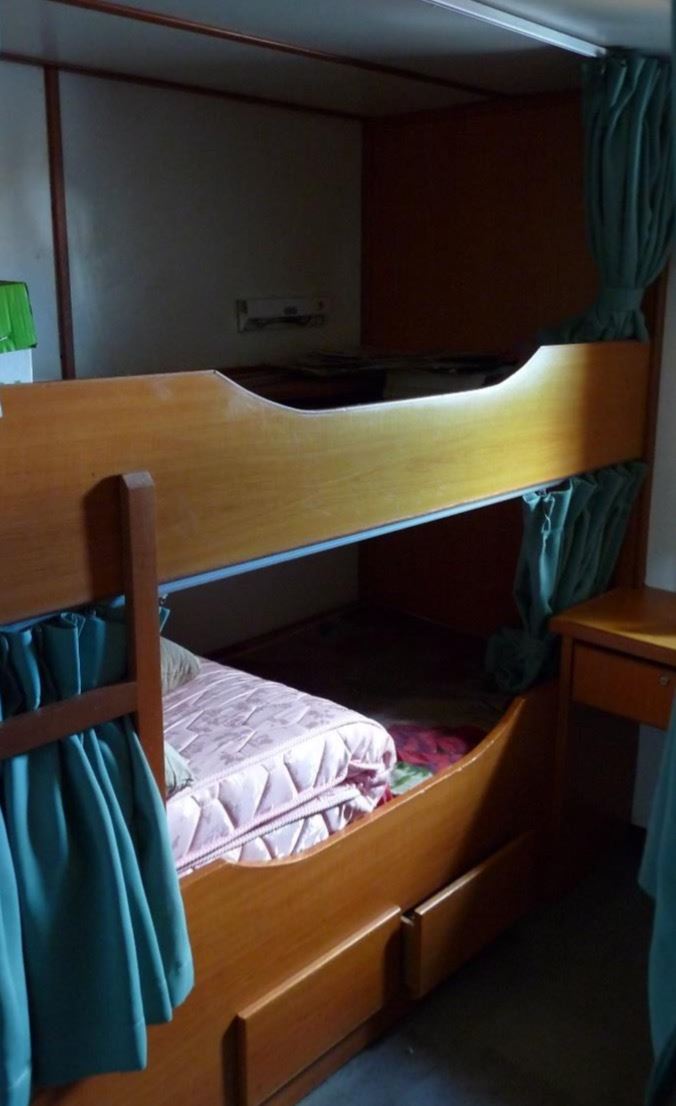

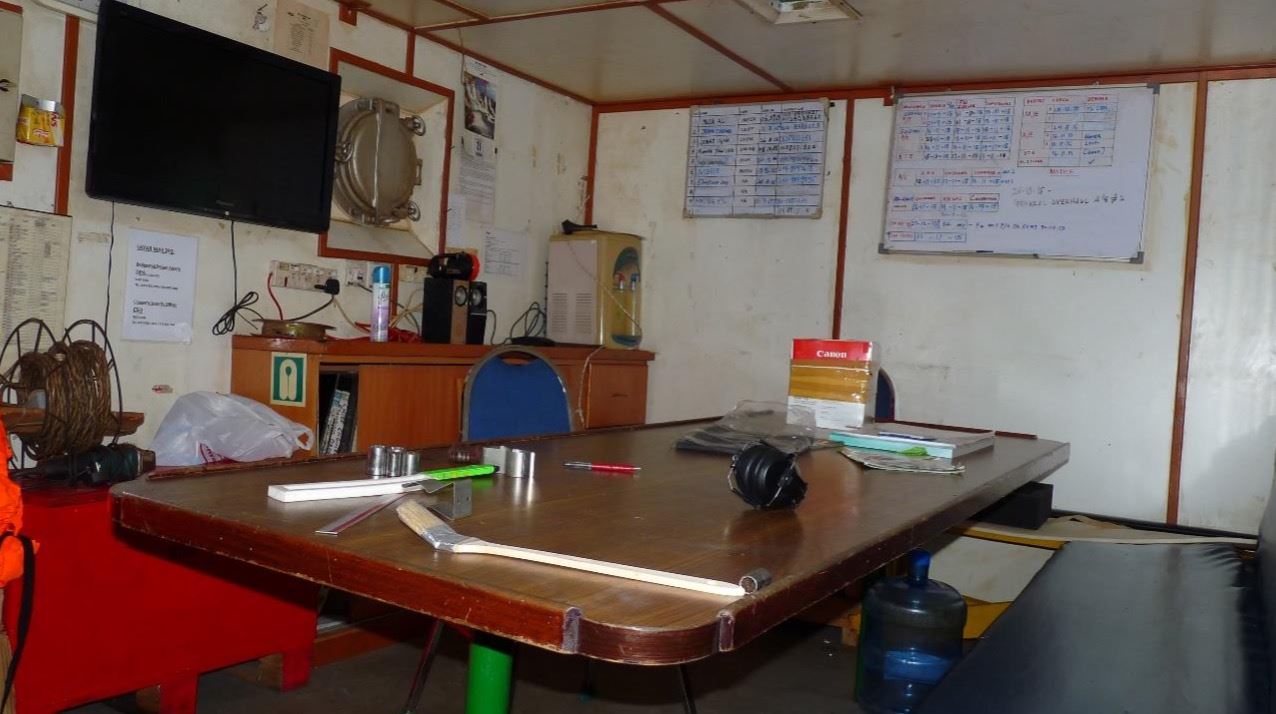

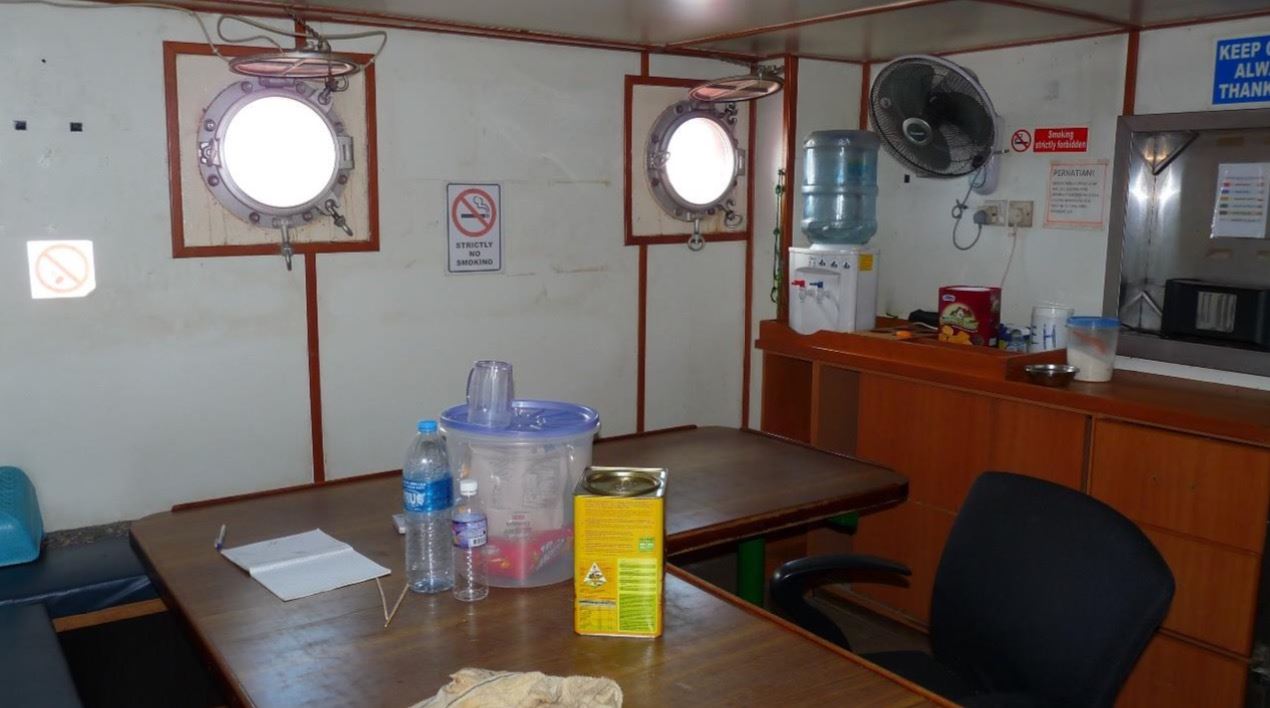

For 20 men with 2 cabins for Captain and Chief Engineer, 3 two-man cabins, 3 four-man cabins

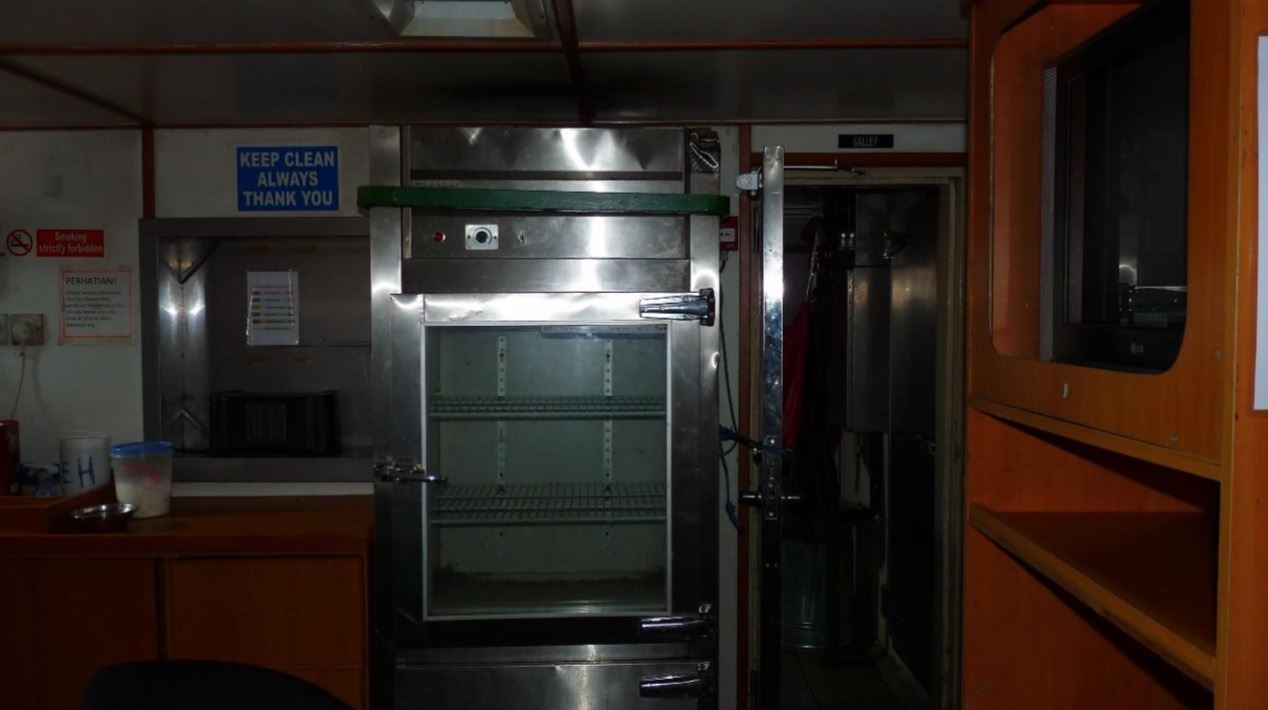

Cool & Freezer room: Min. 3 cum for each (walking), temperature range -18◦C for freezer room and +4◦C for cool room

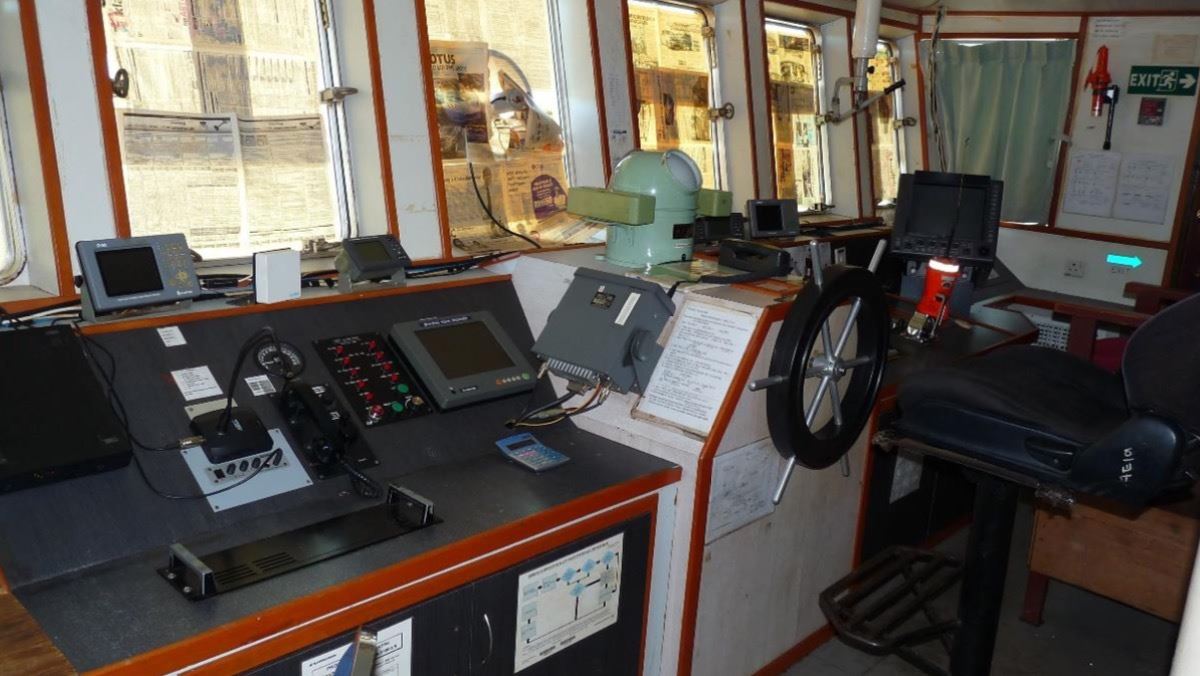

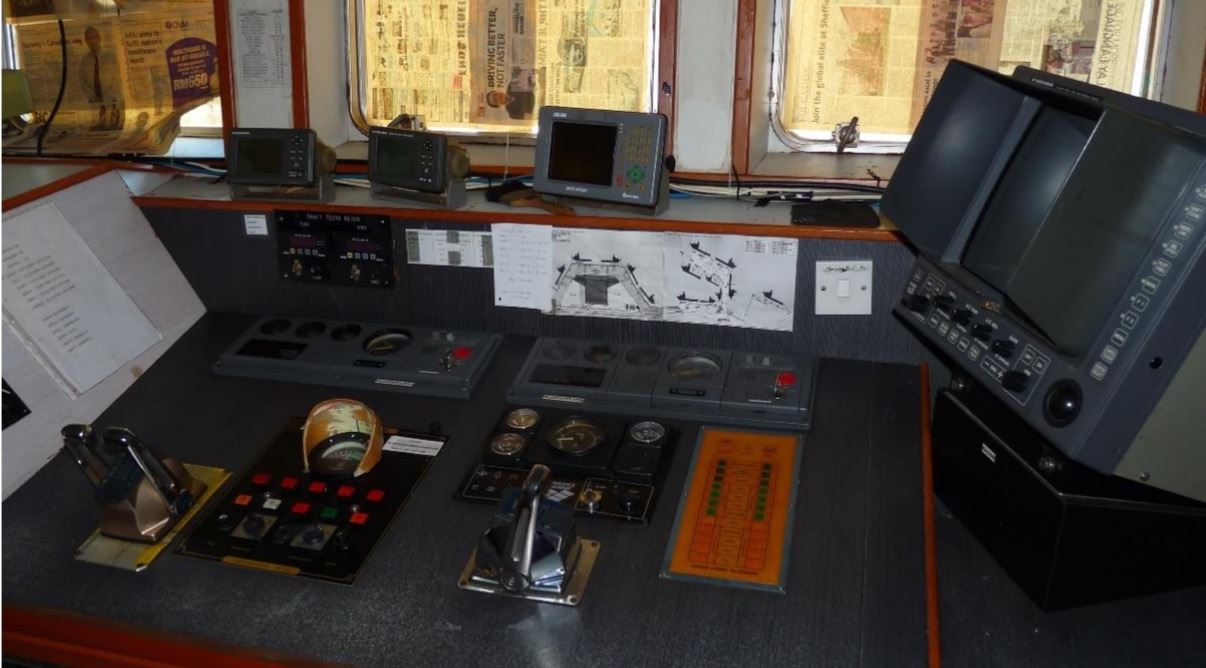

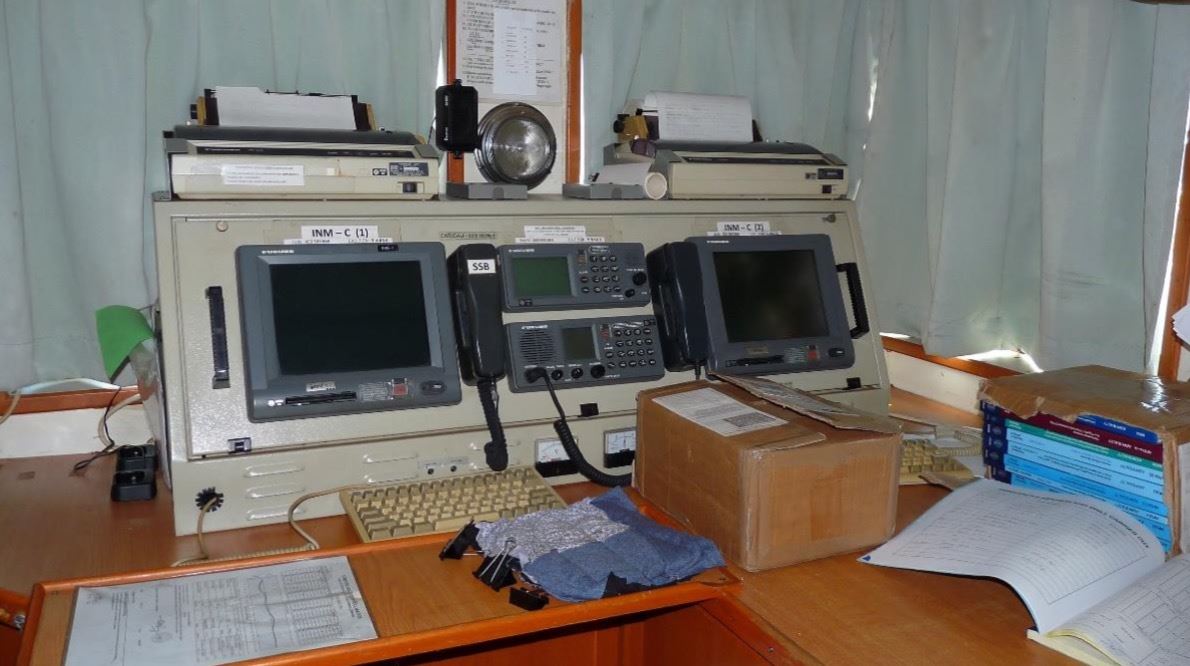

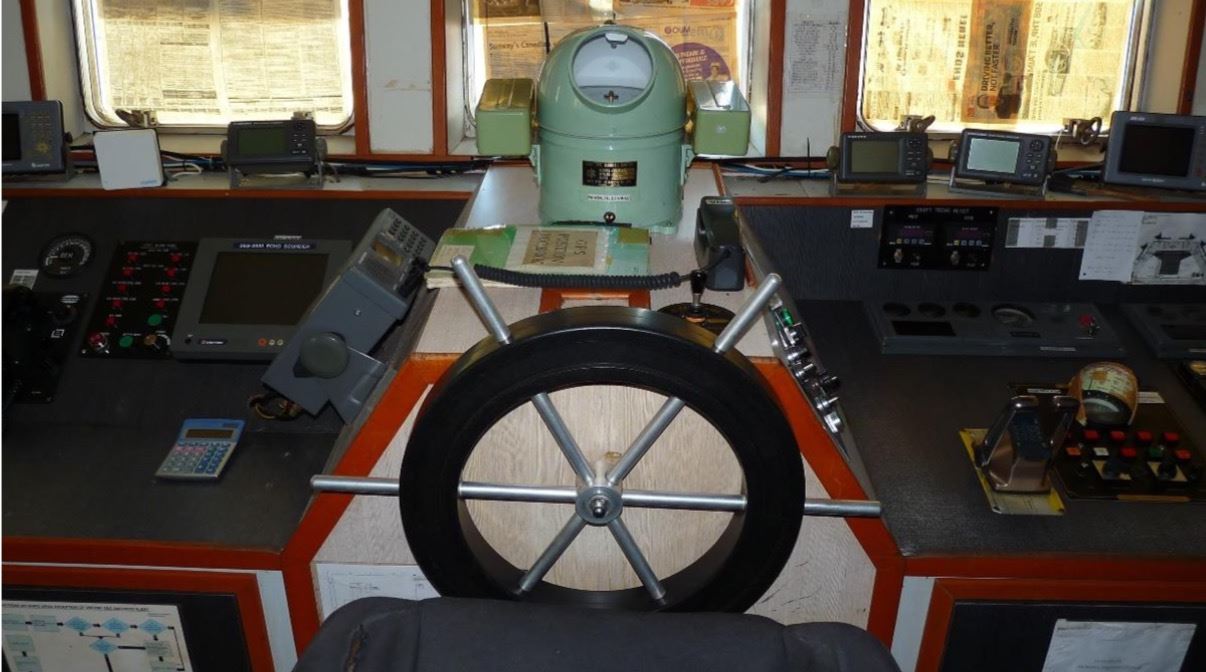

NAVIGATION EQUIPMENT

VHF Radiotelephone x 2 sets

Radar Transponder x 1 set

Navtex Receiver x 1 set

EGC Receiver x 1 set

Satellite EPIRB x 1 set

MF / HF DSC Watch Receiver x 1 set

Inmarsat C x 1 set

Echo Sounder x 1 set

Radar x 1 set

Magnetic Compass x 1 set

GPS navigator x 2 sets

AIS x 1 set

SSB radio x 1 set

Walkie-talkie x 3 sets

DECK MACHINERY

Anchor Windlass / Bow Door Winches: 2 x hydraulic anchor windlass / winches of 5 tons @ 10m/min for 26mm dia cabin

Anchor: 2 x stockless bower anchors each of 1000kg

Storm rail (grab ralls): To be fitted all round deckhouse and wheelhouse and on exterior bulkheads

Lashing lugs: 24 nos of 5 Tons SWL lugs to be arranged on P & S side main deck

PUMPS

Bilge & Ballast Pump: 1 x horizontal self-priming centrifugal of 30M3/hr @ 30M head, 415/3/50

GS & fire pump: 1 x horizontal self-priming centrifugal of 30M3/hr @ 30M head, 415/3/50

F.O. Transfer Pump: 1 x 5M3/hr @ 18M head horizontal centrifugal pump, 415/3/50

FW pressure set: 1 x 3.85M3/hr @ 3 bar c/w 1.1 kw motors @ 2800RPM and pressure tank of 200 ltr

SW pressure set: 1 x 3.85M3/hr @ 3 bar c/w 1.1 kw motors @ 2800RPM and pressure tank of 200 ltr

Cargo F.O. pump: 1 x 50M3/hr @ 50 head, 415/3/50

Cargo F.W. pump: 1 x horizontal centrifugal pump of 60M3/hr @ 50M head, 415/3/50

Emergency portable fire pump: 1 x centrifugal pump of 25M3/hr @ 40M head

Sewage treatment system: for 25 persons

Oily bilge water separator: 1 x 0.5M3/hr with oil content less than 15ppm

Dirty oil/sludge pump: 1 x horizontal gear pump of 3M3/hr @ 15M head, 415/3/50

Emergency / Deadship pump: 1 x 1.5kw, 30VDC headstart engine driven battery charging generator

FIRE FIGHTING SYSTEM

A CO2 system of suitable number of cylindrical c/w necessary valves and fittings are to be installed for the engine room

Fireman’s outfit: 1 complete set

Portable fire extinguisher

LIFE SAVING EQUIPMENT

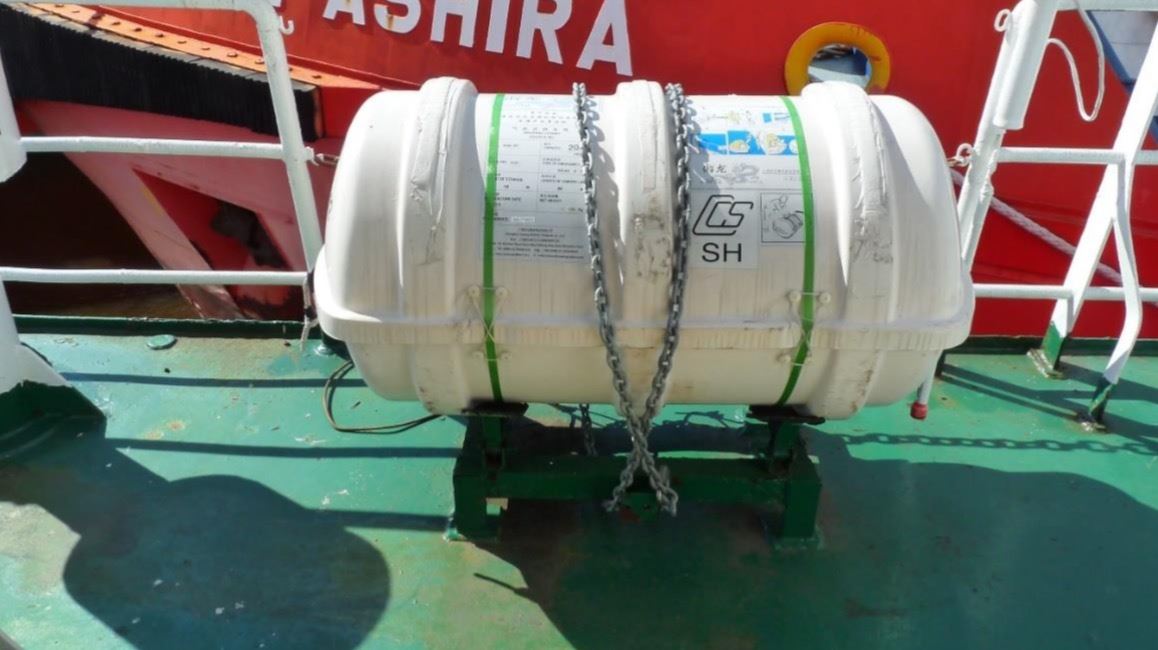

2 x Life Raft min 20 persons

10 sets Life Buoy

24 sets Lifejackets

2 sets Medical Kit for 25 persons

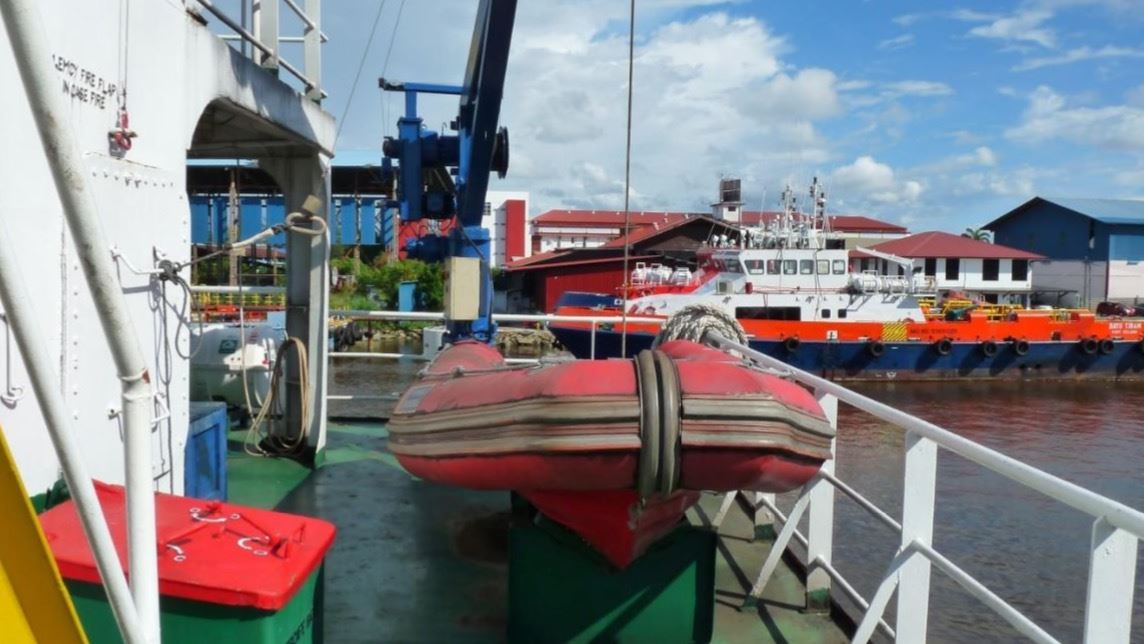

Rescue Boat x 1 set SOLAS approved semi rigid dinghy c/w 25HP outboard engine to carry a min of 6 persons and launching / recovering davit

1 set Line Throwing Appliance

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
