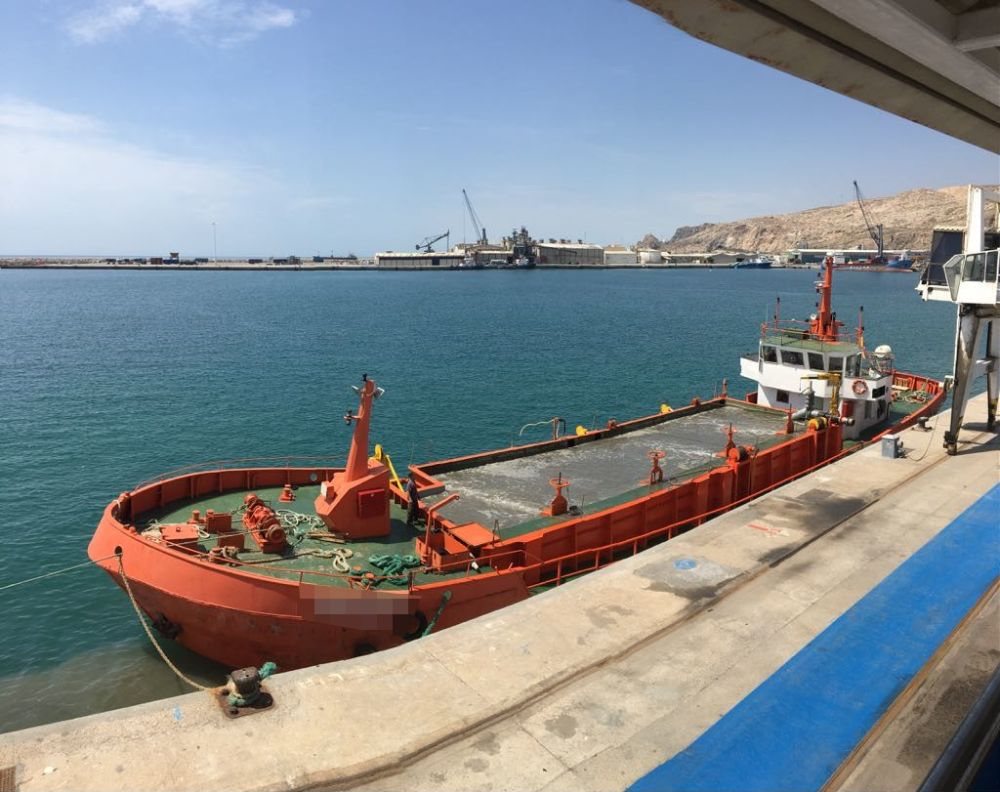

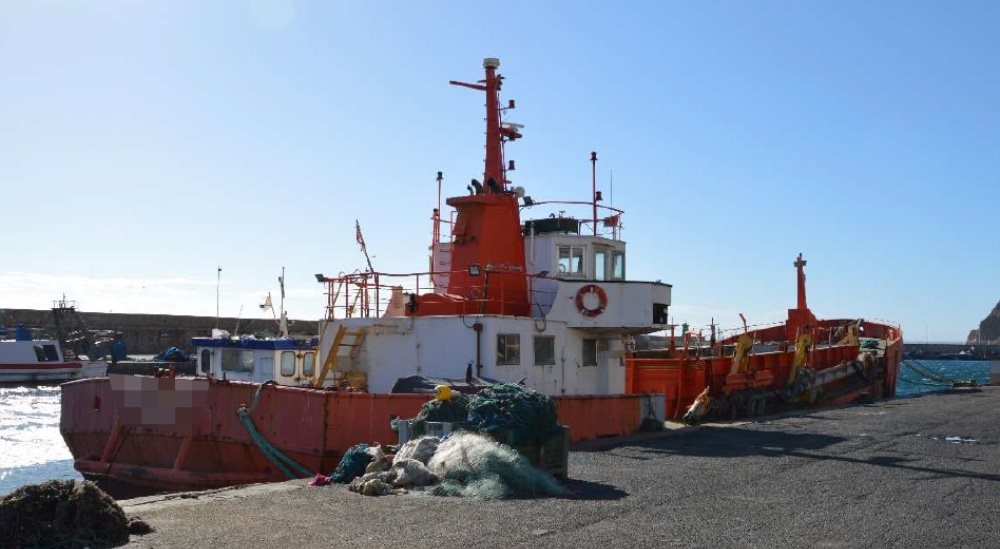

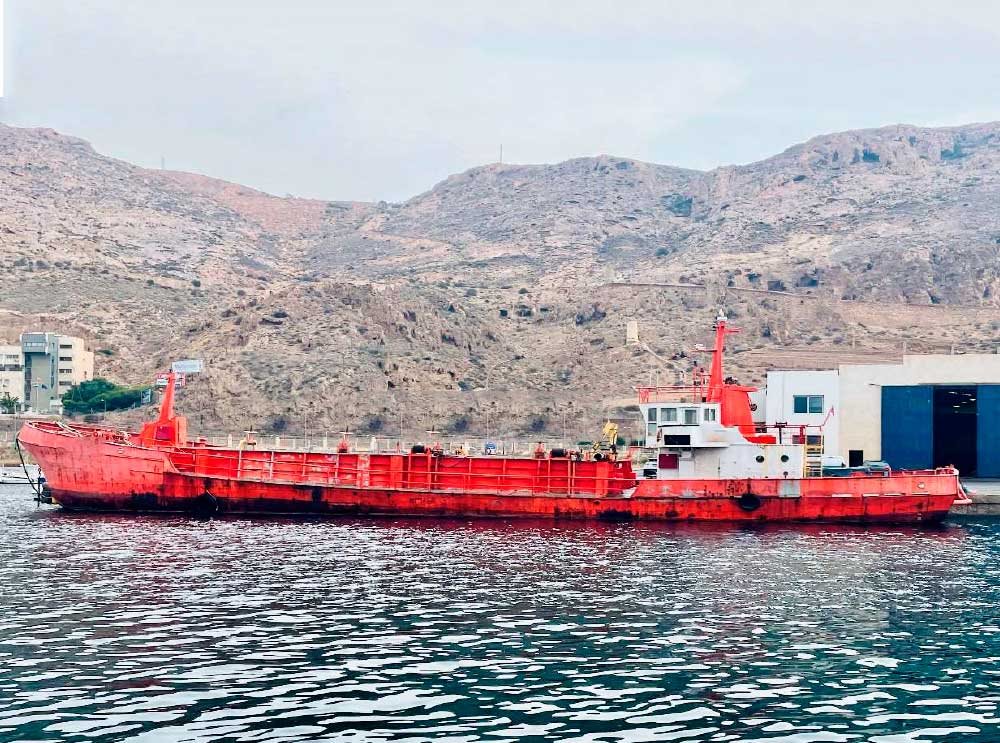

43.5m Trailing Suction Hopper Dredger For Sale

Listing ID - 4802
Description	43.5m Trailing Suction Hopper Dredger For Sale
Date Launched	1981
Length	43.5m (142ft 8in)
Beam	9m (29ft 6in)
Draft	2.25m (7ft 4in)
Note	2 x Caterpillar Engine
Location	South of Spain
Price	Euro 280,000
View As PDF

Built Year, Place: 1981, Spain

Hull Material: Steel

Flag: Spain

Class Society and Notation: Expired

Principle Dimensions

LOA: 43.5m

LBP: 41.75m

Breadth: 9m

Depth: 2.75m

Draft: 2.25m

NT: 166 tons

GT: 349 tons

DWT : 743 tons

Machinery & Propulsion

Total power output: 740 BHP

Main engines driving: 2 x Caterpillar

Main Propulsion System: Twin Screw

Cruising Speed: 9.7 knots

Additional Information

One generator is broken down. Owners have a reconditioned one for replacing it.

It needs to go into dry dock. It could sail to dry dock.

Certificates are expired 2017-2018, last time it was dry docked. Dredging system is reported to be in good condition. Engines are run often.

The sale includes a spare Toyo pump (new has a price of 200.000 Euros)

Photos of the equipment working are from 2018. Laid up since then.

Capabilities:

Chap. G.O.: 23.24 MT

Chap. Oil: 2.28 MT

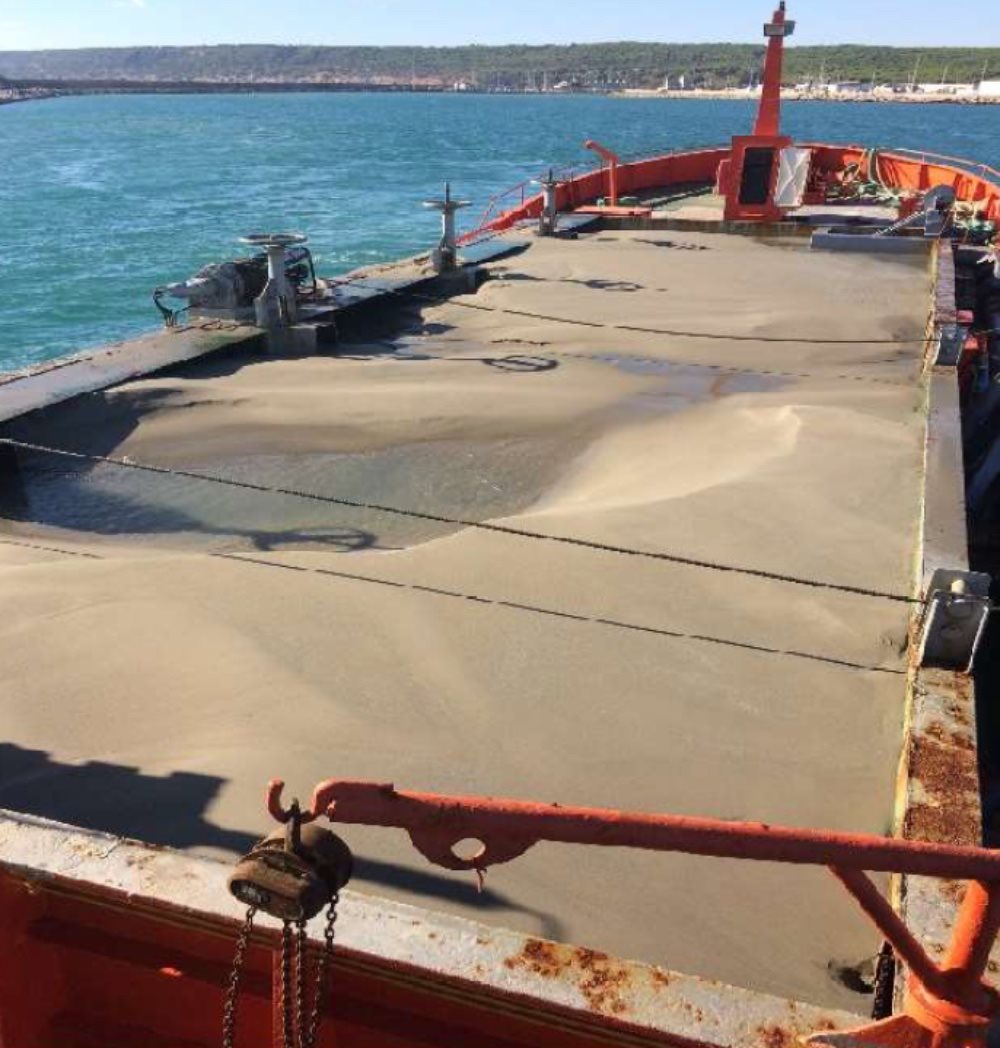

Chap. Fresh water: 6.5 MT Container volume: 400 m3 in two containers

Main engine details

2 x 370 HP = 740 HP = 555 KW // 2 x tail shafts bathed in oil

136 mm diam./port engine no. serial: 99U2208 - starboard engine no. Serial: 99U2259

Auxiliary Motors /Generators:

1 x CATERPILLAR port engine type 3304, 315 HP, serial number 05B1556

1 x CATERPILLAR starboard engine type 3304, 315 HP, serial number 05B1502

1 x DETROIT DIESEL dredger engine type 16V92T 1500 HP, serial number 16VF-05733- 8163-7400

Deck Machinery:

Two Hall type anchors of 350 kg each

Anchor chains of 165 m and 24 mm Diam.

Polyethylene mooring ropes 6 x70 m and 75 mm Diam

Bauer Nielsen hydraulic anchor winches.

Bow and Stern

Volvo servo motor

Electronic devices:

FURUNO radar 24 miles RADAR JRC JMA 1030 alone

SIMRAD bi-frequency probe JRC 650 PROBE

VHF SAILOR single VHF GMDSS ENTEL

GPS solas ocean 5 radio plotter with charts

Pumps:

- Dredging (new): BAGUEMA 300. Direct buster with hydraulic clutch powered by DETROIT DIESEL engine type 16 V 92 T of 1,350 HP

- General services: 2 x 100 m3/h driven by 10 HP motors each 3

- Firefighting: 1 x 150 m3/h powered by an 80 HP motor

- Diesel: 1 x 1 m3/h powered by a 1 HP motor

- Fresh water: 1 x set powered by 1.5 HP motor

Suction pipe diameter: 350 mm

New dredging head: IHC type

Maximum dredging depth: 36 m

Unloading method: through pipe on the port side coupled to an elbow on the deck.

Ballast tanks: 73.38 tons
