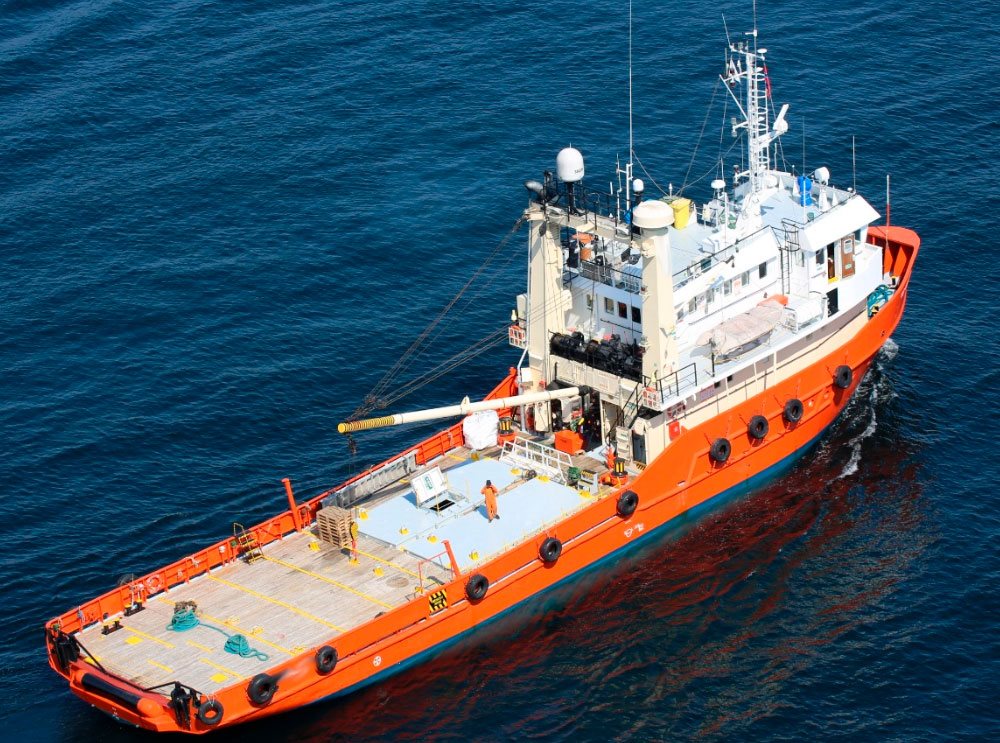

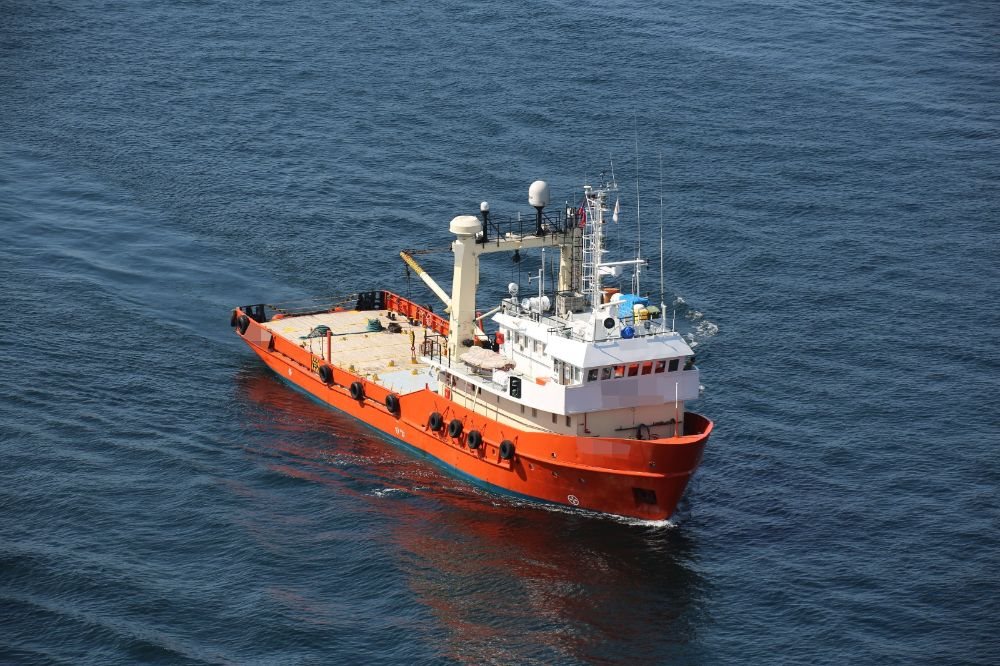

41.65m Supply Support Vessel for Sale

Listing ID - 5586
Description	Supply Support Vessel for Sale
Date Launched	1979
Length	41.65m (136ft 8in)
Beam	9.20m (30ft 2.20in)
Draft	3.67m (12ft 0.50in)
Note	Main Engine: 1 × Wichmann
Location	Cyprus
Price	POA
View As PDF

Built year / Place: 1979 / Norway

Hull Material: Steel

Flag: Cyprus

Class Society and Notation: DNV GL 100 A5, Offshore Supply Vessel

Next Dry Dock: 05/2027

Next Special Survey: 03/2029

Next Annual Survey: As per class schedule

PRINCIPAL DIMENSIONS

Length Overall (LOA): 41.65m

Breadth: 9.20m

Depth: 4.20m

Draft: 3.67m

Net Tonnage (NT): 116 tons

Gross Tonnage (GT): 387 tons

Deadweight (DWT): 471 tons

MACHINERY & PROPULSION

Total Power Output: 1,350 BHP

Main Engine: 1 × Wichmann main propulsion system

Auxiliary Engines: 3 × 90 kW Cummins 6BT 5.9

Propulsion: 1 × variable pitch propeller in combined nozzle rudder

Maximum Speed: 10.5 knots

CARGO AND TANK CAPACITIES

Deck Cargo Capacity: 70 tons

Deck Area: 198 m²

Fuel Oil Tank Capacity: 136 m³

Fresh Water Tank Capacity: 36 m³

TANK CAPACITIES AND DISCHARGE RATES

Marine Diesel Capacity: 136 m³ with discharge rate 14.1 m³ per hour

Fresh Water Capacity: 36.4 m³

Ballast Capacity: 61.5 m³

ADDITIONAL INFORMATION

Operation Area: Worldwide

Endurance: 9,500 nautical miles / approximately 45 days

Freeboard at Maximum Draft: 0.53 m

DECK EQUIPMENT

Under deck hold dimensions 18 m × 8 m with height 2.62 m and total capacity 377 m³.

Total deck area 198 m² (22.5 m × 8.82 m) suitable for loading four 20-foot containers.

Hatch openings consist of two hatches measuring 7 m × 2.8 m each, able to accommodate two 20-foot containers of 8-foot height.

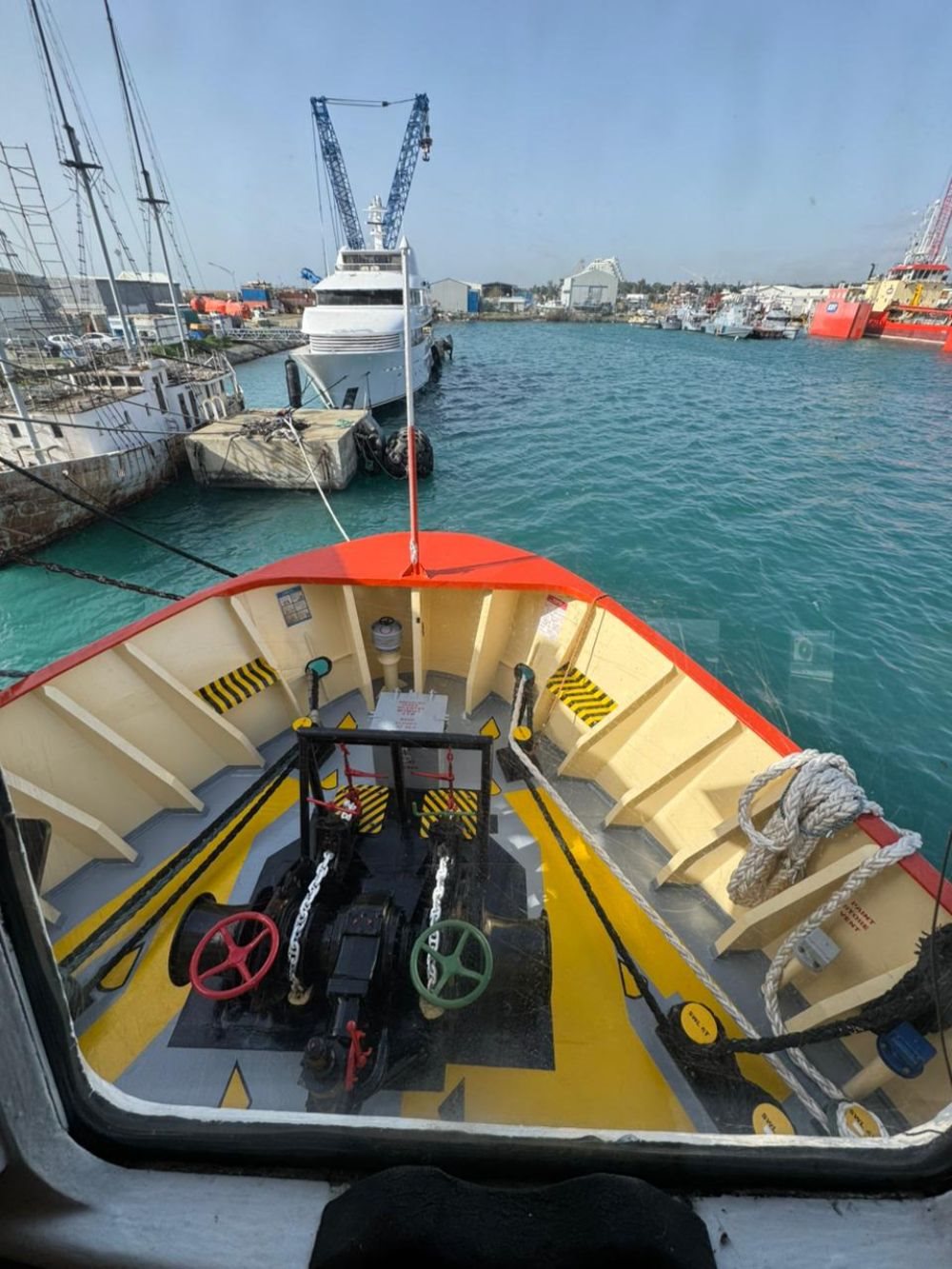

Capstans consist of two Brattvaag hydraulic units with safe working load of 6 tons each.

Deck crane capacity 7.7 tons at 9.7 m outreach.

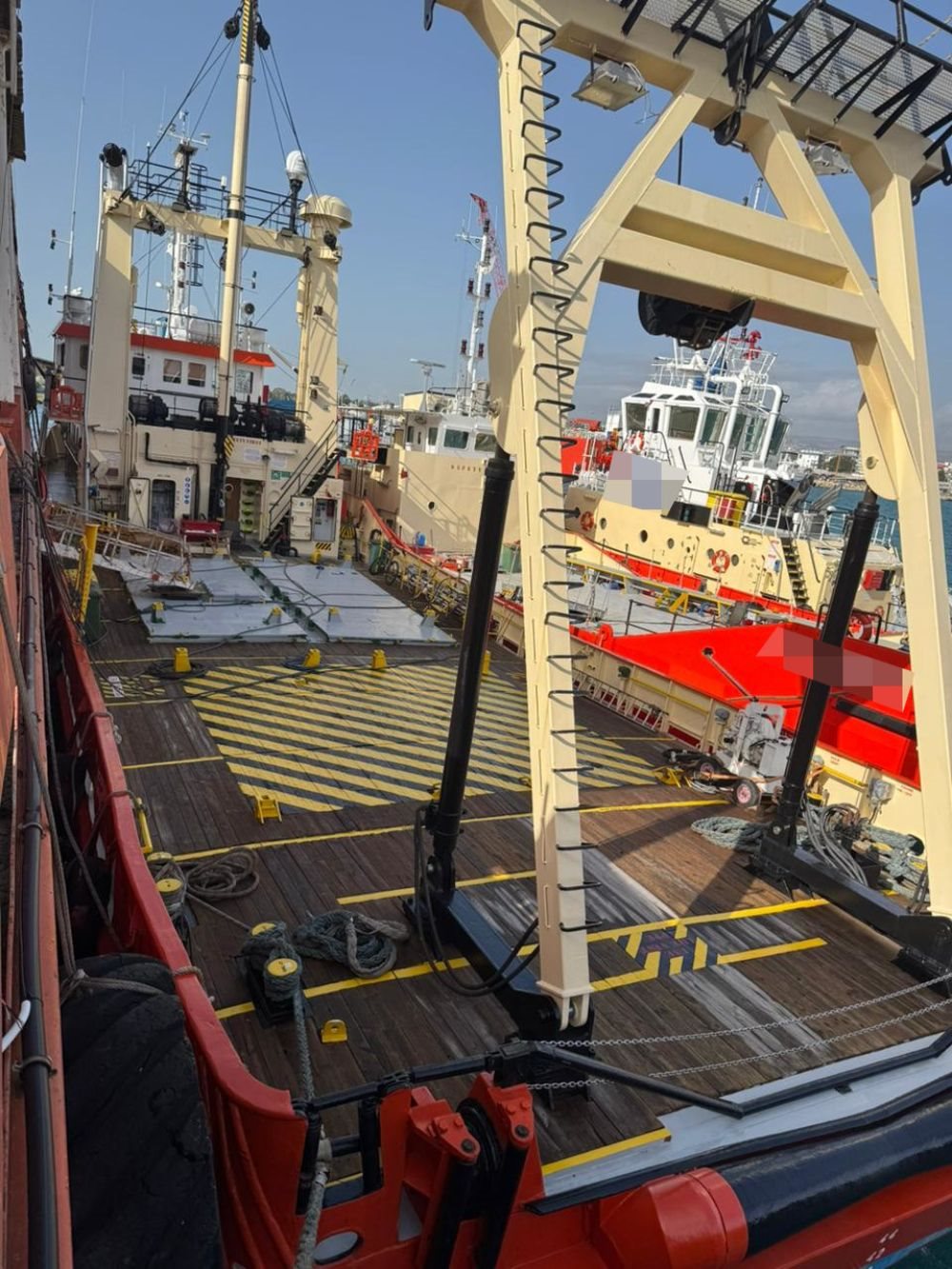

Hydraulic A-frame with 10 tons safe working load when fitted.

Deck winch Brattvaag hydraulic with 50 tons breaking power on inner layer and 25 tons on outer layer.

Stern roller length 6 m with 6 tons safe working load.

Electrical power on deck 230V, 50Hz, three phase.

Bow thruster Brunvoll tunnel type rated at 75 kW.

Stern thruster Celtic hydraulic rated at 107 kW.

Dacon scoop available on request.

NAVIGATION EQUIPMENT

Radar installations include JRC JMR-5410 and SIMRAD R3016 12U/6X, 12 kW X-band with R3000 PSU.

AIS fitted is STN Atlas DEBEG 3400.

Gyro compass Anschutz STD 22.

Autopilot Anschutz Pilotstar D.

Echo sounder and depth recorder STN Atlas Echograph 9205.

GPS systems include Trimble GPSNT 200 and MX Marine MX420 DPS.

Navtex JRC-NCR-300A.

ACCOMMODATION

Total accommodation for 18 persons in bunks.

Additional facilities include a dedicated survey room of 20 m² located aft of the bridge area.

COMMUNICATION

Primary communication system V3 KVH adaptable to client requirements.

Secondary communication system Iridium OpenPort.

GMDSS compliant with sea areas A1, A2 and A3.

The details of all vessels are offered in good faith but we cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. Any buyer should instruct their agents, or their surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to sale, price change, location or withdrawal without notice.
